hey guys i fouend this link somewhere else and taught we should have this here.
it will hopefuly work for someone.

http://www.dsmtuners.com/forums/arti...-catchcan.html

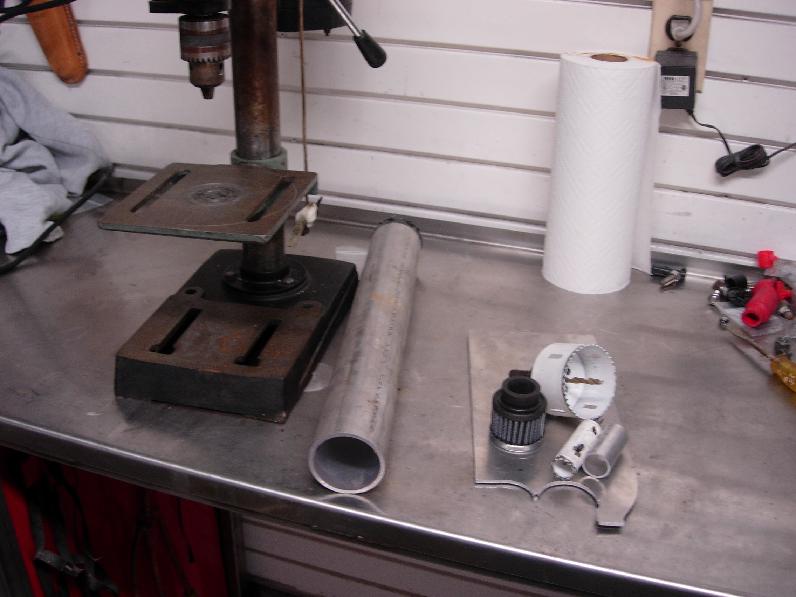

Or for those of us that can weld, here is a basic list in pic form of the materials that you need.

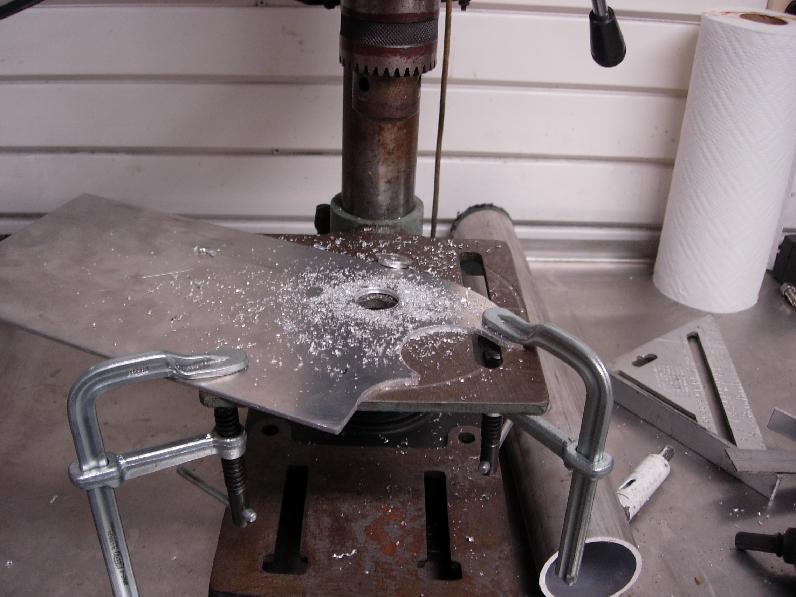

Drill presses and holesaws are great for cutting out circles in aluminum. They work for steel as well but they are loud and aggrevating.



Two hole saws were used for this piece before I welded the litte tube on.



And the basic outline

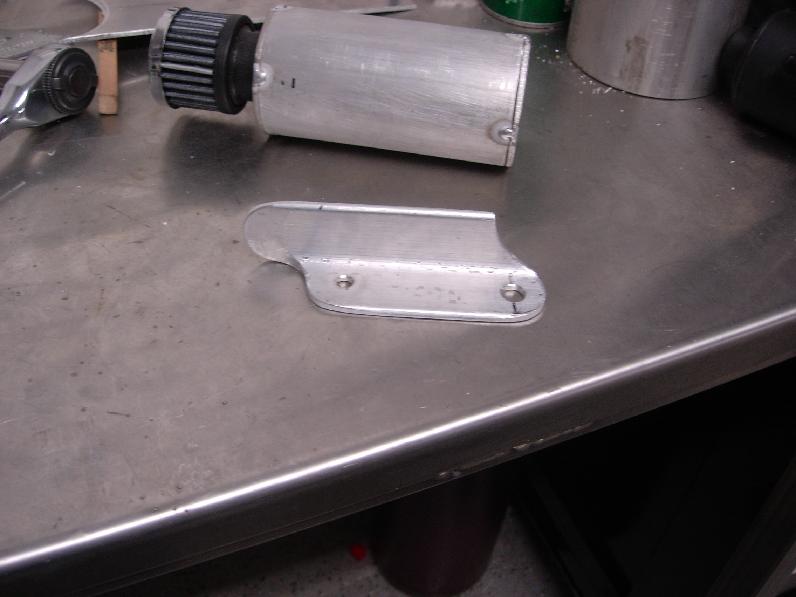

The mounting bracket

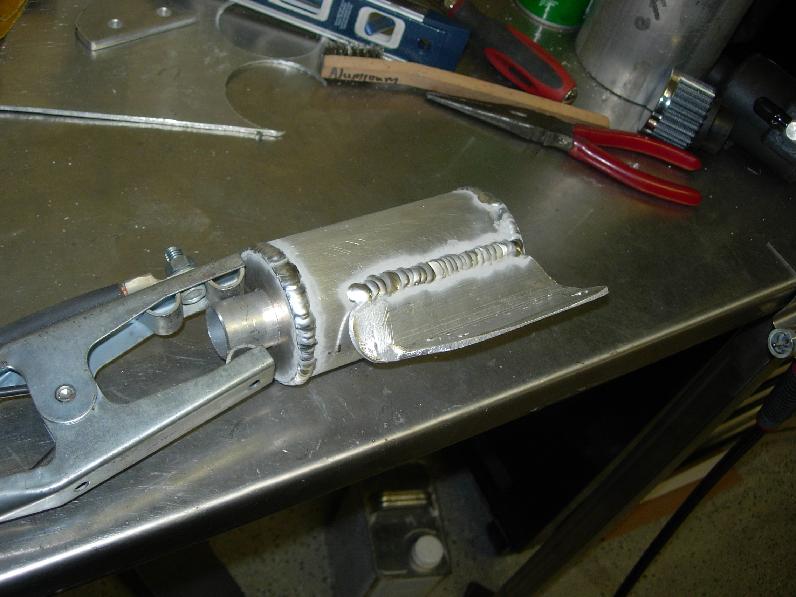

The mounting bracket welded on and the rest of it finish welded



Finished piece



& finally mounted. i plan on changing out those 1/8 NPT -> -4AN fittings with some barbs and using a clear plastic tube as a sight-tube. This is really more of a crankcase vent/puke tank but it will work to keep the crankcase as atmosphere.



looks like you made your own strut tower bar too....



Yup
https://www.rx7club.com/fabrication-250/fc-strut-tower-firewall-bar-engine-torque-brace-774746/



Nice work as always.



These how-to's are cool.....but most people don't have welders. Great documentation though. LOL, I have an "aluminum" brush too.



nice work, must be nice to have access to all those tools



Thank you

I think anyone who owns one of these cars should have at least one welder. My newest toy is my plasma cutter. So much fun, makes things so much faster and less aggrevating. Not to mention the cost of jig saw blades when trying to build something out of 14 Ga or thicker stainless, or anything with curves.

I own. Spent a long time accruing. Many a side job to afford the more expensive ones. Bandsaw is the next big purchase.



Lucky duck! Looks good, the car is coming along well.



imi gonna have to move to your neighborhood. maybe ill have a neighbor i like then. haha.



this has nothing too do with this post but did you make your VMIC and if so did you post it on the forum?



thats too---TitaniumTT



http://reganrotaryracing.tripod.com/catch.htm


Trick. No need to drain the catch can........

Cheap: http://www.homemadeturbo.com/forum/i...?topic=99340.0

I wish i could find the soda bottle catch can.



Why thank you

My neighbors hate me, well really only one. He's called the building inspector in an attempt to get my shop knocked down.

Of course I did, & I did only posted a few pics, not a writeup. Way too involved for most of the peeps on this forum.

huh?



if you dont mind could you send me a link? for the VMIC?



There is no link, I didn't want someone ripping off my idea and finishing it before I did. I only posted an obscure picture or two, like this one
