need help with vacume lines
i have theorys engine with the s5 intake on the s4 block, i have most of the vacume lines attached but im confused on the rest and if the ones i have on are right.
maybe one of you who are near by wouldent mind droping by to help me out. ill try and take some pictures and maybe you can just use paint to numer the lines.
thanks
maybe one of you who are near by wouldent mind droping by to help me out. ill try and take some pictures and maybe you can just use paint to numer the lines.
thanks
02-19-11, 12:22 PM
#2
What am I doing...
Thread Starter
iTrader: (2)
Join Date: Jul 2009
Location: Toronto
Posts: 481
Likes: 0
Received 0 Likes
on
0 Posts

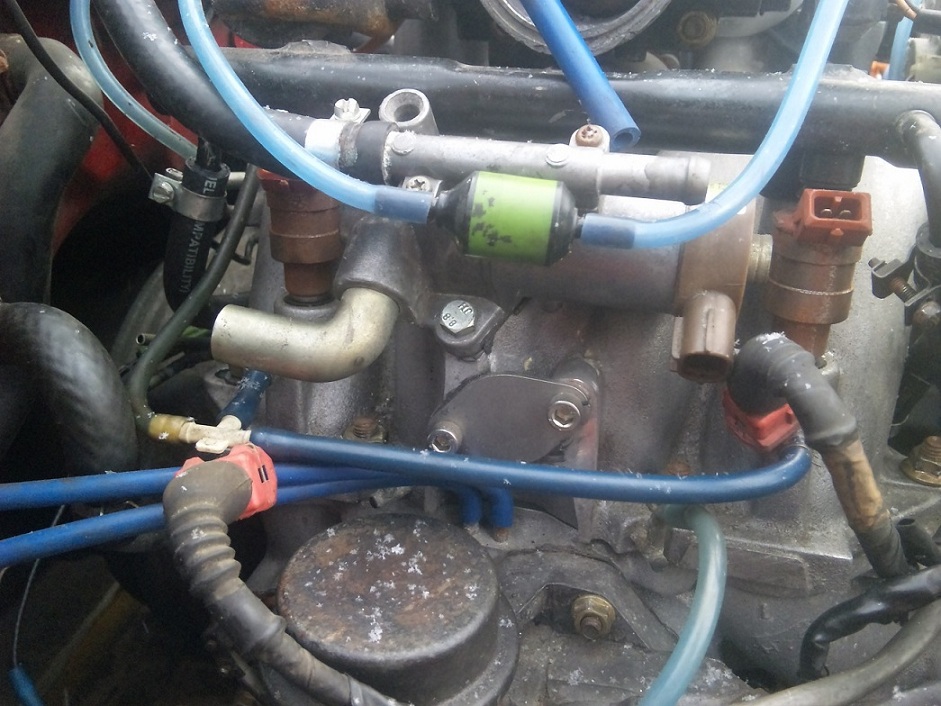

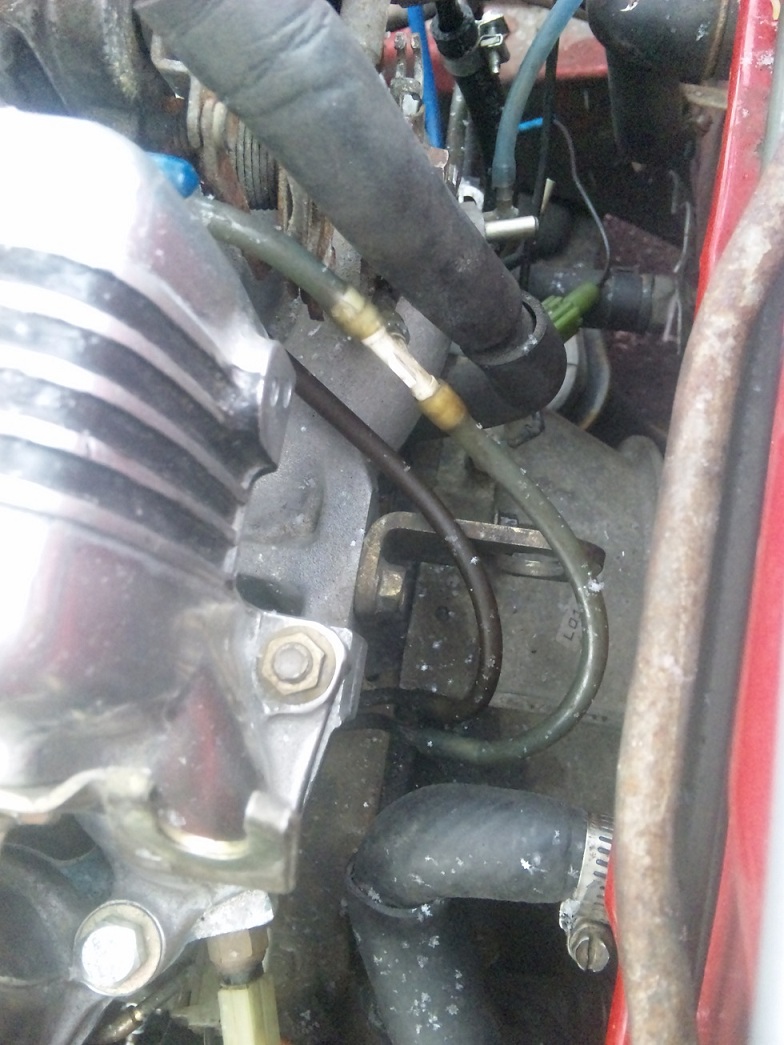

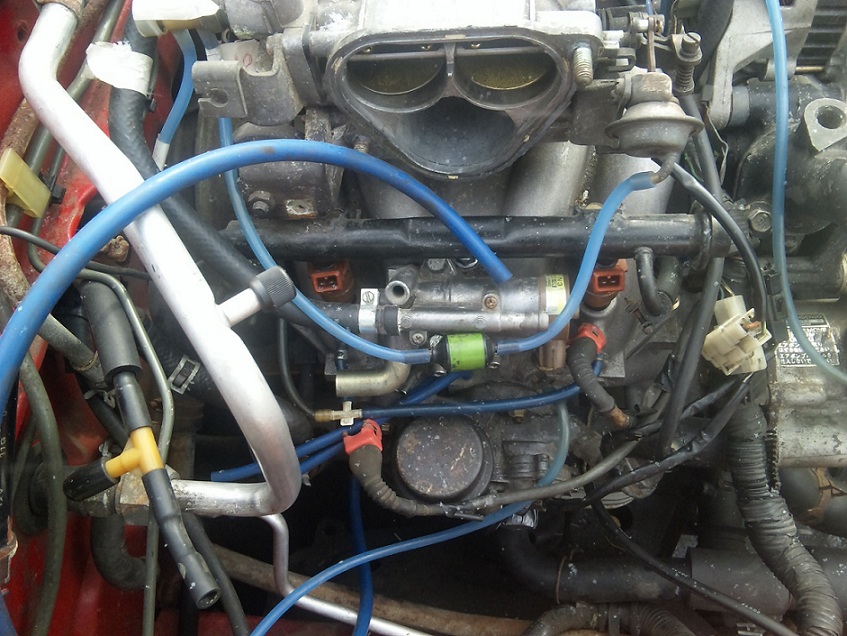

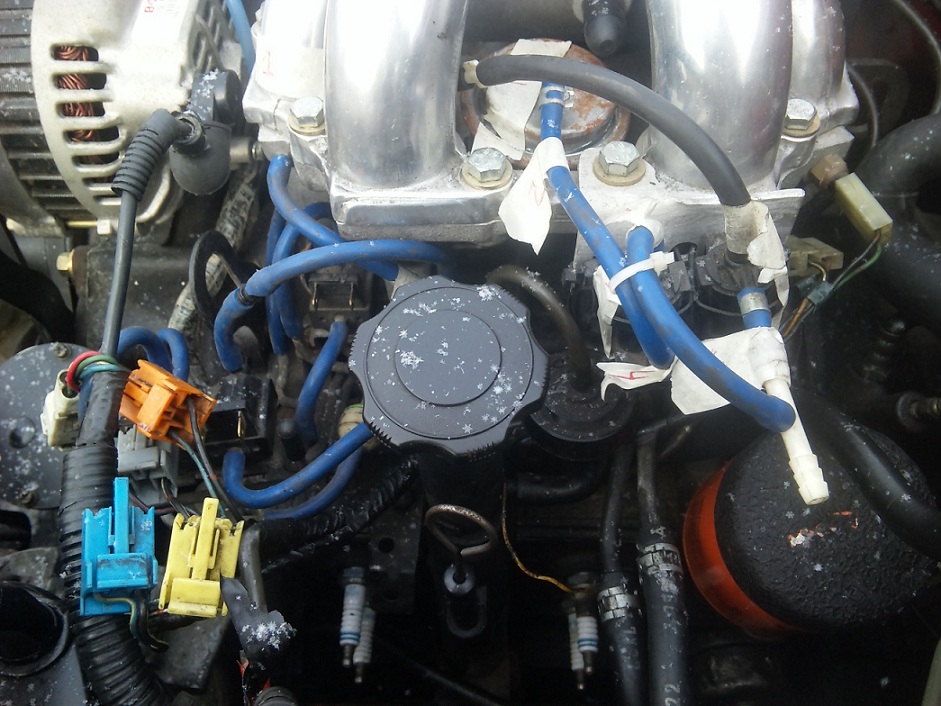

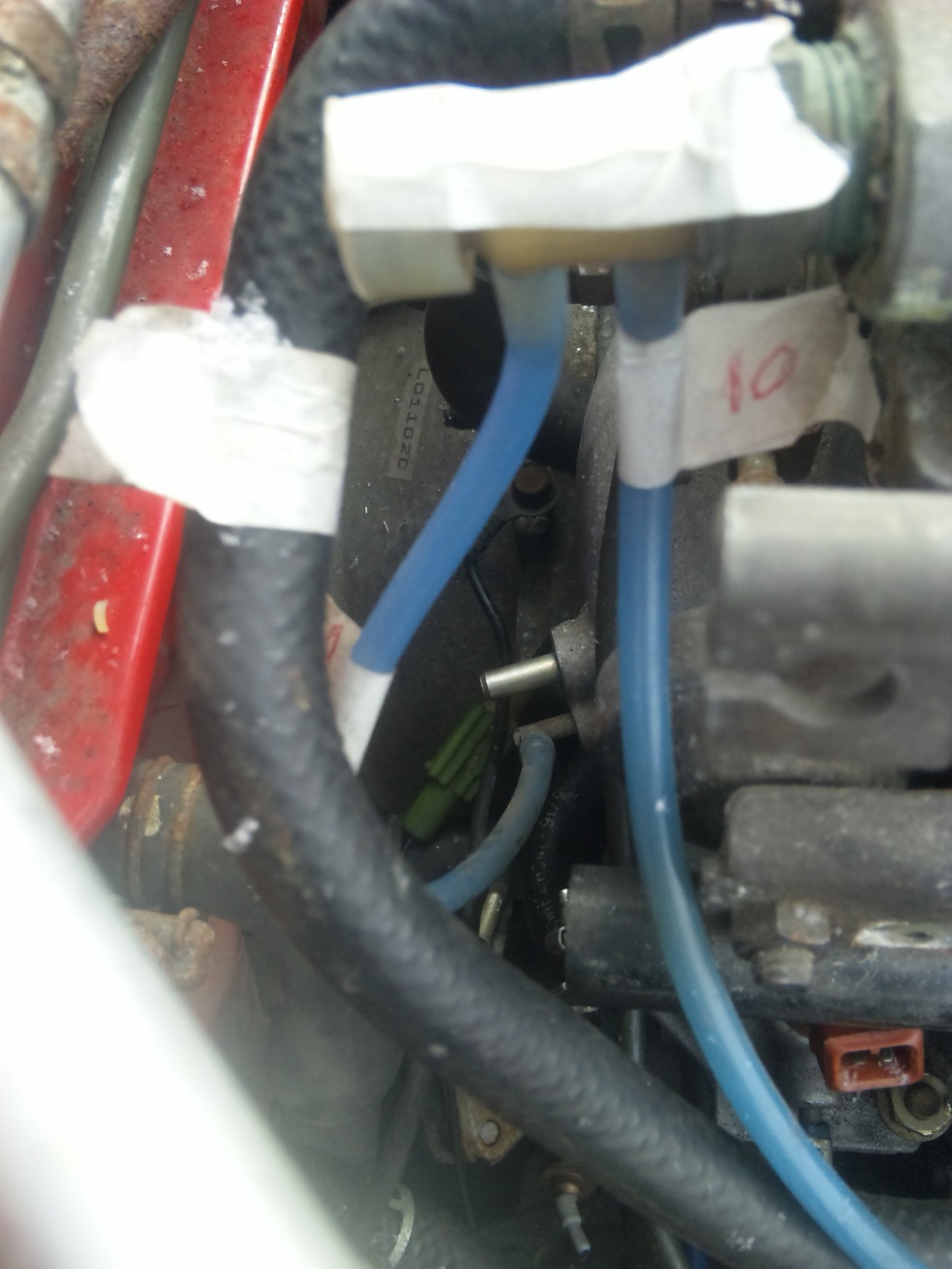

ok so here are some pictures, btw i have looked at the vacume diagrams but it seems so confusing, it also dosent help that im trying to go from s4 block to s5. anyways all help is greatly appreciated.
