stock 13B-REW swapped FC

Reply




Old 03-15-18, 02:55 AM
  #26
20B FC owner
Thread Starter
iTrader: (7)

hIGGI's Avatar

Join Date: Feb 2001
Location: Czech Republic [www.rx7cz.net]
Posts: 4,879
Thanks: 0
Thanked 1 Time in 1 Post
FC ABS not connected yet, but it should be no problem.
There are more challenges to be done yet, one of them being converting FD3S PS pump to run with FC S4 speed sensing (3 hole) PS rack and FC PS computer....
And as well stock FC cruise control.
hIGGI is offline
Reply With Quote
Old 03-18-18, 05:16 PM
  #27
20B FC owner
Thread Starter
iTrader: (7)

hIGGI's Avatar

Join Date: Feb 2001
Location: Czech Republic [www.rx7cz.net]
Posts: 4,879
Thanks: 0
Thanked 1 Time in 1 Post

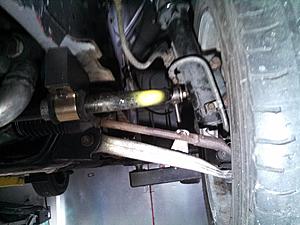

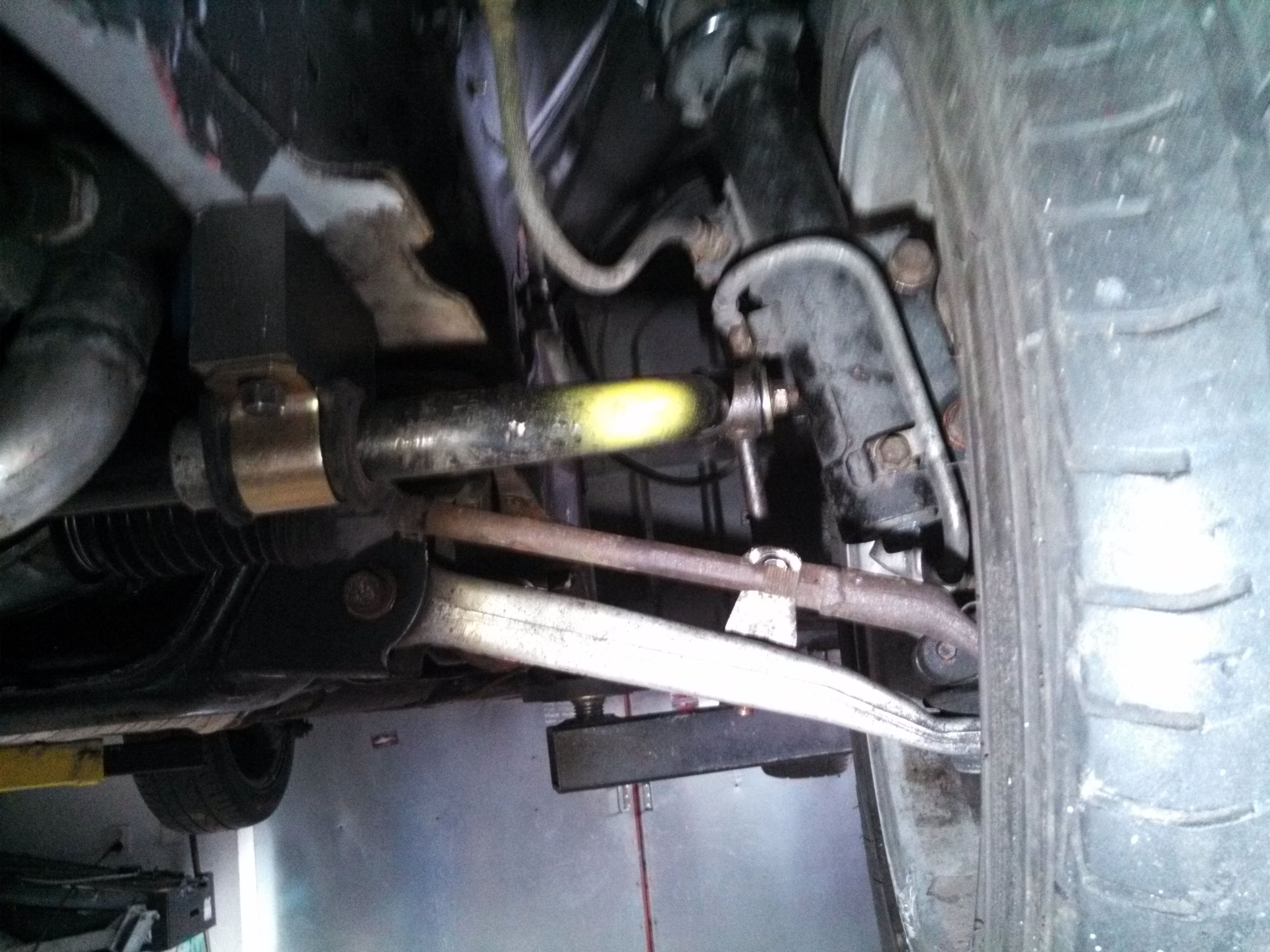

Today i made steel spacers (55mm height) for rx8 swaybar mounting, clearance to rim at full lock is tight, but its there.
Of course spacers could use some cosmetic adjustments, but for function, they are there
Then i started measuring/preparing airbox connections to twins, will get it done tomorrow or day after.
Attached Thumbnails stock 13B-REW swapped FC-img_20180318_165621.jpg
hIGGI is offline
Reply With Quote
Old 03-19-18, 05:24 PM
  #28
20B FC owner
Thread Starter
iTrader: (7)

hIGGI's Avatar

Join Date: Feb 2001
Location: Czech Republic [www.rx7cz.net]
Posts: 4,879
Thanks: 0
Thanked 1 Time in 1 Post

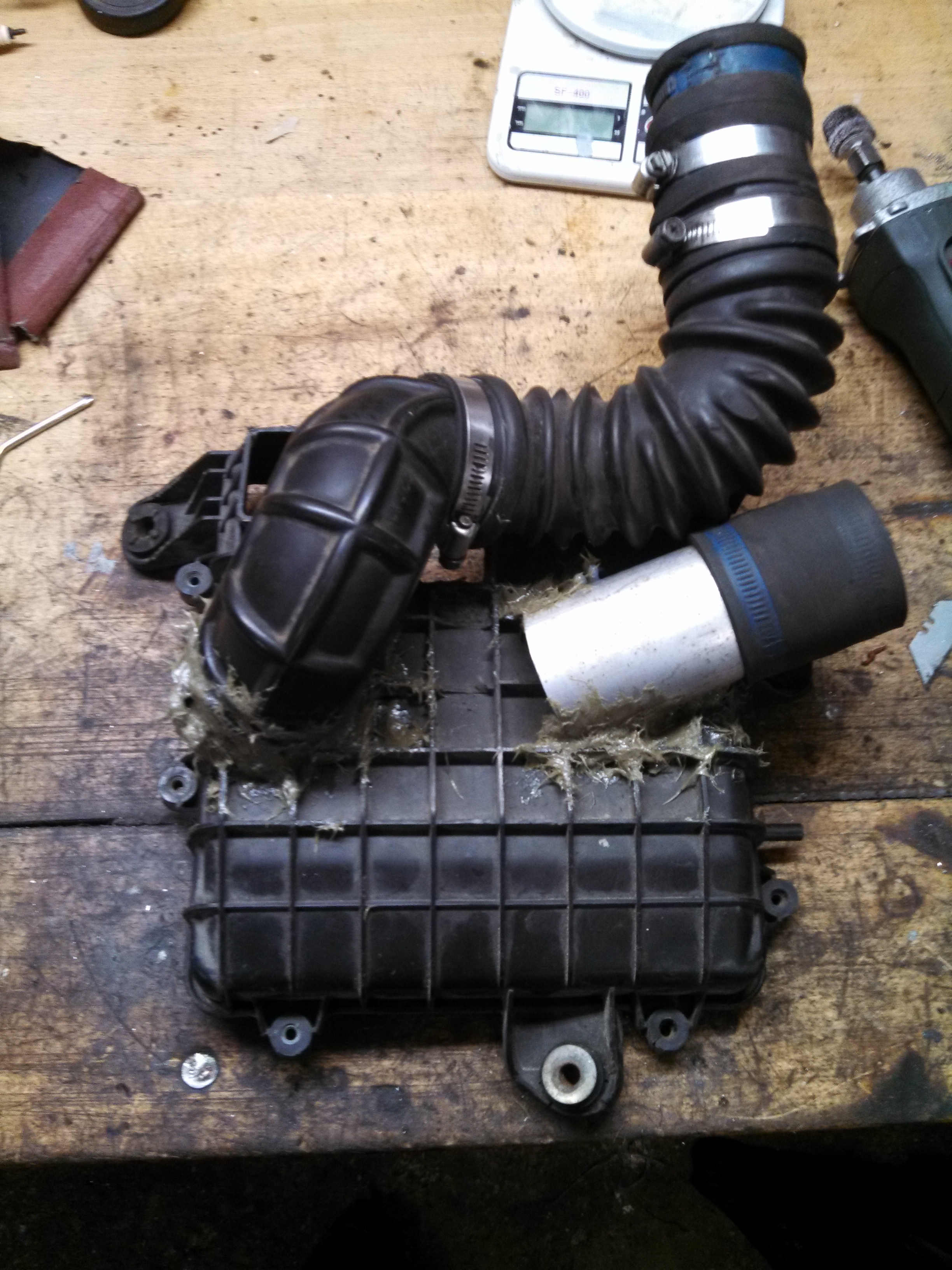

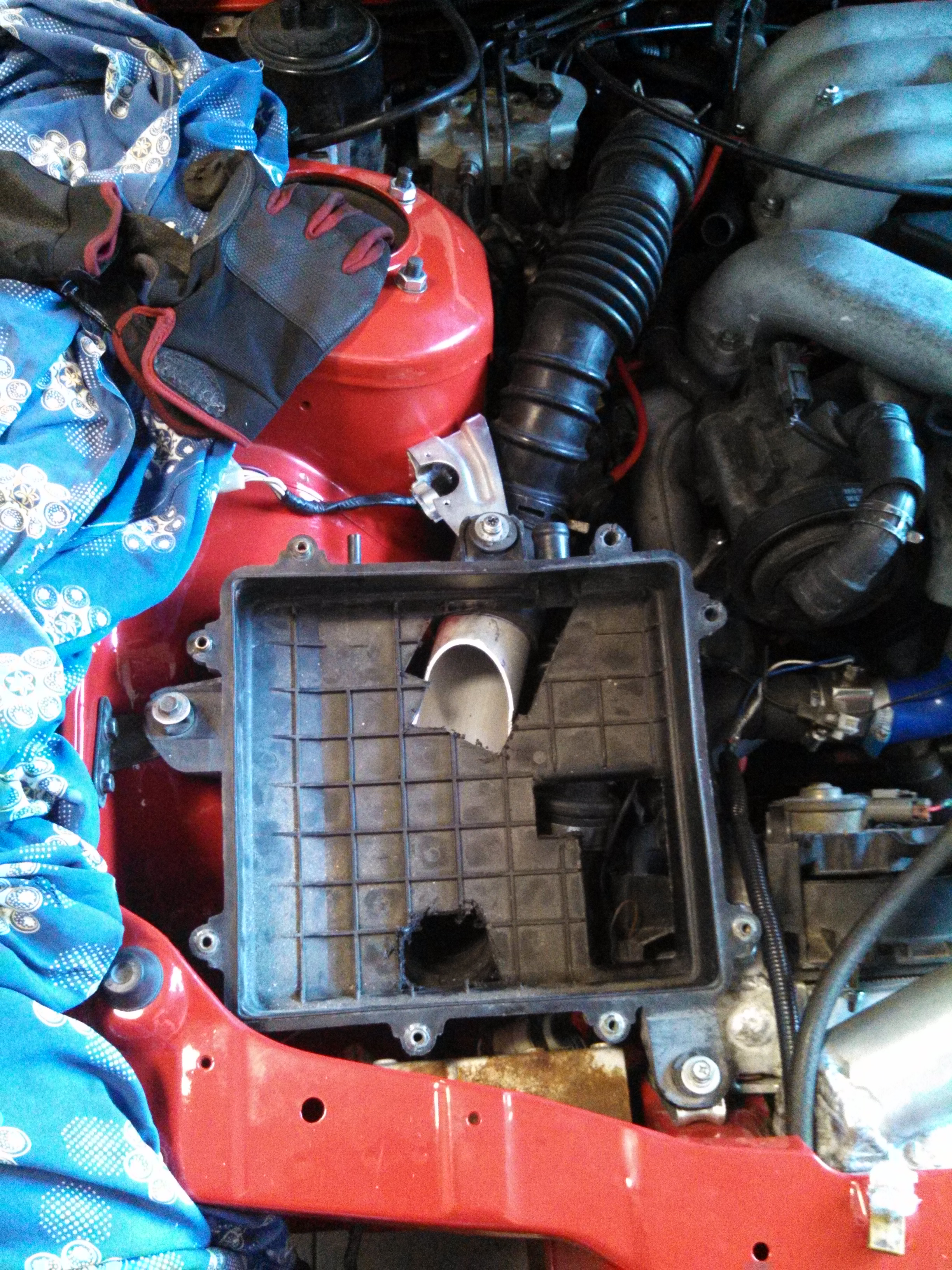

FC airbox modification in progress
Attached Thumbnails stock 13B-REW swapped FC-img_20180319_100424.jpg   stock 13B-REW swapped FC-img_20180319_104702.jpg
hIGGI is offline
Reply With Quote
Old 04-11-18, 03:35 PM
  #29
20B FC owner
Thread Starter
iTrader: (7)

hIGGI's Avatar

Join Date: Feb 2001
Location: Czech Republic [www.rx7cz.net]
Posts: 4,879
Thanks: 0
Thanked 1 Time in 1 Post
Some recent progress

- wired in airpump (using FC A/C relay for that)

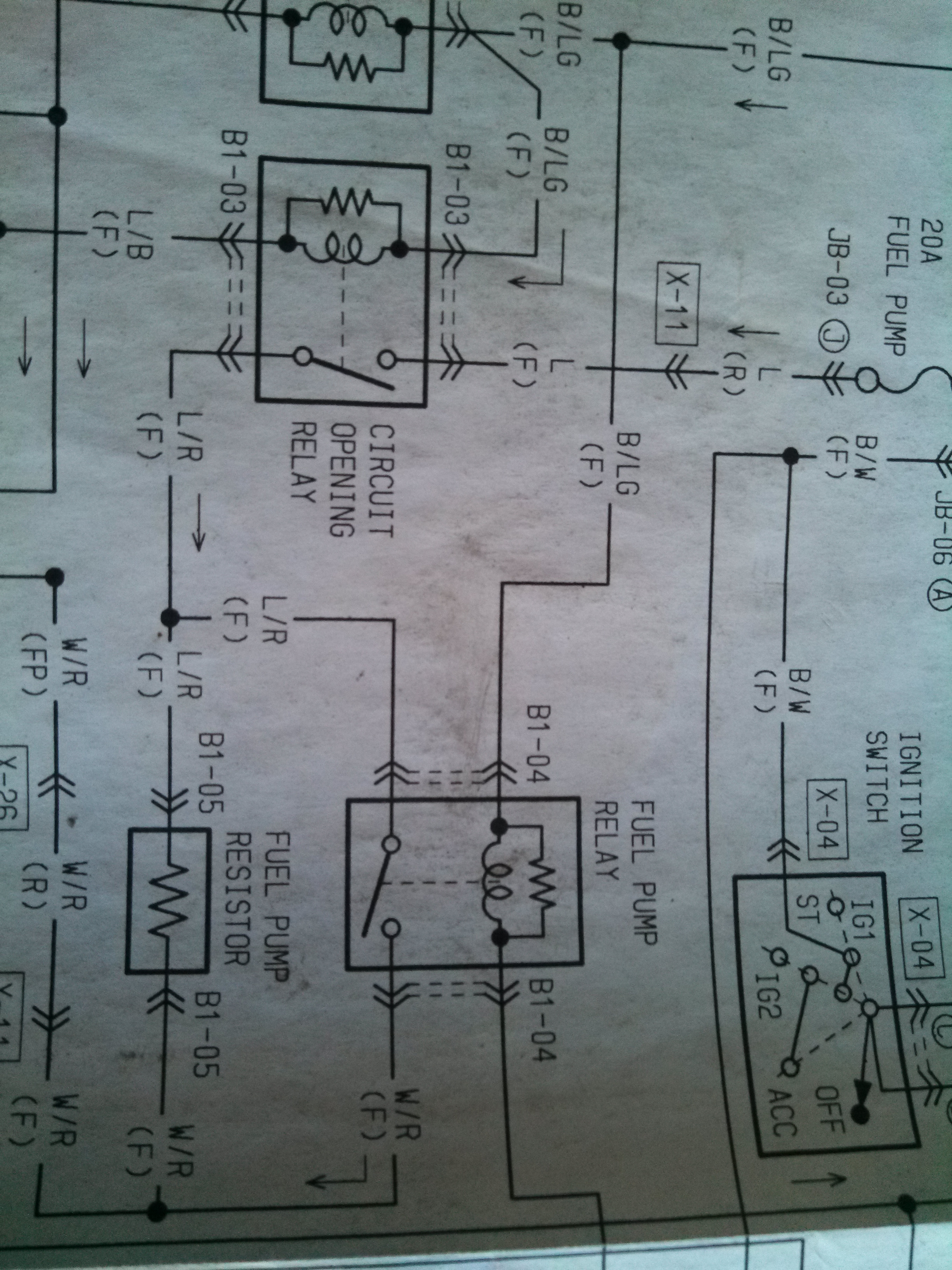

- swapped relay in fuel resistor/relay box (needs to be NO, compared to NC which is originally in S4)

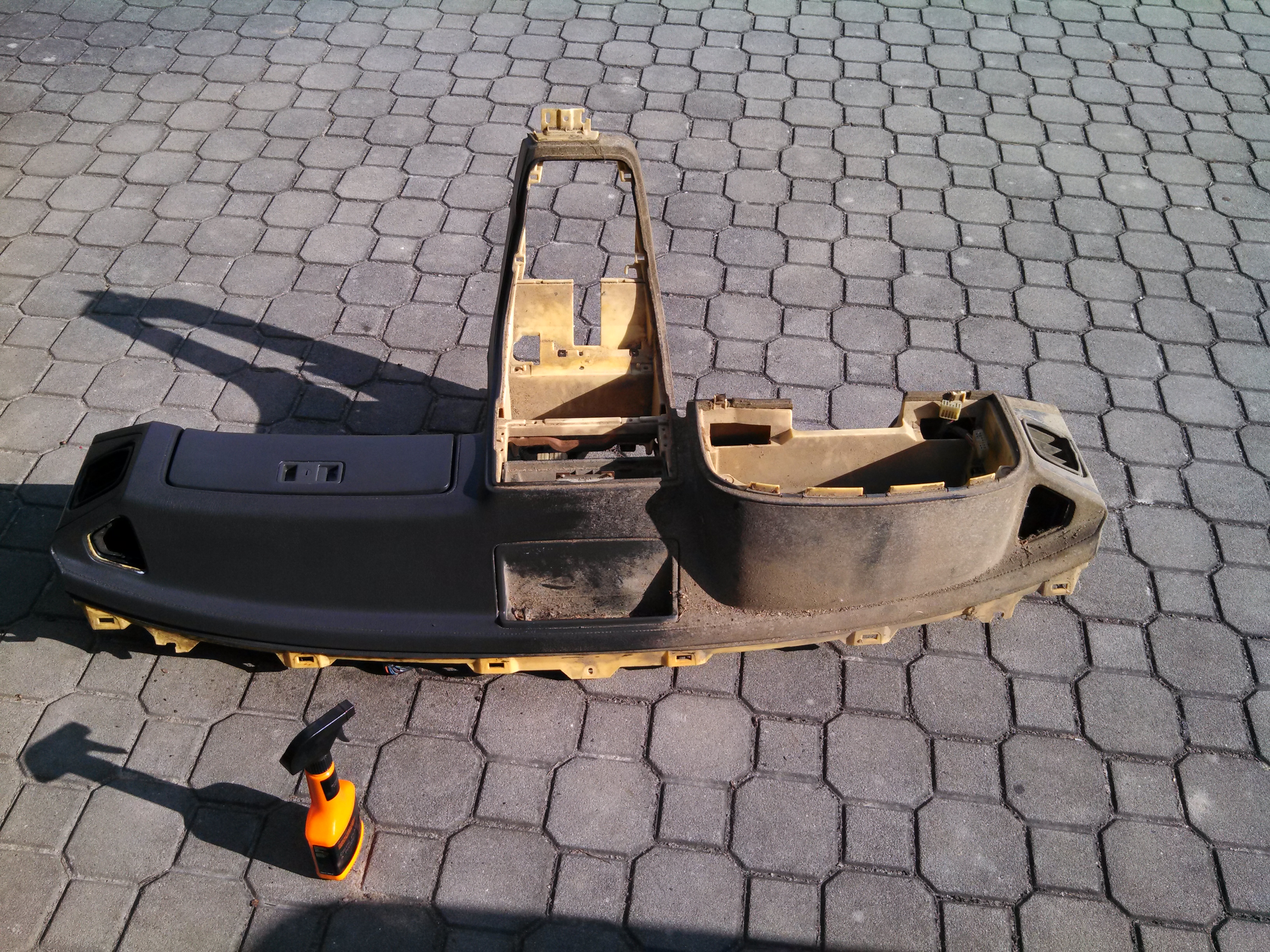

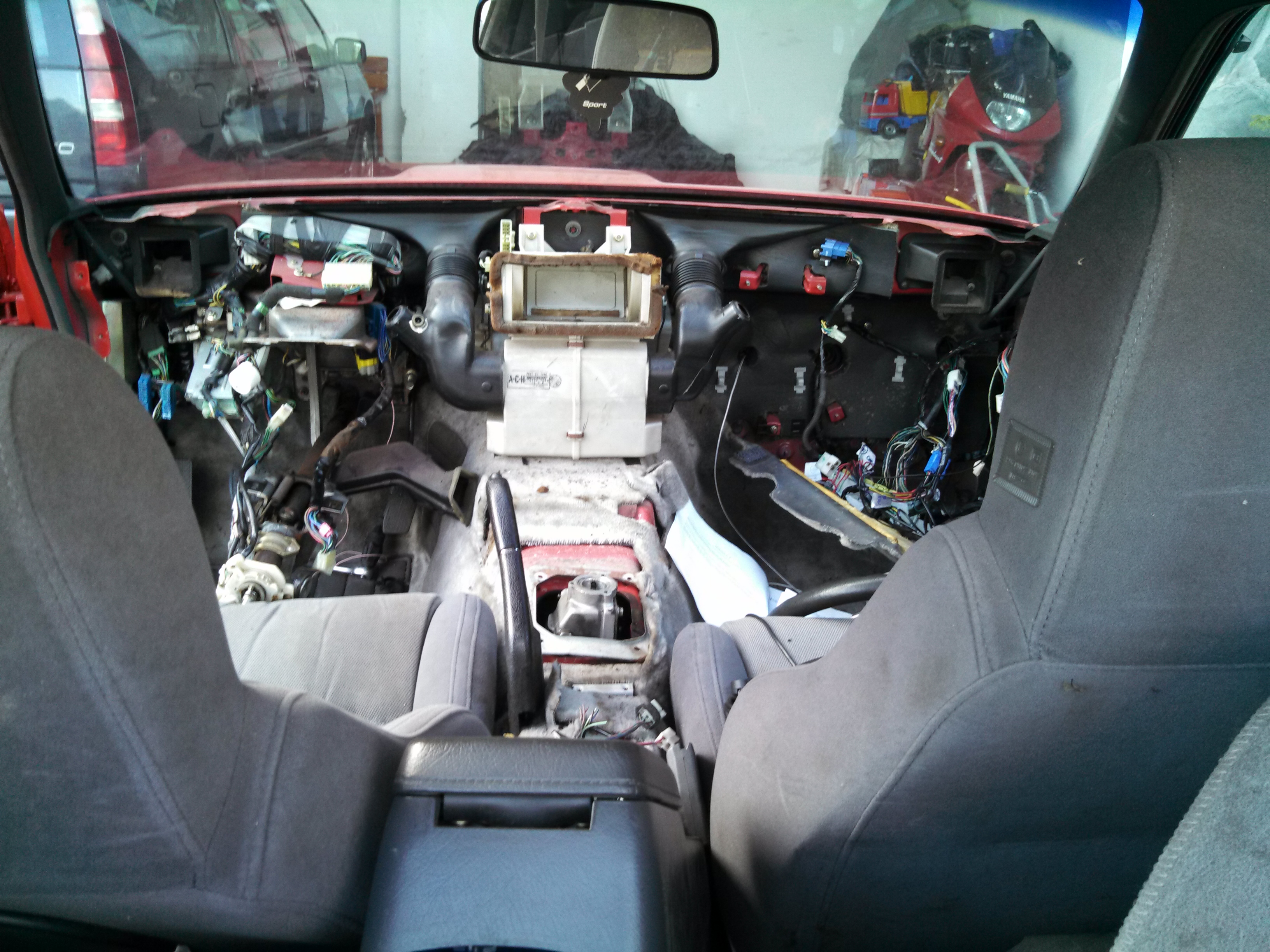

- pulled replacement dash from storage and cleaned it up a bit
- pulled old dash from car
- installed headlights, headlight motors, FTPs, turn signals, fixed some wires
- wired RPM signal to dash and Defi box
- wired speed signal from PS computer to ECU and Defi box
- replaced seals under brake master reservoir
- installed windshield trim (except the top one)
- installed wiper washer tank, brake ducts, wheel well liners and inner tow hooks
- airbox still under works

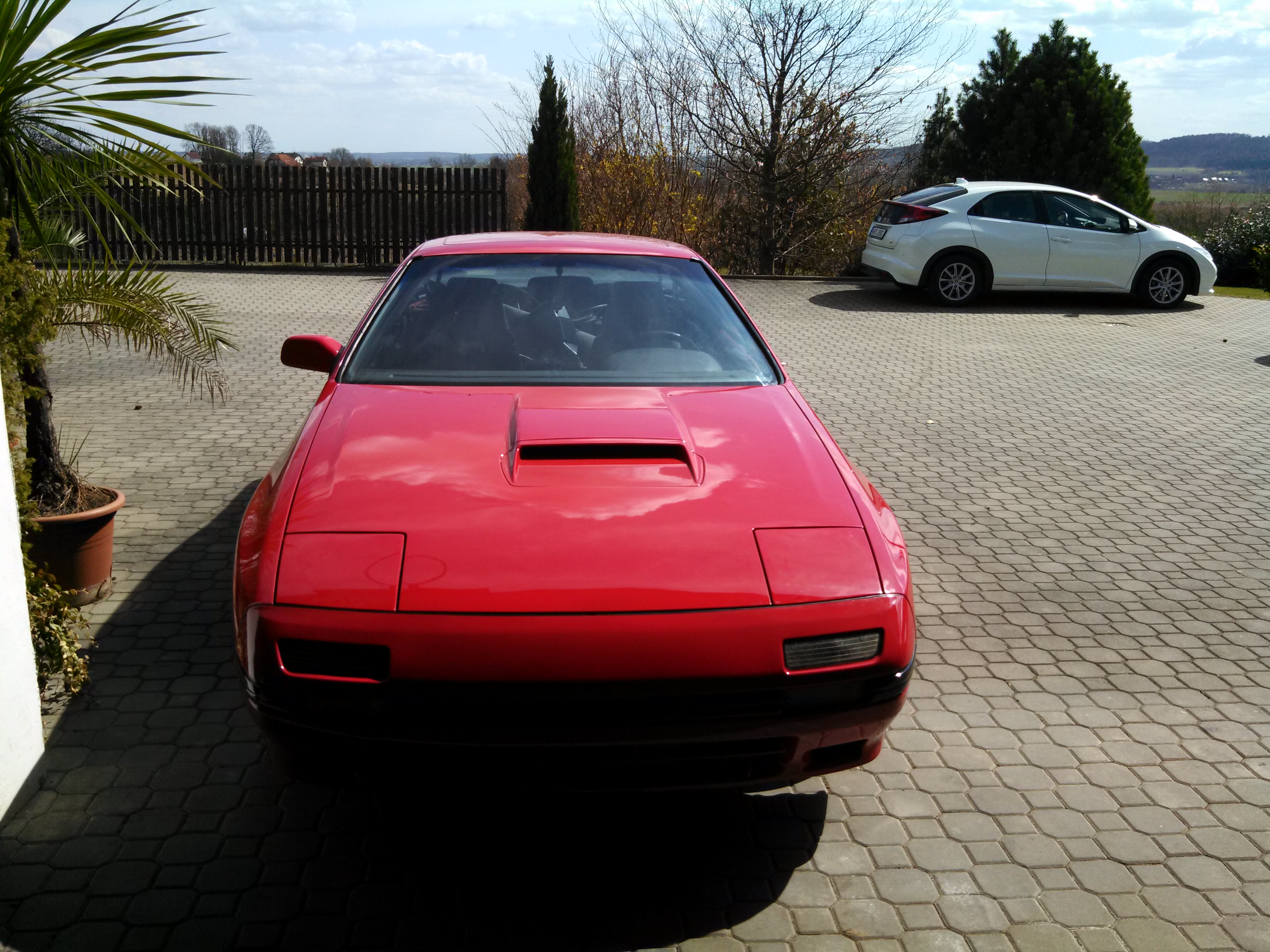

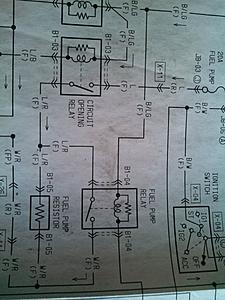

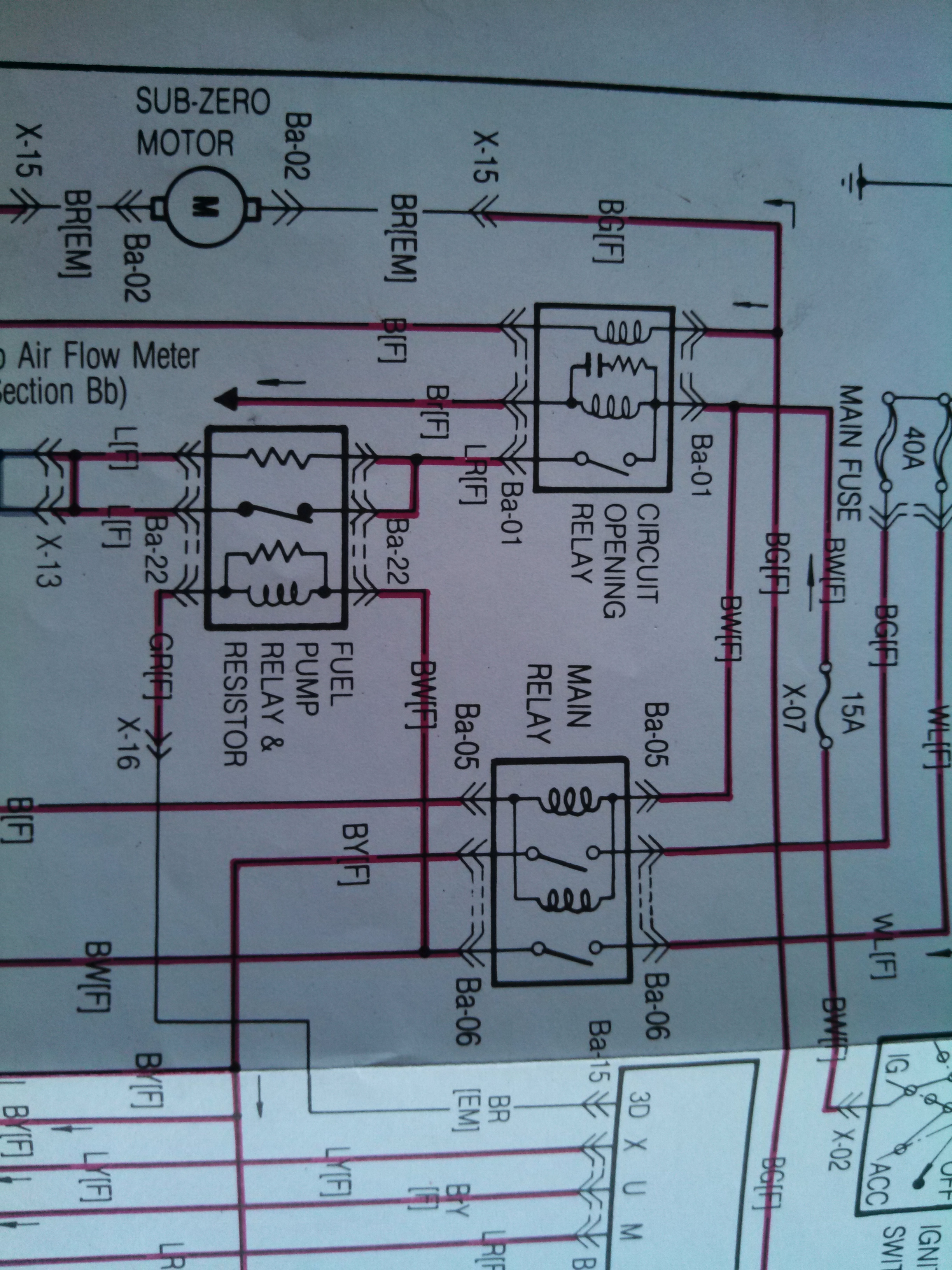

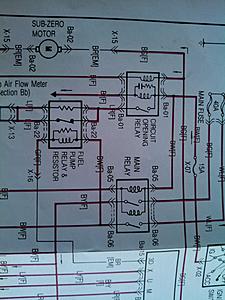

Attached Thumbnails stock 13B-REW swapped FC-img_20180410_140449.jpg   stock 13B-REW swapped FC-img_20180410_140500.jpg   stock 13B-REW swapped FC-img_20180410_162839.jpg   stock 13B-REW swapped FC-img_20180410_181156.jpg   stock 13B-REW swapped FC-img_20180411_185428.jpg

stock 13B-REW swapped FC-img_20180411_185435.jpg
hIGGI is offline
Reply With Quote
Old 04-19-18, 09:57 PM
  #30
Tear you apart
iTrader: (10)

Jager's Avatar

Join Date: Aug 2004
Location: Bemidji Minnesota
Posts: 5,727
Thanked 7 Times in 7 Posts
I like it! It's a cool kind of retro!
Jager is offline
Reply With Quote
Old 04-27-18, 12:25 AM
  #31
Full Member

Join Date: Mar 2015
Location: Vancouver, BC
Posts: 232
Thanks: 0
Thanked 3 Times in 3 Posts
this great info and pics, thank you!
teeson is offline
Reply With Quote
Old 05-10-18, 03:58 PM
  #32
20B FC owner
Thread Starter
iTrader: (7)

hIGGI's Avatar

Join Date: Feb 2001
Location: Czech Republic [www.rx7cz.net]
Posts: 4,879
Thanks: 0
Thanked 1 Time in 1 Post
Recently been working on other stuff and cars, but here is some update :

Heater fan had faulty resistor, replaced.

US S4 dashboard wiring using different connector than EU dashboard wirign, had to make jumper

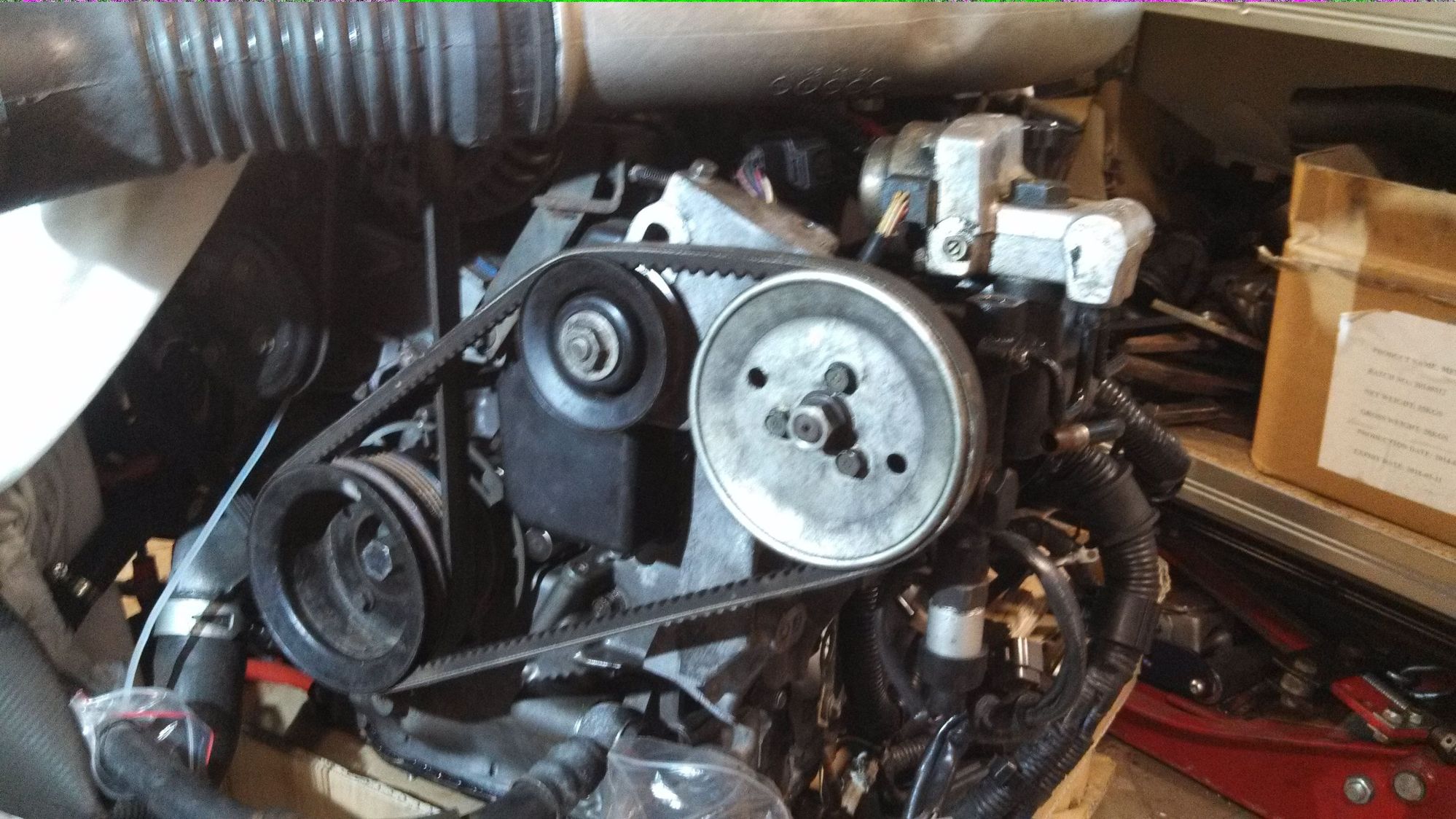

started on FC PS bracket modification to fit onto REW block (oem FC PS pulley setup, oem FC hoses to rack, just modification to FC bracket and installing front FC PS pulley on engine instead of original multirib)





hIGGI is offline
Reply With Quote
Old 05-11-18, 01:10 PM
  #33
Money talks.Mine says bye
iTrader: (18)

cone_crushr's Avatar

Join Date: May 2005
Location: LBC, CA
Posts: 665
Thanked 0 Times in 0 Posts
All your mods typically have good rationale and I'm sure these are no different, but a couple choices appear odd.
Dash: Why not just pull connector pins and reinstall into USDM connector? (or vice versa) Are the pins incompatible with the connector shell?
PS: Very understandable that you'd go this route and retrofit FC PS pump onto REW block, but you're losing a great benefit of the FD - the serpentine belt system. Has anyone ever figured out how to adapt the FD PS pump to the FC computer ? I've never seen it done before.
And you better paint that PS pulley before it rusts.
You're almost there.

Last edited by cone_crushr; 05-11-18 at 01:18 PM.
cone_crushr is offline
Reply With Quote
Old 05-11-18, 04:17 PM
  #34
20B FC owner
Thread Starter
iTrader: (7)

hIGGI's Avatar

Join Date: Feb 2001
Location: Czech Republic [www.rx7cz.net]
Posts: 4,879
Thanks: 0
Thanked 1 Time in 1 Post
Yes, pins are incompatible and i made jumper harness for simple reason. To keep both harnesses stock, so anyone else than me can refer it to factory manuals if ever needed.
I have never had issues with vbelt on PS pump, even when competitive drifting FC for some years, not worried about it in street car. Serpentine belt setup is of course retained for water pump and alternator, that stays FD. Pretty much like 20B setup.
To keep serpentine and OEM FD pump, you would need to do lot more modifications which i was planning before, but this was much easier.
Another easy route is custom making serpentine belt pulley for FC PS pump, which i might eventually do later on.
PS pulley wont rust, its been sandblasted and silver zinc coated.

Today i mounted it on car, filled up and tested. All good
Actually mounted on airbox and took it for short test drive


hIGGI is offline
Reply With Quote
Old 05-12-18, 02:20 PM
  #35
Money talks.Mine says bye
iTrader: (18)

cone_crushr's Avatar

Join Date: May 2005
Location: LBC, CA
Posts: 665
Thanked 0 Times in 0 Posts
Incredible - looks like the FC/D is ready to roll. What ECU & boost control system are you using?
I now see many steel underhood brackets have been zinc plated as well.

Last edited by cone_crushr; 05-12-18 at 02:27 PM.
cone_crushr is offline
Reply With Quote
Old 05-13-18, 02:13 PM
  #36
20B FC owner
Thread Starter
iTrader: (7)

hIGGI's Avatar

Join Date: Feb 2001
Location: Czech Republic [www.rx7cz.net]
Posts: 4,879
Thanks: 0
Thanked 1 Time in 1 Post
So far i am on stock FD ECU on stock FD engine harness, including stock boost solenoids.....
hIGGI is offline
Reply With Quote
Old 05-28-18, 03:55 PM
  #37
20B FC owner
Thread Starter
iTrader: (7)

hIGGI's Avatar

Join Date: Feb 2001
Location: Czech Republic [www.rx7cz.net]
Posts: 4,879
Thanks: 0
Thanked 1 Time in 1 Post
Little updates, rewired fuel pump resistor/relay, but right now i have FD ecu error code 51, fuel pump relay.
With PowerFC car runs in boost, in stock ECU it goes into limp mode. Need to troubleshoot that fuel pump relay, maybe FD ecu is not liking FC relay/resistor
hIGGI is offline
Reply With Quote
Old 05-30-18, 02:59 PM
  #38
20B FC owner
Thread Starter
iTrader: (7)

hIGGI's Avatar

Join Date: Feb 2001
Location: Czech Republic [www.rx7cz.net]
Posts: 4,879
Thanks: 0
Thanked 1 Time in 1 Post
Another little updates today.
Fixed wiring to fuel pump relay/resistor, stock ECU now does click relay prior start and no more error codes / limp mode.
Tested idiot lights, all good.
ABS works.
Plugged in PowerFC for swich/sensor check, modified FC clutch switch to revert its operation.
Next to do :
Unplug diode between clutch and stop switch. Check if brake booster leak is not just the oring between booster and MC and dress up interior
hIGGI is offline
Reply With Quote
Old 05-31-18, 07:33 AM
  #39
rotorhead
iTrader: (3)

arghx's Avatar

Join Date: Aug 2004
Location: cold
Posts: 15,584
Thanked 39 Times in 39 Posts
Got a datalogit? Can you post a log with sensors/switches enabled in monitor window?
arghx is offline
Reply With Quote
Old 05-31-18, 02:36 PM
  #40
20B FC owner
Thread Starter
iTrader: (7)

hIGGI's Avatar

Join Date: Feb 2001
Location: Czech Republic [www.rx7cz.net]
Posts: 4,879
Thanks: 0
Thanked 1 Time in 1 Post
Originally Posted by arghx View Post
Got a datalogit? Can you post a log with sensors/switches enabled in monitor window?
Sure, will do
hIGGI is offline
Reply With Quote
Old 06-01-18, 02:07 PM
  #41
20B FC owner
Thread Starter
iTrader: (7)

hIGGI's Avatar

Join Date: Feb 2001
Location: Czech Republic [www.rx7cz.net]
Posts: 4,879
Thanks: 0
Thanked 1 Time in 1 Post

Interior work today, rear hatch, rear bins dress up.
Then i made cruise control cable and shortened throttle cable.
Have not been driving it to test it, will see if cruise works tomorrow once i finish up some interior bits.
hIGGI is offline
Reply With Quote
Old 06-02-18, 02:49 PM
  #42
20B FC owner
Thread Starter
iTrader: (7)

hIGGI's Avatar

Join Date: Feb 2001
Location: Czech Republic [www.rx7cz.net]
Posts: 4,879
Thanks: 0
Thanked 1 Time in 1 Post
Cruise control works.
Had to put in back stock clutch switch and do change in wiring - FC ecu is grounding clutch switch, FD ecu is providing power to clutch switch.
And diode between clutch switch and stop light switch needs to be removed.
That very likely means kicking clutch will not turn cruise off, but i always use brake to turn cruise off and that works.
hIGGI is offline
Reply With Quote
Old 06-10-18, 04:06 PM
  #43
20B FC owner
Thread Starter
iTrader: (7)

hIGGI's Avatar

Join Date: Feb 2001
Location: Czech Republic [www.rx7cz.net]
Posts: 4,879
Thanks: 0
Thanked 1 Time in 1 Post





Last few days progress :

Front licence plate bracket
Custom undertray bumper to radiator
Oem oilpan undertray with very litte modifications fitted.
Interior all dressed up

For now, stock ECU for break-in, then it will get PowerFC

Still need to do some small stuff, but its driveable as it is now, just need licence plates
hIGGI is offline
Reply With Quote
Old 07-02-18, 05:39 PM
  #44
20B FC owner
Thread Starter
iTrader: (7)

hIGGI's Avatar

Join Date: Feb 2001
Location: Czech Republic [www.rx7cz.net]
Posts: 4,879
Thanks: 0
Thanked 1 Time in 1 Post



First 200km trip today, on JDM ECU
(EUDM was acting up, maybe its faulty, some cold solder?, no issues with JDM today)
Few small issues (passenger window switch, something rattling in drivers doors with window down) and annoying issue of 3rd gear grind.
Other than that, no problems and car feels good. Still breaking in, but twins are really hard to keep from spooling

Will switch to PowerFC soon and start logging.
hIGGI is offline
Reply With Quote
Old 08-05-18, 02:53 PM
  #45
20B FC owner
Thread Starter
iTrader: (7)

hIGGI's Avatar

Join Date: Feb 2001
Location: Czech Republic [www.rx7cz.net]
Posts: 4,879
Thanks: 0
Thanked 1 Time in 1 Post
Finally got licence plates, still tweaking small bits.
After first 450km testdrive on hot day, i knew i will have to install second oil cooler. Prior installation, my oil temps went over 110C.
All that still during break-in period.
Couple days ago i installed it and yesterday took it to local meet, oil temps perfect.
Coolant temps going to 100C, which i dont like, still need to work on that. Better ducting, low temp thermostat maybe will help....
Still on JDM tuned ECU, have not plugged in PowerFC yet.
Tires on s5 FC wheels were rotted, installed some other wheels with better tires
Next is transmission/diff swap.














hIGGI is offline
Reply With Quote
Old 08-14-18, 04:46 PM
  #46
malignant narcissist
iTrader: (2)

diabolical1's Avatar

Join Date: Feb 2002
Location: FL
Posts: 9,172
Thanked 24 Times in 22 Posts
I like the simplicity of your car, FC + REW = FUN^2. It also looks spectacularly clean! Also, in a sea of S5s and S5 retrofits, a clean S4 is quite refreshing. I made a decision a while back not to do any S5 updates to the body of my '87 and your car makes me think I made the right decision.

87 psi after two coolers? I'm very impressed and now I have solid frame of reference for doing the same thing. Great stuff.
diabolical1 is offline
Reply With Quote
Old 08-15-18, 09:11 PM
  #47
Junior Member

Join Date: Aug 2018
Location: Sacramento, CA
Posts: 7
Thanks: 0
Thanked 0 Times in 0 Posts
Nice build!!
Mat_P is offline
Reply With Quote
Old 08-16-18, 04:19 PM
  #48
20B FC owner
Thread Starter
iTrader: (7)

hIGGI's Avatar

Join Date: Feb 2001
Location: Czech Republic [www.rx7cz.net]
Posts: 4,879
Thanks: 0
Thanked 1 Time in 1 Post
progress slowed up, working on FD which i just brought back from painter and is priority, but there is more planned or in progress for this FC
hIGGI is offline
Reply With Quote
Old 09-22-18, 03:33 PM
  #49
20B FC owner
Thread Starter
iTrader: (7)

hIGGI's Avatar

Join Date: Feb 2001
Location: Czech Republic [www.rx7cz.net]
Posts: 4,879
Thanks: 0
Thanked 1 Time in 1 Post

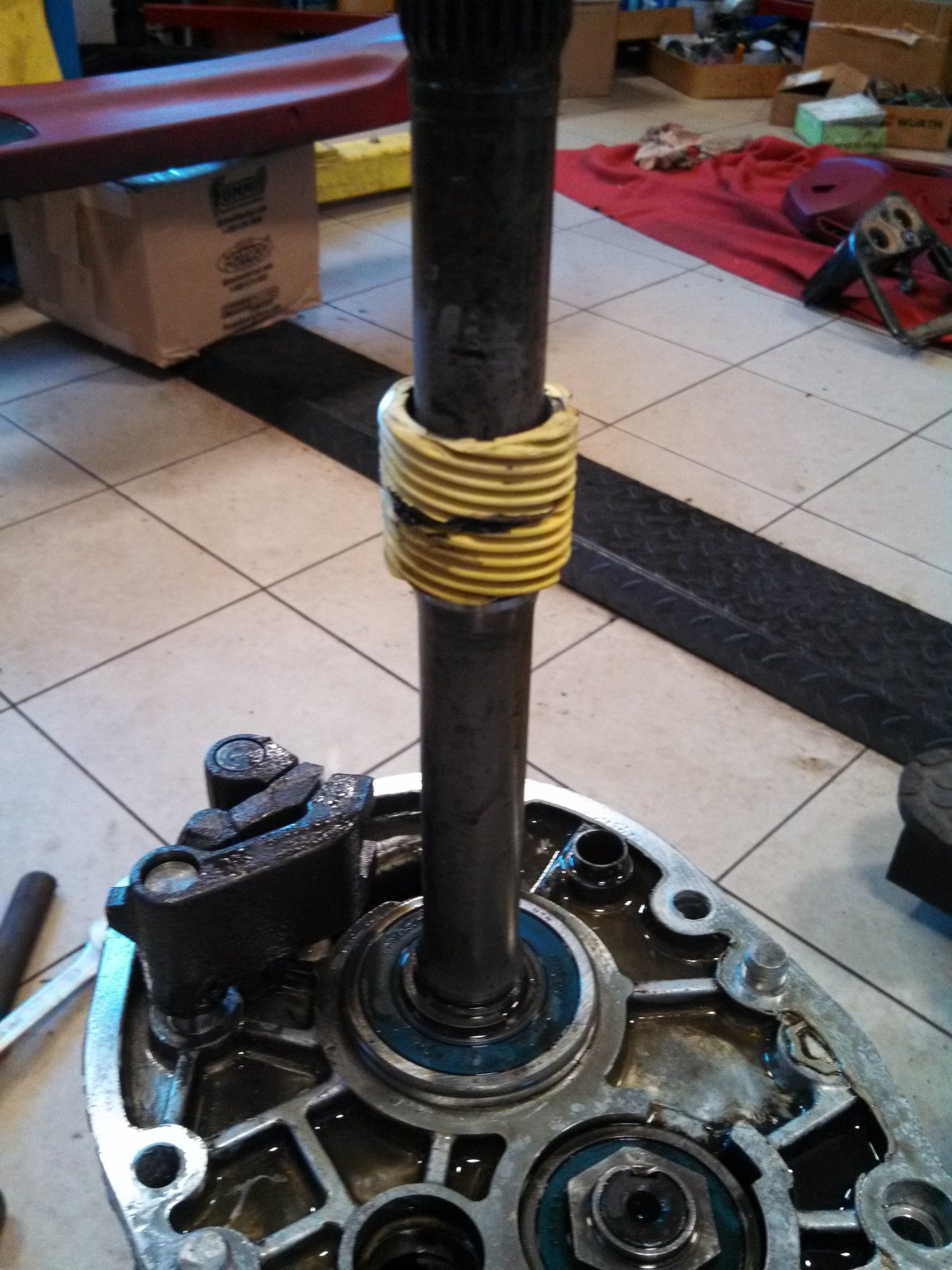

modified RX8 5speed trans installed
6 puck sprung disc
new front diff seal

new problem with oil pressure (wont go over 4 bar once temp will reach 60 c and thermostats in oil coolers will open)
hIGGI is offline
Reply With Quote
Old 09-22-18, 03:37 PM
  #50
20B FC owner
Thread Starter
iTrader: (7)

hIGGI's Avatar

Join Date: Feb 2001
Location: Czech Republic [www.rx7cz.net]
Posts: 4,879
Thanks: 0
Thanked 1 Time in 1 Post













hIGGI is offline
Reply With Quote

Thread Tools
Search this Thread
Quick Reply: stock 13B-REW swapped FC


Contact Us Archive Advertising Cookie Policy Privacy Statement Terms of Service

We are a participant in the Amazon Services LLC Associates Program, an affiliate advertising program designed to provide a means for us to earn fees by linking to Amazon.com and affiliated sites.

  • Ask a Question
    Get answers from community experts
Question Title:
Description:
Your question will be posted in:
