stock 13B-REW swapped FC

Old 02-19-18, 06:09 PM
  #1
20B FC owner
Thread Starter
iTrader: (7)

hIGGI's Avatar

Join Date: Feb 2001
Location: Czech Republic [www.rx7cz.net]
Posts: 4,889
Likes: 0
Liked 1 Time in 1 Post
stock 13B-REW swapped FC

Its been some time , but lets try something new.

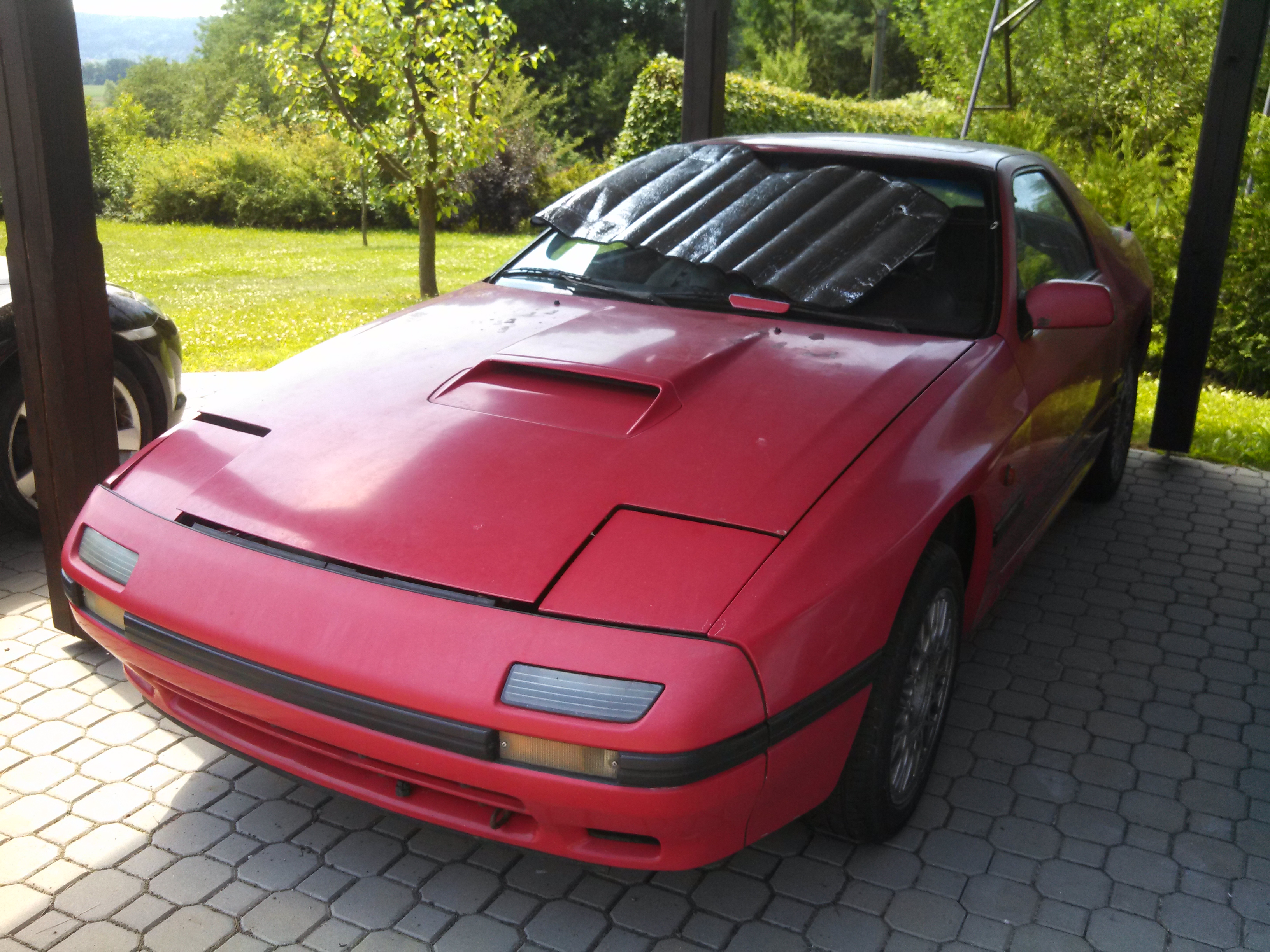

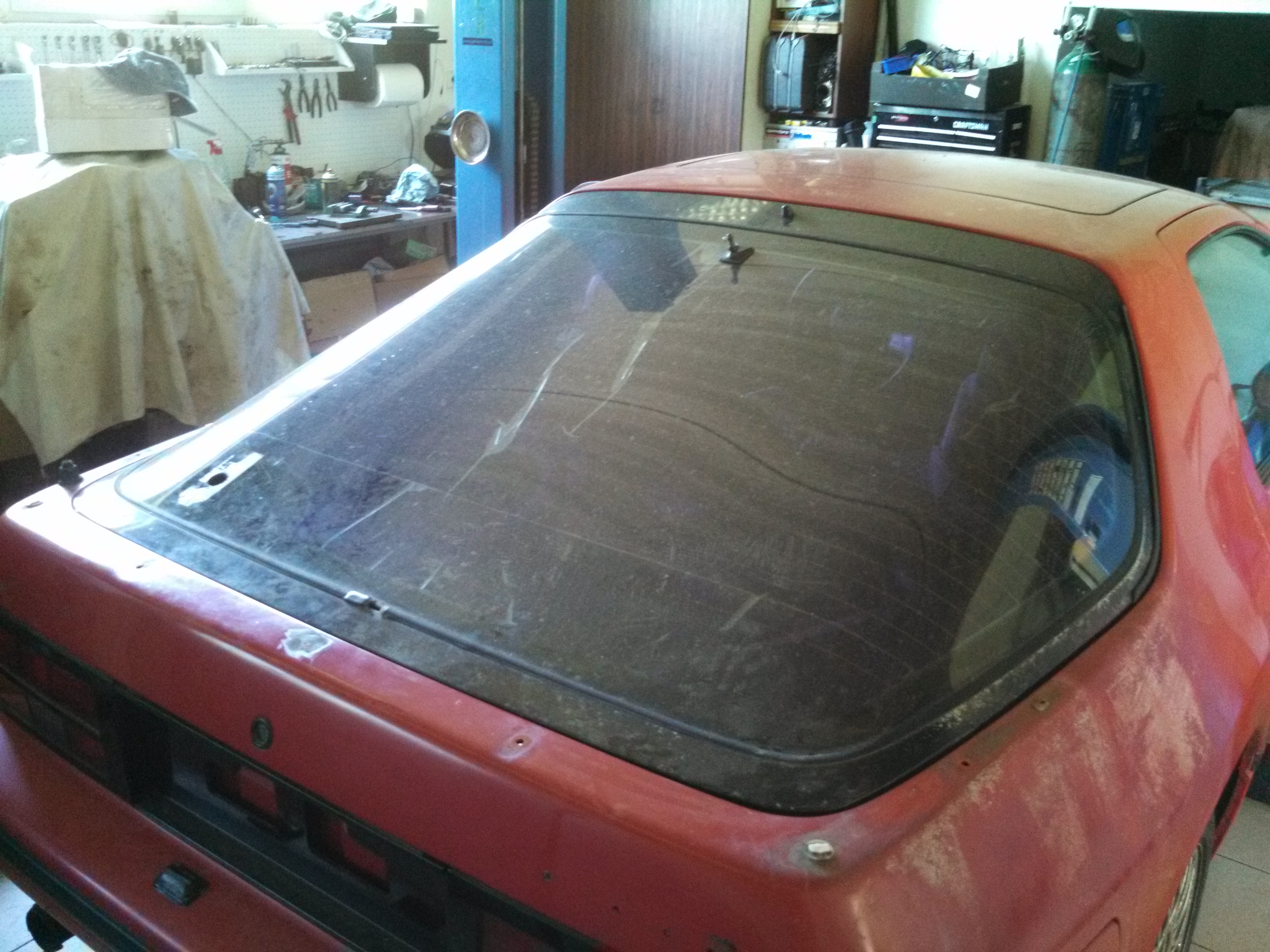

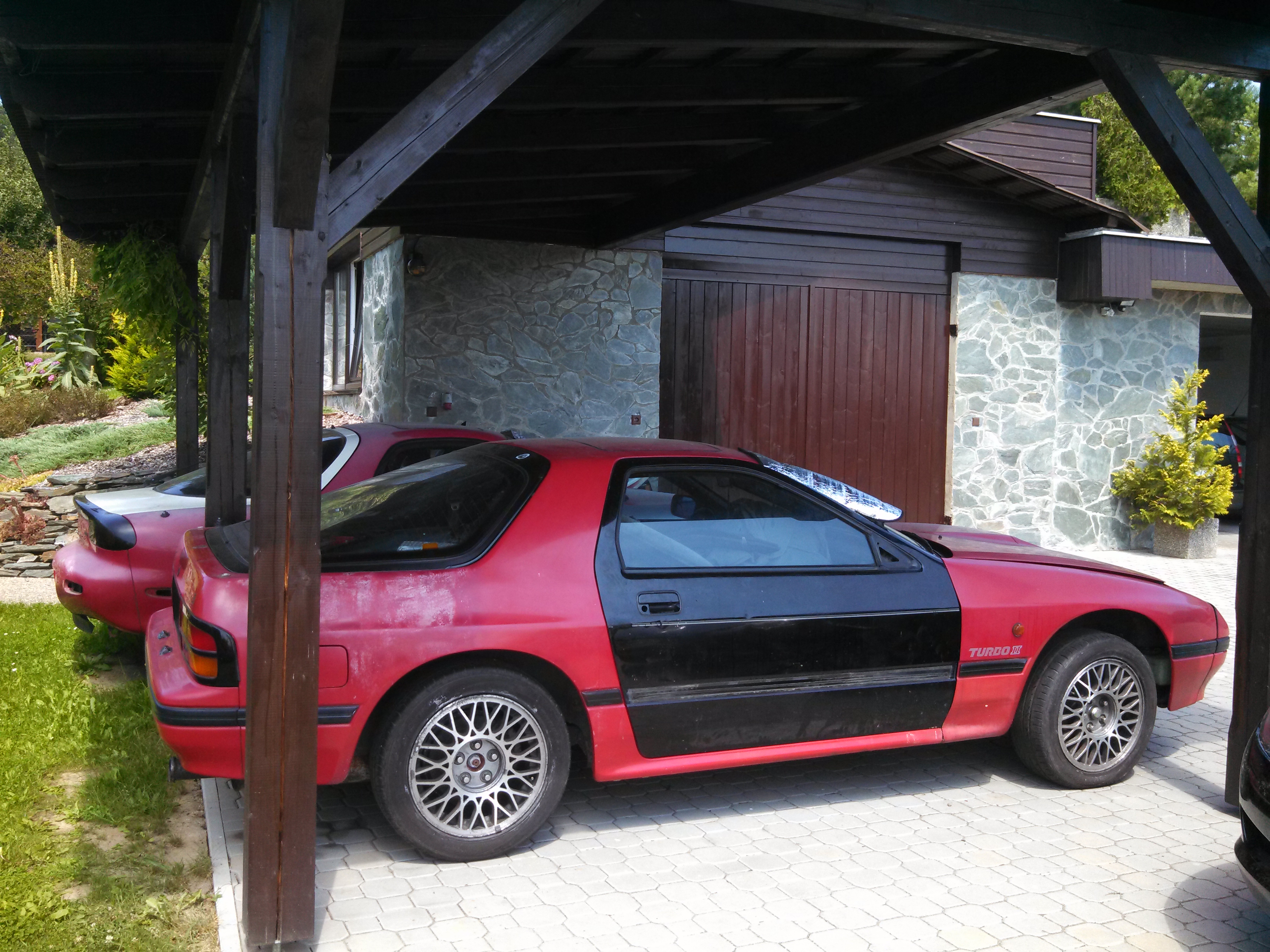

My latest FC, purchased in summer 2017 as roller.
1988 S4 TII , euro spec
Bad paint, few rust spots, 230 000km's or so on gauges.

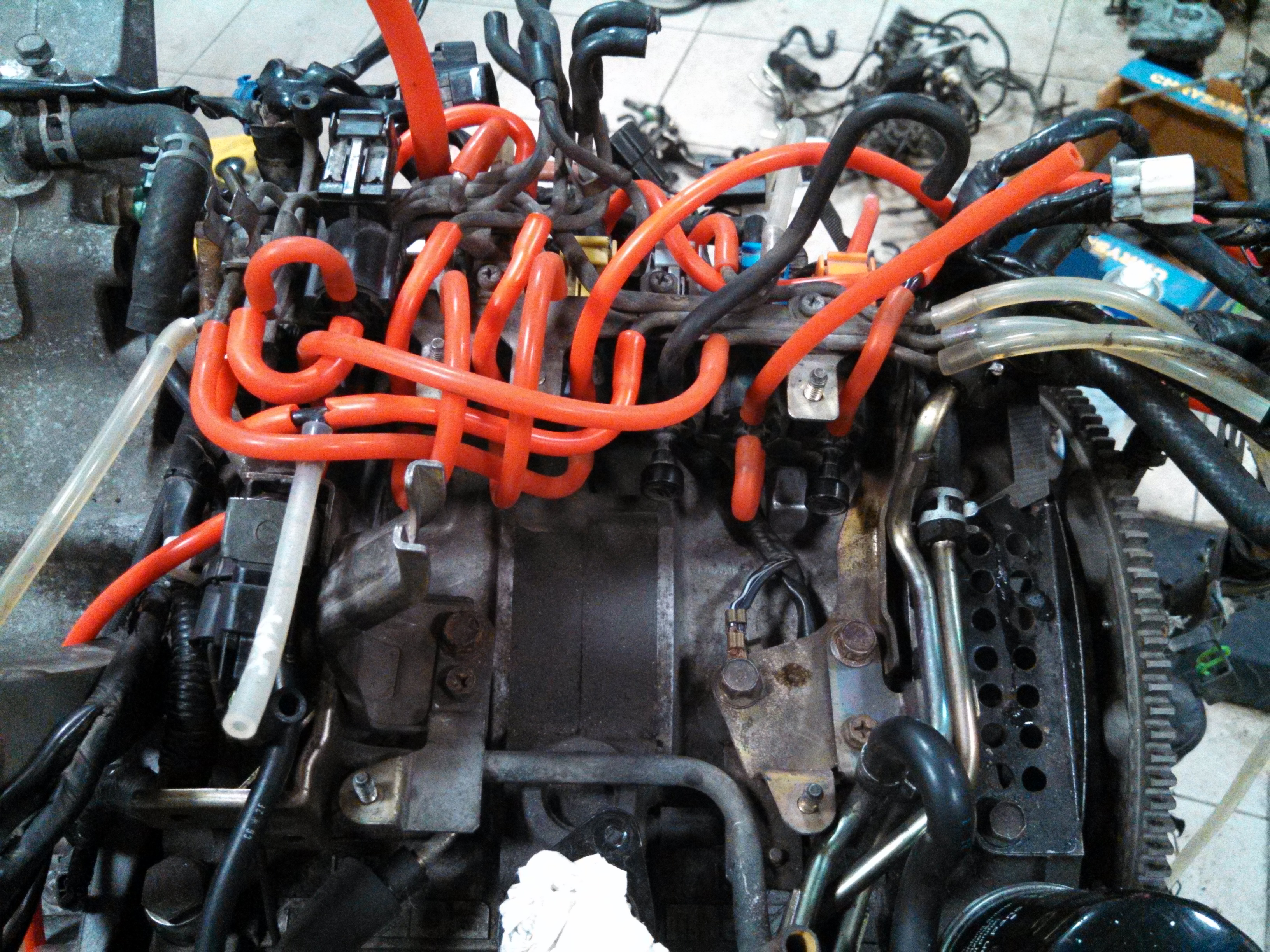

Not much in engine bay, but over 18 years i have collected some parts, no big deal.

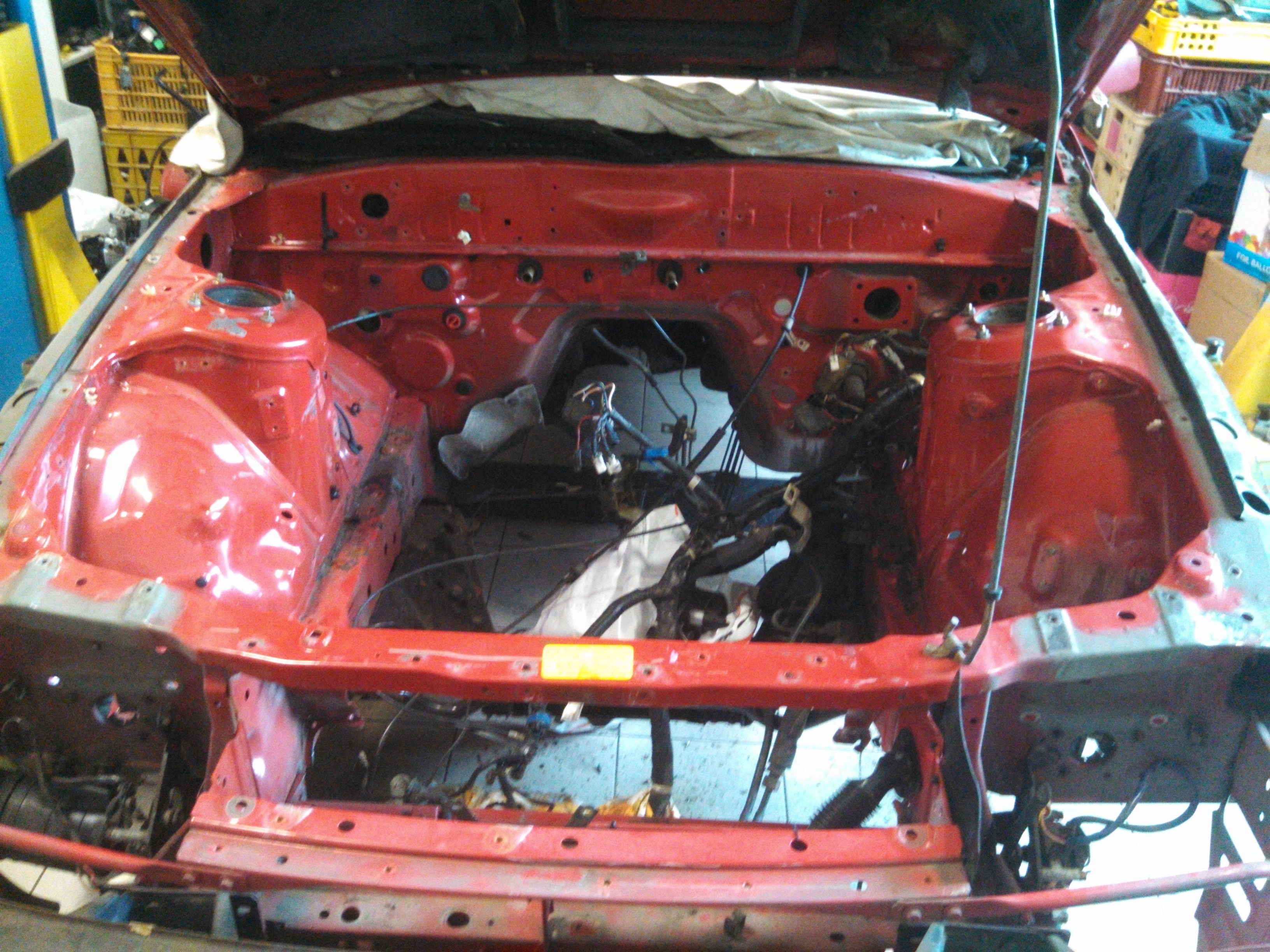

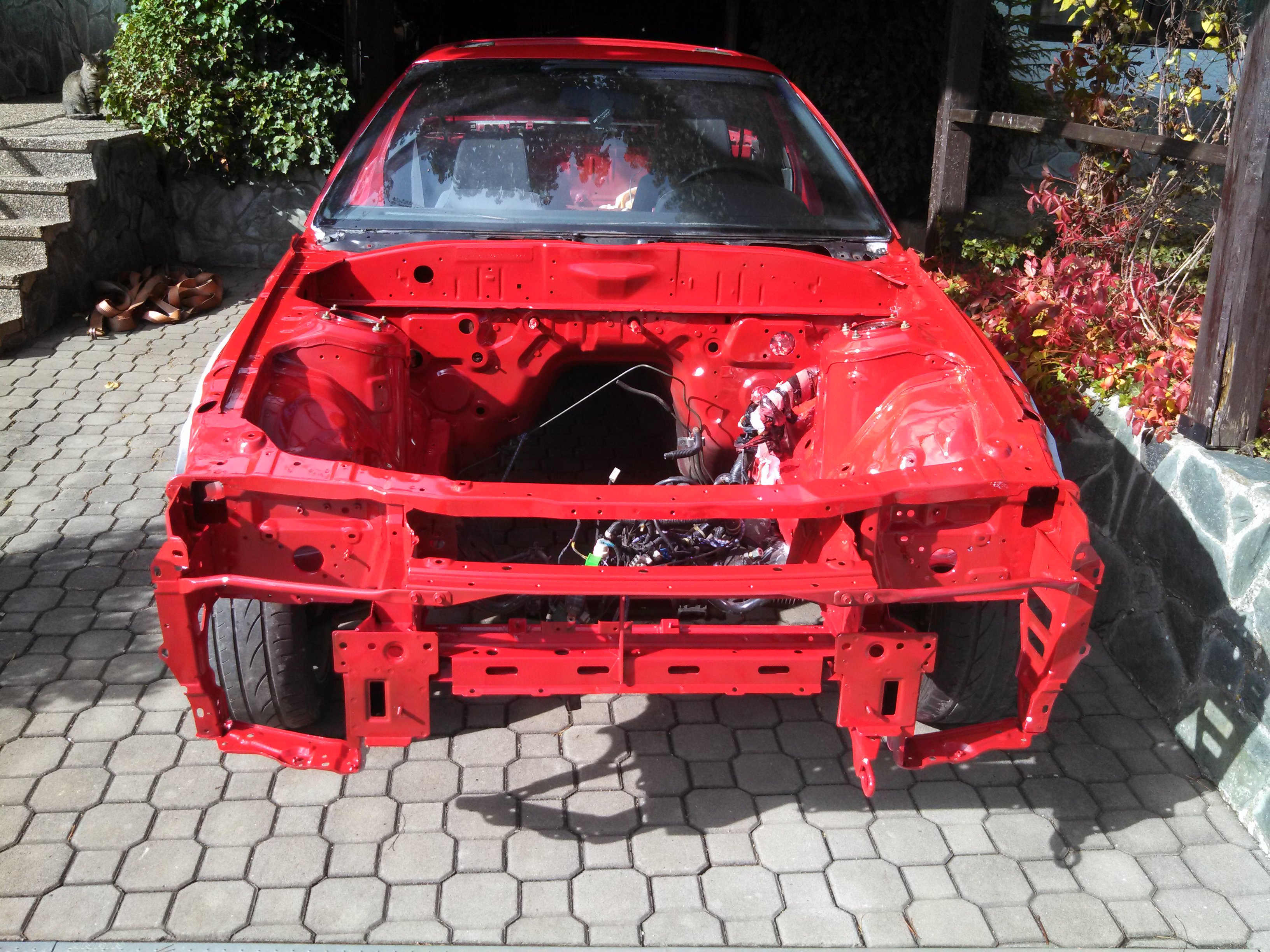

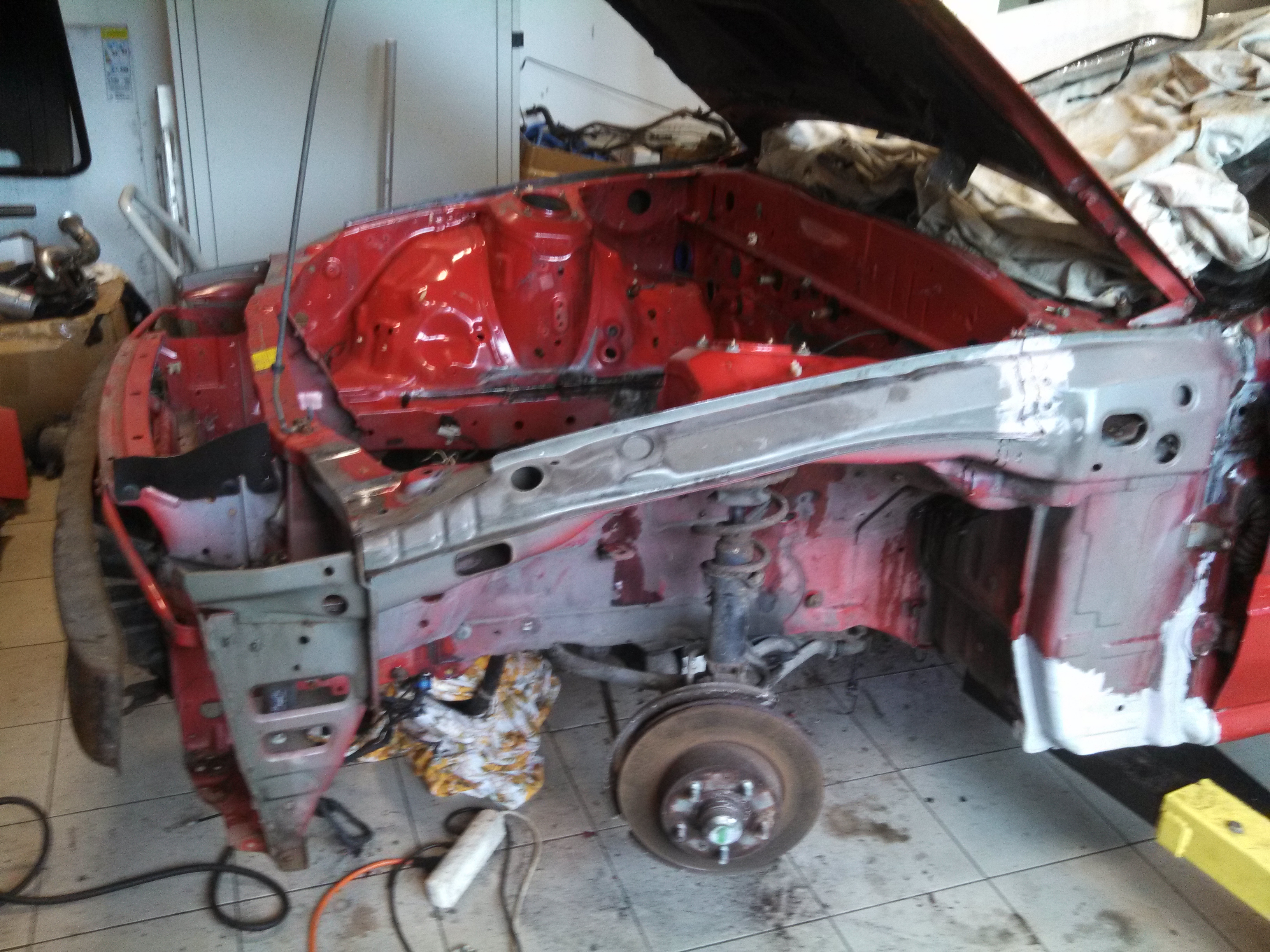

Over the 2017 in breaks between other projects and work i did some cleaning, body work, replaced both doors, rear bumper and tried to get a paintjob done by someone.

In beginning 2018 i removed newly built 13B-REW from white FD racecar, stripped it and started dressing it up into stock 1993 EU spec twinturbo.

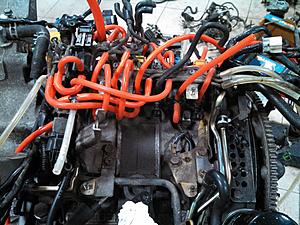

EU harness, EU solenoids, EU ECU and harness

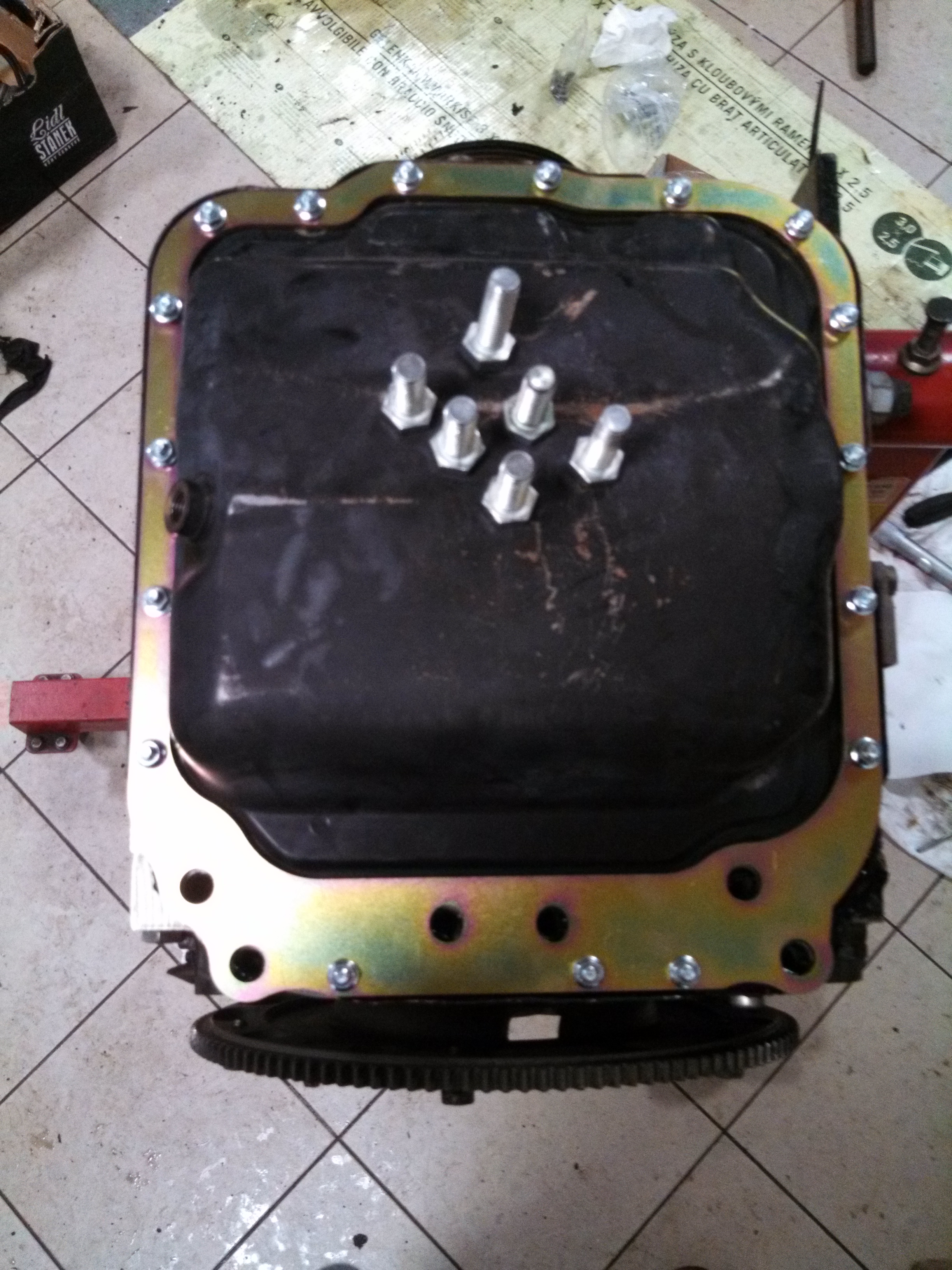

Ported wastegate and installed 90-85 fan switch. Oil pan brace installed.

Next step was to build patch harness which makes install sort of plug & play, keeping FD emissions harness untouched , as well cars harness untouched.

And last step so far was bolting up transmission (s4 TII), stock downpipe/precat and mock it up on FC subrame to see if it will fit into bay and where engine mounts will be.

Evening ended with engine mount provisions on subframe tacked up, to be continued.
hIGGI is offline
Old 02-19-18, 06:16 PM
  #2
20B FC owner
Thread Starter
iTrader: (7)

hIGGI's Avatar

Join Date: Feb 2001
Location: Czech Republic [www.rx7cz.net]
Posts: 4,889
Likes: 0
Liked 1 Time in 1 Post

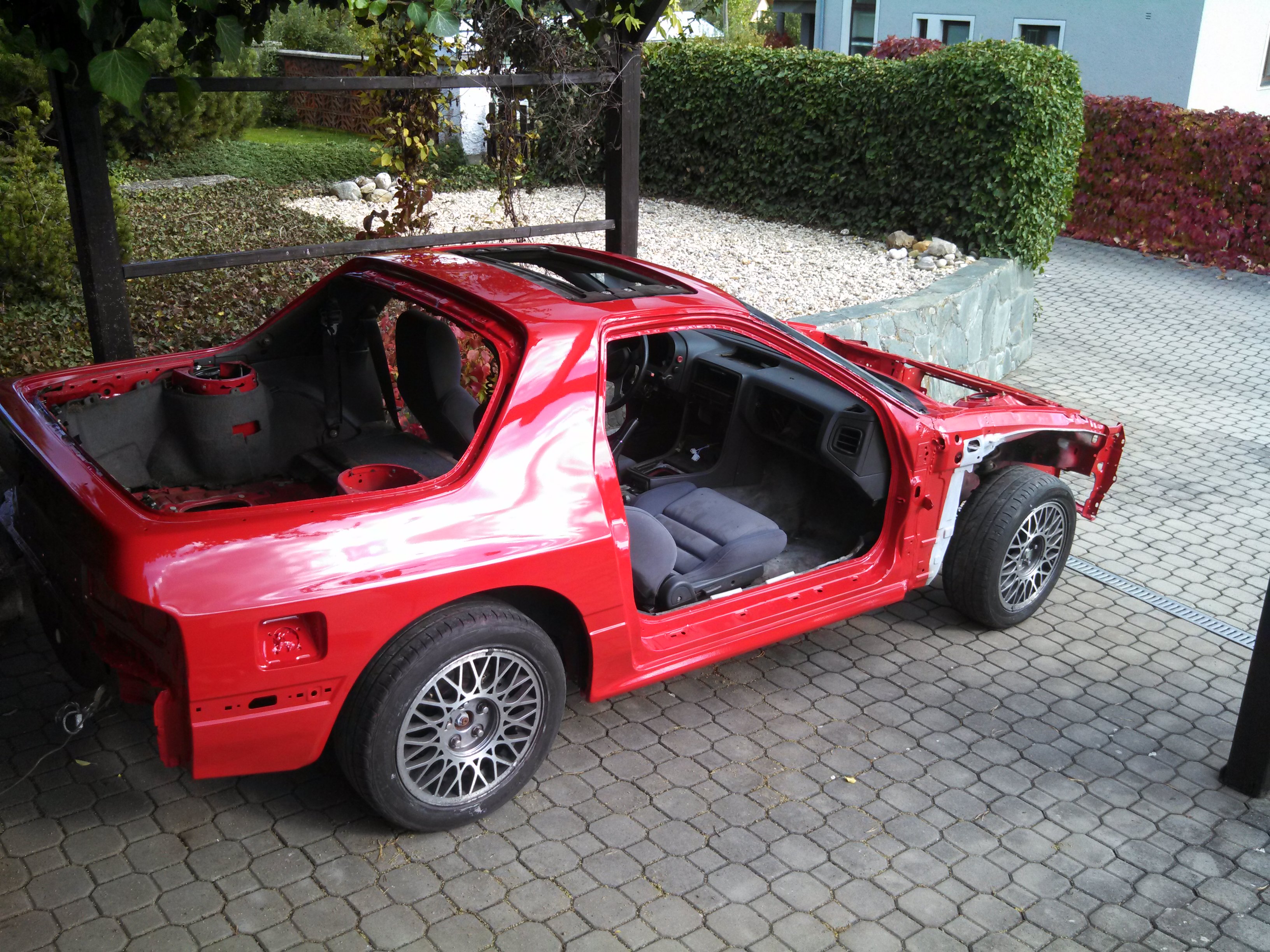

some pics
Attached Thumbnails stock 13B-REW swapped FC-img_20170601_110336.jpg   stock 13B-REW swapped FC-img_20170719_122143.jpg   stock 13B-REW swapped FC-img_20170719_122200.jpg   stock 13B-REW swapped FC-img_20170816_134016.jpg   stock 13B-REW swapped FC-img_20170816_163219.jpg

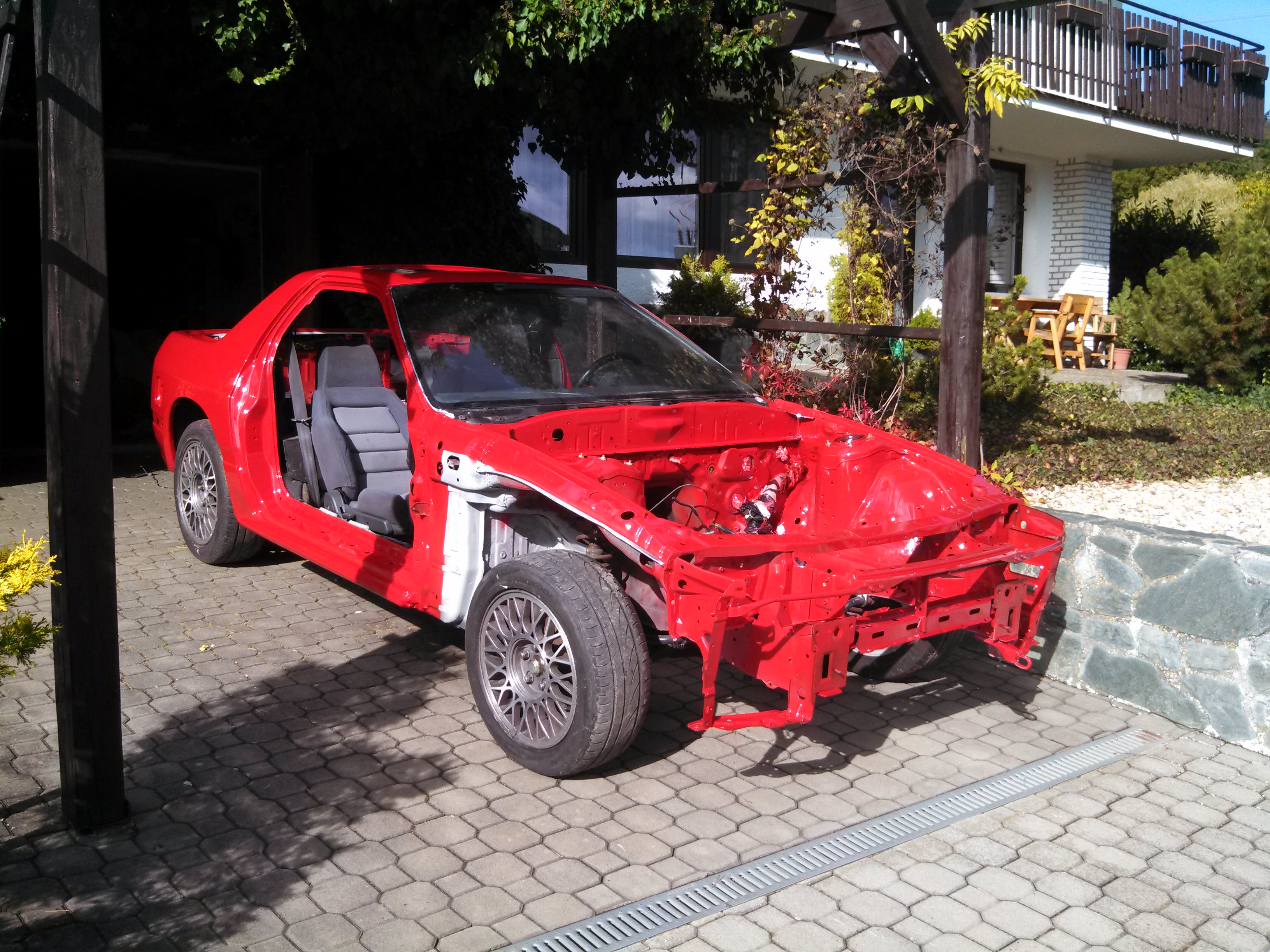

stock 13B-REW swapped FC-img_20171009_141634.jpg   stock 13B-REW swapped FC-img_20171009_141643.jpg   stock 13B-REW swapped FC-img_20171009_141703.jpg
hIGGI is offline
Old 02-19-18, 06:24 PM
  #3
20B FC owner
Thread Starter
iTrader: (7)

hIGGI's Avatar

Join Date: Feb 2001
Location: Czech Republic [www.rx7cz.net]
Posts: 4,889
Likes: 0
Liked 1 Time in 1 Post

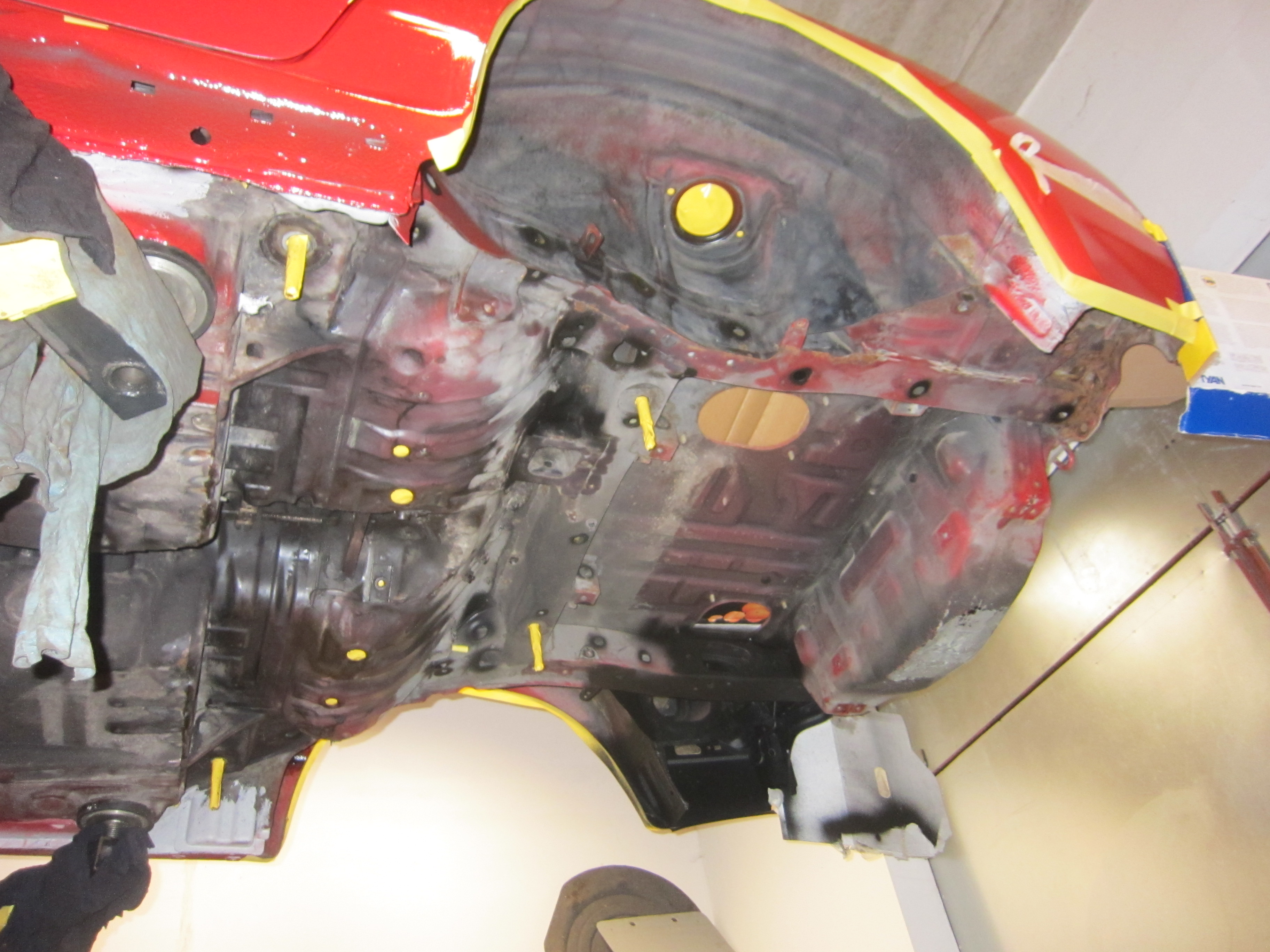

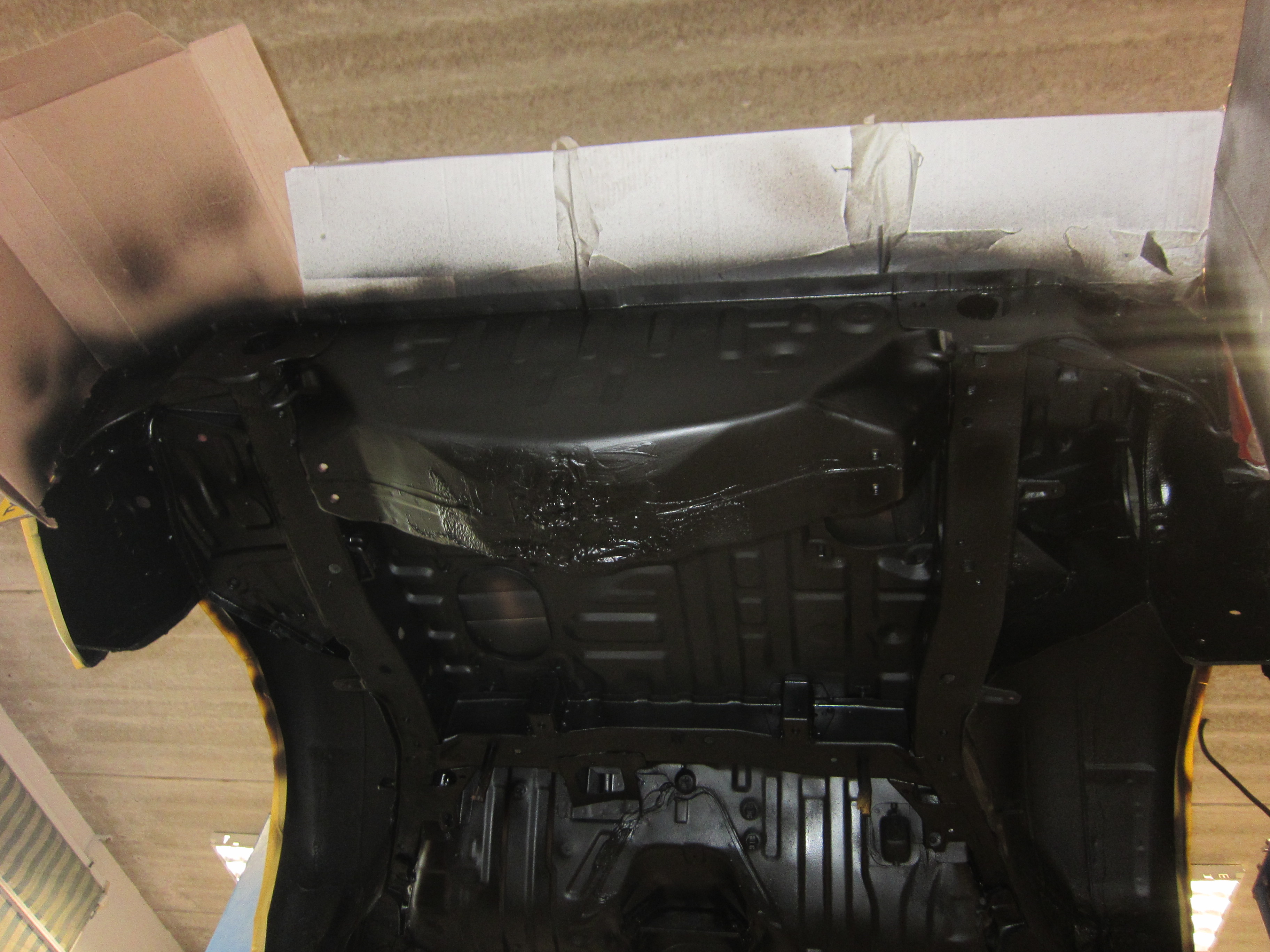

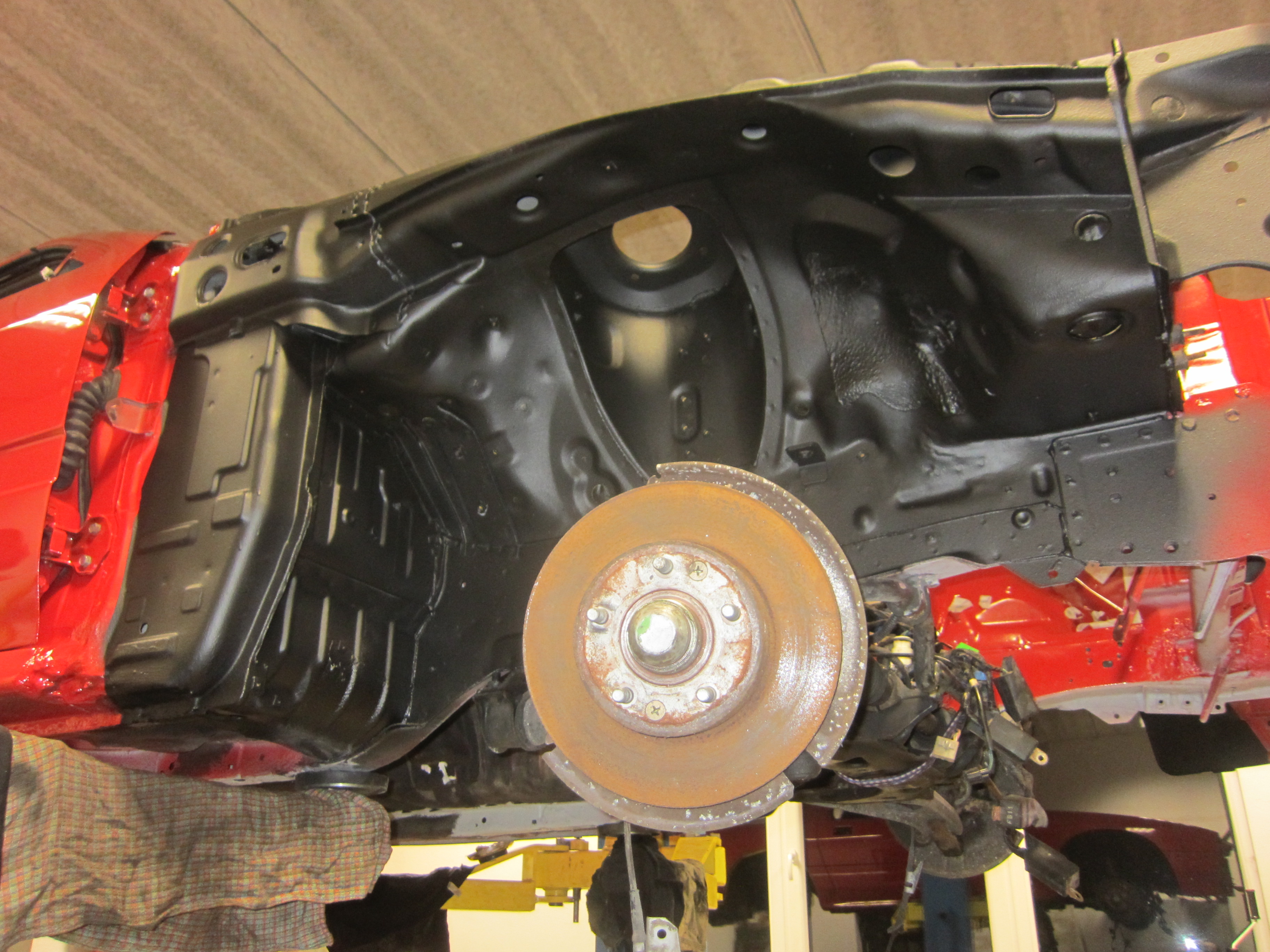

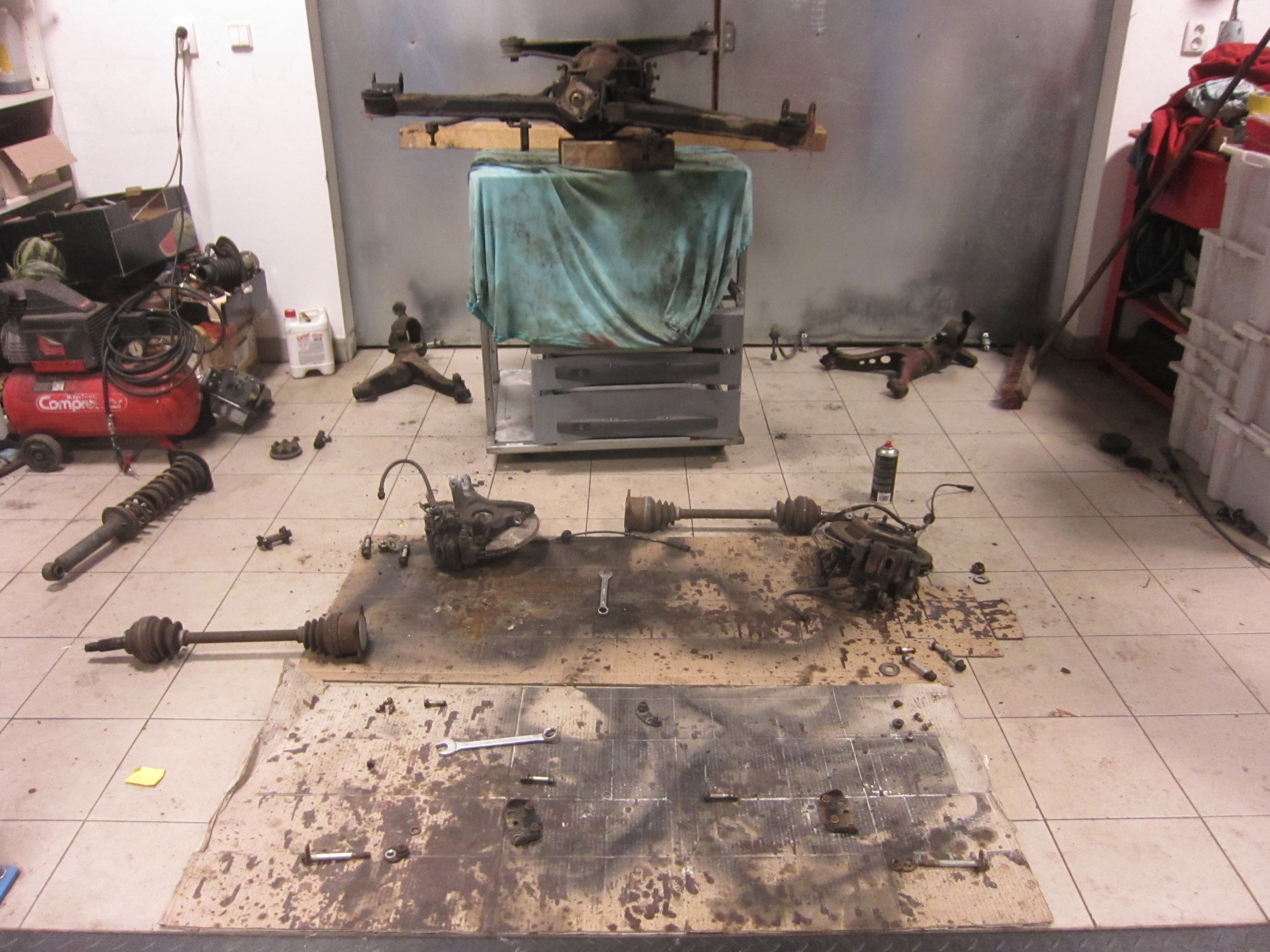

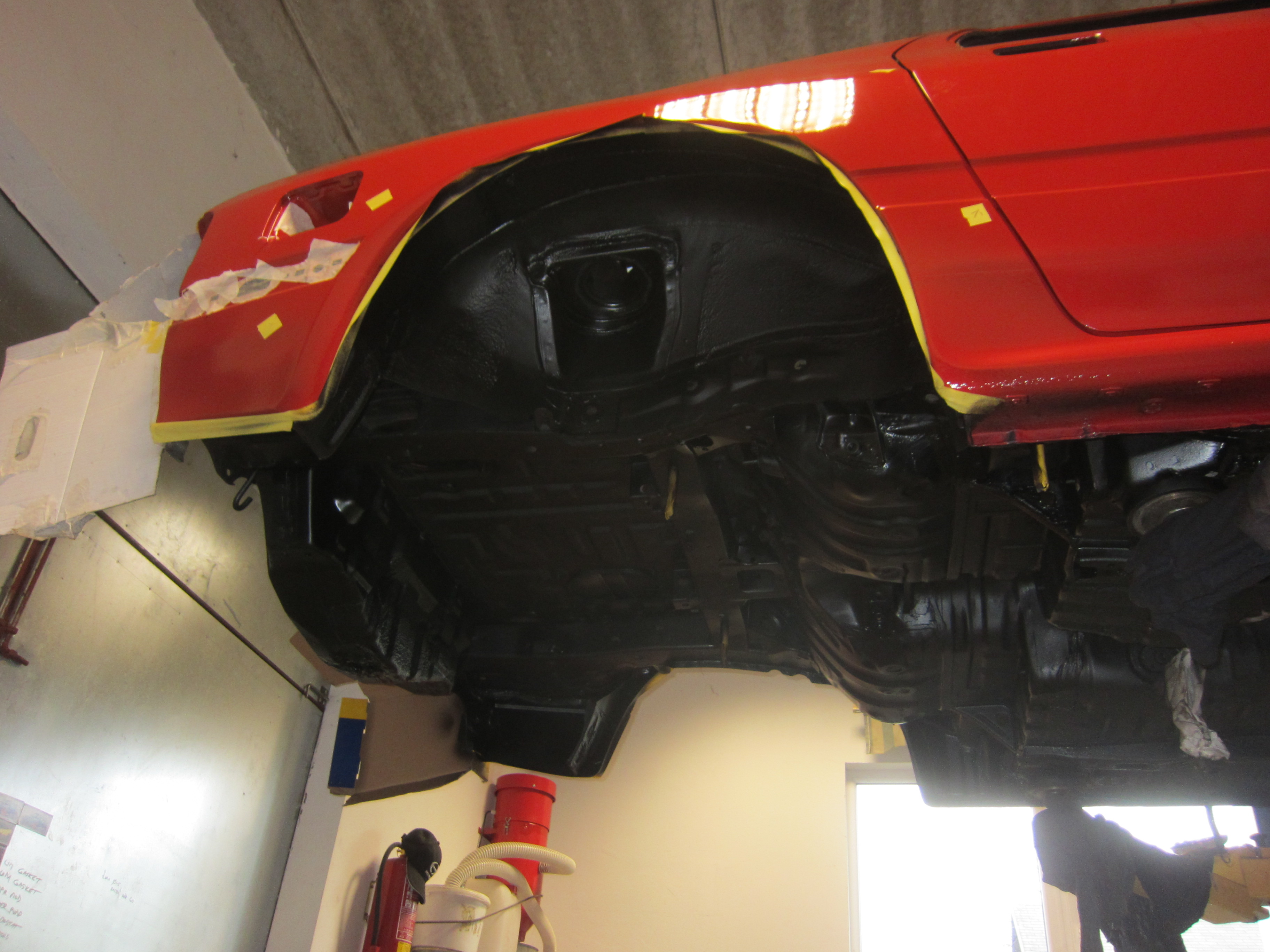

more pics

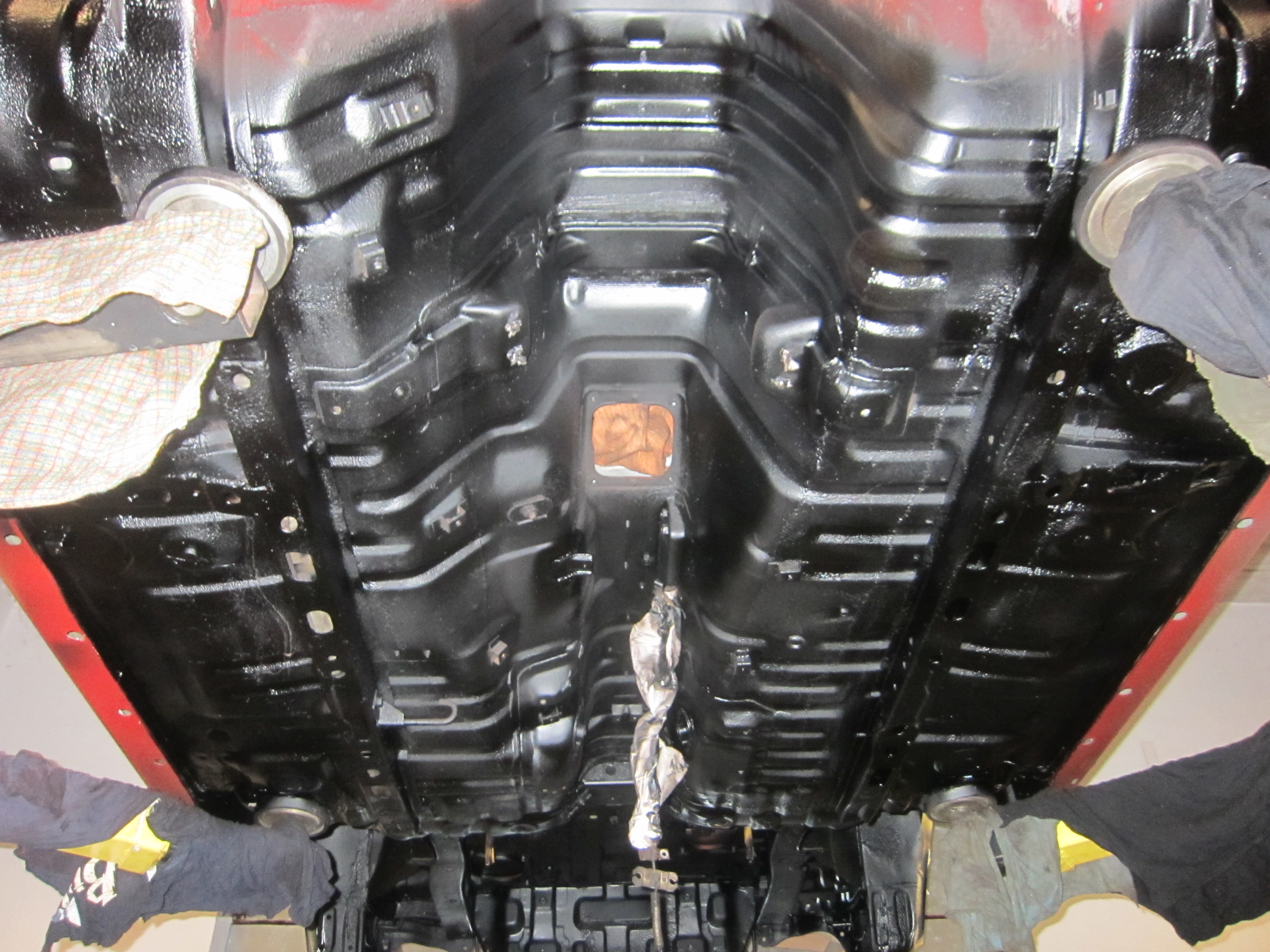

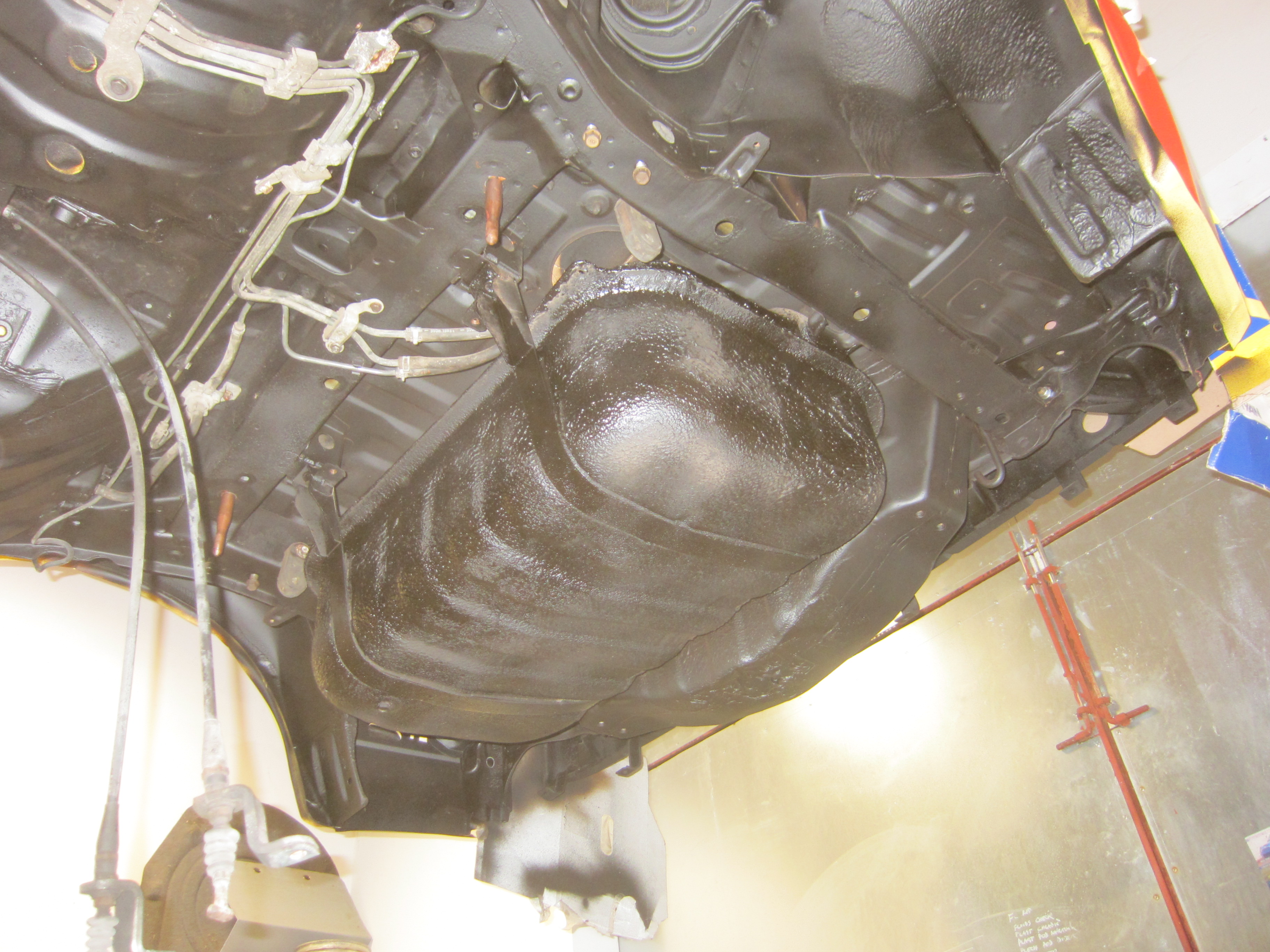

Attached Thumbnails stock 13B-REW swapped FC-img_5309.jpg   stock 13B-REW swapped FC-img_5310.jpg   stock 13B-REW swapped FC-img_5311.jpg   stock 13B-REW swapped FC-img_5317.jpg   stock 13B-REW swapped FC-img_5318.jpg

stock 13B-REW swapped FC-img_5319.jpg
hIGGI is offline
Old 02-20-18, 04:24 PM
  #4
20B FC owner
Thread Starter
iTrader: (7)

hIGGI's Avatar

Join Date: Feb 2001
Location: Czech Republic [www.rx7cz.net]
Posts: 4,889
Likes: 0
Liked 1 Time in 1 Post

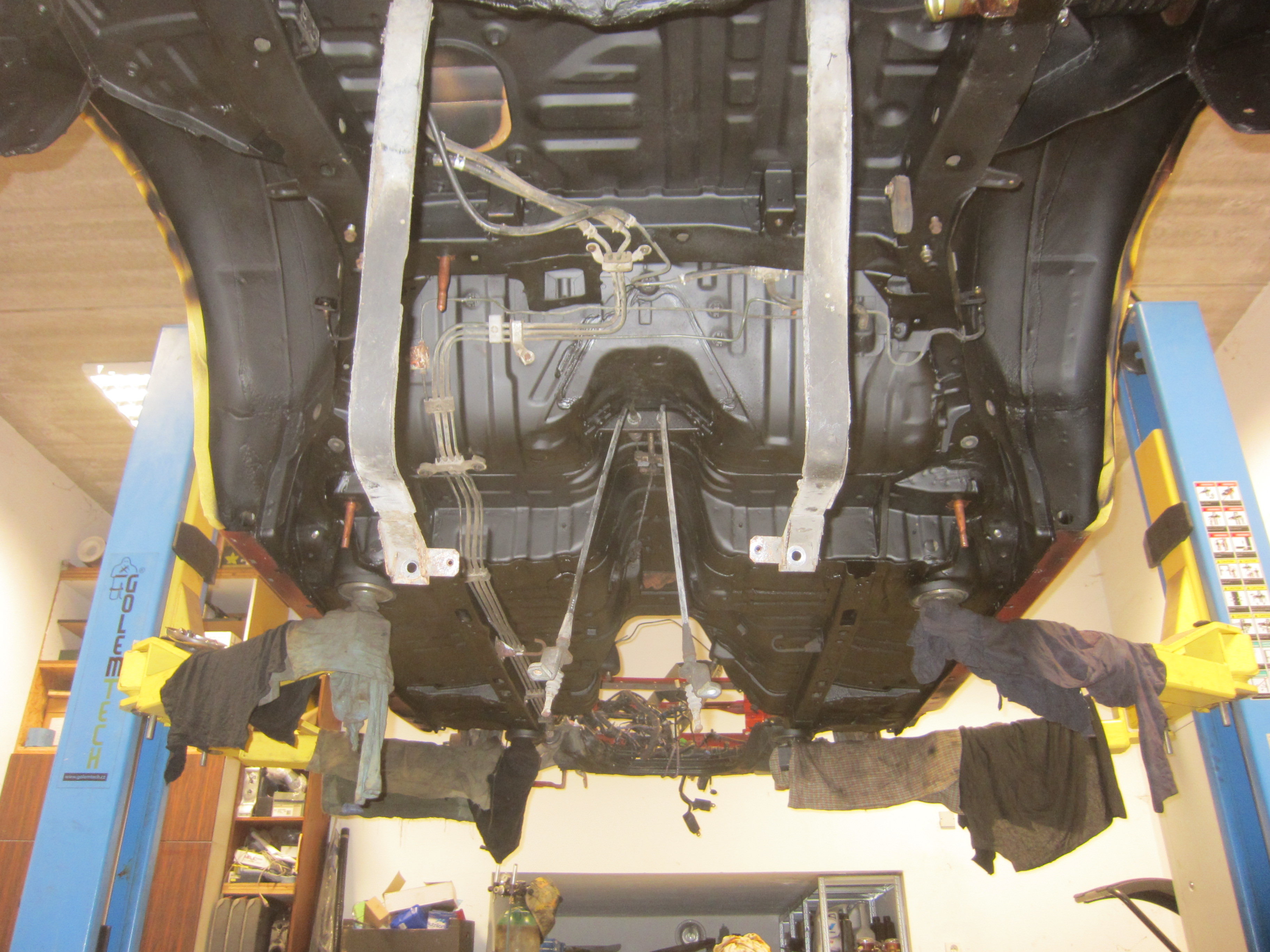

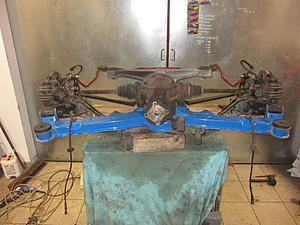

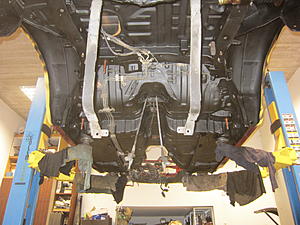

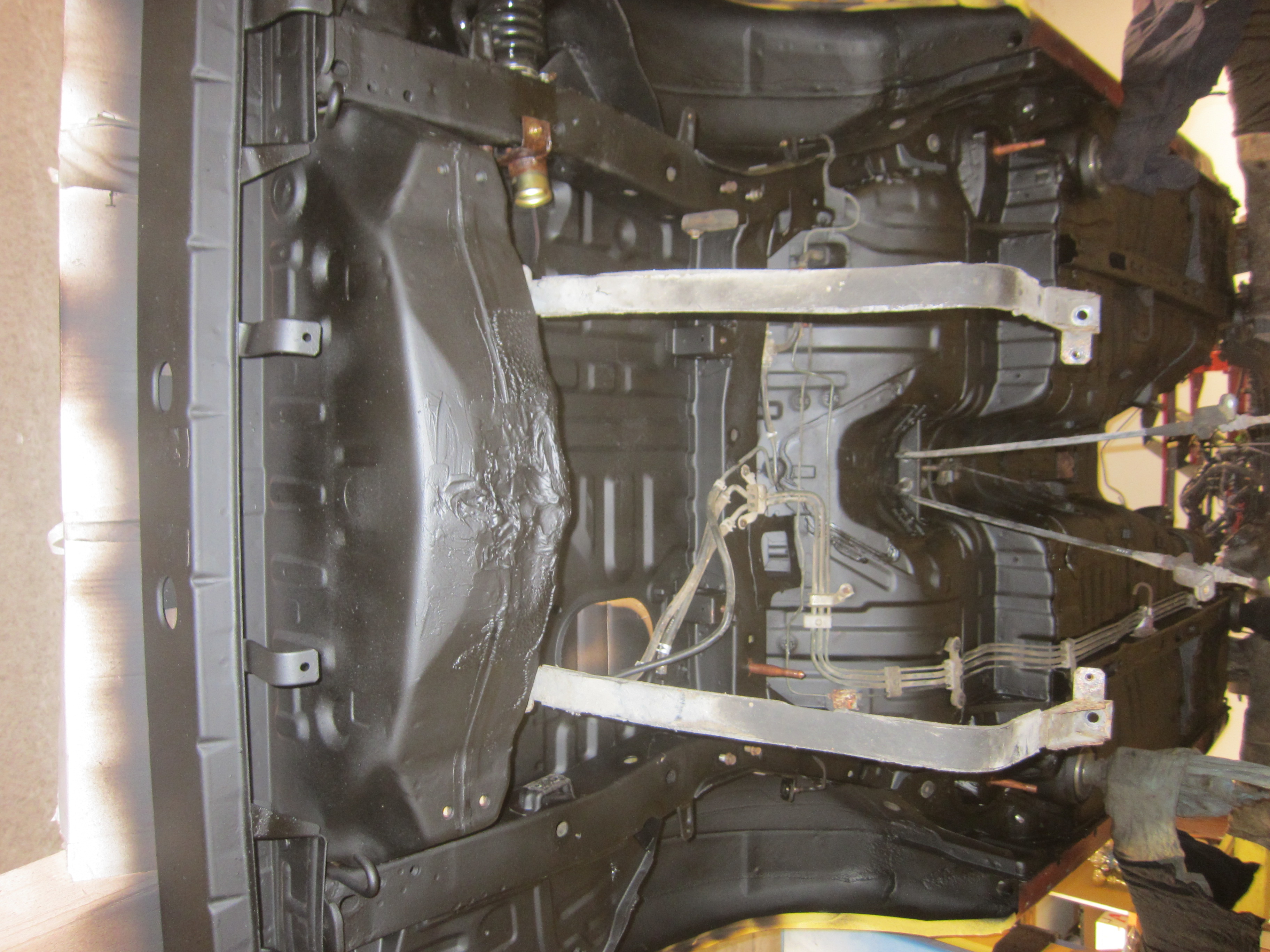

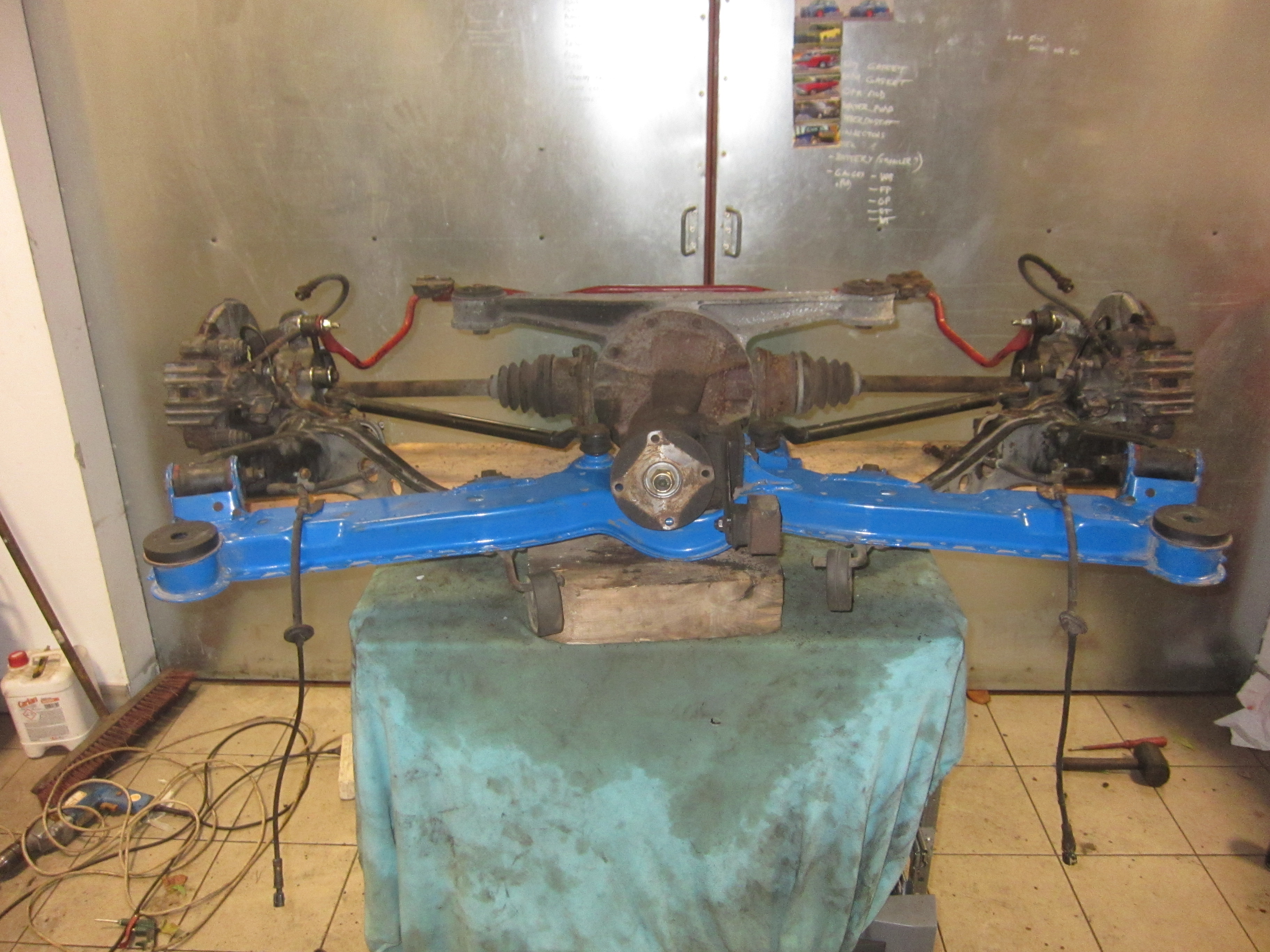

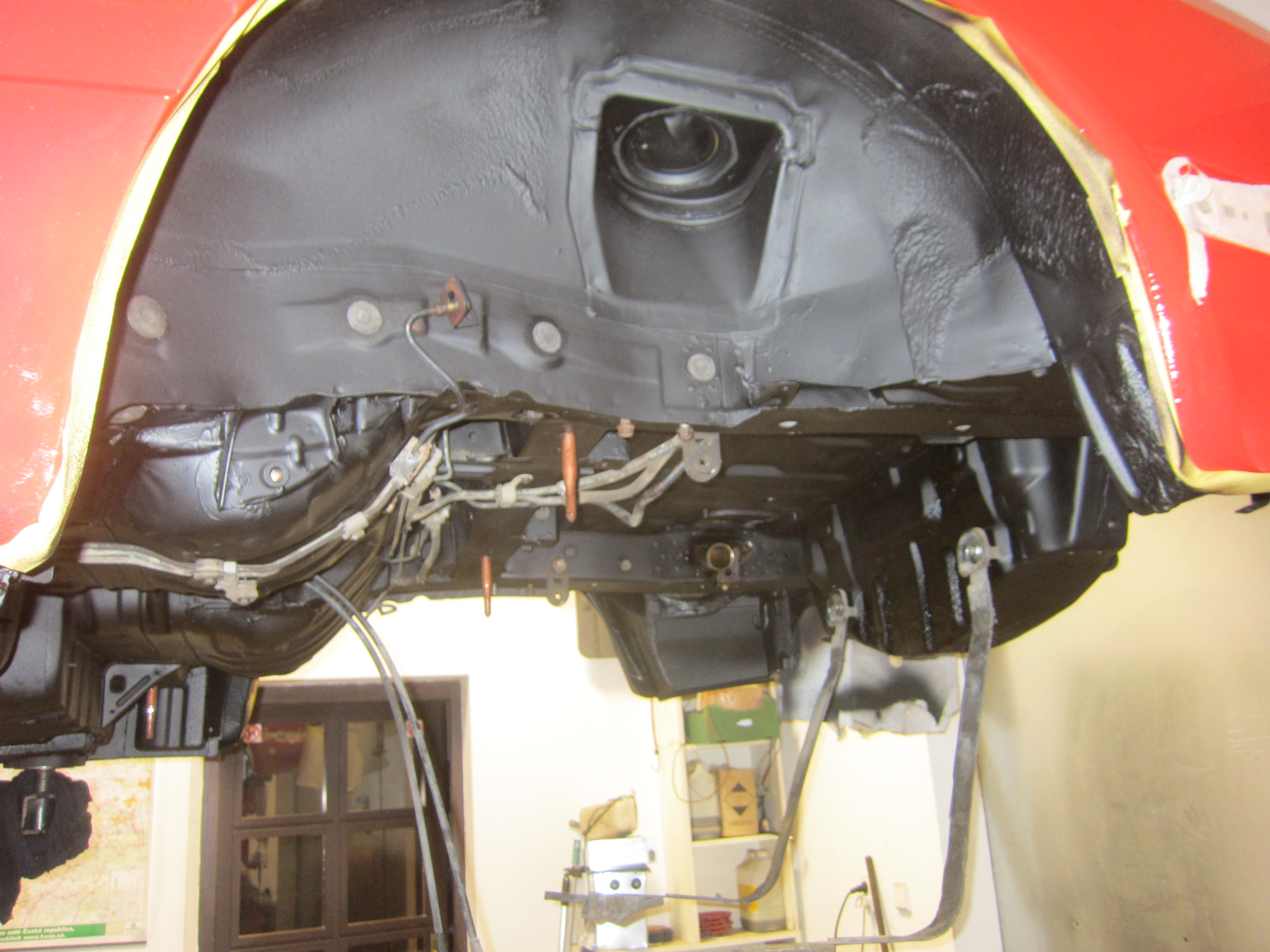

more pics from the past
Attached Thumbnails stock 13B-REW swapped FC-img_5320.jpg   stock 13B-REW swapped FC-img_5321.jpg   stock 13B-REW swapped FC-img_5322.jpg   stock 13B-REW swapped FC-img_5323.jpg   stock 13B-REW swapped FC-img_5325.jpg

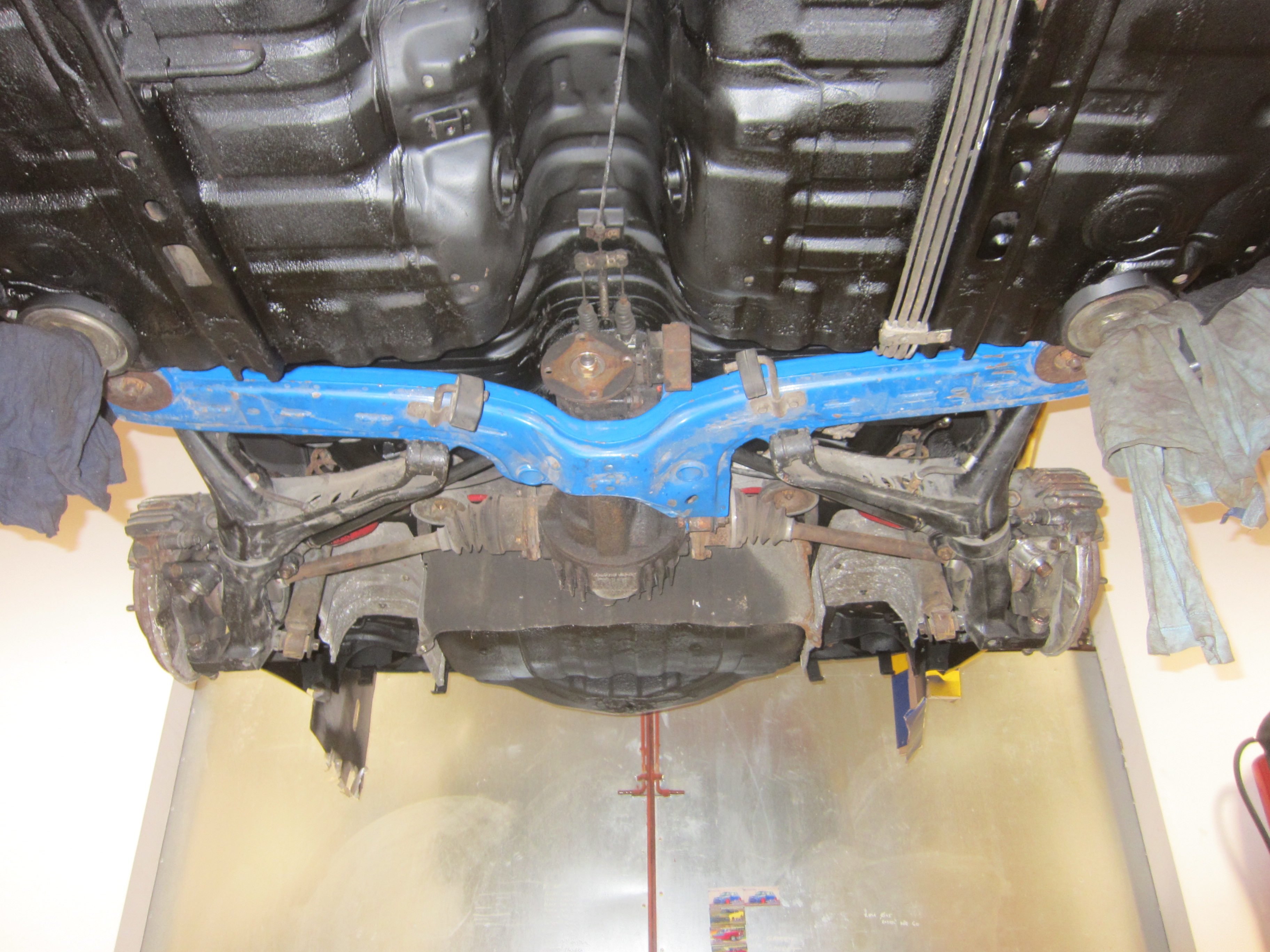

stock 13B-REW swapped FC-img_5326.jpg
hIGGI is offline
Old 02-20-18, 04:40 PM
  #5
20B FC owner
Thread Starter
iTrader: (7)

hIGGI's Avatar

Join Date: Feb 2001
Location: Czech Republic [www.rx7cz.net]
Posts: 4,889
Likes: 0
Liked 1 Time in 1 Post

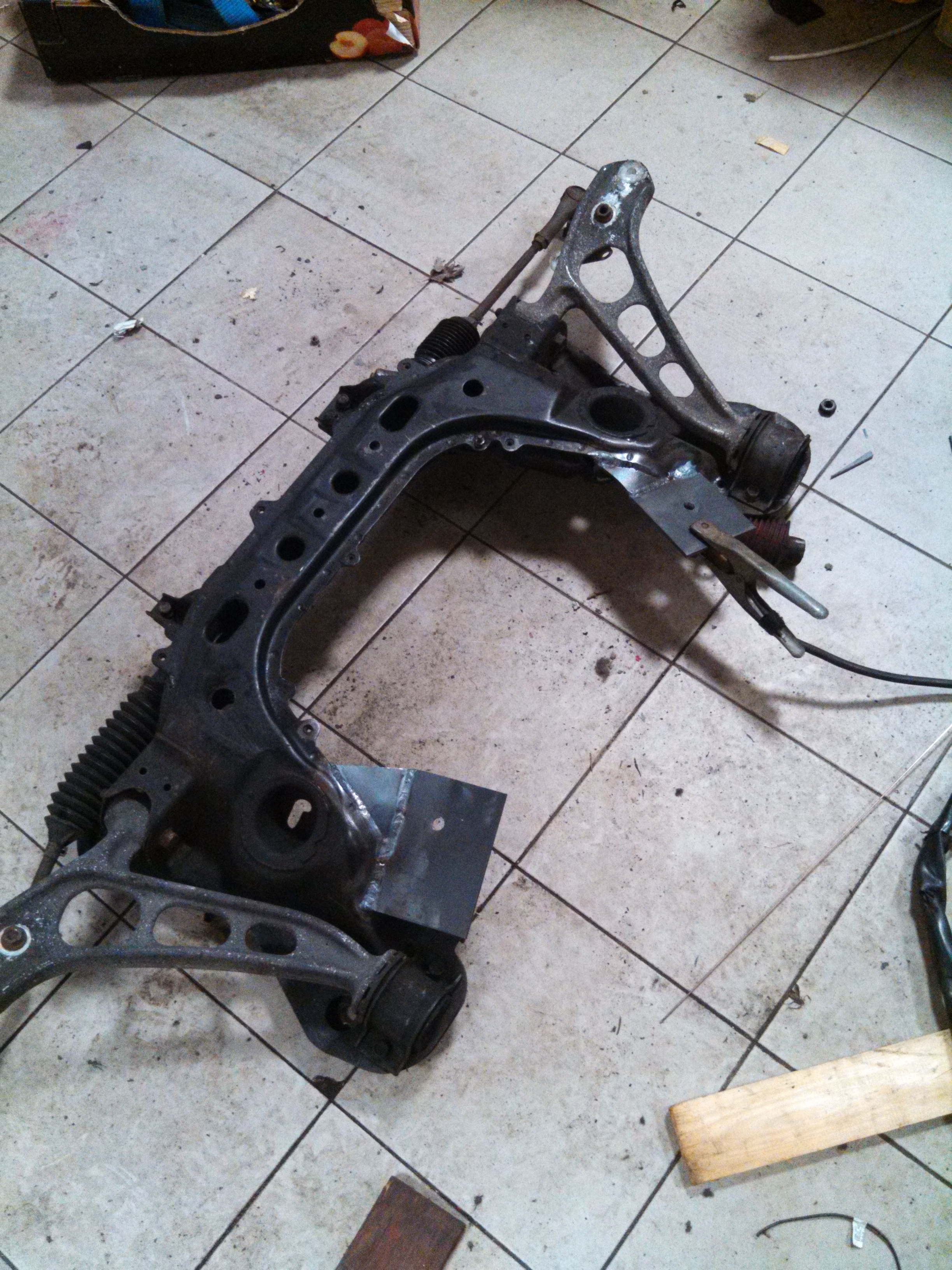

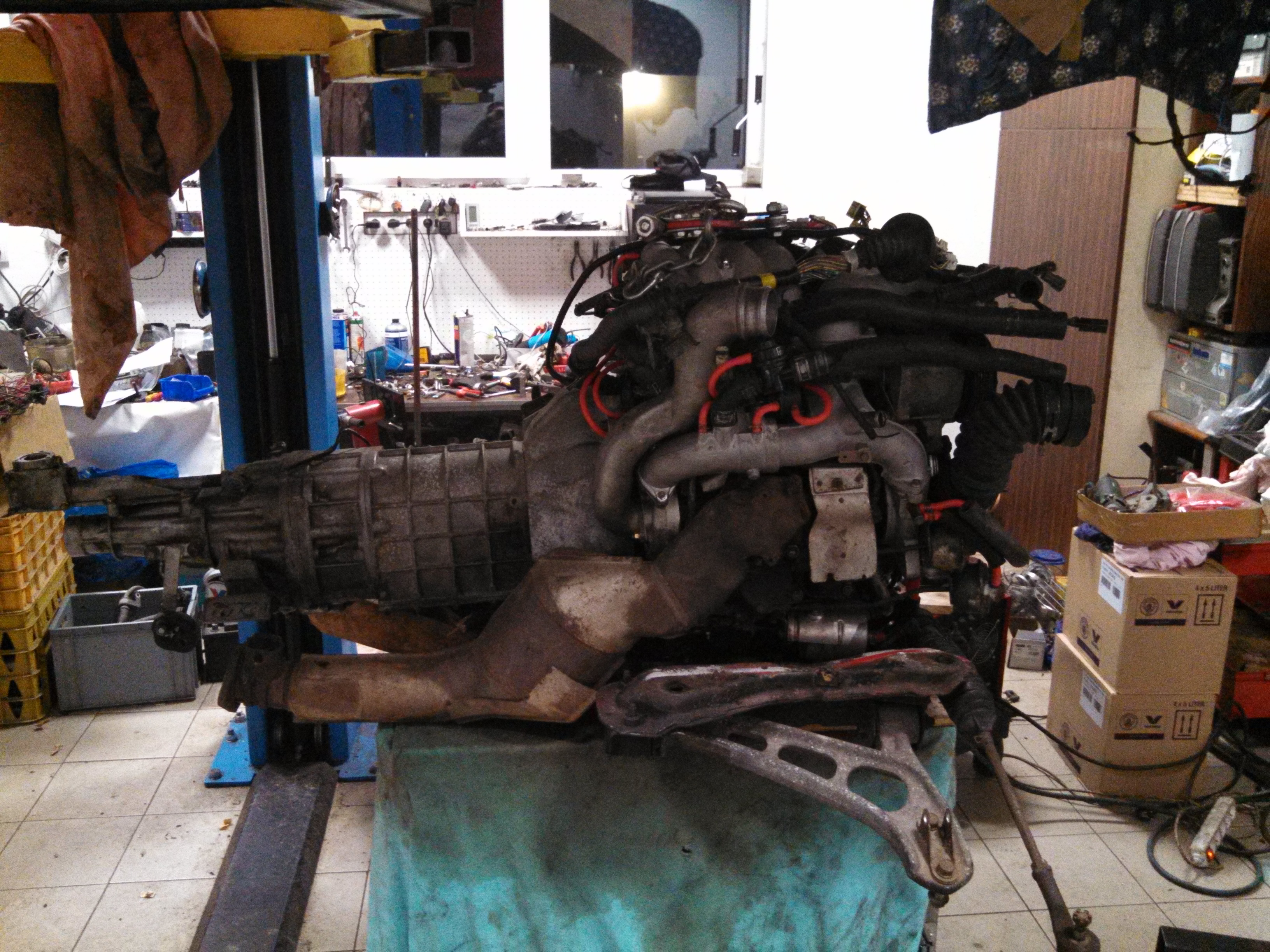

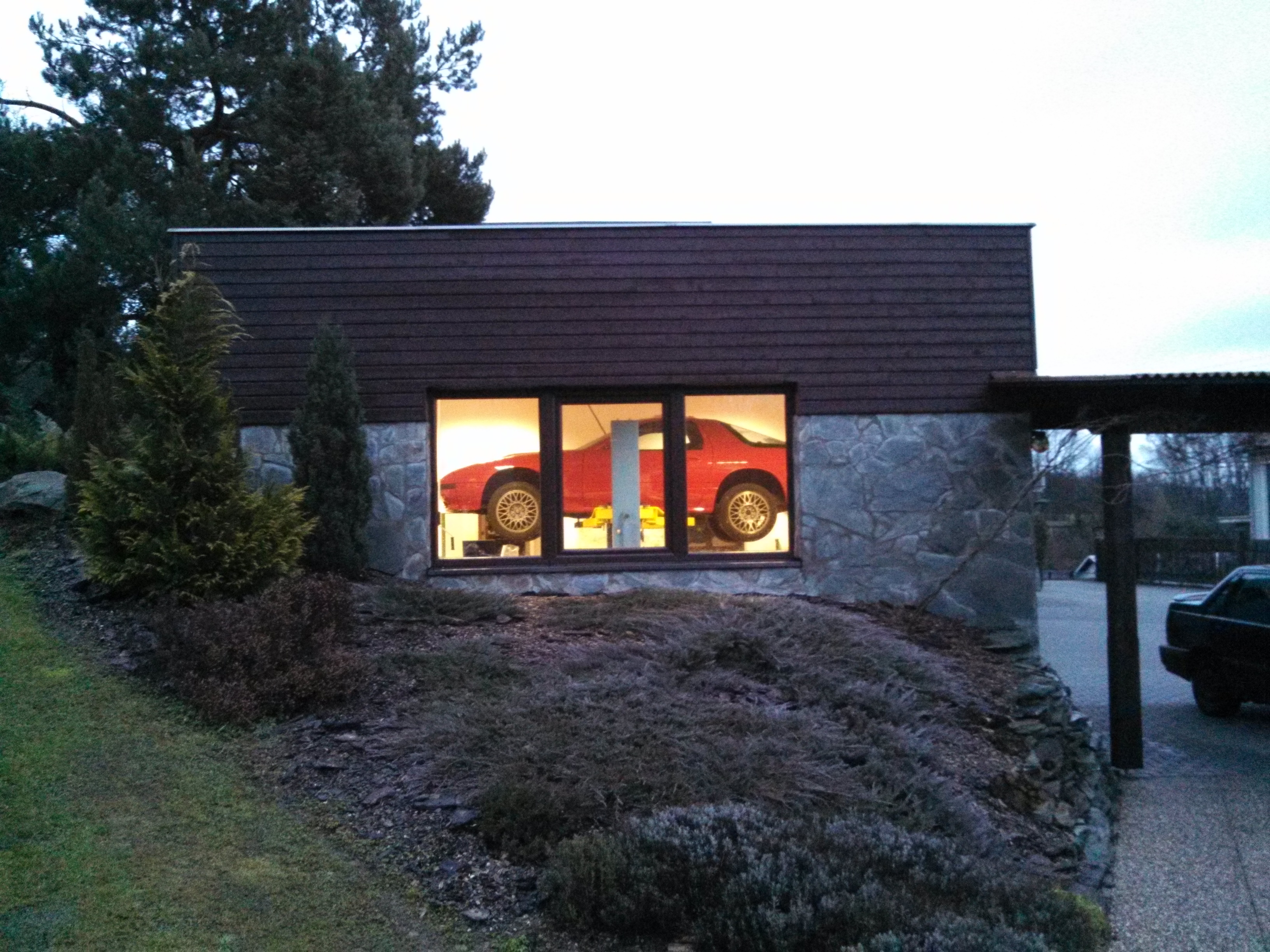

Last few pics, ending yesterday......test fitting dressed up block and modifying subframe for FD mounts....
Attached Thumbnails stock 13B-REW swapped FC-img_20180102_160951.jpg   stock 13B-REW swapped FC-img_20180124_165217.jpg   stock 13B-REW swapped FC-img_20180128_182839.jpg   stock 13B-REW swapped FC-img_20180219_182932.jpg   stock 13B-REW swapped FC-img_20180219_182942.jpg

stock 13B-REW swapped FC-img_20180219_193420.jpg
hIGGI is offline
Old 02-20-18, 04:52 PM
  #6
20B FC owner
Thread Starter
iTrader: (7)

hIGGI's Avatar

Join Date: Feb 2001
Location: Czech Republic [www.rx7cz.net]
Posts: 4,889
Likes: 0
Liked 1 Time in 1 Post

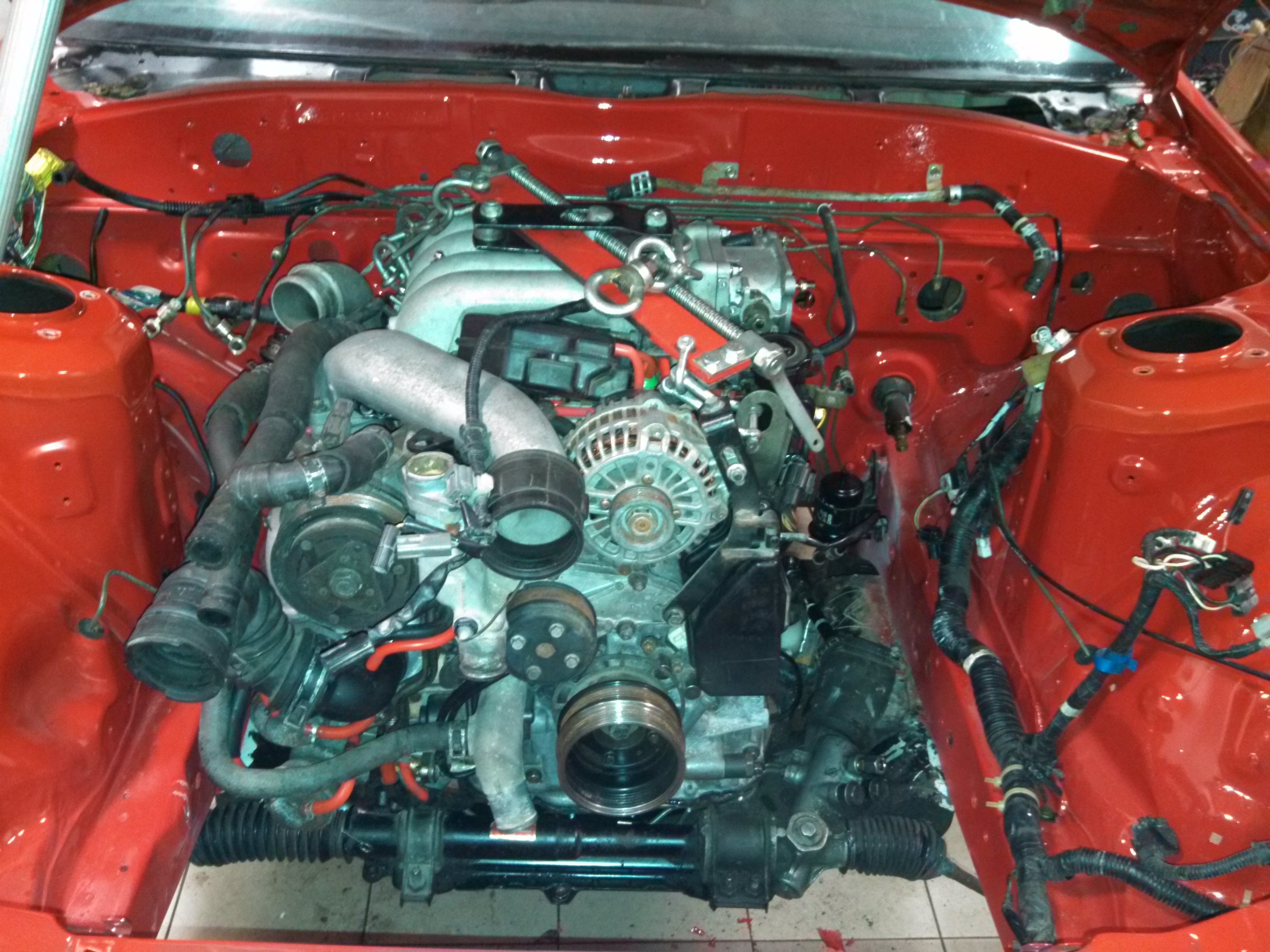

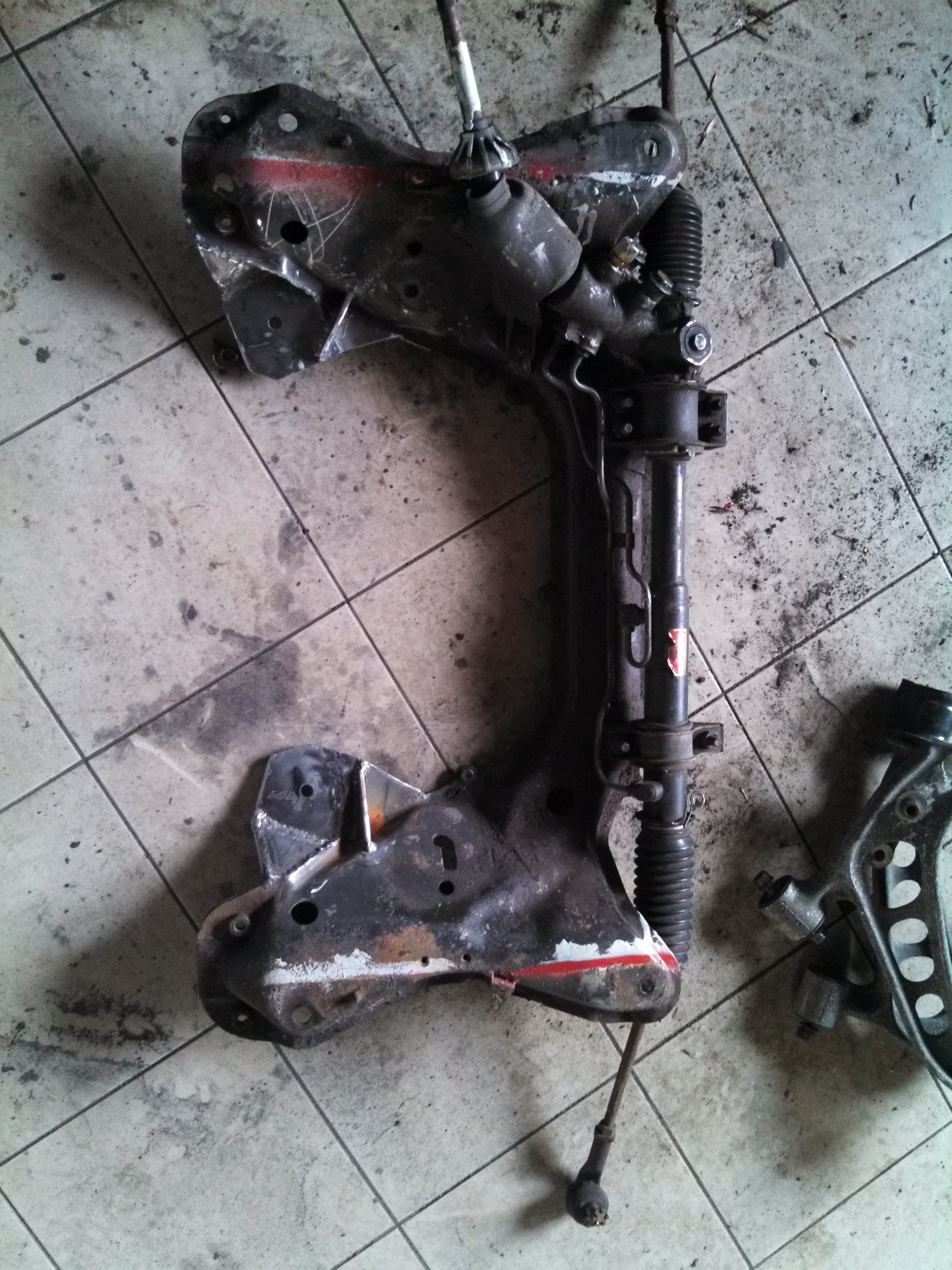

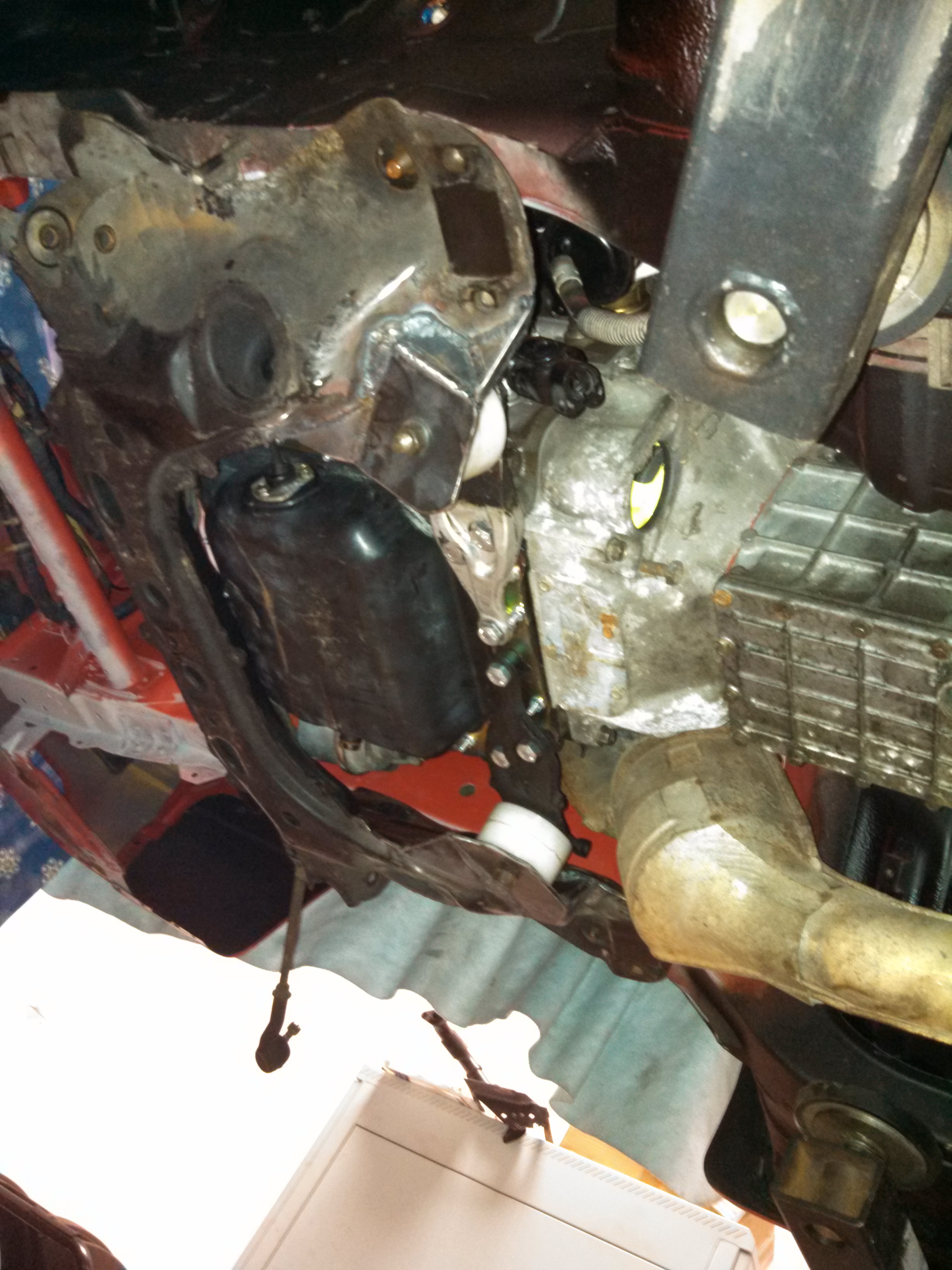

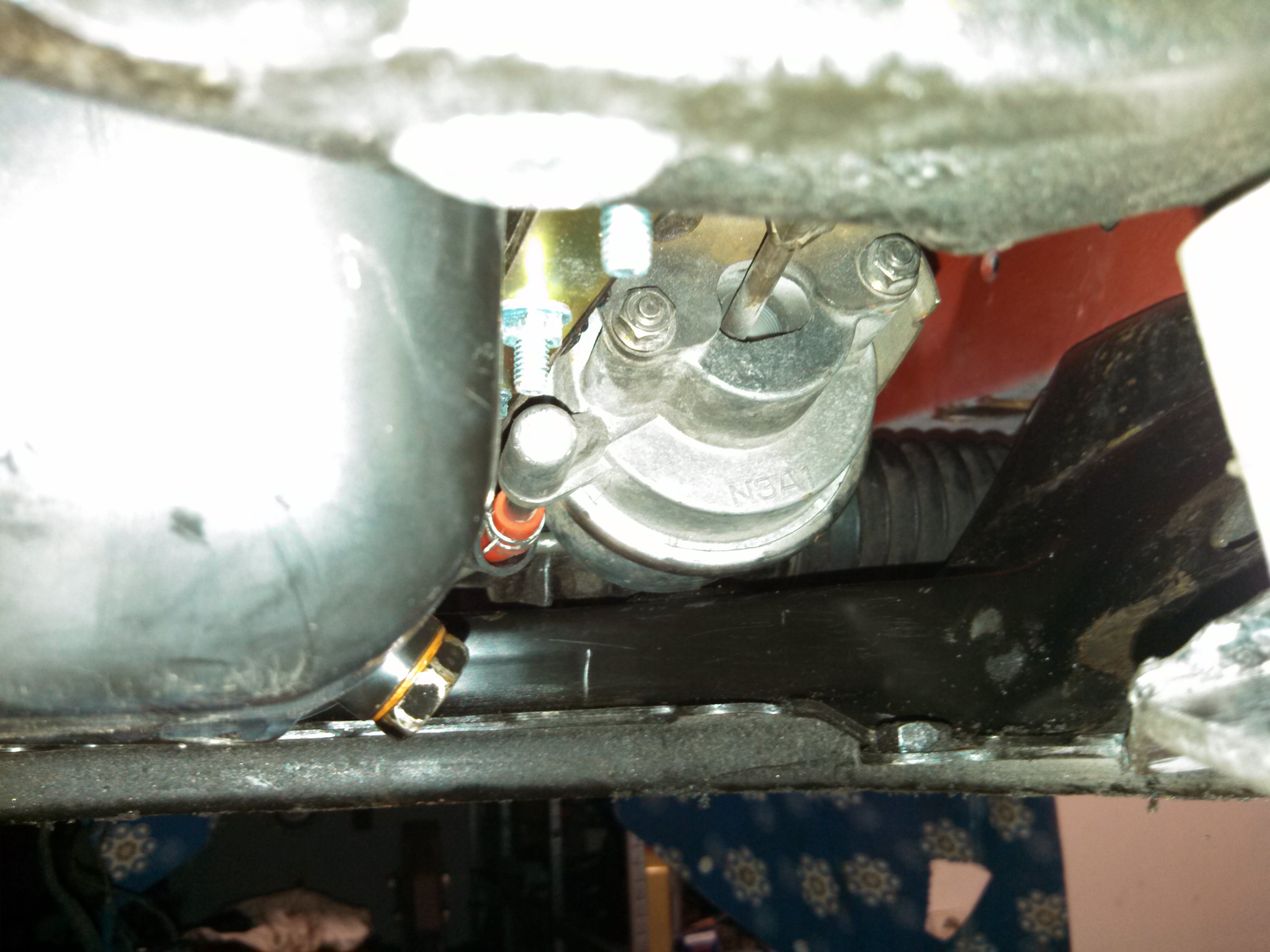

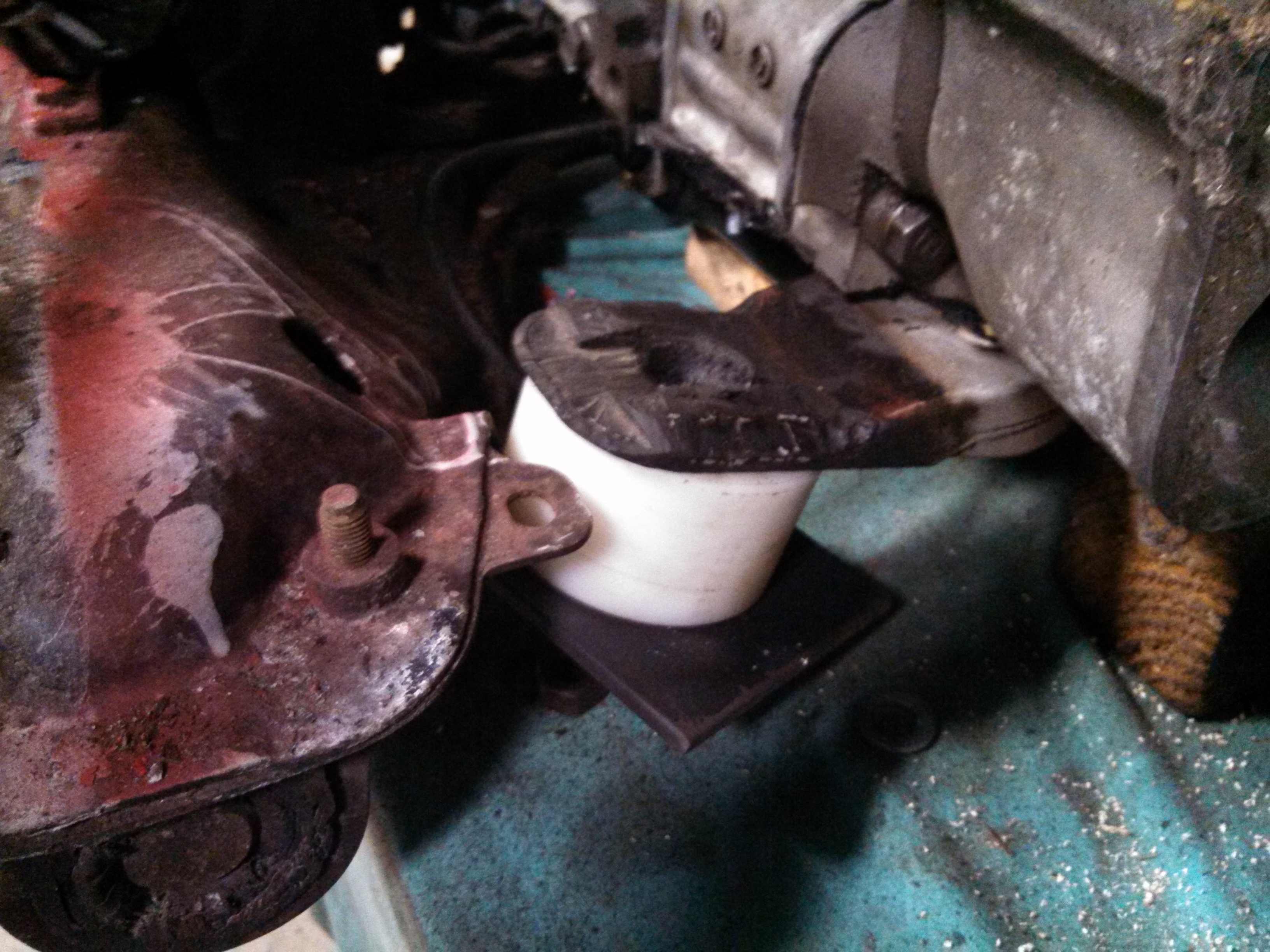

today i spent few hours reinforcing engine mount positions on subframe, still need to make notch for turbo control actuator in there.....
as well, moved one of the PS hardlines little bit lower

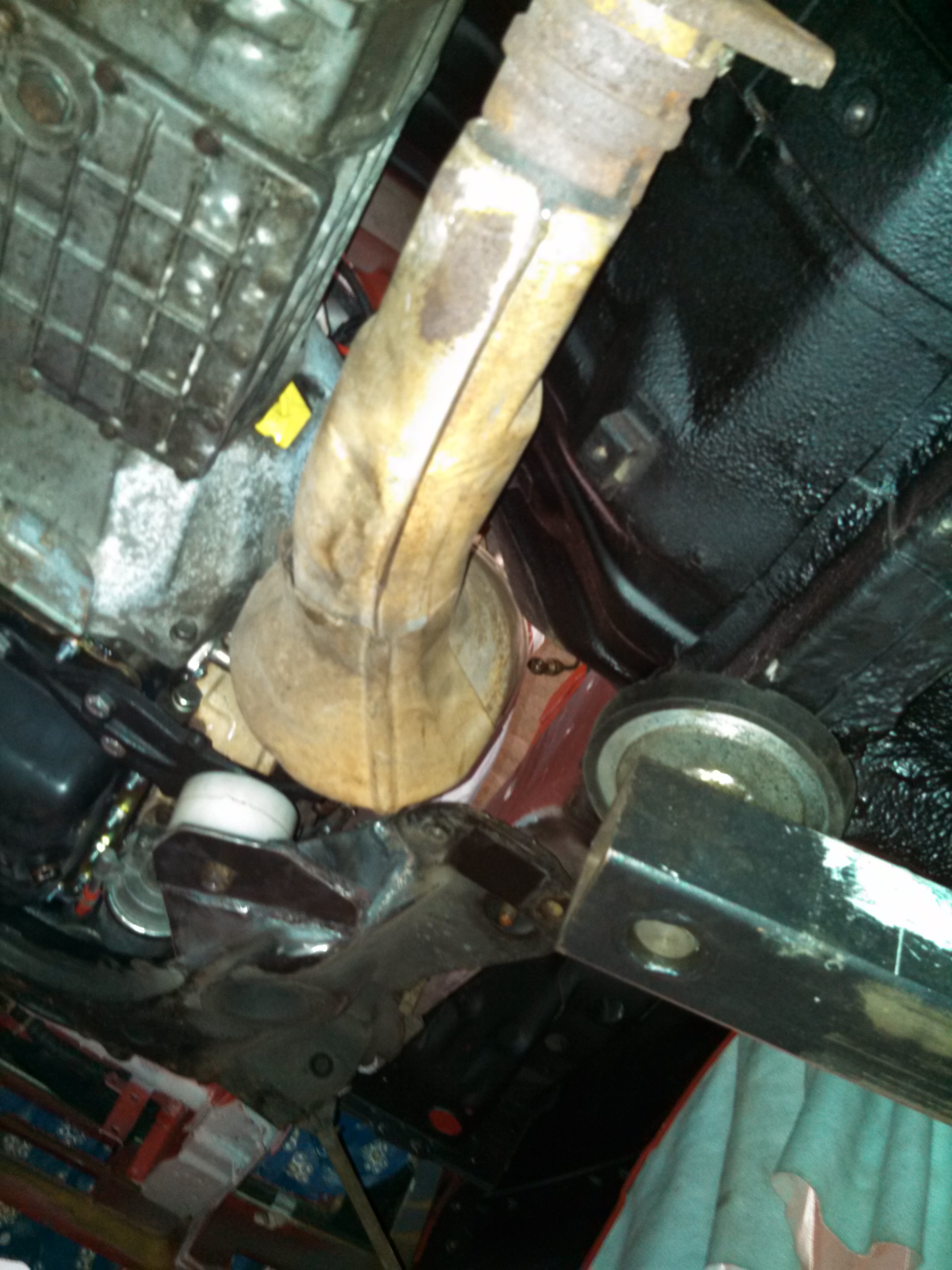

engine even with precat clears, but tolerance is very tight, not much space for heatshield close to precat...

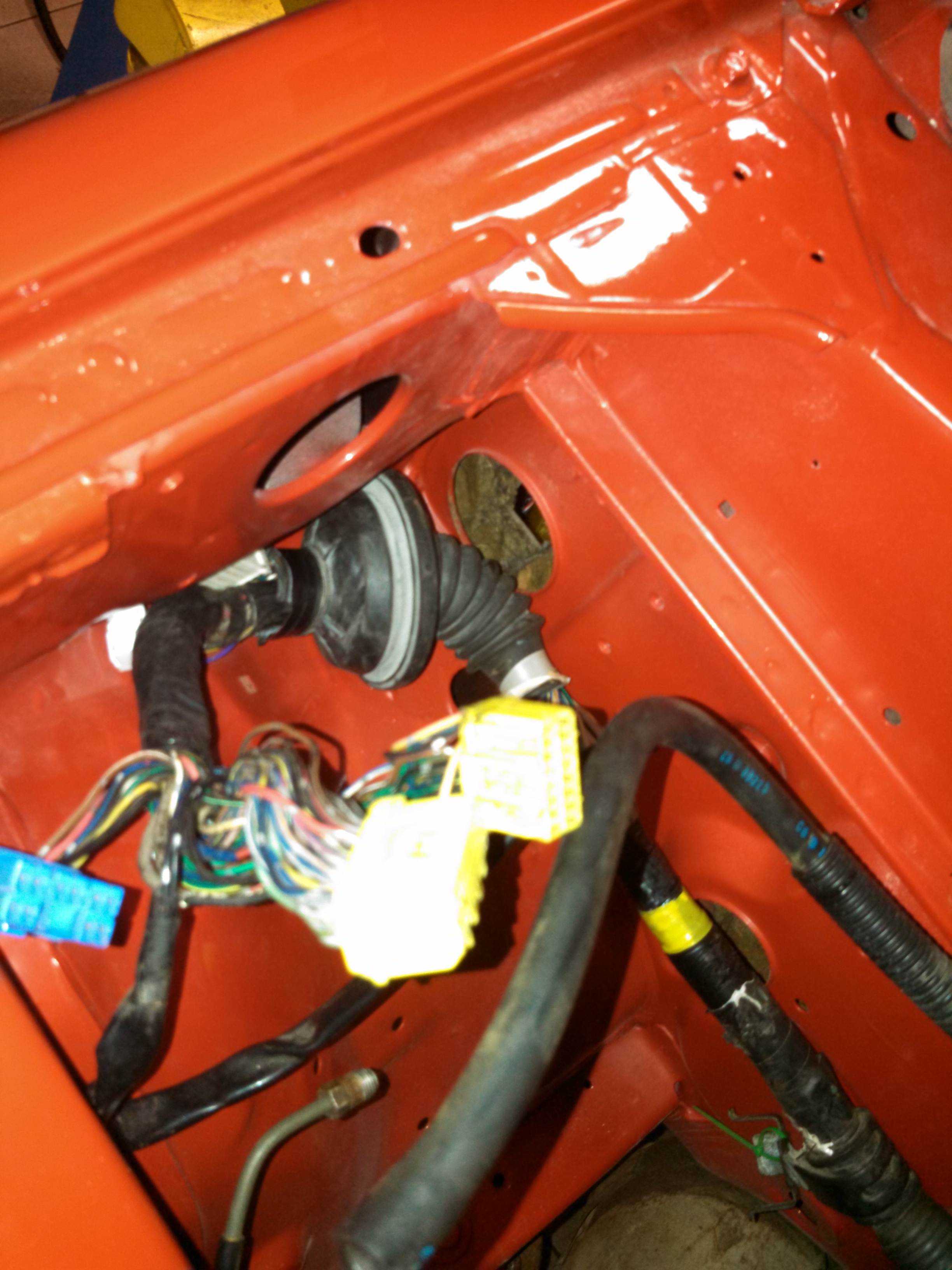

stock harness should work fine
Attached Thumbnails stock 13B-REW swapped FC-img_20180220_153719.jpg   stock 13B-REW swapped FC-img_20180220_185356.jpg   stock 13B-REW swapped FC-img_20180220_185421.jpg   stock 13B-REW swapped FC-img_20180220_185447.jpg   stock 13B-REW swapped FC-img_20180220_185926.jpg

stock 13B-REW swapped FC-img_20180220_185944.jpg
hIGGI is offline
Old 02-20-18, 08:05 PM
  #7
10AE FC - For Sale

BenRX's Avatar

Join Date: Jun 2008
Location: Chicago, IL
Posts: 248
Liked 3 Times in 3 Posts
Great to see another FC saved! Nice work, sir!
BenRX is offline
Old 02-21-18, 11:06 AM
  #8
dont kill the cones

13bREW's Avatar

Join Date: Dec 2004
Location: Kennewick, WA
Posts: 362
Liked 1 Time in 1 Post
Clean build!! What made you want to leave the FD engine completely stock with emissions? That's unique in itself LOL.
13bREW is offline
Old 02-21-18, 01:43 PM
  #9
Senior Member

Join Date: Jul 2016
Location: Near Toronto Ontario
Posts: 339
Liked 15 Times in 15 Posts
Seconded. It looks like you're doing a great job, but why go to the trouble of swapping an REW in if you are only going for stock power? And with full emissions, no less? It seems like you could put in a 13BT and just do exhaust and a standalone and make almost the same power. Or alternatively, upgrade to a hybrid or aftermarket turbo and make more power for less cost and less work.
WondrousBread is offline
Old 02-21-18, 01:55 PM
  #10
20B FC owner
Thread Starter
iTrader: (7)

hIGGI's Avatar

Join Date: Feb 2001
Location: Czech Republic [www.rx7cz.net]
Posts: 4,889
Likes: 0
Liked 1 Time in 1 Post
Its no trouble at all, i have few REW blocks here and i am short on 13BT parts (irons mainly) , so its easier to put in REW.

I am considering it as challenge and just want to try something new....i have had 30 or so FC's, including 20B one and i have 3 FD's as well. This build is not about power.

And third point : once done, when engine will be broken in, i can easily sell it to someone who will be in need of stock 13B-REW, fully dressed, tested, plug&play.
hIGGI is offline
The following users liked this post: hIGGI
cymfc3s (02-28-18)
Old 02-21-18, 02:18 PM
  #11
back with rotaries
iTrader: (7)

eddierotary's Avatar

Join Date: Nov 2001
Location: Watertown, NY
Posts: 2,216
Likes: 0
Liked 0 Times in 0 Posts
Nice project, is like a throwback to me when i did this on my old red fc. I had alot of fun with the stock twins, big difference from mild 13bt to a stock 13brew with stock twin
eddierotary is offline
Old 02-21-18, 05:22 PM
  #12
20B FC owner
Thread Starter
iTrader: (7)

hIGGI's Avatar

Join Date: Feb 2001
Location: Czech Republic [www.rx7cz.net]
Posts: 4,889
Likes: 0
Liked 1 Time in 1 Post
Yeah, i hope to have some fun with working twins and be able to turn it back into fully stock TII easily.

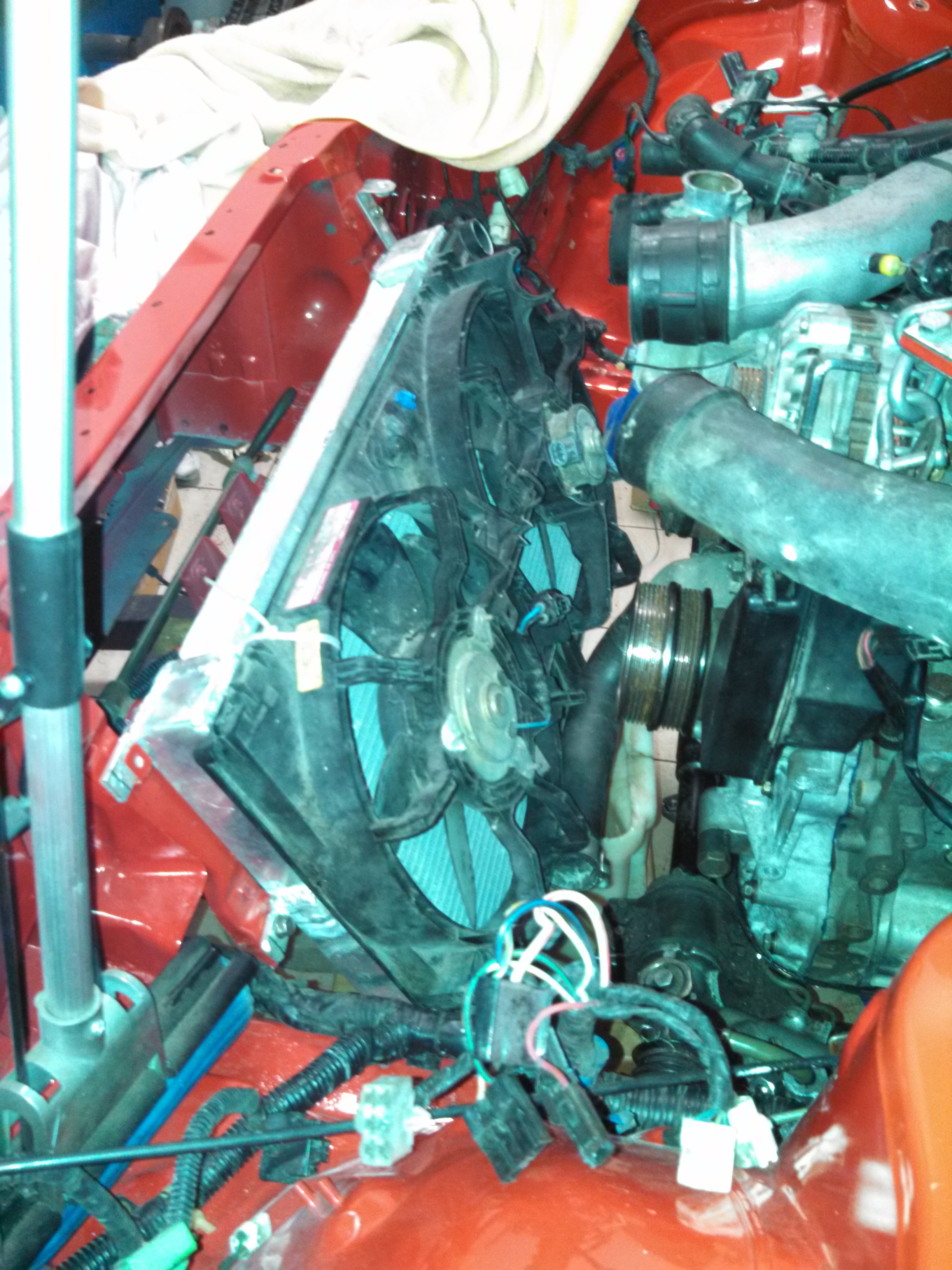

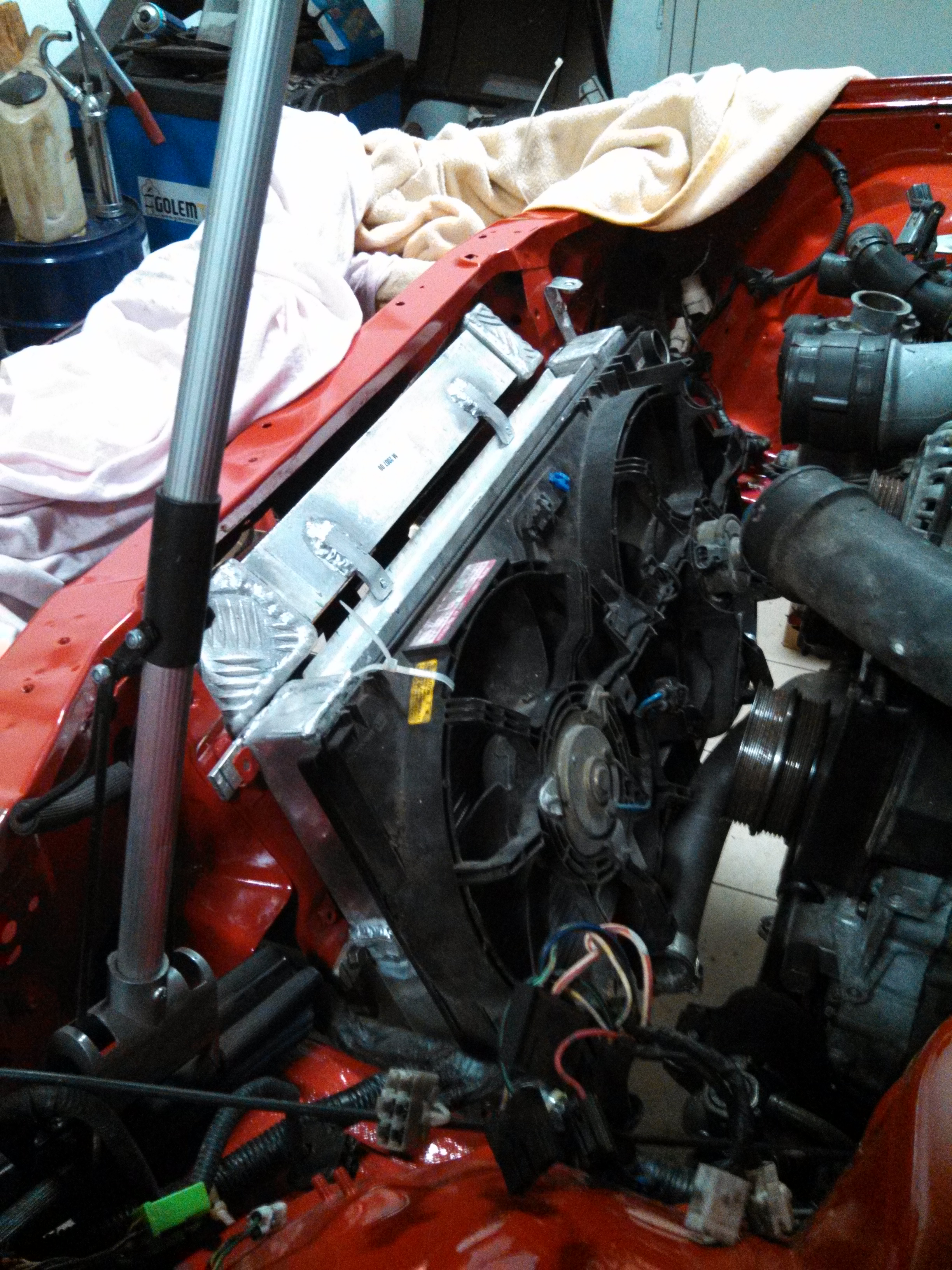

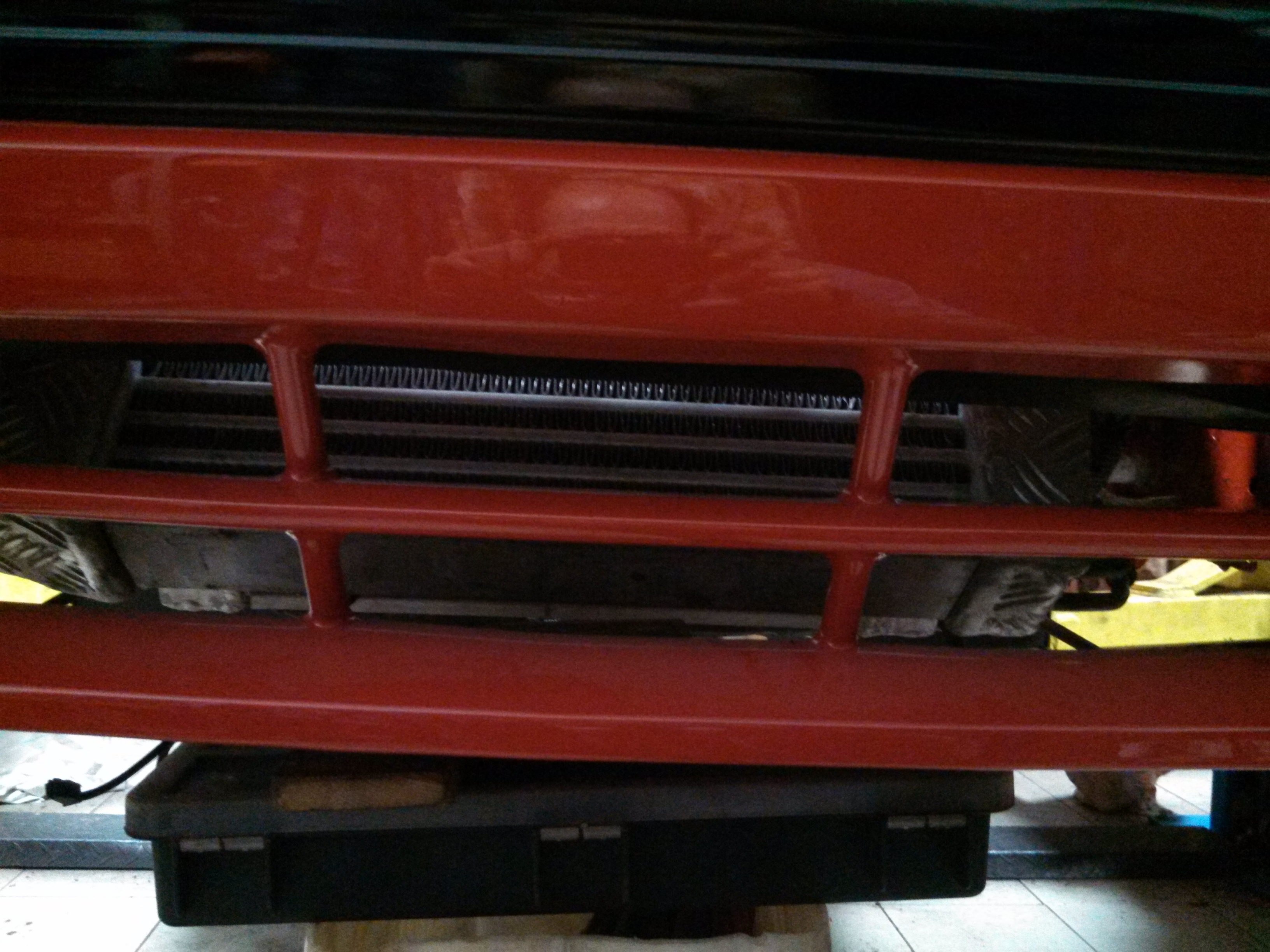

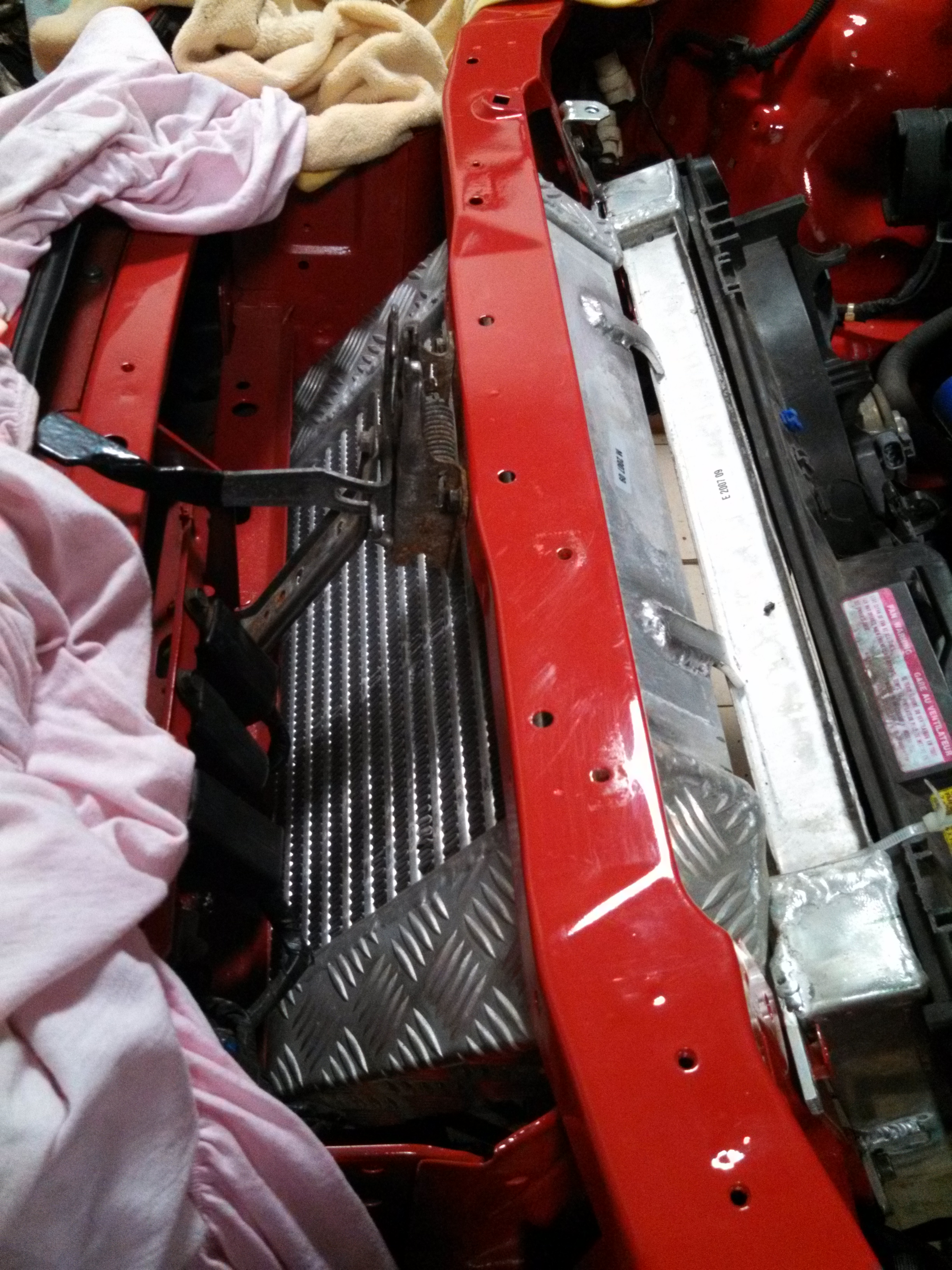

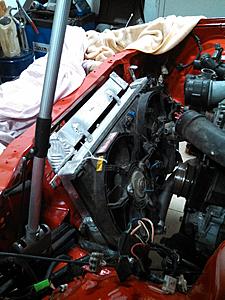

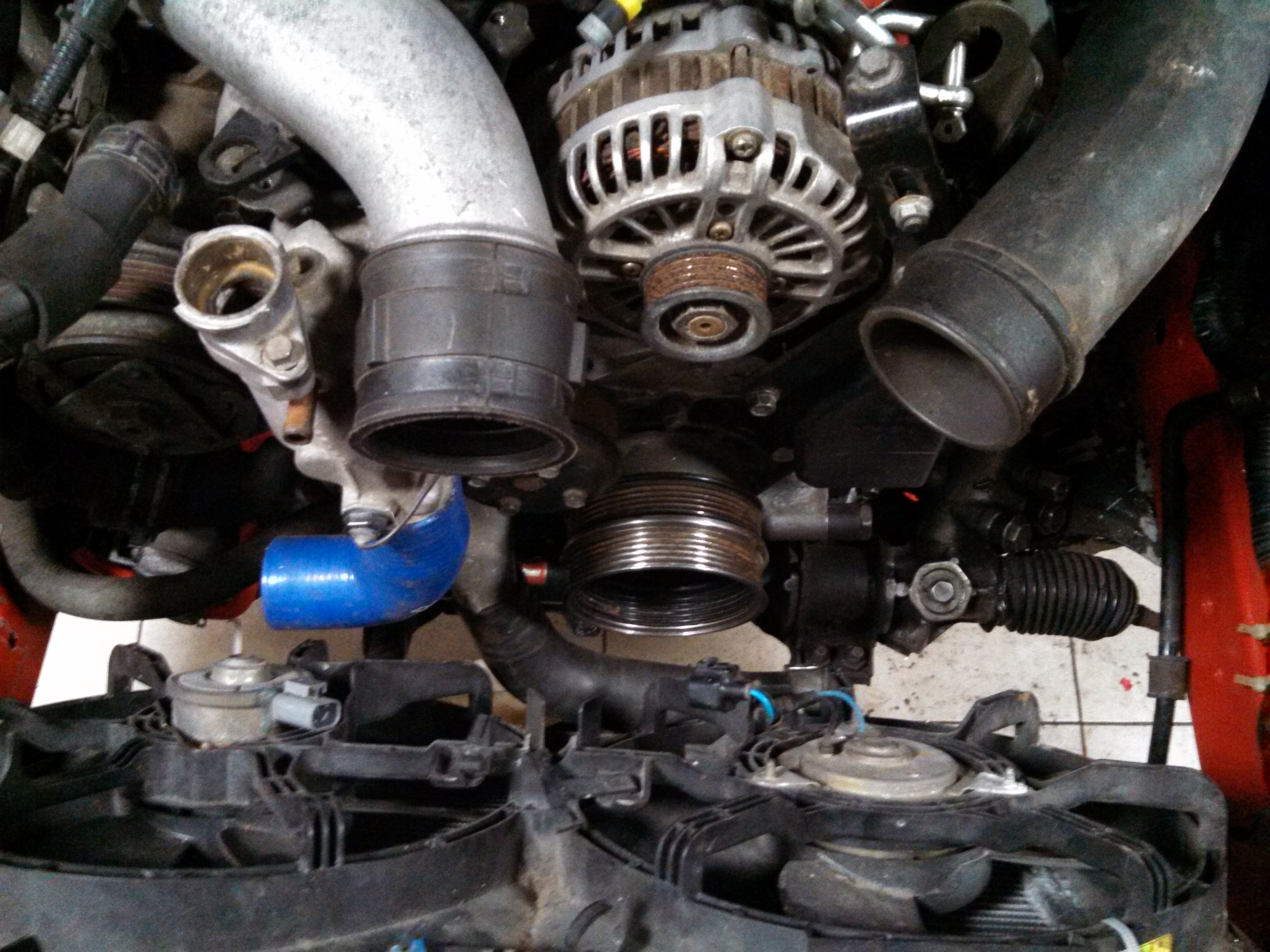

Today i found a position for radiator and intercooler, next step is make outlets and piping. Hopefully tomorrow.

Fans are from rx8, radiator and IC are custom unfinished projects aquired with bunch of other parts, will make them work
Attached Thumbnails stock 13B-REW swapped FC-img_20180221_183529.jpg   stock 13B-REW swapped FC-img_20180221_183552.jpg   stock 13B-REW swapped FC-img_20180221_192841.jpg   stock 13B-REW swapped FC-img_20180221_192856.jpg   stock 13B-REW swapped FC-img_20180221_192906.jpg

stock 13B-REW swapped FC-img_20180221_192943.jpg
hIGGI is offline
Old 02-21-18, 05:49 PM
  #13
Senior Member

Join Date: Jul 2016
Location: Near Toronto Ontario
Posts: 339
Liked 15 Times in 15 Posts
Ah, understood. I find 13BTs are easier to find near me, but if REWs are what you have available to you, I understand why it would be more practical. Curious to see what your impressions are of the stock twins. Anyways, good luck
WondrousBread is offline
Old 02-22-18, 01:09 AM
  #14
20B FC owner
Thread Starter
iTrader: (7)

hIGGI's Avatar

Join Date: Feb 2001
Location: Czech Republic [www.rx7cz.net]
Posts: 4,889
Likes: 0
Liked 1 Time in 1 Post
13BTs are long gone and most of them i tear down in last few years are cracked irons or broken coolant passages in them....already started ordering new irons
If i had good irons, i would have very like build FC block, but this was somewhat easier route for me.
hIGGI is offline
Old 02-23-18, 04:15 PM
  #15
20B FC owner
Thread Starter
iTrader: (7)

hIGGI's Avatar

Join Date: Feb 2001
Location: Czech Republic [www.rx7cz.net]
Posts: 4,889
Likes: 0
Liked 1 Time in 1 Post

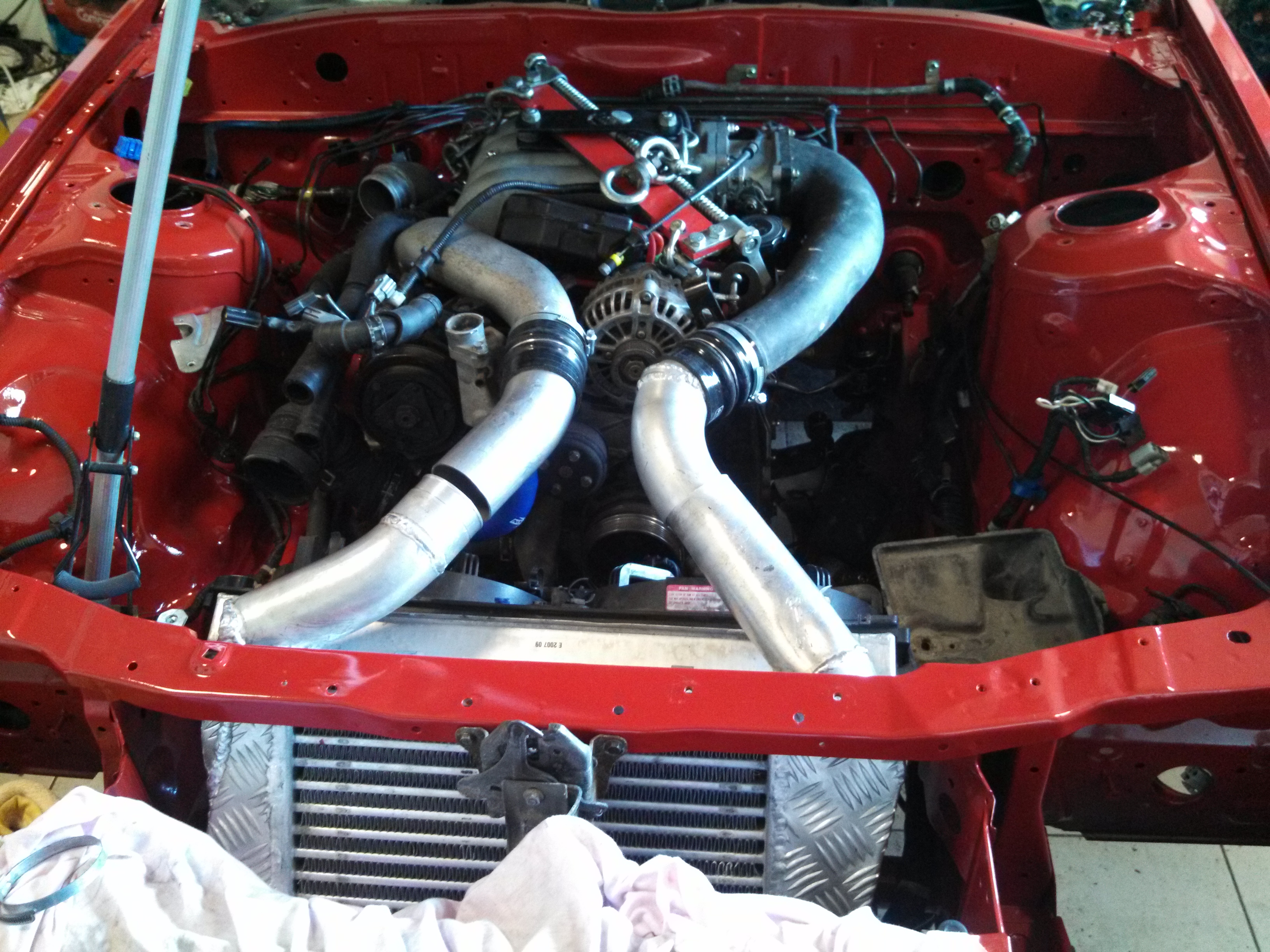

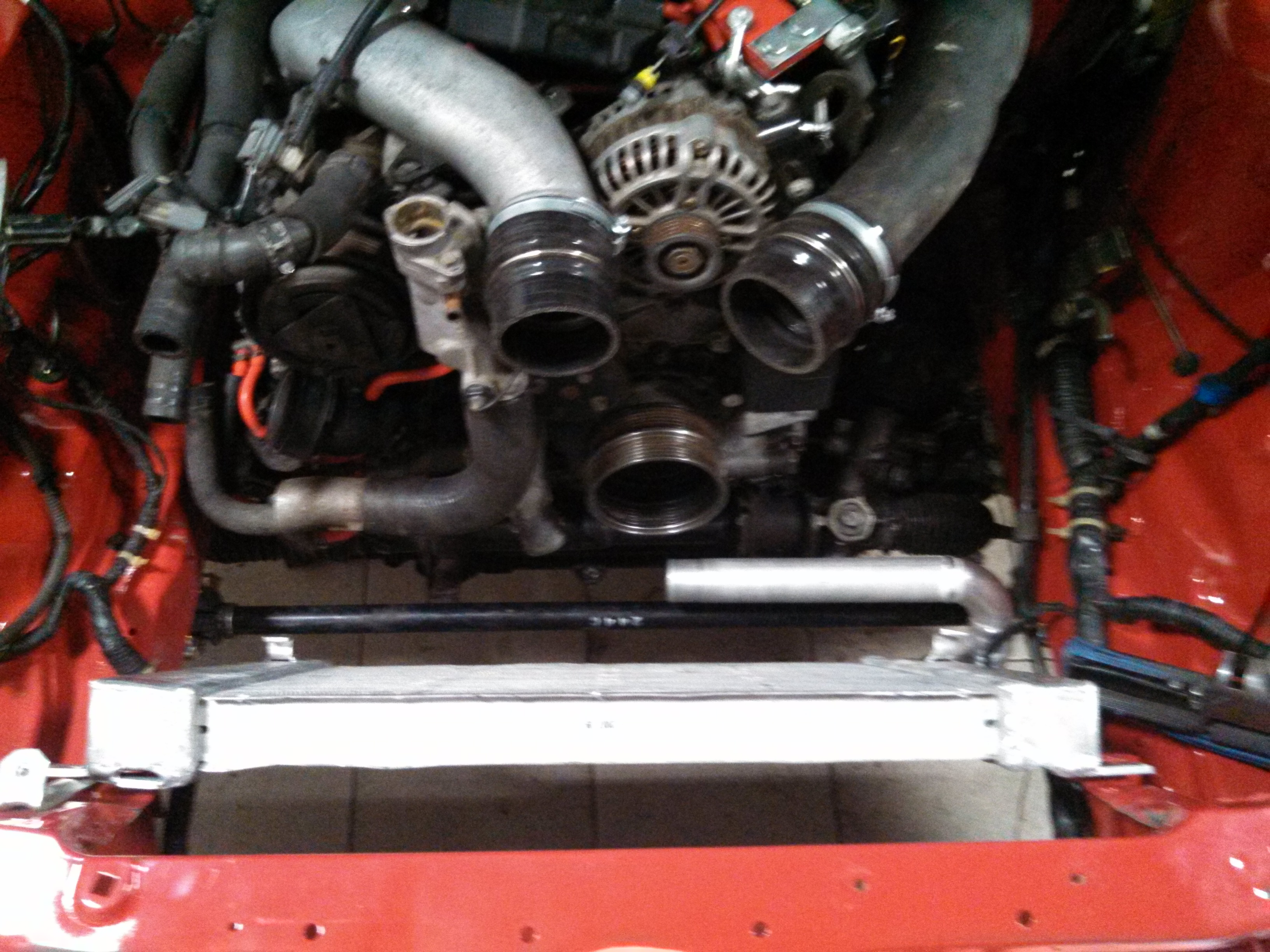

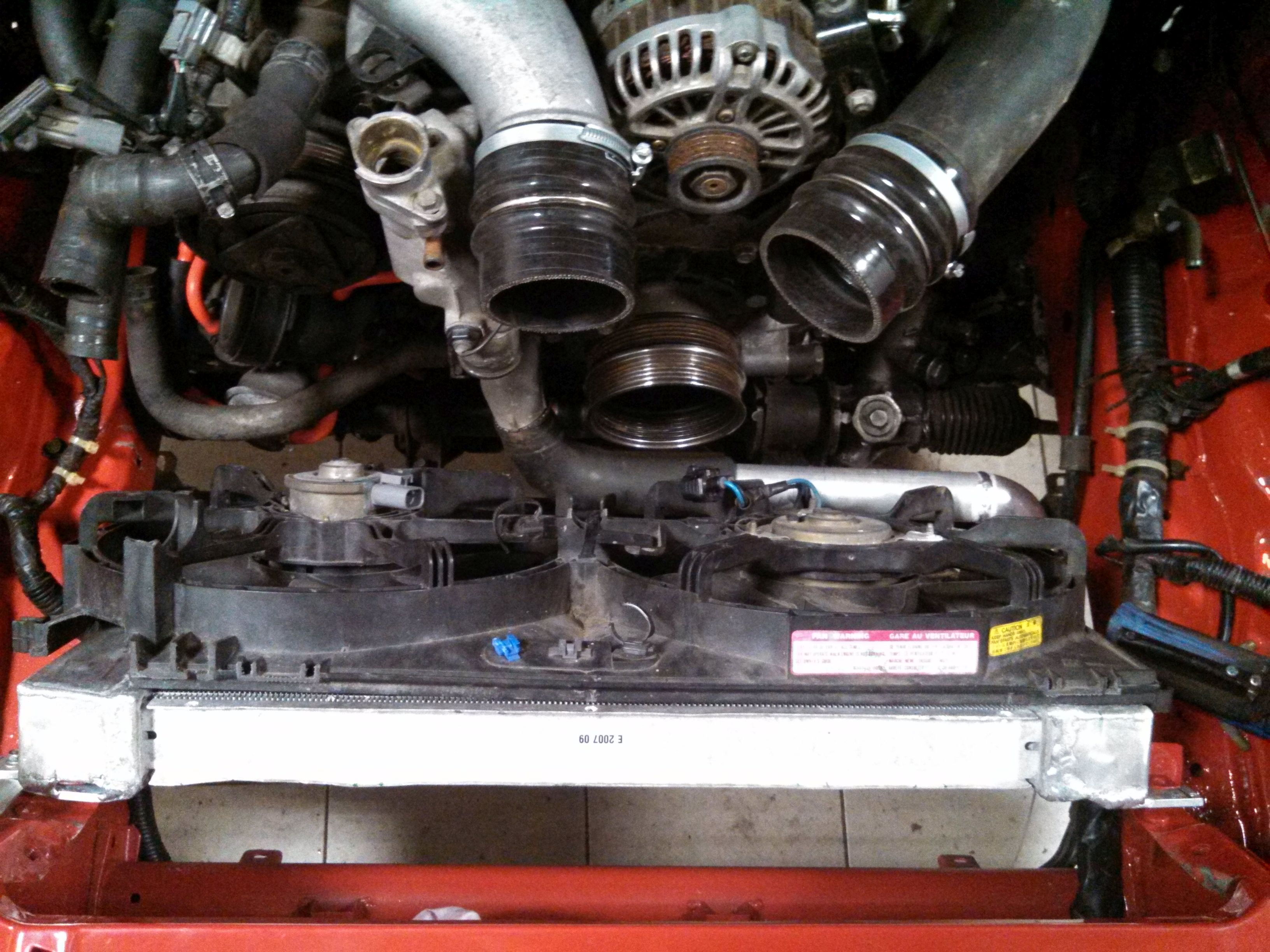

Slowly but surely...
Intercooler outlets and piping done
Radiator bottom pipe done
Still have to make bleed and drain points and upper outlet on rad

Fc front swaybar wont fit, but rx8 one will, just have to make 5cm or so thick spacers to move it little bit down
Attached Thumbnails stock 13B-REW swapped FC-img_20180223_114444.jpg   stock 13B-REW swapped FC-img_20180223_192929.jpg   stock 13B-REW swapped FC-img_20180223_193834.jpg
hIGGI is offline
Old 02-24-18, 04:09 PM
  #16
20B FC owner
Thread Starter
iTrader: (7)

hIGGI's Avatar

Join Date: Feb 2001
Location: Czech Republic [www.rx7cz.net]
Posts: 4,889
Likes: 0
Liked 1 Time in 1 Post

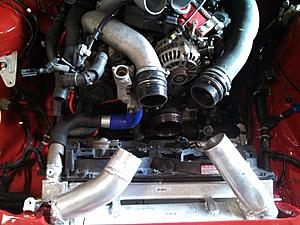

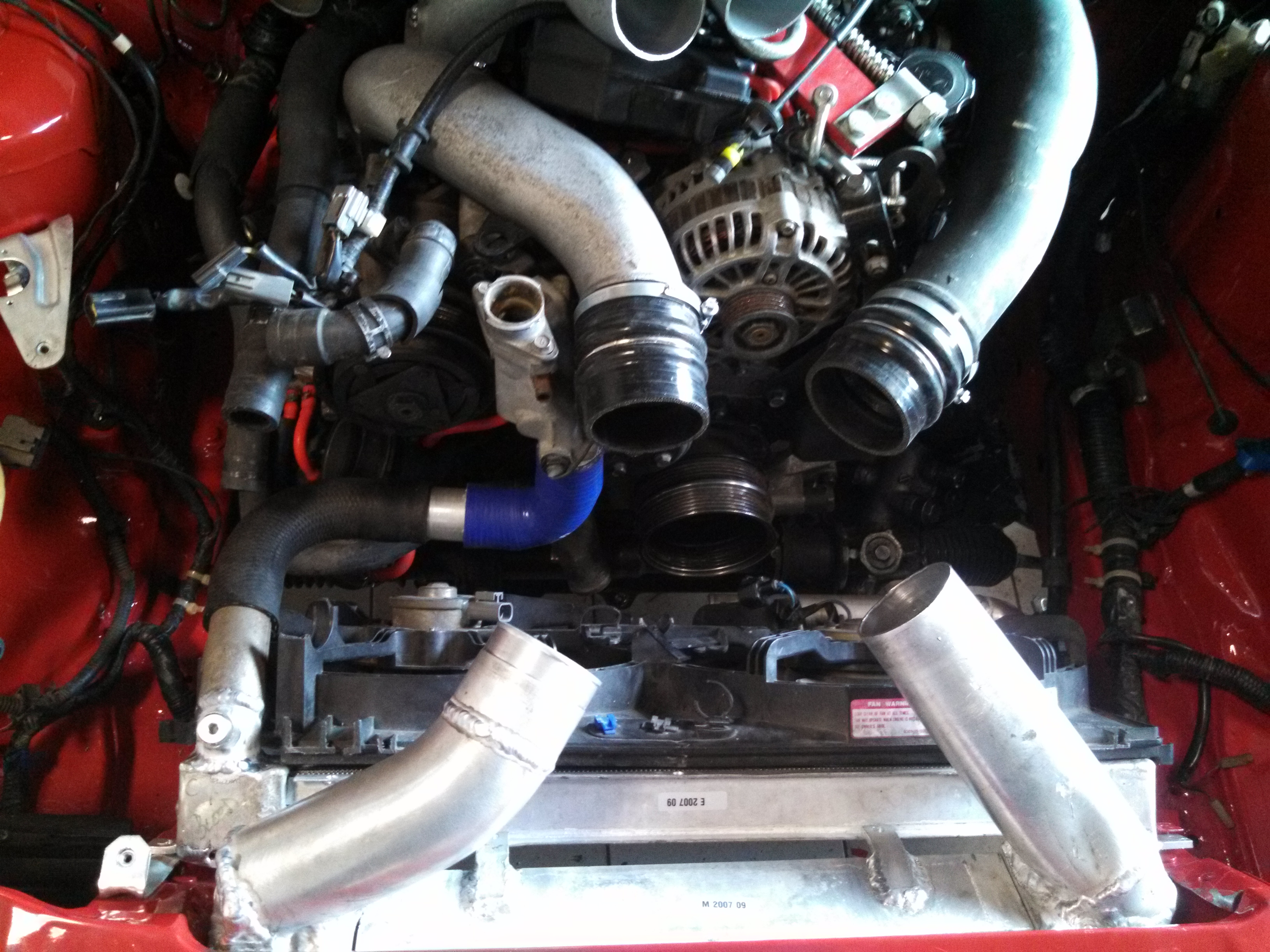

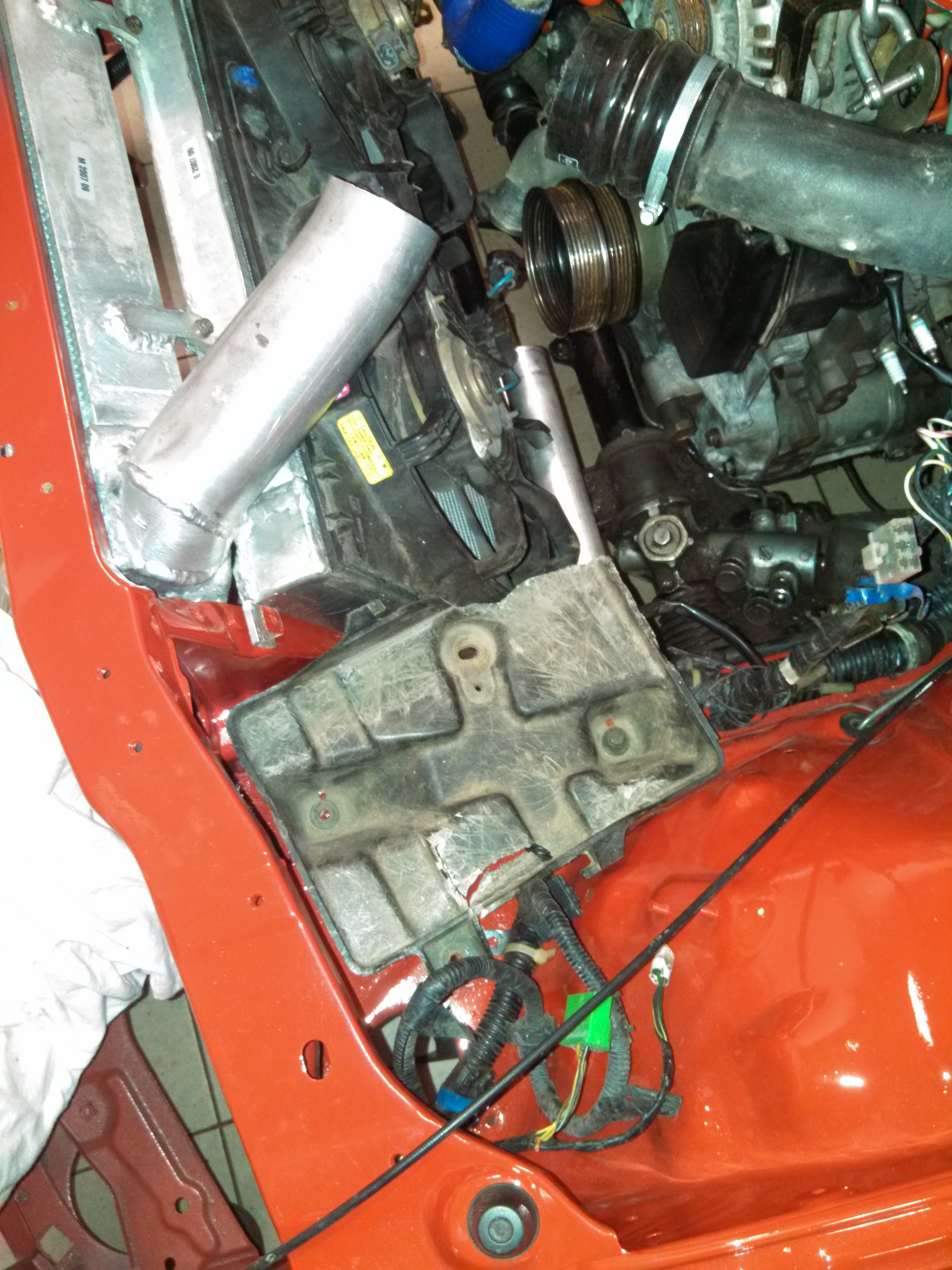

Finished welding radiator outlets, bleed, drain and some brackets on both rad and intercooler.
Modified some broken battery tray and it looks like it will fit regular size battery in oem location.
Attached Thumbnails stock 13B-REW swapped FC-img_20180224_123836.jpg   stock 13B-REW swapped FC-img_20180224_192514.jpg
hIGGI is offline
Old 02-25-18, 09:47 AM
  #17
(Terraplane)

TRRAPLN's Avatar

Join Date: Apr 2005
Location: Arizona desert, where the terraplanes roam.
Posts: 339
Liked 7 Times in 5 Posts
Love this picture. So Euro cool.

Last edited by TRRAPLN; 02-25-18 at 09:53 AM. Reason: pic size
TRRAPLN is offline
Old 02-25-18, 05:38 PM
  #18
20B FC owner
Thread Starter
iTrader: (7)

hIGGI's Avatar

Join Date: Feb 2001
Location: Czech Republic [www.rx7cz.net]
Posts: 4,889
Likes: 0
Liked 1 Time in 1 Post

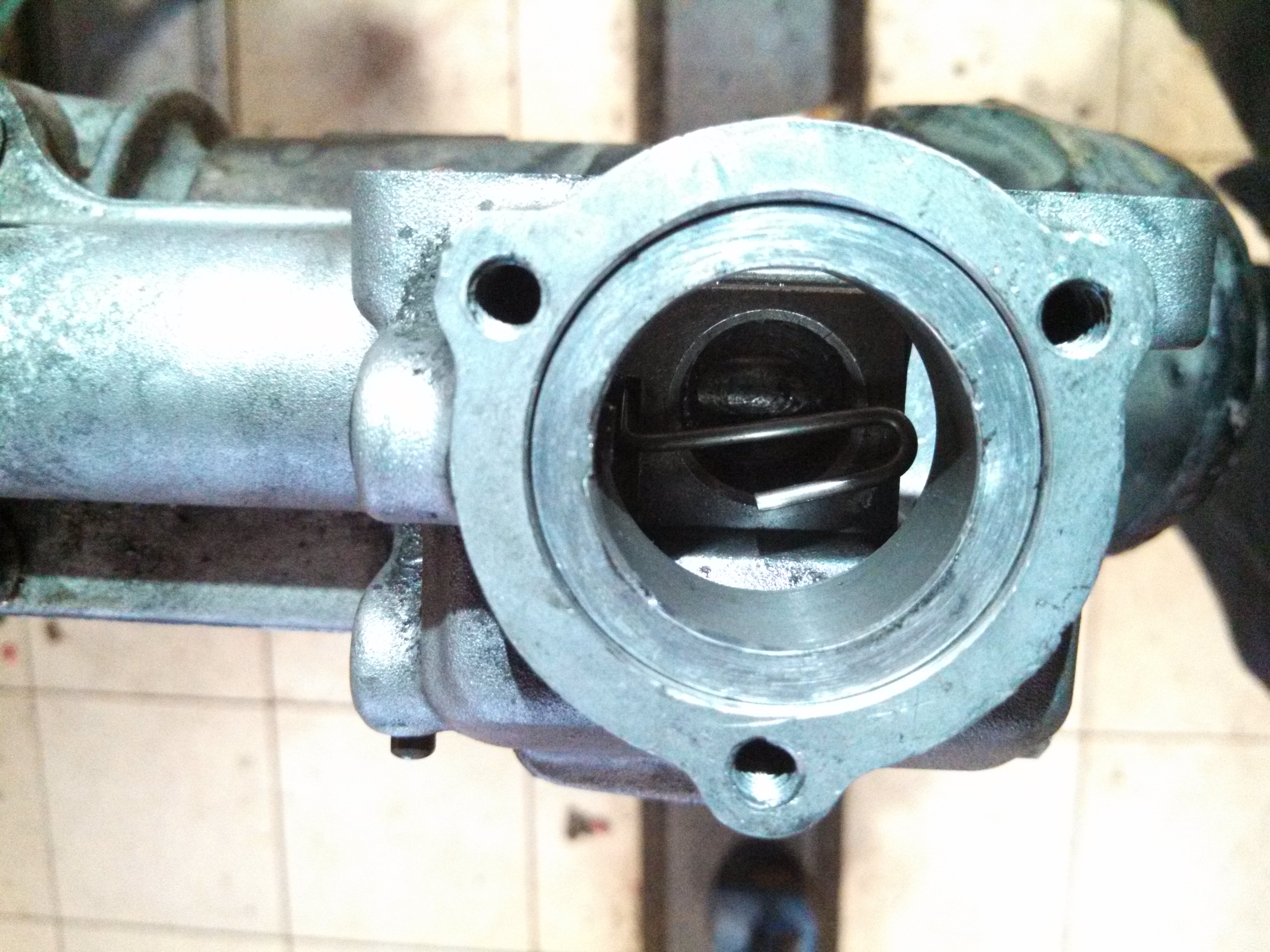

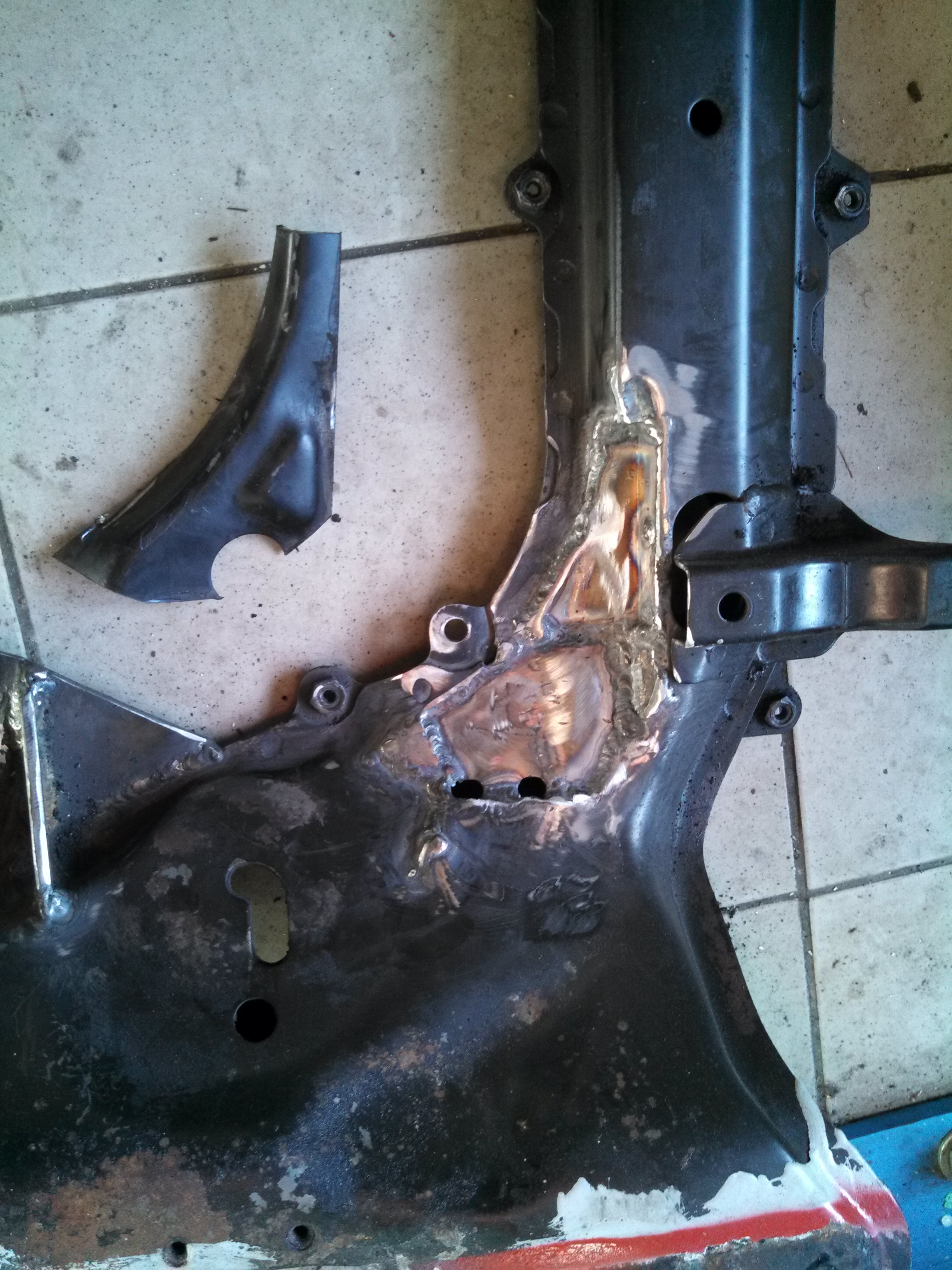

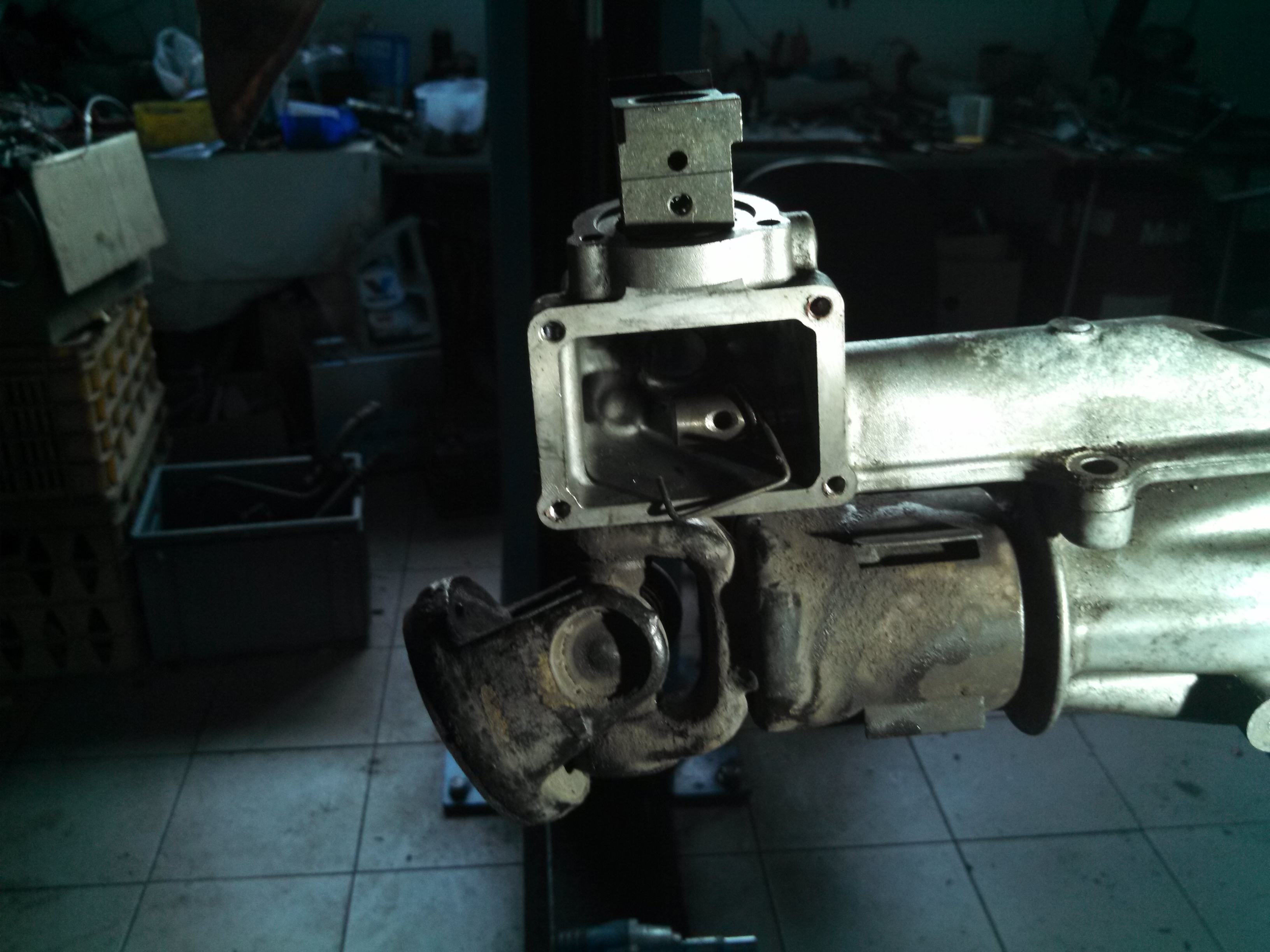

Had to modify subframe for turbo control actuator clearance and decided to change broken spring in transmission too.
Attached Thumbnails stock 13B-REW swapped FC-img_20180225_154531.jpg   stock 13B-REW swapped FC-img_20180225_165255.jpg   stock 13B-REW swapped FC-img_20180225_173234.jpg
hIGGI is offline
Old 02-27-18, 02:10 AM
  #19
Senior Member

psyaddict's Avatar

Join Date: Oct 2012
Location: Tallinn, Estonia
Posts: 452
Liked 3 Times in 3 Posts
Woah man, nice garage!
psyaddict is offline
Old 03-01-18, 03:13 PM
  #20
20B FC owner
Thread Starter
iTrader: (7)

hIGGI's Avatar

Join Date: Feb 2001
Location: Czech Republic [www.rx7cz.net]
Posts: 4,889
Likes: 0
Liked 1 Time in 1 Post
Slowed down now, pressure test of IC/radiator showed some leaks which i had to fix.
As well made alu pipe bead tool.
Still need to prepare some wiring before final install of engine (wiper and cruise control wires and gauges wiring)
In meantime transmission fluid arrived, so i filled that up.
Drilled stuck piston from clutch slave cylinder and rebuild it with new piston/seals.
hIGGI is offline
Old 03-07-18, 04:05 PM
  #21
20B FC owner
Thread Starter
iTrader: (7)

hIGGI's Avatar

Join Date: Feb 2001
Location: Czech Republic [www.rx7cz.net]
Posts: 4,889
Likes: 0
Liked 1 Time in 1 Post
Oil cooler lines done (hydraulic shop), oil cooler mounted in stock location.
Wired in Defi Advance ZD unit, utilising unused wires on FD harness (transmission sensors)
Test fitted JDM downpipe (better clearance, different lenght), but decided to make own downpipe, since material was there already.

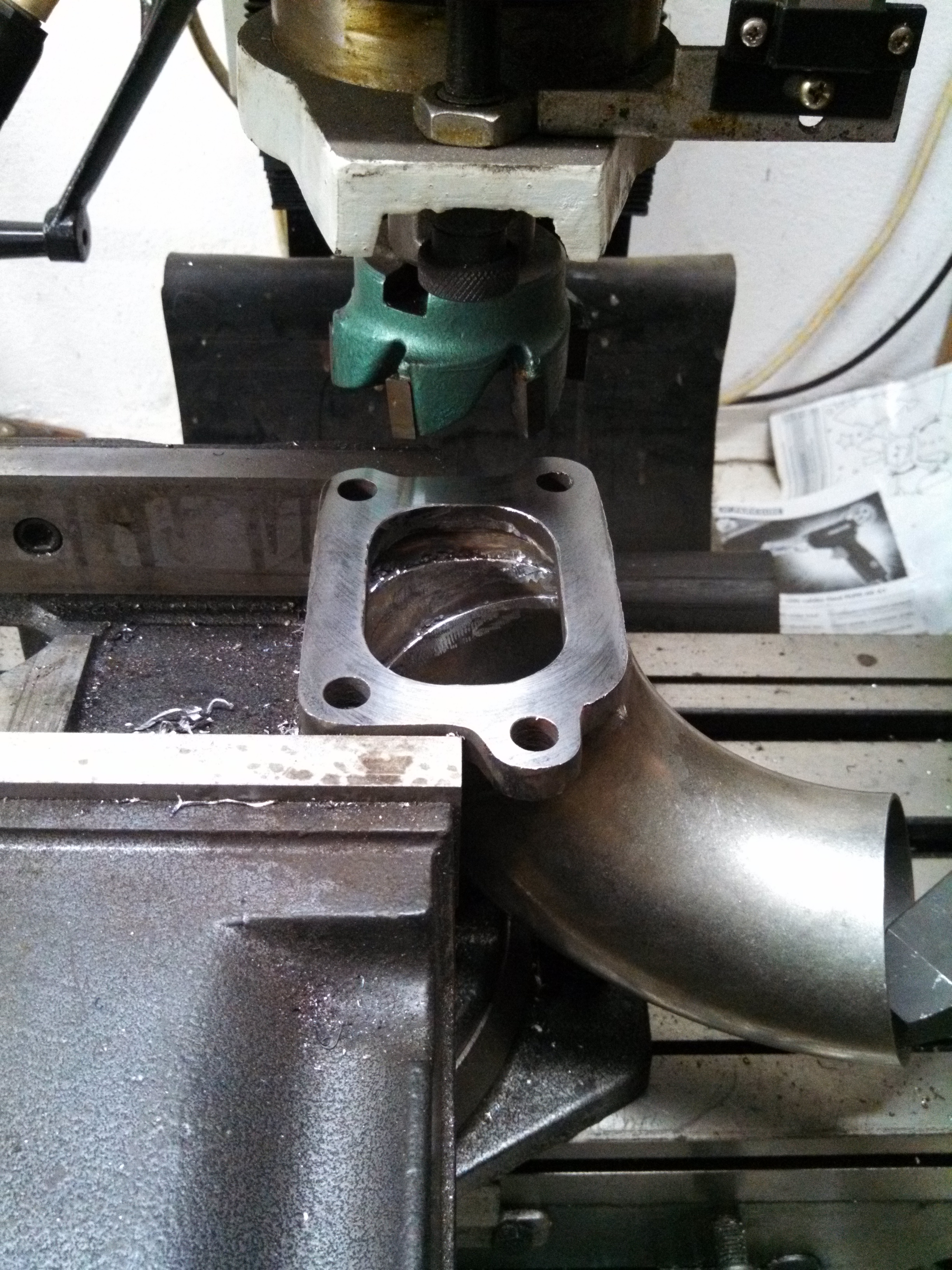

Had downpipe flange laying already, just needed to be made flat after welding.
Need to install ABS pump to see what space i have for EGT and o2 bungs, finish downpipe tomorrow.
Attached Thumbnails stock 13B-REW swapped FC-img_20180307_195240.jpg
hIGGI is offline
Old 03-08-18, 04:56 PM
  #22
20B FC owner
Thread Starter
iTrader: (7)

hIGGI's Avatar

Join Date: Feb 2001
Location: Czech Republic [www.rx7cz.net]
Posts: 4,889
Likes: 0
Liked 1 Time in 1 Post

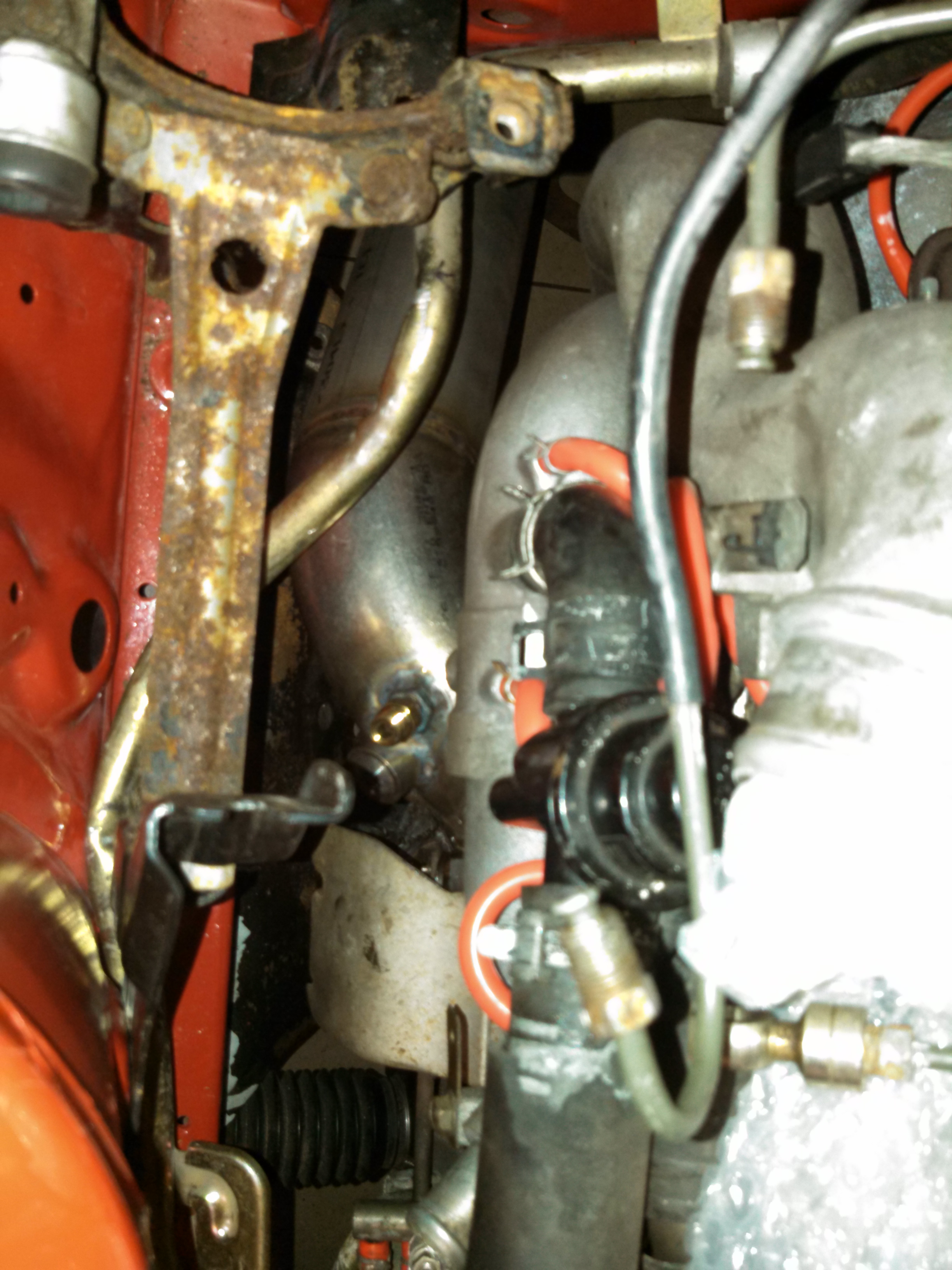

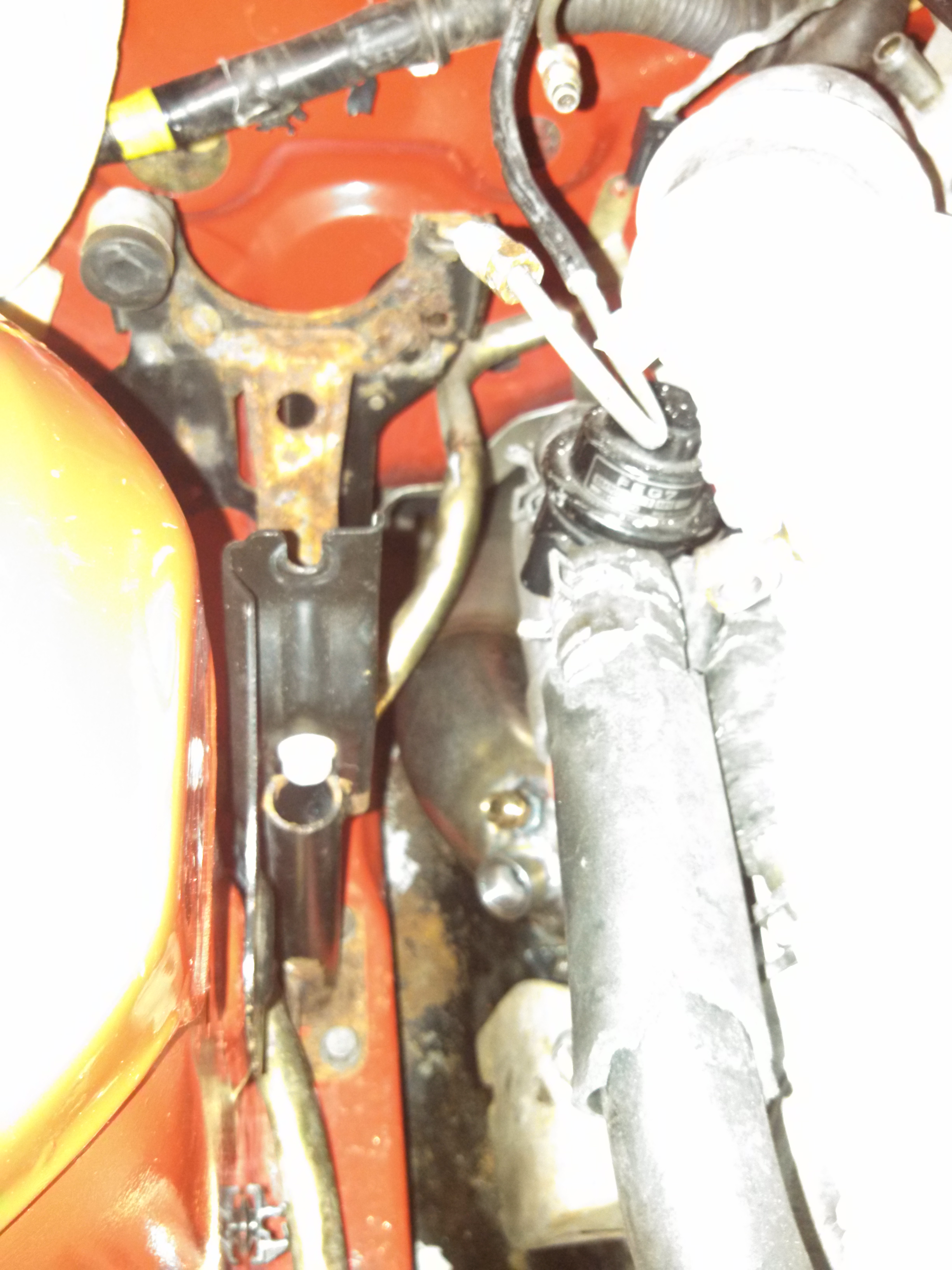

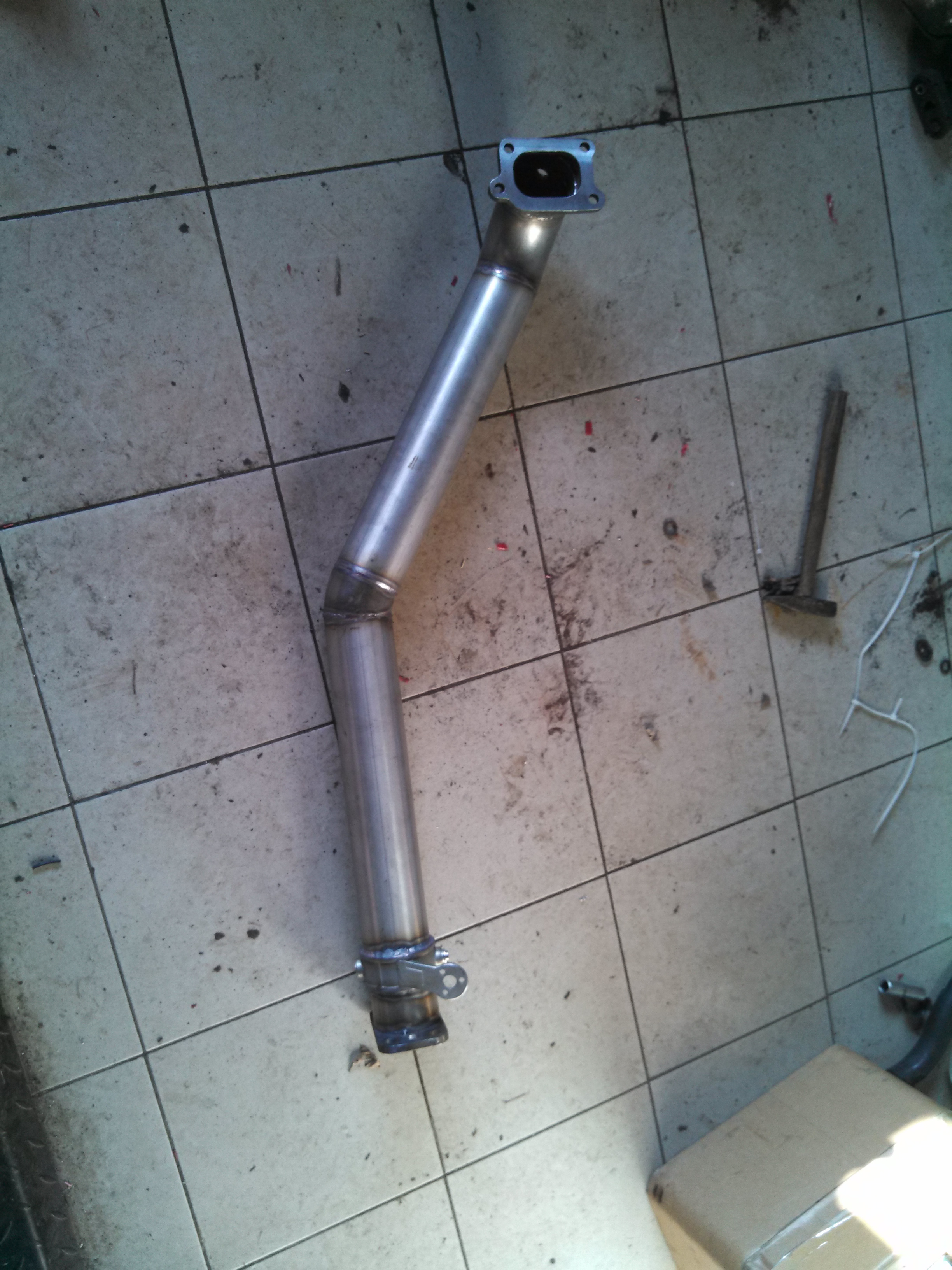

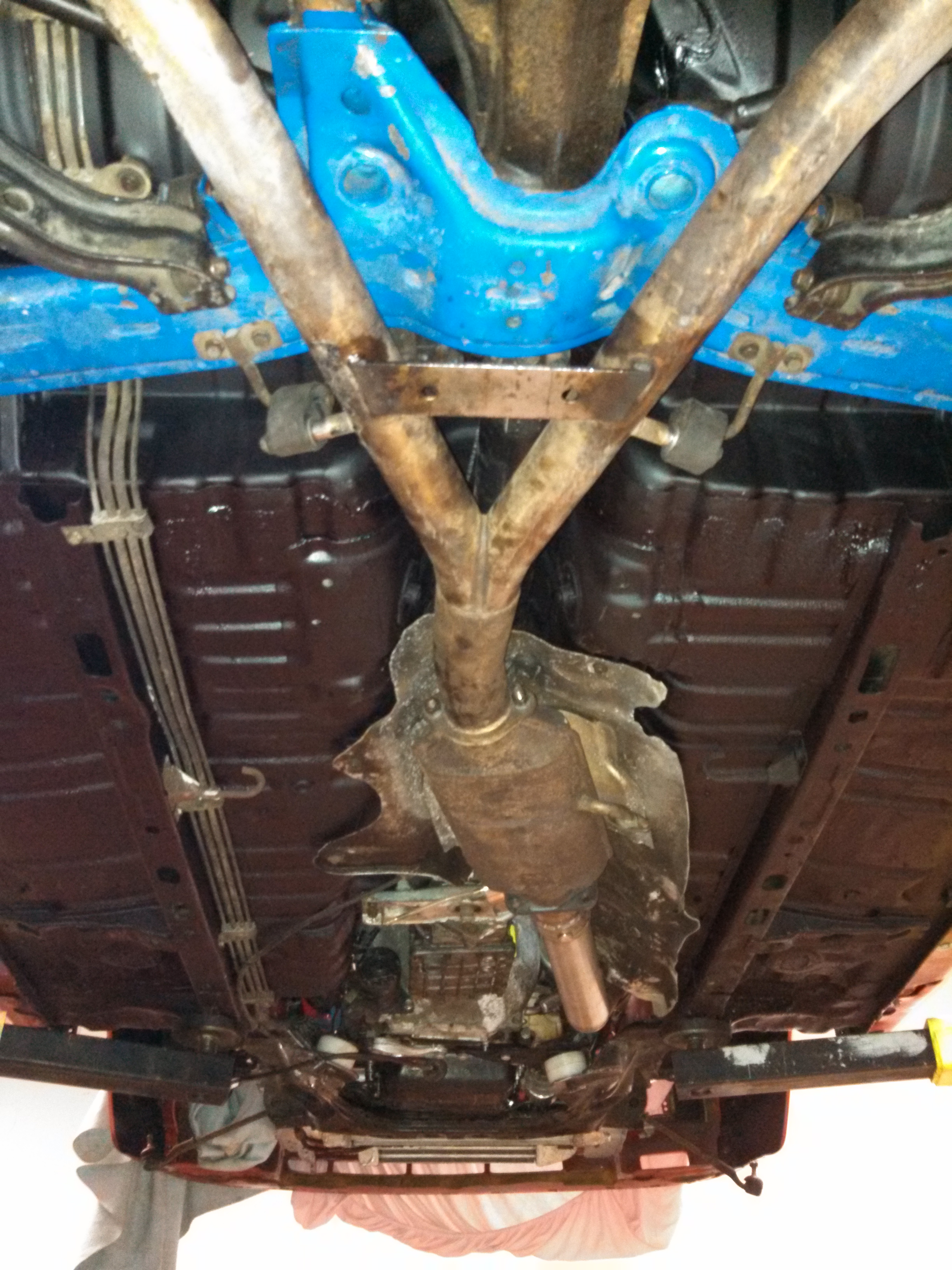

Test fitted ABS bracket, modified heater return pipe and finished downpipe.
Welded narrowband and EGT bungs, chinese exhaust valve.
Wideband bung tomorrow and then hopefully last fabrication task - swaybar spacers.
Hopefully will start it up soon
Attached Thumbnails stock 13B-REW swapped FC-img_20180308_160854.jpg   stock 13B-REW swapped FC-img_20180308_203146.jpg   stock 13B-REW swapped FC-img_20180308_203158.jpg   stock 13B-REW swapped FC-img_20180308_213122.jpg
hIGGI is offline
Old 03-09-18, 04:33 PM
  #23
20B FC owner
Thread Starter
iTrader: (7)

hIGGI's Avatar

Join Date: Feb 2001
Location: Czech Republic [www.rx7cz.net]
Posts: 4,889
Likes: 0
Liked 1 Time in 1 Post

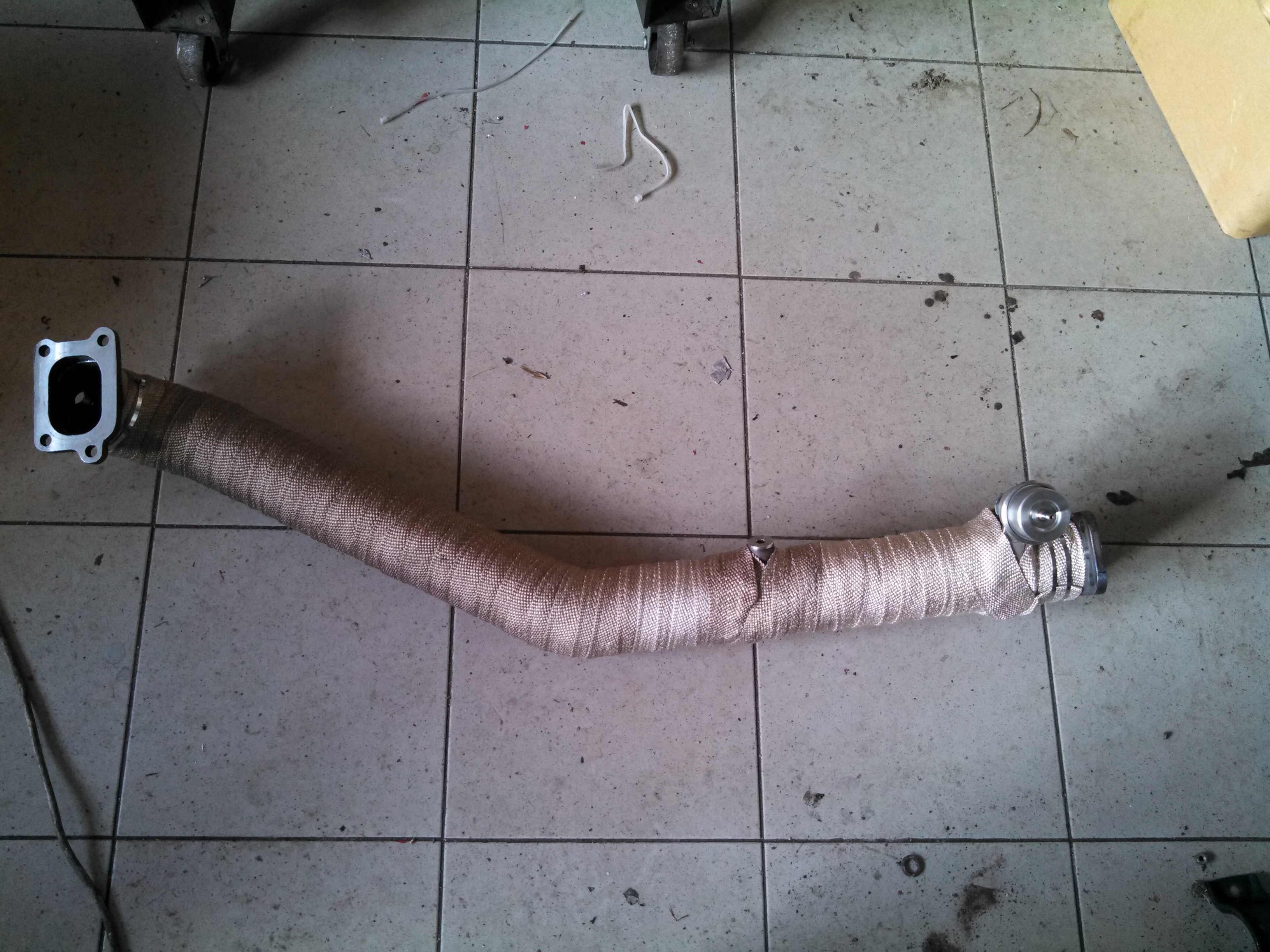

Finished exhaust, wrapped and bolted in.

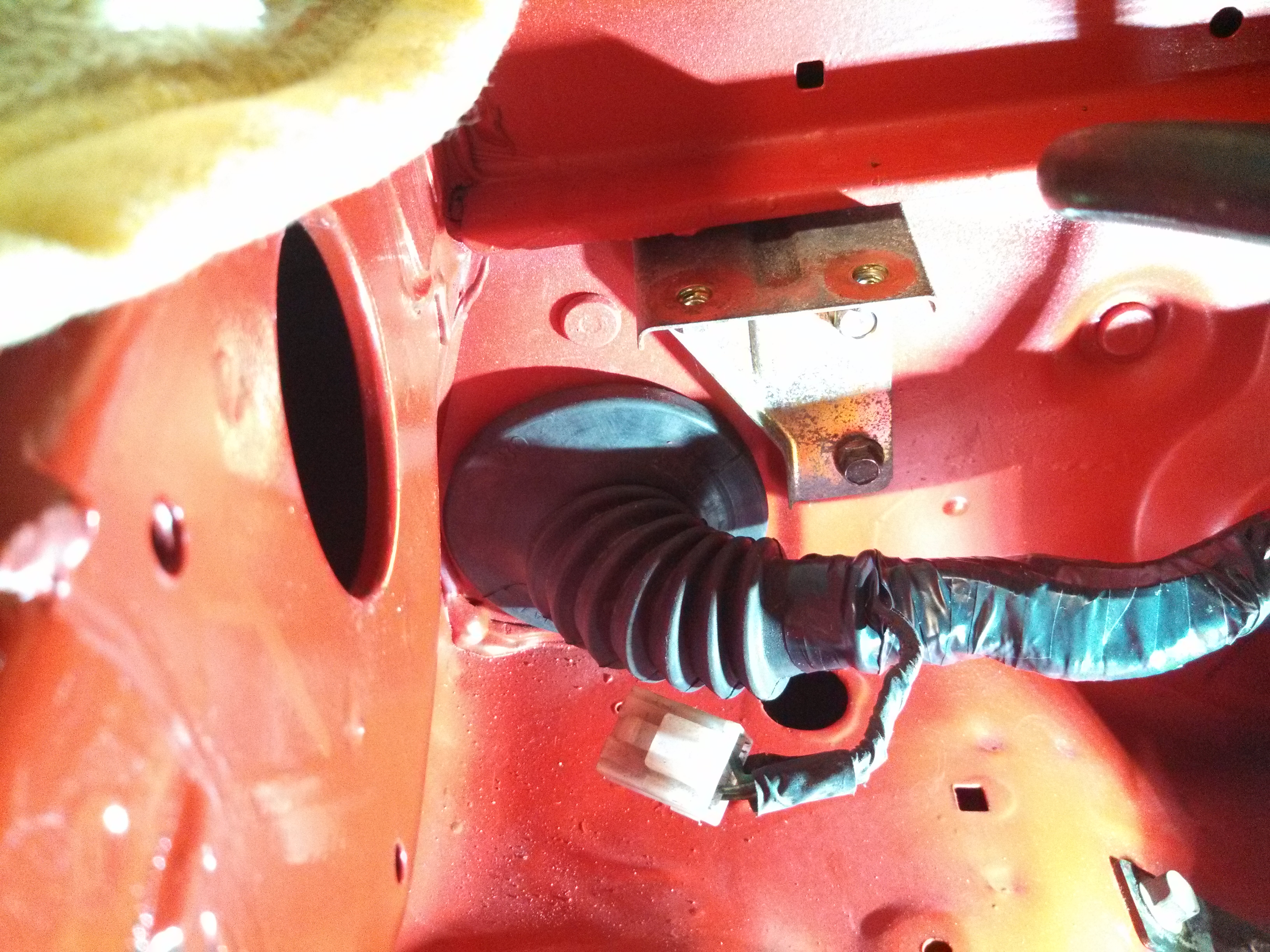

Managed to fit FD harness grommet into stock hole, its tight but looking good.
Started to bolt in all brackets and stuff, would like to start it up during weekend
Attached Thumbnails stock 13B-REW swapped FC-img_20180309_190836.jpg   stock 13B-REW swapped FC-img_20180309_123902.jpg
hIGGI is offline
Old 03-14-18, 03:26 PM
  #24
20B FC owner
Thread Starter
iTrader: (7)

hIGGI's Avatar

Join Date: Feb 2001
Location: Czech Republic [www.rx7cz.net]
Posts: 4,889
Likes: 0
Liked 1 Time in 1 Post

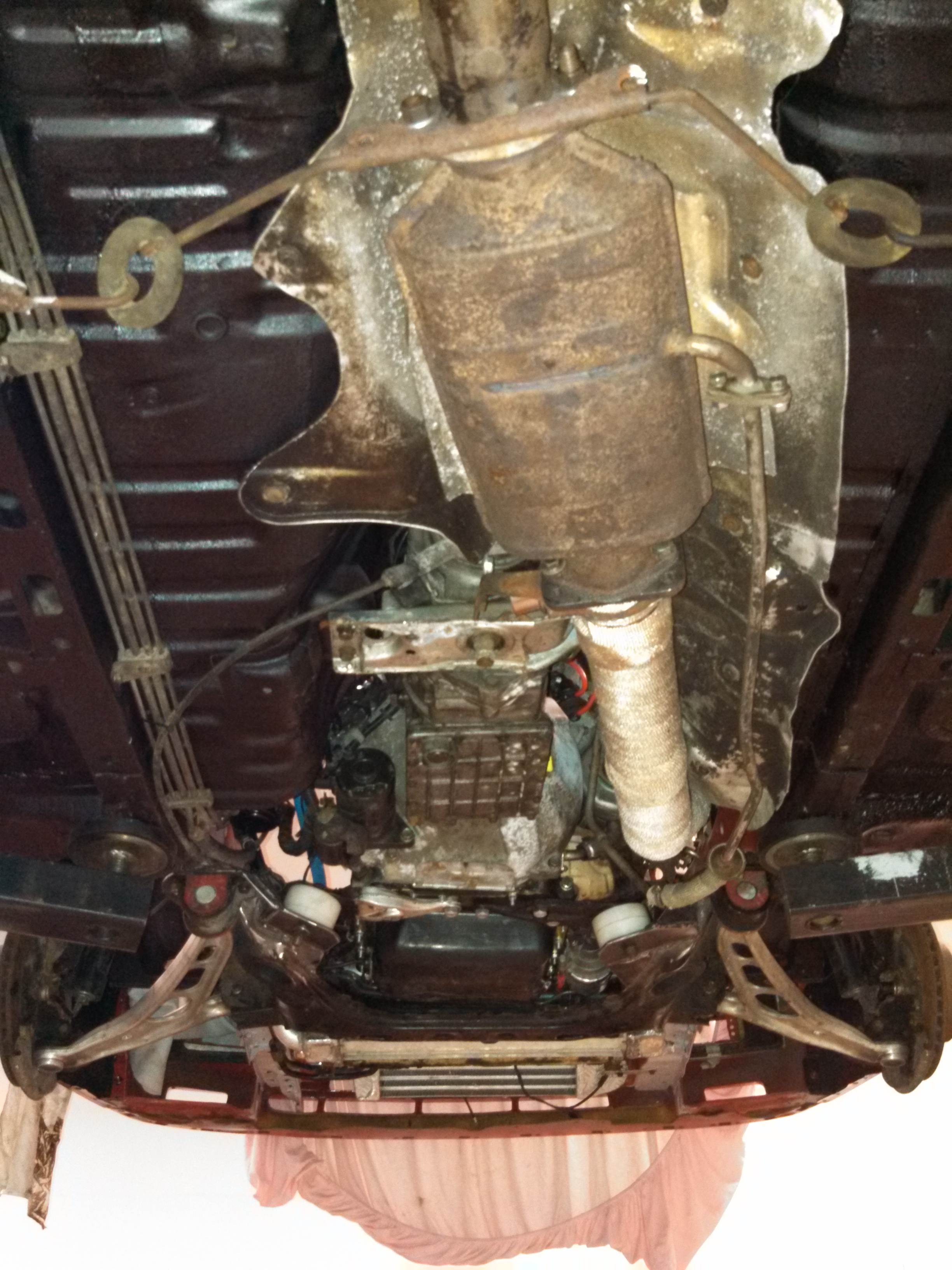

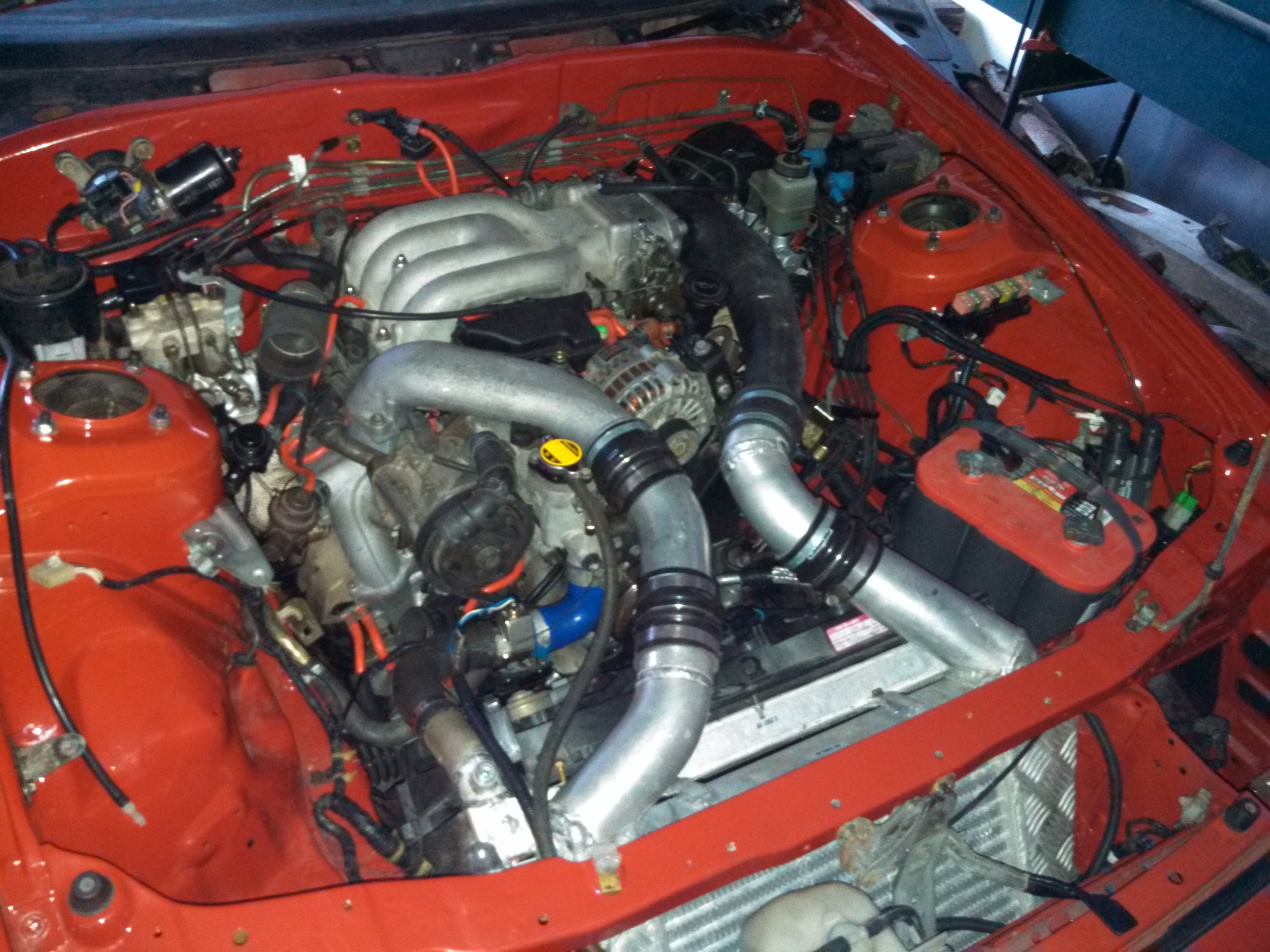

Bolted up few other things and drove the car out of shop today.
There is still 100+ items list to do, but it move by its own power, which is good
Attached Thumbnails stock 13B-REW swapped FC-img_20180310_180849.jpg   stock 13B-REW swapped FC-img_20180314_165901.jpg
hIGGI is offline
Old 03-14-18, 08:52 PM
  #25
Money talks.Mine says bye
iTrader: (18)

cone_crushr's Avatar

Join Date: May 2005
Location: LBC, CA
Posts: 673
Liked 0 Times in 0 Posts
Super resourceful build as usual hIGGI. Congrats on achieving a running 13BREW.
Wow, even kept the FC ABS system - that's dedication.

Last edited by cone_crushr; 03-14-18 at 09:02 PM.
cone_crushr is offline
