SpeedLoverD

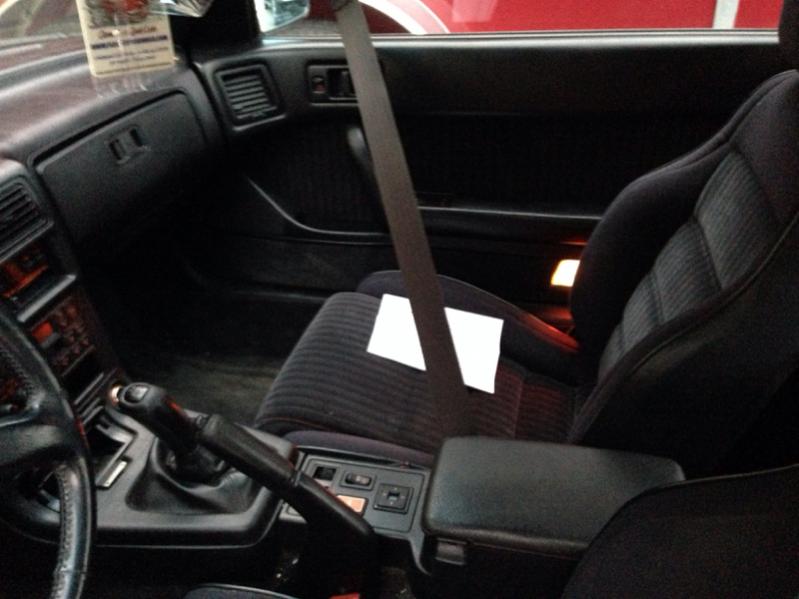

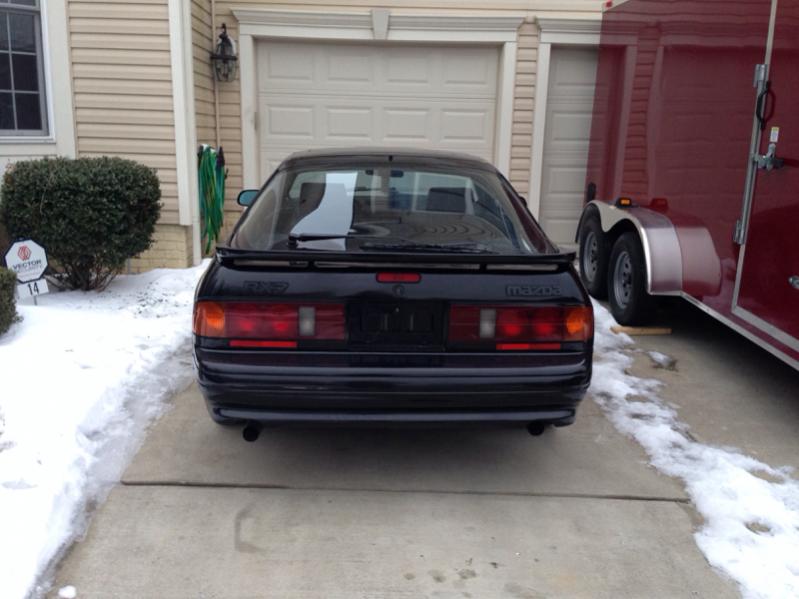

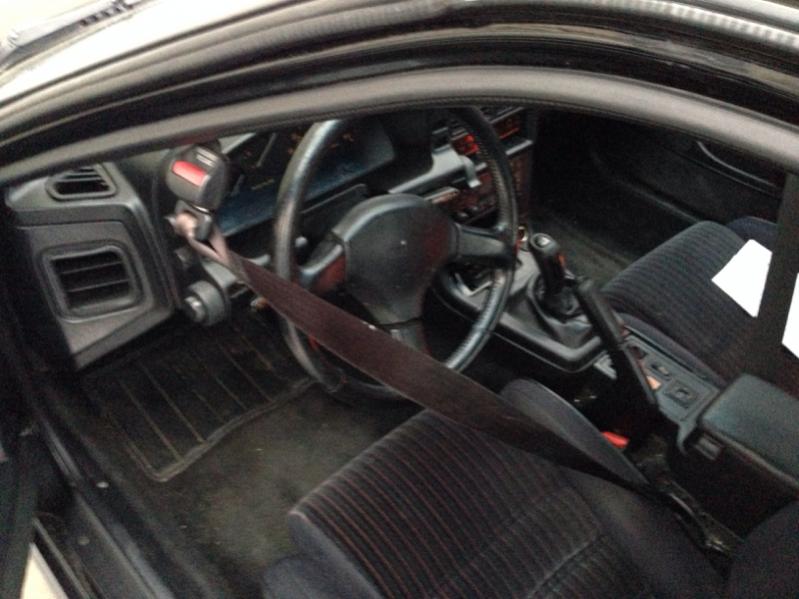

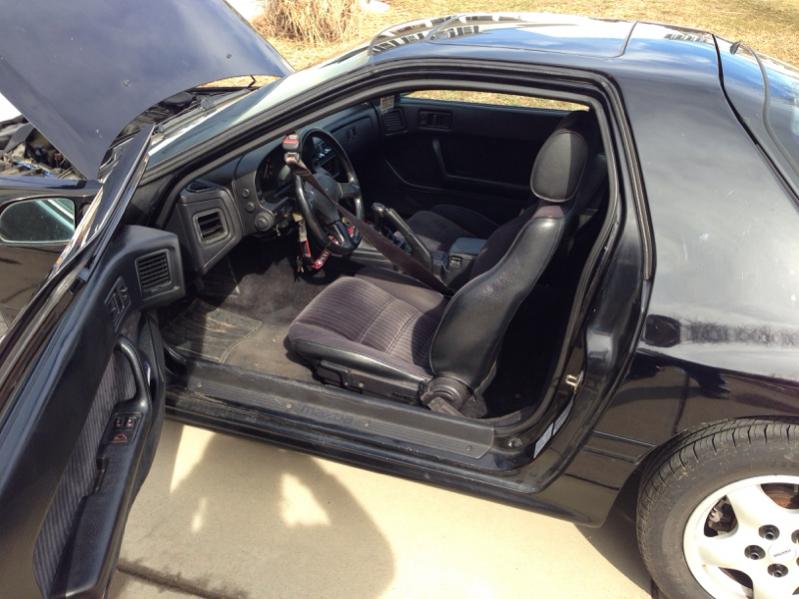

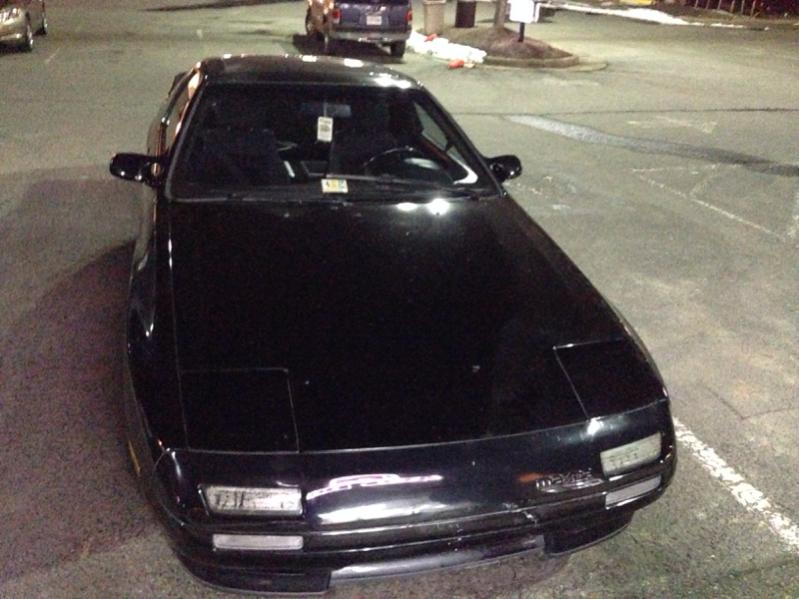

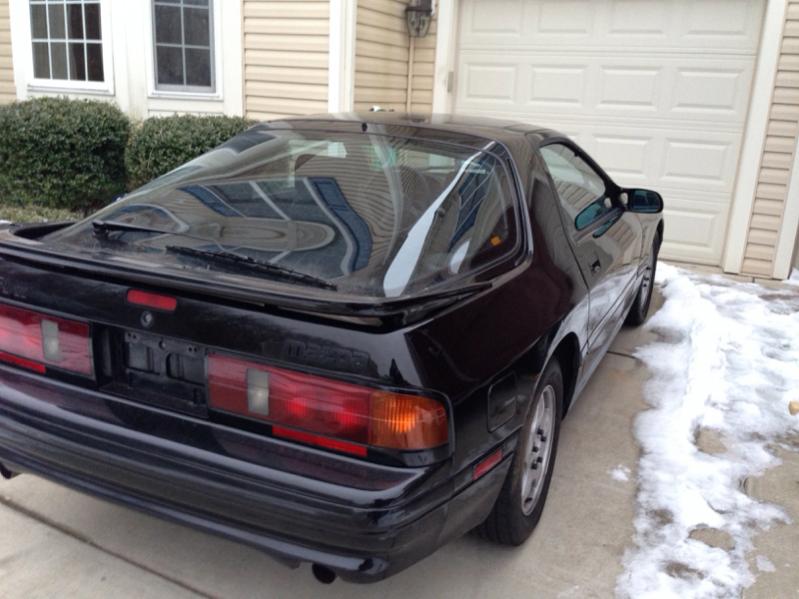

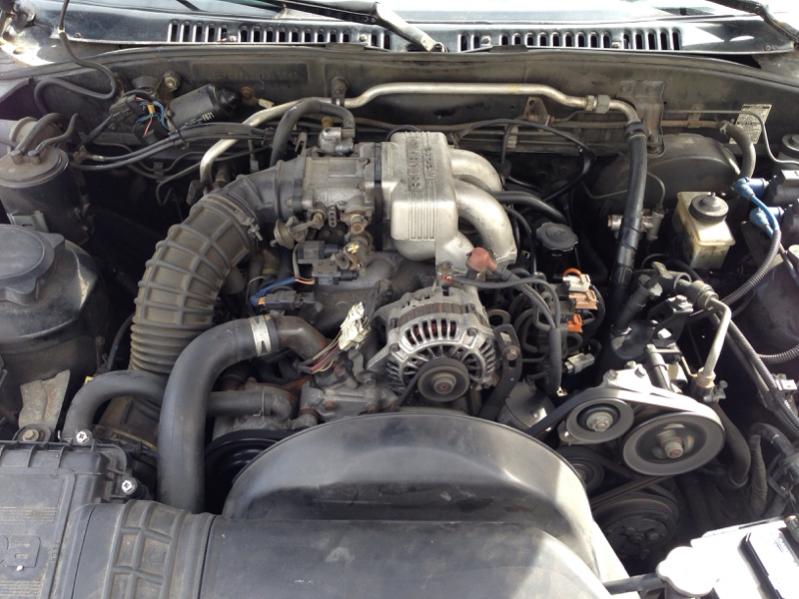

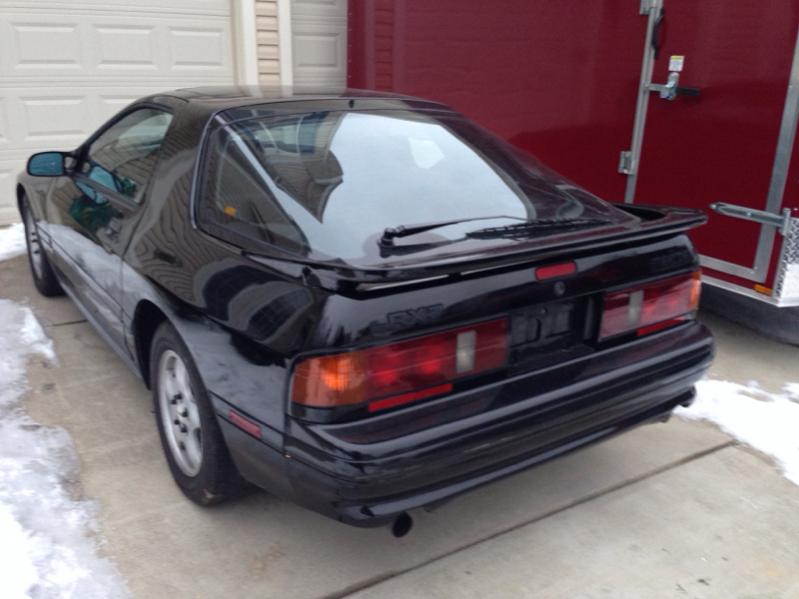

So I felt it was time I started my own thread now that I have somewhat of a solid base. I have a 1991 N/A FC3S. This car has power everything. The goal is build reliable DD that can be used for occasional drifting. Power I'm looking for to get about 450hp to the wheels when it's all done.

Attachment 526232



Attachment 526233



Attachment 526234



Attachment 526235

SpeedLoverD

SpeedLoverD

The plan attack I have for this is to start with chassis/suspension/brakes then from there I'll working on the power plant(13BT swap) I know that tuning is a major part in the power plant but I was thinking of

a FEED hybrid Turbo
full HKS exhaust system(manifold,down pipe,HP exhaust)
SARD BOV
RE intercooler
Mazdatrix engine stud kit
Higher compression rotors with side cutting for higher boost
HKS twin power
Haltech standalone + IQ3
ACPT driveshaft
OS twin clutch
I'm still working out the details but any advice or parts you guys think I should invest to help make the build more reliable as a DD let me know

SpeedLoverD

Forgot to throw this in the list

ID primary 2x700cc Secondary 2x1000
Walbro 255 fuel pump
Aftermarket fuel regulator NISMO?
Super now fuel rails

SpeedLoverD

Forgot to add 700cc primary 1000cc secondary
Was think maybe a NISMO fuel regulator
Super now fuel rails
And solid engine and trans mounts

MrGoodnight

iTrader: (1)

Stock fuel rails will support your power goals if you wanted to use them.

Clean car.

SpeedLoverD

Ok thanks for that information save me some money. So why do some enthusiast use super now or any aftermarket rail for that matter? Is it because aftermarket ones like super now are more efficient

MrGoodnight

iTrader: (1)

I would assume because they support higher power levels and they use a standard AN thread size?
I'm not well versed in aftermarket fuel rails/an fittings.

SpeedLoverD

ok that makes sense anything you can think of to add to the power plant list to work with the setup I want

Molotovman

iTrader: (49)

Stock S4 T2 fuel rails will work since you can remove the FPR, you can't on S5's. That's not enough fuel, injector wise and pump wise. I suggest you poke around the Single Turbo section on here. Howard Coleman has done some great write ups in there on sizing fuel systems and other things.

Where are you in VA?

SpeedLoverD

Fredericksburg

SpeedLoverD

What about aeromotive A1000 fuel pump and 800cc primary and 2000cc secondary

SpeedLoverD

SOooo i ran into a new problem to add the list of fix ups on the car. smoke coming from the center console.(precisely at the base of center console where its meets shifter boot cover. The smell is rather bland it doesnt smell like plastic. and with the windows open you barely notice it(visual wise).I noticed it cause I saw my shifter going crazy.(needs new spring/bushing) while I was running through the systems on the car to checking to see what was/r wasn't working.I saw smoke wasn't coming out at alarming rate it was rather steady stream of smoke. But the car still has the stock exhaust and i doesnt look like its been messed with EVER. On top of that some of hangers are pretty warn so the exahust rattles a bit on acceleration. I did do some searching and it seems them most common cause is exahust leak.Praying thats all it is. But my boy Phil said he smelled coolant. And my third is option is that i could be burning tranny fluid due to a small leak because a aftermakret clutch was put in recently before i bought it. Any suggestions?

SpeedLoverD

Nearing the end for my parts hunt for the shifter and oil pan job.

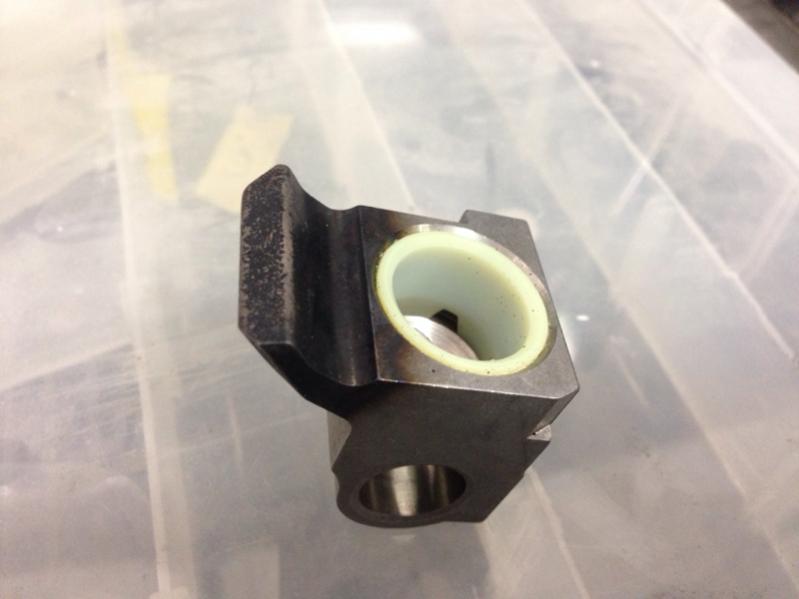

Picked this up from Mazda today

SpeedLoverD

is there anyone close to Fredericksburg,VA or in the area with access to a welder or trailer found a serious rust spot under the car(all the way through floor board) don't have tools needed to fix it here.PM if you can help. Thank you

--David

DreamTII

I would go with a bigger turbo like a 6266 and get a custom exhaust made. I am pretty sure the piping on the hks will restrict you My suggestion would be a aeromotive A 1000 fuel pump and a FPR along with 720 primaries and 1600 or 2000 secondaries. You say you want a reliable drift car with 450 hp? why such a high power goal if i might ask? A 300-350 whp fc is plenty.

Pettersen

iTrader: (1)

If you want a reliable turbo rotary you should realy get water injection.

SpeedLoverD

Thanks for the injector advice I'll go with 720 x 1600 setup, and I recently decided on A1000 fuel pump. For the FPR I had decided to go with NISMO but I'm starting to rethink to that decision. 450 whp a wishful goal but when the build is done I'm expecting low 400 (something around 413 or 420)

SpeedLoverD

Sent you a pm

SpeedLoverD

parts hunt is officially over for shifter job and oil pan job. will be knocking those two next weekend weather permiting.But I had been giving some more thought into my future turbo swap/setup so here once again is a list of parts I intend procure over the next year.
*power goal is now 425whp

S5 13BT
Full Large Street Port
Engine Stud Kit(mazdatrix)
3mm 1pc Ceramic Apex seals
S5 13BT Rotors(Sidecut for higher boost, thinking 20psi)
FEED hybrid Turbo
HKS BOV
Cone filter
RE TMIC + full hose upgrade (sticking with TMIC for more than few reasons)
Aquamist water/meth injection kit
Koyo Radiator (Dual Pass) + hose upgrade
Aeromotive A1000 fuel pump
Aeromotive A1000 FPR
ID injectors 850 primary 2000 secondary
Super fuel rails( i know stock rails will work )
HKS FCD
RE wires
HKS Twin Power
HKS Full exahust(exhaust manifold,downpipe,High power exahust)
ACPT driveshaft
OS twin clutch
Haltech ECU (tuned for 93 octane)

same question as last time will setup be sufficient for goal of 425whp DD drift car?

SpeedLoverD

My buddy talk me out a 400 whp goal so the target area is just over 350 whp

SpeedLoverD

my new Goal is 400rwhp, But I would like to run the car at low boost(or what ever level puts me at 350 rwhp) since its going to be a DD car. After a bit more research and head scratching this is the setup i came up with. The theme is to stick to the classic "bolt-on" upgrades. Trying to keep a somewhat stock looking setup. Basically whatever route has the least amount of fabrication. That said here is the new Parts List;*along with support mods*

S5 TII Motor (studded) +trans.ecu.harness etc.
Side-cut Rotors ( for higher boost applications)
strengthened Apex seals 2mm
Full Large Street Port
RE TMIC +( upgraded piping Dynamat Hoodliner to help with heat soak and hood pins
BNR stage 4 Turbo and will paying the extra service for WG actuator
RE Turbo manifold + exhaust wrap
RE cat + wideband 02
HKS 3' exhaust
Koyo Radiator U flow + upgraded hoses
Water injection
PR Competition oil Pan(7 qt capacity)
FCD
725cc pri 1000cc sec
RE plug wires
Super Now secondary fuel rail
Walbro 400lph
NISMO FPR
RE Response Kit
RE Redom mini C
OS twin Clutch + Flywheel ( driveshaft with be made by ACPT)
Underive Pulley

Now question have are is my goal achievable with this setup? are there any support mods advice you can give me about running this setup? (one other support mod i have in my mind is the HKS twin Power) Also is there any benefit to running dual BOVs(hot side/cold side)? if so what else would i need to support this mod? and last question (for this post) would re routing all the wires and throwing in a ground kit/earthing system be worth the hassle?(In your opinion)

Thanks for your help and knowledgeable insight.
--David

Pettersen

iTrader: (1)

You plan on throwing this much money into the pit, but you aren't going to get a standalone?

Twin power is a good idea since you want stronger spark to keep up with high boost and water injection.

+ what injectors are you planning on getting? If you are looking at Injectod dynamic, the 1000cc cost the same as 725cc, so i would just get 4*1000cc, they hold idle just fine if you input the right settings.

SpeedLoverD

I don't know of anyone in my area nor do I feel like paying someone for tuning. The reason I decided to Redom is strictly for the plug and play type deal.Originally I had considered Haltech though but this route would be less of a headache

SpeedLoverD

It's been awhile since I posted and and even longer year of parts hunting. But down to bussiness I decided to officially title this build "Project G3". That being said this the goal is to turn daily drifting(two words that shouldn't be used together) machine. Right now the deadline is May 1st to finish up my suspension and chassis work at the very least then I'll start hunting for a TII drivetrain. Here are a few pics of some of the new parts I acquired some are still being refinished so I'll takes pics of those later .

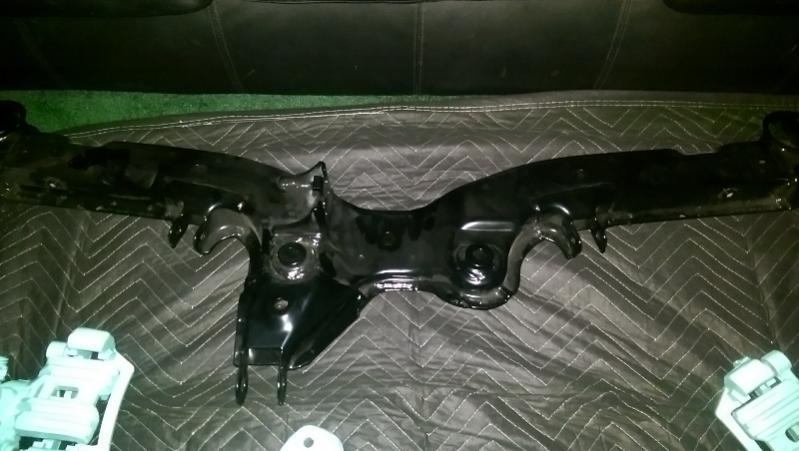

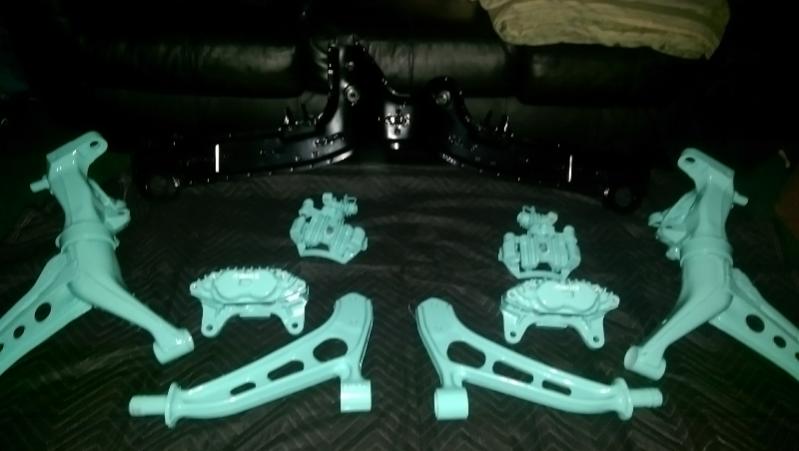

Refinished rear sub frame and calipers and control arms

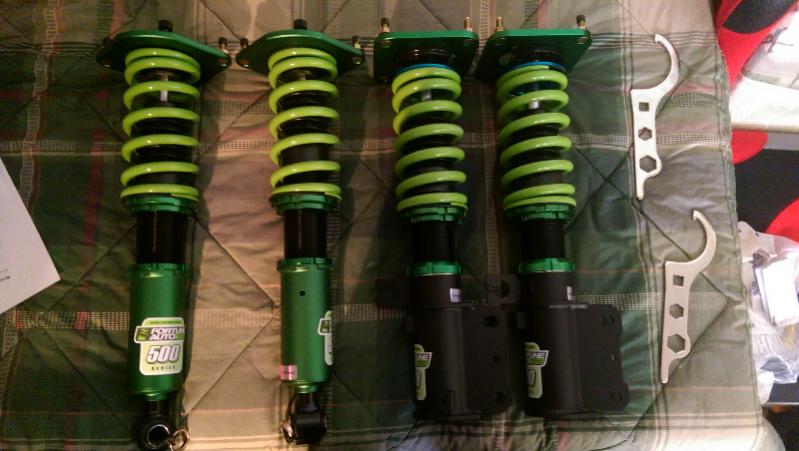

And my favorite purchase so far are my Fortune Coilovers
