Project 10th AE Turbo II
I would always read about how so and so found a TII for $500 bucks, good engine. Someone else would get a beautiful vert for a few hundred with a leaking intake. Numerous lucky finds fill these and other forums. I always wondered, "I must not be looking hard enough".

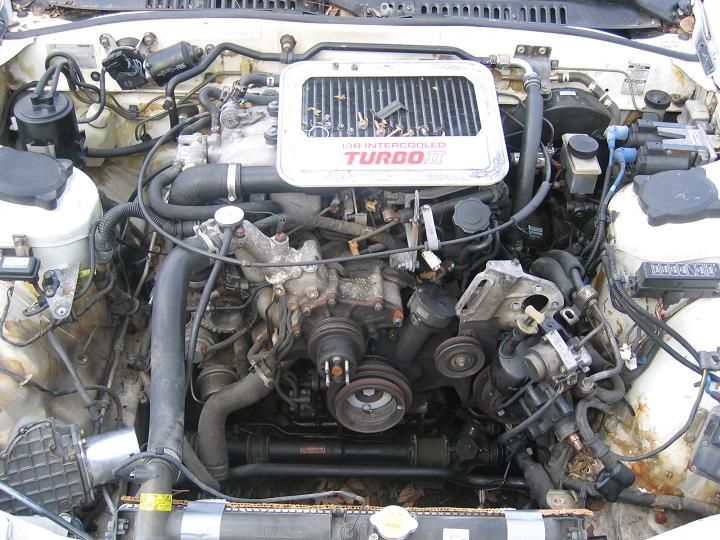

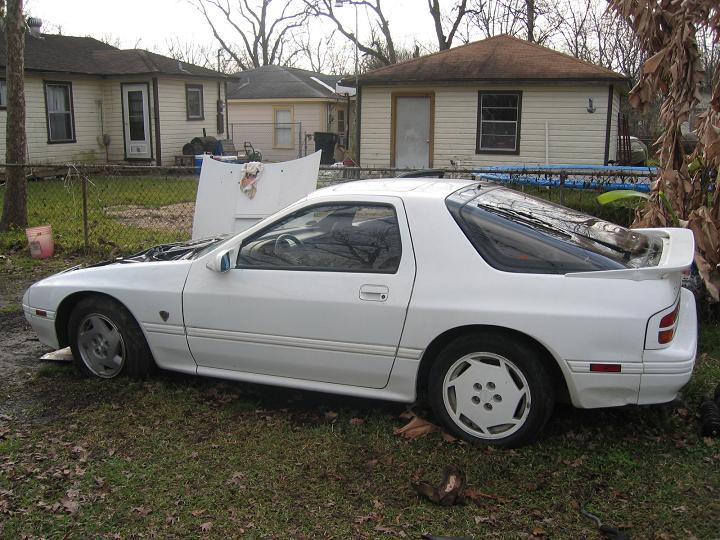

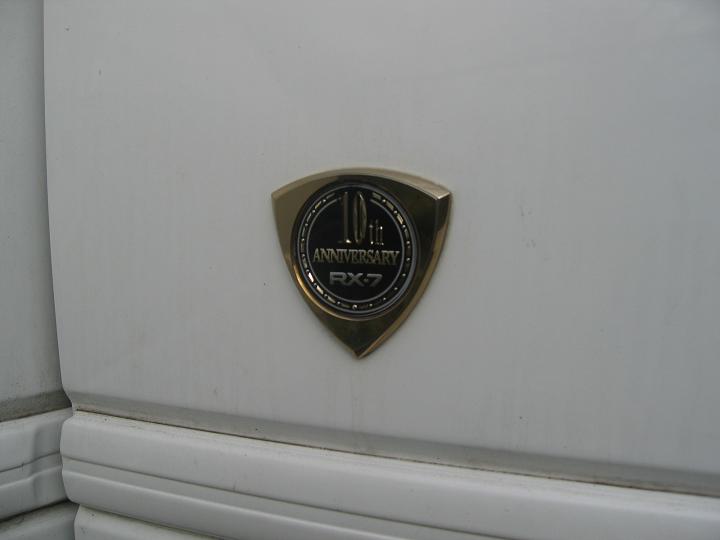

Alas, I have found my lucky find. A 10th Anniversary Edition Turbo II. Fair mileage, 122K. Fair exterior, couple of bangs, no biggies. And a dirty, but very powerful, engine. So wheres the good part??? $400 bucks from an impound lot 3 blocks from where I've lived for the last 21 years.
It sat there for 2 years!!! No key, though. I took a little drive down to the local Mazda Dealership and got a key made for $8 bucks. Back home with a new battery, the Beast was awoken with a mighty growl!!!
After a couple of days of baby-ing, I started my list of Phase 1. This will include fixing all oil leaks, replacing worn parts, and removing most things I see as unneccesary.
Phase 1:

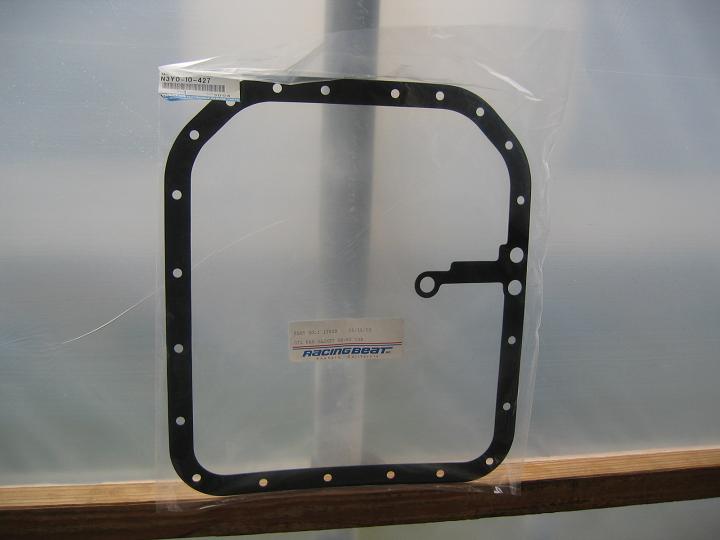

1. Replace Oil pan Gasket (RB)
2. " Oil cooler lines (SS Braided)
3. " O-rings under oil filter-stand
4. " Alternator

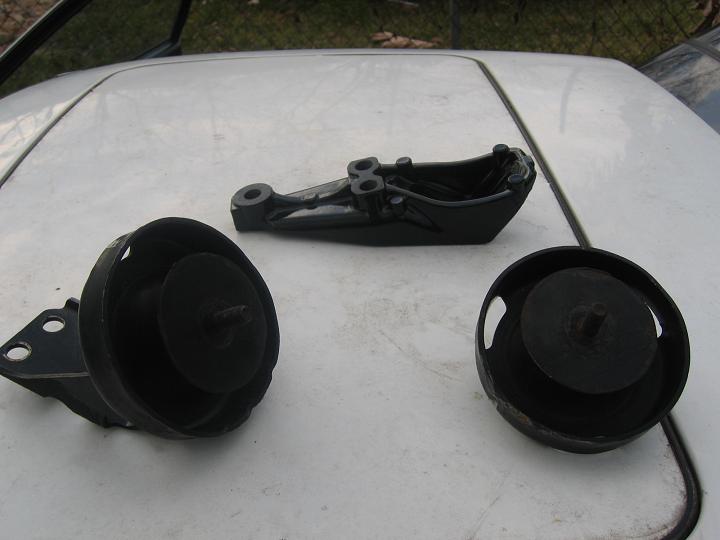

5. " both motor mounts (completely broken)
6. " rearend bushing (same as above)
7. " Sparks/Wires (NGK)
8. " o2 sensor/fuel filter (RP)
9. Flush Rad, Rust Inhibitor, and new thermostat
10. Remove Airpump, ACV, EGR, Split air pipe. Apply 3 blockoff plates.
11. Remove PS
12. Move battery to passenger bin.
13. Fab TID, apply APEXi power intake, fab intake filter adapter
14. Change Tranny and Rearend Fluid
15. Check timing/adjust TPS
16. APEXi BOV
17. Check timing

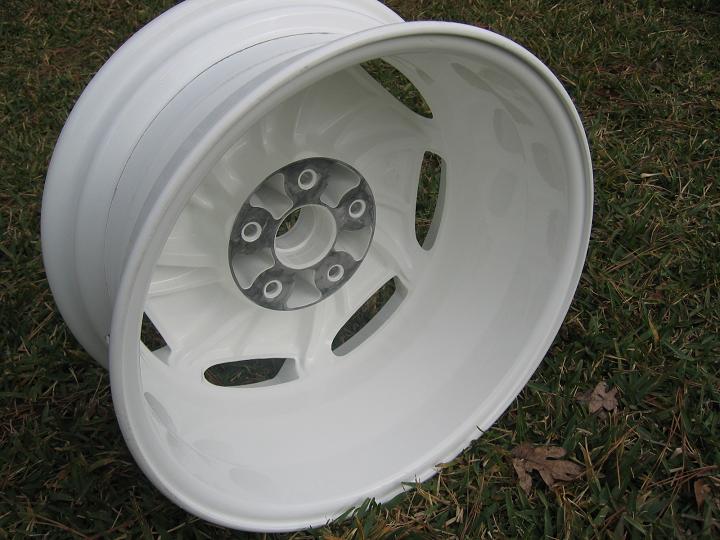

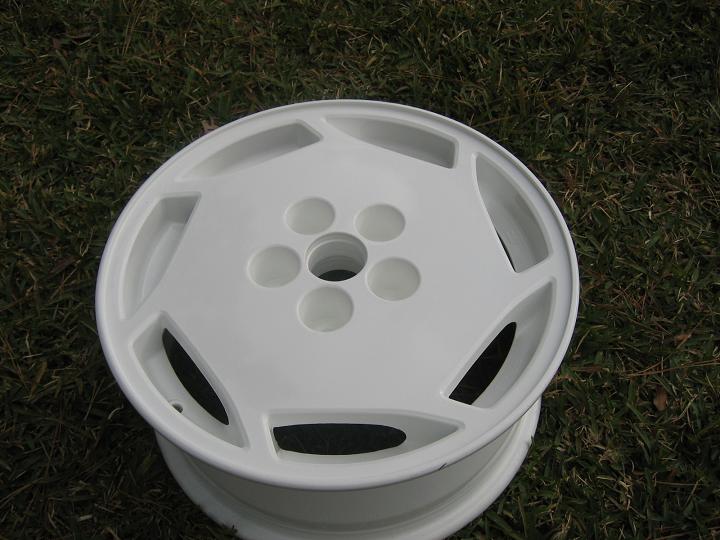

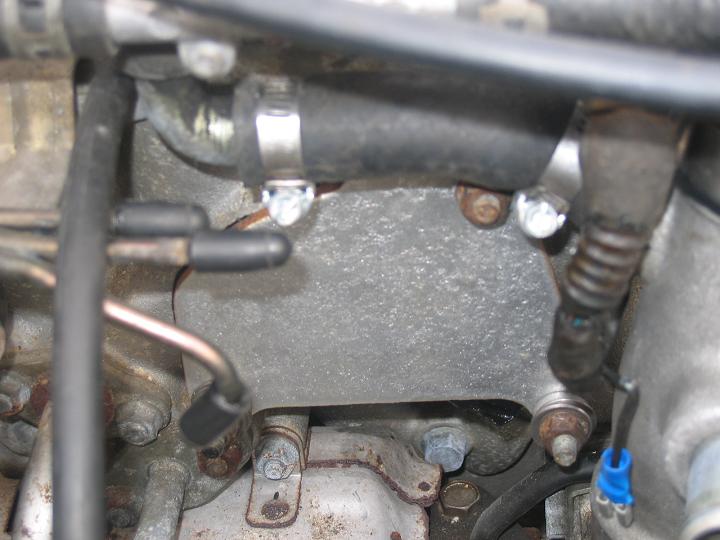

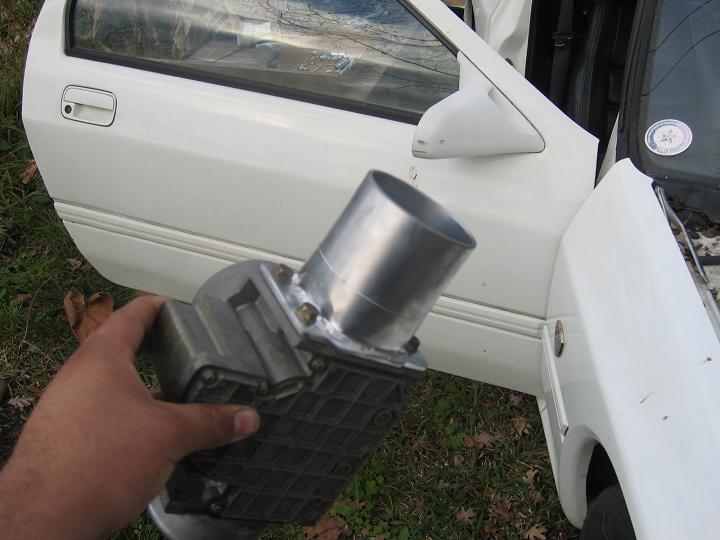

So far, I have removed the airpump/ACV/muffler and installed the EGR and ACV blockoff plates. PS is still on the way out. Oil Pan gasket has arrived. SS oil cooler lines need to be picked up. Motor mounts have been found, as with the rearend bushing. Alternator is being rebuilt. APEXi power intake is on order. Also the adapter for the intake has been built. Battery box is being built. Wires for battery are also on order. There are minor things that will get powdercoated throughout the Beast. Two rims have been recoated so far.
Phase 2:
1. FCD
2. APEXi Turbo Timer
3. Walboro Pump and Rewire
4. Dual Gauge Pod on A-Pillar (Boost, Water Temp)
5. Shim Thermowax Pellet, install RP underdrive pulley
As always, Im looking to my fellow rotory enthusiast for guidence and alternate ideas. All comments are welcome, as are other preventative maintenence modifications. Phases 3 and 4 will follow soon as this thread is already long enough. Another reason I posted this is to possibly rekindle someones search for "that lucky find". If I can find one, Im sure you can too. (My vert was $5259 with 148k miles)
Thanks a bunch guys!!!
Alas, I have found my lucky find. A 10th Anniversary Edition Turbo II. Fair mileage, 122K. Fair exterior, couple of bangs, no biggies. And a dirty, but very powerful, engine. So wheres the good part??? $400 bucks from an impound lot 3 blocks from where I've lived for the last 21 years.
It sat there for 2 years!!! No key, though. I took a little drive down to the local Mazda Dealership and got a key made for $8 bucks. Back home with a new battery, the Beast was awoken with a mighty growl!!!
After a couple of days of baby-ing, I started my list of Phase 1. This will include fixing all oil leaks, replacing worn parts, and removing most things I see as unneccesary.
Phase 1:
1. Replace Oil pan Gasket (RB)
2. " Oil cooler lines (SS Braided)
3. " O-rings under oil filter-stand
4. " Alternator
5. " both motor mounts (completely broken)
6. " rearend bushing (same as above)
7. " Sparks/Wires (NGK)
8. " o2 sensor/fuel filter (RP)
9. Flush Rad, Rust Inhibitor, and new thermostat
10. Remove Airpump, ACV, EGR, Split air pipe. Apply 3 blockoff plates.
11. Remove PS
12. Move battery to passenger bin.
13. Fab TID, apply APEXi power intake, fab intake filter adapter
14. Change Tranny and Rearend Fluid
15. Check timing/adjust TPS
16. APEXi BOV
17. Check timing
So far, I have removed the airpump/ACV/muffler and installed the EGR and ACV blockoff plates. PS is still on the way out. Oil Pan gasket has arrived. SS oil cooler lines need to be picked up. Motor mounts have been found, as with the rearend bushing. Alternator is being rebuilt. APEXi power intake is on order. Also the adapter for the intake has been built. Battery box is being built. Wires for battery are also on order. There are minor things that will get powdercoated throughout the Beast. Two rims have been recoated so far.
Phase 2:
1. FCD
2. APEXi Turbo Timer
3. Walboro Pump and Rewire
4. Dual Gauge Pod on A-Pillar (Boost, Water Temp)
5. Shim Thermowax Pellet, install RP underdrive pulley
As always, Im looking to my fellow rotory enthusiast for guidence and alternate ideas. All comments are welcome, as are other preventative maintenence modifications. Phases 3 and 4 will follow soon as this thread is already long enough. Another reason I posted this is to possibly rekindle someones search for "that lucky find". If I can find one, Im sure you can too. (My vert was $5259 with 148k miles)
Thanks a bunch guys!!!
Last edited by bigdv519; 01-31-05 at 02:33 AM.
#4
my fc broke
Join Date: Feb 2003
Location: rohnert park,CA/ bay area
Posts: 2,231
Likes: 0
Received 0 Likes
on
0 Posts
lucky bastard, why remove the P/S, i say leave it in, it does nothing removing it besids save some room, i would leave it in, but thats me. i would put something more useful on the A pillar than a water temp gague, sense you already have one,get a wideband 02 sensor, and then build a 3 gauge pod and put them under the head unit, thats my .02 cent tho. but other than that a very nice find
#5
I'm a boost creep...
Join Date: Jan 2002
Location: Auckland, New Zealand
Posts: 15,608
Likes: 0
Received 8 Likes
on
8 Posts
Originally Posted by bigdv519
15. Check timing/adjust TPS
17. Check timing
17. Check timing
2. APEXi Turbo Timer
5. Shim Thermowax Pellet, install RP underdrive pulley
#7
IFO Forced Induction Slo
Thread Starter
iTrader: (3)
Join Date: Mar 2004
Location: Houston
Posts: 1,315
Likes: 0
Received 0 Likes
on
0 Posts
Originally Posted by NZConvertible
Ignorng the double-up, these two should've been at the top of the list, not the bottom. Make sure the engine's heathly and in tune before throwing mods at it.
Spend you money on stuff thats needed instead. Your water-cooled turbo does not need to be cooled down at shutdown unless you're silly enough to be boosting immediatley beforehand.
Spend you money on stuff thats needed instead. Your water-cooled turbo does not need to be cooled down at shutdown unless you're silly enough to be boosting immediatley beforehand.
Sorry about the double-up. 8-P
Good point about the turbo timer. Thanks, that saves me $130 and makes me a more responsible driver.
Last edited by bigdv519; 01-31-05 at 09:36 AM.
Trending Topics
#12

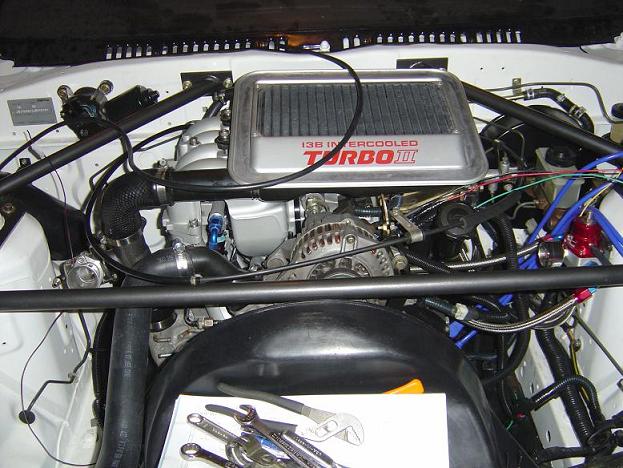

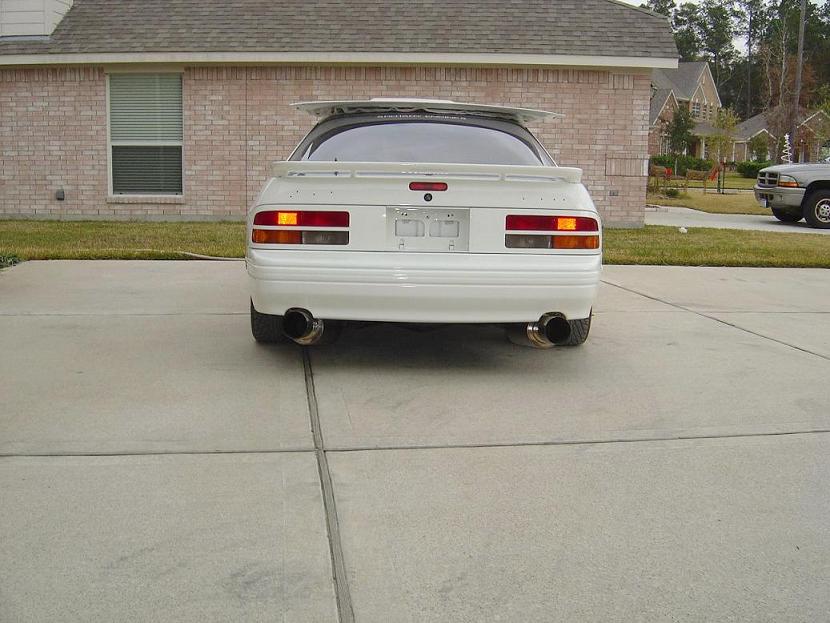

Thanks, it still needs some work but I'm almost done.
Wheels & tires
Tune Microtech
Corner balance
and some small things
I see that you are in Houston, maybe we will meet someday.
I haven’t attended an RX-7 club meeting in a long time but I plan to get back into it this summer.
Wheels & tires
Tune Microtech
Corner balance
and some small things
I see that you are in Houston, maybe we will meet someday.
I haven’t attended an RX-7 club meeting in a long time but I plan to get back into it this summer.
#22
IFO Forced Induction Slo
Thread Starter
iTrader: (3)
Join Date: Mar 2004
Location: Houston
Posts: 1,315
Likes: 0
Received 0 Likes
on
0 Posts
Originally Posted by Icemark

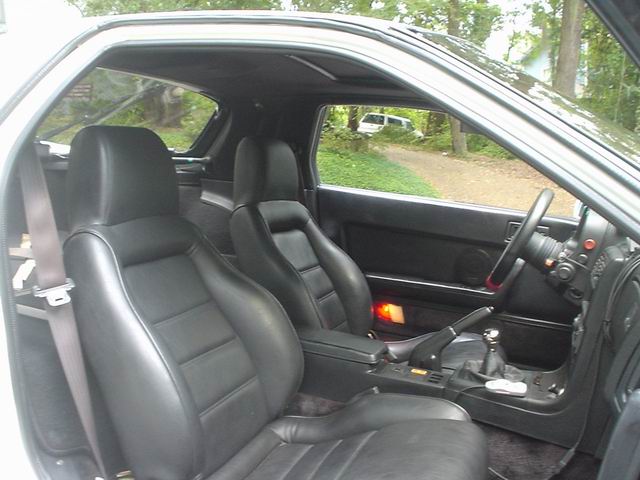

Yeah that is what I was thinking:

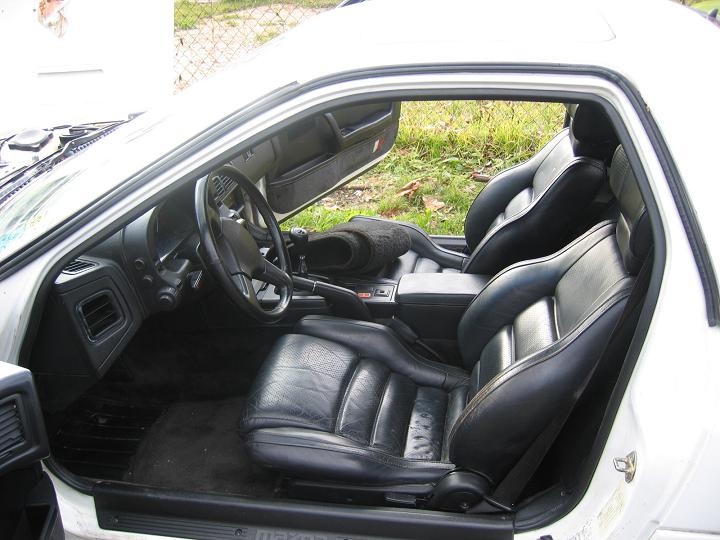

too bad it has S5 vert seats
too bad it has S5 vert seats

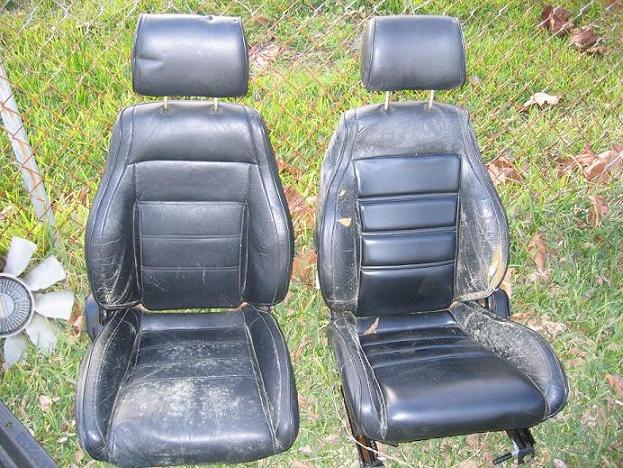

Not as bad as the original's. I replaced them since the original owner had a huge *** and must have weighed a good 280lbs. I would have loved to keep them but they really looked like crap. So I looked to my other vert...BAM...almost as good as new with that great Mazda-***-Grip.
Side note: Picked up the SS Oil Coller lines today. Can't beat $85.
Last edited by bigdv519; 01-31-05 at 07:47 PM.
#24
Originally Posted by bigdv519
Not as bad as the original's. I replaced them since the original owner had a huge *** and must have weighed a good 280lbs. I would have loved to keep them but they really looked like crap. So I looked to my other vert...BAM...almost as good as new with that great Mazda-***-Grip.
Side note: Picked up the SS Oil Coller lines today. Can't beat $85.
Side note: Picked up the SS Oil Coller lines today. Can't beat $85.
