My fc build from 04 till now

Owned a few fcs before this one. had a first gen, a couple of 2nd gens with the dream of owning a t2 back in the day. finally caught eye on a 88 t2 non running that i traded for a running 87 gxl. got it home found a loose fround added good gas and fire it right up haha. has come a VERY LONG WAY since then. havent really done a full build thread till now. well here goes....

this is when i got the car. stock 88 t2 few bumps and scratches... engine a mess lol

Reply Like

02-25-13, 12:36 AM

mzrx7man

sideways!!

Thread Starter

iTrader: (9)

Join Date: Dec 2005

Location: Nampa, Idaho

Posts: 684

Likes: 0

Received 1 Like on 1 Post

how i got her...

Reply Like

02-25-13, 12:46 AM

mzrx7man

sideways!!

Thread Starter

iTrader: (9)

Join Date: Dec 2005

Location: Nampa, Idaho

Posts: 684

Likes: 0

Received 1 Like on 1 Post

more pics....

Uploaded with ImageShack.us

Reply Like

02-25-13, 12:53 AM

mzrx7man

sideways!!

Thread Starter

iTrader: (9)

Join Date: Dec 2005

Location: Nampa, Idaho

Posts: 684

Likes: 0

Received 1 Like on 1 Post

got in a fender bender....

Uploaded with ImageShack.us

front end didnt end up looking so good.... for now...

Uploaded with ImageShack.us

Reply Like

02-25-13, 12:57 AM

mzrx7man

sideways!!

Thread Starter

iTrader: (9)

Join Date: Dec 2005

Location: Nampa, Idaho

Posts: 684

Likes: 0

Received 1 Like on 1 Post

perforfance upgrades now...

Uploaded with ImageShack.us

Uploaded with ImageShack.us

alot of other parts as well i dont have pics for...

Reply Like

02-25-13, 01:04 AM

mzrx7man

sideways!!

Thread Starter

iTrader: (9)

Join Date: Dec 2005

Location: Nampa, Idaho

Posts: 684

Likes: 0

Received 1 Like on 1 Post

cosmetic time!!

Uploaded with ImageShack.us

Reply Like

02-25-13, 01:08 AM

mzrx7man

sideways!!

Thread Starter

iTrader: (9)

Join Date: Dec 2005

Location: Nampa, Idaho

Posts: 684

Likes: 0

Received 1 Like on 1 Post

got a haltech e6k, went meth injection, 720 pri 1680 sec, walbro 255, etc

got all body trims installed and new wheels finally...

Uploaded with ImageShack.us

Reply Like

Trending Topics

MotoIQ.com's - Project FD RX-7 "Restomod"

183

21.3k
G35 1050 vs G42 1200 on a 13B - Best Choice for 600hp?

377

55.0k
12A EFI conversion within ChampCar rules: Sanity Check

8

238
87 T2 Crank no start, has compression spark, no gas to plugs

18

313
RyWire Harness, Power FC, Ballenger AFR500, SBG, AEM, Defi, Speedhut!!!

5

252

02-25-13, 01:11 AM

mzrx7man

sideways!!

Thread Starter

iTrader: (9)

Join Date: Dec 2005

Location: Nampa, Idaho

Posts: 684

Likes: 0

Received 1 Like on 1 Post

Went e85 and ran 18 psi on the t67

Uploaded with ImageShack.us

After that.....DYNO TIME!!! made 512hp at 18psi

Uploaded with ImageShack.us

Reply Like

02-25-13, 01:18 AM

mzrx7man

sideways!!

Thread Starter

iTrader: (9)

Join Date: Dec 2005

Location: Nampa, Idaho

Posts: 684

Likes: 0

Received 1 Like on 1 Post

dyno vid

idling

doing a pull

Reply Like

02-25-13, 01:37 AM

#10

mzrx7man

sideways!!

Thread Starter

iTrader: (9)

Join Date: Dec 2005

Location: Nampa, Idaho

Posts: 684

Likes: 0

Received 1 Like on 1 Post

racing at firebird raceway boise idaho...11.32 @ 122

Uploaded with ImageShack.us

im finally at where im at right now... throwing in a haltech sprint re, all act clutch stuff, crank trigger kit and misc goodies

haltech sprint re

Uploaded with ImageShack.us

e85 walbro 400

Uploaded with ImageShack.us

act pro lite, act xtreme pressure plate, act throw out bearing & pilot bearing...

Uploaded with ImageShack.us

FFE crank trigger kit (btw jason is a badass)

Uploaded with ImageShack.us

Reply Like

02-25-13, 01:42 AM

#11

mzrx7man

sideways!!

Thread Starter

iTrader: (9)

Join Date: Dec 2005

Location: Nampa, Idaho

Posts: 684

Likes: 0

Received 1 Like on 1 Post

finally decided to paint the dull stock white engine bay... pretty happy how it came out...

stock engine bay before...

Uploaded with ImageShack.us

freshly painted bay...

Uploaded with ImageShack.us

freshly painted bay with motor how it sits to this day....

Uploaded with ImageShack.us

Reply Like

02-25-13, 01:44 AM

#12

mzrx7man

sideways!!

Thread Starter

iTrader: (9)

Join Date: Dec 2005

Location: Nampa, Idaho

Posts: 684

Likes: 0

Received 1 Like on 1 Post

Gona start throwing the Haltech RE starting monday along with all the new goodies.... will be posting pics of my progress. hope you all enjoyed the pics, it was alot of work rounding them up lol

Reply Like

02-26-13, 01:48 AM

#13

mzrx7man

sideways!!

Thread Starter

iTrader: (9)

Join Date: Dec 2005

Location: Nampa, Idaho

Posts: 684

Likes: 0

Received 1 Like on 1 Post

got alot done today, got most of the haltech mostly done & FFE crank trigger installed. just got to run some power and ground wires. Also i need to install the walbro 400. just ordered some aem smart coils as well.

Uploaded with ImageShack.us

Reply Like

02-26-13, 08:15 AM

#14

SirCygnus

whats going on?

iTrader: (1)

Join Date: Mar 2004

Location: atlanta ga

Posts: 4,929

Likes: 1

Received 8 Likes on 7 Posts

tip, if you plan on running the stock coils, you need to mod them to get them to work. otherwise, they wont work.

if you want, i can sell you my coilpacks. Mine work just fine.

Reply Like

02-26-13, 08:53 AM

#15

mzrx7man

sideways!!

Thread Starter

iTrader: (9)

Join Date: Dec 2005

Location: Nampa, Idaho

Posts: 684

Likes: 0

Received 1 Like on 1 Post

Quote:

Originally Posted by SirCygnus

tip, if you plan on running the stock coils, you need to mod them to get them to work. otherwise, they wont work.

if you want, i can sell you my coilpacks. Mine work just fine.

Im actually getting the aem smart coils. Thanks for the info & offer though i didint know that.

Reply Like

02-26-13, 09:02 AM

#16

southsidecox

tigers LOVE pepper!!!!!

iTrader: (52)

Join Date: Sep 2008

Location: gadsden al

Posts: 827

Likes: 1

Received 6 Likes on 6 Posts

looks like in pic the eshole front part of that t2 hood was pushed in?how hard was it to get that straight again?im sure its alum?

Reply Like

02-26-13, 10:08 AM

#17

mzrx7man

sideways!!

Thread Starter

iTrader: (9)

Join Date: Dec 2005

Location: Nampa, Idaho

Posts: 684

Likes: 0

Received 1 Like on 1 Post

Quote:

Originally Posted by southsidecox

looks like in pic the eshole front part of that t2 hood was pushed in?how hard was it to get that straight again?im sure its alum?

i just replaced it. it was pretty bent, i didnt even try lol

Reply Like

05-29-13, 02:14 AM

#18

mzrx7man

sideways!!

Thread Starter

iTrader: (9)

Join Date: Dec 2005

Location: Nampa, Idaho

Posts: 684

Likes: 0

Received 1 Like on 1 Post

Update!

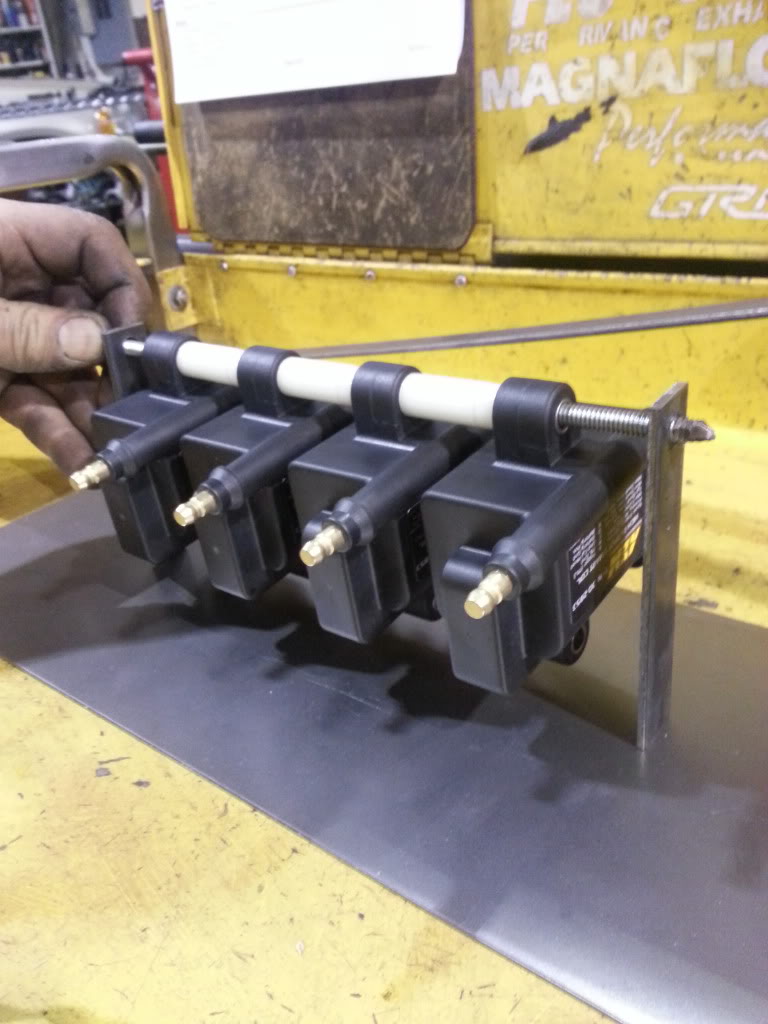

Name: 20130301_200318.jpg
Views: 77
Size: 89.0 KB

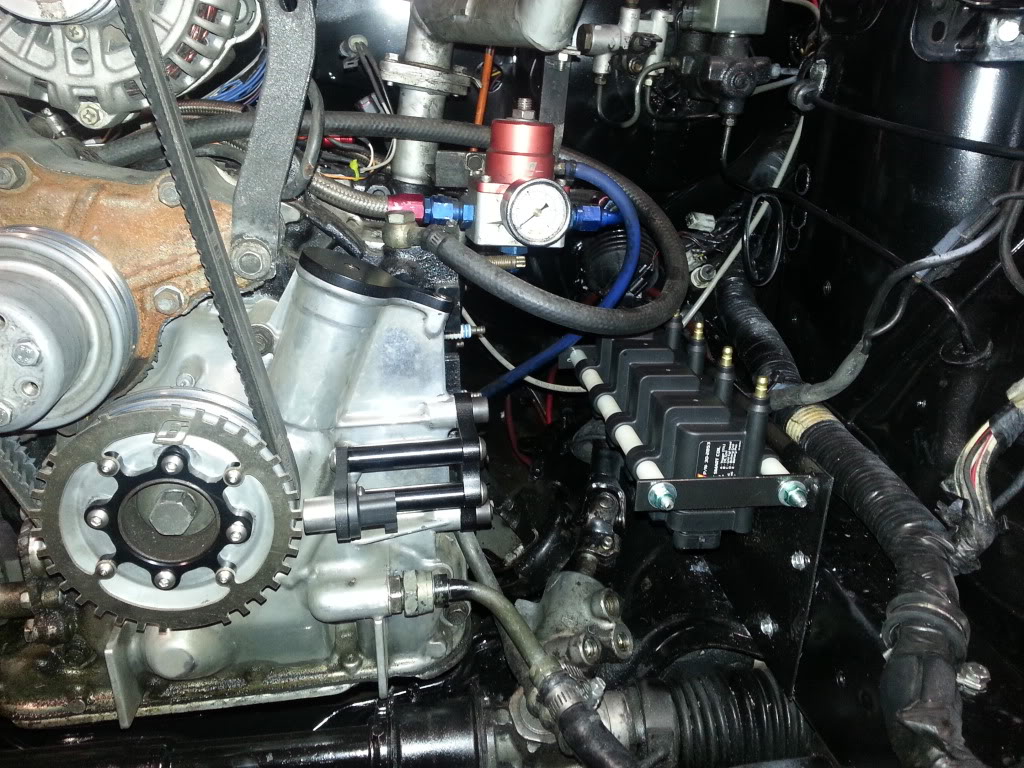

Name: 20130302_153705.jpg
Views: 90
Size: 198.5 KB

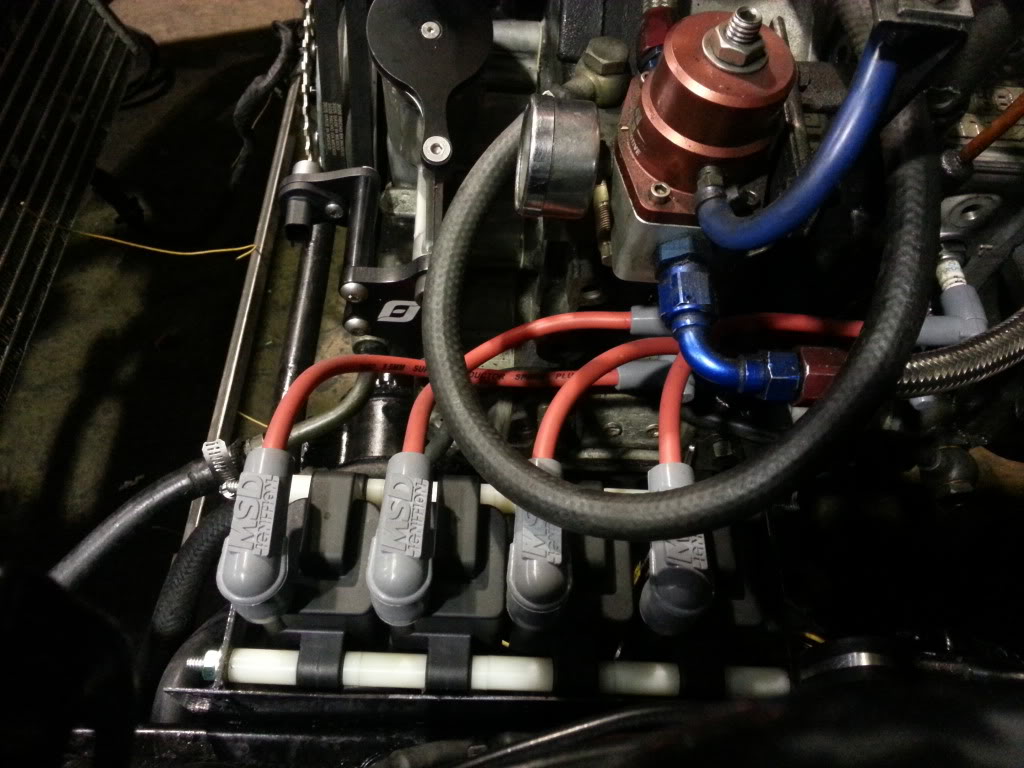

Name: 20130302_214958.jpg
Views: 81
Size: 115.5 KB

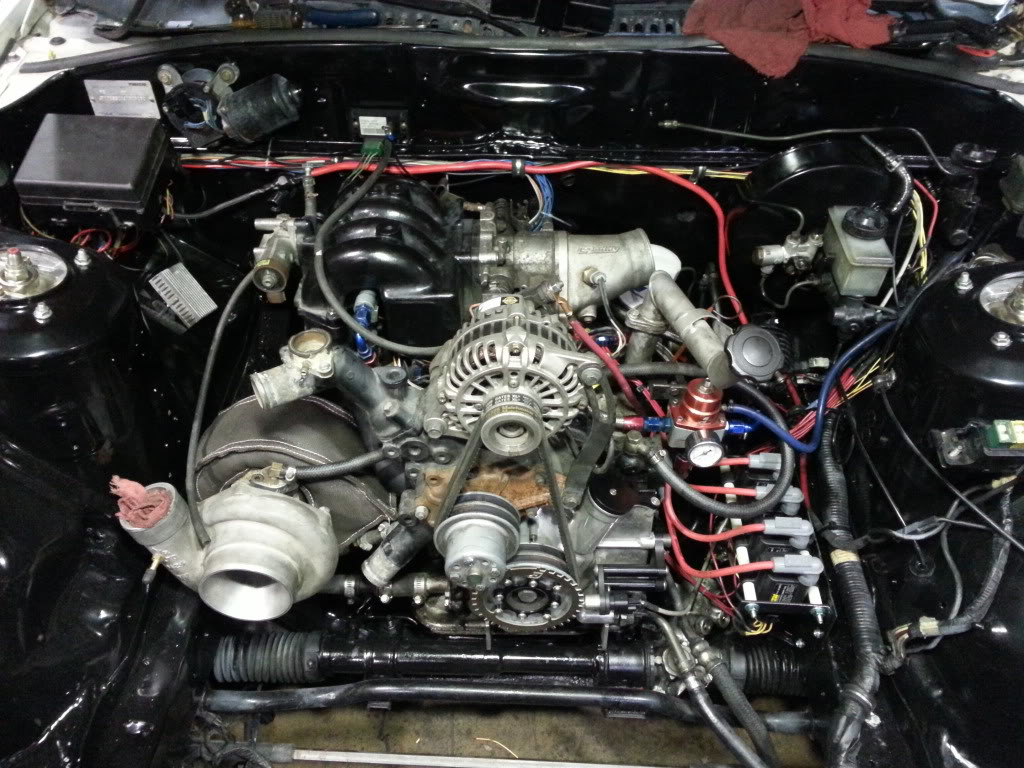

Name: 20130303_213656.jpg
Views: 69
Size: 171.9 KB

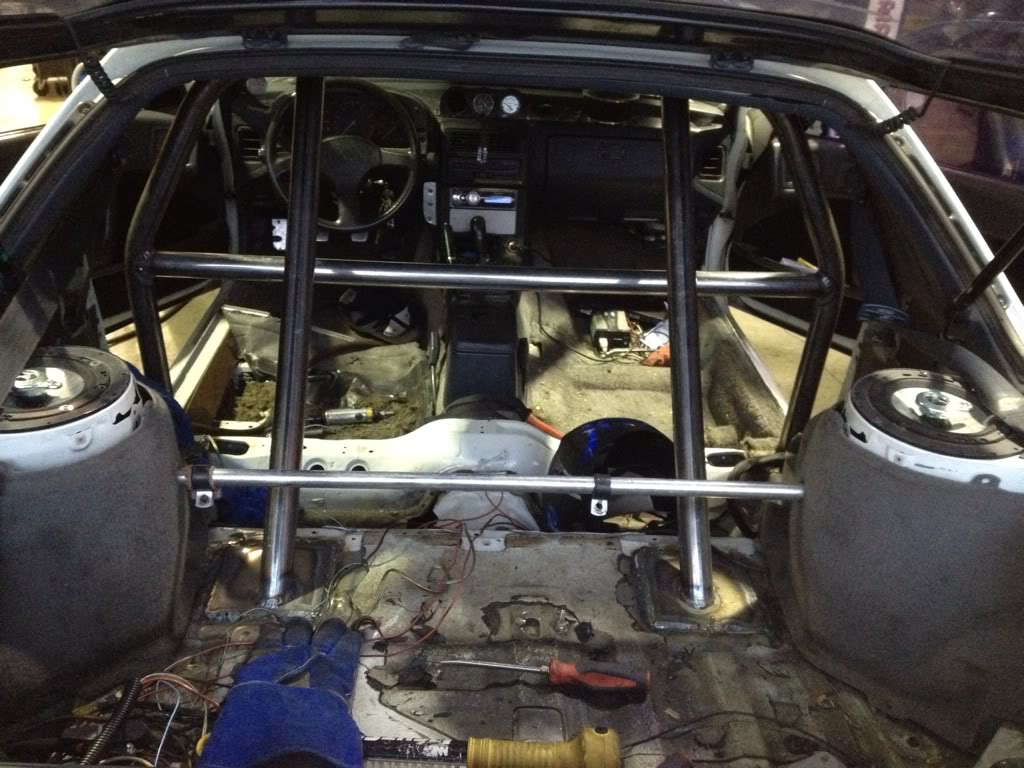

Name: 47ef38ee.jpg
Views: 61
Size: 140.1 KB

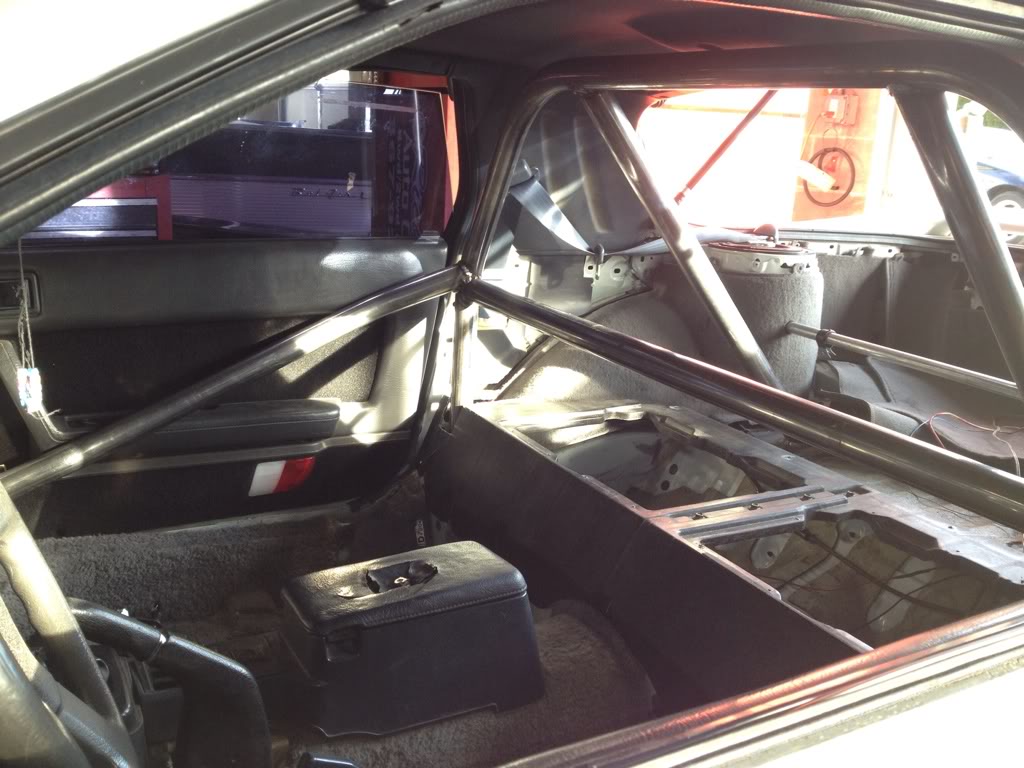

Name: 1127274e.jpg
Views: 74
Size: 112.5 KB

Reply Like

05-29-13, 02:21 AM

#19

mzrx7man

sideways!!

Thread Starter

iTrader: (9)

Join Date: Dec 2005

Location: Nampa, Idaho

Posts: 684

Likes: 0

Received 1 Like on 1 Post

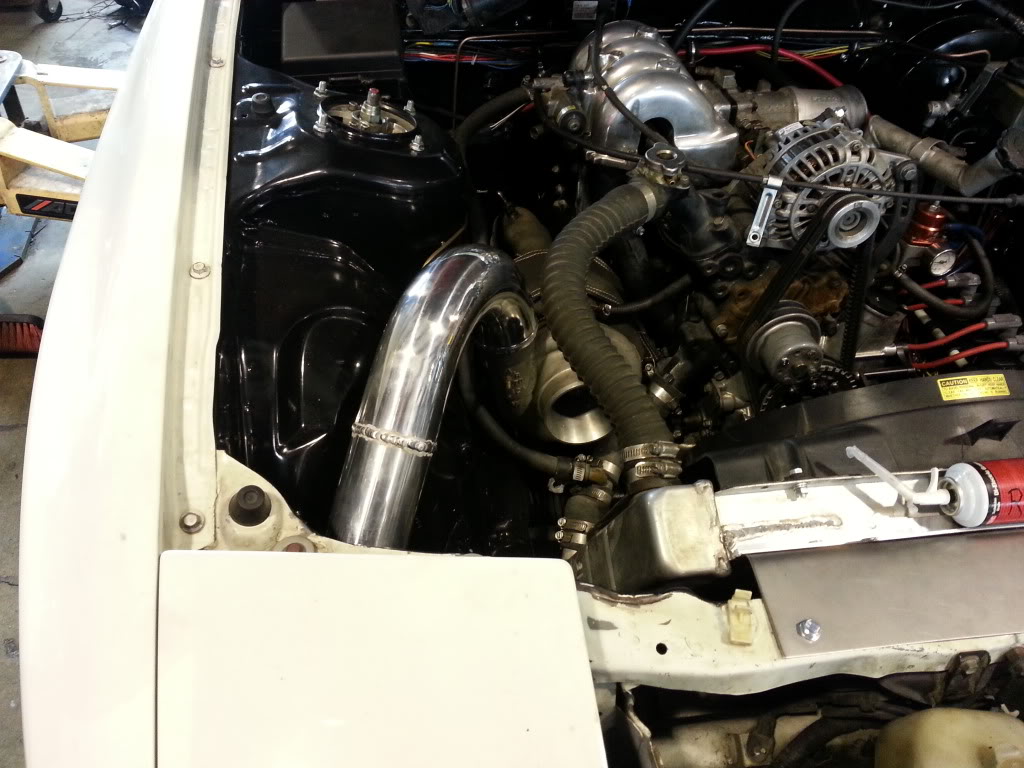

Name: 20130325_181201.jpg
Views: 73
Size: 125.6 KB

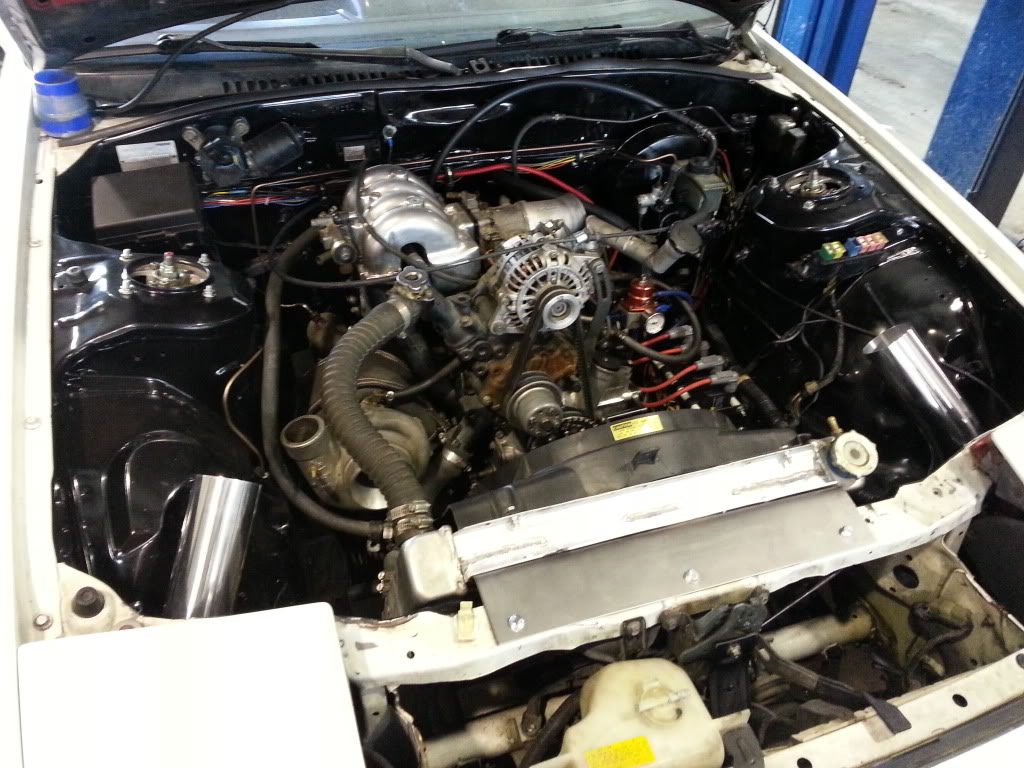

Name: 20130325_174348.jpg
Views: 63
Size: 154.8 KB

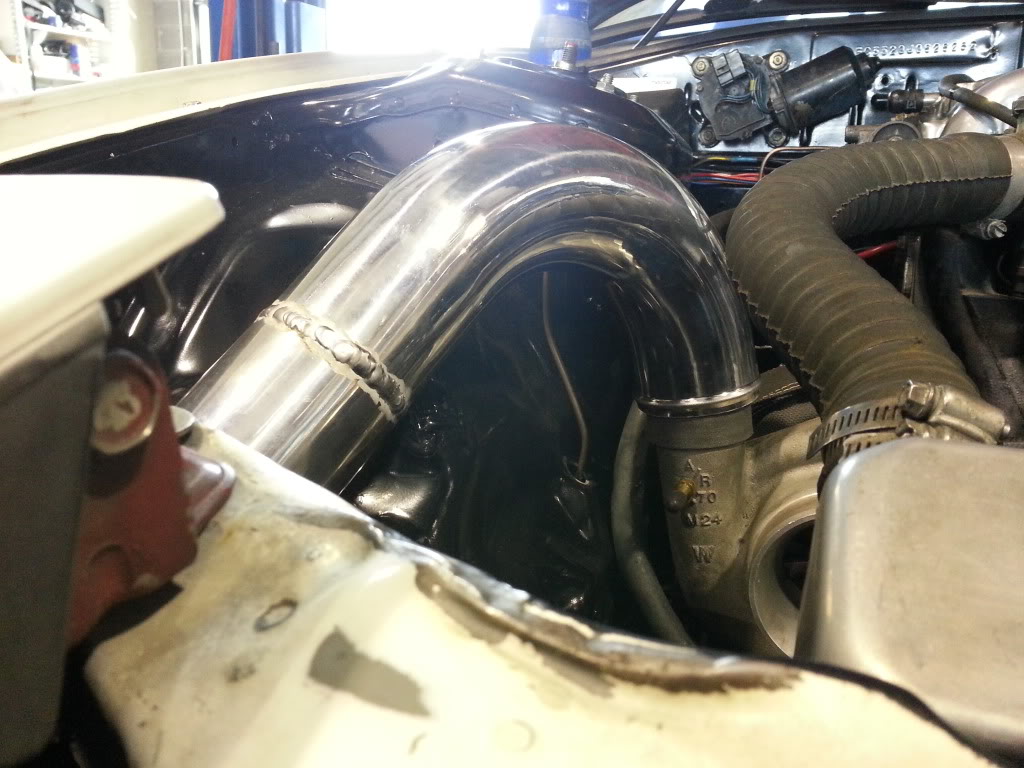

Name: 20130325_181149.jpg
Views: 79
Size: 119.9 KB

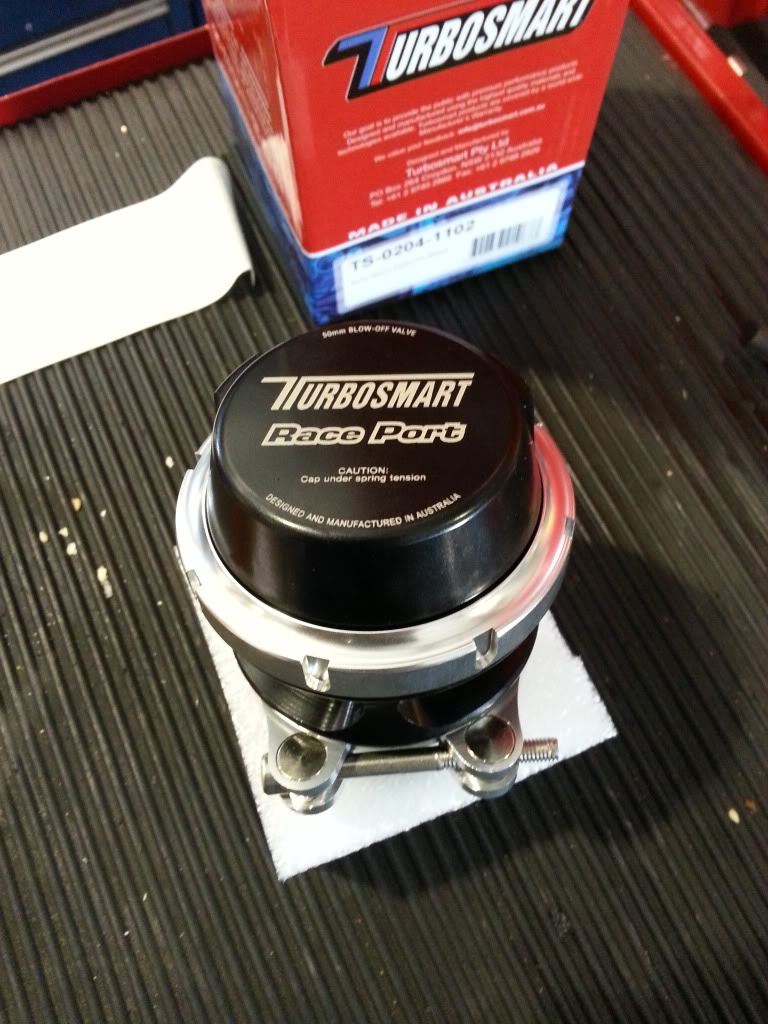

Name: 20130327_114250.jpg
Views: 71
Size: 127.7 KB

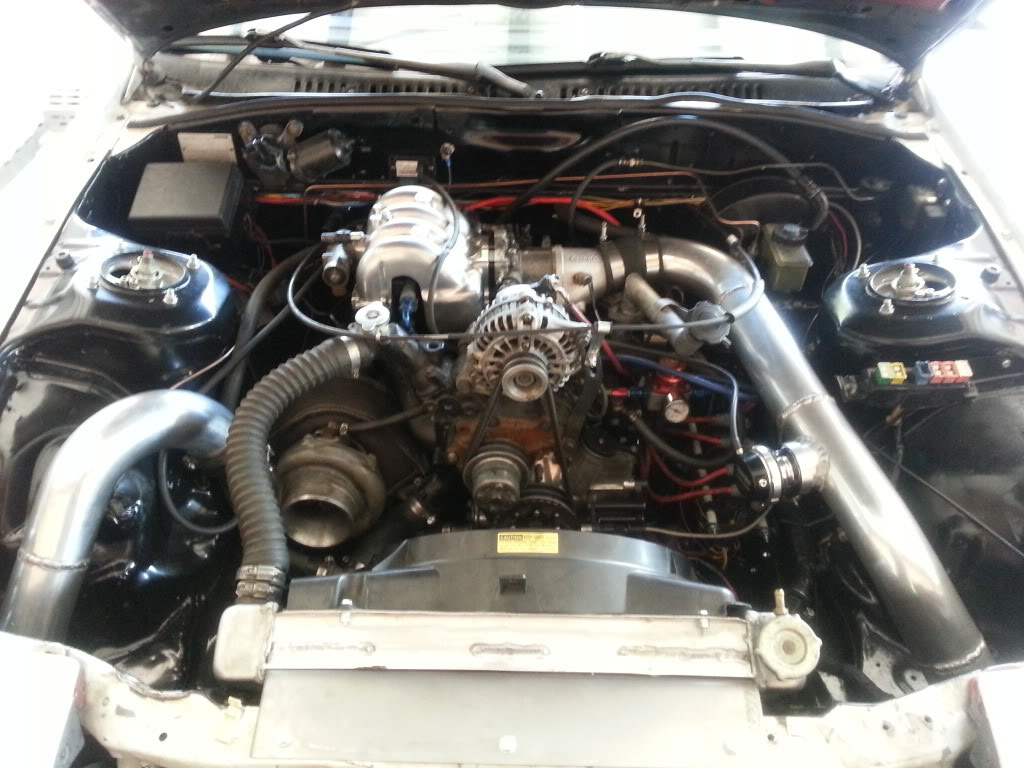

How it currently looks

Name: 20130411_132028.jpg
Views: 82
Size: 125.0 KB

Reply Like

06-27-13, 05:04 PM

#20

joeroulston

Junior Member

Join Date: Dec 2012

Location: New Zealand

Posts: 14

Likes: 0

Received 0 Likes on 0 Posts

awsome build man! Im currently working on doing up my t2. could you post some details of your systems. Fuel , cooling etc. also turbo setup , are u still using the t67 was size wastegate u running? Very interested

Reply Like

07-04-13, 06:05 PM

#21

mzrx7man

sideways!!

Thread Starter

iTrader: (9)

Join Date: Dec 2005

Location: Nampa, Idaho

Posts: 684

Likes: 0

Received 1 Like on 1 Post

Quote:

Originally Posted by joeroulston

Thanks man! Here's my list

S4 t2 engine
Act pro lite flywheel
Act xtreme pp
Act full face disc
E85 Walbro 400
An -6 fuel hose
Aeromotive fpr
720/1600 injectors
Greddy fmic
Hks 40mm wg
Custom built 3" ic pipes
Garrett t67 turbo
Aem ign-1a coils
Haltech sprint re
Ground control coilovers with tokico illumina struts
Custom double pass 2 core aluminum radiator

That's all I can think of...thanks again!

Reply Like

07-04-13, 06:09 PM

#22

mzrx7man

sideways!!

Thread Starter

iTrader: (9)

Join Date: Dec 2005

Location: Nampa, Idaho

Posts: 684

Likes: 0

Received 1 Like on 1 Post

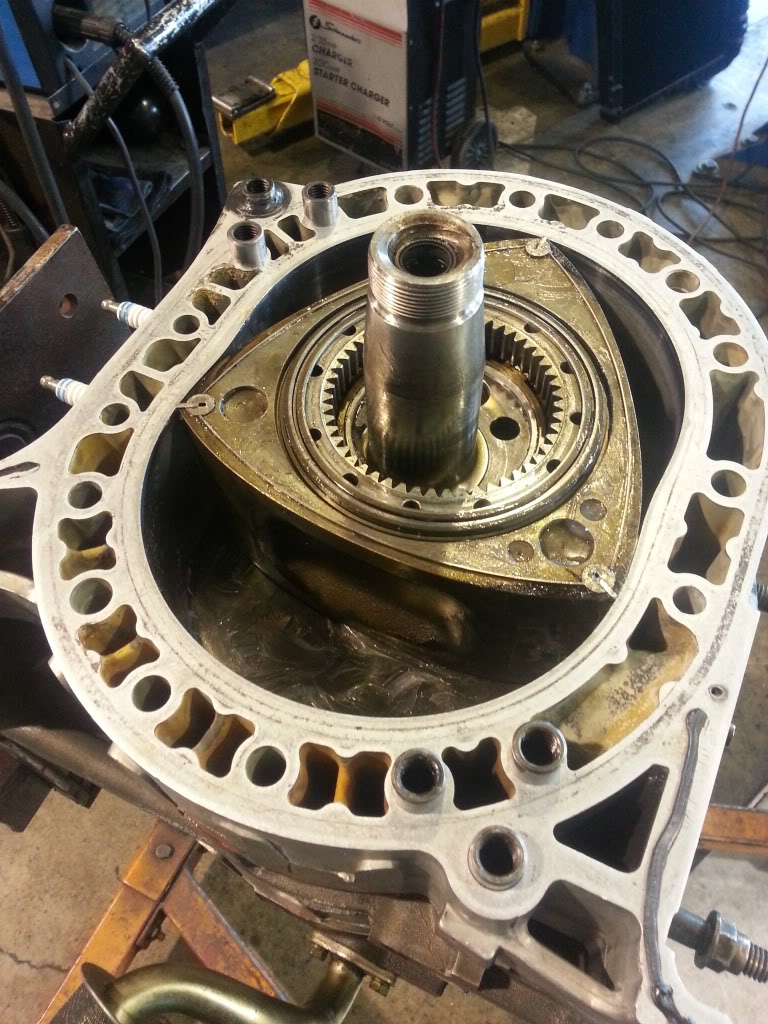

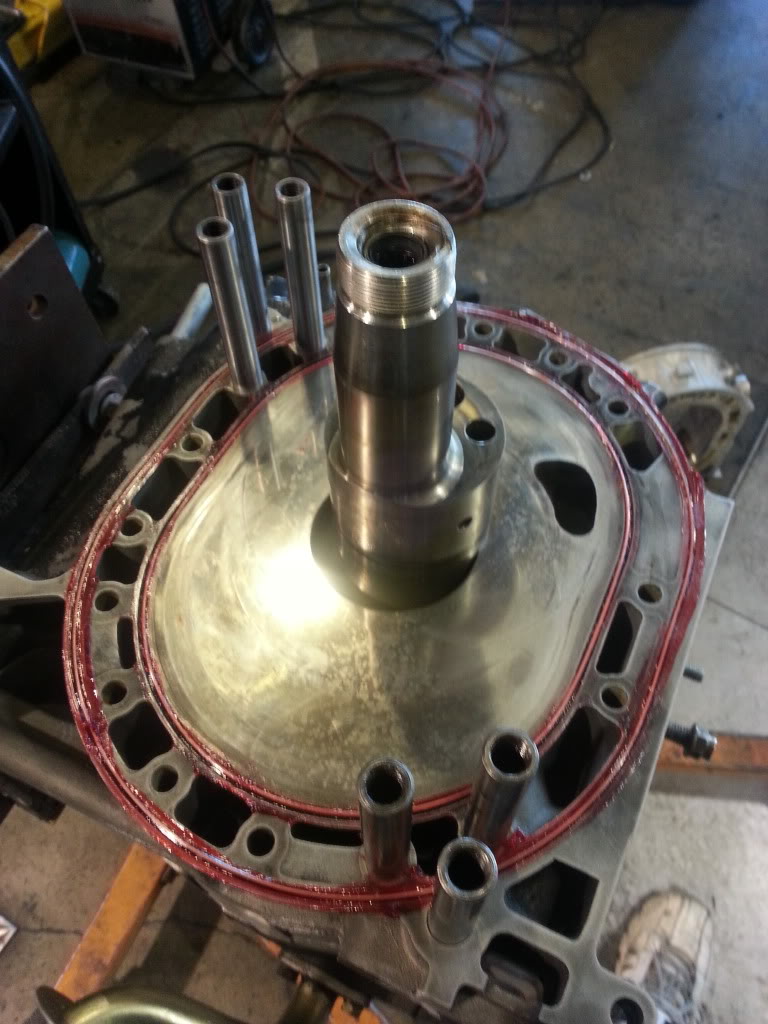

Pinned the motor this go around

Name: 20130628_190643.jpg
Views: 65
Size: 111.2 KB

Name: 20130628_192155.jpg
Views: 72
Size: 181.3 KB

Reply Like

07-07-13, 03:38 PM

#23

RxManny

Full Member

Join Date: Aug 2007

Location: Winter Haven

Posts: 108

Likes: 0

Received 0 Likes on 0 Posts

Nice build... Let me kno how you like that Sprint RE

Reply Like

07-14-13, 08:23 PM

#24

mzrx7man

sideways!!

Thread Starter

iTrader: (9)

Join Date: Dec 2005

Location: Nampa, Idaho

Posts: 684

Likes: 0

Received 1 Like on 1 Post

Quote:

Originally Posted by RxManny

Nice build... Let me kno how you like that Sprint RE

Love it man. Night & day difference from the e6k

Reply Like

07-26-13, 07:53 PM

#25

joeroulston

Junior Member

Join Date: Dec 2012

Location: New Zealand

Posts: 14

Likes: 0

Received 0 Likes on 0 Posts

Thanks for the info man, trying to get as many ideas as i can for my build. Quick question how do you get the rear seats out easiy , ive been looking for a nut to undo but its a bit of a puzzle.haha the simple things.

Reply Like
