Gen 1 RX7 into tarmac rally Car - Group C Replica

Build Threads The place for complete build threads of 1st Gen RX-7s.

Gen 1 RX7 into tarmac rally Car - Group C Replica

Old 07-26-14, 02:50 AM
  #76
Full Member
Thread Starter

wangracing's Avatar

Join Date: Nov 2011
Location: Perth, Australia
Posts: 86
Thanks: 0
Thanked 0 Times in 0 Posts
Originally Posted by craaaazzy View Post
looking good. i thought about using an evo intercooler myself as well. looks like it's a good fit.
Yeah they are a good thing. Cheap sec d hand. Very light. Easily flow 400hp. Sensible size and the pipes turn back towards the intake and turbo for a nice fit.
wangracing is offline
Old 07-26-14, 08:15 AM
  #77
I have a rotary addiction
iTrader: (17)

NCross's Avatar

Join Date: Jun 2006
Location: Columbia, Tennessee
Posts: 4,689
Thanks: 0
Thanked 11 Times in 11 Posts
Can you elaborate on your dash fabric process? Im loving the look.
NCross is offline
Old 07-26-14, 09:58 AM
  #78
Full Member
Thread Starter

wangracing's Avatar

Join Date: Nov 2011
Location: Perth, Australia
Posts: 86
Thanks: 0
Thanked 0 Times in 0 Posts
Originally Posted by NCross View Post
Can you elaborate on your dash fabric process? Im loving the look.
It is typically a furniture for inside drawers called flocking. You spray a glue onto the surface, electrostatically charge the area and kind of spray the "flock" (fine short hairs I guess) and they stand on end and stick in the glue. Is kind of a velvety finish.

If you googling "flocking" it will turn up some info.
wangracing is offline
Old 08-01-14, 02:25 PM
  #79
Always Wanting to Learn
iTrader: (45)

DreamInRotary's Avatar

Join Date: Aug 2011
Location: Cambridge, Minnesota
Posts: 2,969
Thanked 22 Times in 21 Posts
MY. FAVORITE. BUILD.

This is seriously the cleanest and best looking first gen build I think I've ever seen. I want to build one into a racecar just like this someday after engineering school.

I'll be checking back frequently!
DreamInRotary is offline
Old 08-01-14, 11:04 PM
  #80
10AE Restoration Guy
iTrader: (91)

mazdaverx713b's Avatar

Join Date: Oct 2003
Location: Vermilion Ohio
Posts: 16,236
Thanked 82 Times in 80 Posts
I'm blown away by this build!! Please keep us updated with new pics and progress. And a video if possible!
mazdaverx713b is offline
Old 08-04-14, 11:03 PM
  #81
Full Member
Thread Starter

wangracing's Avatar

Join Date: Nov 2011
Location: Perth, Australia
Posts: 86
Thanks: 0
Thanked 0 Times in 0 Posts
Cheers for all the positive feedback fellas.

So we put it on the scales today. 908kg.(2000lb in your language ) Admittedly the intercooler and radiator were out, as were the seats and the windscreen...and its dry. But safe to say we will land under 1000kg, (2200lb) I am punting 960-980. That with 450 odd at the treads should go alright.......
wangracing is offline
Old 08-05-14, 11:30 PM
  #82
USMC (ret.)
iTrader: (4)

GySgtFrank's Avatar

Join Date: Dec 2010
Location: Stafford, Ks.
Posts: 378
Thanks: 0
Thanked 0 Times in 0 Posts
Originally Posted by wangracing View Post
Cheers for all the positive feedback fellas.

So we put it on the scales today. 908kg.(2000lb in your language ) Admittedly the intercooler and radiator were out, as were the seats and the windscreen...and its dry. But safe to say we will land under 1000kg, (2200lb) I am punting 960-980. That with 450 odd at the treads should go alright.......
I would think so.
GySgtFrank is offline
Old 08-18-14, 03:39 AM
  #83
Full Member
Thread Starter

wangracing's Avatar

Join Date: Nov 2011
Location: Perth, Australia
Posts: 86
Thanks: 0
Thanked 0 Times in 0 Posts
Thanks for all the positive feedback Gents.

its very very close. Should be turning the key possibly as soon as tomorrow. Then its run in and then power tune. So extremely close. Got a few pics today. All the heat shielding is done. The exhaust is getting some final welds. Very nice work doing the lobster back welds to get it over the diff. Very happy with how it has come up. We have tested the fuel system and its pressurised without leaks. We have cranked it and have oil pressure. The hydraulic power steering works. Its all full of fluids and not leaking. Custom leads made. Just waiting on a couple of fittings to plumb in the overflow tank for the radiator and some final welds and bolt the exhaust on for good and we are good to go. Sooooo, next update should be a start up vid with any luck........

Pic of the front subframe area

Name:  FrontUnderside.jpg
Views: 1069
Size:  72.6 KB

Heat shielding and ceramic coating to the tunnel and dump pipe (inconel on the turbo and lower manifold as well.)

Name:  Heatshieldandceramics.jpg
Views: 787
Size:  373.8 KB

Carbon shaft and Ti exhaust... Meant to be together.

Name:  ShaftandExhaust.jpg
Views: 738
Size:  58.6 KB

Some tricky welding to get it over the diff. Tight squeeze.

Name:  ExhaustatDiff.jpg
Views: 708
Size:  356.1 KB

Name:  ExhaustOverDiff.jpg
Views: 705
Size:  35.1 KB
wangracing is offline
Old 08-18-14, 10:37 PM
  #84
Rotary Enthusiast
iTrader: (3)

mustanghammer's Avatar

Join Date: Nov 2006
Location: Parkville, Mo
Posts: 1,080
Thanks: 0
Thanked 12 Times in 10 Posts
Damn.....just Damn. Beautiful build. Thanks for sharing!
mustanghammer is offline
Old 09-08-14, 08:59 AM
  #85
Full Member
Thread Starter

wangracing's Avatar

Join Date: Nov 2011
Location: Perth, Australia
Posts: 86
Thanks: 0
Thanked 0 Times in 0 Posts
Cheers Fellas,

well a bit more progress. All fluids are in, brakes are all bled up, it runs with no dramas. Heated screen went in today. Main fab job left is the in car adjustable sway bar. Is a fair bit going on with the rear diff so will be a challenge finding a home for it.

Crappy phone vid of the first start....

http://vidmg.photobucket.com/albums/...a/IMG_2173.mp4

Some more pics

Name:  Carside.jpg
Views: 735
Size:  57.1 KB

Engine bay complete. All inconel and reflecta gold insulation in place.

Name:  EngineBay-1.jpg
Views: 723
Size:  66.8 KB

Advice taken and kevlar guard fabbed for the puel pump and surge tank.

Name:  pumpguard.jpg
Views: 698
Size:  51.6 KB

Ti exhaust all in.

Name:  exhaust-1.jpg
Views: 701
Size:  41.5 KB

And the most complete looking pic of it to date. Excuse the ***** panel gap at bumper and bonnet. Was just dropped into place for some pics for the CAMS logbook.... thats right....its been inspected and signed off and the application went in to CAMS (our local Motorsport authority) today for the logbook so it can race.

Hits the dyno Wednesday and all going well, out to the track ASAP after that.

Name:  IMG_2202.jpg
Views: 761
Size:  46.0 KB
wangracing is offline
Old 09-08-14, 01:35 PM
  #86
Village Idiot
iTrader: (8)

woodmv's Avatar

Join Date: Nov 2010
Location: SE VA
Posts: 1,077
Thanked 8 Times in 8 Posts
I'm not WORTHY!!

Man, this has been an INCREDIBLE build! The car looks absolutely fan-freaking-tastic! Excellent job.
woodmv is offline
Old 09-08-14, 03:03 PM
  #87
I have a rotary addiction
iTrader: (17)

NCross's Avatar

Join Date: Jun 2006
Location: Columbia, Tennessee
Posts: 4,689
Thanks: 0
Thanked 11 Times in 11 Posts
That first start up was too easy.
NCross is offline
Old 09-08-14, 04:23 PM
  #88
Common sense ain't common
iTrader: (28)

estevan62274's Avatar

Join Date: May 2002
Location: Melbourne, Fl
Posts: 2,386
Thanked 8 Times in 8 Posts
So much win in this thread!!
estevan62274 is online now
Old 09-10-14, 09:09 AM
  #89
Junior Member

Mr N4SA's Avatar

Join Date: Feb 2012
Location: Piketberg, South Africa
Posts: 37
Thanks: 0
Thanked 1 Time in 1 Post
the car came together very very nicely.
Great work.
I bet you are eager to get some track time in.

Congrats
Mr N4SA is offline
Old 09-10-14, 09:44 AM
  #90
Full Member
Thread Starter

wangracing's Avatar

Join Date: Nov 2011
Location: Perth, Australia
Posts: 86
Thanks: 0
Thanked 0 Times in 0 Posts
Cheers for that. Yep. Can't wait to get to the track.

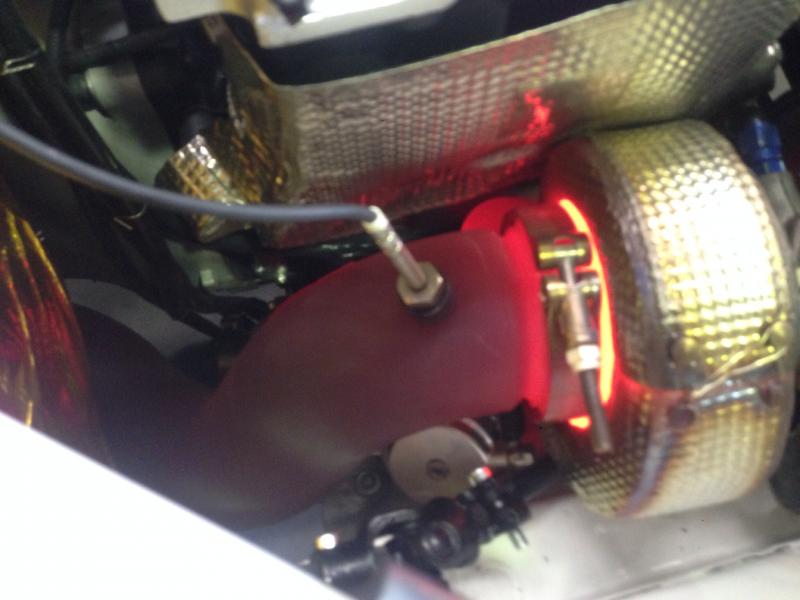

I'll just leave this here...

Name:  image-1.jpg
Views: 689
Size:  45.8 KB

wangracing is offline
Old 09-10-14, 11:12 AM
  #91
Never Follow
iTrader: (18)

82transam's Avatar

Join Date: Feb 2002
Location: North Jersey
Posts: 8,213
Thanks: 0
Thanked 11 Times in 11 Posts
Oh my, that's delicious
82transam is offline
Old 09-10-14, 07:31 PM
  #92
malignant narcissist
iTrader: (2)

diabolical1's Avatar

Join Date: Feb 2002
Location: FL
Posts: 9,367
Thanked 46 Times in 43 Posts
quite simply one of the cleanest, best-looking and most well-executed builds i've seen in quite some time. PERIOD!

congratulations, sir!
diabolical1 is offline
Old 09-11-14, 04:02 AM
  #93
Junior Member

Join Date: Aug 2014
Location: San Jose, CA
Posts: 7
Thanks: 0
Thanked 0 Times in 0 Posts
I'm curious, how did you make that door skin. Or did you buy that whole door cover like that?
Rojasm94 is offline
Old 09-11-14, 06:26 AM
  #94
Full Member
Thread Starter

wangracing's Avatar

Join Date: Nov 2011
Location: Perth, Australia
Posts: 86
Thanks: 0
Thanked 0 Times in 0 Posts
Door cards are a sheet of carbon cut out to suit. Easy to make your own sheet. Get a glass door. Coat it with release agent. Lay the carbon cloth. Wet it out with epoxy resin. Then back it with normal fibreglass cloth to get thickness required to make it stiff enough. Let resin go off. Peel it out if the mould and nice glassy/gloss finish carbon sheet. Then just cut to pattern of factory door card.


Ps diabolical1 I need a like button. . Thanks for your kind words. I am humbled by the appreciation of the build from those posting within the thread.
wangracing is offline
Old 09-11-14, 08:30 AM
  #95
Acquiring money pits
10 Year Member
iTrader: (11)

Join Date: Mar 2002
Location: Atlanta, GA
Posts: 414
Thanks: 0
Thanked 0 Times in 0 Posts
What an inspiring build!

Are you probing for EGT just after the turbo, or are you monitoring the runners in the manifold as well?
Dysfnctnl85 is offline
Old 09-11-14, 09:39 AM
  #96
Full Member
Thread Starter

wangracing's Avatar

Join Date: Nov 2011
Location: Perth, Australia
Posts: 86
Thanks: 0
Thanked 0 Times in 0 Posts
Cheers for the feedback. You are spot on. Afr is monitored post turbo in the dump and EGT is in the manifold.
wangracing is offline
Old 09-12-14, 06:46 AM
  #97
What's that smell?
5 Year Member

captainbizzaro's Avatar

Join Date: Jul 2007
Location: Dorset, England
Posts: 217
Thanks: 0
Thanked 0 Times in 0 Posts
Have you done a max power run yet?

Beautiful build dude congrats.
captainbizzaro is offline
Old 09-14-14, 08:42 PM
  #98
Full Member
Thread Starter

wangracing's Avatar

Join Date: Nov 2011
Location: Perth, Australia
Posts: 86
Thanks: 0
Thanked 0 Times in 0 Posts
I did do a run on the dyno. Got 417 RWHP. (allegedly aussie dynos are said to read lower than us) Am yet to actually drive it. That should be a week away. Be interested to see how it actually feels seat of the pants. Will give it a run own the strip at some point as well which is always a good way to verify the actual power.
wangracing is offline
Old 09-15-14, 07:14 AM
  #99
What's that smell?
5 Year Member

captainbizzaro's Avatar

Join Date: Jul 2007
Location: Dorset, England
Posts: 217
Thanks: 0
Thanked 0 Times in 0 Posts
Good power dude, keep us posted how you get on. My 250rwhp feels **** your pants quick so that'll feel insane.
captainbizzaro is offline
Old 09-15-14, 08:48 PM
  #100
Senior Member
iTrader: (4)

Join Date: Nov 2010
Location: Toronto Canada
Posts: 364
Thanks: 0
Thanked 6 Times in 6 Posts
Unbelievable. I agree with diabolical... a very very nice build. Hard to believe.
tommyeflight89 is offline
