81 custom widebody

Reply



Old 12-01-17, 12:20 PM
  #401
Rotary Enthusiast
iTrader: (3)

mustanghammer's Avatar

Join Date: Nov 2006
Location: Parkville, Mo
Posts: 997
Thanks: 0
Thanked 2 Times in 1 Post
Sounds great!
mustanghammer is offline
Reply With Quote
Old 12-05-17, 06:09 AM
  #402
You wanna do what?????
Thread Starter
iTrader: (2)

Frankenmazda's Avatar

Join Date: Apr 2007
Location: Greater Cincinnati
Posts: 394
Thanks: 0
Thanked 0 Times in 0 Posts
Quieter

I replaced the cheap Carter fuel pump last night with a Edelbrock Quiet-flo pump. The rubber isolators on the Carter had deteriorated to the point chunks were falling off. New pump. maybe 5 miles on it. Is it just me or is it getting harder to find rubber products that last any time at all?

Anyway, the new pump is quiet indeed. Car fired right up and pumps puts out about 7 PSI. Got the passenger seat and harness in too so I took my GF and we went to the grocery. Yep it's officially a grocery getter now and I don't have to worry about her leaving me for a man with two seats! The new seats are so much better than the old ones.

Few rattles I need to address. Overall it's about what I expect from a car with hardly any sound deadener and urethane drivetrain mounts. The factory rear view mirror is driving me crazy. I couldn't use all the factory trim obviously so now it shakes and rattles. going to replace it with an aftermarket glue on. Not much else. I need to find a two mile stretch of road so I can calibrate my speedo. I also need to adjust the toe-in. Got my Longacre toe plates yesterday so that will be a snap.

All in all I'm really happy with the way it turned out. Rides reasonably well and I haven't even begun messing with shock settings or anything yet.
Frankenmazda is offline
Reply With Quote
Old 12-05-17, 11:54 AM
  #403
Senior Member

Toruki's Avatar

Join Date: Oct 2010
Location: MA USA
Posts: 259
Thanked 1 Time in 1 Post
The factory rear view mirror is driving me crazy.
On my mostly everything stock 83 GSL, there was a "recall" for the dealer to install a tiny little brace between the stem of the rear view and the windshield. Recalls today seem so much more sophisticated and costly
Toruki is offline
Reply With Quote
Old 12-05-17, 12:10 PM
  #404
Never Follow
iTrader: (18)

82transam's Avatar

Join Date: Feb 2002
Location: North Jersey
Posts: 8,173
Thanks: 0
Thanked 2 Times in 2 Posts
Awesome that you're finally on the road with this! Bet it feels great

Toruki - didn't realize that was a recall. I've learned a new fact for the day! lol
82transam is offline
Reply With Quote
Old 12-05-17, 08:29 PM
  #405
You wanna do what?????
Thread Starter
iTrader: (2)

Frankenmazda's Avatar

Join Date: Apr 2007
Location: Greater Cincinnati
Posts: 394
Thanks: 0
Thanked 0 Times in 0 Posts
Yes

it does feel great! I removed the mirror and the rattling stopped. So yea very annoying.

So tonight I hooked up the heat. Iím using the factory heater core. No heat. I can feel the one side is hot but it must not be circulating through the core. Could I have this hooked up backwards? I figured it didnít matter but who knows. Could be blocked? Itís getting cold. I need heat.
Frankenmazda is offline
Reply With Quote
Old 12-05-17, 08:41 PM
  #406
6speed in an rx3????
iTrader: (25)

73rx313b's Avatar

Join Date: Mar 2006
Location: High Point NC
Posts: 1,362
Thanked 3 Times in 3 Posts
I gotta say it...... Put a rotary back in there and the heat from the exhaust will keep you warm!!! lol
nice job on the car man!! i bet its a beast to drive
73rx313b is online now
Reply With Quote
Old 12-06-17, 06:57 AM
  #407
You wanna do what?????
Thread Starter
iTrader: (2)

Frankenmazda's Avatar

Join Date: Apr 2007
Location: Greater Cincinnati
Posts: 394
Thanks: 0
Thanked 0 Times in 0 Posts
heat

Originally Posted by 73rx313b View Post
I gotta say it...... Put a rotary back in there and the heat from the exhaust will keep you warm!!! lol
nice job on the car man!! i bet its a beast to drive
Yea I know, I yanked the soul out and casually cast it aside LOL..............Actually I love rotaries. there is nothing that sounds better than a boosted rotary. I used to love to watch the RX8's imsa gt cars run. And the 80's first gens with the wide bodies were a lot of the inspiration for this build. I know almost nothing about rotaries though. I learned quite a bit through osmosis being on this site but I'm still not sure I would tackle the rebuild of one. I have lots of respect for the folks on here who know how to get the most out of them.

My intention from the start was to take a small car and stuff a big V8 in it. It evolved over the years for sure but I ended up pretty much where I wanted.

A RX7 wasn't even my first choice. I looked for a Opel GT for many months but couldn't find one for a decent price. They were all crazy expensive and rusted out. So my second choice was a 240Z. Same thing, rusted out and too much money. Then I remembered the first gen was along the lines I wanted. I happened on this car on Craig's List. A towing company was selling it and it had been listed for a long time so I stopped by expecting rust with a little bit of car still attached. The motor needed pretty much everything. there were no rear brakes, there was enough play in the steering that it reminded me of the 1949 tractor we used to have. the automatic trans wouldn't move the car. The interior was totally shot. It smelled like cats had used it for a litter box for years. the paint was cracked, the windshield was cracked. it was a mess. But surprisingly it had almost no rust in it. I bought it, he delivered it (towing company). He told me when he dropped it off that if he wouldn't have sold it that day it was going to the crusher. So I saved the poor little thing from a fate worse than death!

I really have to thank everyone on here for support, ideas, and a lot of parts. You guys are great.

Stats for the car now are:

1981 Mazda RX7 GSL
custom widebody kit.
Front suspension:
2nd Gen front Subframe raised 2 inches for improved geometry. 3 port power steering rack with KRC power steering pump. S4 control arms, ISC coilovers with 500 lb springs and corrected for camber adjustment. Mazdaspeed swaybar. Turbo 4 piston brake rotors, stainless lines. drilled and slotted rotors, Hawk pads.
Rear suspension:
Granny's speedshop 8.8 axle. Torque arm conversion. 3.55 tru-trac posi. 33 spline forged axles. Techno Toys rear coilovers with 300 lb springs. Limiting straps. Watts link with custom links and double shear bracket. all urethane bushings front and rear. Turbo rear brake calipers. drilled rotors, hawk pads. stainless lines.
engine:
1986 up one piece rear main seal 350. Bored 40 over and mostly stock with sanderson headers, Weiand dual plane intake, Holley 750 4 barrel carb. Made 353 hp on the dyno. I have the other engine (420 horse 350, aluminum heads, 4 bolt mains) I'm going to go through with a 500 hp or so target.
Trans:
Tremec TKO 600 5 speed. Mcleod Clutch. Ceramic/organic. Denny's driveshaft with 1350 universals.
Fuel:
Custom 66 -68 sumped mustang gas tank. Edelbrock quiet-flo electric pump.
Interior:
pretty much only the door sill trim is factory. roll cage 1 5/8, .090 wall tubing, Braum seats, Corbeau Harnesses, tilt steering column 1981 camaro. custom aluminum dash, door panels, console etc. All automoter gauges. Painless wiring.

Street wheels are knock off Weld with sumitomo 225/50-15's on 15x10 's up front. Hankook 295/50-15's on 15x12's in the rear. I'm going to go with Weld RTS wheels 17x13 in the rear with 335/35-17 tires and 17x11 in the front with a 255/35-17 or so on the front for autocross and track days.

That about sums up the last 12 years. Now it's time to have some fun with it.

Last edited by Frankenmazda; 12-06-17 at 06:59 AM.
Frankenmazda is offline
Reply With Quote
Old 12-06-17, 09:25 AM
  #408
Rotary Enthusiast
iTrader: (3)

mustanghammer's Avatar

Join Date: Nov 2006
Location: Parkville, Mo
Posts: 997
Thanks: 0
Thanked 2 Times in 1 Post
The heater core may have an air bubble in it because I don't think they are directional. That said I have never owned an RX7 with a functional HVAC system!
Try loosening up the hose that is cold to allow some coolant to seep out. This should allow circulation to happen

Outstanding build. Glad you are getting to enjoy it
mustanghammer is offline
Reply With Quote
Old 12-06-17, 10:01 AM
  #409
You wanna do what?????
Thread Starter
iTrader: (2)

Frankenmazda's Avatar

Join Date: Apr 2007
Location: Greater Cincinnati
Posts: 394
Thanks: 0
Thanked 0 Times in 0 Posts
Originally Posted by mustanghammer View Post
The heater core may have an air bubble in it because I don't think they are directional. That said I have never owned an RX7 with a functional HVAC system!
Try loosening up the hose that is cold to allow some coolant to seep out. This should allow circulation to happen

Outstanding build. Glad you are getting to enjoy it
I'll try that thanks! I also thought about switching the lines around and see if running the flow the opposite direction helped. I'll play around with it and hopefully it will work. I can't spot any leaks so I'm sure it's a good part.
Frankenmazda is offline
Reply With Quote
Old 12-06-17, 12:50 PM
  #410
Never Follow
iTrader: (18)

82transam's Avatar

Join Date: Feb 2002
Location: North Jersey
Posts: 8,173
Thanks: 0
Thanked 2 Times in 2 Posts
Yeah I've enjoyed this build, glad you've been documenting it! (unlike me, i've been so lazy about posting lately )

As for the heater core, it's not really directional per say, but the left line (driver side) is the inlet in stock form, and goes to the heater control valve which controls how hot it gets (in theory, it's more of an on/off switch in my experience lol). Check to see if that is opening properly first. If it is, then trying running water from a garden hose through both sides of the core to see if a bunch of crap comes out - or if you have flow at all!
82transam is offline
Reply With Quote
Old 12-06-17, 05:39 PM
  #411
You wanna do what?????
Thread Starter
iTrader: (2)

Frankenmazda's Avatar

Join Date: Apr 2007
Location: Greater Cincinnati
Posts: 394
Thanks: 0
Thanked 0 Times in 0 Posts
Heat

thanks 82transam. I reversed the hoses and it works great. So almost out of things to do. Guess Iíll enjoy driving it!
Frankenmazda is offline
Reply With Quote
Old 12-07-17, 10:26 AM
  #412
Never Follow
iTrader: (18)

82transam's Avatar

Join Date: Feb 2002
Location: North Jersey
Posts: 8,173
Thanks: 0
Thanked 2 Times in 2 Posts
Awesome! Get some good drives in before we get snowed/salted in for the winter lol
82transam is offline
Reply With Quote
Old 12-11-17, 06:26 AM
  #413
You wanna do what?????
Thread Starter
iTrader: (2)

Frankenmazda's Avatar

Join Date: Apr 2007
Location: Greater Cincinnati
Posts: 394
Thanks: 0
Thanked 0 Times in 0 Posts
snow

Originally Posted by 82transam View Post
Awesome! Get some good drives in before we get snowed/salted in for the winter lol
So I get it done just in time for the snow and salt to fly. Figures. I'm taking this time to go over everything and make sure everything is tight.

Had to address a minor tire rub but after a talk with my ball peen hammer we came to an understanding. I've had a few spots I've had to massage because due to the rear axle my wheelbase is a half inch shorter. Eventually I may get some adjustable control arms but it seems to work for now. I added limit straps to keep the coils from coming unseated when the suspension unloads. I need to shorten the sway bar links because the center of the sway bar is touching the diff cover on the 8.8. it's a bit larger than the factory GSL diff. Shortening the links will rotate the rear down away from the cover. Hopefully.

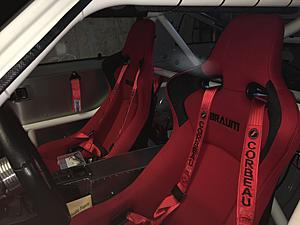

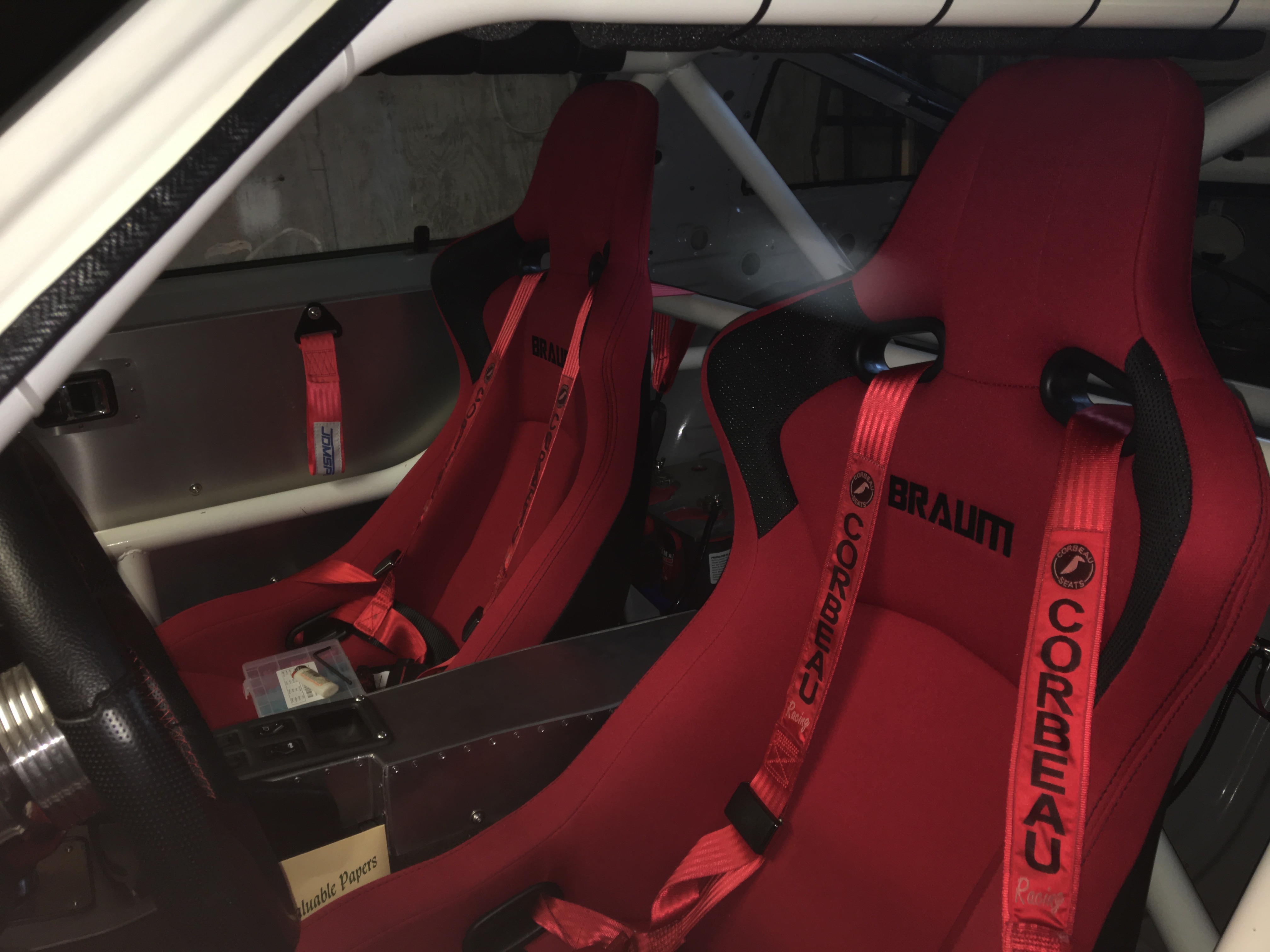

I love the seats. They are actually comfortable. The Corbeau harnesses are pretty comfy as well and retractable and you can lock them when needed.

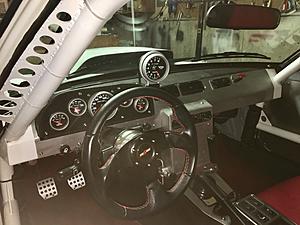

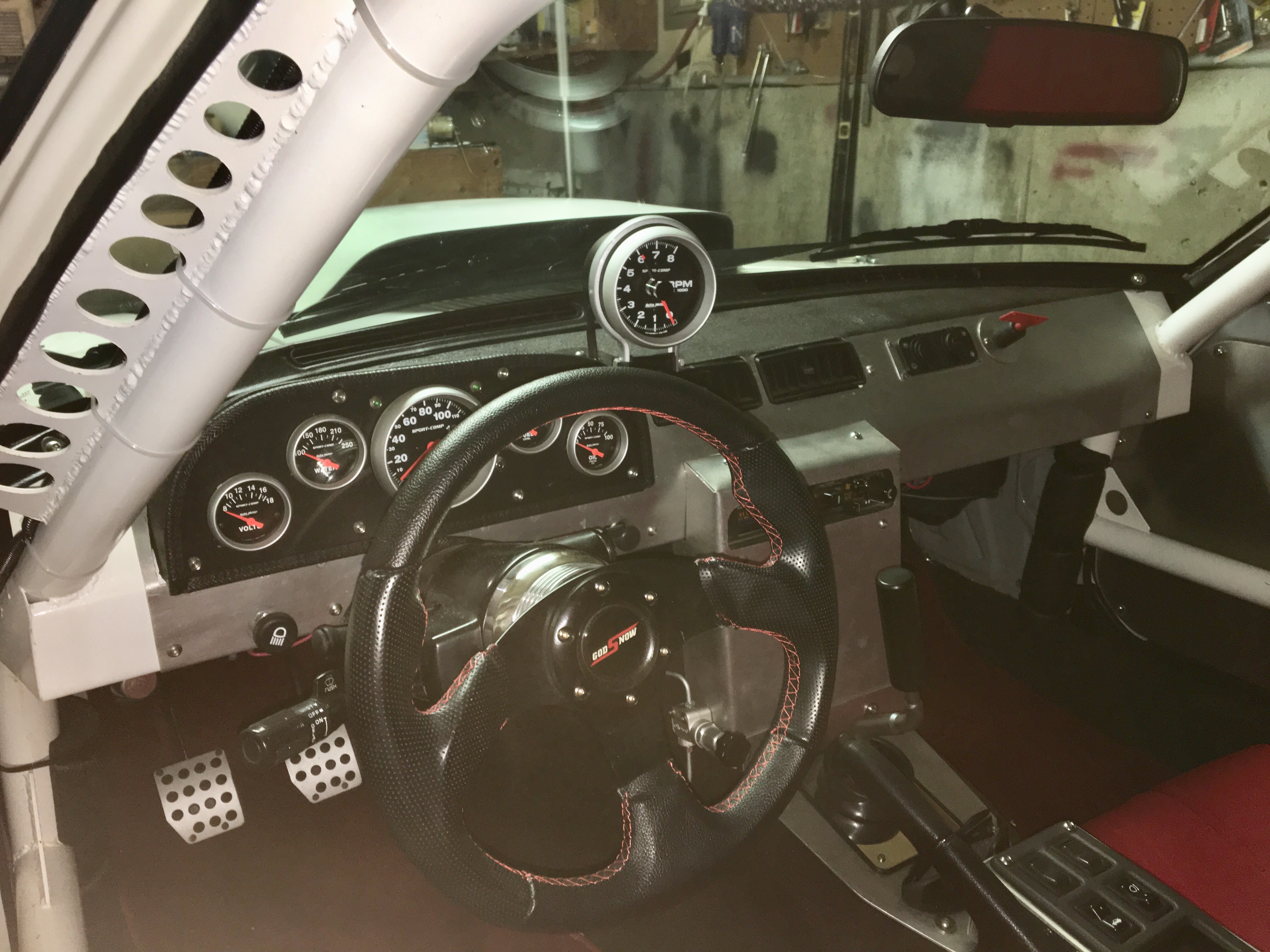

Got my new smaller tach installed and it actually works and I can see around it a lot better. The new rear view mirror is installed and hopefully it won't fall off

So all in all the car is pretty much done. Now all the roads are covered with salt.

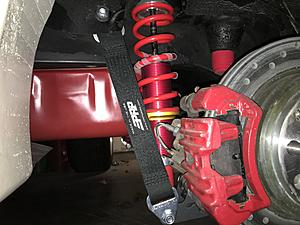

Attached Thumbnails 81 custom widebody-rear_sus_112217.jpeg   81 custom widebody-int1_121117.jpeg   81 custom widebody-int2_121117.jpeg
Frankenmazda is offline
Reply With Quote
Old 12-11-17, 11:35 AM
  #414
Never Follow
iTrader: (18)

82transam's Avatar

Join Date: Feb 2002
Location: North Jersey
Posts: 8,173
Thanks: 0
Thanked 2 Times in 2 Posts
Looking real good. They salted here over the weekend too, so no more FB fun for a while... Hopefully it rains soon and washed it away lol
82transam is offline
Reply With Quote
