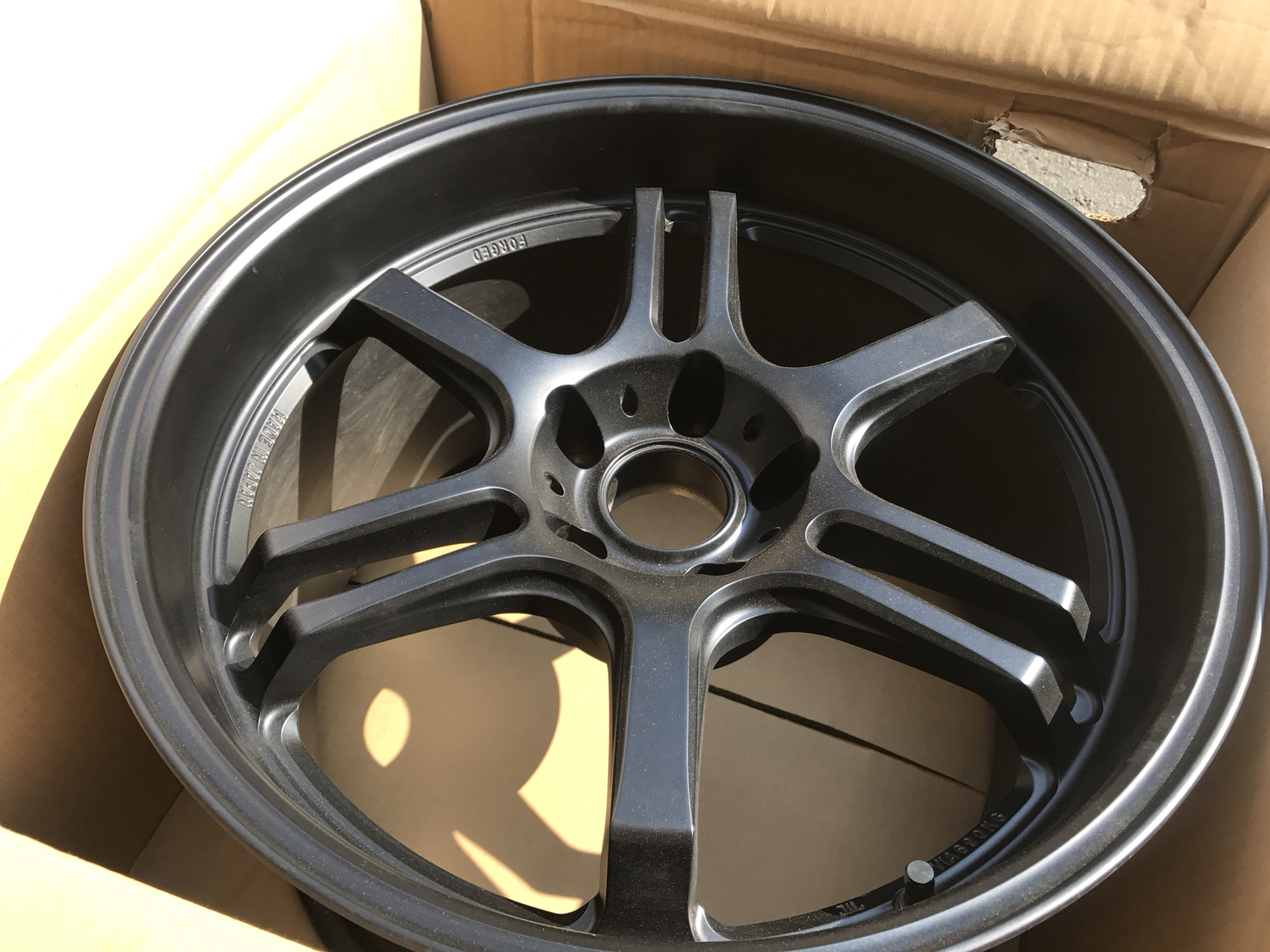

New wheel at the house

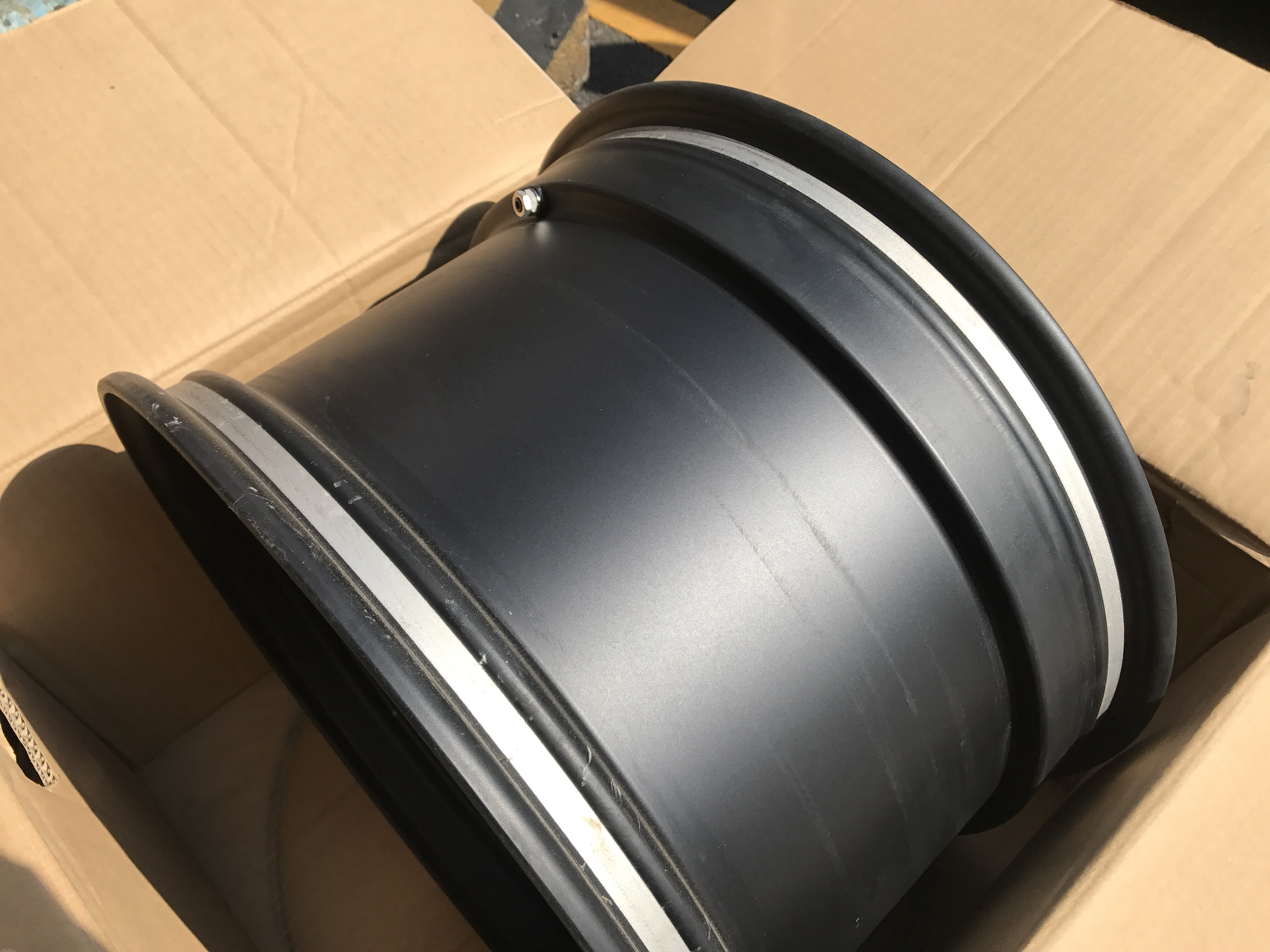

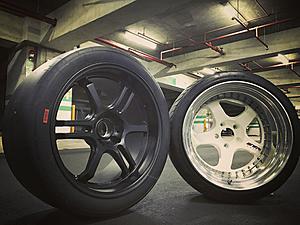

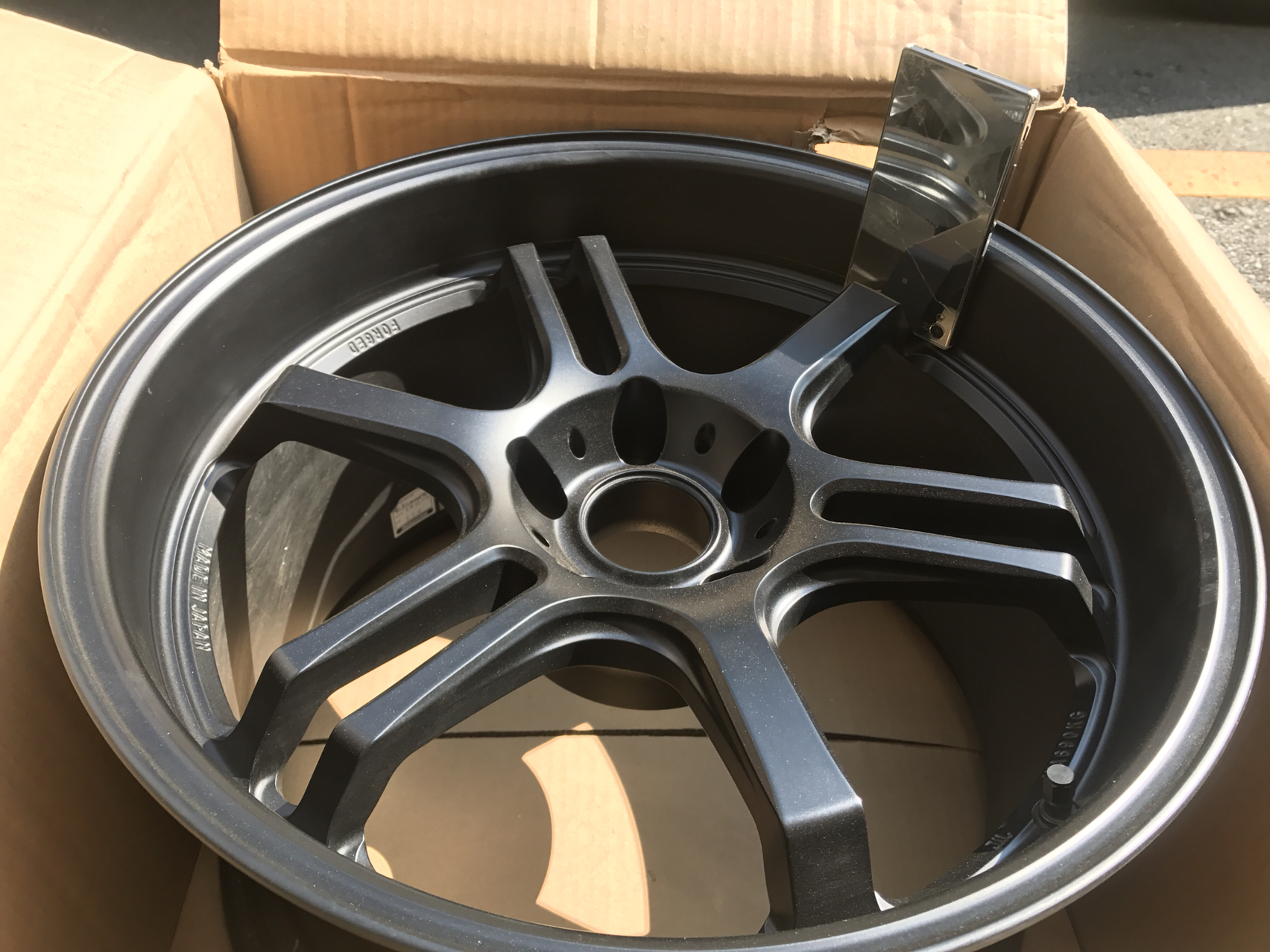

Almost new 18x11j ET16 Bridgestone RW006 OEM by Rays
Forget Rim and very light with funcky 3+3 spoke design
This is pretty rare size and set .glad I score it again (*ﾟ▽ﾟ*)
With 3 set of 18x11j I think I finally get all my wheel for my race
2 dry
1 wet set up
Mabe a set for semi wet ???
Almost new 18x11j ET16 Bridgestone RW006 OEM by Rays
Forget Rim and very light with funcky 3+3 spoke design
This is pretty rare size and set .glad I score it again (*ﾟ▽ﾟ*)
With 3 set of 18x11j I think I finally get all my wheel for my race
2 dry
1 wet set up
Mabe a set for semi wet ???
Last edited by diyman25; Aug 19, 2017 at 02:13 AM.
Thread Starter
RE for life
Joined: May 2002
Posts: 1,275
Likes: 100
From: sca
There is not thing can't not to be improve on race car
With 300 series slick coming next season
Time for upgrade the the ultimate oil pan
With reinforce plate and oil trap door and more oil !!!
With 300 series slick coming next season
Time for upgrade the the ultimate oil pan
With reinforce plate and oil trap door and more oil !!!
Lives on the Forum
Joined: Oct 2004
Posts: 5,185
Likes: 172
From: Japanabama
At least skeletonize the mounts to reduce weight.
Thread Starter
RE for life
Joined: May 2002
Posts: 1,275
Likes: 100
From: sca

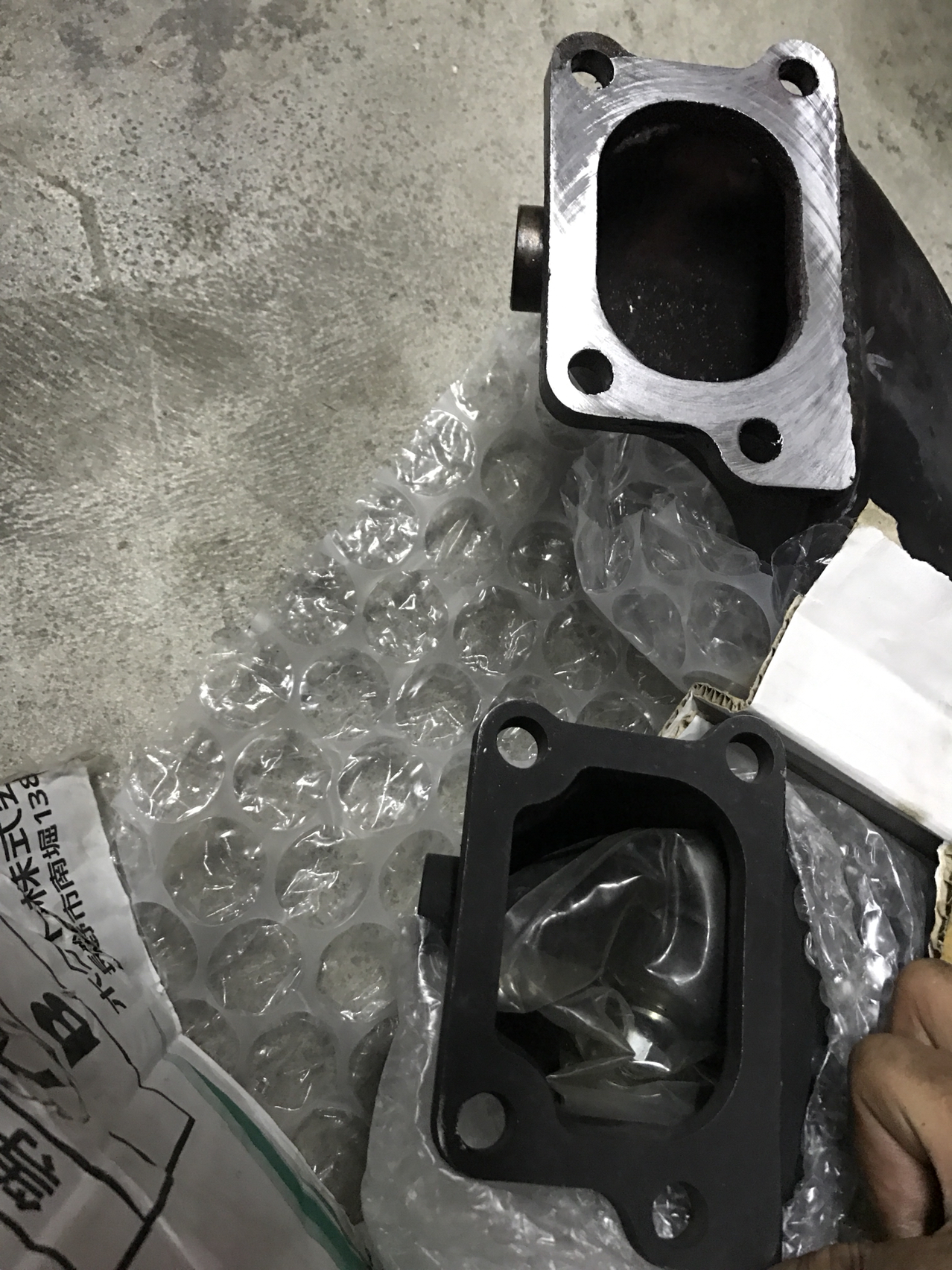

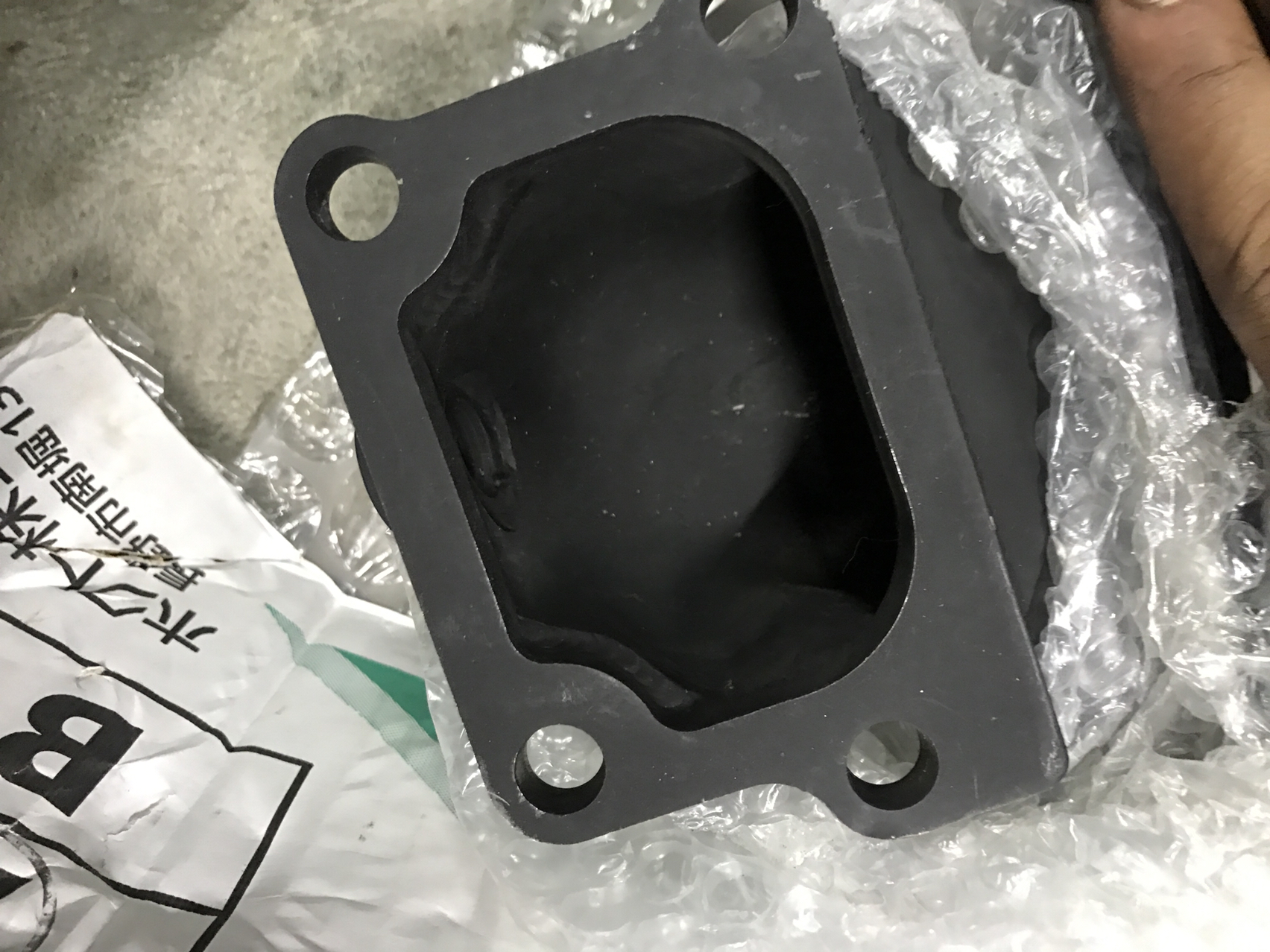

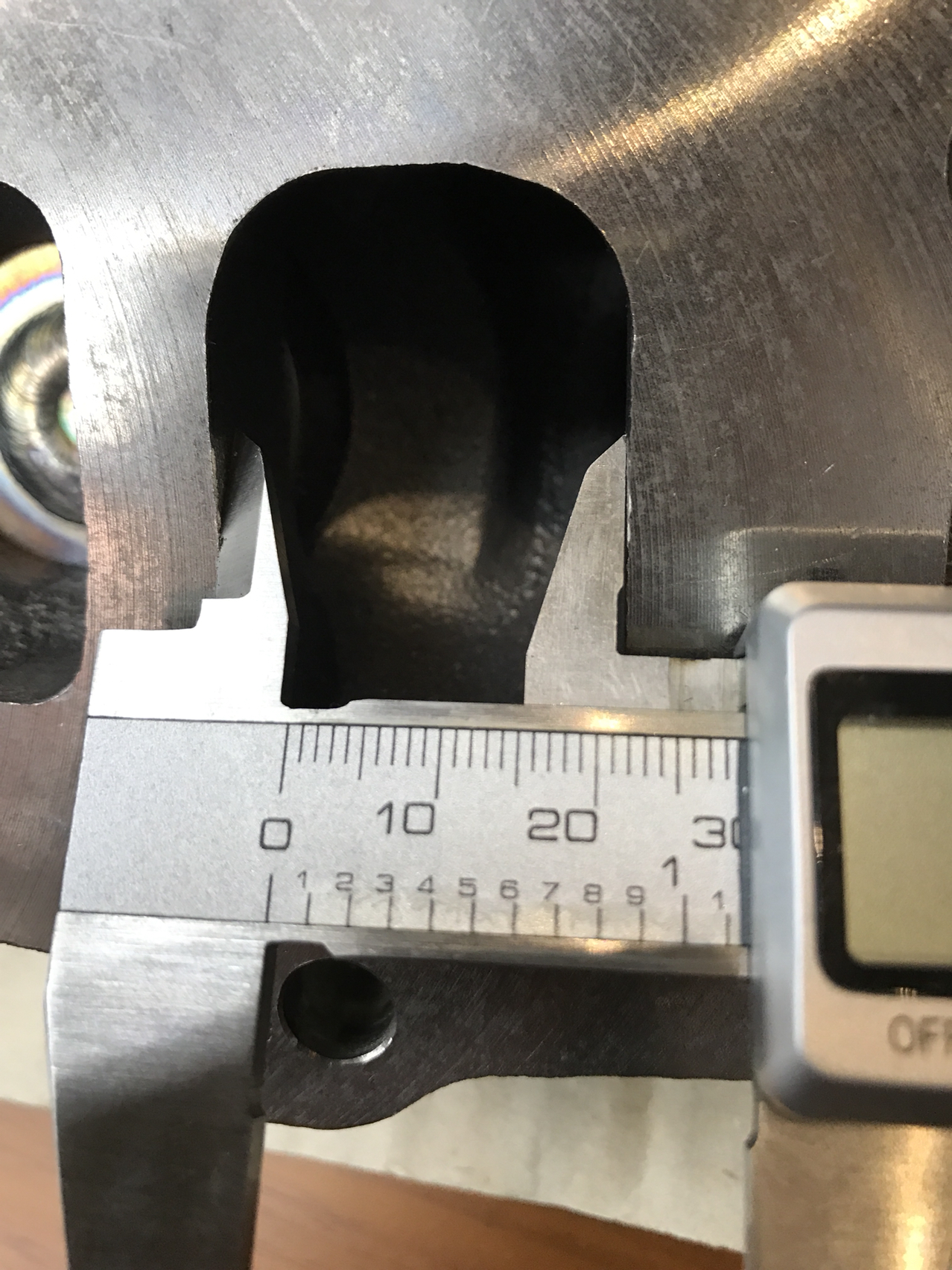

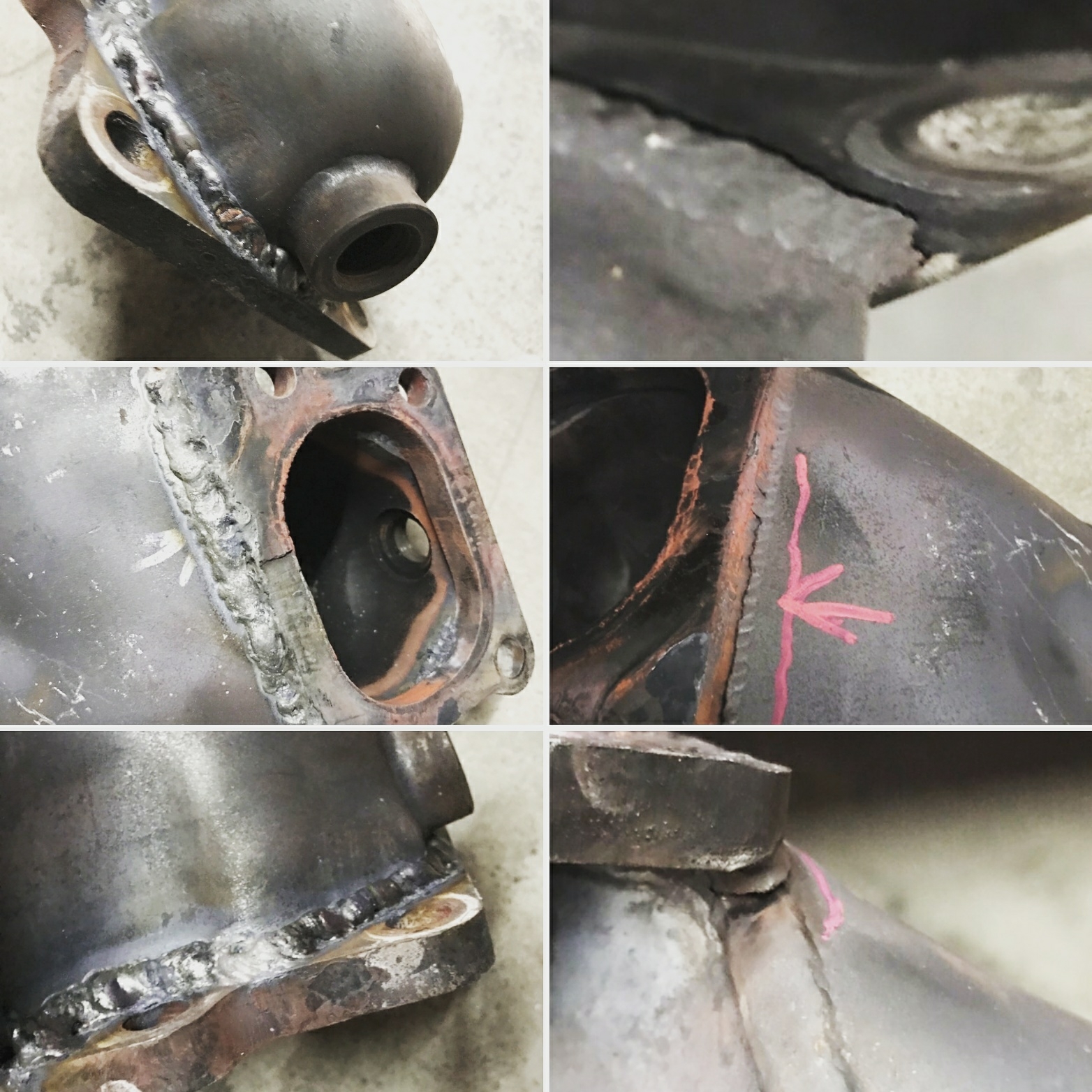

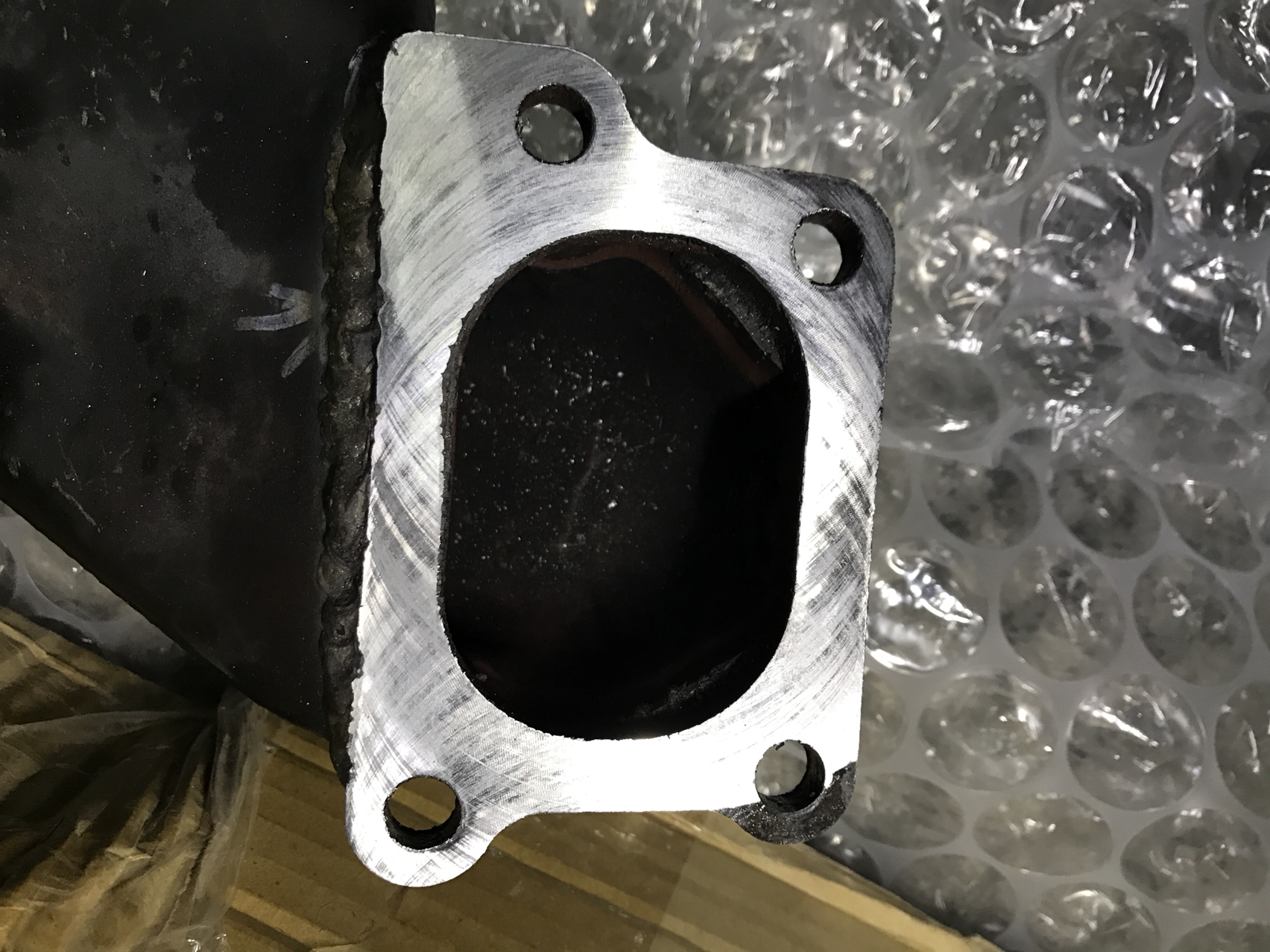

Although is been weld and re deck
I still buy a cheap greddy off shell front pipe
As spare, cant help it to put it side by side

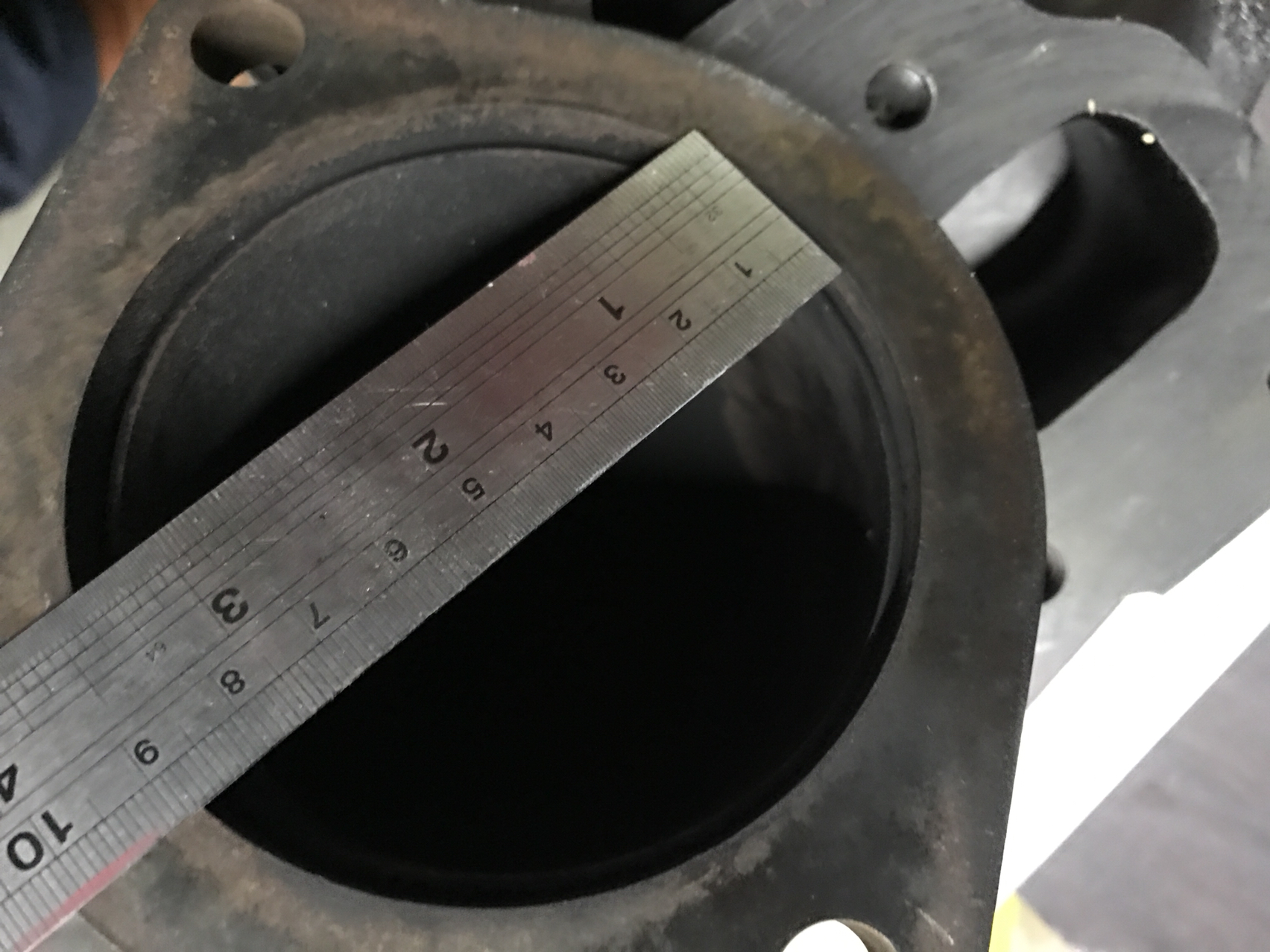

u can see my current is beetter flow design and much larger in pipe
I still buy a cheap greddy off shell front pipe
As spare, cant help it to put it side by side
u can see my current is beetter flow design and much larger in pipe
Last edited by diyman25; Sep 22, 2017 at 11:29 AM.
Thread Starter
RE for life
Joined: May 2002
Posts: 1,275
Likes: 100
From: sca

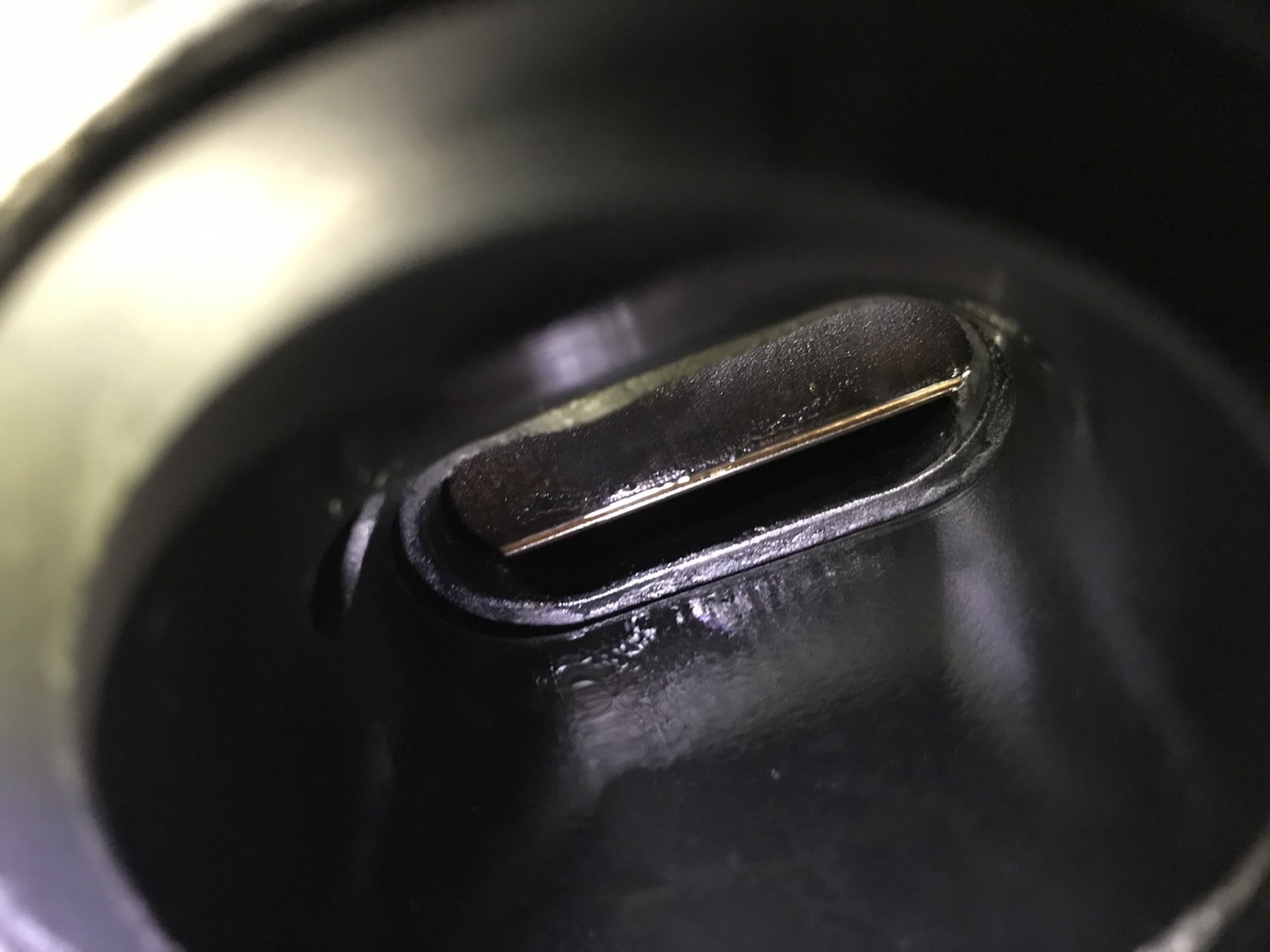

Since turbo is off , decide to film it
As my surprise my engine still have some carbon depost even as full race engine

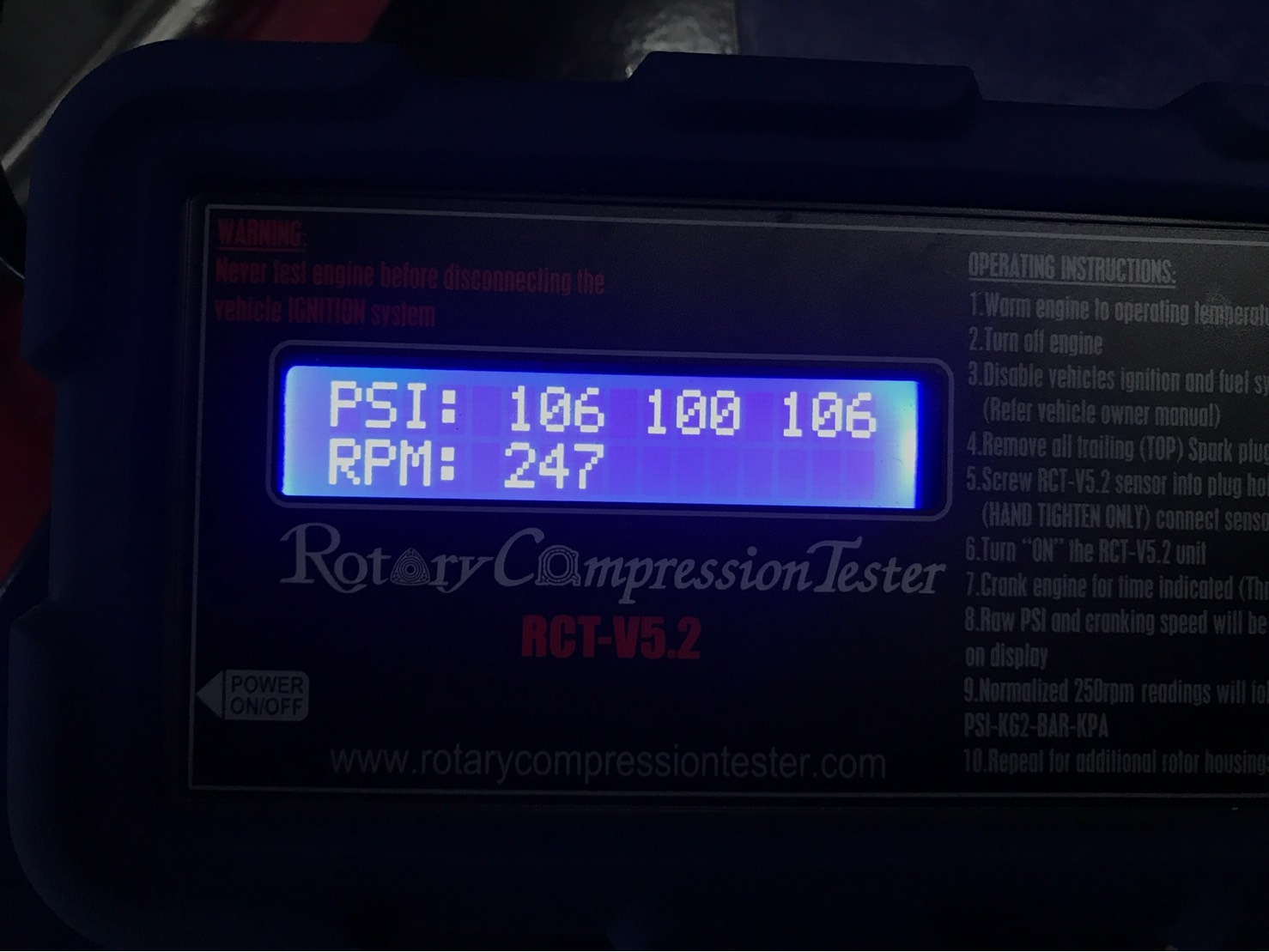

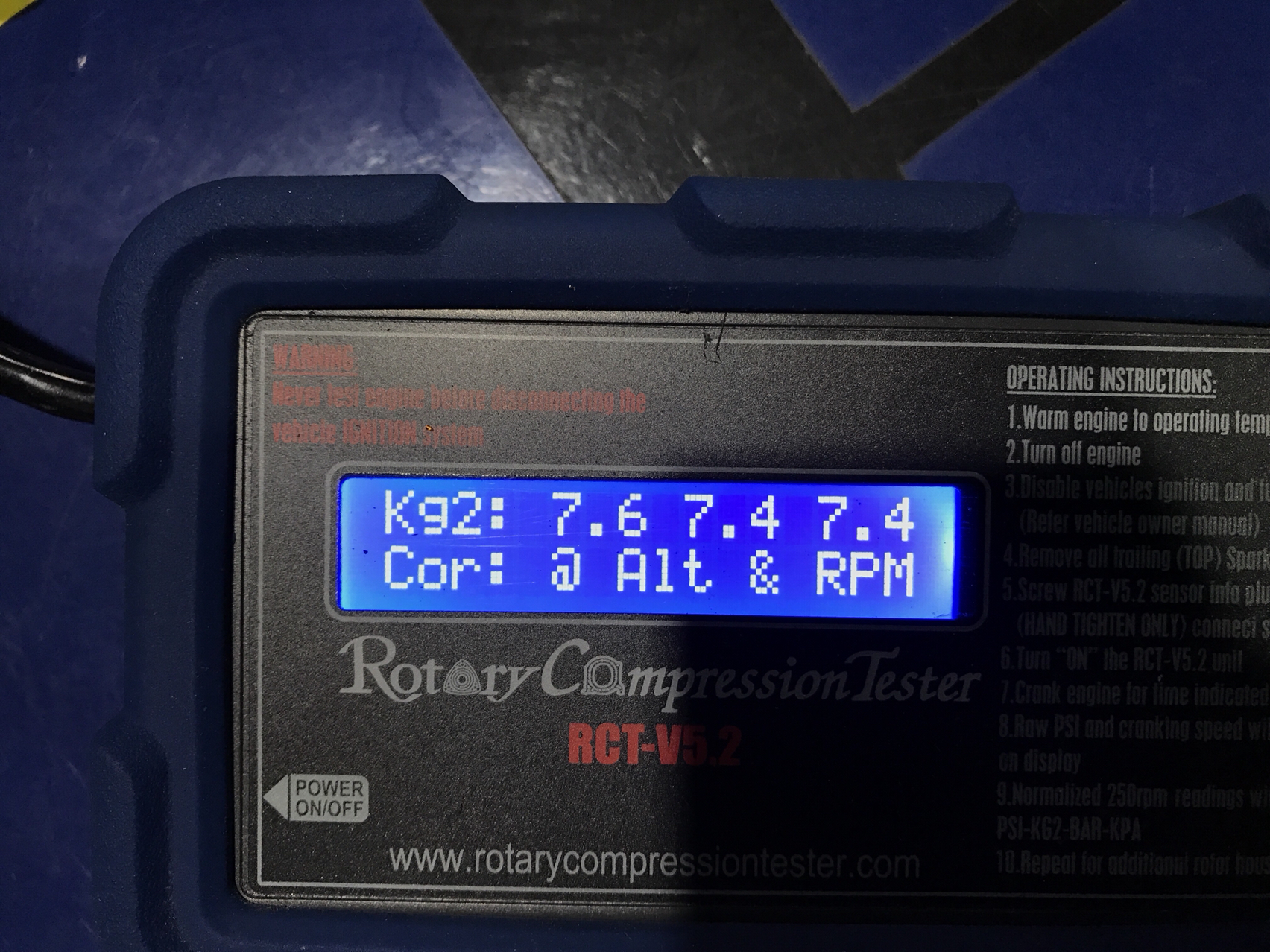

Also did a compression test, abit on low side could be I did not tide the proble or cold engine
As my surprise my engine still have some carbon depost even as full race engine
Also did a compression test, abit on low side could be I did not tide the proble or cold engine
Last edited by diyman25; Sep 30, 2017 at 06:54 AM.
Thread Starter
RE for life
Joined: May 2002
Posts: 1,275
Likes: 100
From: sca

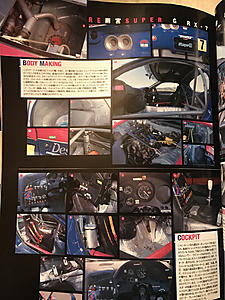

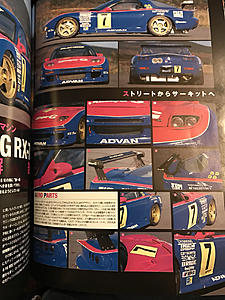

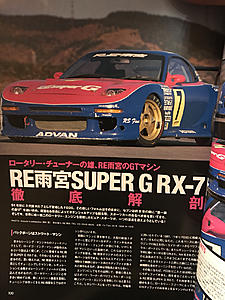

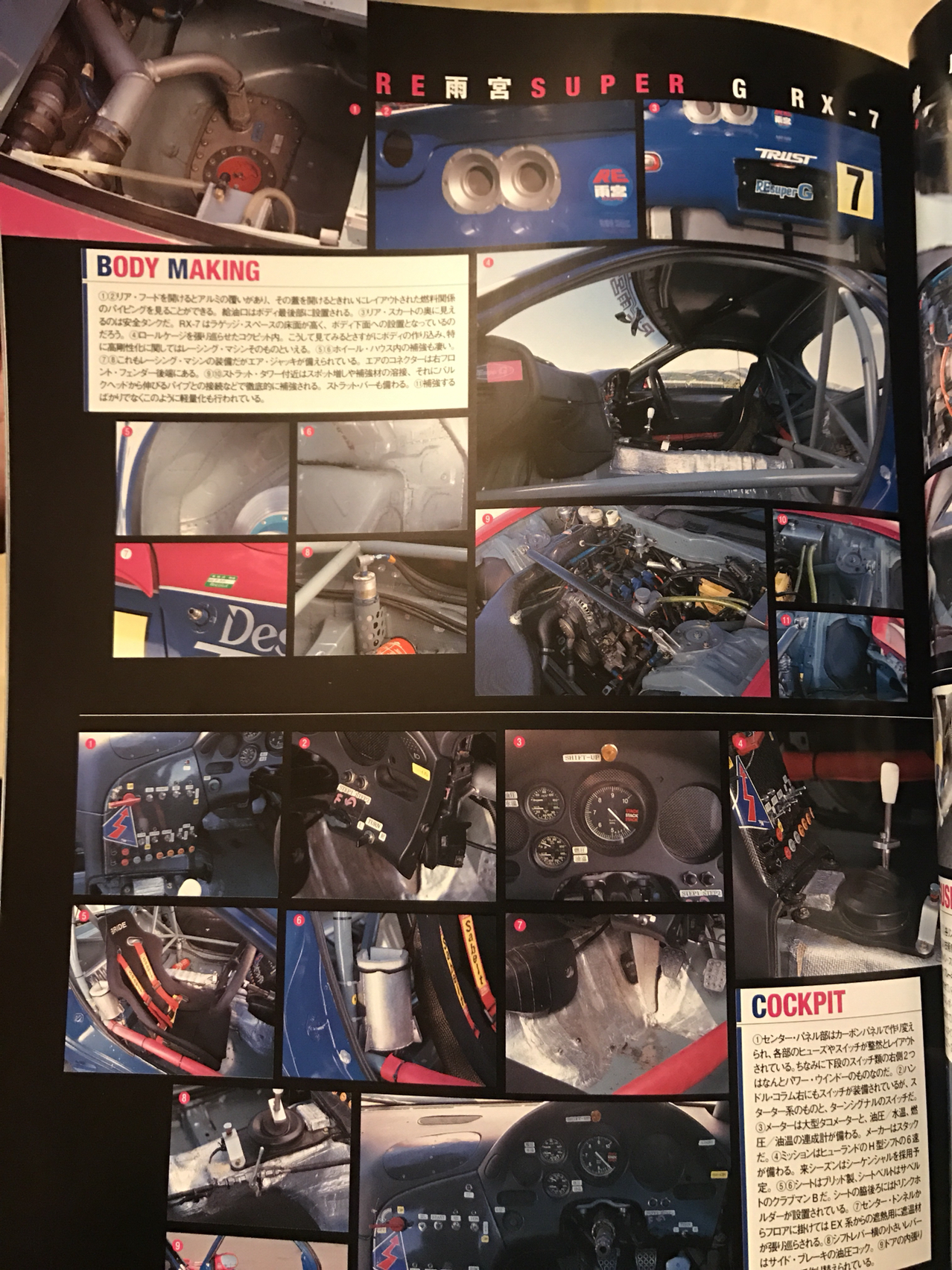

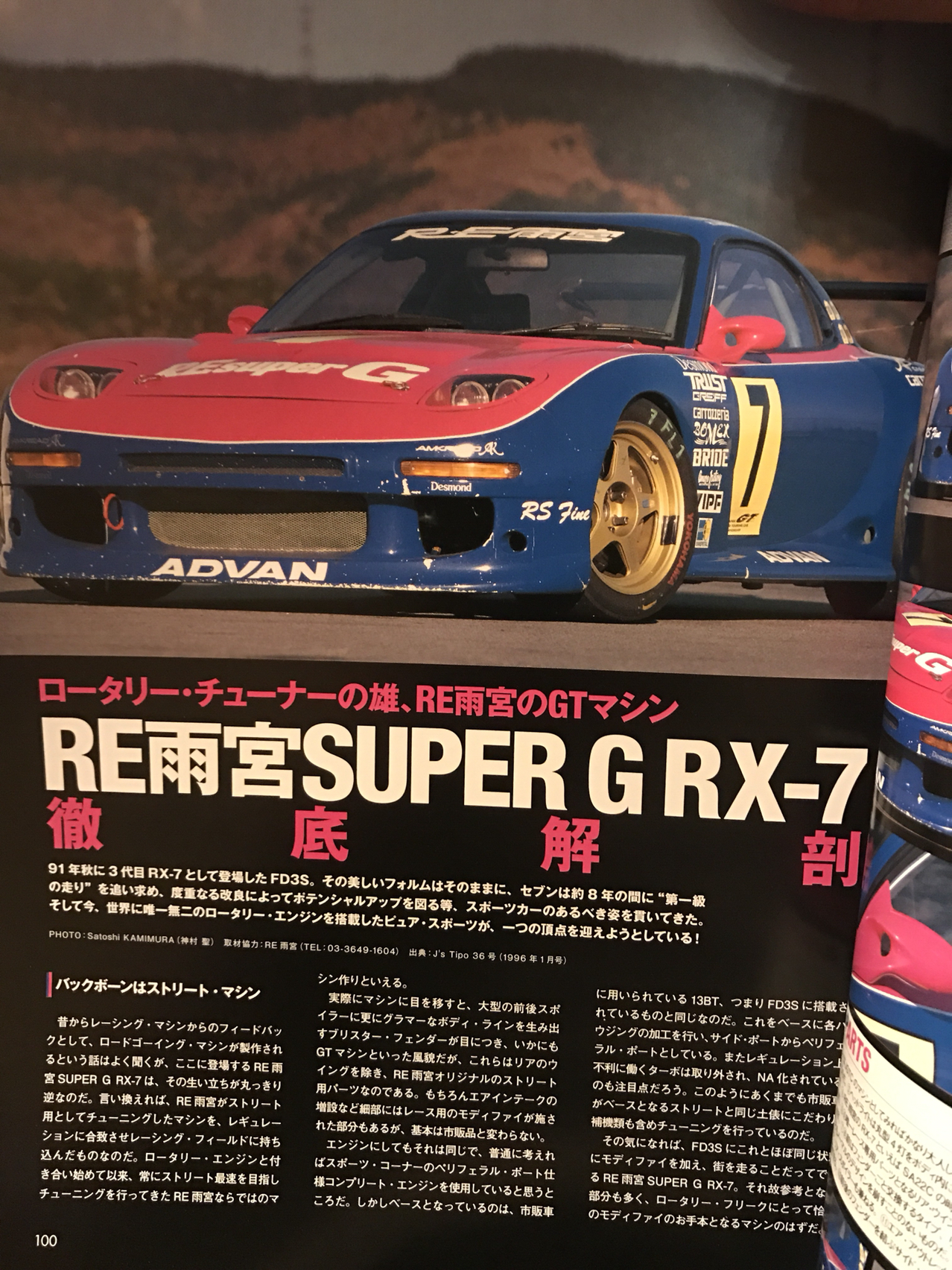

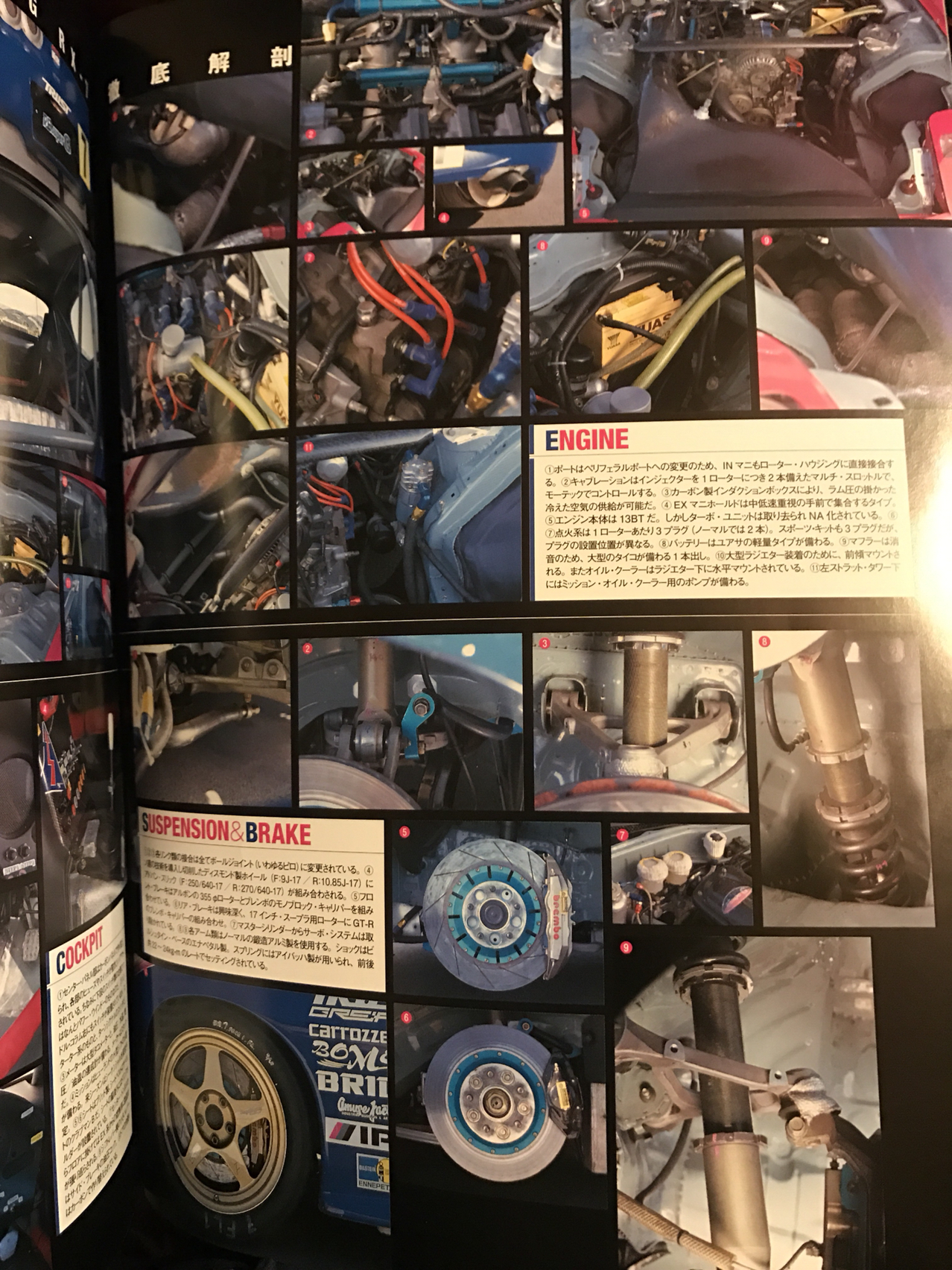

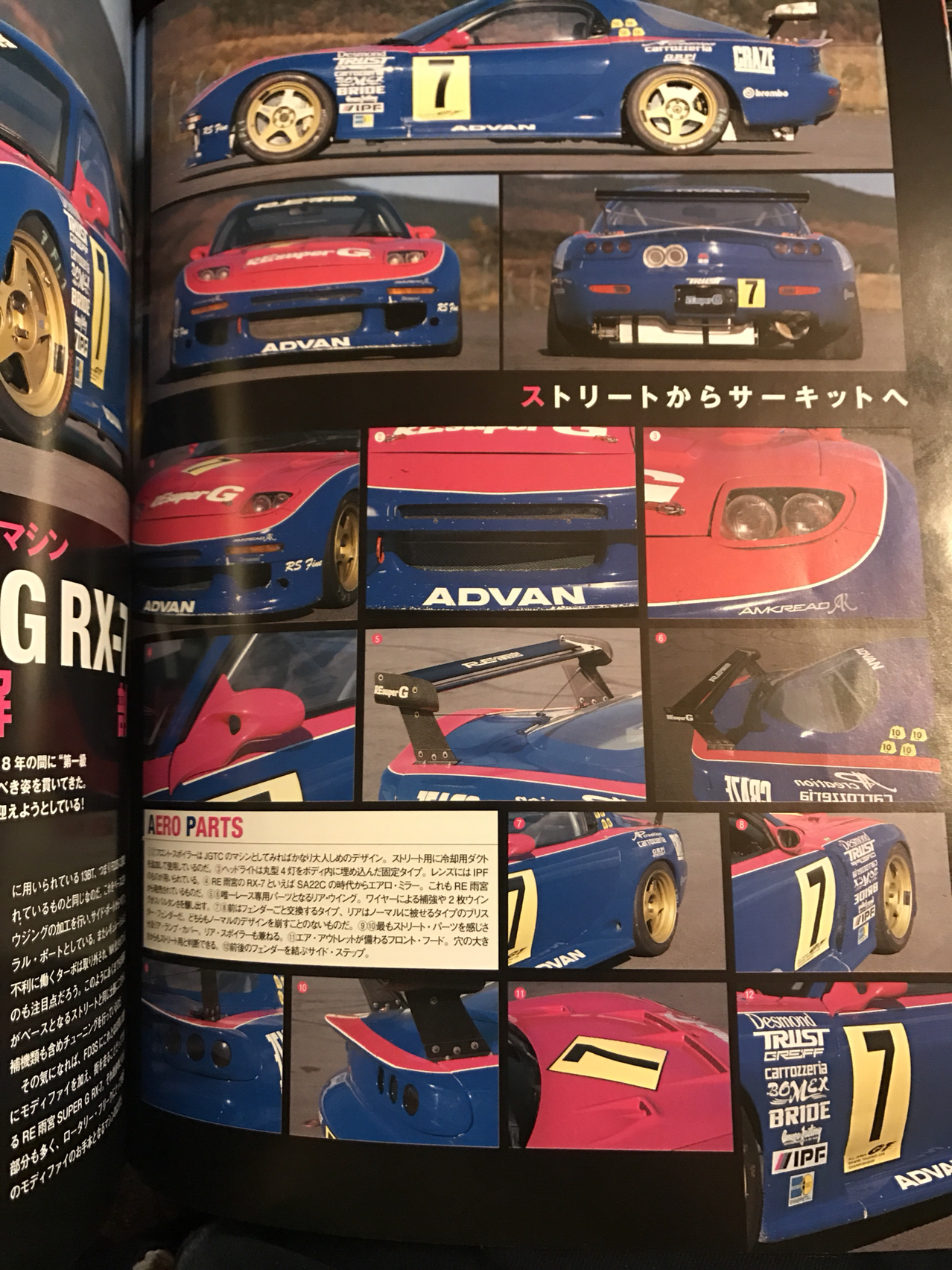

Found this Old magazine at my old room with new discussion
Old school RE 雨宮 95-96 GT300 was pretty close to my super endurance race car
With spot weld, roll cage ,bolt on suspension
Dry brake fueling
The only diferent is 13B PP and hewland straight cut transmissions
Old school RE 雨宮 95-96 GT300 was pretty close to my super endurance race car
With spot weld, roll cage ,bolt on suspension
Dry brake fueling
The only diferent is 13B PP and hewland straight cut transmissions
Last edited by diyman25; Oct 5, 2017 at 12:21 AM.
Lives on the Forum
Joined: Oct 2004
Posts: 5,185
Likes: 172
From: Japanabama
The suspension uses Bilstein-derived Ennepetal shocks.
The engine is also non-turbo and uses multi throttles controlled by a Motec.
Thread Starter
RE for life
Joined: May 2002
Posts: 1,275
Likes: 100
From: sca
Can't get enought goody from Japan yahoo auction

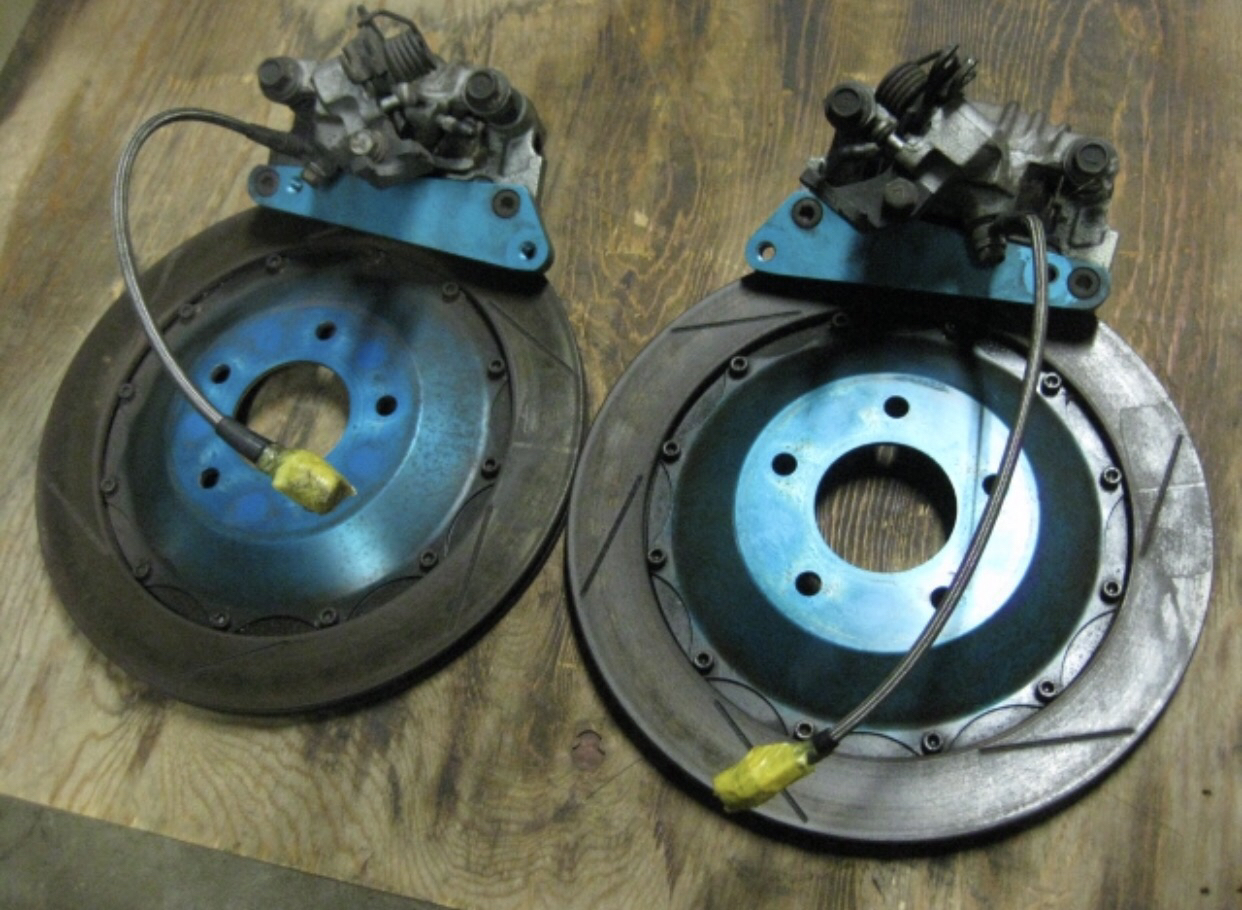

335mm R magic rear brake rotor kit , to balance the brake balance, which I think FD have poor on that.... that's why most of fast time attacker install 99-02 late model ABS along with computer control brake bias , but is too complicated option , so I chose to install bigger rear rotor , hope this can reduce my brake bias problem

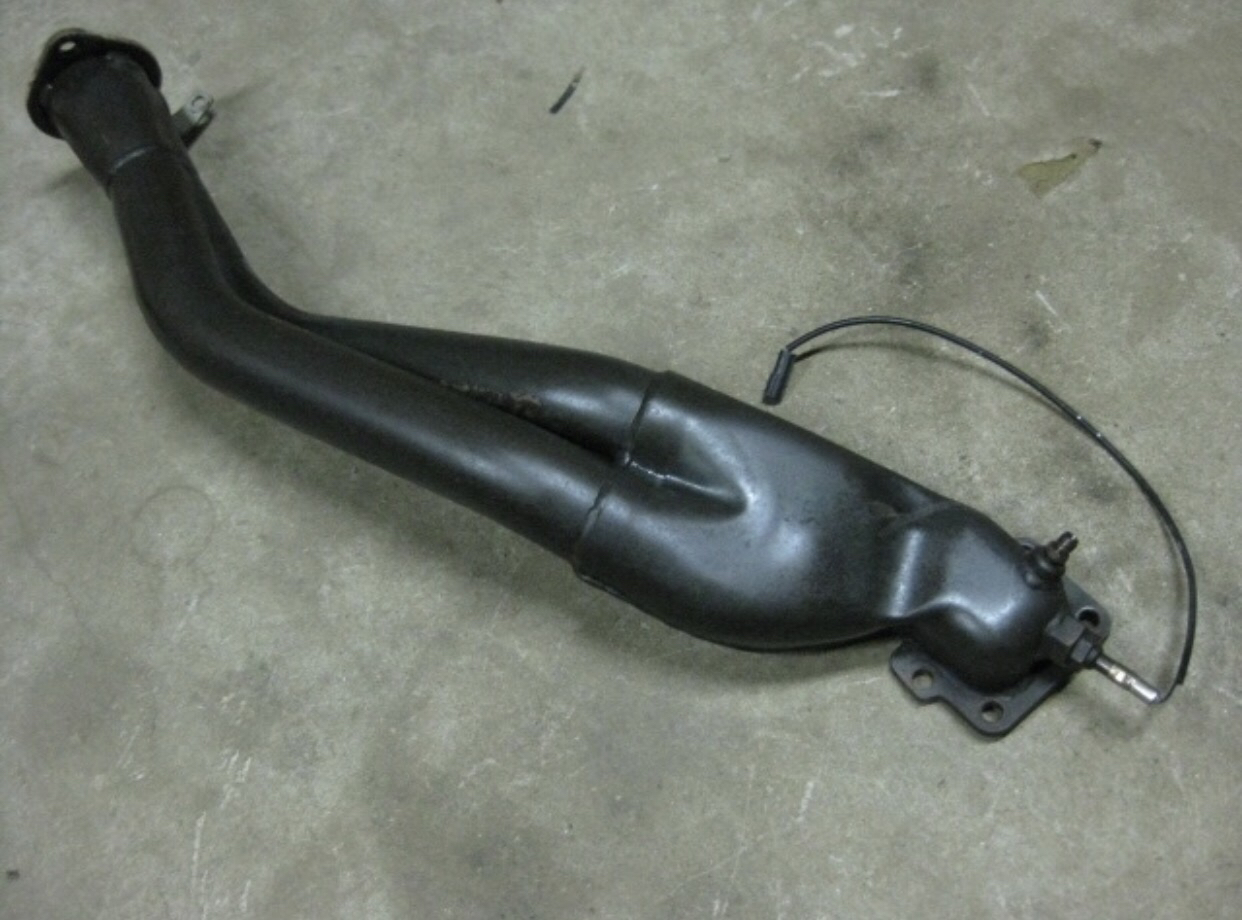

Unlike LHD drive FD, downpipe is easy design
Lucky me to score in theory one of best flowing design at market , design by knighsport I guess the reason behind it is they are first in jdm market to have stock high flow twin
335mm R magic rear brake rotor kit , to balance the brake balance, which I think FD have poor on that.... that's why most of fast time attacker install 99-02 late model ABS along with computer control brake bias , but is too complicated option , so I chose to install bigger rear rotor , hope this can reduce my brake bias problem
Unlike LHD drive FD, downpipe is easy design
Lucky me to score in theory one of best flowing design at market , design by knighsport I guess the reason behind it is they are first in jdm market to have stock high flow twin
Last edited by diyman25; Oct 5, 2017 at 02:12 AM.
Thread Starter
RE for life
Joined: May 2002
Posts: 1,275
Likes: 100
From: sca

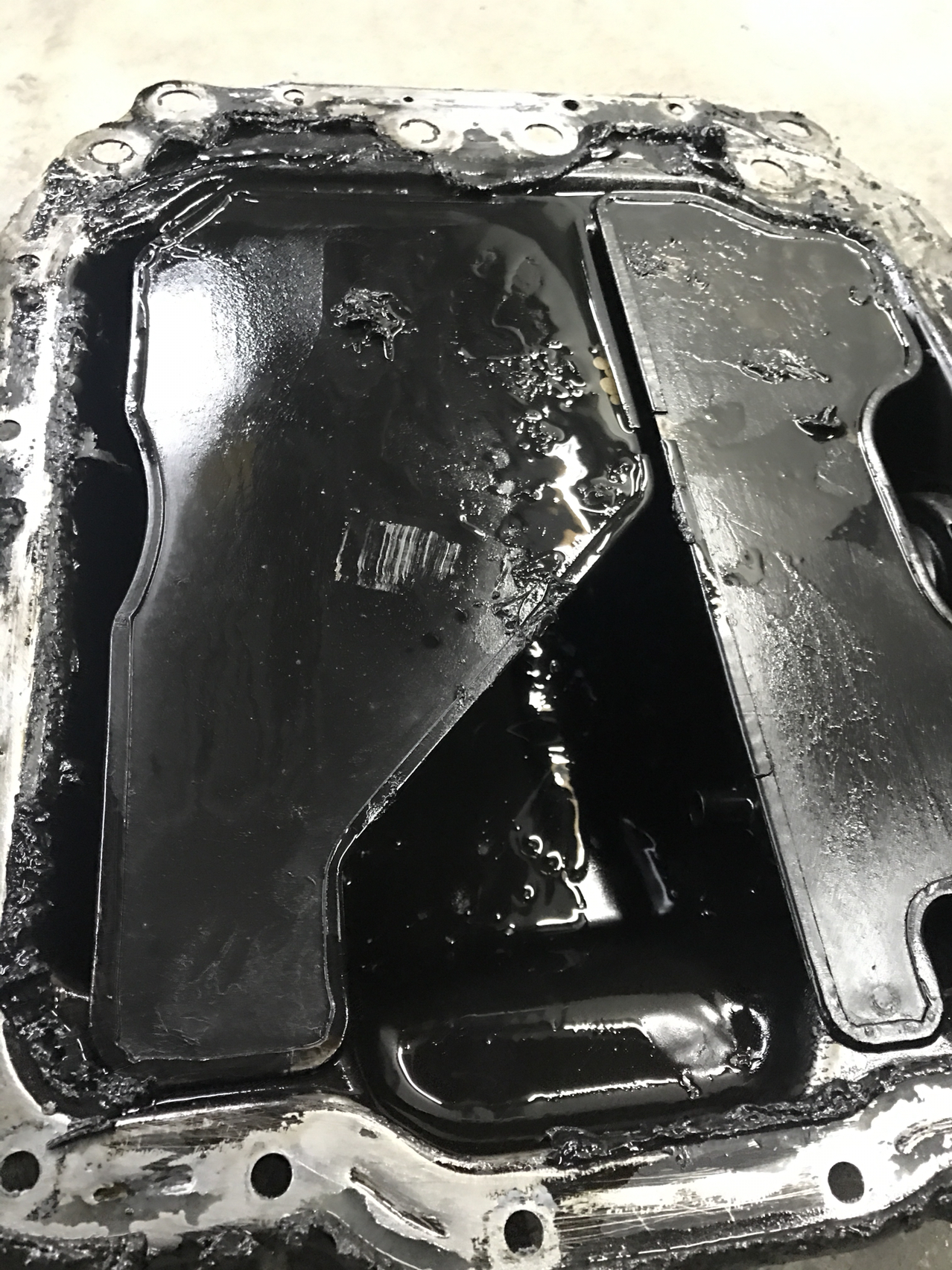

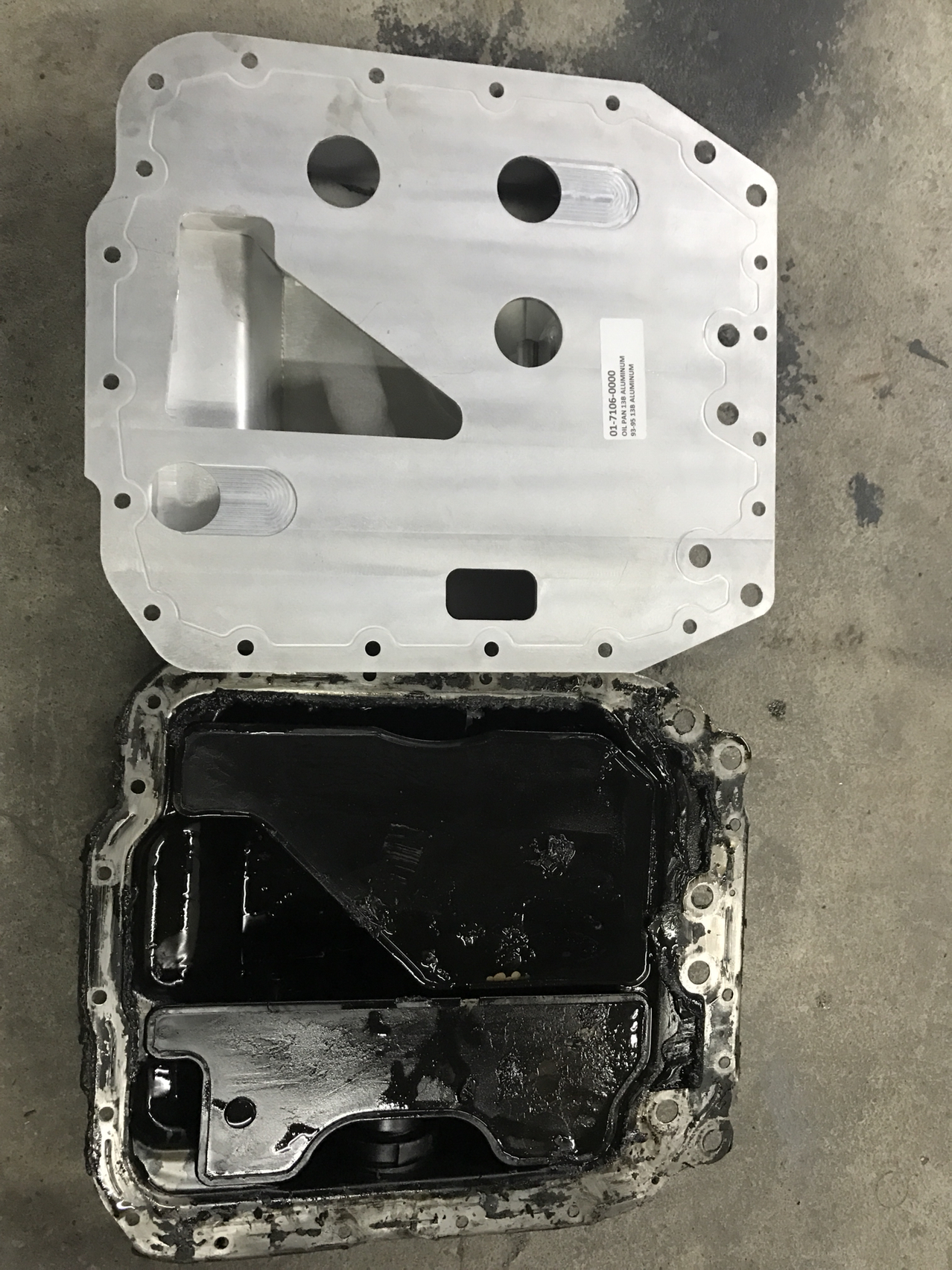

To my suprise my FD still had stock pan, with 280 slick i still have no oil issue
Show that how well stock design is
But any thing can be improve , going to install

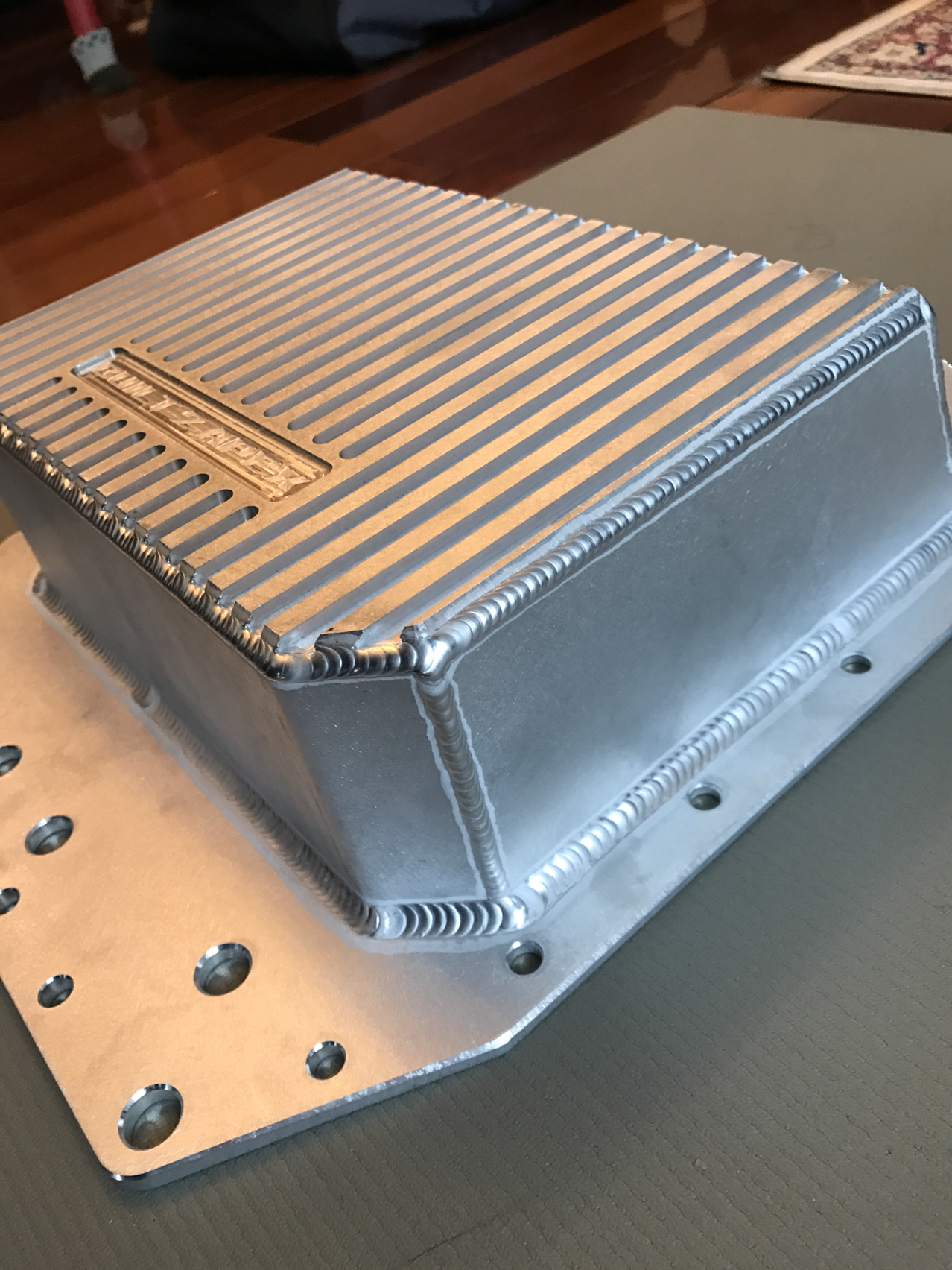

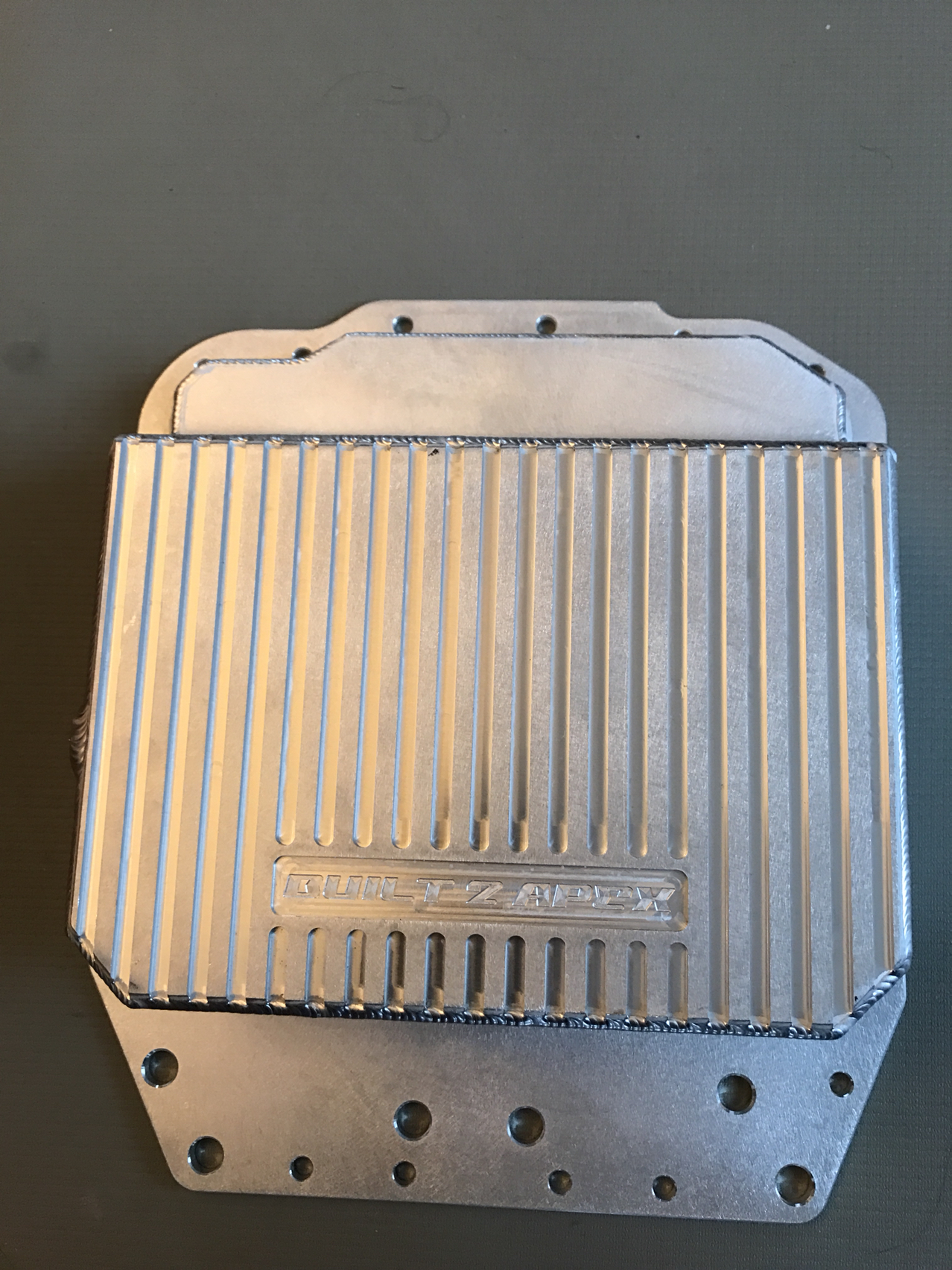

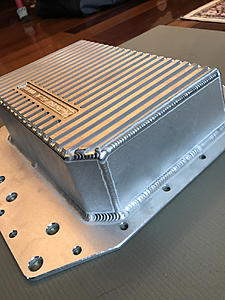

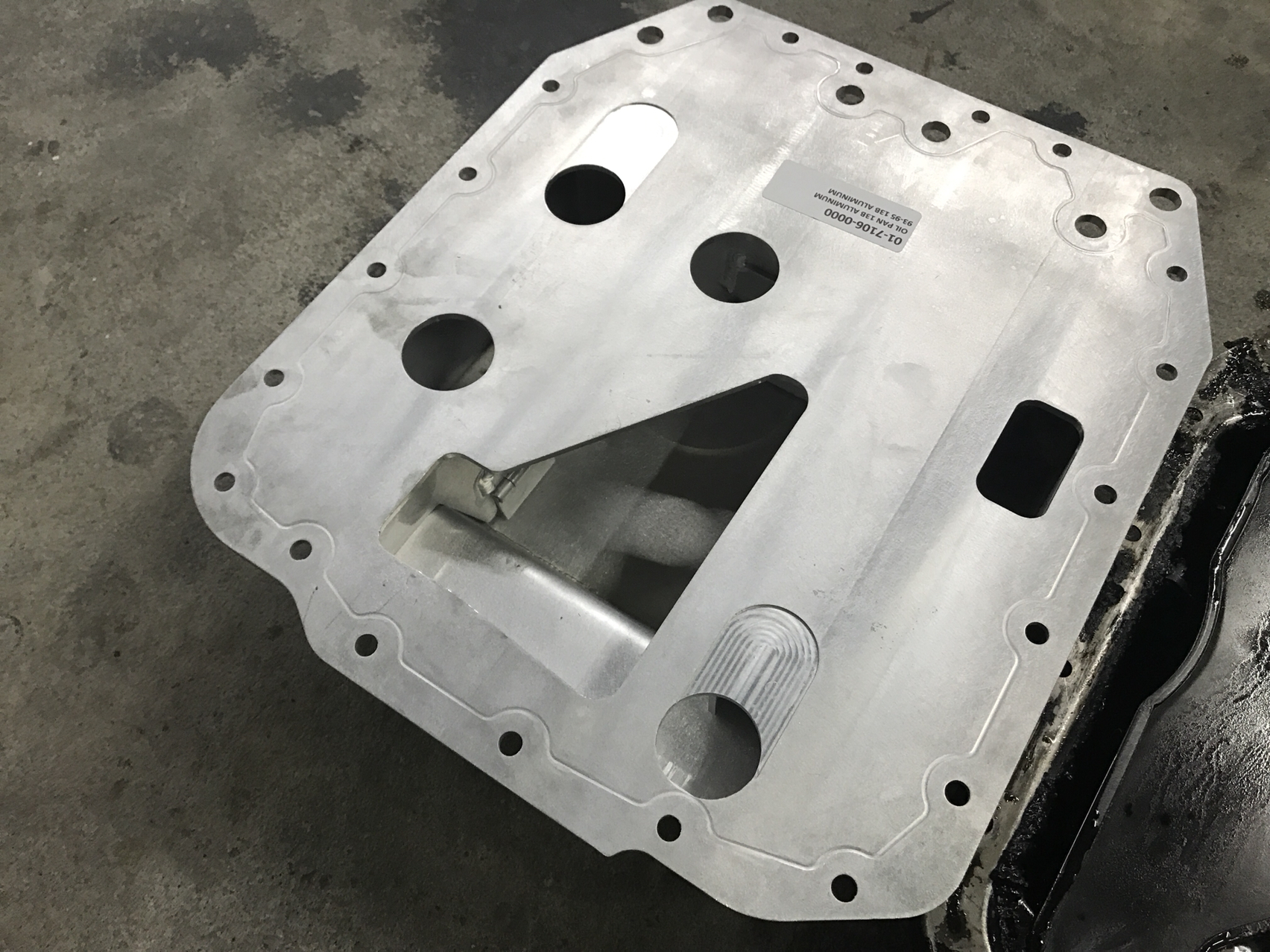

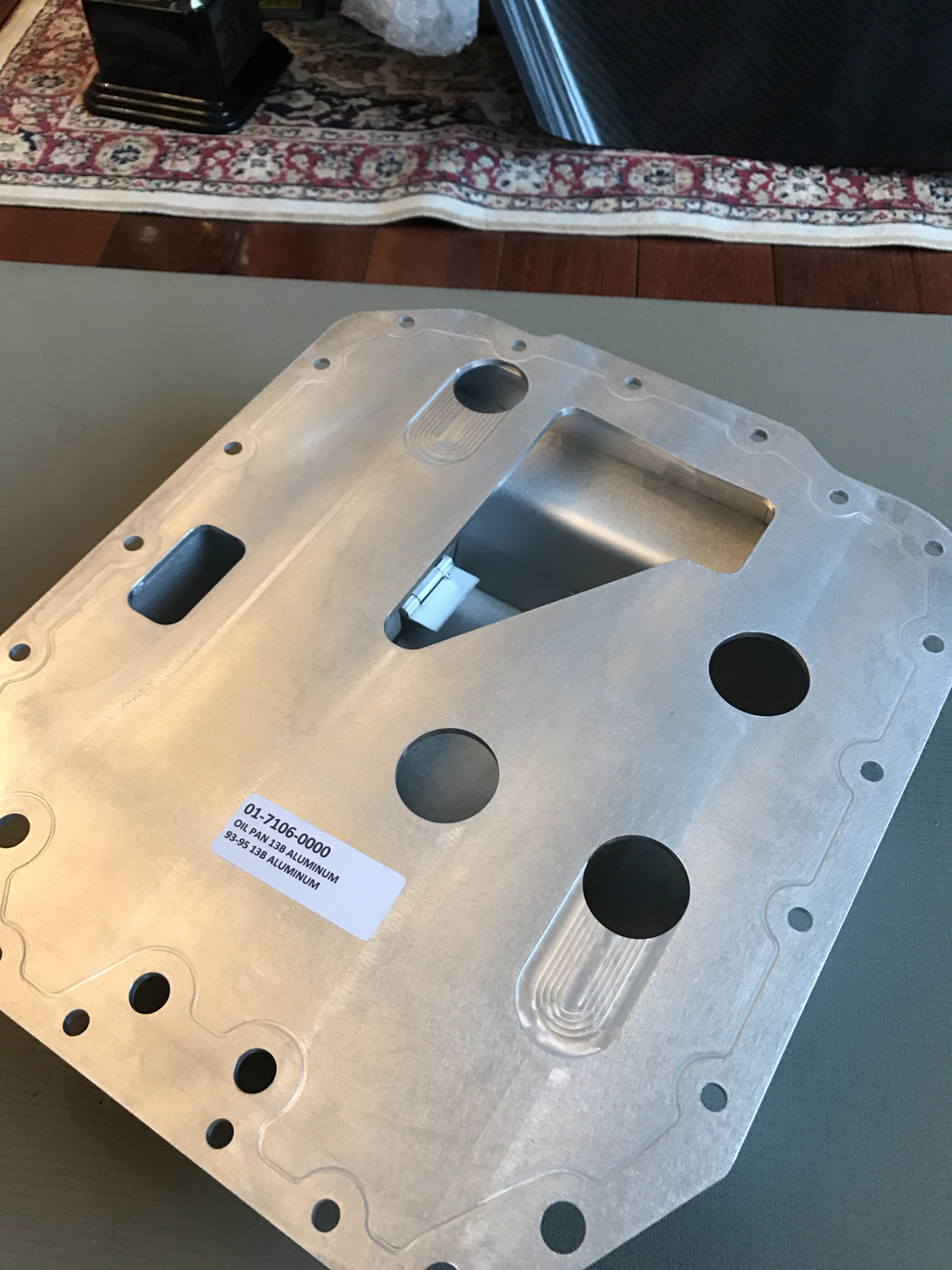

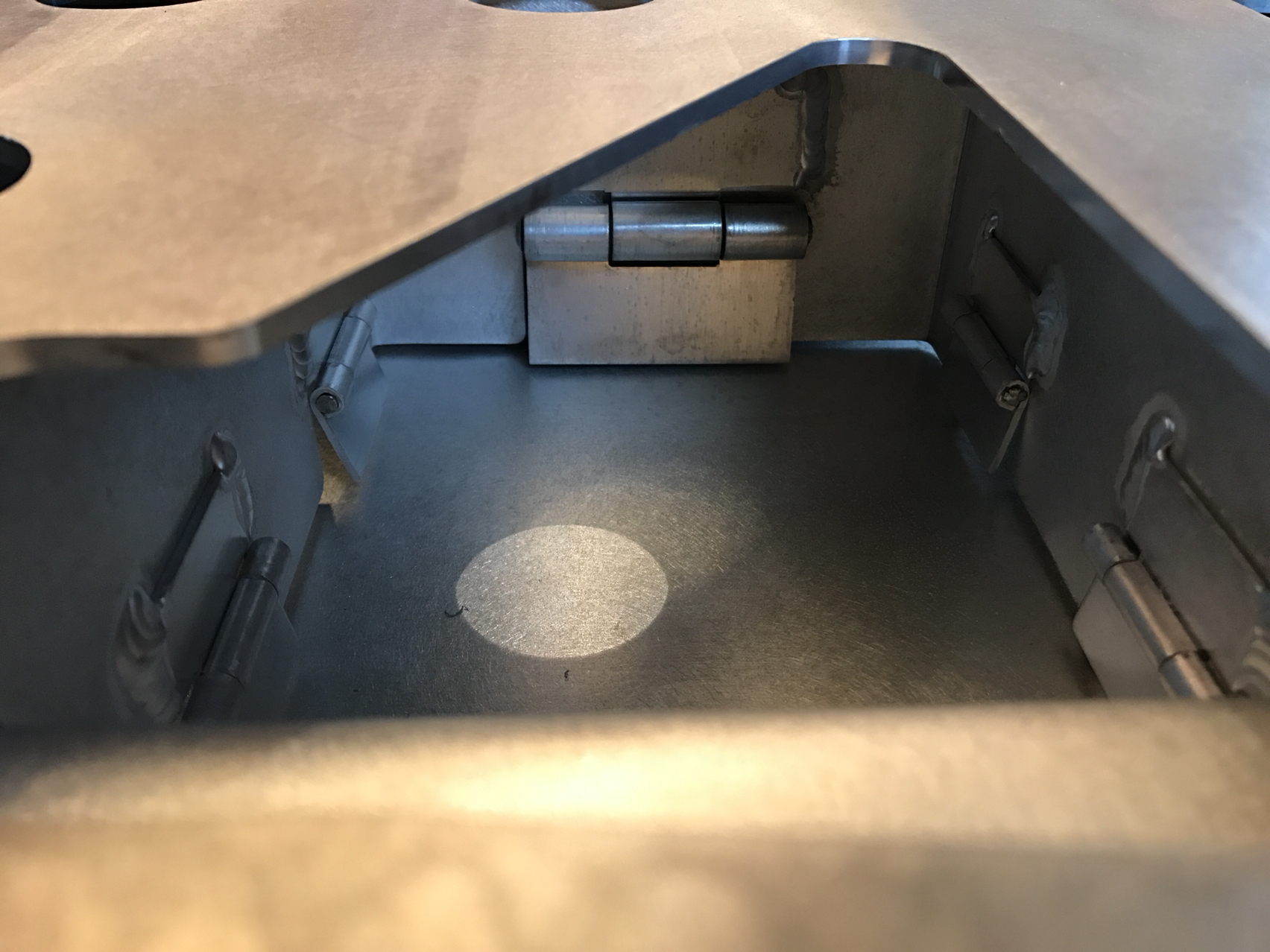

This build to APEx billet oil pan !!! With bigger volume , more ridges design , and very good oil trap door design
One thing that been suprise me is how little oil blow my FD is , usually no need to clean it for whole weekend , unlike my other Turbo RE!!!
finally found out why

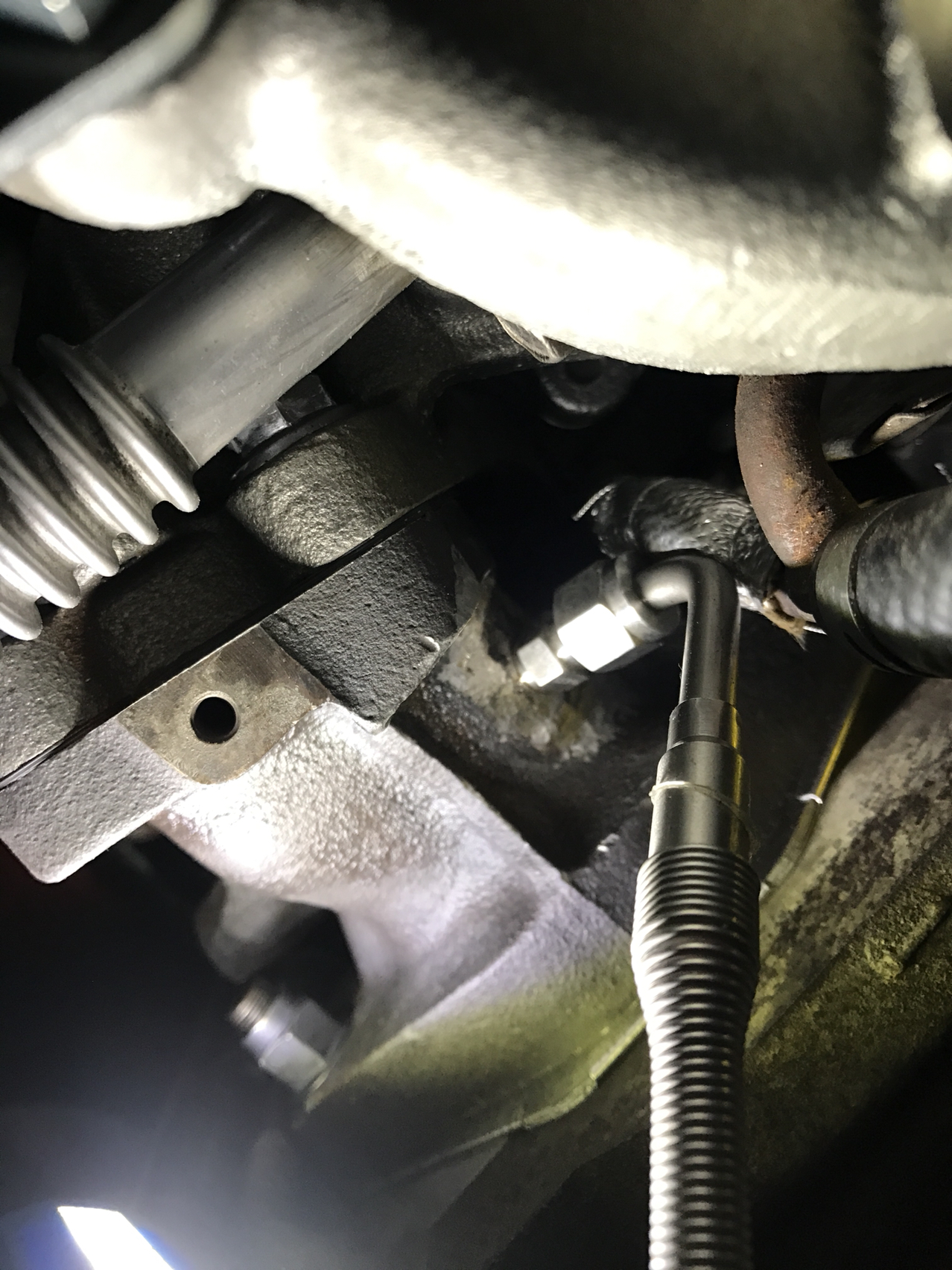

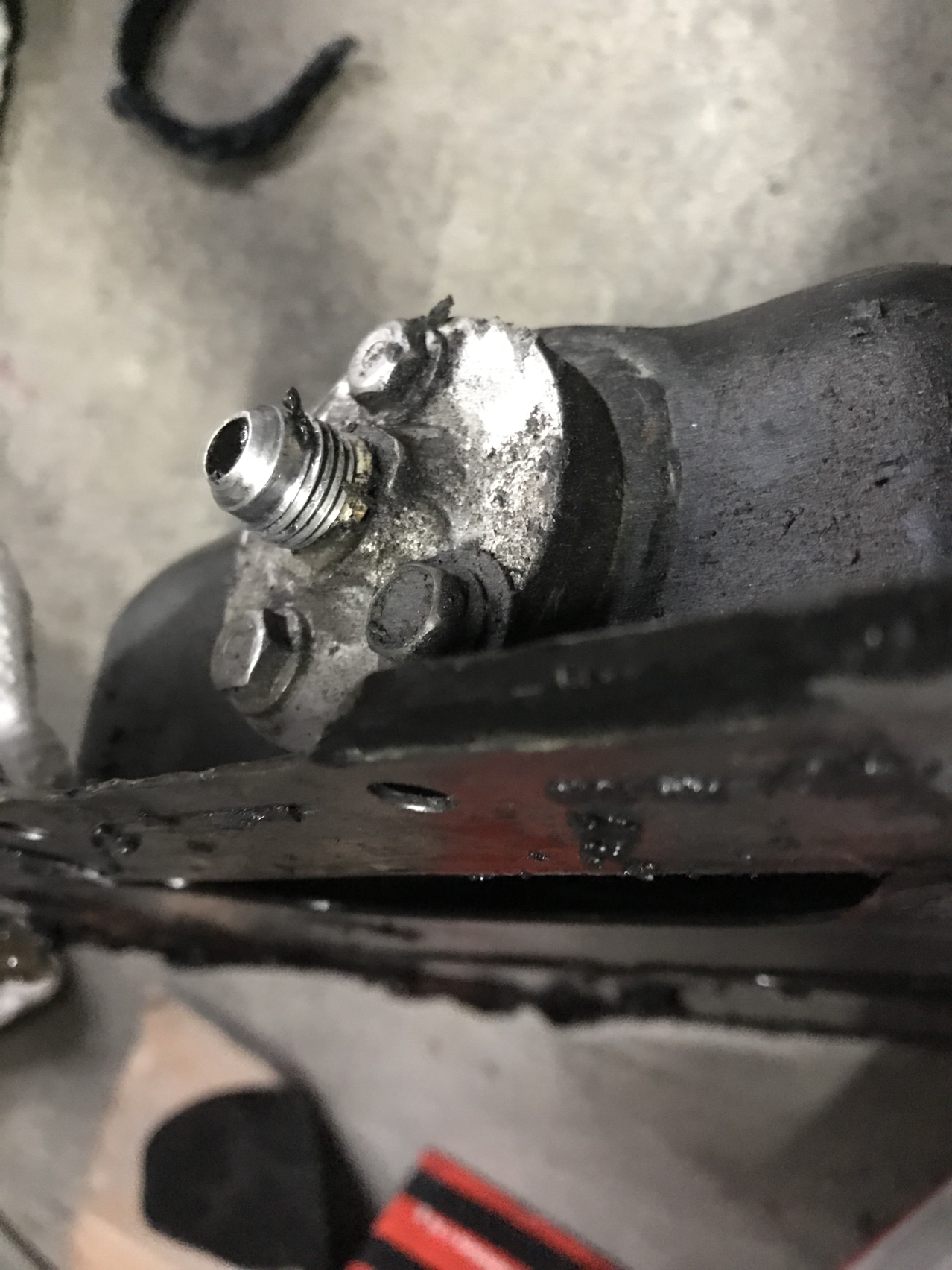

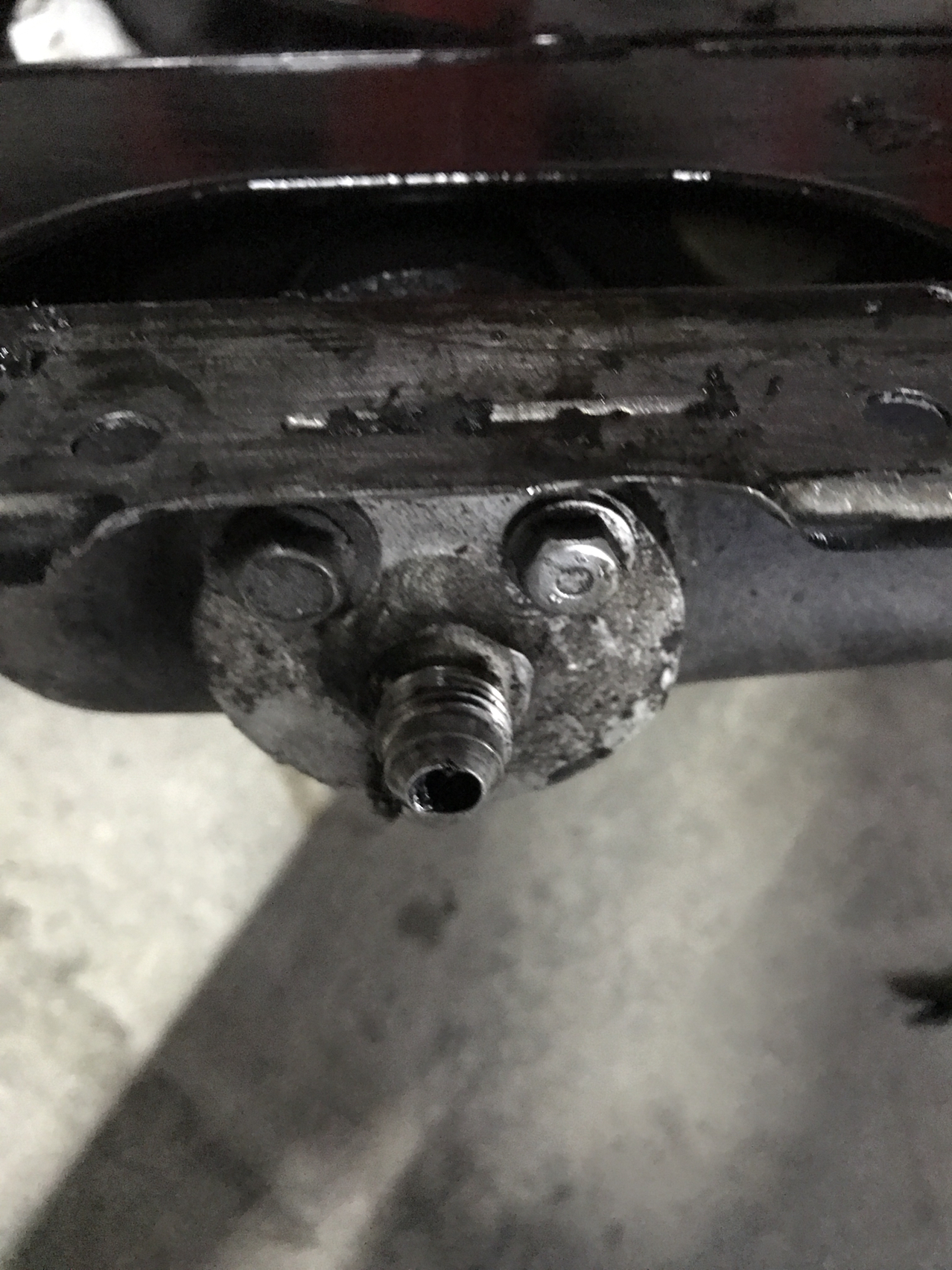

The factory OE oil level sensor been replace
With -4 hose direct to button of oil catch can
, so will want to keep this design ,so need to weld a -4an on my new pan
Show that how well stock design is
But any thing can be improve , going to install
This build to APEx billet oil pan !!! With bigger volume , more ridges design , and very good oil trap door design
One thing that been suprise me is how little oil blow my FD is , usually no need to clean it for whole weekend , unlike my other Turbo RE!!!
finally found out why
The factory OE oil level sensor been replace
With -4 hose direct to button of oil catch can
, so will want to keep this design ,so need to weld a -4an on my new pan
Last edited by diyman25; Oct 8, 2017 at 03:40 AM.
Thread Starter
RE for life
Joined: May 2002
Posts: 1,275
Likes: 100
From: sca

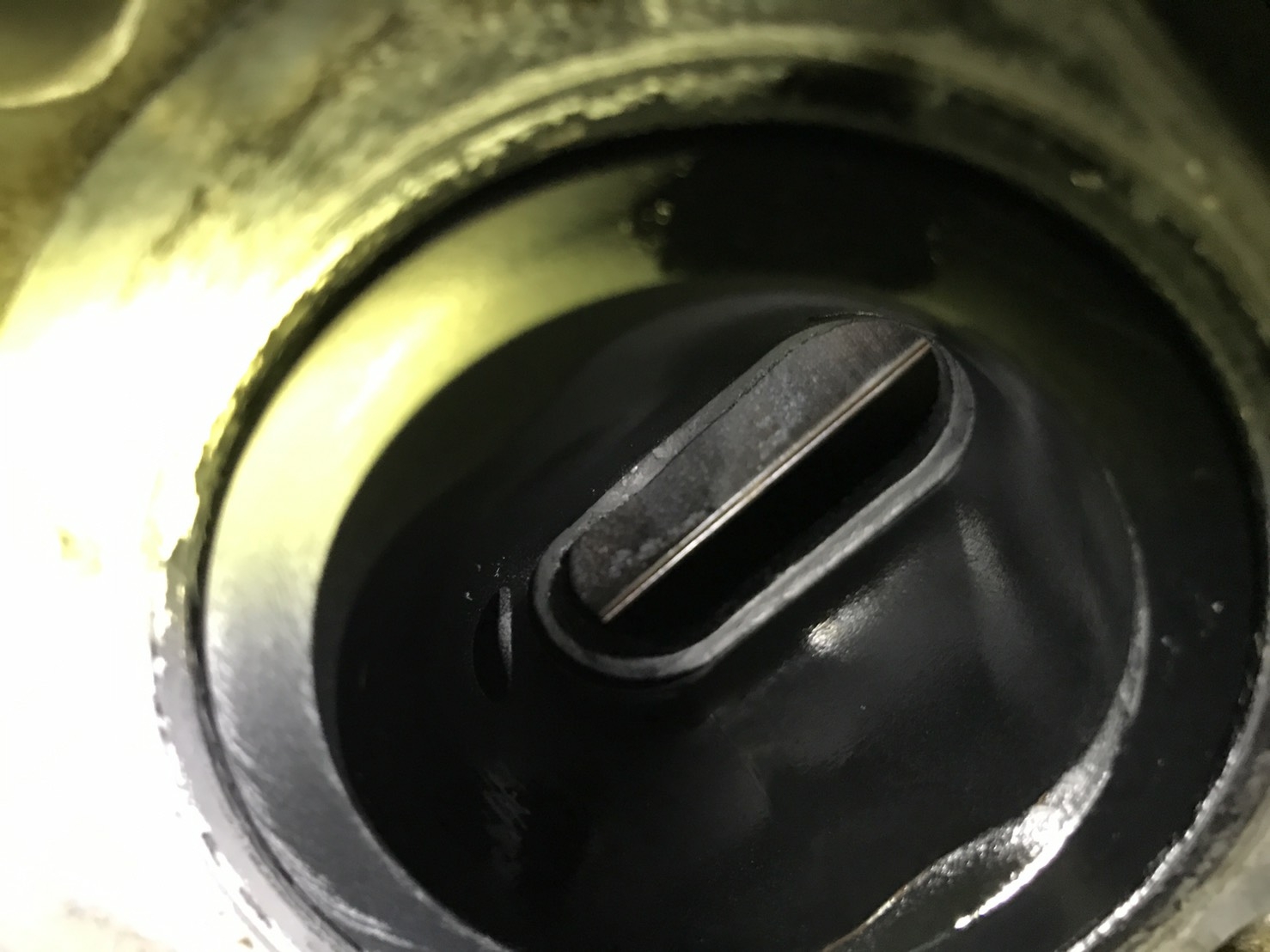

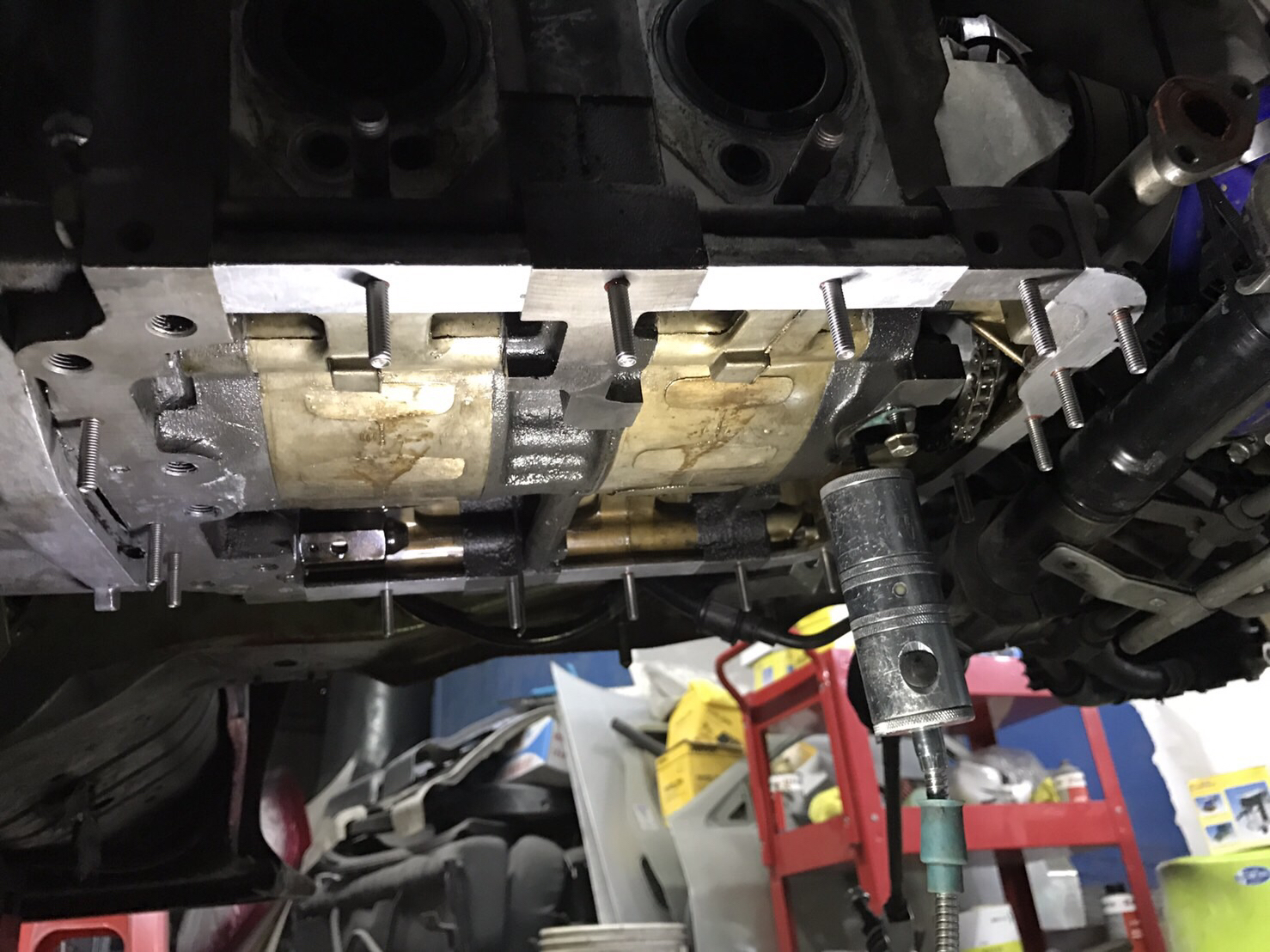

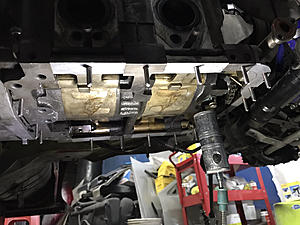

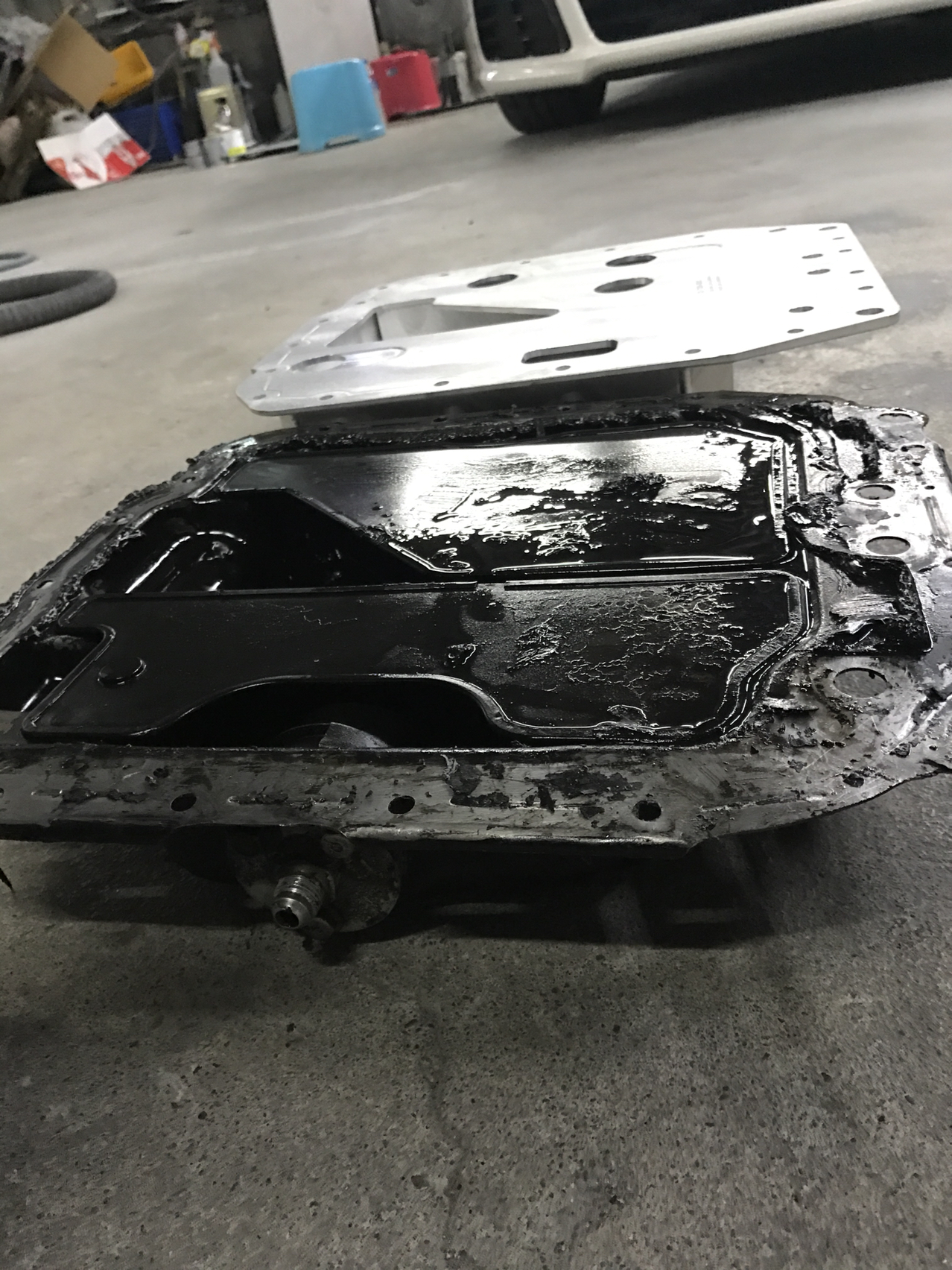

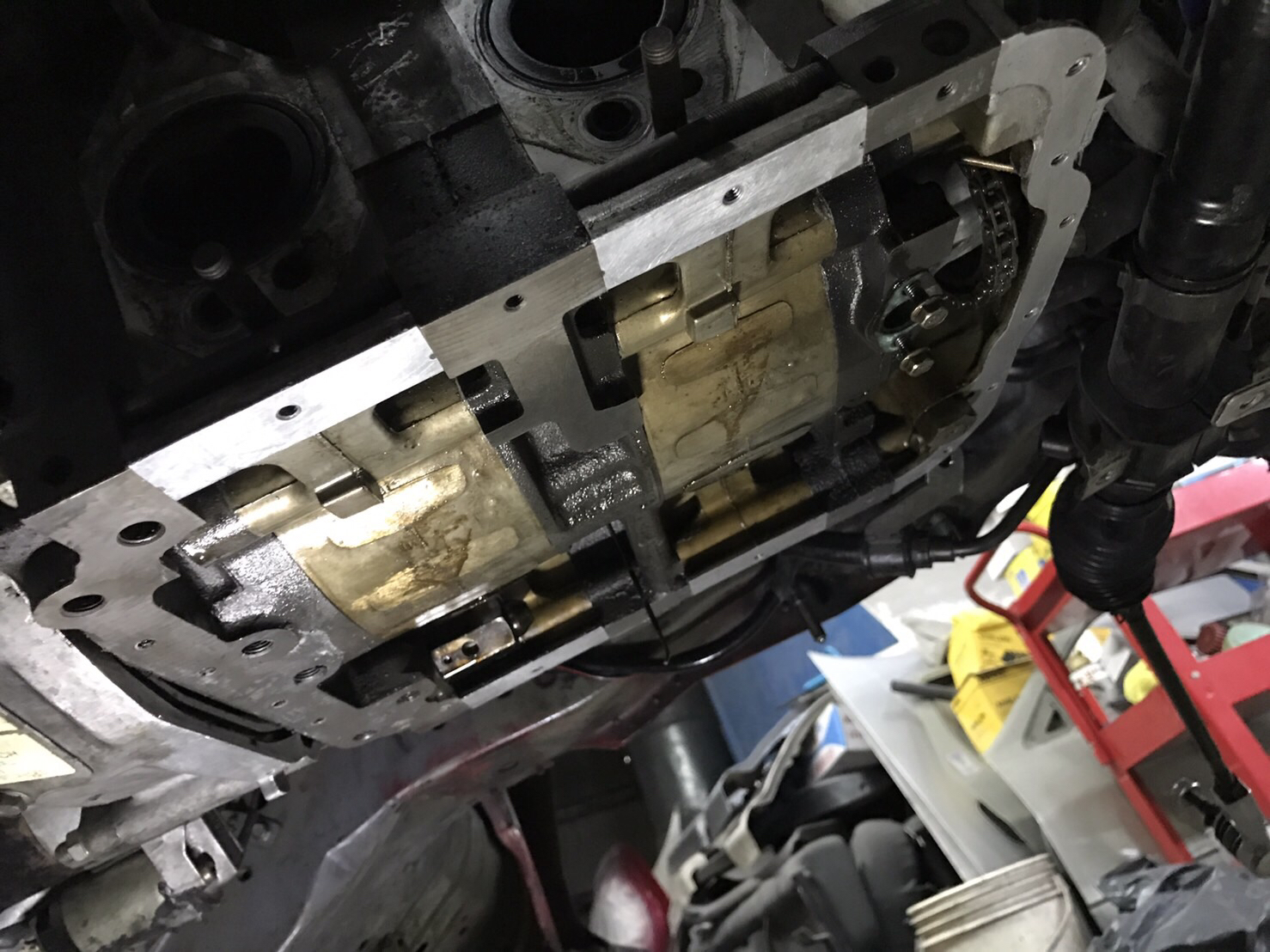

Prepare the oil pan

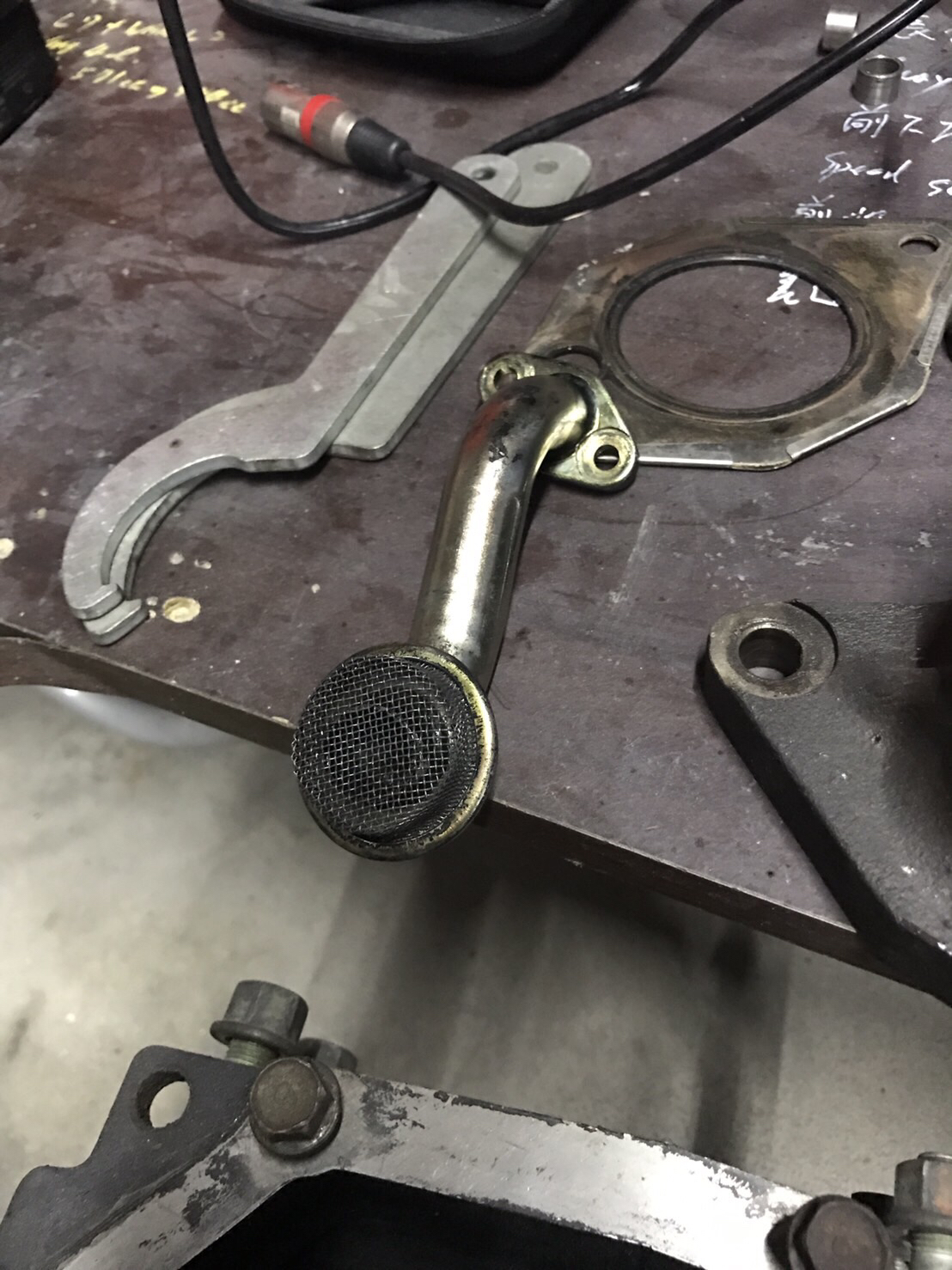

Suprise how much staff stuck at oil pick up tube over the years !!!

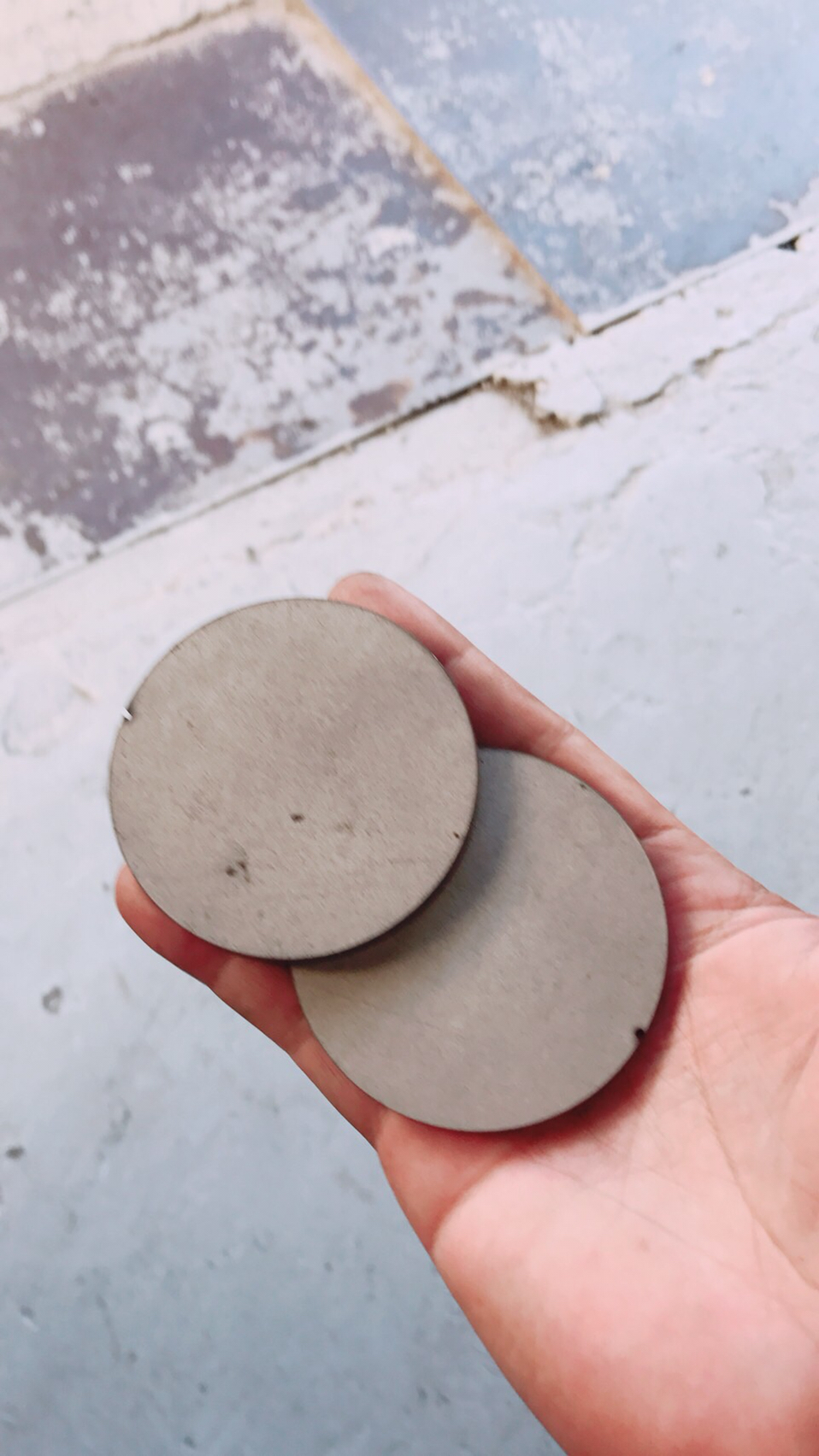

Pick up some Ti round block , will make this to my front splitter skip plate
Hope my splitter can last a bit longer
Plus it might look aswome with Ti spark fly around at corner !!
Suprise how much staff stuck at oil pick up tube over the years !!!
Pick up some Ti round block , will make this to my front splitter skip plate
Hope my splitter can last a bit longer
Plus it might look aswome with Ti spark fly around at corner !!
Last edited by diyman25; Oct 11, 2017 at 04:31 AM.
Thread Starter
RE for life
Joined: May 2002
Posts: 1,275
Likes: 100
From: sca

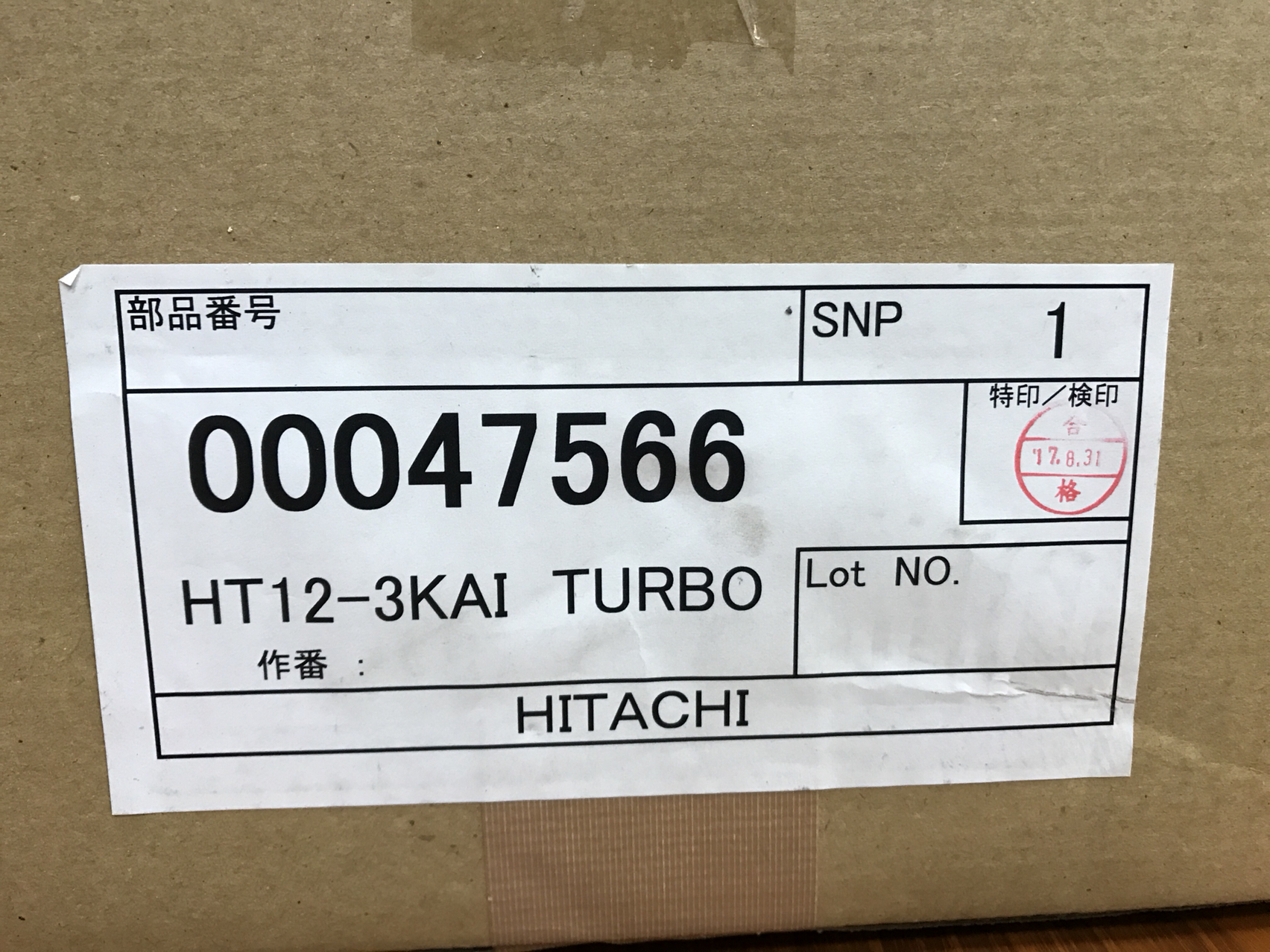

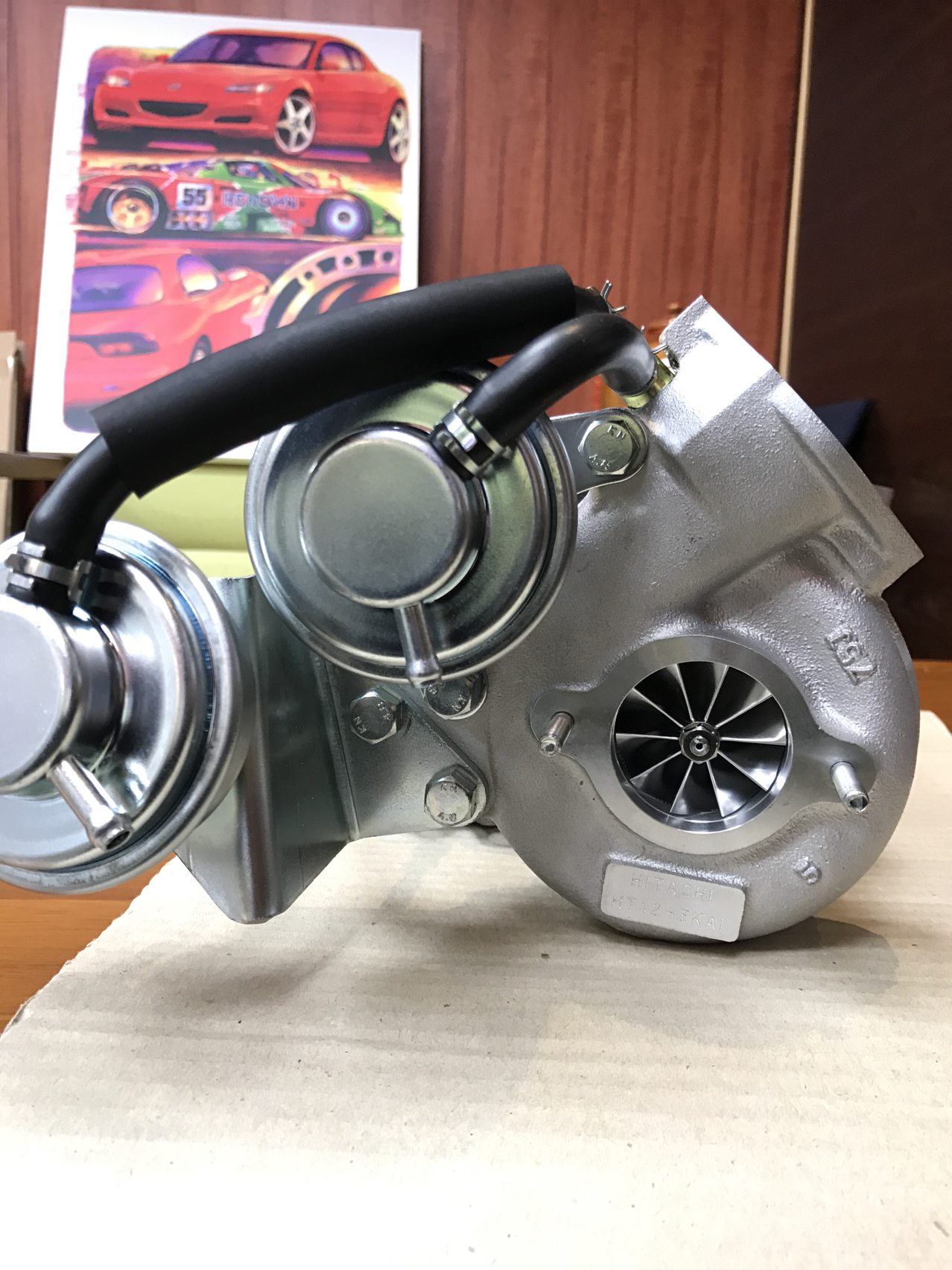

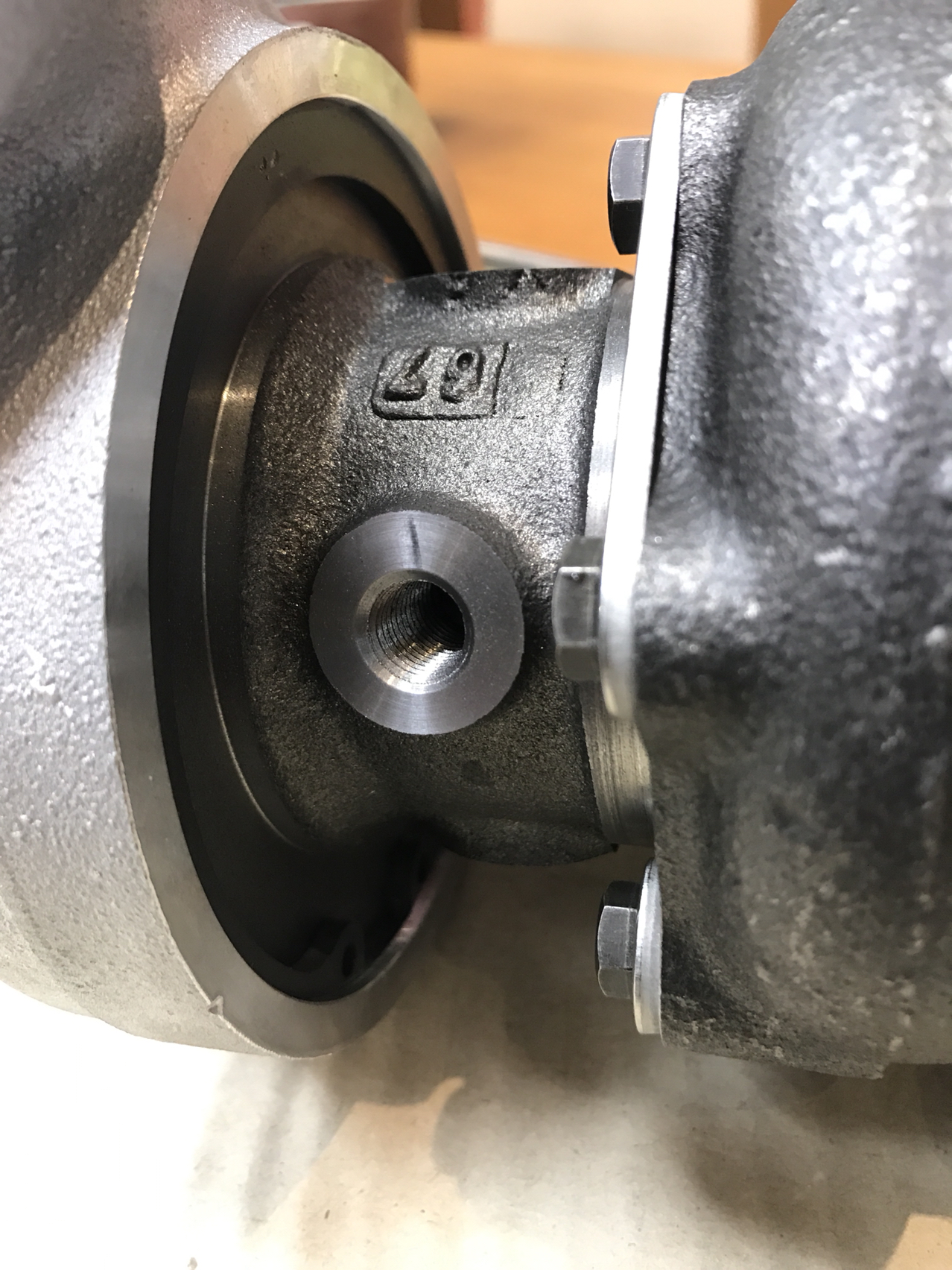

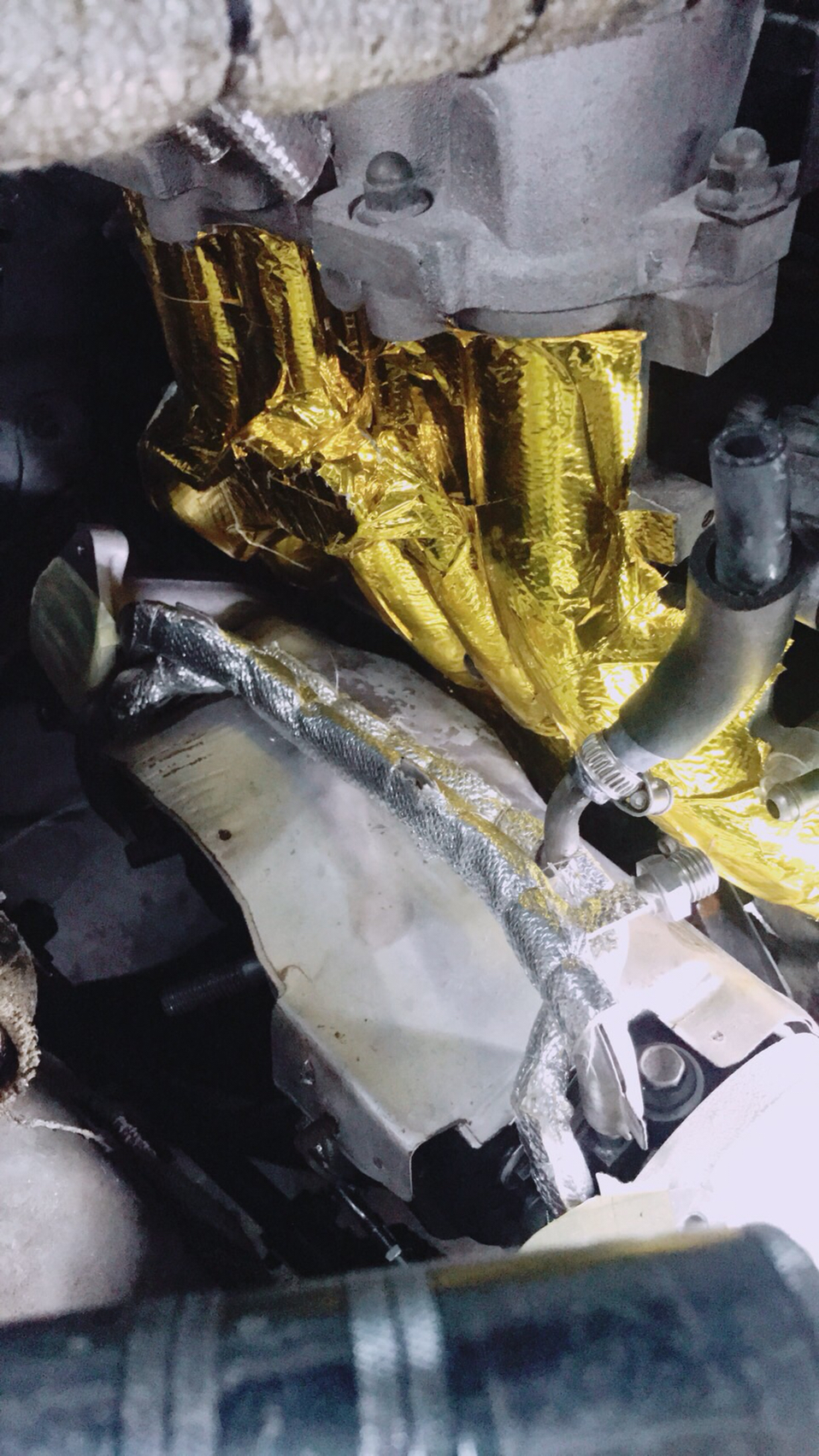

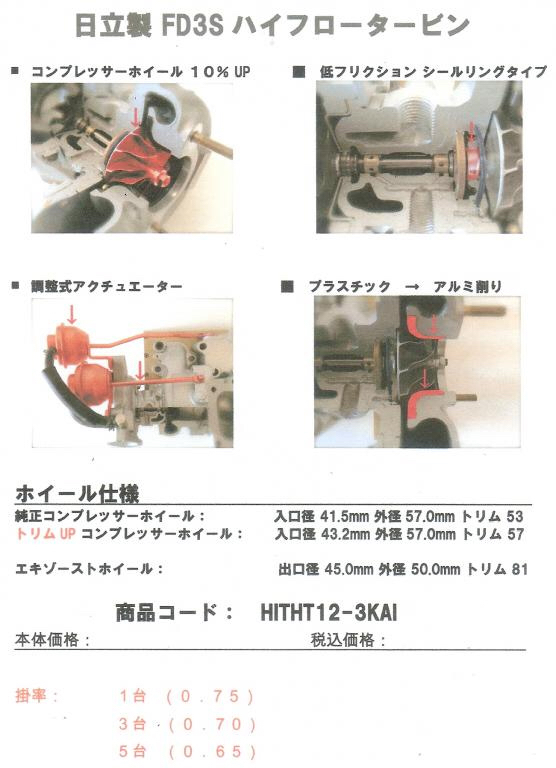

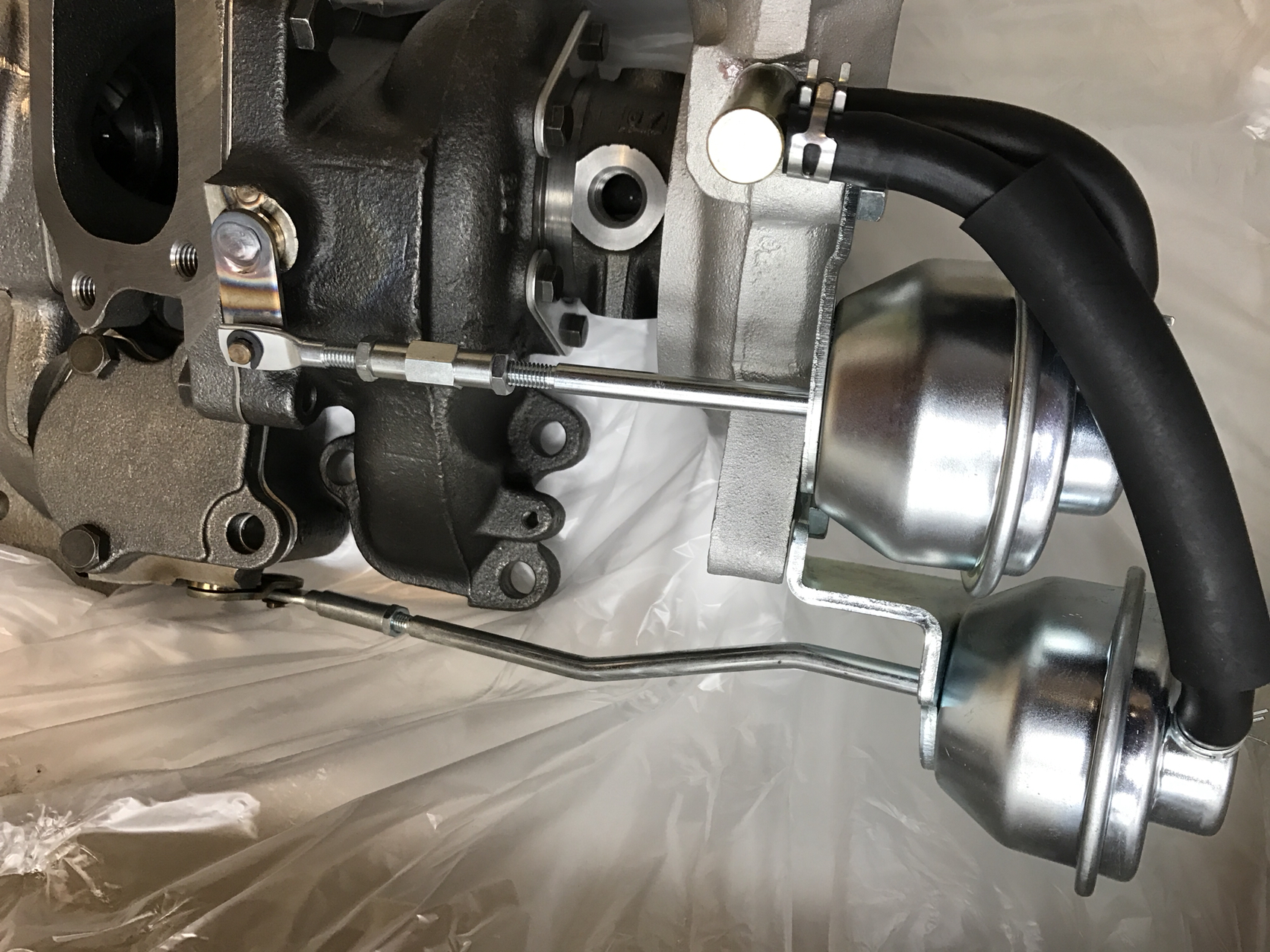

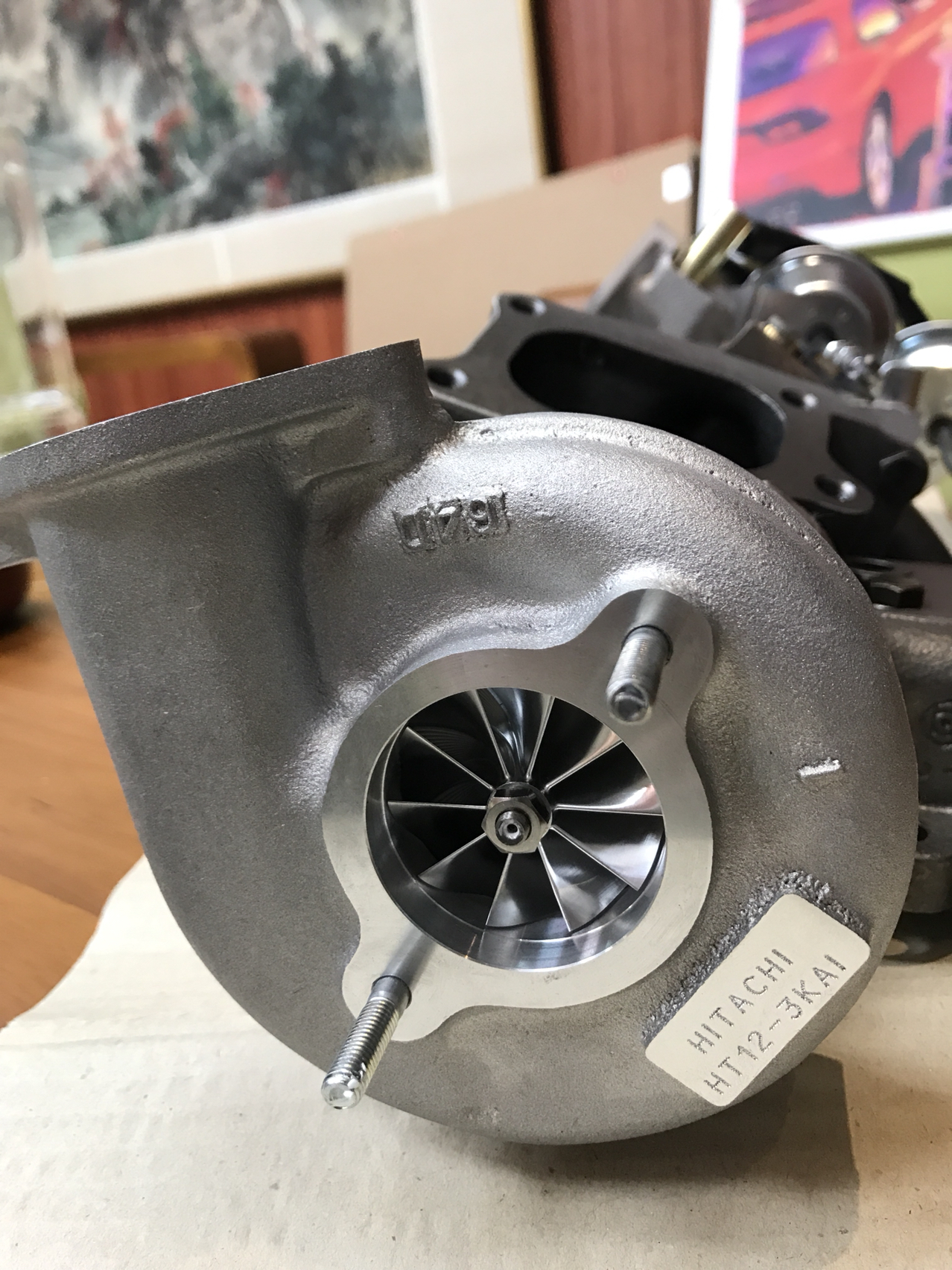

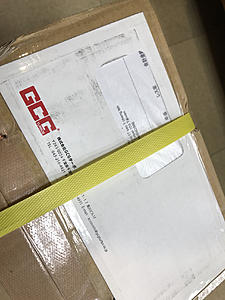

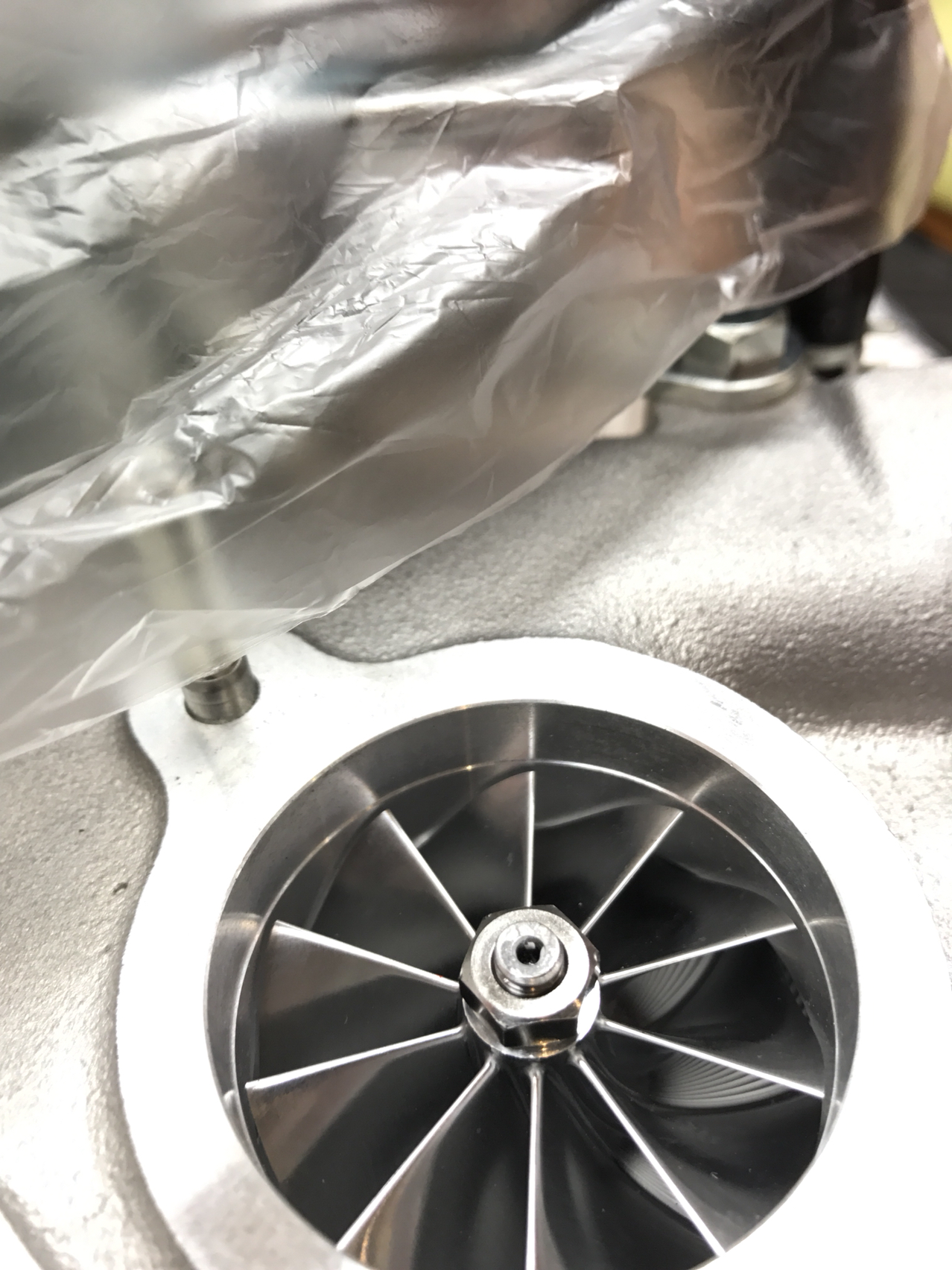

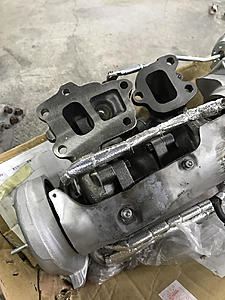

Install the GCG turbo
Should fire her up this weekend

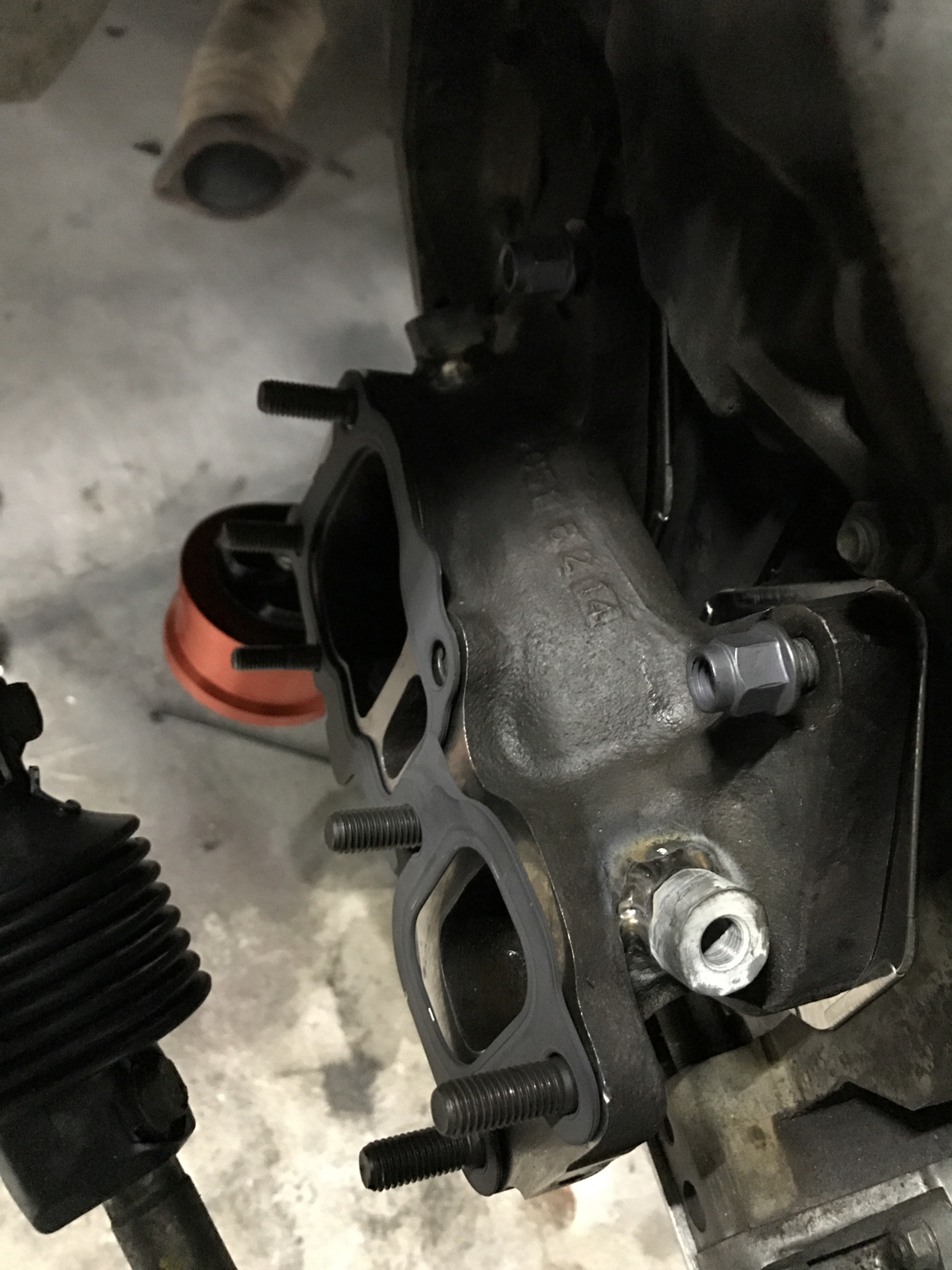

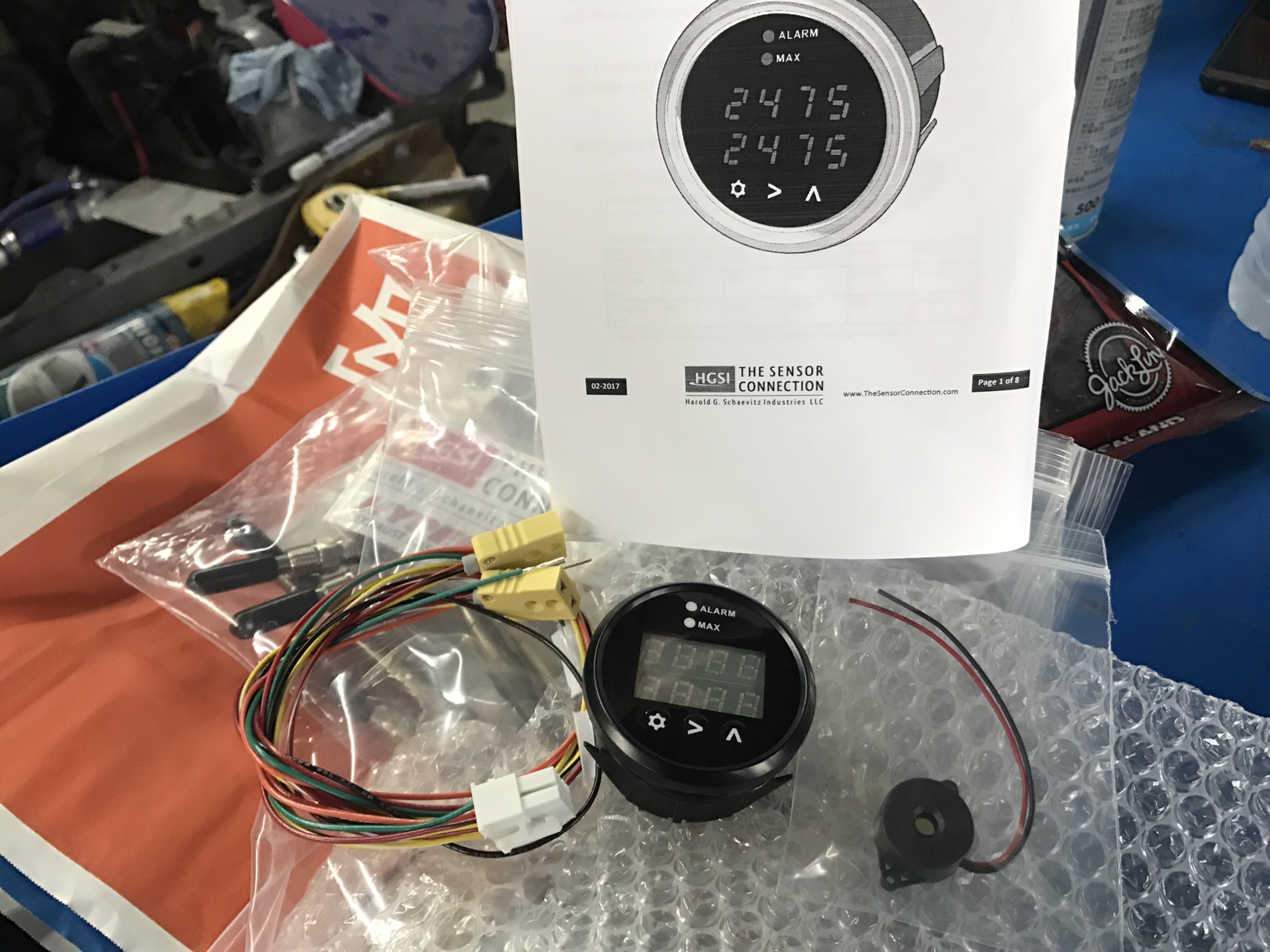

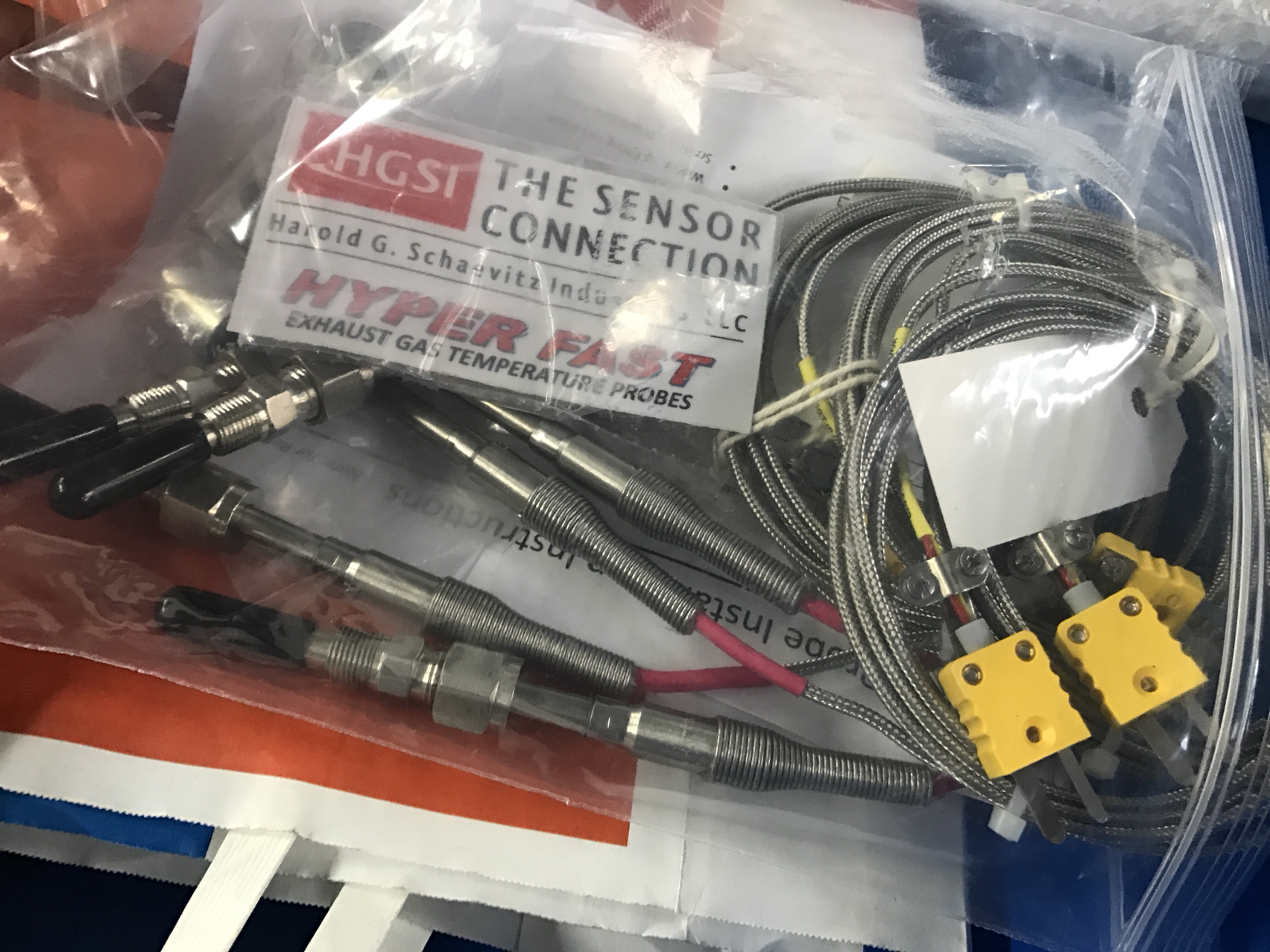

But have some issue on the EGT welding bug
Kinda too tall

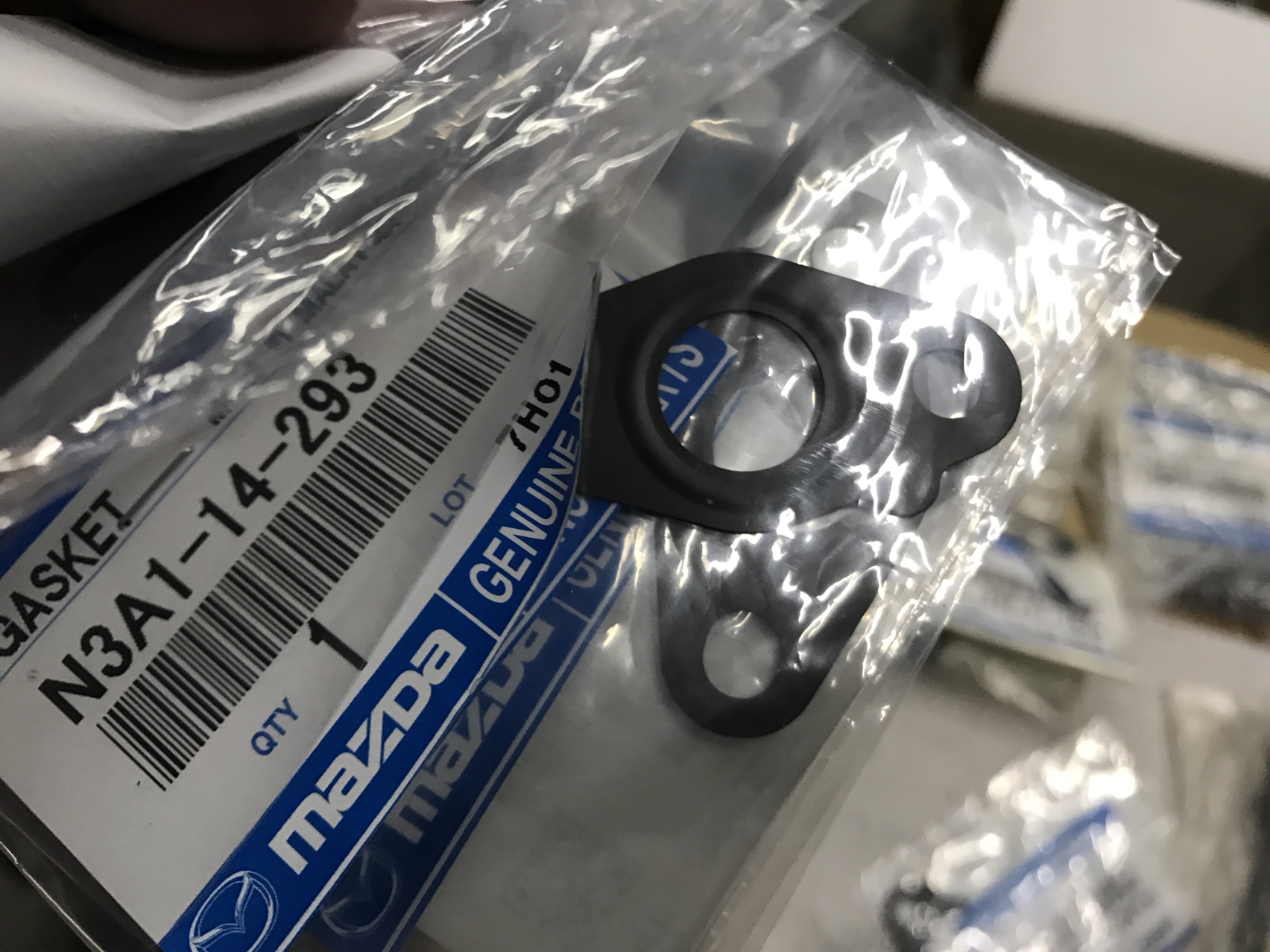

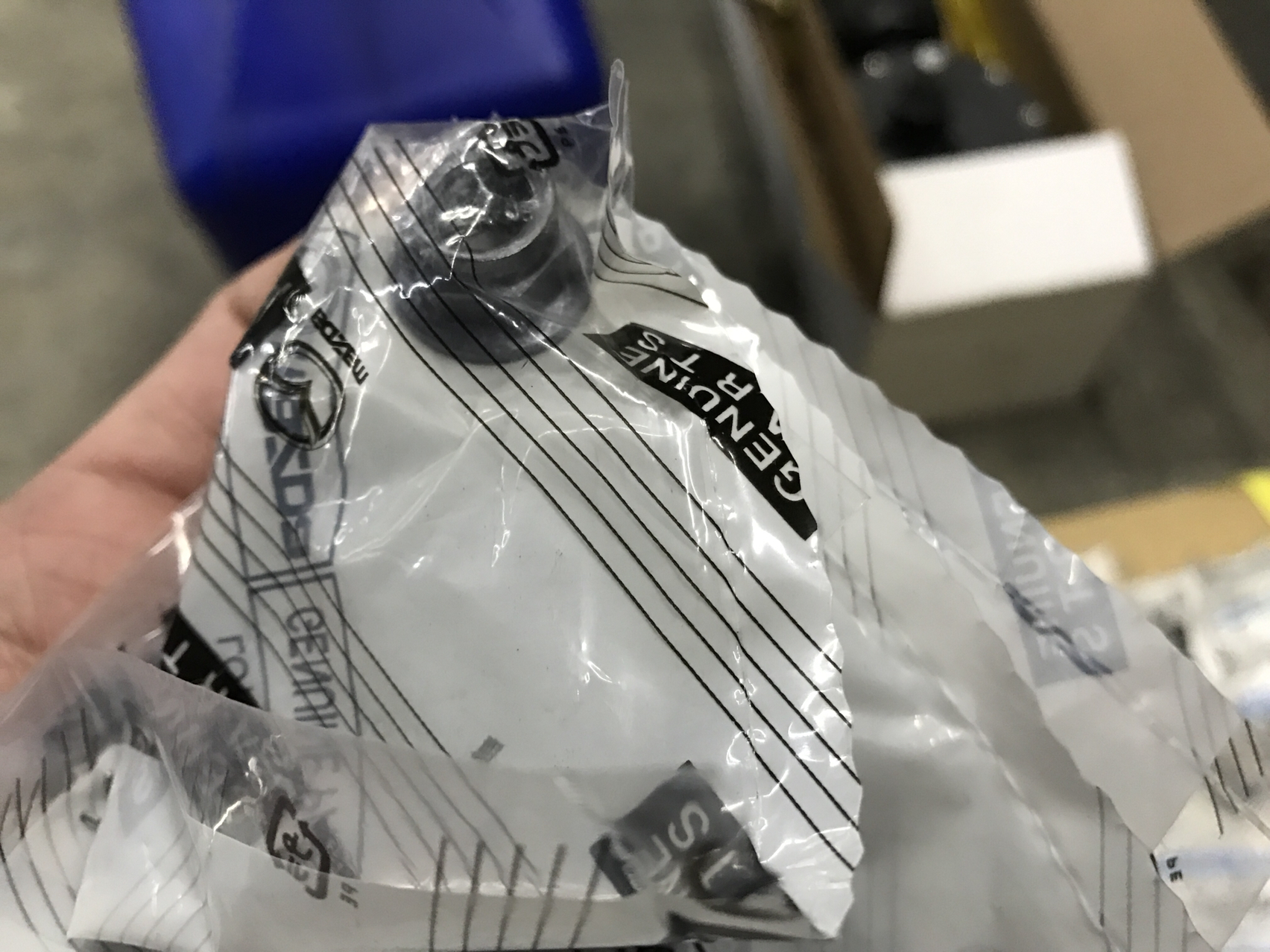

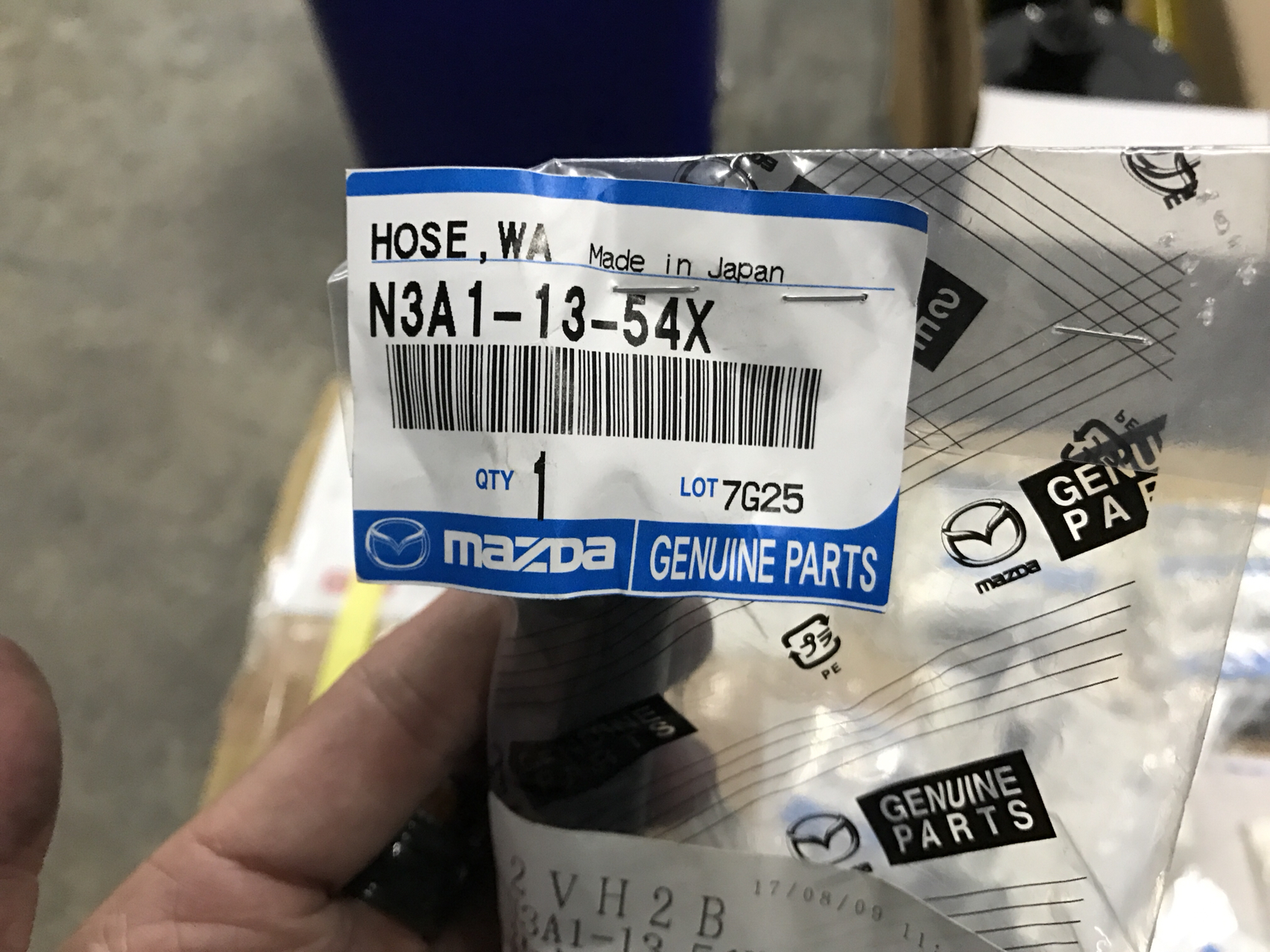

Also found out one of turbo coolant hose already have crack
So good thing found this at shop that is due to replace this time

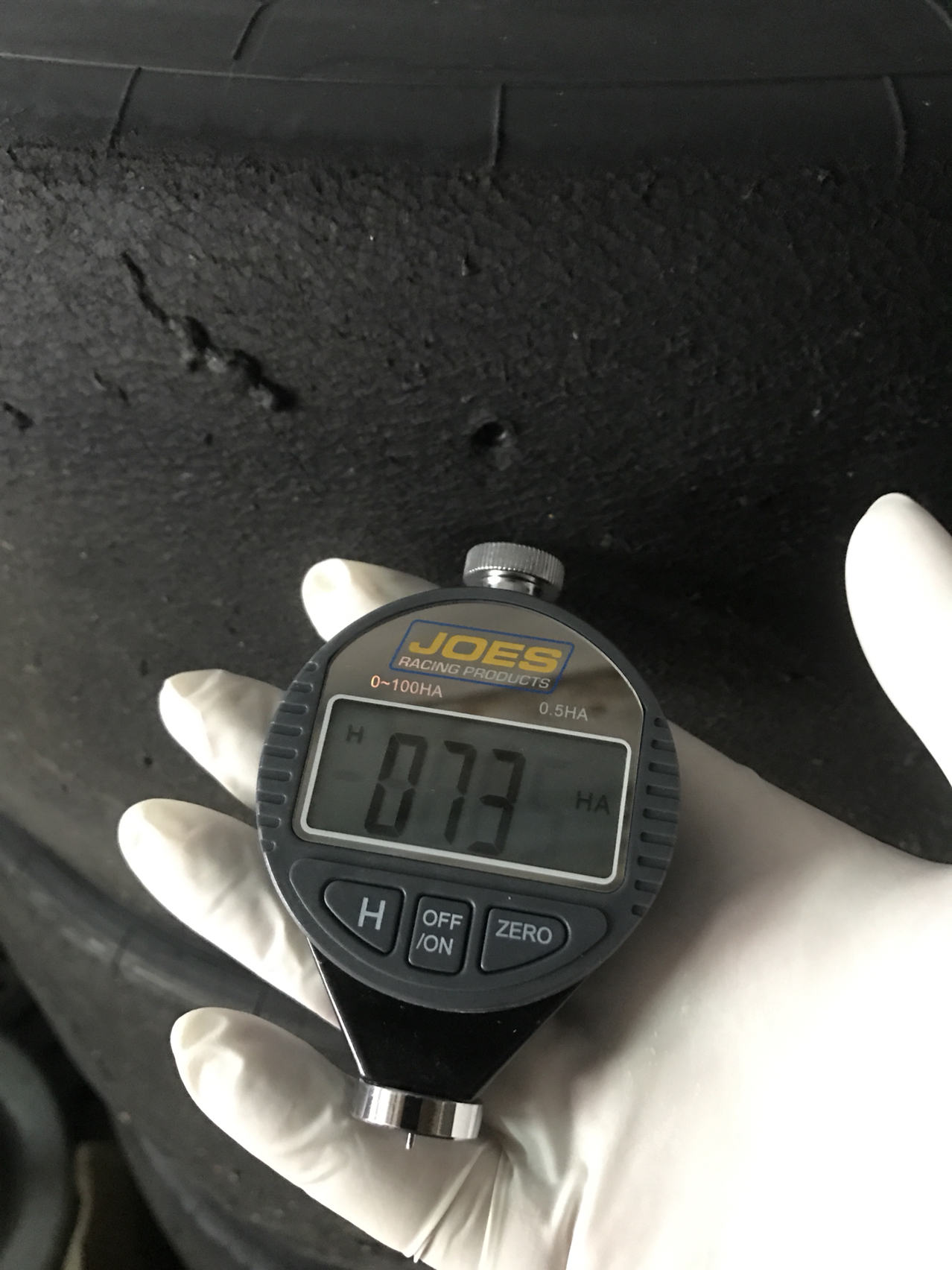

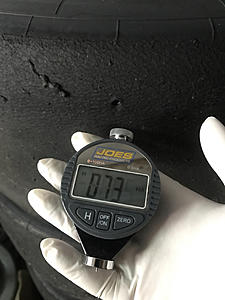

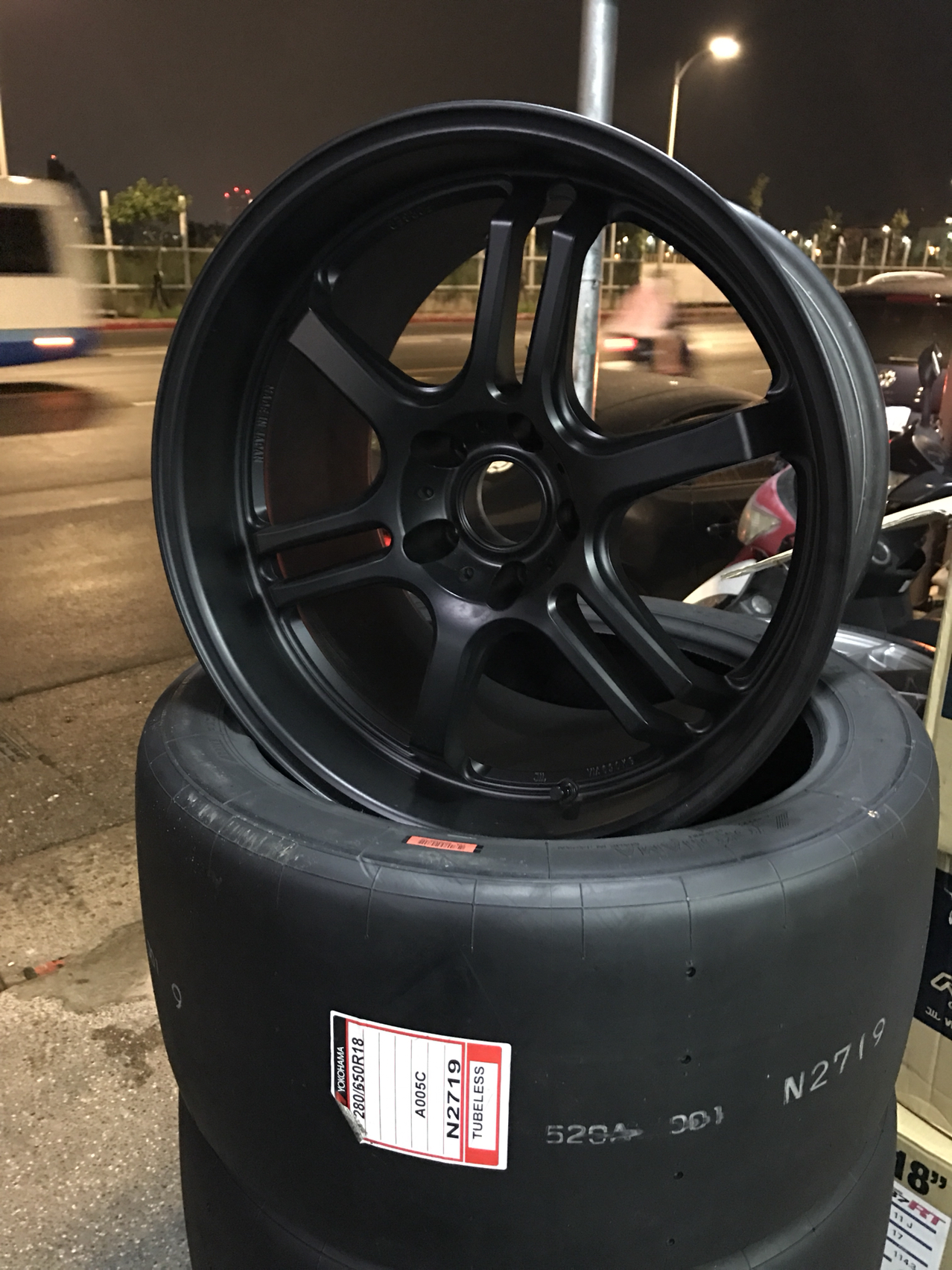

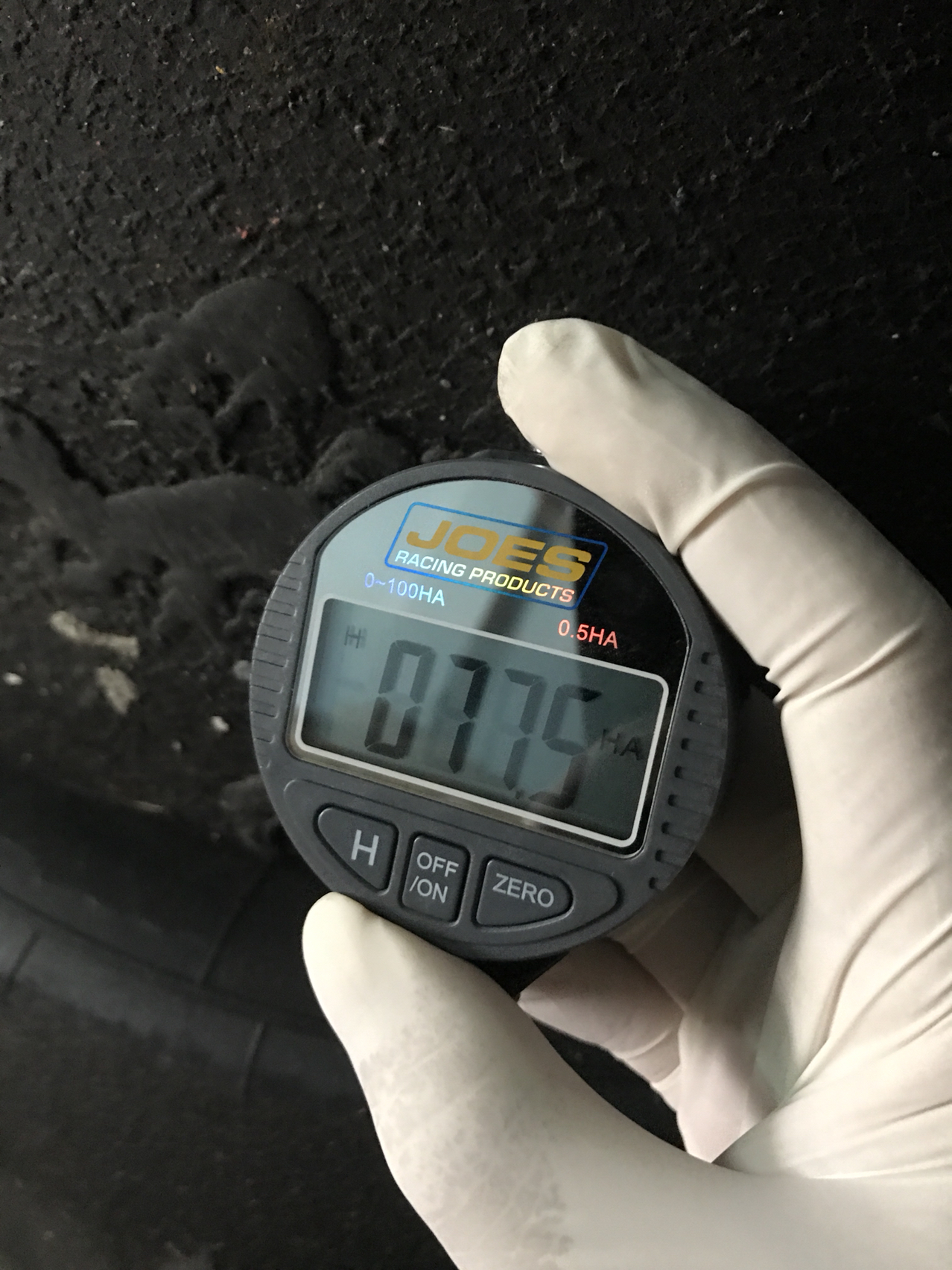

And my soft compound A005 show up too
Should fire her up this weekend
But have some issue on the EGT welding bug
Kinda too tall
Also found out one of turbo coolant hose already have crack
So good thing found this at shop that is due to replace this time
And my soft compound A005 show up too
Last edited by diyman25; Oct 19, 2017 at 09:50 AM.
Thread Starter
RE for life
Joined: May 2002
Posts: 1,275
Likes: 100
From: sca

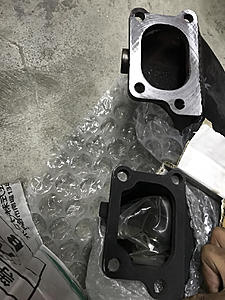

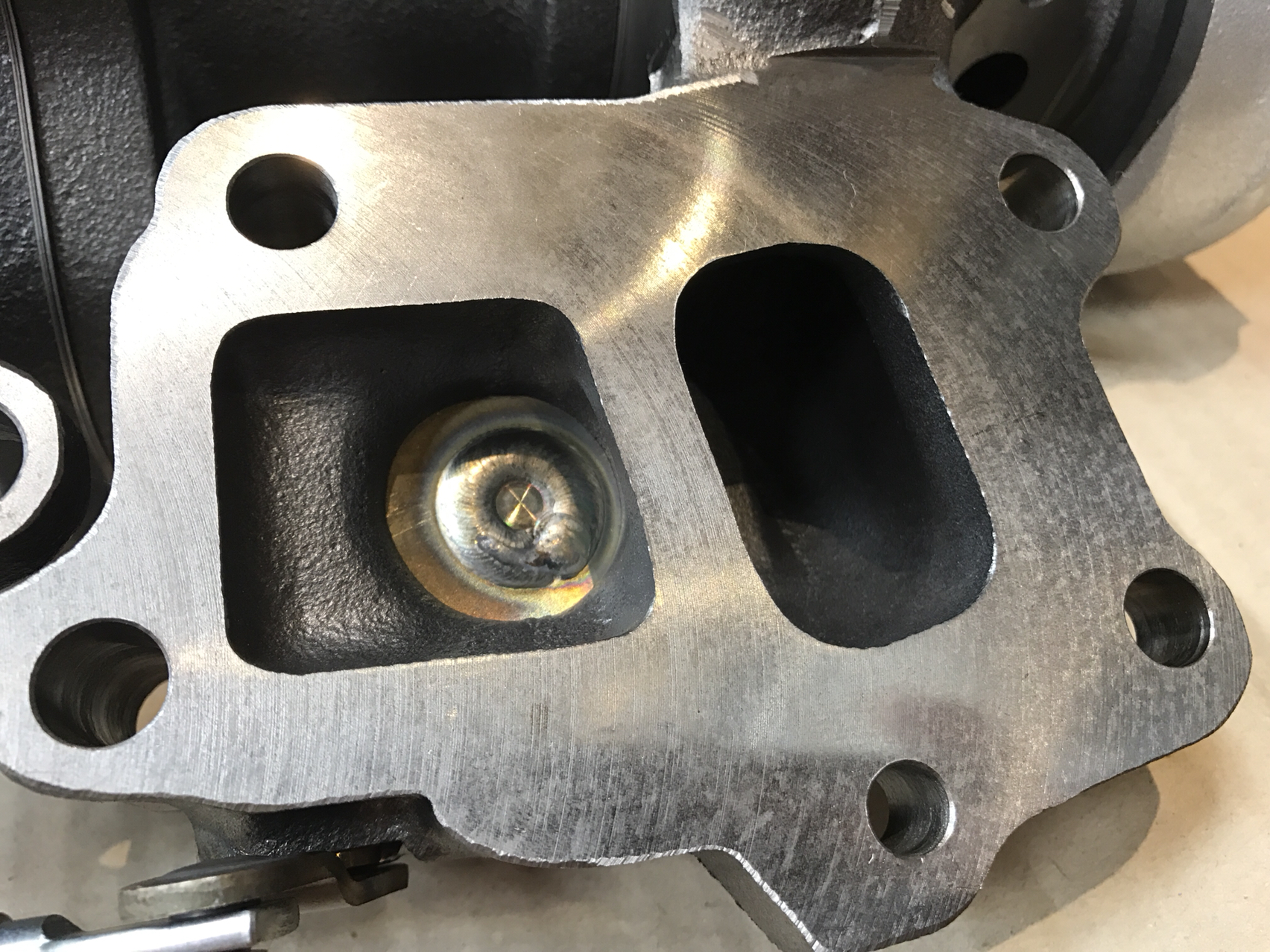

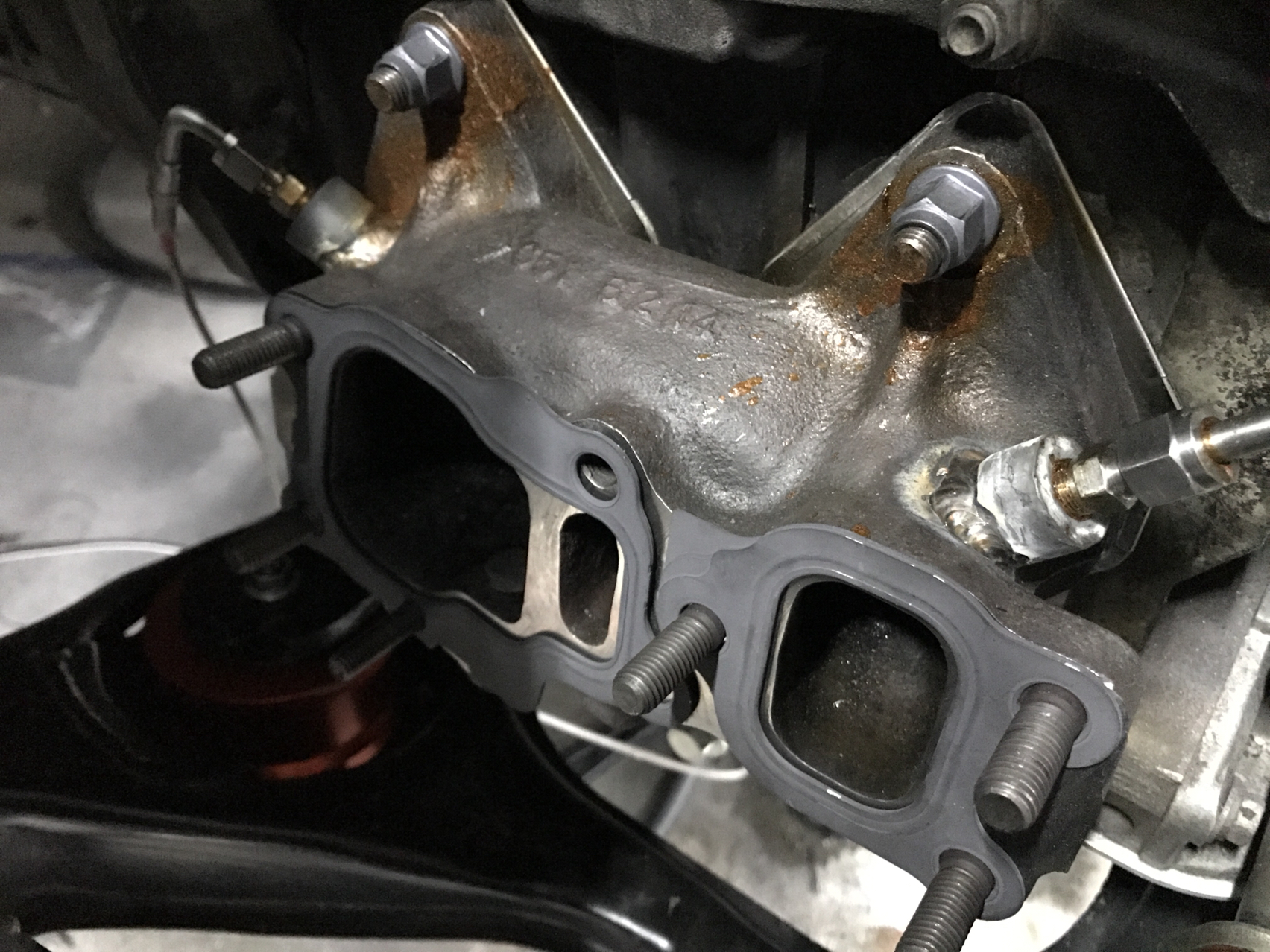

Have to grinding off the EGT welding bug to clear hose

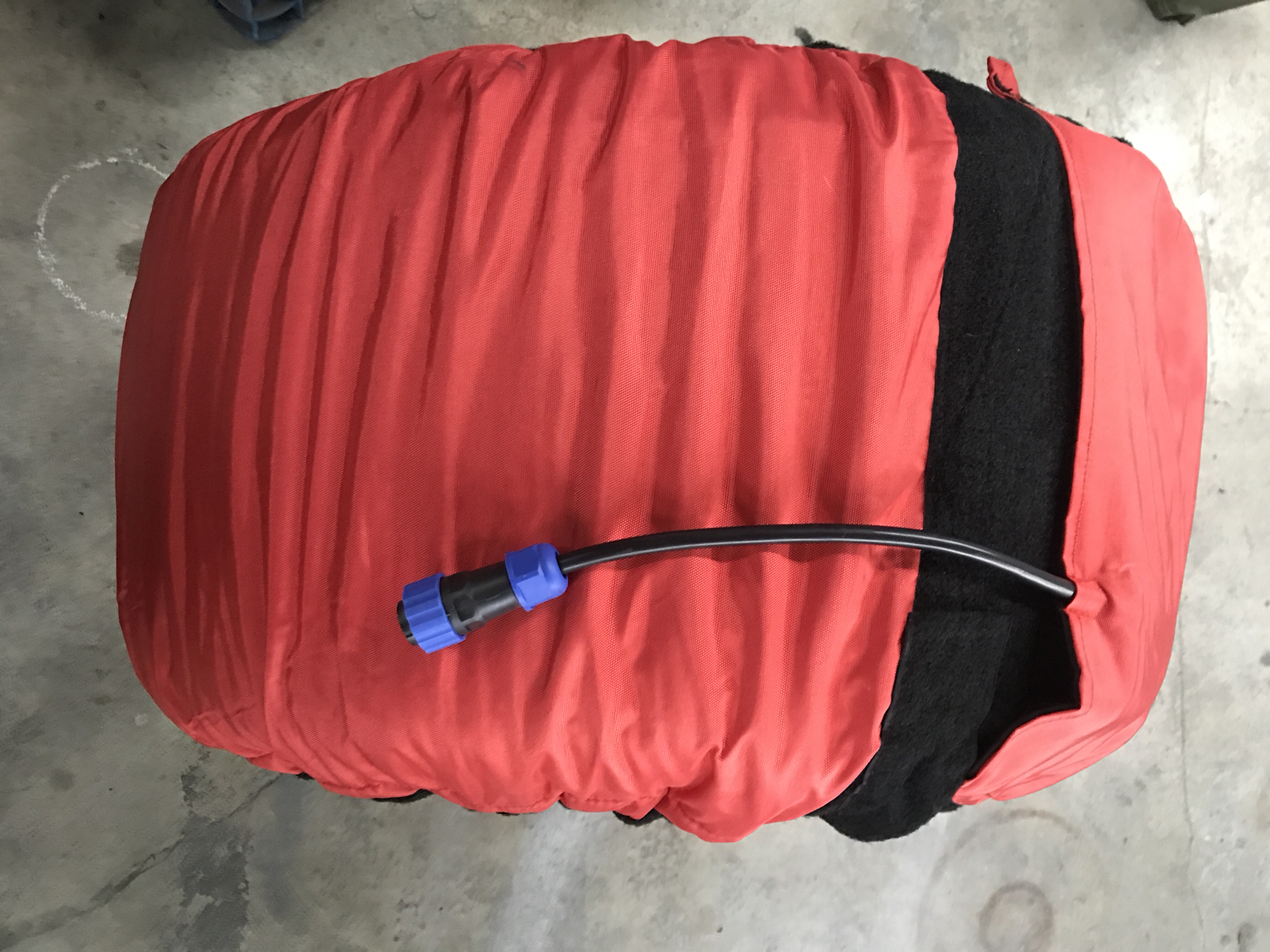

My serect weapon of this race !!

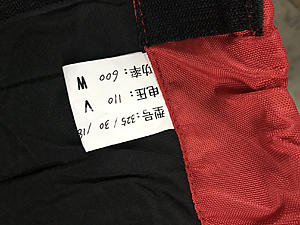

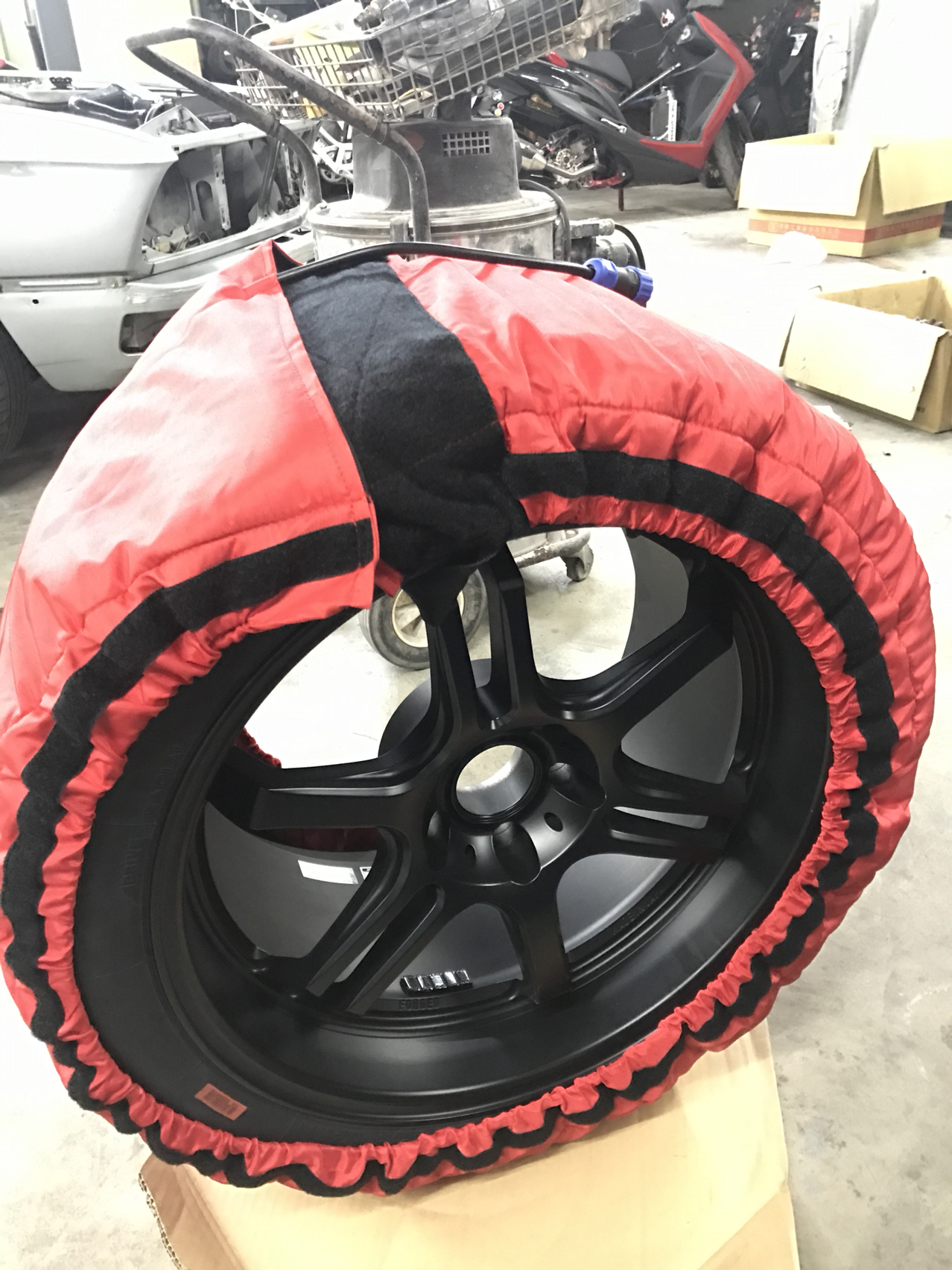

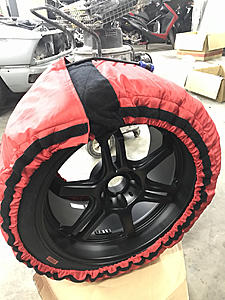

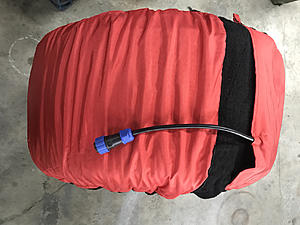

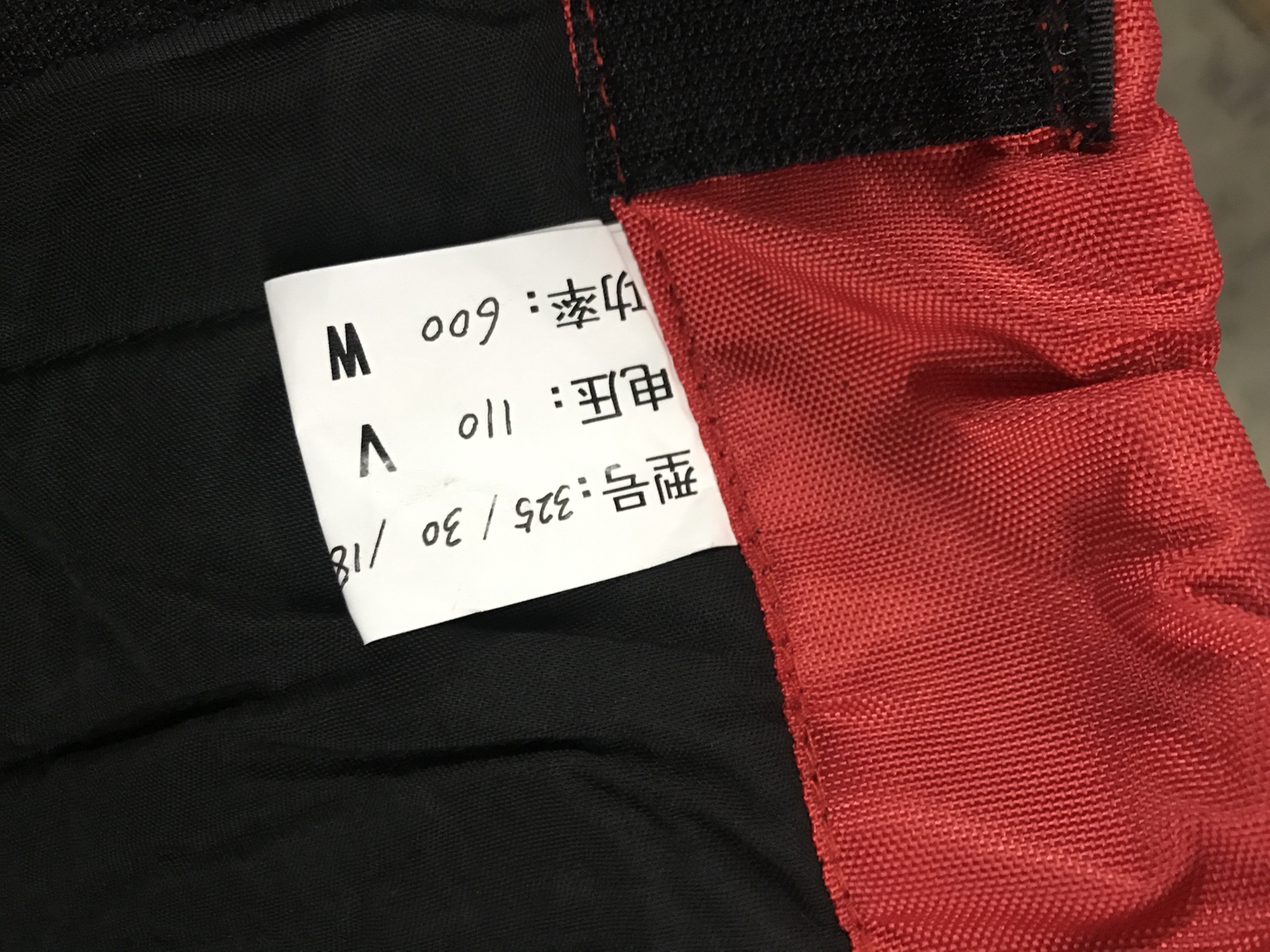

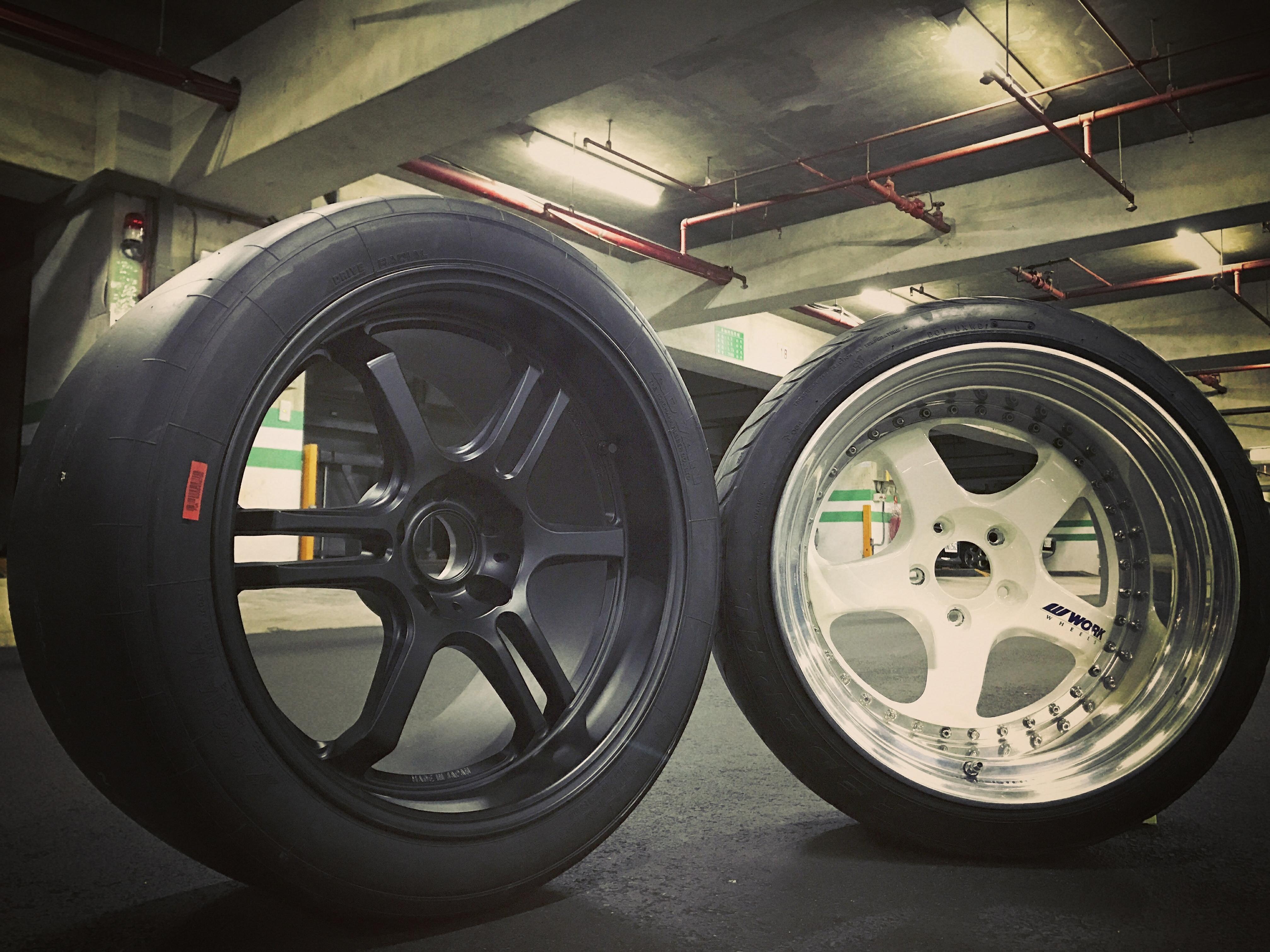

Tire warmer~ the vendor never build this wide one before and have hard time understand what size is of 280/650/18 A005 convert to street tire sizes so I have to tell them to build as 325/30/18
Look like my tire warmer barely fit to my wheel
What a lucky save

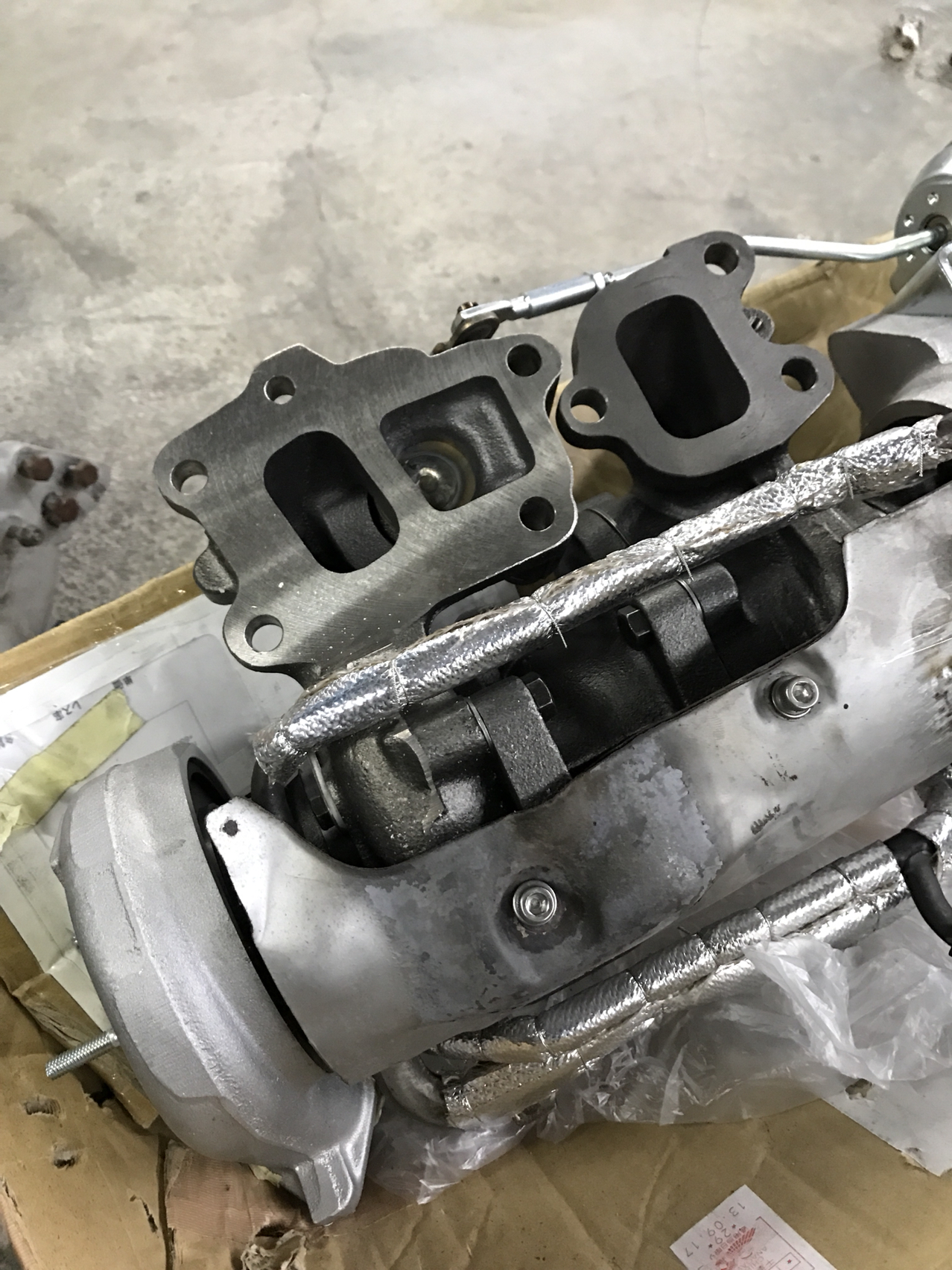

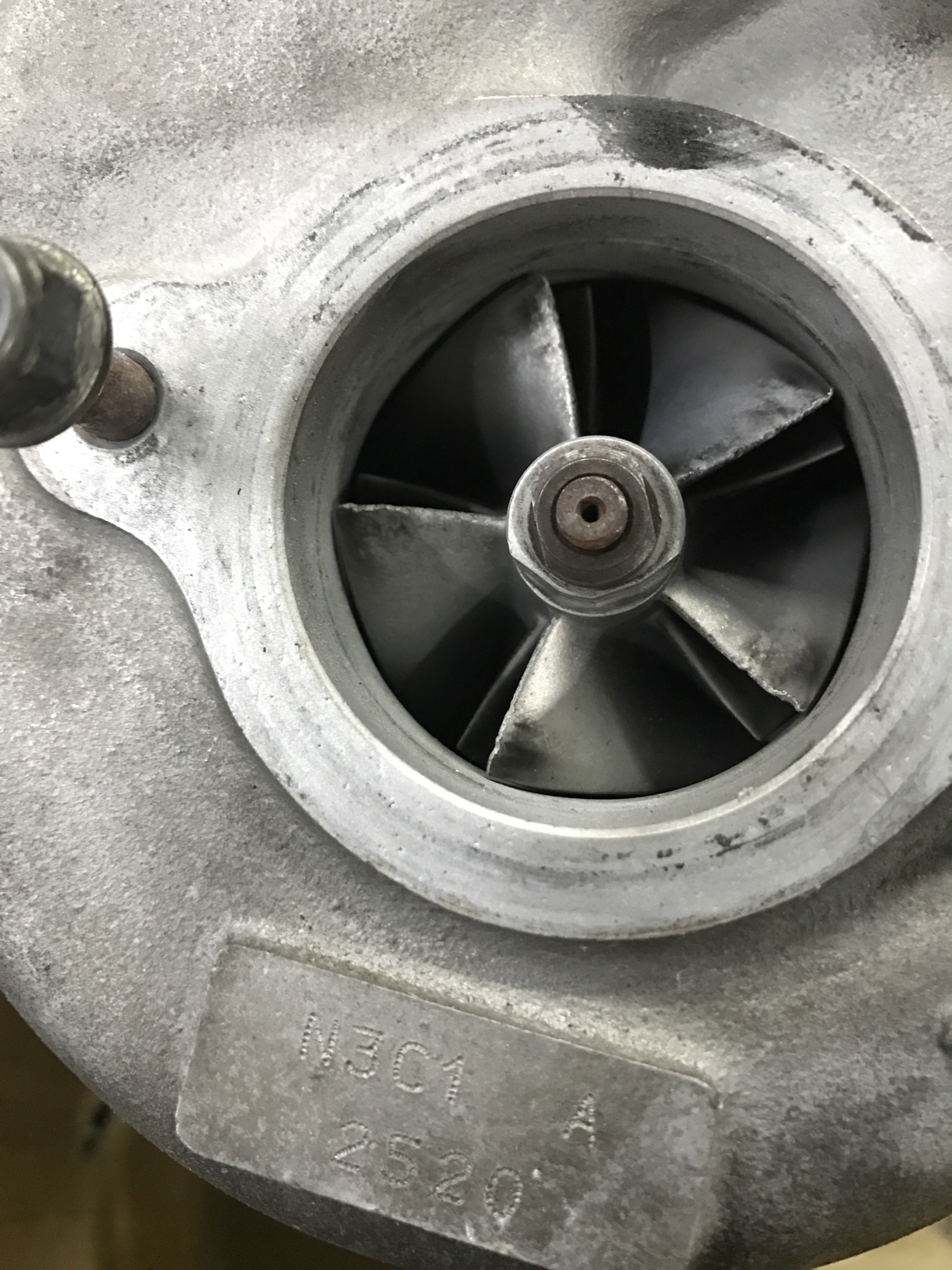

My poor stock turbo when thought a hard life as endurance racer....
My serect weapon of this race !!
Tire warmer~ the vendor never build this wide one before and have hard time understand what size is of 280/650/18 A005 convert to street tire sizes so I have to tell them to build as 325/30/18
Look like my tire warmer barely fit to my wheel
What a lucky save
My poor stock turbo when thought a hard life as endurance racer....
Last edited by diyman25; Oct 20, 2017 at 07:09 AM.
Thread Starter
RE for life
Joined: May 2002
Posts: 1,275
Likes: 100
From: sca

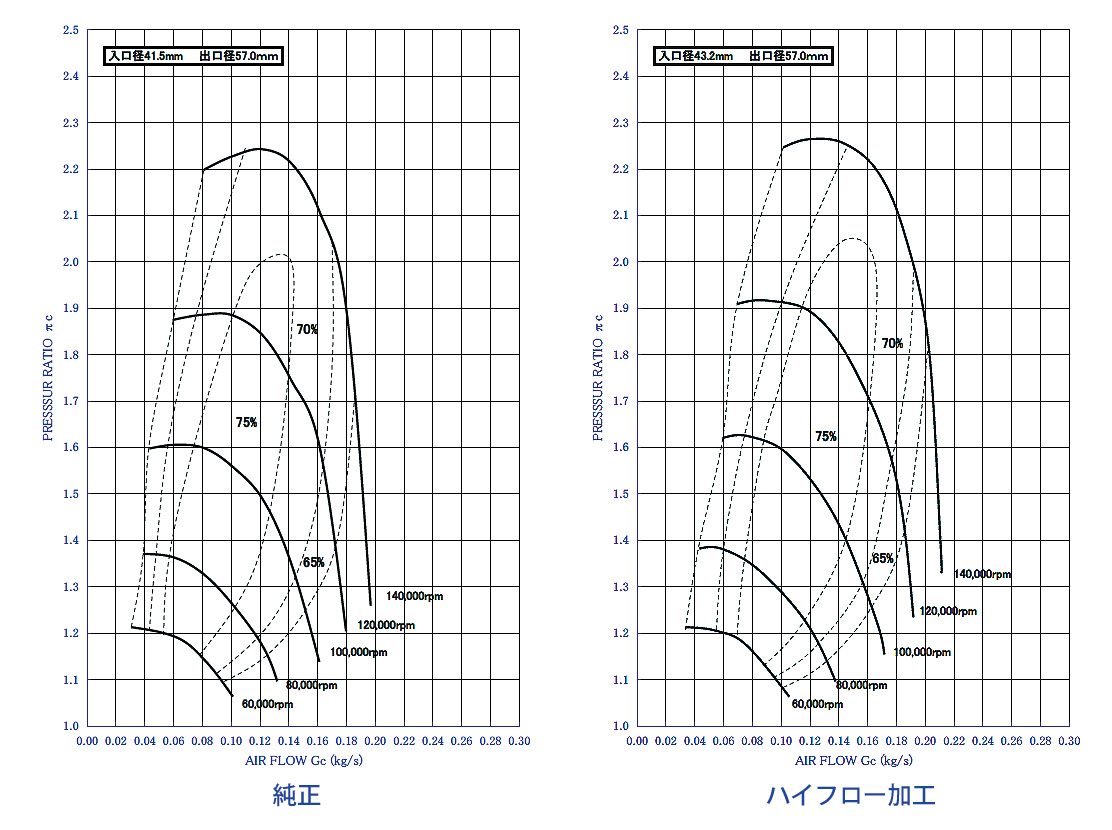

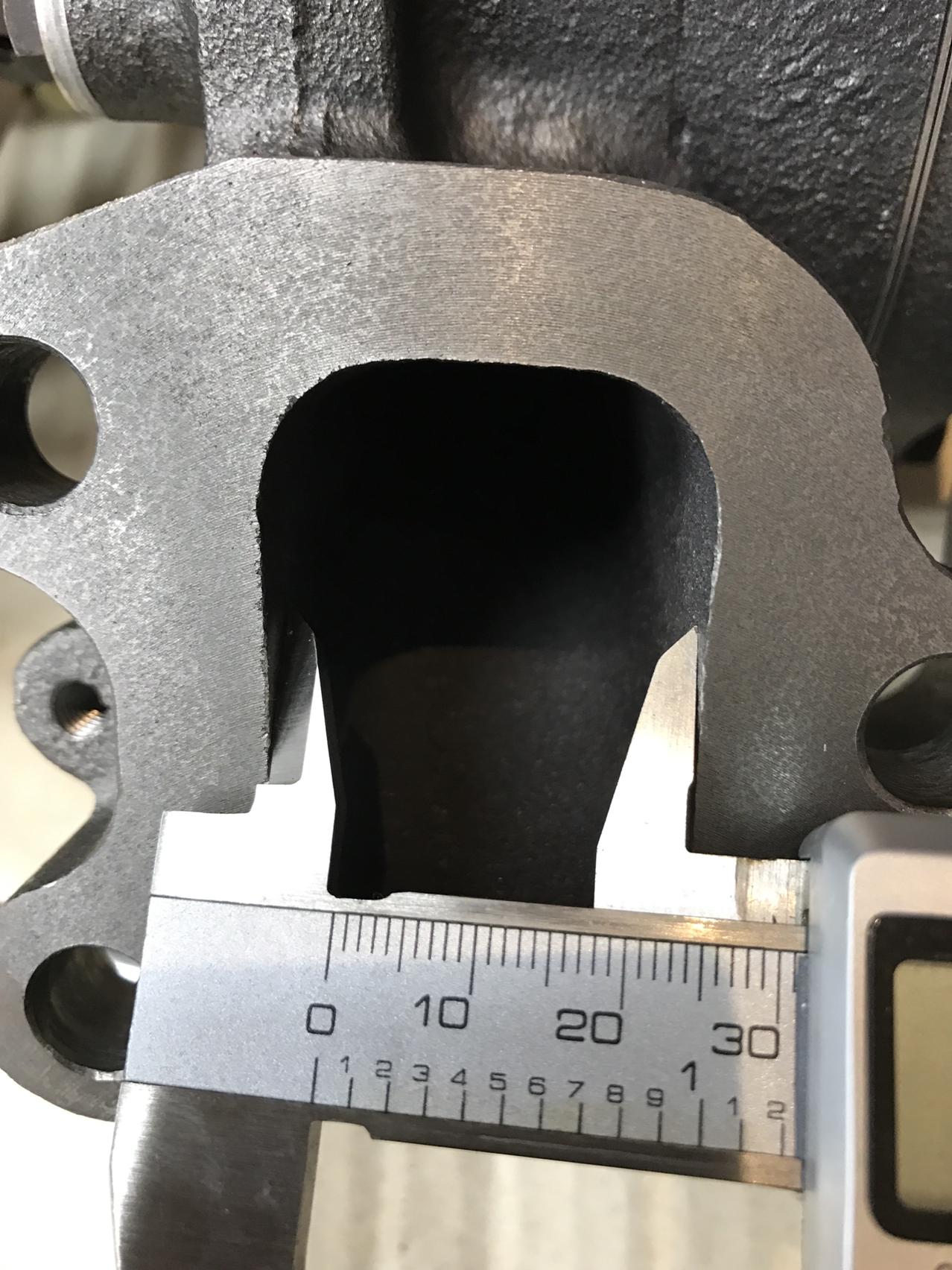

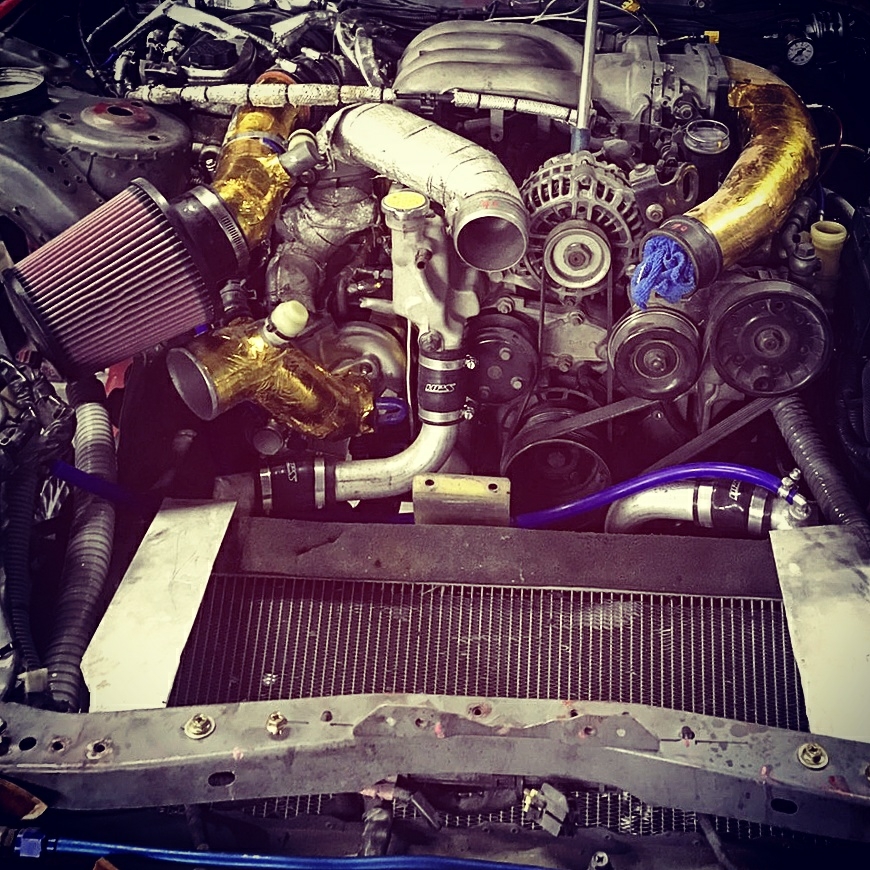

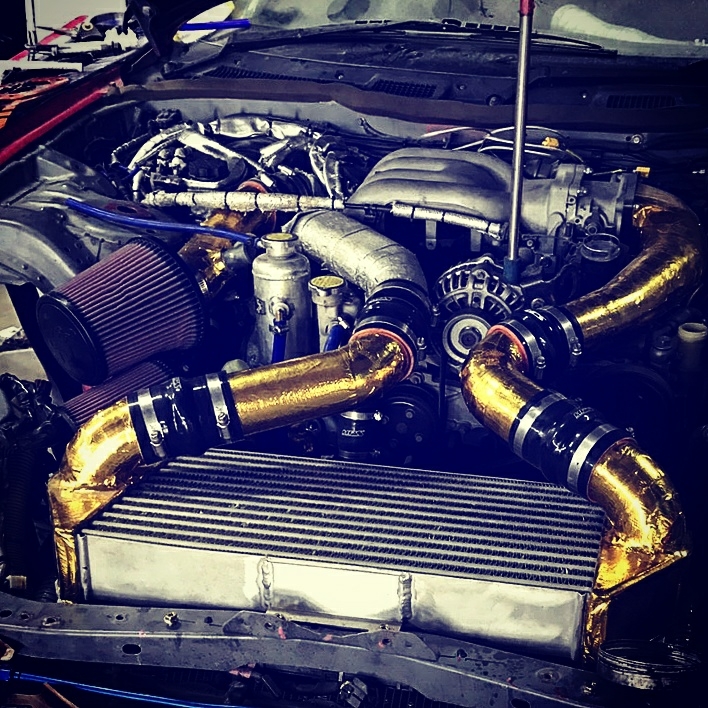

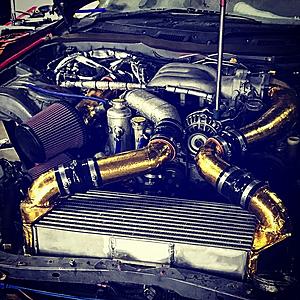

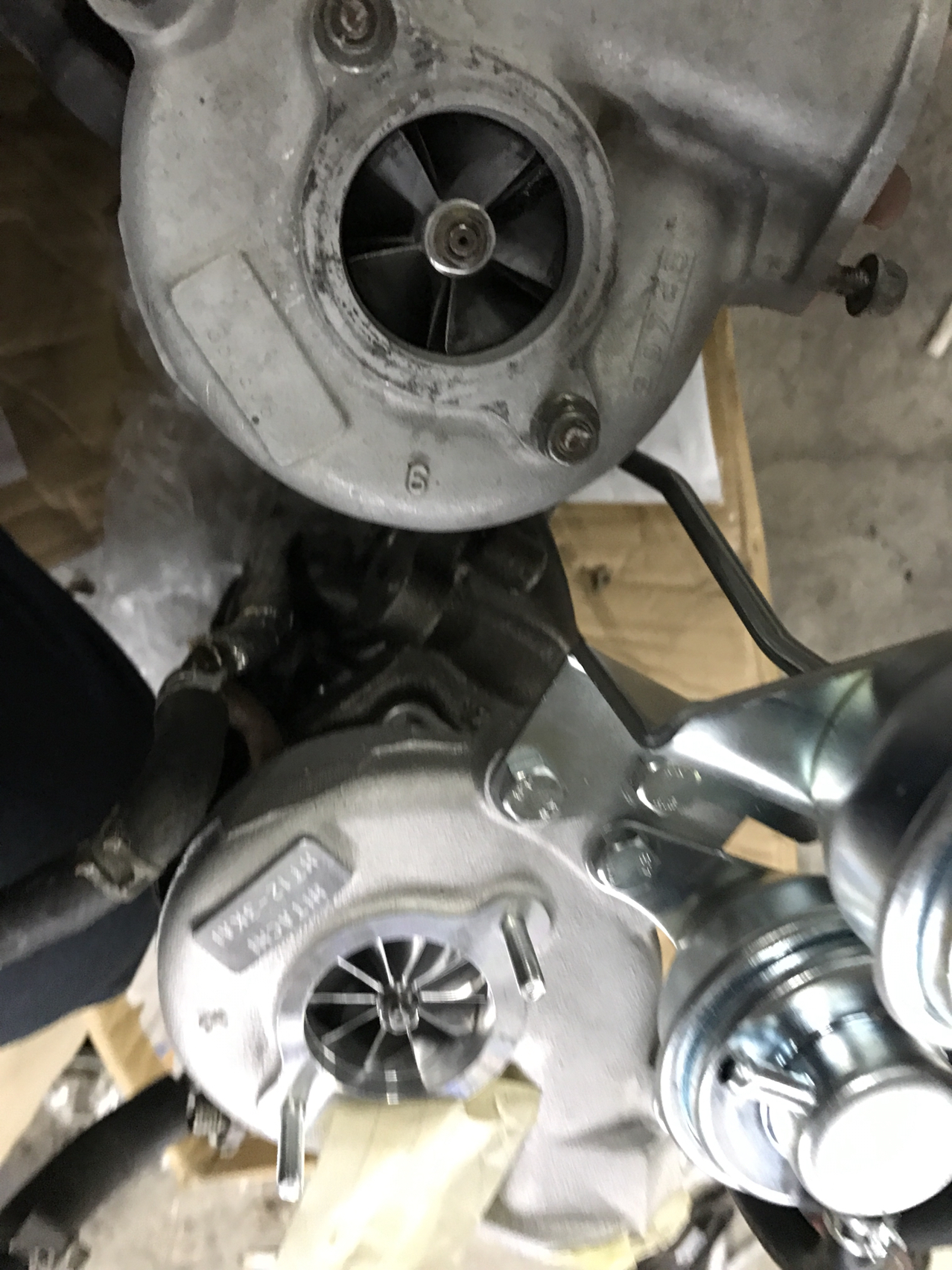

The GCG turbo is a bit bigger on compressor side, so a bit challenage to install rear pipe but still bolt on, dont need to hack any thing like B&R
Also finally throw away those hks cone filter with old school but better filtering and more surface area K&N
Also finally throw away those hks cone filter with old school but better filtering and more surface area K&N
Thread Starter
RE for life
Joined: May 2002
Posts: 1,275
Likes: 100
From: sca
Originally Posted by versep
Thanks for sharing, you’re inspirational! My wife and I visit Taiwan a few times a year, I hope I get a chance to meet you and your car in person
Just doing what i love even I move back to Taiwan
Thread Starter
RE for life
Joined: May 2002
Posts: 1,275
Likes: 100
From: sca

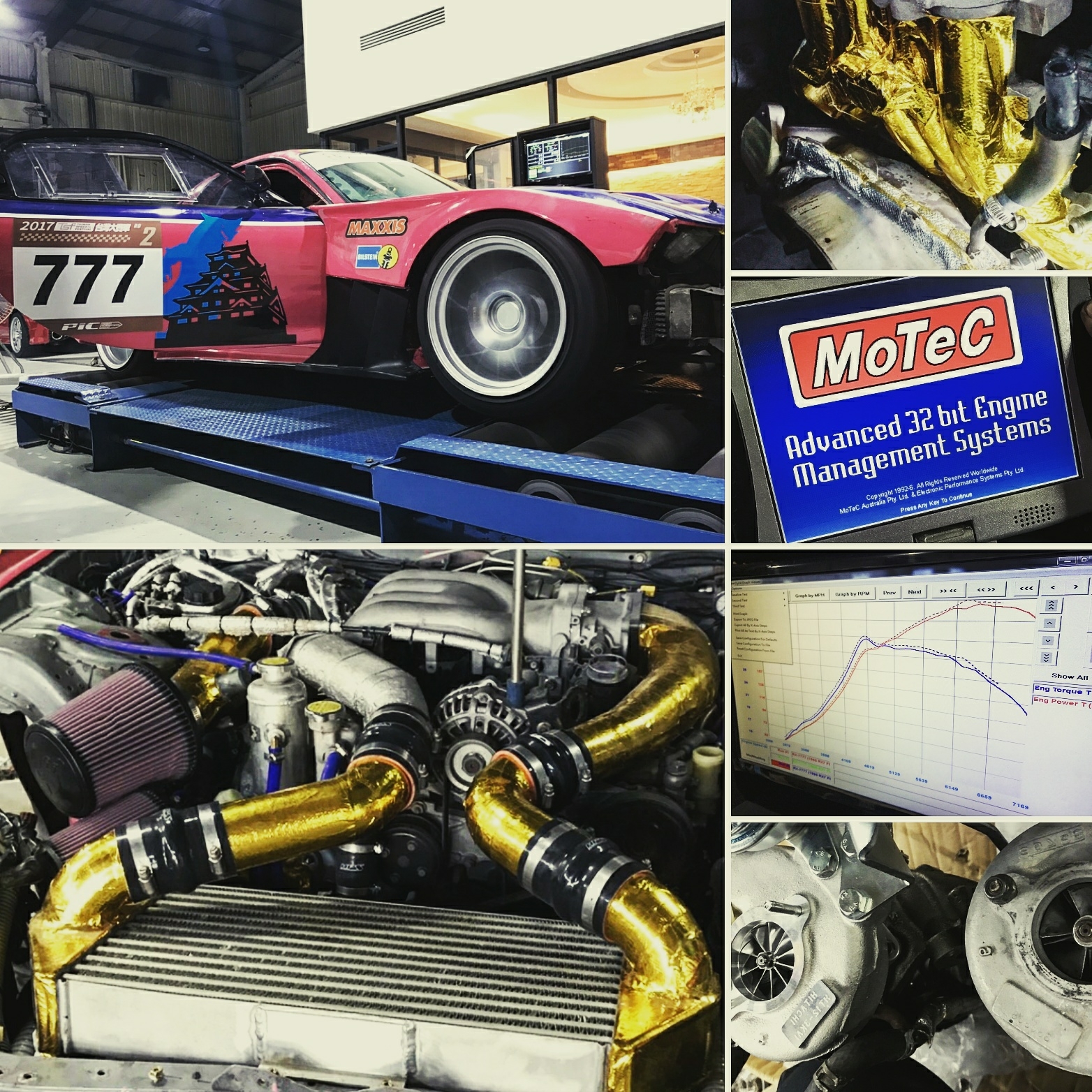

Less then week before race
GCG turbo perform like it should on dyno
With .8kg boost is about 20hp short conpare my friends TD0625G test at same dyno with 1.0kg of boost
Usually the TD06 is about 400-410hp turbo
So my GCG clock at 370-380ish is pretty good for a engine that race 3 full year at track
The rear rotor is a bit tired compare to front
GCG turbo perform like it should on dyno
With .8kg boost is about 20hp short conpare my friends TD0625G test at same dyno with 1.0kg of boost
Usually the TD06 is about 400-410hp turbo
So my GCG clock at 370-380ish is pretty good for a engine that race 3 full year at track
The rear rotor is a bit tired compare to front
