I guess Jonathan's been too busy burning rubber to update this thread;

Firts and second gear fd3s single turbo tdx61 - YouTube

StreetRacerHCI

iTrader: (1)

here we are

First, I would like to thank Elliot for the support they gave me
I leave you with some pictures and video.
it was difficult to do all this in Italy and with no experience, many things are still to be reviewed as a map and other small things, but for now I'm happy

Engine:
1 New 13BREW StreetPorted.
2 Single Turbo TDX61 KIT by Elliot Turblown twinscroll system
3 Injection kit 2200cc ID 2000 bosch EV14 550cc new fuel line/rails, Aeromotive fuel pressure regulators.
4 New Custom RadTec KIT V-Mount intercooler
5 HKS Twin Power Ignition
6 Aeromotive Fuel Pump LPH340

management:
1 ECU Apexi Power FC
2 HKS EVC-6 boost controller
4 Datalogit for Apexi








Old Engine




New build Streetport and TDX61 Turbo Kit

StreetRacerHCI

iTrader: (1)

My First StartUP






Ready to Put the new Engine




V-Mount Ready







Thanks all guys

Spalato

iTrader: (33)

Hey StreetRacerHCI! great build! Keep up the good work!

If you ever come to Split (Spalato) during Feragosto hit me up I'll show you my FD! It's also an SSM. And maybe you could bring some leftover parts from you stock twins haha :P

Fd3BOOST

iTrader: (7)

The v mount kit looks like it fits really well. This is a nice install you've done.

Peruvianrx7

iTrader: (25)

I would double check the crease on the silicone coupler by the turbo (blue one) it looks just a little bent

StreetRacerHCI

iTrader: (1)

you're right, I have to order another fitting silicone. that does not go very well at the moment


thanks ALL

StreetRacerHCI

iTrader: (1)

The silicon turbo hose fixed

StreetRacerHCI

iTrader: (1)

Hi guys
greetings from Rome!

F1Eng

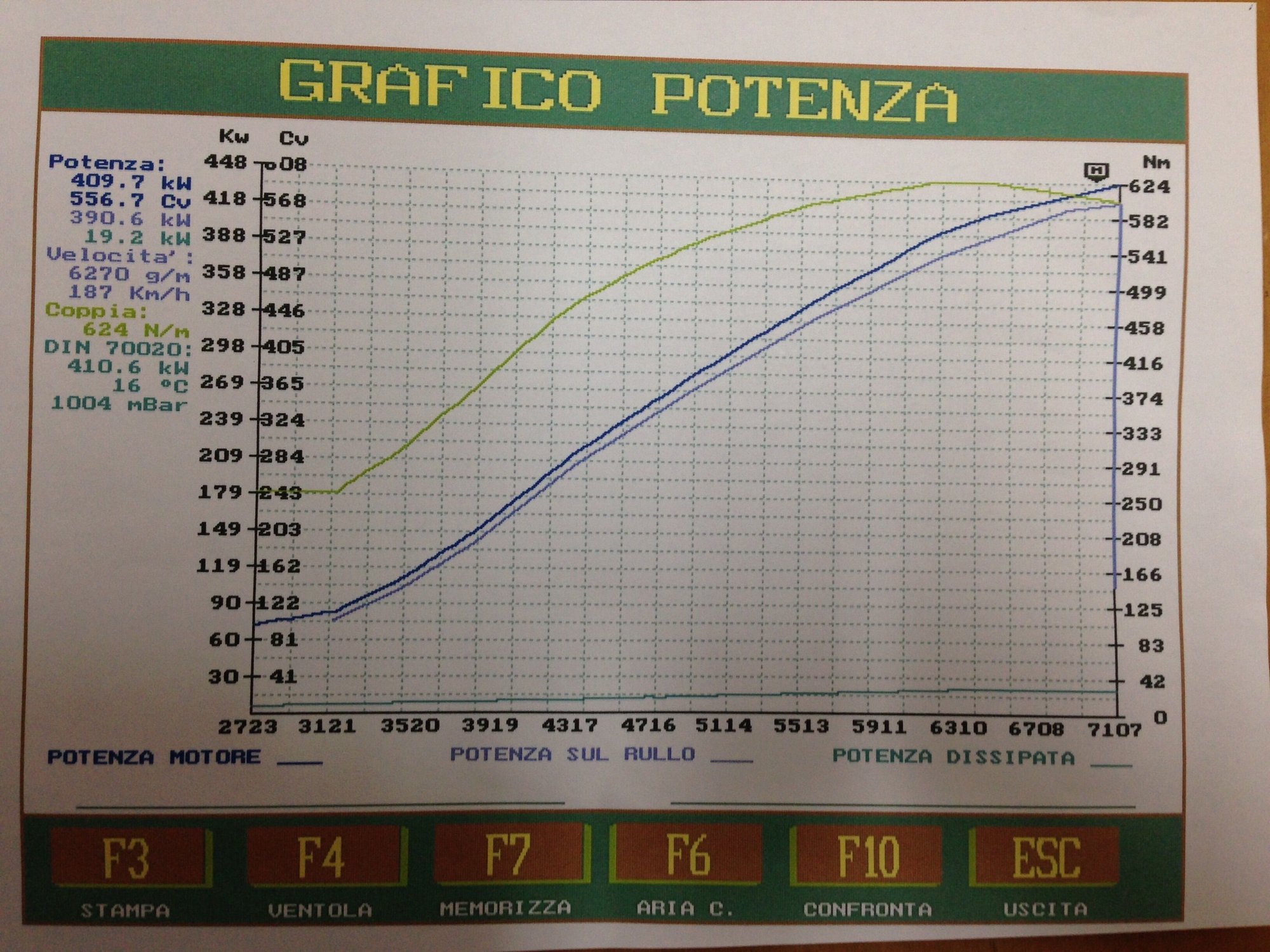

When in Rome... make 550 hp!

very nice build!

StreetRacerHCI

iTrader: (1)

Thanks mate

Now I need a new clutch or a new disc more powerful ! my ACT street /strip disk at 15/16 psi of boost, has been burned before doing 1,000 miles!
Lol hehehe!

HDA

iTrader: (2)

Bella incazzata zio, complimembri!

StreetRacerHCI

iTrader: (1)

Grazie hahah! Così incazzata che ho fuso la frizione che regge massimo 400cv

Thanks so much bro

HDA

iTrader: (2)

**** happens!

If you need an Italian contact to ship some **** to Trastevere hit me up

I just bought a 1993 RX7 and discovering all these insane builds, it will never stay stock! Ha!

Ciao,
Andre

StreetRacerHCI

iTrader: (1)

Thanks mate I really appreciate! If I'll need I'll tell you
Thanks so much And never stay stock! Hahah
