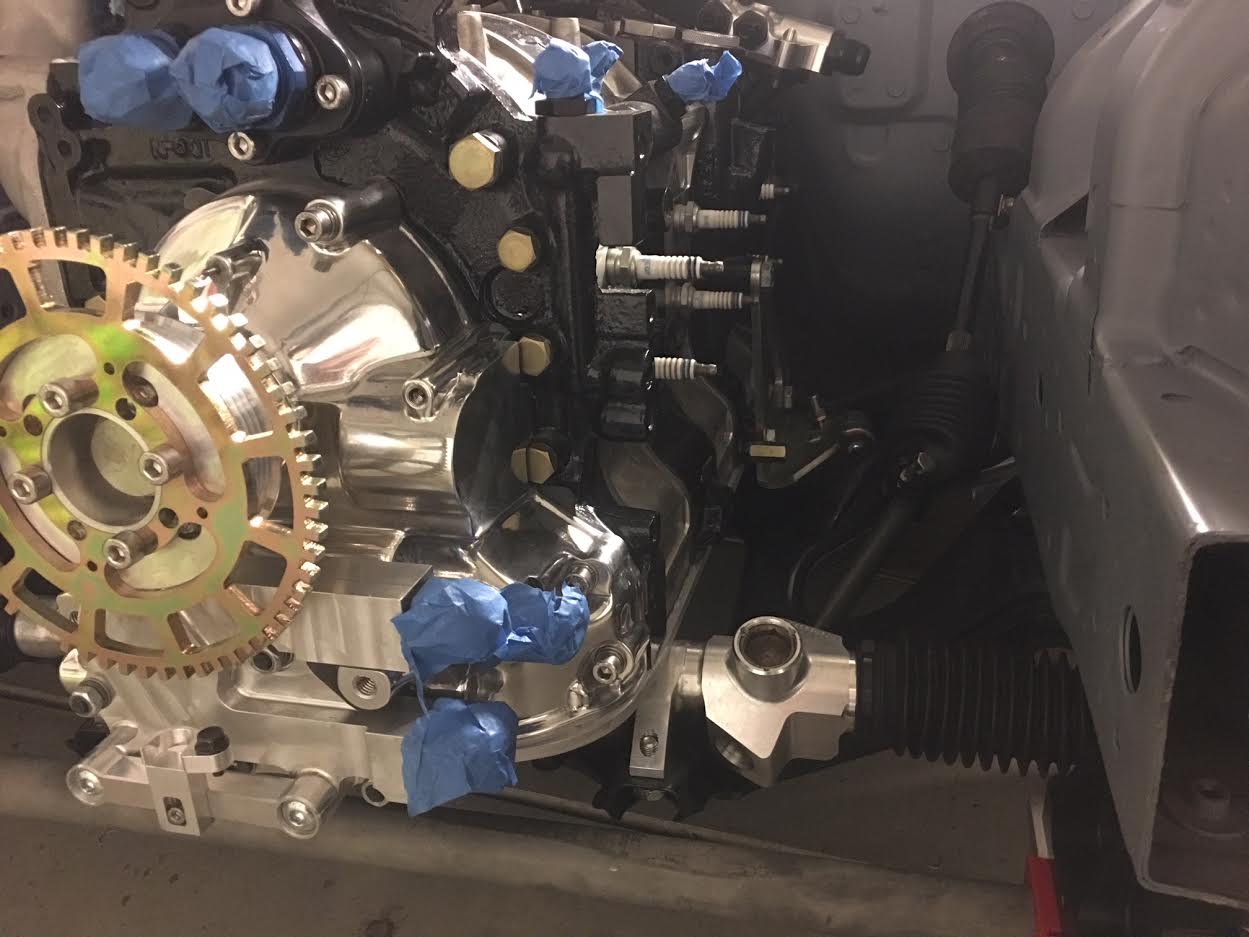

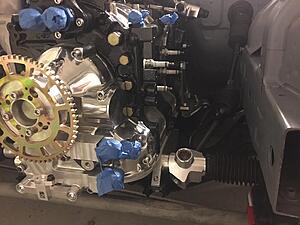

Correct, the whole clearance issue is because of the oil pan, and since I don't have one and the Xcessive motor mounts raise the engine high enough everything clears. Sharing pictures just in case it helps someone else out.



Looking good! Its always fun to see the cars that my parts go onto!



That 20B



Cleaned up the rear end.

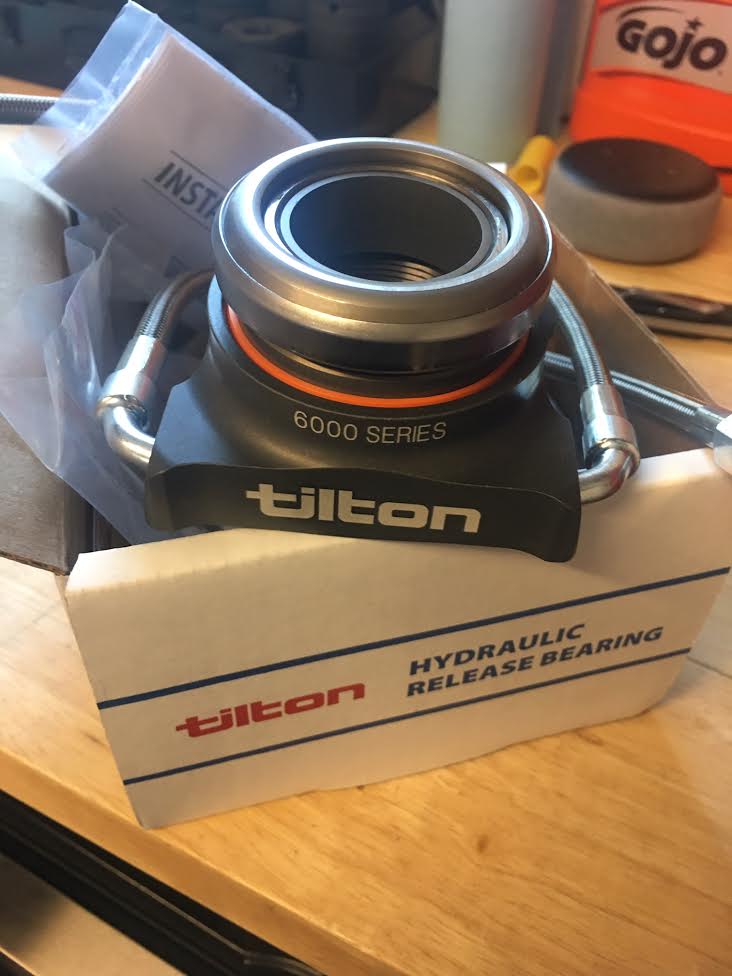

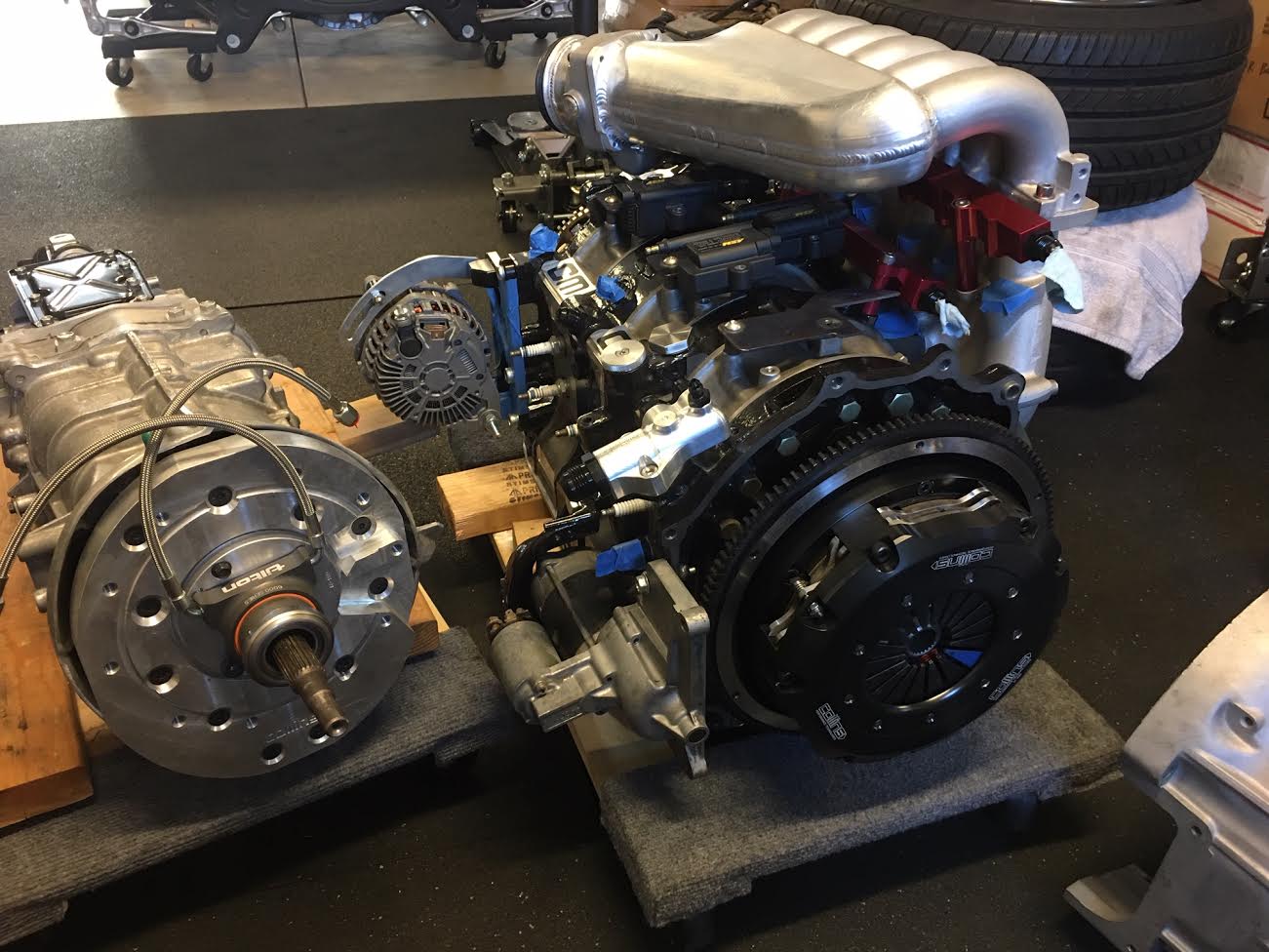

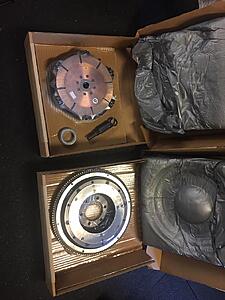

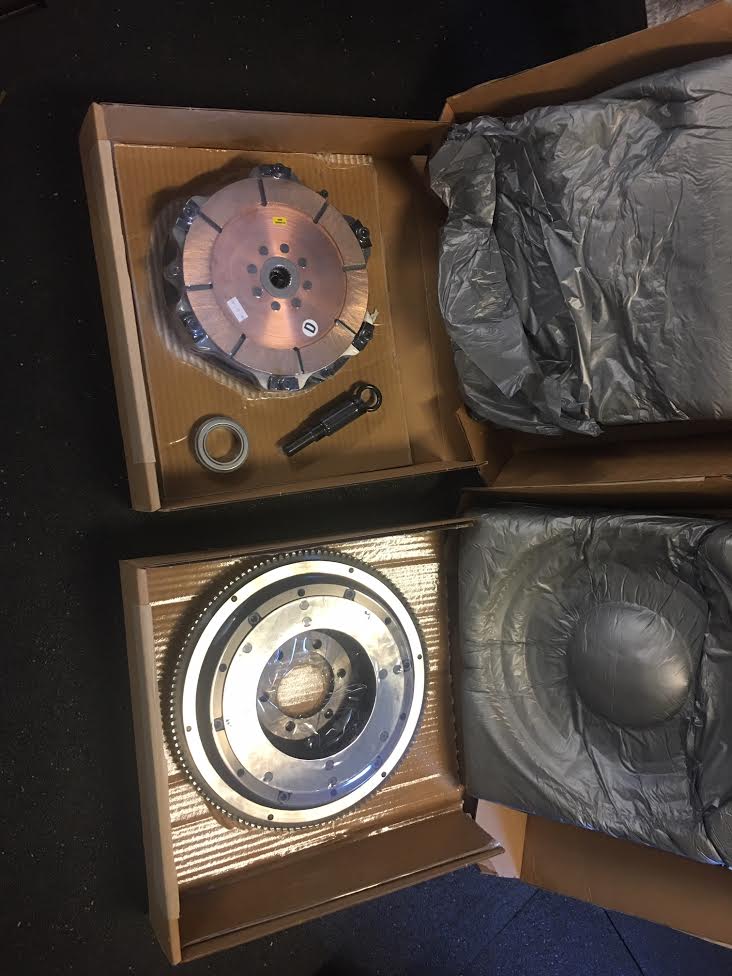

Installed new flywheel, clutch, and Tilton hydraulic release bearing for the CD009 HR 6-speed swap.

This project is still going. lmao



Nice. Which flywheel and couch did you go with?



It’s all a kit from Collins, but it’s their “Stage 6” kit. Ceramatallic twin-disc clutch, made to hold 1,100 lbftf of torque. I’m pretty sure ACT makes the clutch for him. Flywheel is steel. The single disc one I have from them was aluminum, but the stack height wouldn’t work with the twin-disc clutch.

Mazda Rotary 13B, 20B, 26B

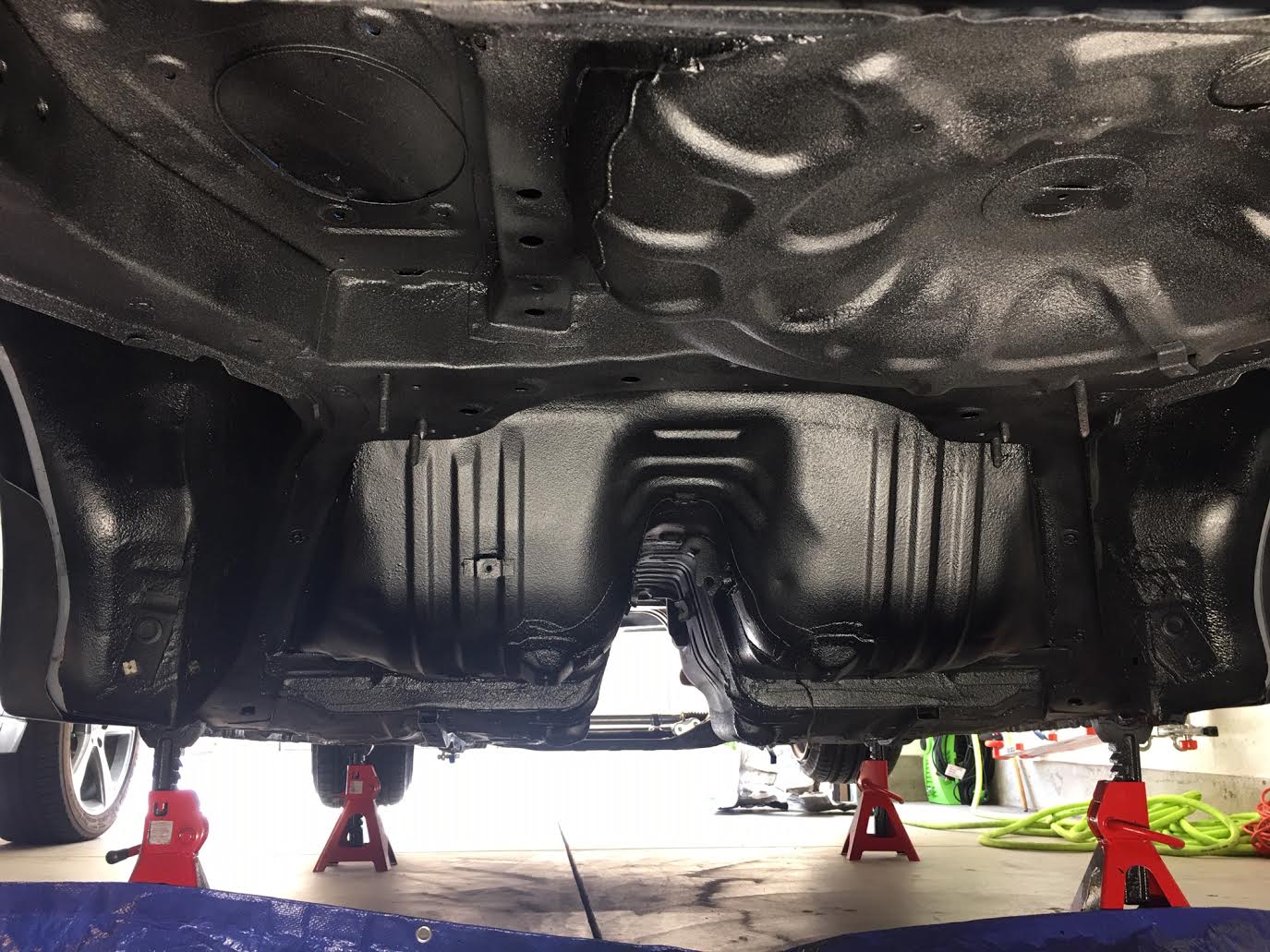

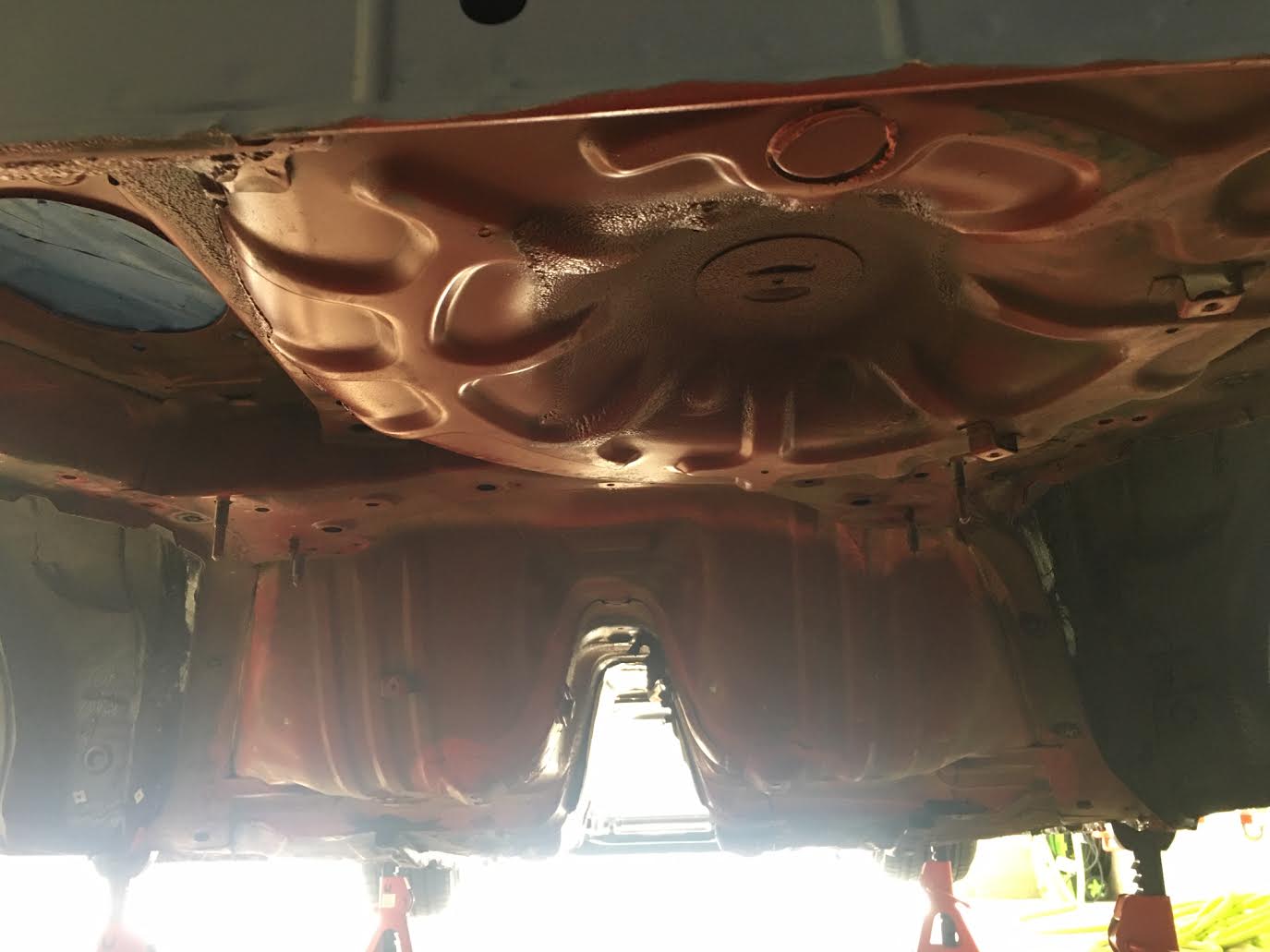

POR15 rubberized under coating. Fun times on jack stands.

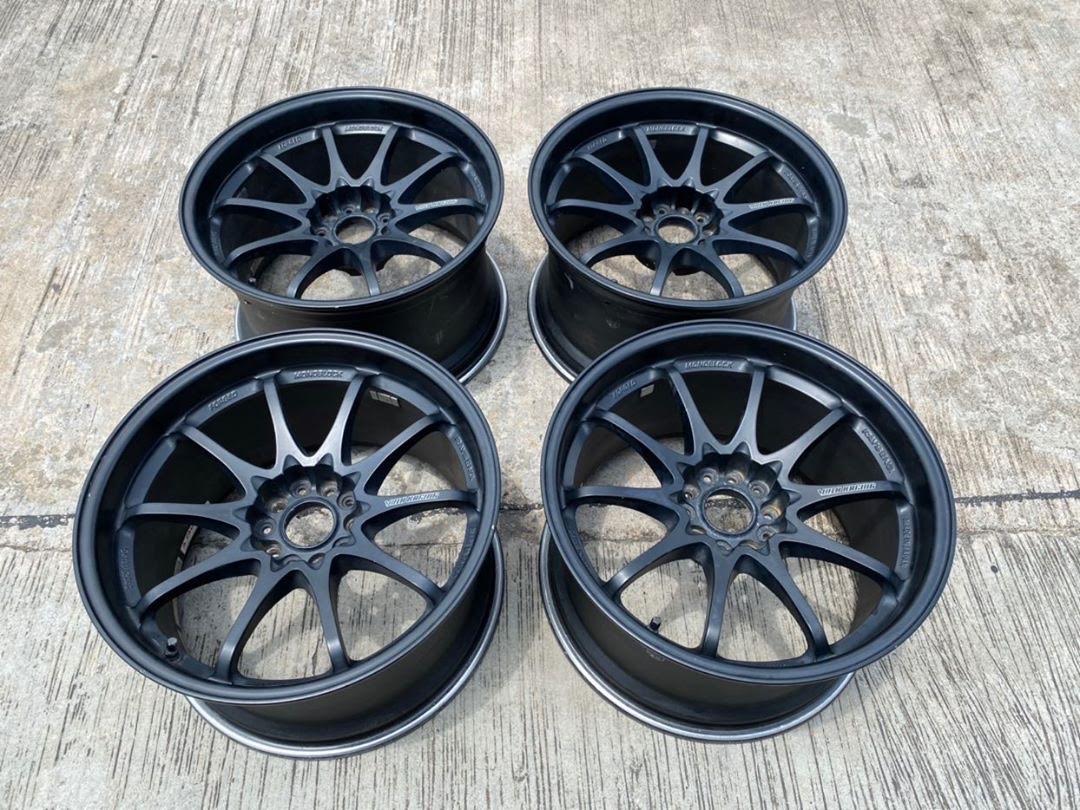

and..... bought another set of used wheels from "used.racingparts" on IG. Maybe one day I'll buy new wheels for myself, but I have a restoration addiction. lol

18x10.5 +18 square.



All of that sexy hardware looks awesome!



Posting updates on IG @whitexdevil_fd3s

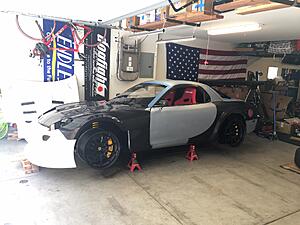

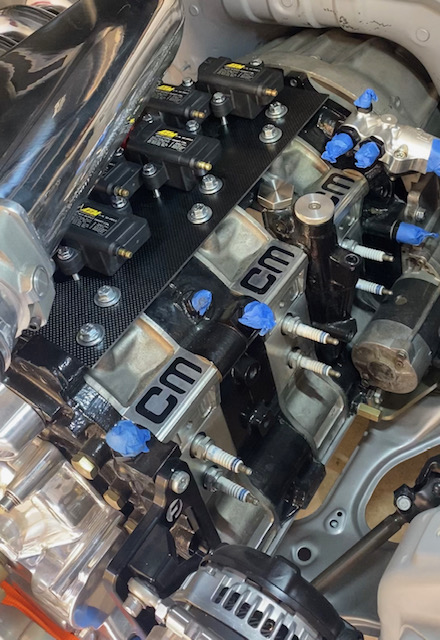

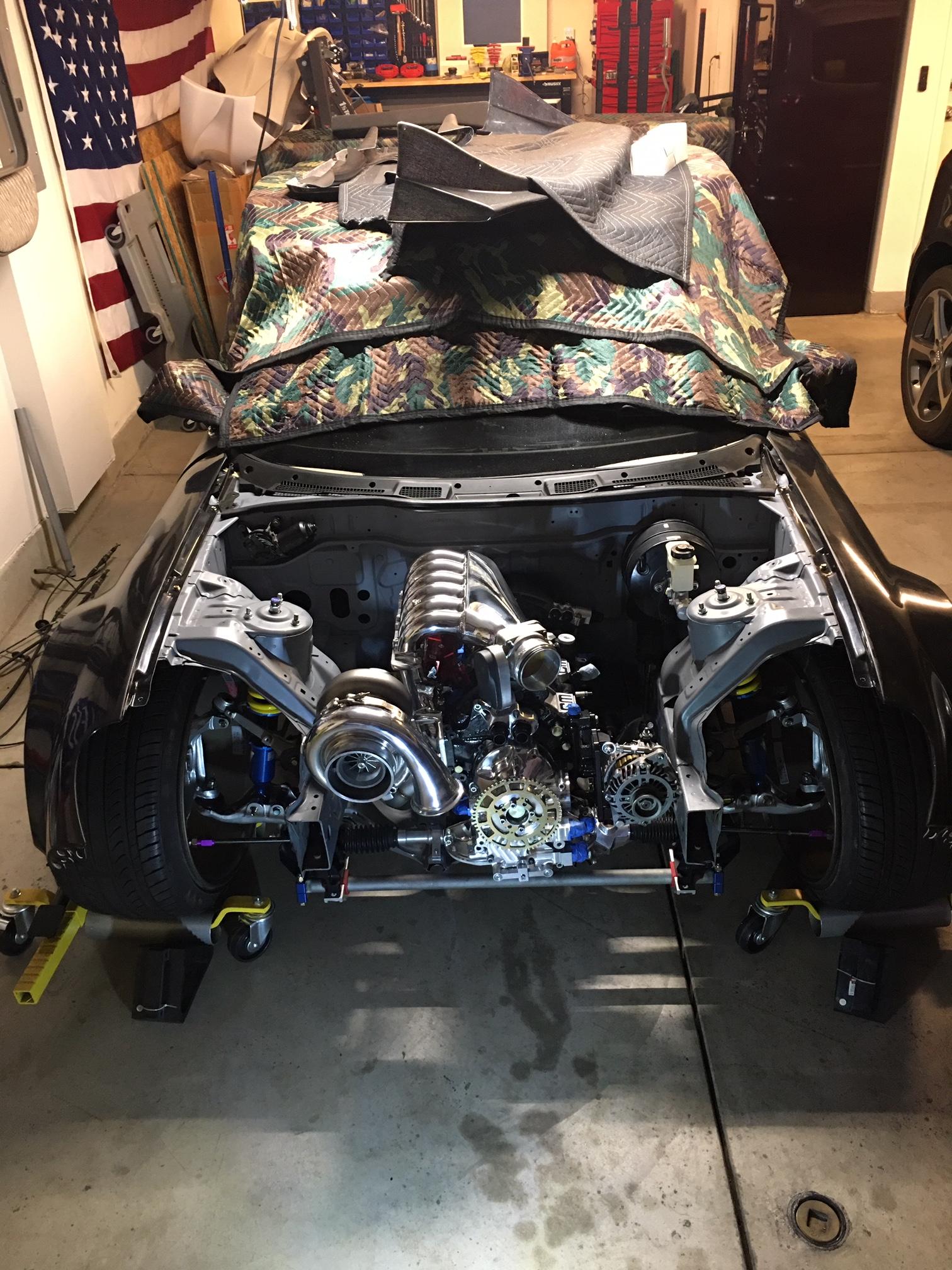

Big brake kit and engine/trans/turbo installed. Off to fabrication for a ton of stuff... intercooler piping, exhaust, swirl pot, catch can, intercooler end tanks, radiator, oil coolers etc...



Just spent the last 45 min. looking through the whole post. Just gave me some inspiration to go work on mine as I've been feeling beat up mine is about to roll on three years. Keep up the perseverance and look forward to seeing it all finished. We have pretty similar builds so I can absolutely empathize and appreciate the time, energy and money that has gone into this! Great job man!

Chris



That’s awesome man. Glad it could spark some energy. I didn’t know you had a 20b too. Get that thing running for sevenstock 2021!

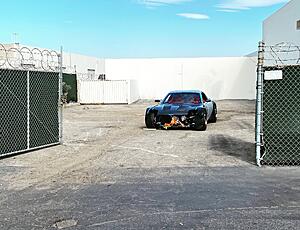

Out in the wild. Dropped her off to the fabricators to get some work done: Front tube, Intercooler piping, Radiator and intercooler end tanks, v-mount shrouding, tabs for headlights and hood pins, oil cooler mounting, turbo manifold, downpipe and mid pipe, 4 point roll bar, swirl pot, oil catch can, etc....

Also received my titanium catback exhuast from CSG in Japan. 5.4lbs



CSG exhaust looks pretty. In for installed pics. You bold to set it on the ground with no blanket! Looks like everything is coming together nice. Keep it going.

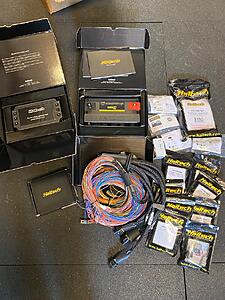

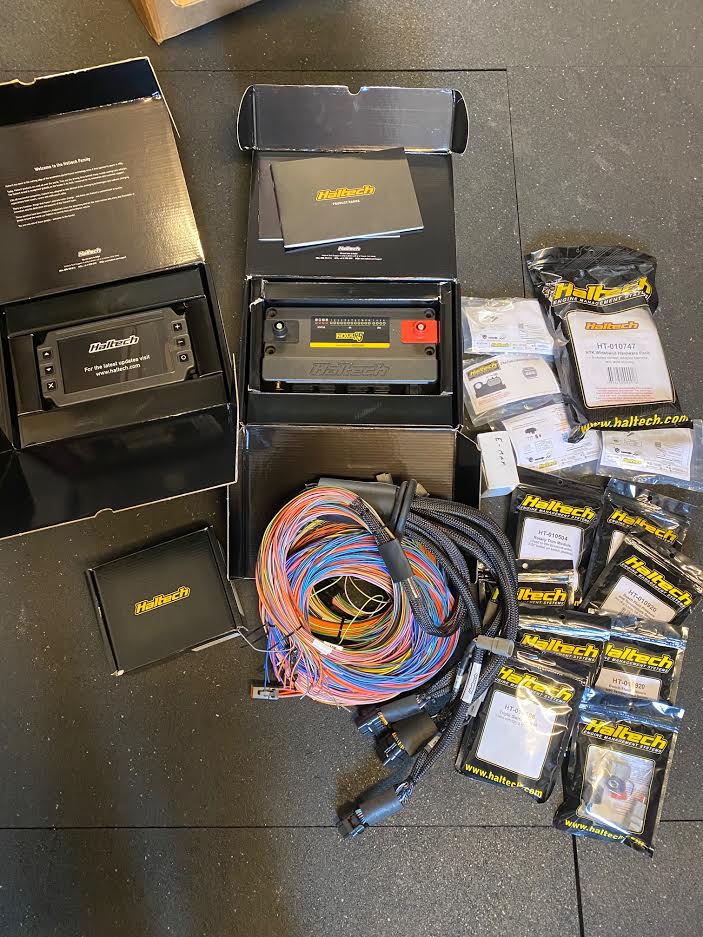

I guess electronics means I'm getting close to the end right? hah Figured I post here for nostalgia.

Haltech Nexus R5 VCU
Nexus 2.5m Wire-In Harness
Haltech iC-7 Display Dash
CAN Keypad 15 button (3x5)
2 x Haltech Integrated Fuel/Oil Pressure & Oil temperature Sensor Kit
Haltech Flex Fuel Composition Sensor Kit V2
2x Knock Sensor Euro Gold
2x RRR Elite rotary Knock Sensor Stud Kit
Haltech Rotary Triple Trim Modules with Panel
Haltech TC-4 - Quad Channel Thermocouple Kit Includes 4 x 1/4" Open TIP Thermocouples
Haltech Air Temp Sensor - Large Thread (inc Delphi plug & pins) 3/8 NPT 18TPI
Haltech Coolant Temp Sensor - Small Thread (inc Delphi plug & pins) M12 x 1.5
Haltech 4 Bar Motorsport MAP Sensor
Haltech Boost Control Solenoid 3 Port 1/8th NPT-
Haltech Wideband Hardware Pack (1 x NTK LZA08-H5 Sensor, 1 x HT-010727 - NTK to DTM-6 Harness, 1 x Weldable Bung)
RRR Stainless Steel Exhaust Back Pressure Sensor



Thanks for the update. I’m watching. lol



Interested on your approach on the Nexus and integrating on the FD.



I was absent from the forums for a long time. I'm glad to come back and still see this build happening. I love it when people take time with their builds and make no compromises. It is very unlike my car.
Very nice work.

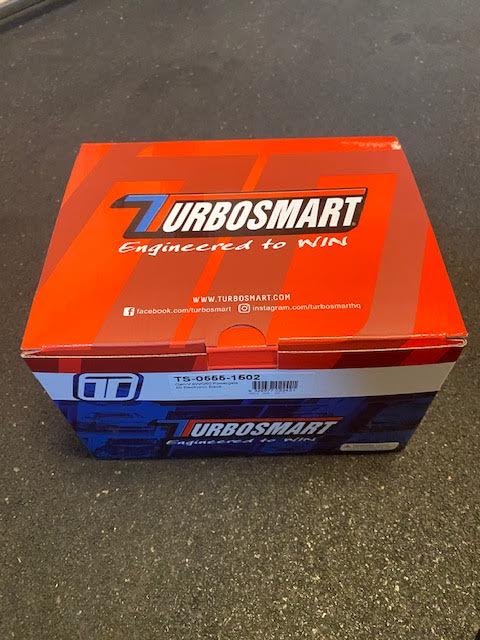

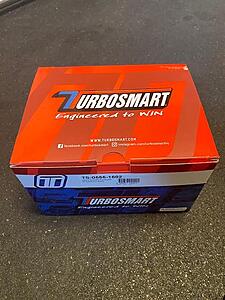

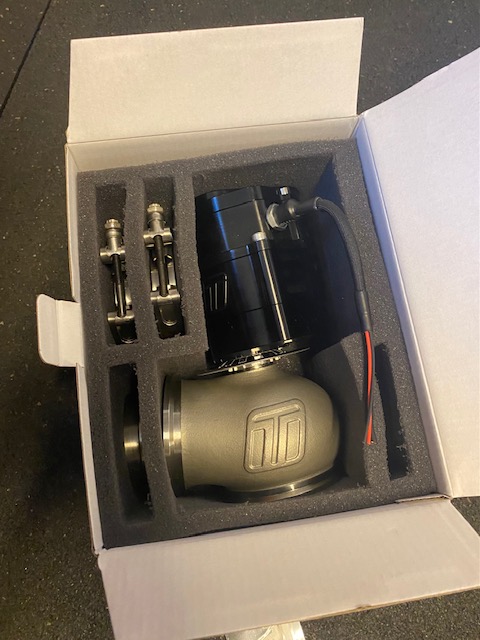

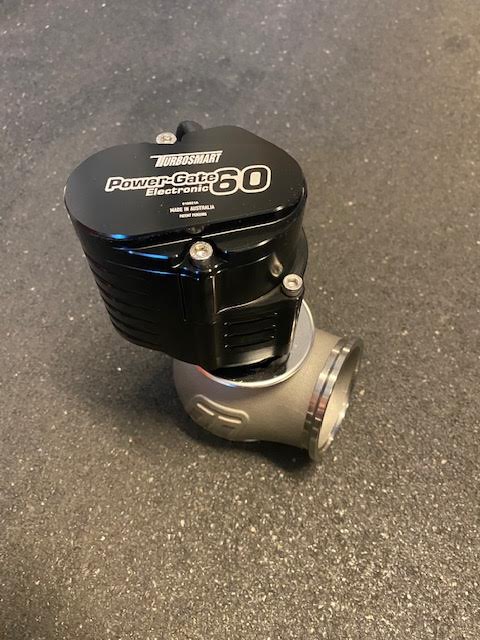

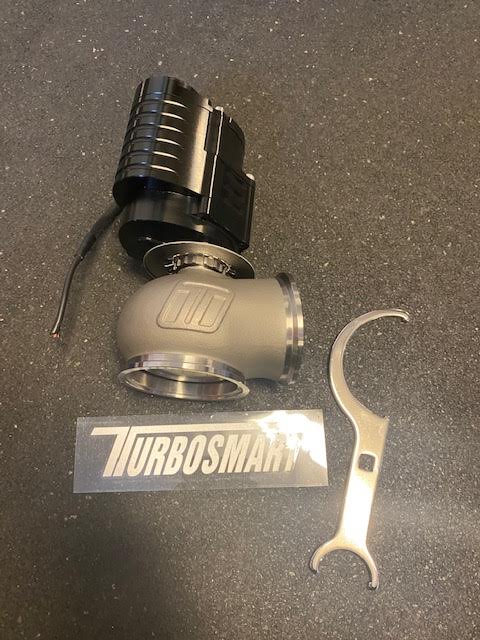

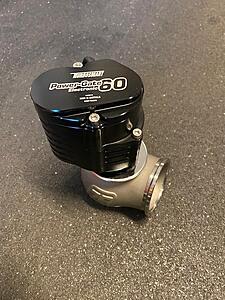

Turbosmart E-WG60 electronic wastegate. I ordered this back in July of 2020 and it's finally here. We shall see if it was worth the wait. No boost lines, no springs, I think it will be.

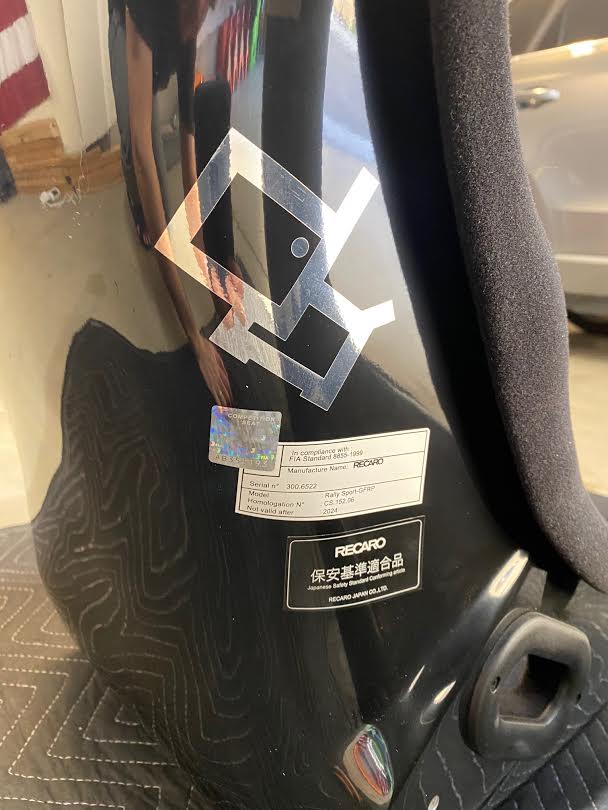

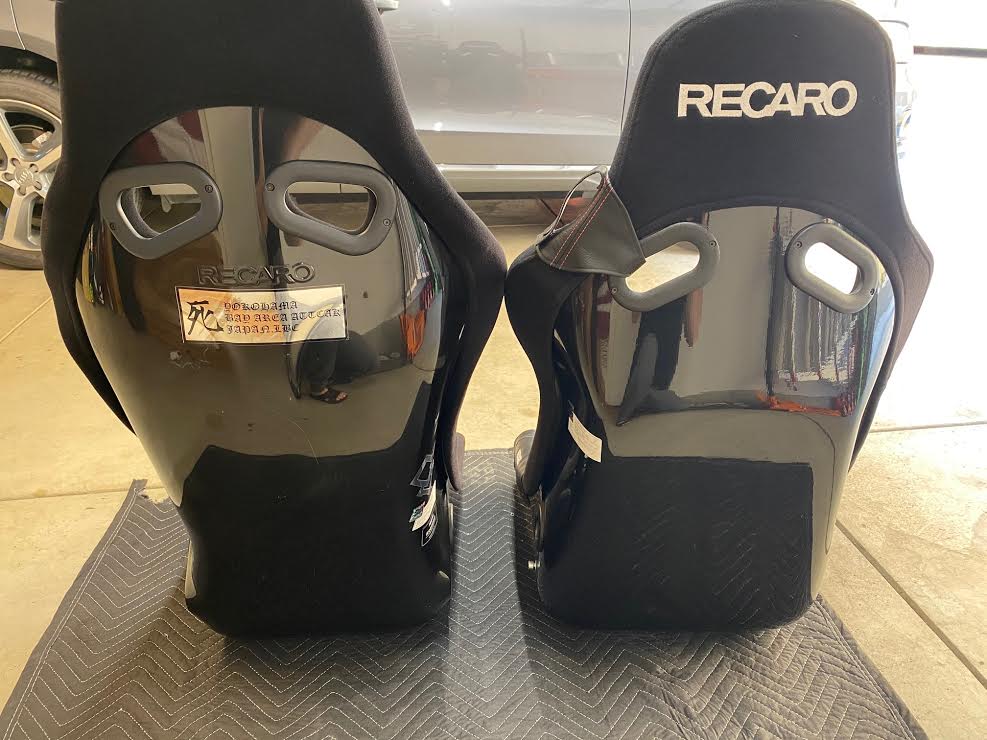

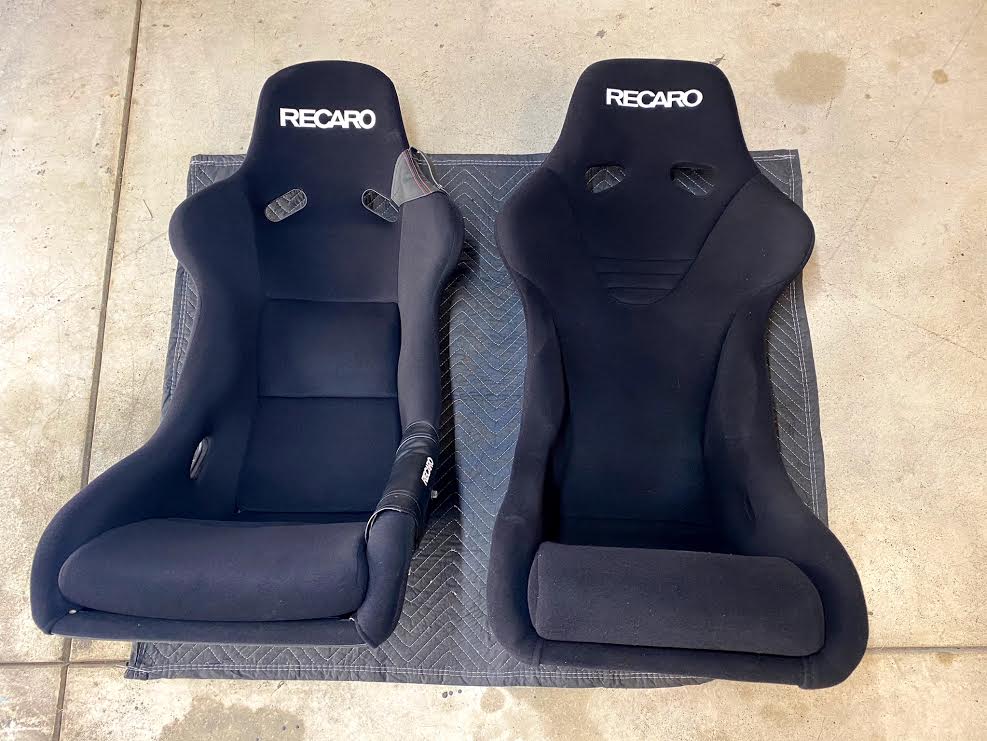

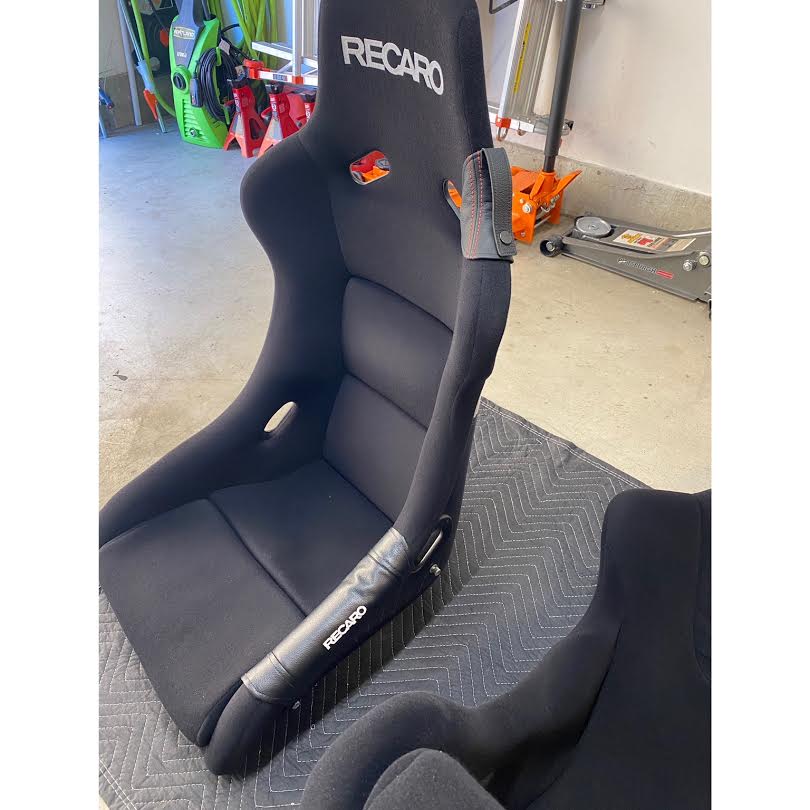

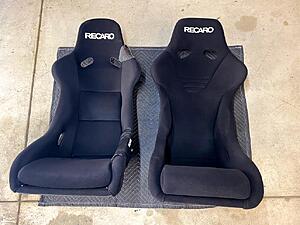

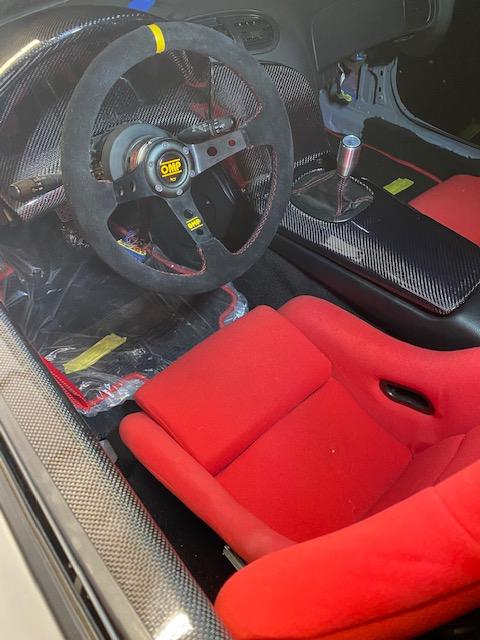

New seats that fit better. Recaro Pole Position and Recaro RS-GE

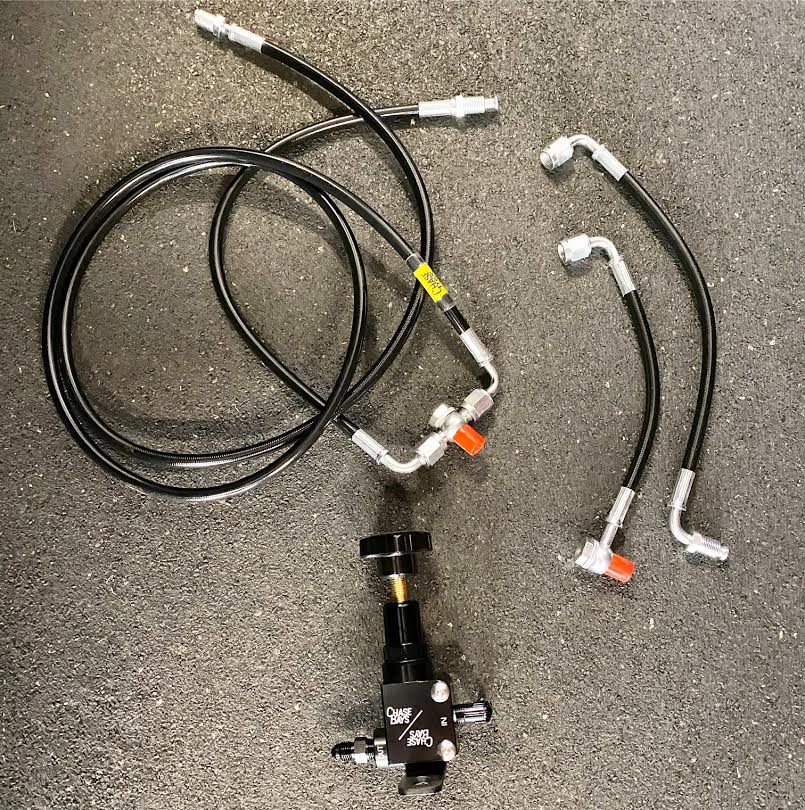

Chase Bays ABS delete/brake line relocation kit with adjustable bias valve.

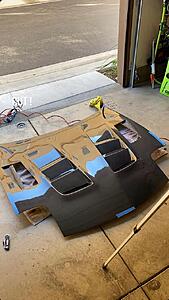

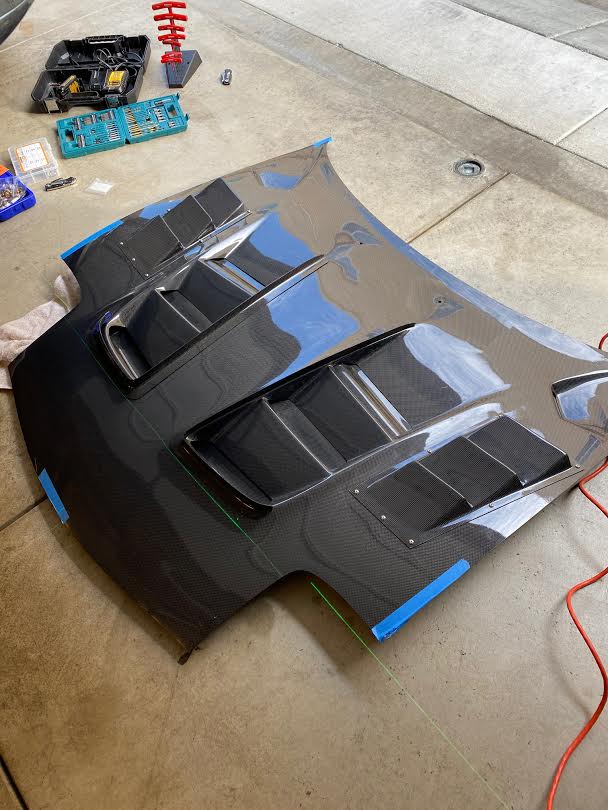

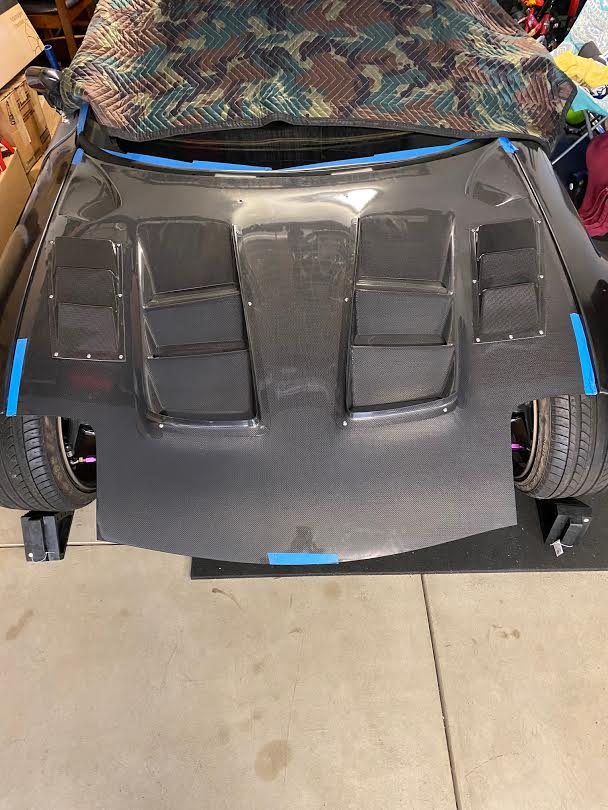

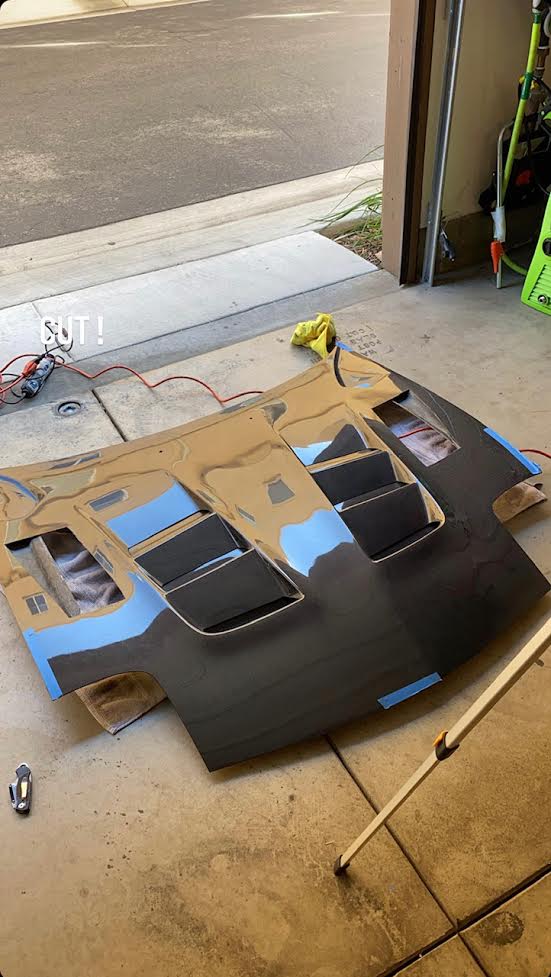

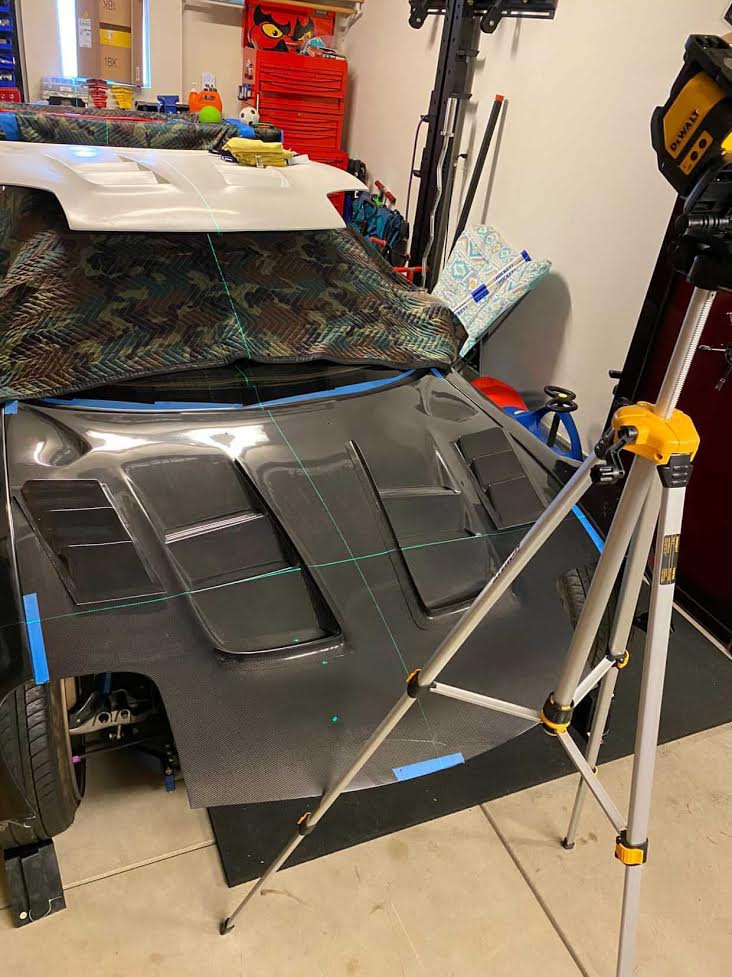

Ready Go Next hood vents and RE-A Gurney flaps installed. Still waiting on fab guy to free up to finish the front end.



Dropped the car off last August (2020) to a fabricator who did nothing for 7 months. Finally got the car and money I pre-paid back. I've lost all hope in the car industry, but to far into the build to not finish her.

Reached out to a few other fabricators and everyone's booked until September. Just sitting around and waiting now. Bought a few things to pretend there's progress.

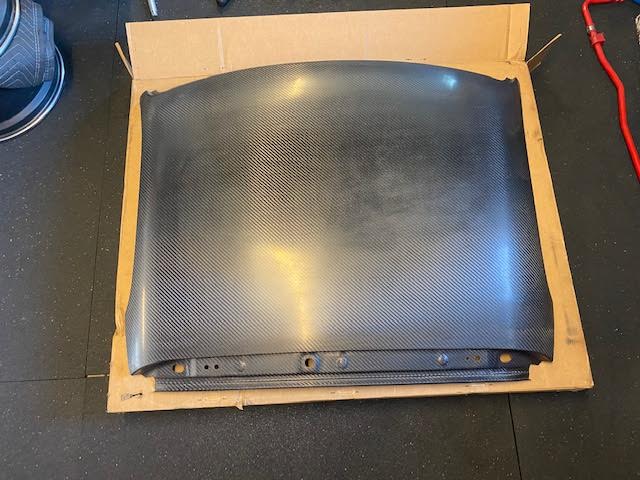

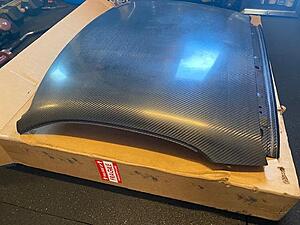

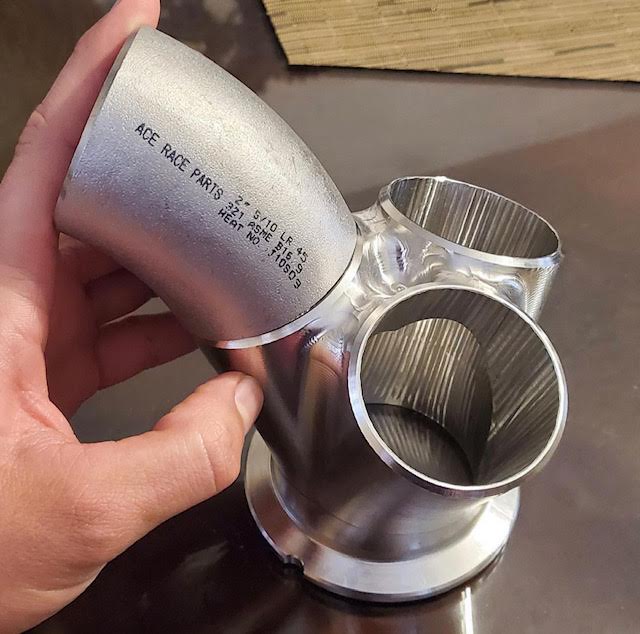

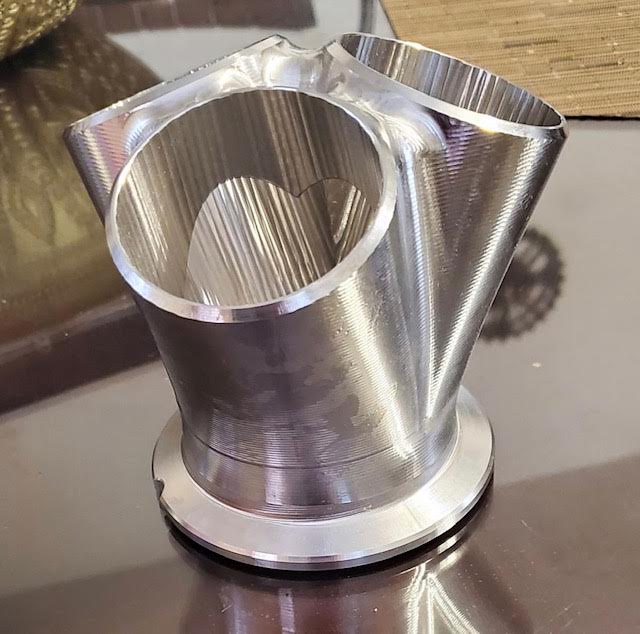

Marsh Composites dry carbon roof and a billet collector from a company in the EU.
