More progress made, harness is almost done.... probably be at the shop tomorrow night to fit the ECU and make one last check on the harness fitment before completely terminating and sealing it.
Then I still need to do all the power distributions, rewire the WM pump, fuel pump, install aux fuses, mount coils, build coil wires, mount trim switch, build puke tank.... what else am I forgetting?
Then I still need to do all the power distributions, rewire the WM pump, fuel pump, install aux fuses, mount coils, build coil wires, mount trim switch, build puke tank.... what else am I forgetting?
11-02-16, 02:48 PM
#159
NOT a Junior Member
Join Date: Mar 2011
Location: In my shop
Posts: 46
Likes: 0
Received 0 Likes
on
0 Posts
I'm trying to figure it out actually.....Gotta be careful when in Palm Springs though.....
11-14-16, 09:13 AM
#162
NOT a Junior Member
Join Date: Mar 2011
Location: In my shop
Posts: 46
Likes: 0
Received 0 Likes
on
0 Posts
Soooooooooooo with two weeks left until this beautiful girl is on a transport heading to the left coast I got some more work done over the weekend. Not as much as I would've wanted because it was my Brides bday and there was an emergency vet visit on Saturday but nonetheless, I fabricated my *** off on Saturday and got alot of **** done.
I'm a big proponent of having the coils on the engine for a variety of reasons. I've been running these AEM coils on my own FC for YEARS now and have never had an issue with them being under the mani's. I've done a number of cars like this and they all are fine. Plus it neatens up the bay, plus the wires are shorter, plus the harness is easier to build/install etc etc etc. I just prefer it. Anyway, it's really super tight in the REW UIM because of a few of the solenoids, luckily I was able to cut the housing off the mani to make it fit and then just weld the holes shut.

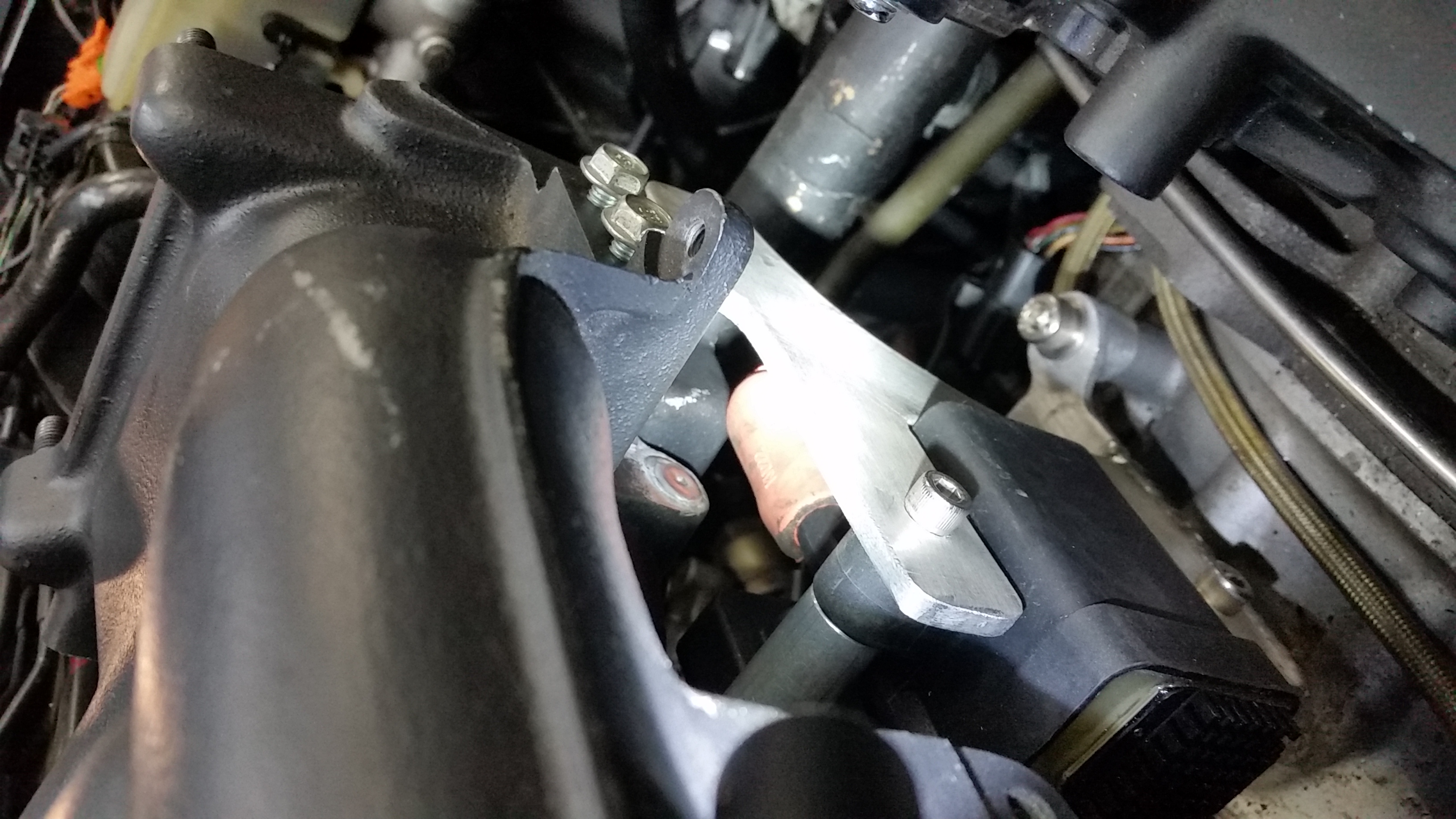

The basic plate for mounting the QuickSilver Coils

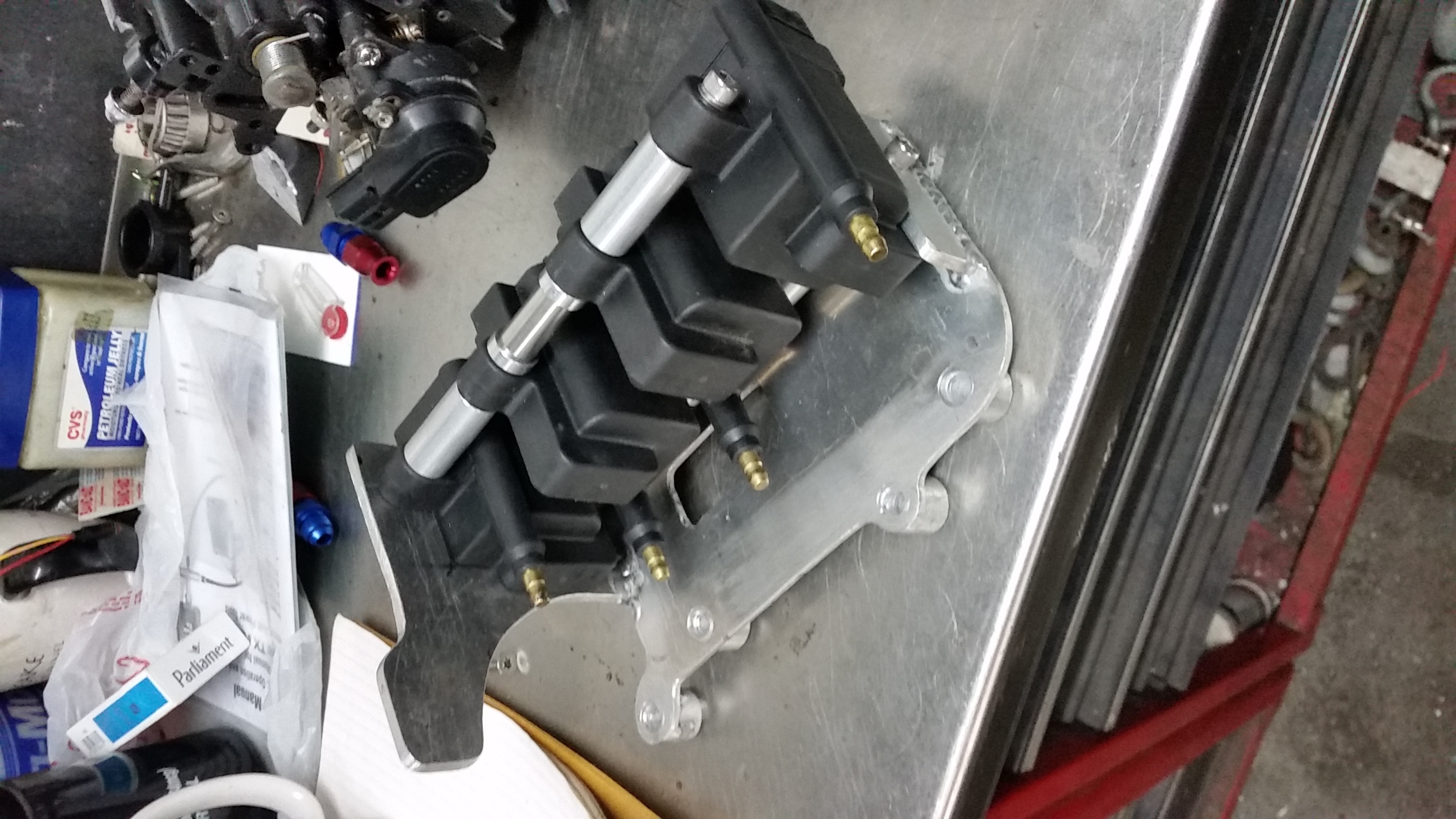

The stainless "spacer" in the center isn't actually a spacer, it's threaded so the 1/4-20 bolts bind everything together. Neat little setup.

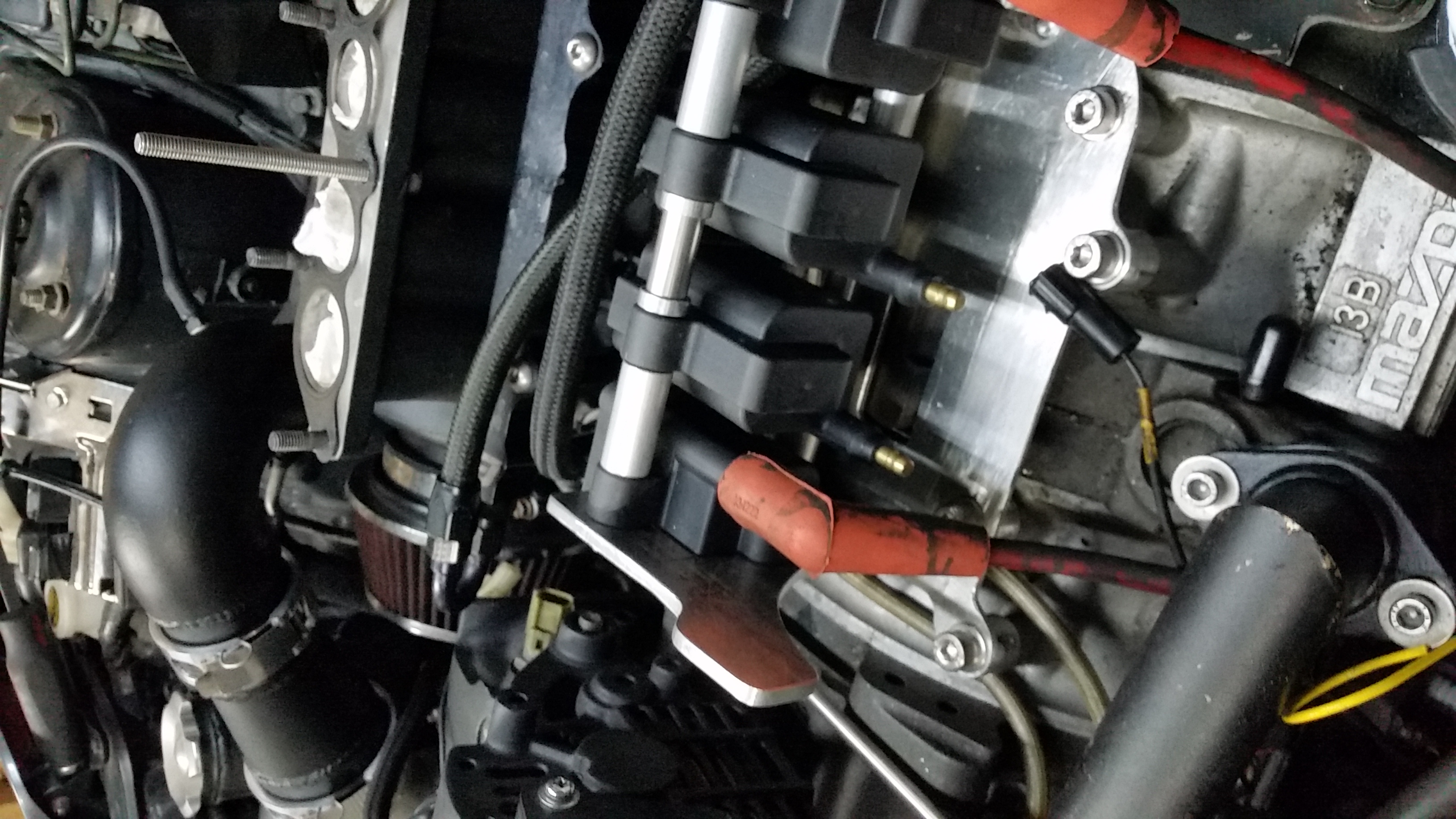

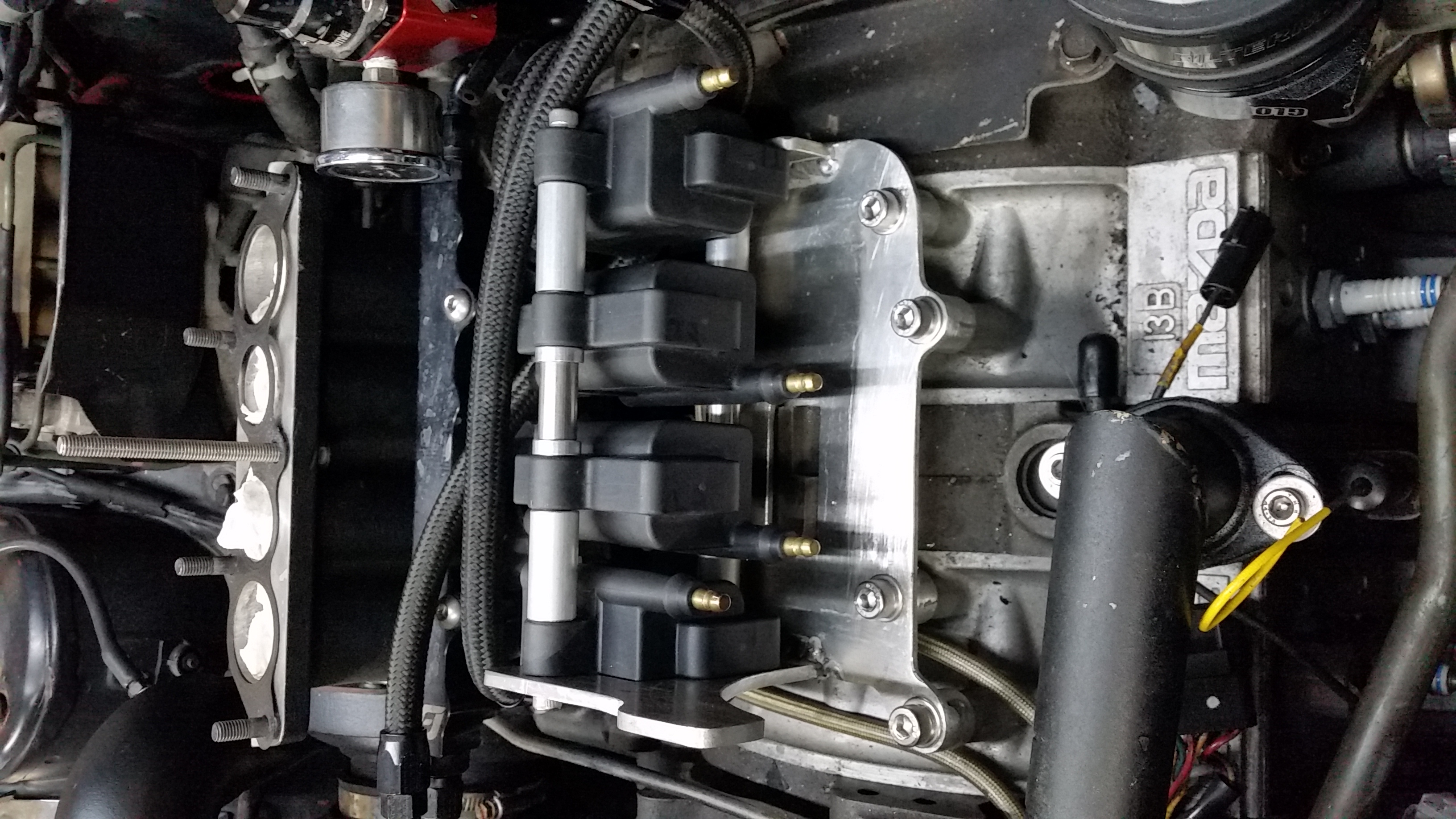

Mounted on the engine. I do need to redo the fuel lines though. Sorry man, will be making an order with Summit today for a few fitting and I totally went duh and forgot to get the parts for the sparkplug wires. Duh!!!! Those went with you and the SakeBomb kit
Old wires from my RX8, also running the same Quicksilver coils, just to get an idea of how everything will fit when I'm done building the new wires. They'll be run like the factory. Trailing on the outer, Leading on the inner. No waste spark here, all Direct Fire baby!

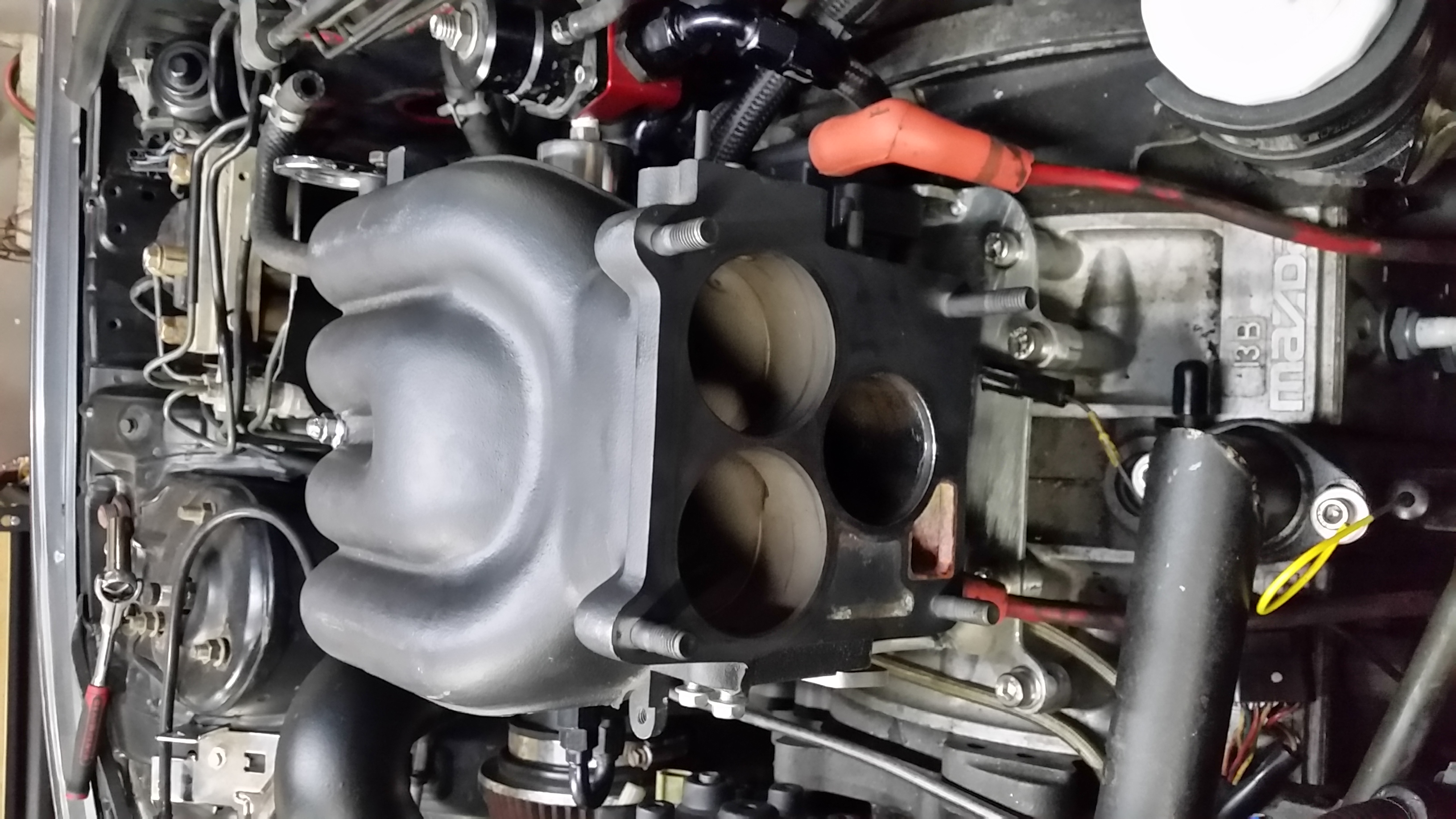

Tough angle but the UIM isn't actually hitting. You can see where I pulled out a few unneeded nipples and welded the holes shut. No one likes a boost leak or a vac cap that blows off or just splits. Running 26+ psi you tend to just make all that **** easier on yourself
Yup..... coming together nicely
I'm a big proponent of having the coils on the engine for a variety of reasons. I've been running these AEM coils on my own FC for YEARS now and have never had an issue with them being under the mani's. I've done a number of cars like this and they all are fine. Plus it neatens up the bay, plus the wires are shorter, plus the harness is easier to build/install etc etc etc. I just prefer it. Anyway, it's really super tight in the REW UIM because of a few of the solenoids, luckily I was able to cut the housing off the mani to make it fit and then just weld the holes shut.
The basic plate for mounting the QuickSilver Coils
The stainless "spacer" in the center isn't actually a spacer, it's threaded so the 1/4-20 bolts bind everything together. Neat little setup.
Mounted on the engine. I do need to redo the fuel lines though. Sorry man, will be making an order with Summit today for a few fitting and I totally went duh and forgot to get the parts for the sparkplug wires. Duh!!!! Those went with you and the SakeBomb kit
Old wires from my RX8, also running the same Quicksilver coils, just to get an idea of how everything will fit when I'm done building the new wires. They'll be run like the factory. Trailing on the outer, Leading on the inner. No waste spark here, all Direct Fire baby!
Tough angle but the UIM isn't actually hitting. You can see where I pulled out a few unneeded nipples and welded the holes shut. No one likes a boost leak or a vac cap that blows off or just splits. Running 26+ psi you tend to just make all that **** easier on yourself
Yup..... coming together nicely
11-14-16, 09:20 AM
#163
NOT a Junior Member
Join Date: Mar 2011
Location: In my shop
Posts: 46
Likes: 0
Received 0 Likes
on
0 Posts

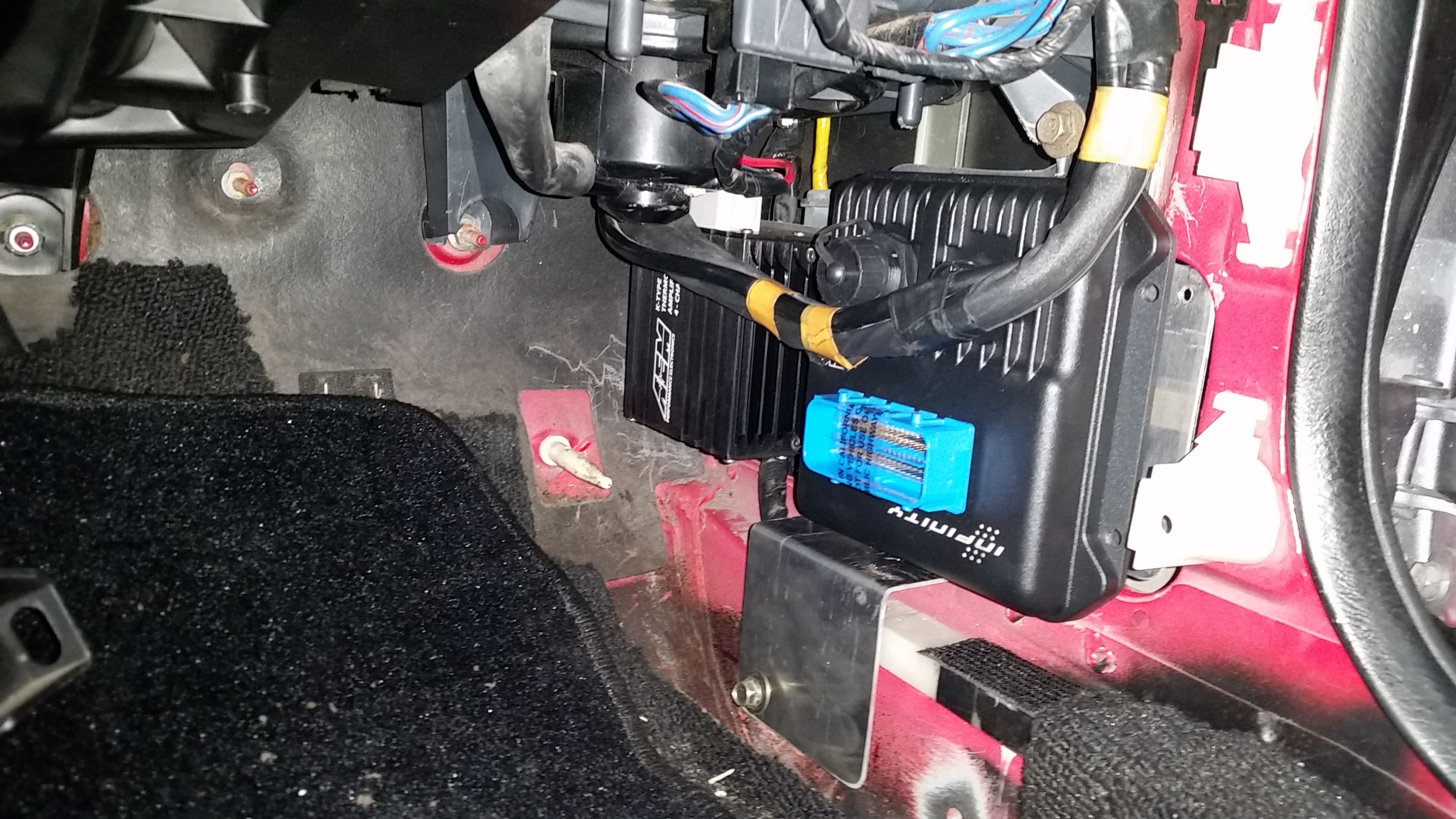

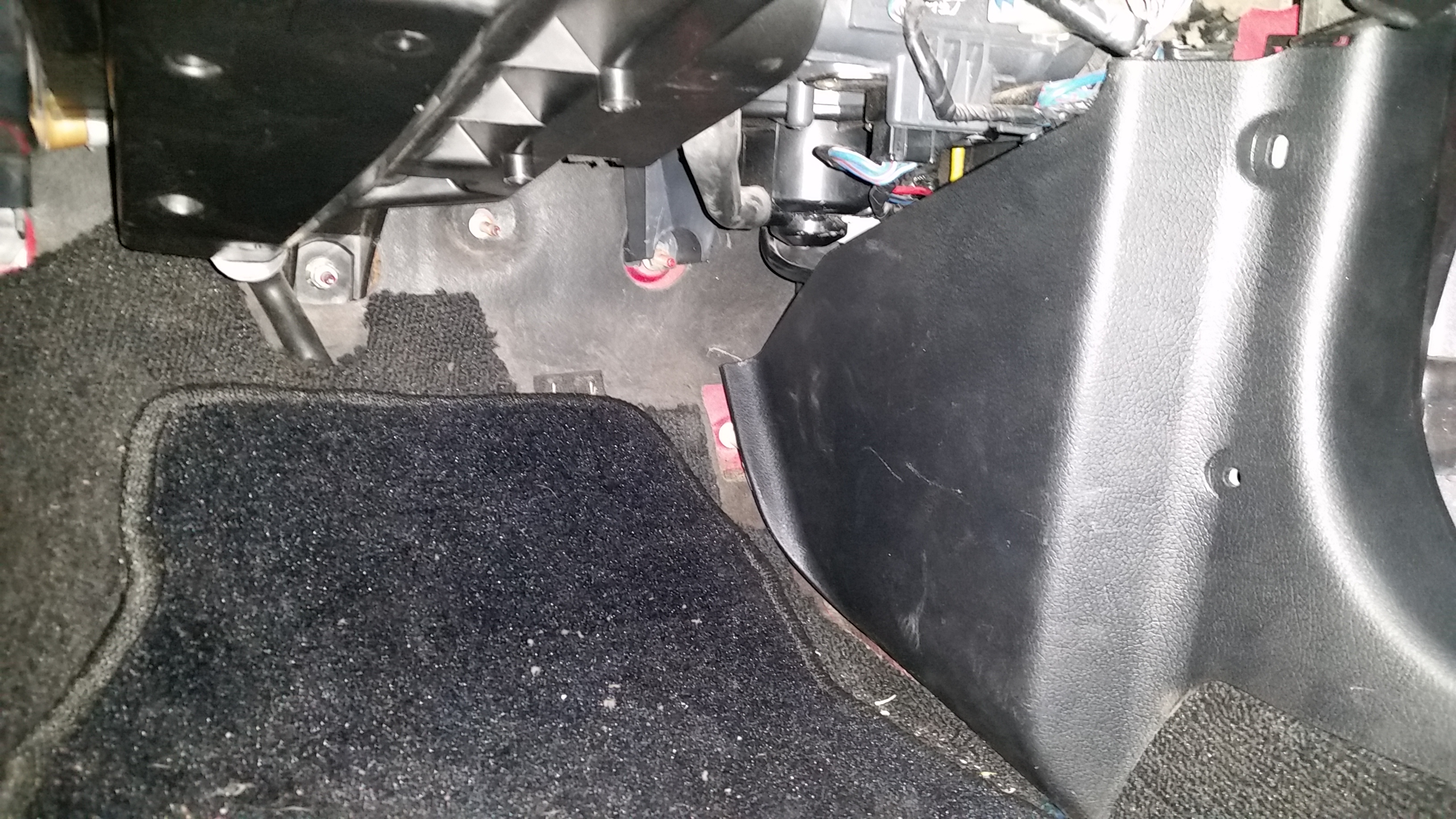

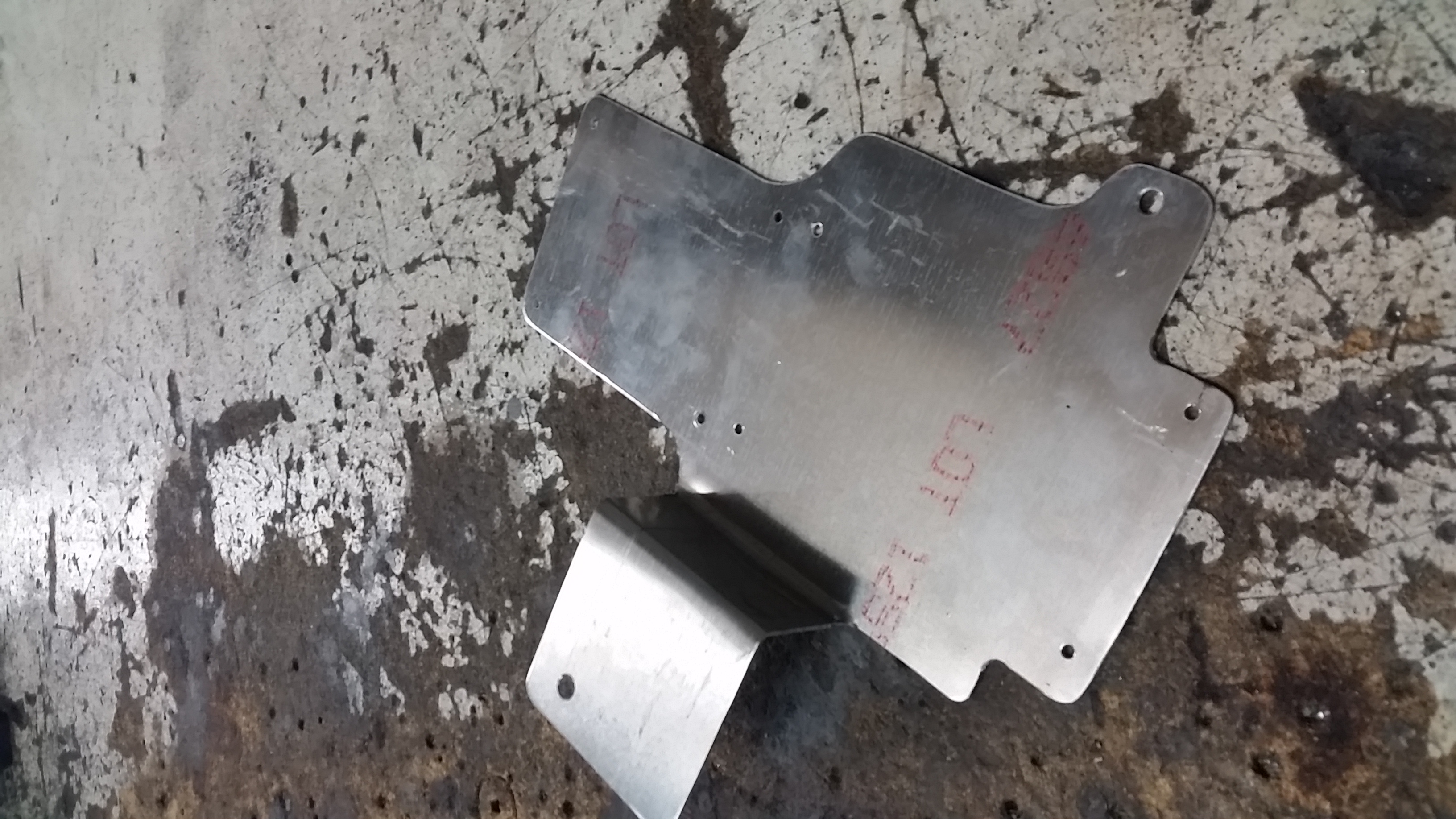

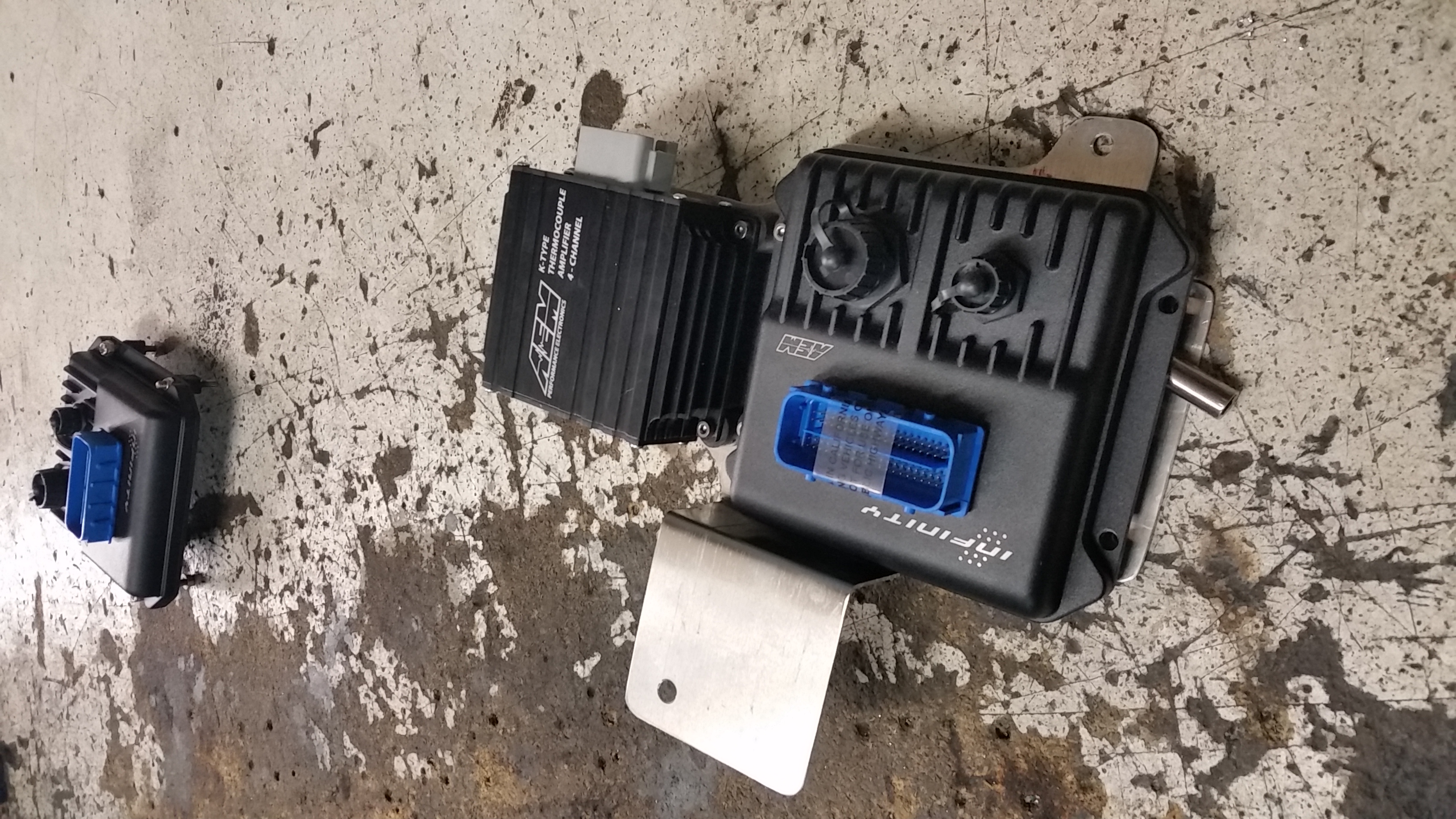

Next was mounting the ECU. I already had a good idea as it's not the first time... Although this time we're adding the TCA so I had to accomdate that as well. Not bad, M4 vibration sandwich mounts on the TCA, need to order some M5 vibration isolators for the ECU. Even with the ECU connector, everything fits perfectly! Love it, now to get it in there for the last time
