does any one know if IC piping is measured by ID or OD? also anyone know the piping size for the greddy FMIC? its 2.75 right?



Sorry for the blurry pic, but I'm pretty sure its measured in OD


And I'm pretty sure the greddy intercooler kit is 2.75", thats what the greddy elbow is anyways.



Thanks, can anyone confirm that the radiator hose is 1.5" as well? thanks!

ps 90% done with the VMIC, i cut the endtank openings off on saturday and im working on the angle/placement for them before welding them. im super excited to see how it performs. i think the placement looks awesome as the IC fills the whole engine bay top, the rad and IC meet almost perfectly, and ive reduced the greddy FMIC 4 piece piping to one piece cut up into two smaller pieces! im hoping i will see quicker boost response! now i need to shape the endtank pipe inlet/out to flow smoothly back into the core then weld it, get a 135* coupler for the IC to turbo, and some pipe/couplers/clamps to hook the rad back up.



wait, did you try to sand off powder coat?
you know that you should have used liquid stripper that is meant to take up powder coat quickly.
good build so far though!

Lloyd



Very nice! i'm on hold till my motors done say 3 or 4 weeks. But I just realized I won't be making it to Seven stock this year.. AGAIN!! pfft!!



yep. the stripper specifically for powdercoating is expensive and the smallest size it came in was 5 gallons and i have to order it from like washington? do you have any suggestions on brand? i might just use aircraft stripper, but last time it didnt work too well...

womp womp, motors coming back wednesday wahooo



hahah absolutely gordon, i have a few things in the works, if i get them done in time i will be donating them for the event



Lol sorry ben, it wasn't much of an option more of an informative memo about the rules around here; happy Intercooler paintings!



Lazy so no pics. Been porting/polishing my manifolds etc. picked up my motor from KDR (speed1) today. just ordered some couplers/aluminum piping for the rad/IC set up.

tomorrow hopefully i can tackle rerouting the FPR and get the appropriate fittings, finish tucking misc wires behind UIM, reroute brake booster line, and pull the motor!



UGh what a bloody PITA day. im getting rusty as hell. barely remember how to wrench on a damn 7. today it took me over an HOUR to detach the damn motor. and by detach i mean ONLY detach motor from trans. UGH. first checked the clutch ring thingy. check. bolts off, check. pull. no go wtf? tried that for about 45 minutes then realized the clutch thing needs to be PUSHED in not pulled out. what and idiot.

30minutes later...........
wtf. cant push it in.. am i retarted? did i break something? no.

5minutes later.......
removed slave cylinder.

2seconds later...
pop..

3 minutes later..
engine out

suchhhhhhhhhhhh a fail

motors out, started "shaving" the bay and already feel like giving up. im pretty much only doing the sides where the struts are since everything else wont be in sight...

porting has been on hold as i ordered better bits for the die grinder.

pics@!!!!
first time its moved from that spot since november!!! pushed out to bring the hoiste in and out goes the engine!




bye bye pos ghetto built stock port motor!

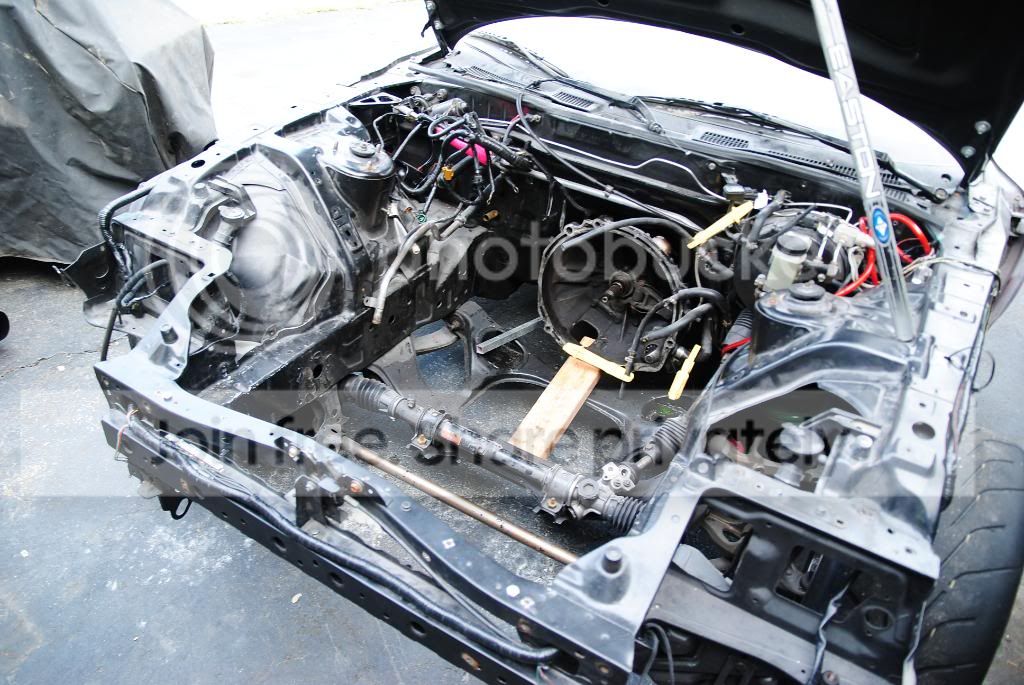

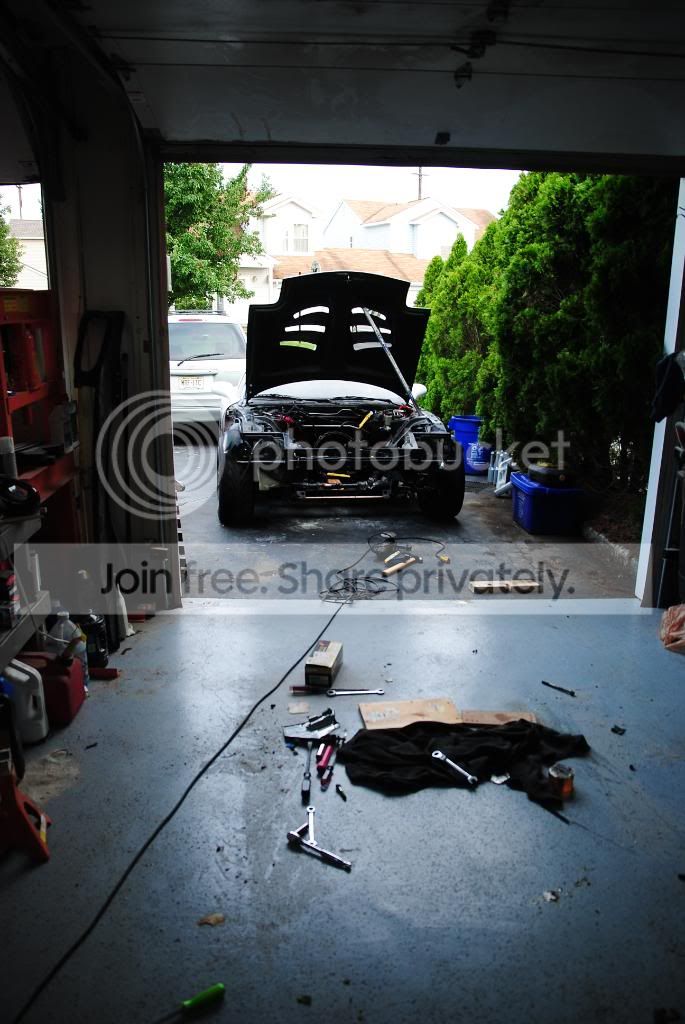

engine out, car out of garage! first time its seen day light since november.

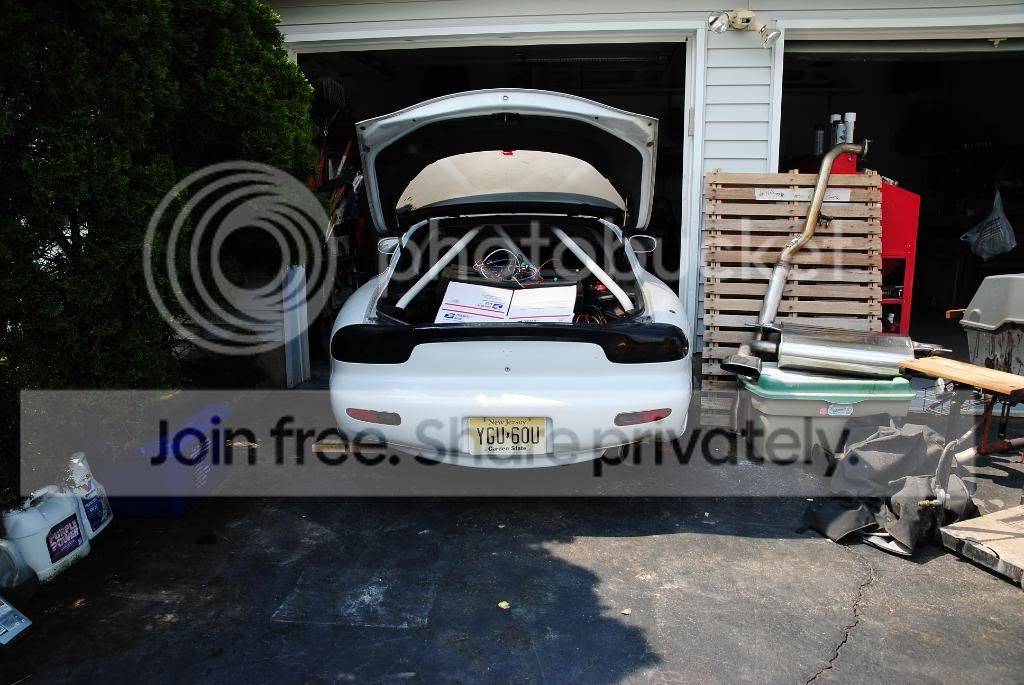

real motors still in the back of the van... will get a engine stand tomorrow and take it out of the trunk...



You have the same bolt in roll-bar that came in the car I bought. Can I ask who makes it?



kirkkk



looking good man... your moving a lot faster than I am and all I am doing is putting in a single turbo. lol. hope it all goes smoothly dude! and you got the hood I want! I am going to need to steal that from you! lol



hahaha cuz i dont have a job so i have 6+ hour days to dedicate to this gay 7 lol..

hood is a chaser hood.. fitment is eh. you dont really want to steal it lol



well, in that case, you could just send the pieces to a powder coating place and have them strip it for you, not that expensive. it all depends on your area. there are like 4 places within 30 minutes of my house that do that stuff, so its easy for me to get a hold of.
but yes, the smallest you can buy is 5 gallons, which is fine, cause you just pour it into a suitable container and soak the parts, pull them out, VOILA! clean parts
but man, i cant imagine how much time it took to sand those pieces..........

Lloyd



well im not sanding all of them.. for those that nee retouch up im just sanding it down to a to clean em up and ill just hit it with another layer on top...

only the UIM is getting stripped. it didnt take TOO long with a paint stripper attachment but i havent gotten to the tight spots yet =/



Damn you took my water pump housing idea!! Oh well guess I will be the copy cat now lol.

Loving the work bro keep it up!



hahah you are a 2x copy cat.... cuz i copied that hahaha i think the guy i copied from is from the UK so our little secret



Here comes the monster post......

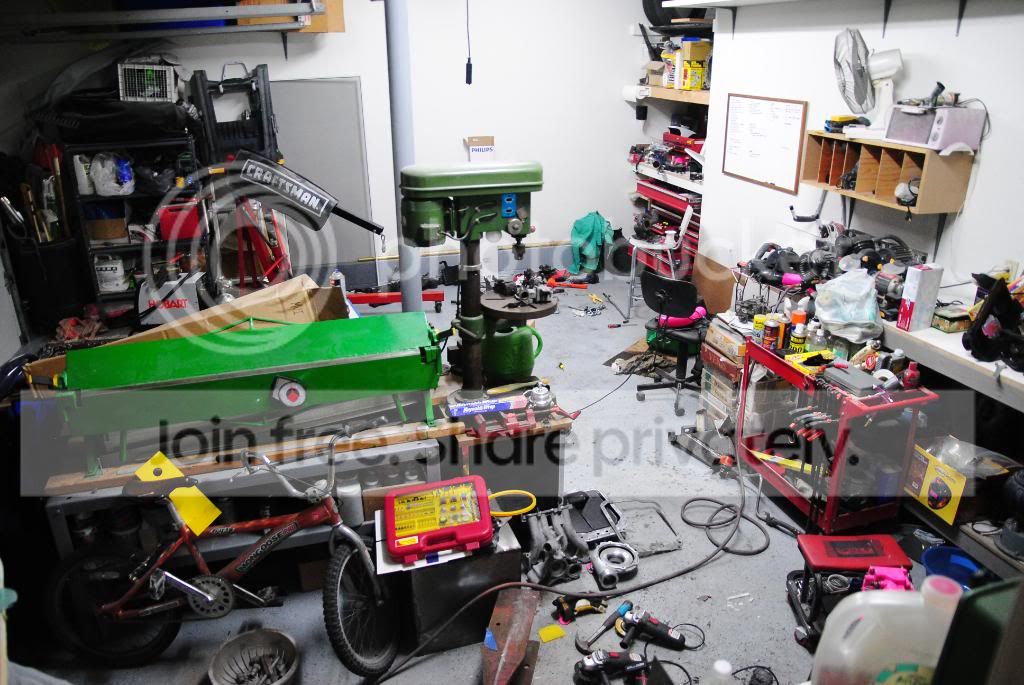

overall pic of the garage. what a mess. i keep flip flopping between projects...

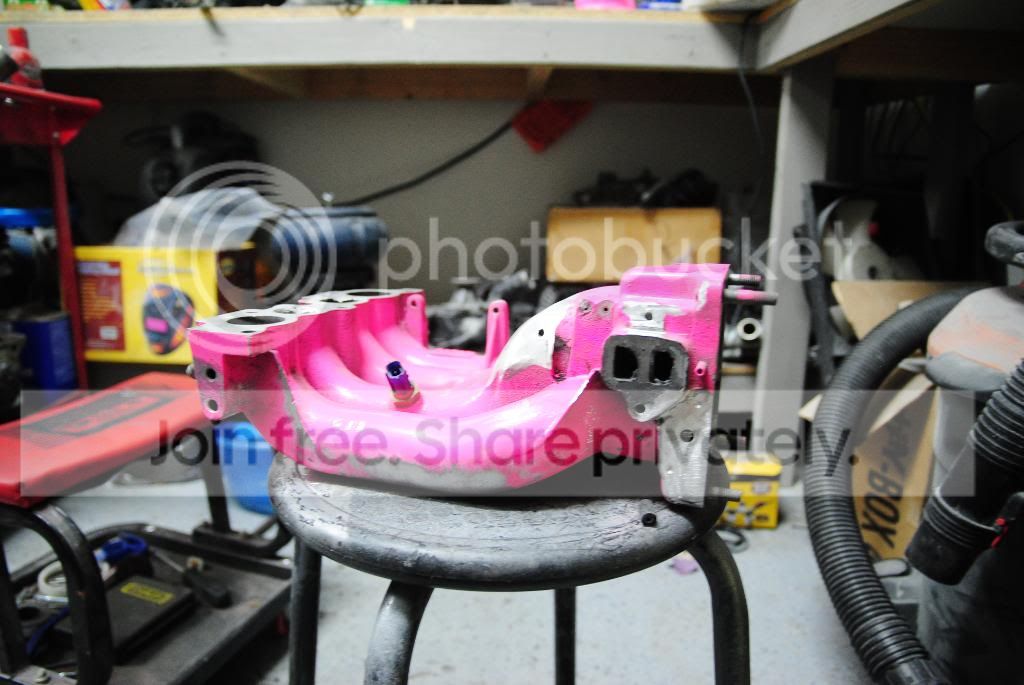

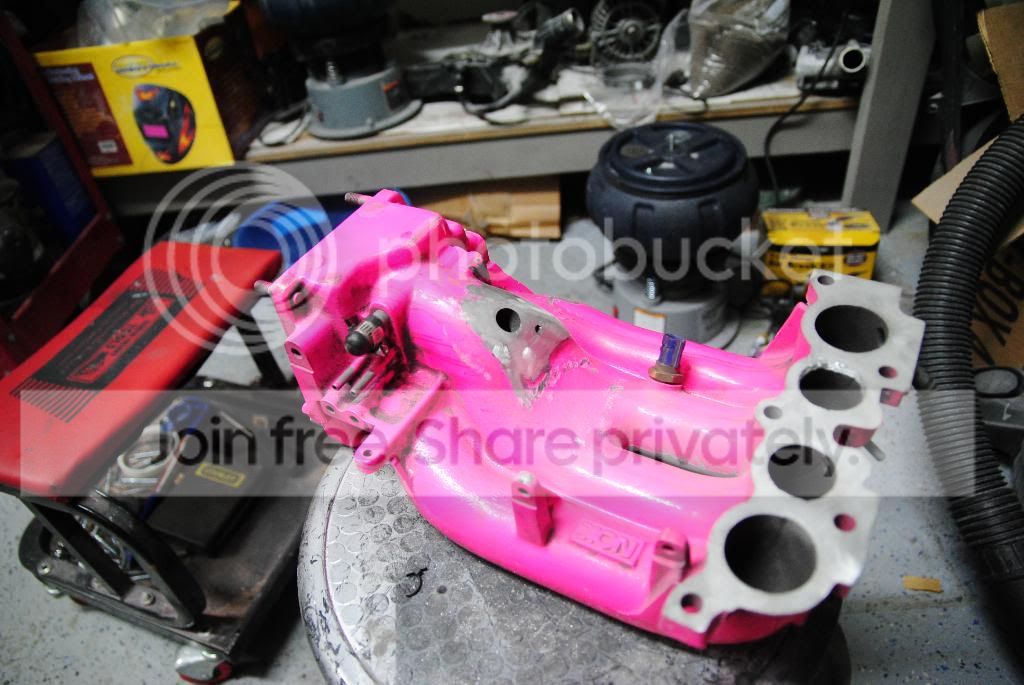

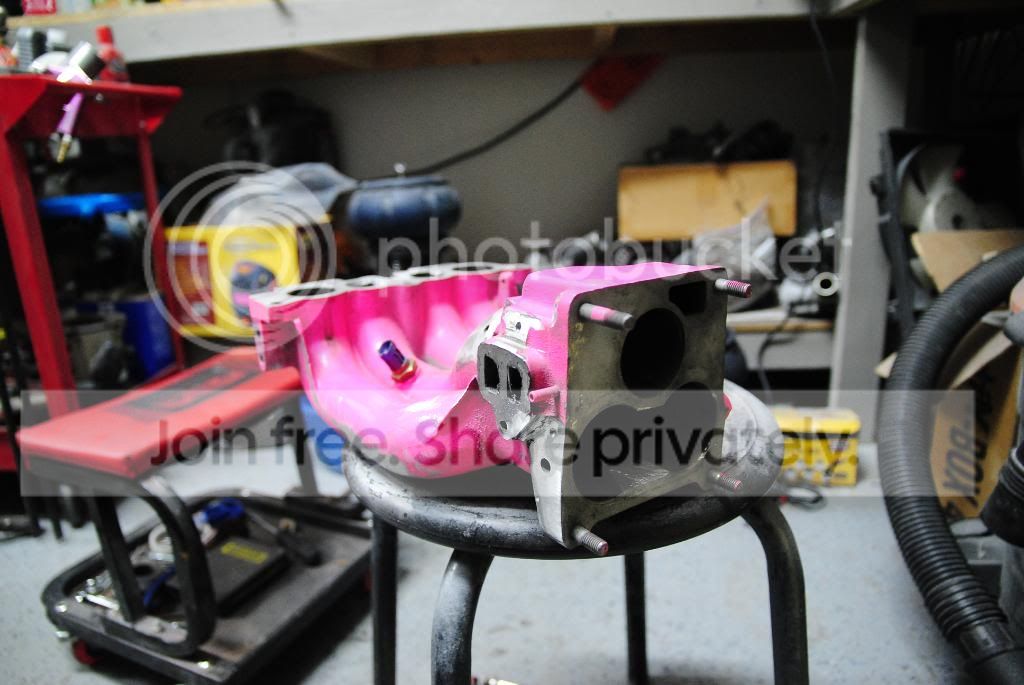

UIM. all emissions deleted. now doing a block off delete.. SHAVED. (well in the process)

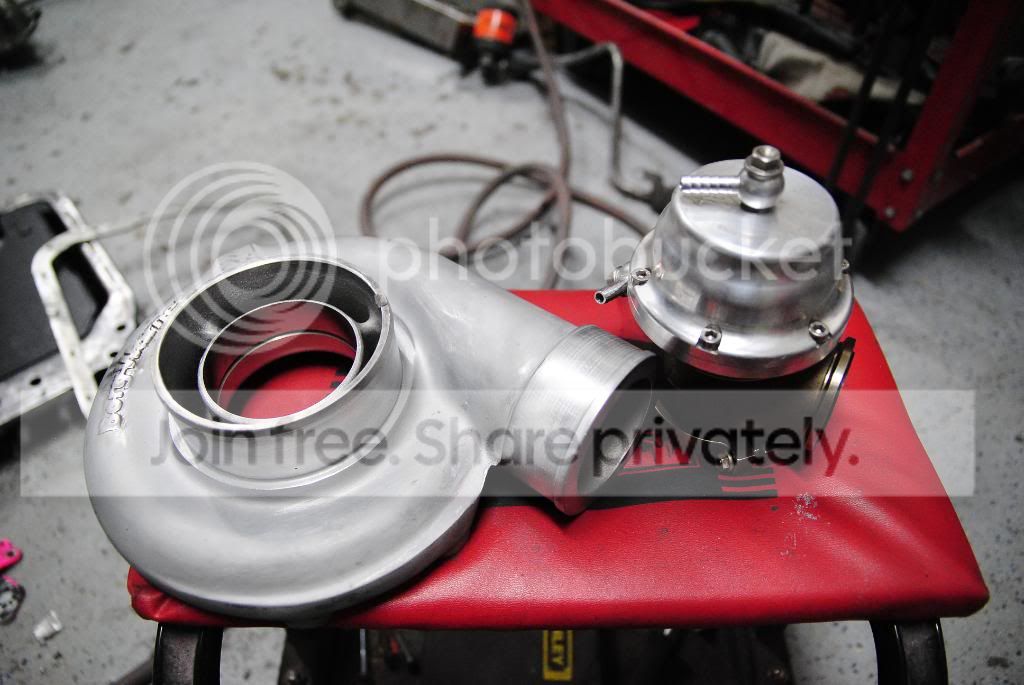

turbo housing sanded again. last ceramic coat came out like crap. tial WG after some steel wool, back to its shine!

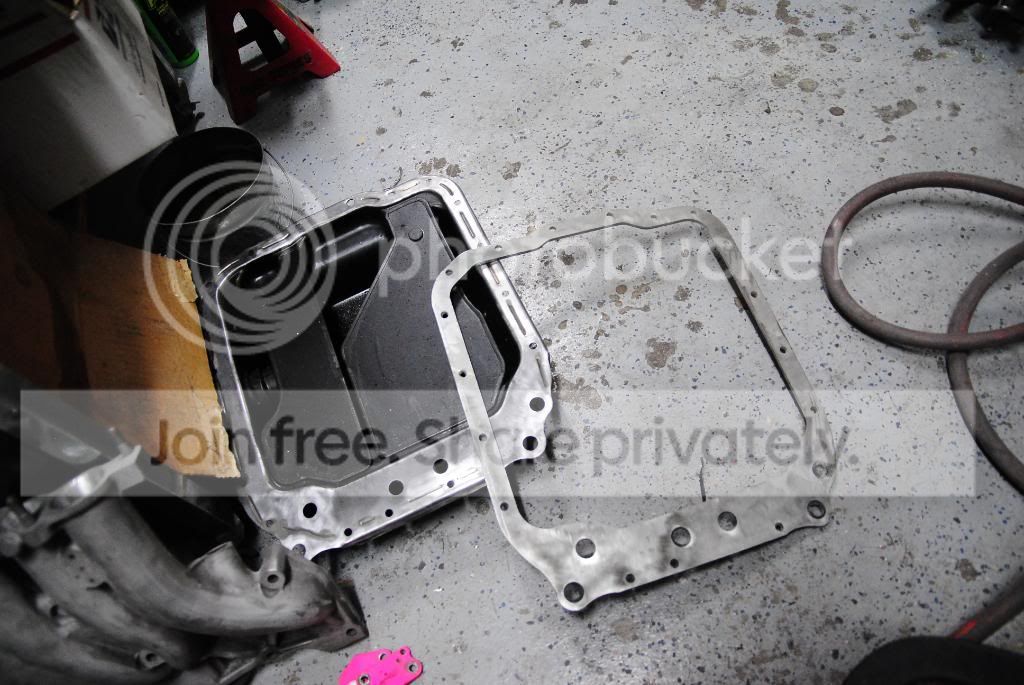

oil pan flange clean, check. oil pan brace, check

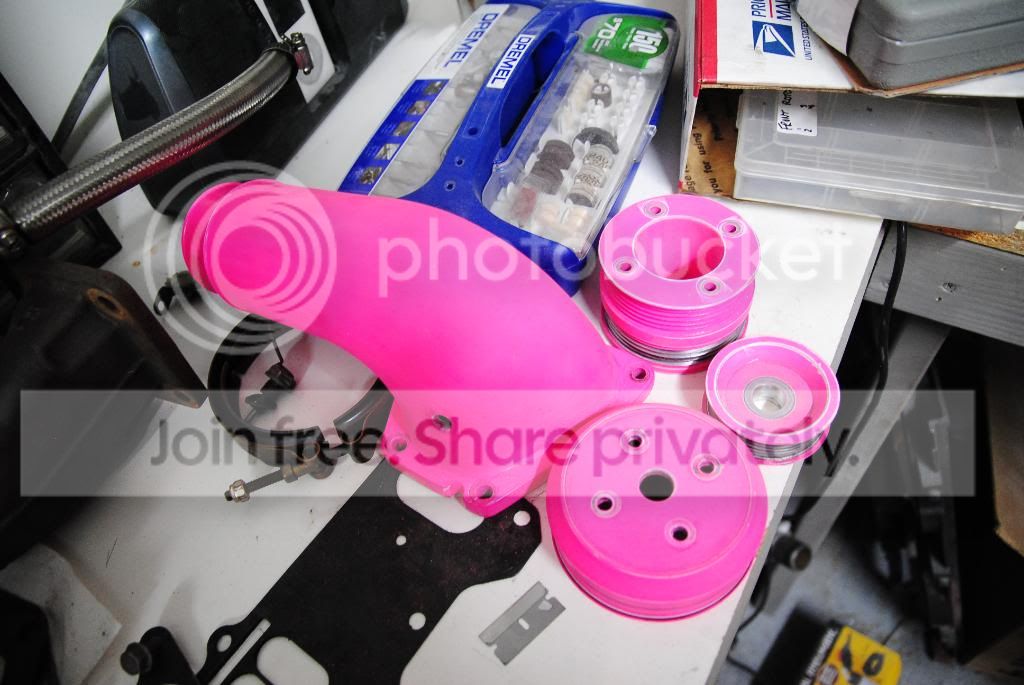

pullies, and elbow prepped to get a fresh coat of PC


slowly getting some shine back to some old bolts... these are just for inventory.. i have to start cleaning the bolts that i need to assemble the motor back..


Engine stripped down.. (mostly). Yes this is ghetto. yes im picking up an engine stand next week when i come home.


POS alternator. the stupid Philips head screws holding the bearing in stripped out. tried dremeling out a deeper groove for a flat head and that failed. bolt extractor broke an failed. i ended up drilling out the 2 screws that stripped out.


aftermath because i was stupid and forgot to hold alt cover. looks tiny and like a needle *****, but boyyyyyyyy did that hurt when the cover flung into my shin



after sandblasting...


clutch. idk why i took this pic. but i need to have it inspected to make sure its still good (cuz im a terrible asian driver)


hacked the DP to move the WB bung. i got nervous to relocate the bung blind so ill wait till everythings back in the engine to make sure it will fit...


started cleaning up the wp neck. im going to spray it black since it will only be temporary til i have time to make a new one..


motor mount arms. and yes, that is tons of oil leaking on to them


my VMIC brackets.................


as she sits



Get to work!! pffttt. jkjk....



i tried. but the one day i was 95% motivated it rained lol. so no engine bay work yesterday =/



dude you need this in your life!!!!

http://cgi.ebay.com/ebaymotors/COLD-...5fAccessoriesy



man its so awesome watching how in depth you guys are, i suck. lol cant wait to see this all together!



hahaha i was actually looking for one of those for my turbo inlet... theres not a lot of room infront so my old K&N filter doesnt fit and i dont really want to rock the small one... only if it was in 4"

haha it gets addicting... WHERE IS YOUR BUILD THREAD!!!


hahah Gordon, i doubt my gf will be too found of that... but a photoshoot with the bike would be dope!
