FFR818

I've been building this car for just over 3 years, on and off. While I frequently read this forum for years, I only recently signed up as I didn't really have anything to add. A moderator suggested I put the build thread here as the engine is what we have in common, and I usually just read about FD builds anyway.

The 818 is a Factory Five Racing kit/component car. It's a mid-engined rear wheel drive two seater, comes in a roadster, coupe, or race trim. The name is the original project name based on a goal of 818kg(1800lbs), and it just stuck. Most finished cars end up being closer to 2000lbs, I'm not sure where I'll end up, but hopefully under 1900lbs. The "kit" gives you a tubular frame, some suspension, brackets to reuse a bunch of Subaru parts, and the body. The idea is you buy the kit, an 02-07 Impreza, and bolt it all together. To put it mildly, I've taking a different path. I originally toyed with the idea of shoehorning in a H6 (it's been done), but once I realized I could fit a 13b I never looked back. I found an old guy in Australia that made an adapter and flywheel for a 13b to a Subaru transmission, and purchased a jdm series 7 or 8 13b-REW.

Here's a pic of the rolling chassis from back in October.






And here a video of it idling. I hadn't realized it at the time, but the rear leading plug wasn't firing. Fixed it now, but haven't started again since.


Here's a list of current mods.

96+ Jdm 13b-REW (came with 16bit ecu?)
-BW 8374 IWG on custom stainless manifold
-AEM Infinity ECU
-AEM smart coils x4
-GM DBW throttle body via Full Function Engineering adapter
-heavily ported upper intake manifold
-cx racing a2a intercooler
-magnaflow strait through muffler and high flow cat
-(2) cxracing 19 row oil coolers -10an lines
-10an vents from rear turbo drain and oil fill tube to catch can
-Banzai under drive crank pulley
-Pineapple Racing BT idler pulley.
-Subaru 5mt via Volks Conversion adapter plate

Round Stuff
XXR 531's 18x11 +20 and 18x8.5 +20
Nitto NT01 305/35/ZR18 245/40/ZR18
Z32 Nissan aluminum callipers
DBA STI 2-piece front rotors, WRX rear

I'm sure I'm forgetting something, but for reference here is a link to my original build thread on the Factory Five forum.

http://thefactoryfiveforum.com/showt...y-818-SR-Build

You can also follow me on Instagram @brap818

Narfle

iTrader: (16)

You forgot the link, and I need pics!

Johnny Kommavongsa

iTrader: (13)

in for updates

FFR818

Sorry guys, hate being "that guy" not posting good links. I typically use my iPhone for everything, but this forum doesn't agree with it most of the time. Two pics are up, and the video link is there, just gotta figure out how to embed it. I'll post a bunch more to get you guys up to date once I fire up the laptop.

FFR818

So this is how the engine showed up, its amazing how big it is fully dressed with the twins. I removed just about everything I could, turbos, A/C, power steering pump, air pump, OMP, oem ignition, and a mess of vacuum lines. Installed block off plates for everything.


Here's my modified engine mounts. There's a hockey puck in there, shh, its a Canadian thing. Also the frame mounts are new, as the subaru ones were too high. These are very similar though.



Sorry for the terrible quality pic, old camera back then. Here's how much I ported the UIM out since I'm using a GM throttle body. Note, welding was required.



I made my own phenolic spacer for between the UIM and LIM. It would've been nice to put it between the block and LIM but due to the angle the runners enter the block it just wouldn't work. Also, I'm not sure how absorbent this stuff is, so its nice to have it above the fuel injectors.

Narfle

iTrader: (16)

I feel dumb for not reading well and expecting an 818/808/rx3 with an FD motor.
That would've been cool, but this is way cooler.

FFR818

The transmission adapter.



Thought you guys might appreciate the exhaust tips. Don't worry, the fiberglass around it will all be cut away, this was just for mock up.



Here's my exhaust. I was worried about how loud it would be so since it's so short, so I'm using a magnaflow hi flow cat, not sure if it'll hold up though. A redesign maybe in my future but I need room for a wing mount and a more radical diffuser, so once those are sorted I'll know how much room I have to work with and an idea of noise level.



My AEM smart coils mounted to the block.



Dual 19 row oil coolers mounted up front. Around 25' of -10an lines to get to them. The extra oil capacity is always nice, but I'm worried about pressure drop, so I might go with an upgraded oil pressure regulator.

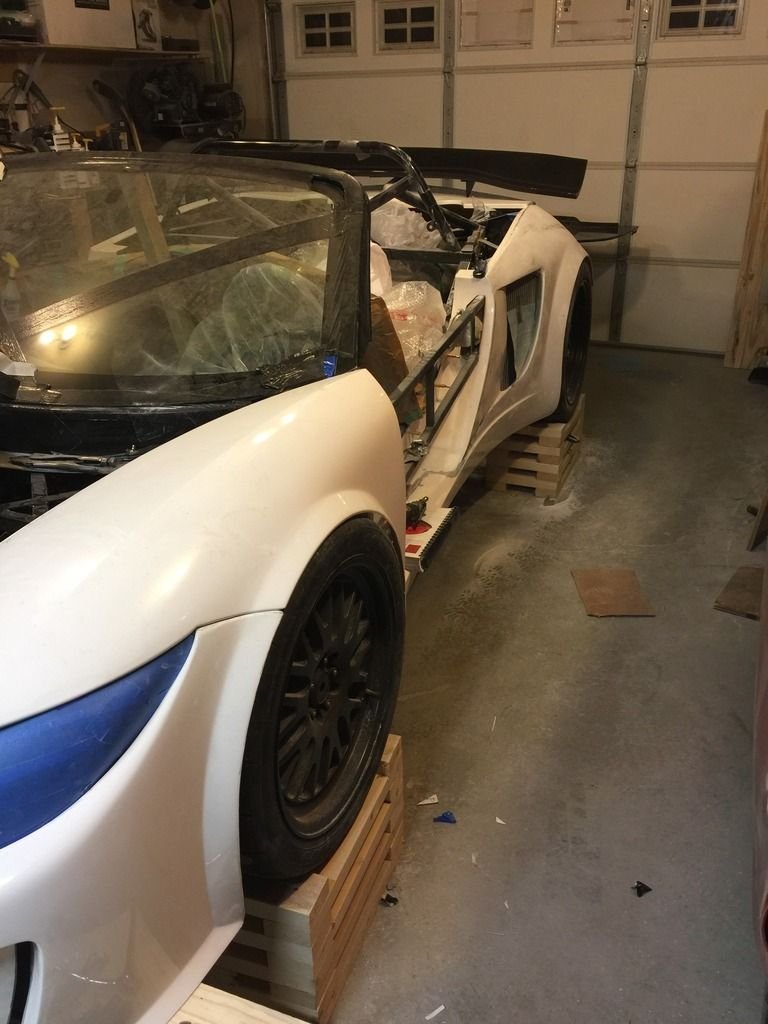

This is how she sits now, working on the body. Both front and rear body work has been widened by almost 3" to accommodate larger tires and get the look I'm after. In this pic you can see the intercooler scoop which has been made significantly larger. Also I was figuring out a height for my rear wing. Plan is to have two different sets of stanchions, a really low one for street, and a really high one for the track. To get it out of the path of the roll bar and windscreen it needs to be imo obnoxiously high, so why settle on one height?

FFR818

So far the only engine running I've done was idling. And not for very long. Coolant temps got to mid 90's C pretty quick. I don't have the radiator fans hooked up yet, but should they normally be needed shortly after startup?

I also definitely have air trapped in the system due to my poorly designed rad cap location. I'm trapping air at the thermostat housing, I have to be, so I'm going to modify this by welding a small tube from the top of the pipe going into the t-stat housing to just under the rad cap.






I also have no idea the condition of the motor's coolant seals, or any of it really. Hand cranking it resulted in even and distinct "poofs" of air, and visually from the exhaust ports everything looked good. After I modify the coolant plumbing I'm going to try using a "head gasket leak detector" to see if I have exhaust gas leaking into the coolant. This might also be why the coolant heats up so fast. I'd like to postpone a rebuild until after I go through the registration process, but that might not be possible. Is there any point in checking compression with a regular style tester?

I also need to address the fuel system before pushing this turbo. Right now its stock injectors and a walbro 255 in-tank. This cars pull some serious G's so a surge tank is a must before hitting the track. The Radium and AI units are really nice, but I'm not sure I want to spend that much. I'd also prefer to spend the money on a quieter pump and mount it externally next to a homemade tank. Any suggestions on an quiet external pump that can support 550hp on gas?

I'm planning on running ID1050x and ID1700x injectors, as they should handle this turbo maxed out on gasoline. I have 94 available, and will probably add water/meth in the future. Definitely going with FFE primary rail, however I'm not sure about secondary rail. The cxracing and rotary works LIM comes with a fuel rail and its a really good price. At least compared to FFE secondary and excessive LIM. But perhaps its not worth it to switch out the LIM at all.

I welcome all feedback, especially those of a constructive nature. I'll keep this build thread mostly rotary related. Anyone interested in the body and chassis mods check out my original thread listed in the first post.
