Is my ignition map safe?
#1
Is my ignition map safe?

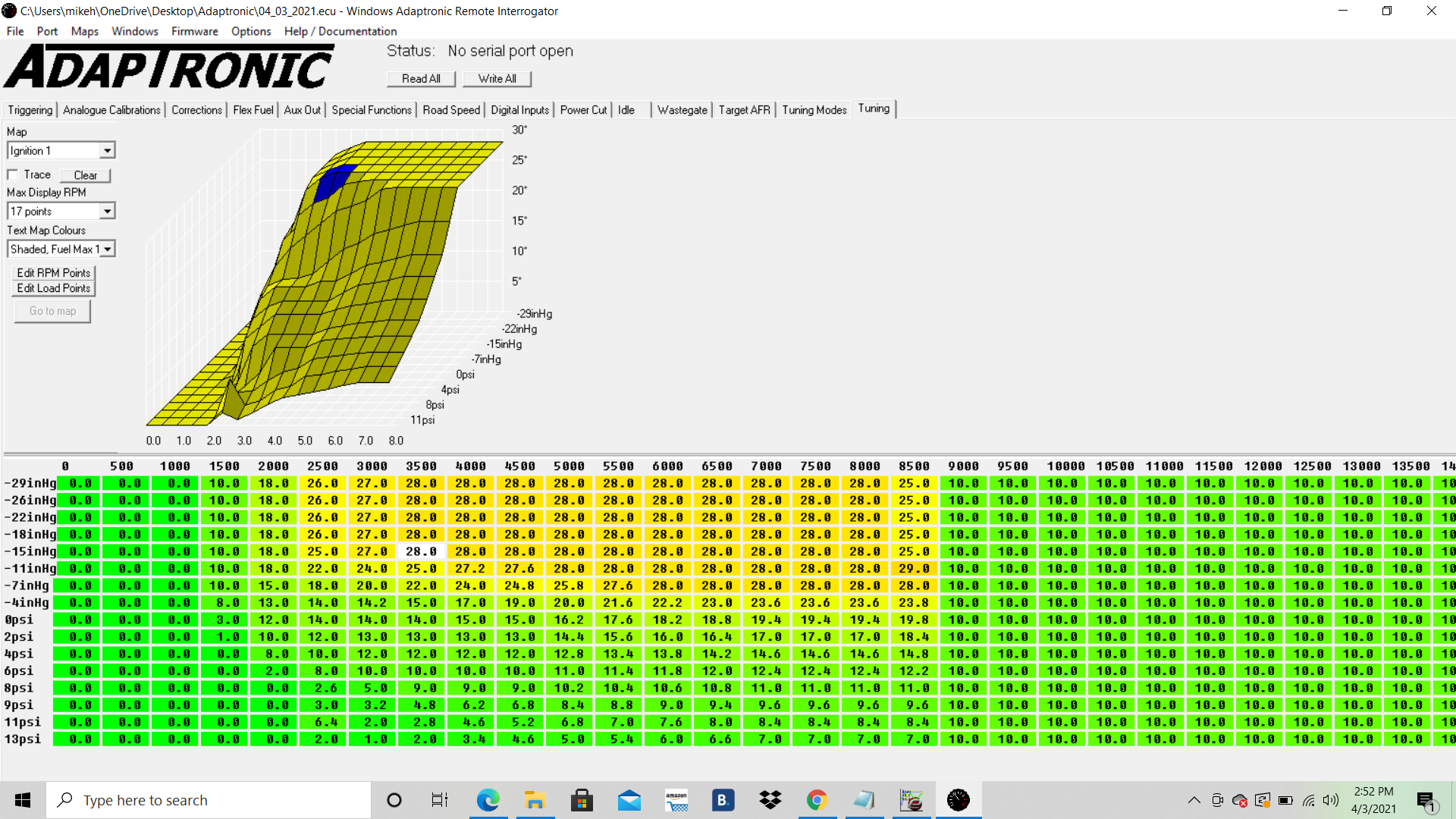

Hey guys, finally got my car situated. It's a streetported s4 t2 with a stage 4 BNR, ID 1050's (4) and an Aeromotive 340 running on an Adaptronic e420d. I got the car running and idling pretty well, AFR's are low 11's, running on wastegate (about 10psi). Car seems to run pretty well, but throttle response off idle has a hesitation. Anyway, just wanted to see if someone could look at my timing map to see if it looks ok. Thanks!
#2
destroy, rebuild, repeat
iTrader: (1)
you could add 8-10 degrees everywhere. be careful retarding ignition too much, it will cause preignition on a rotary ive been running this map for a while, lots of track duty at 10-15 psi. seems to work well, tested a few points in vacuum on a dyno and it was right on. stockport REW
The following users liked this post:
PhillyRX (04-04-21)
#3
Rotary Enthusiast
iTrader: (8)
It's definitely overly cautious but to suggest just adding 8-10 is folly. I'm hesitant to tell you where you should end up due to liability but in my experience most street ports end up being 25* of advance at torque peak at atmosphere, you can infer a reasonable curve from there with a little bit of research.
The following users liked this post:
PhillyRX (04-04-21)
The following users liked this post:
PhillyRX (04-07-21)
The following users liked this post:
PhillyRX (04-07-21)
