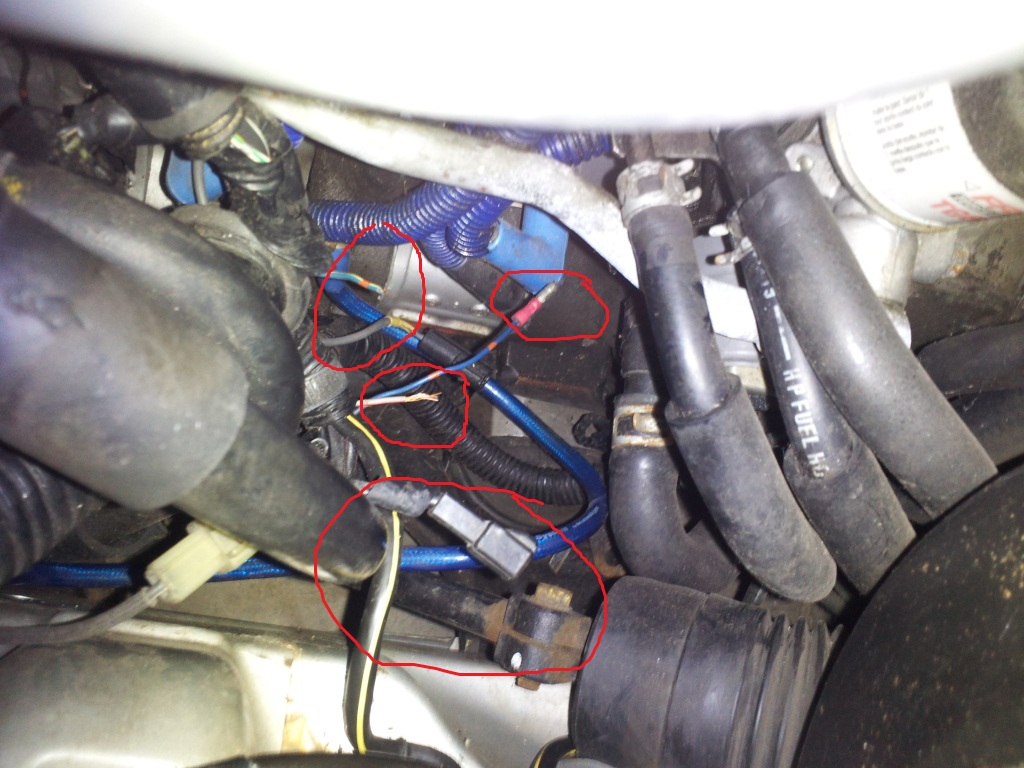

trying to identify a couple loose pieces of wiring on my new project car. any help would be appreciated. they are on the driver side wiring harness. Just picked it up tonight so working it out.

its a 93 with a rebuild so its been out a couple times.

justincredble

iTrader: (2)

So ive got a

grey wire black connector.

brown/ white wire with a black connector

blue/yellow orange band wire no connector

blue wire orange band with no connector

tan with brown stripe no connector.

BLACK MAMBA

iTrader: (58)

the brown/white is the connection from the emmision harness to the black wire for the water thermo switch.

the grey shielded wire is for the knock sensor.

blue/yellow is going to plug to a black wire with black connector on the top of power sterring pump, speed sensor.

justincredble

iTrader: (2)

sweet i'll have to take a look only leaves 2 more.

considering just ordering a new battery harness tho.

justincredble

iTrader: (2)

ok so I think the solid blue wire goes to the oil level sender that I cant seem to find.

still trying to figure out the white wire with brown stripe.

BLACK MAMBA

iTrader: (58)

oil level sender is on the oil pan driver side.

and yes the blue wire is for the oil level sender.

justincredble

iTrader: (2)

Yea, i cant find the end because the sensor is broke right at the pan. Are you sure the white wire doesnt go to the power steering pump and the blue/white is ac?

evot23

iTrader: (17)

you need the electrical wiring diagram in the archive section. super helpful. I don't think there is a blue white on the engine side/front harness for the a/c. send me your email and I'll dig up my electrical manual for you to download

justincredble

iTrader: (2)

Jssanga885@yahoo.com. I have a diagram of the battery harness it shows a single wire ac with 2 plugs. Just not an eletrical diagram with the wire colors

evot23

iTrader: (17)

see your pms...files too big to send via email
