Wiring help from the driver's side

I'm having issues finding out where these wires go.

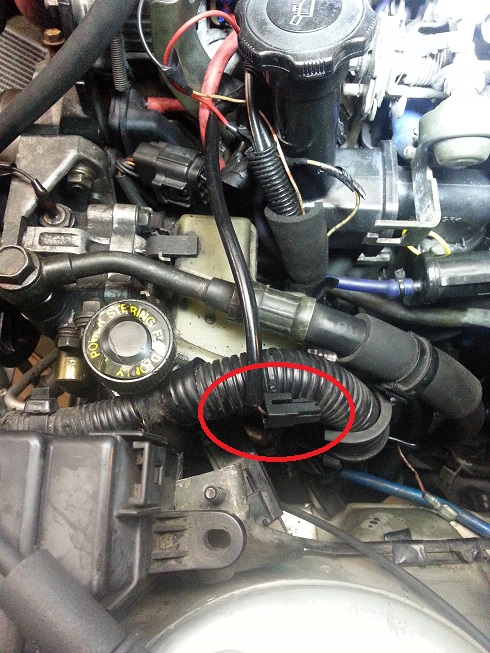

Where does this plug to? Or what is it for?:

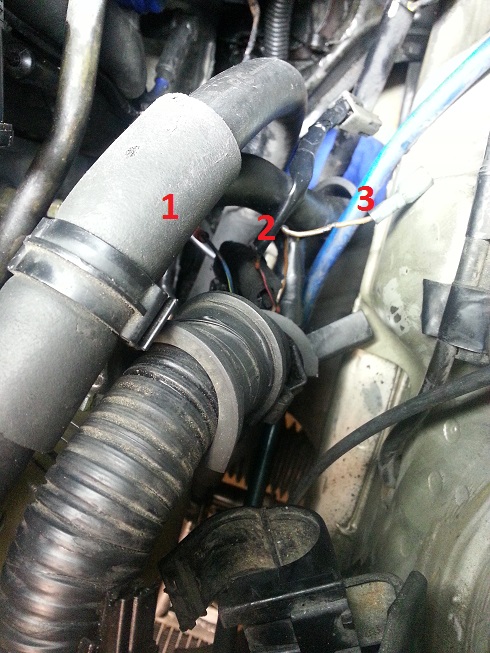

I also need help identifying these 3 wires, theyre all on the same harness the starter is on.

1 is blue with a yellowish/white wire
2 is a black wire with red stripe
3 is a brown wire with a white stripe



Thanks in advance!
Attached Thumbnails Wiring help from the driver's side-2014-03-26-16.45.33.jpg   Wiring help from the driver's side-2014-03-26-16.45.48.jpg
dvd is offline
Old 03-27-14, 07:18 AM
  #2
Rotary Specialists
RX7Club Vendor
iTrader: (11)

Banzai-Racing's Avatar

Join Date: Jan 2008
Location: Indiana
Posts: 4,621
Received 82 Likes on 66 Posts
Factory Service Manual is your friend.

Top pic is the other end of the wire for the low coolant sensor.

Black with Red goes to A/C compressor
Brown with white goes to the connector in your first pic.
Blue with yellow goes to power steering pump.
