Why is my car going into limp mode?

Thread Tools

Search this Thread

Old May 4, 2005 | 09:16 PM
  #1
silver93r1's Avatar
Thread Starter
What it is Hoe, Wussup
Tenured Member 05 Years

Joined: Mar 2005
Posts: 344
Likes: 0
From: tennessee
Question Why is my car going into limp mode?

ok my car started going limp about a week ago and couldnt figure out why so i switched out ecu's still going limp and still having to reset the ecu. so hen i ran some codes on it and it said it was my o2 sensor so i looked at it and the wire was unplugged (there is no female end to connect to it) so i put it back in there and reset the ecu. then it came off again so i decided to do the same thing so i hooked it back up and put electrical tape around it to keep it in place till i got the piece i need but when i reset the ecu now it stays in limp mode any suggestions?
Reply
Old May 4, 2005 | 09:25 PM
  #2
polo1924's Avatar
Junior Member
Tenured Member 05 Years

Joined: Aug 2004
Posts: 46
Likes: 0
From: Sydney
probably not getting enough blood to the thing
Reply
Old May 4, 2005 | 09:26 PM
  #3
clayne's Avatar
PV = nRT
Tenured Member 05 Years

Joined: Jan 2003
Posts: 2,250
Likes: 0
From: New Zealand (was California)
This is obviously a problem with your car's Cialis reservoir.
Reply
Old May 4, 2005 | 09:29 PM
  #4
XSTransAm's Avatar
Ee / Cpe
Tenured Member 05 Years

Joined: Jan 2003
Posts: 2,843
Likes: 2
From: Gaithersburg, MD / WVU
try enzite, its the natural way to safe male enhancement!
Reply
Old May 4, 2005 | 09:35 PM
  #5
silver93r1's Avatar
Thread Starter
What it is Hoe, Wussup
Tenured Member 05 Years

Joined: Mar 2005
Posts: 344
Likes: 0
From: tennessee
lol very funny guys i need some serious advice
Reply
Old May 4, 2005 | 09:37 PM
  #6
clayne's Avatar
PV = nRT
Tenured Member 05 Years

Joined: Jan 2003
Posts: 2,250
Likes: 0
From: New Zealand (was California)
Well dude. Ever hear of a soldering iron and heat shrink tubing?
Reply
Old May 4, 2005 | 09:37 PM
  #7
poss's Avatar
Slower Traffic Keep Right
Tenured Member: 20 Years
iTrader: (6)

Joined: Apr 2002
Posts: 2,194
Likes: 2
From: Dayton, OH
Originally Posted by silver93r1
(there is no female end to connect to it)
Answered your own question
Reply
Old May 4, 2005 | 09:47 PM
  #8
silver93r1's Avatar
Thread Starter
What it is Hoe, Wussup
Tenured Member 05 Years

Joined: Mar 2005
Posts: 344
Likes: 0
From: tennessee
Originally Posted by poss
Answered your own question
no i hooked in there for the time being like i did when it worked but its not now
Reply
Old May 4, 2005 | 10:19 PM
  #9
silver93r1's Avatar
Thread Starter
What it is Hoe, Wussup
Tenured Member 05 Years

Joined: Mar 2005
Posts: 344
Likes: 0
From: tennessee
anyone else know
Reply
Old May 4, 2005 | 10:27 PM
  #10
poss's Avatar
Slower Traffic Keep Right
Tenured Member: 20 Years
iTrader: (6)

Joined: Apr 2002
Posts: 2,194
Likes: 2
From: Dayton, OH
It was supposed to be a joke....poor timing I guess

anyway, a disconnected O2 sensor will not make your car limp.

Are there any other codes? Are you sure that you are resetting it? (leave it disconnected for 30 sec)
Reply
Old May 4, 2005 | 10:28 PM
  #11
clayne's Avatar
PV = nRT
Tenured Member 05 Years

Joined: Jan 2003
Posts: 2,250
Likes: 0
From: New Zealand (was California)
Dude...

SOLDERING IRON.



You take two wires, strand them together and solder the wires.
Reply
Old May 4, 2005 | 10:32 PM
  #12
silver93r1's Avatar
Thread Starter
What it is Hoe, Wussup
Tenured Member 05 Years

Joined: Mar 2005
Posts: 344
Likes: 0
From: tennessee
yeah i left it disconected for 25 secs with the bake down and all the codes it was pulling was all the selinoid vavles and the unplugged ecu the codes were 17 30 33 38 39 33 42 45 46
Reply
Old May 4, 2005 | 11:18 PM
  #13
rotorhead333's Avatar
Senior Member
Tenured Member 10 Years

Joined: May 2001
Posts: 365
Likes: 0
From: Seattle

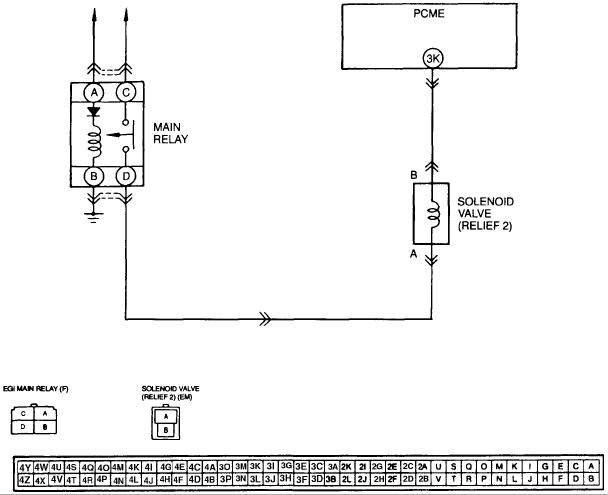

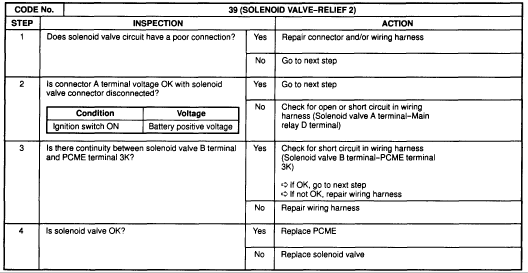

Each relay/solenoid has the same diagnostic tree (1st pic) but you may want to check your main relay which powers those baby's up. (2nd pic)
Attached Thumbnails Why is my car going into limp mode?-57477478.gif   Why is my car going into limp mode?-57477479.gif
Reply
Old May 4, 2005 | 11:24 PM
  #14
rotorhead333's Avatar
Senior Member
Tenured Member 10 Years

Joined: May 2001
Posts: 365
Likes: 0
From: Seattle

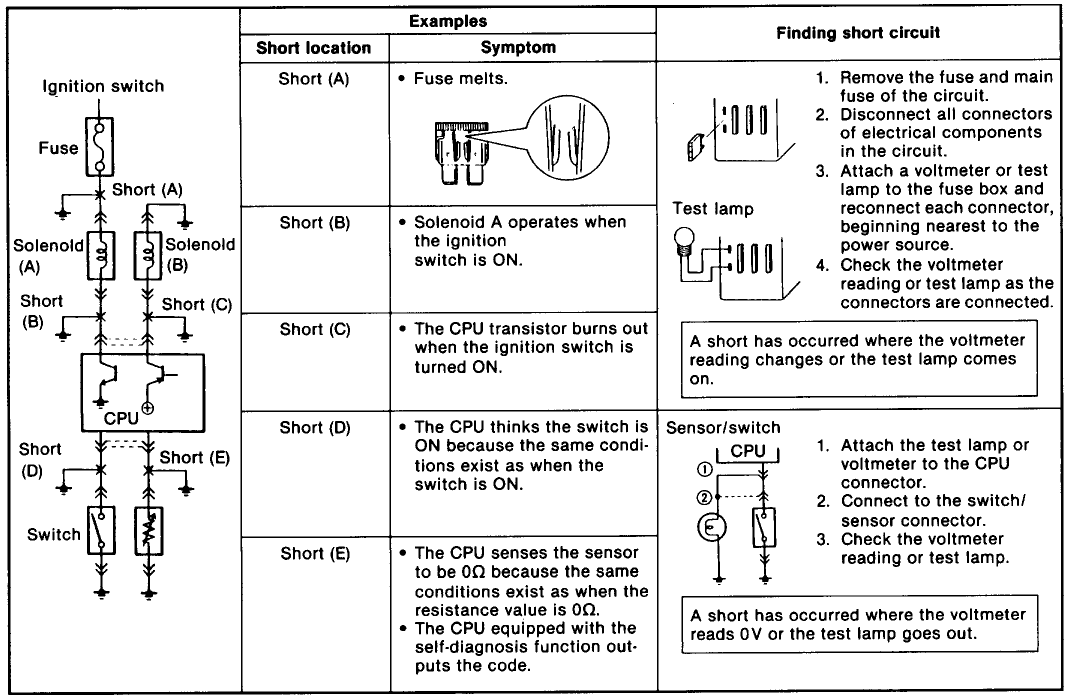

Not sure how capable you are but this might help your diagnostics.
Attached Thumbnails Why is my car going into limp mode?-58930466.gif
Reply
Old May 4, 2005 | 11:59 PM
  #15
tahmid's Avatar
cursed 7
Tenured Member 05 Years

Joined: Feb 2004
Posts: 329
Likes: 0
From: Bangladesh
I dont know if it will help you in any way. However code 45 (charge control) will make your car go into limp mode. See the thread below.

https://www.rx7club.com/showthread.p...ntrol+solenoid
Reply
Old May 5, 2005 | 11:13 AM
  #16
silver93r1's Avatar
Thread Starter
What it is Hoe, Wussup
Tenured Member 05 Years

Joined: Mar 2005
Posts: 344
Likes: 0
From: tennessee
bump^
Reply
Old May 6, 2005 | 06:20 PM
  #17
silver93r1's Avatar
Thread Starter
What it is Hoe, Wussup
Tenured Member 05 Years

Joined: Mar 2005
Posts: 344
Likes: 0
From: tennessee
still need some help guys its not pulling 17 its pulling 16 it has an 94 ecu in it but it did it with an 93 ecu in it too i am running non-seq. so of course its gonna pull selinoid valves. and i checked all the grounds too
Reply
Old May 7, 2005 | 12:53 PM
  #18
Gadd's Avatar
Warming the planet.
Tenured Member 20 Years

Joined: Dec 2004
Posts: 845
Likes: 2
From: Chico, CA
Originally Posted by tahmid
I dont know if it will help you in any way. However code 45 (charge control) will make your car go into limp mode. See the thread below.

https://www.rx7club.com/showthread.p...ntrol+solenoid

Did you read this thread? 16 is the egr valve and will not set limp mode, however if your getting 45 that will put the ecu into limp mode. If you have removed the charge control solenoid, I'll need to replace it with a resistor.
Reply
