ok long story short, im helping someone here, he has a revision 4 jdm fd

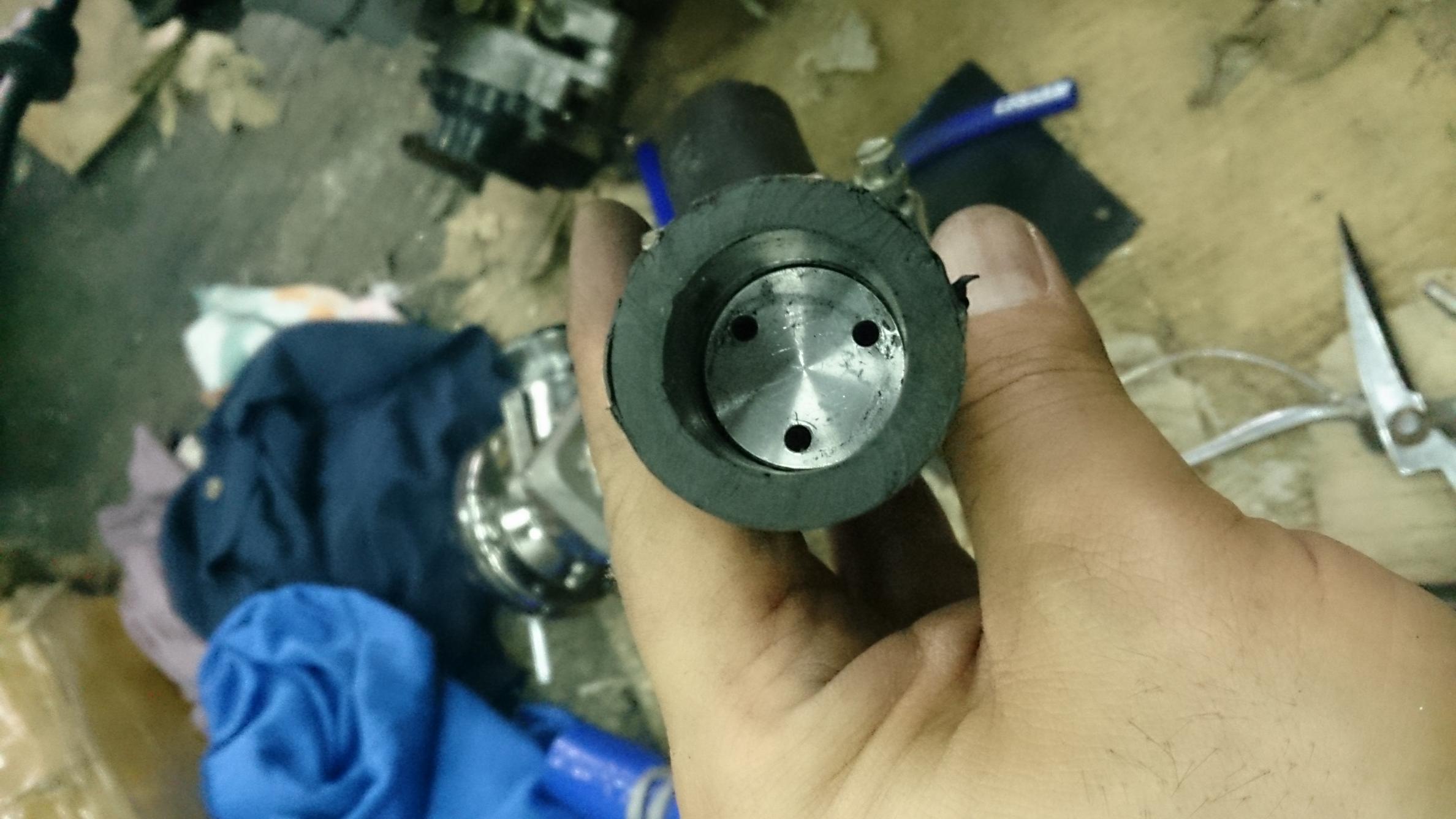

anyway, i got thru all vacuum lines , but this is the first time i work on fd so question is that, what is this? it was in one of the intake hose(i didnt dissaemble the car so i dobt know)

Gregned

Looks like silencer for air pump intake?
I take it you're not running the stock air box?

nycgps

iTrader: (4)

no stock air box, its using hks intake

it looks like this pipe is coming from intake(not air pump) to the acv of some kind thats at the lim, just wanna make sure before i install it.

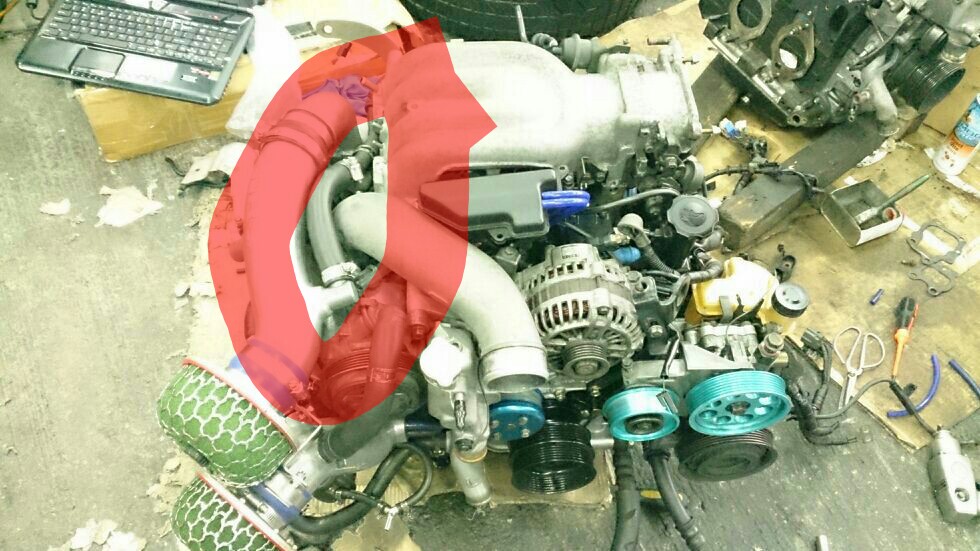

its 100% some sort of restrictor, just not so sure if it should be install at the circled location.

Mahjik

iTrader: (1)

It's a silencer for the air pump/acv relief line. When switching to aftermarket intakes which do not use a "box", that line can resonate a "mooo" type sound. Using some restriction in the line reduces the sound.

nycgps

iTrader: (4)

Ahh Thanks ! I was thinking of the same thing(silentser). So do I install it at the circled location at the pic above ?

Second part question coming up, same JDM car,

but I can't seem to find a plug for this.

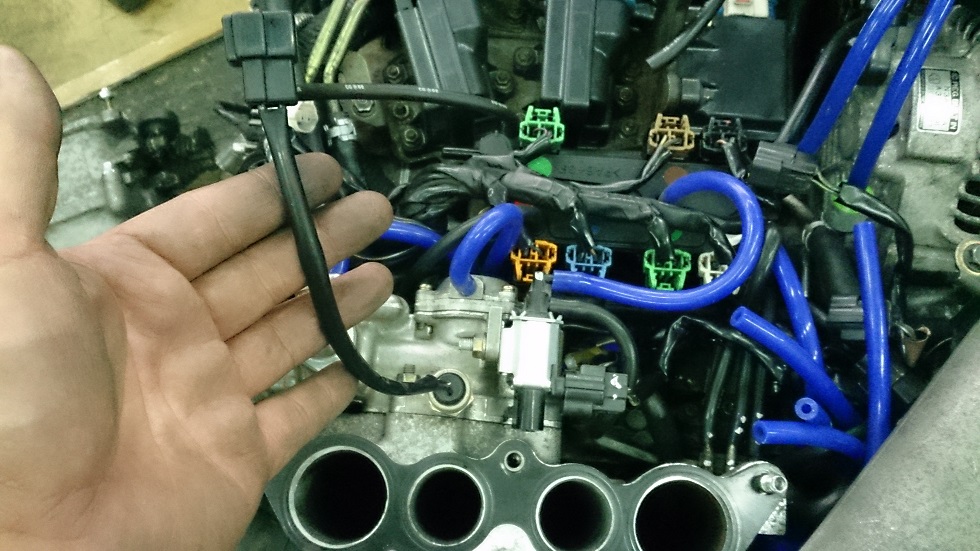

It looks like some sort of boost/pressure sensor (I took it out it has a spring and some kind if plunge) , it does not exist in the early (zenki) version of the manifold. Where exactly this thing plugs into anybody know? I try to find it but ... nothing so far.

Many Thx !

DDagman

iTrader: (3)

I don't remember exactly where it goes, but I know it connects somewhere right below the ACV

ZE Power MX6

iTrader: (157)

There should be 3 of them, my ACV is gone so mine are just hanging out around the secondary rail toward the back of the LIM. Look under the ACV, they might be there.

cewrx7r1

iTrader: (2)

Page F-119 of the FSM, you did download them, didn't you?

Sephek

iTrader: (20)

Don't install it where you have it circled, its for the airpump... I have/had one one too.
Since you still have the airpump just place it there, or leave it out.. I have mine out.

As for the connector, the other connector should be somewhere on the main harness, it should sprout from where the emission solenoid connectors start.

shinrars2

iTrader: (14)

^ That's incorrect

The hose with the silencer is connected correctly in your picture circled in red. The silencer needs to be on the hose for the airpump acv relief/output.

https://www.rx7club.com/3rd-generati...minute-486061/

nycgps

iTrader: (4)

I was pulling my hair out over that plug, I was like wtf seriously ?

somewhere under the ACV ? ... OMW to the shop now ... ahh **** I hope it's not stuck somewhere below and I have to take everything apart to get to it ...

yes I did , but I was probably too pissed off and missed that page ... thx !

will do, I have a spare AT harness hanging around but still can't find it ... might have to take everything apart for the 234832048 time see if the plug is stuck somewhere below ... ****


phew, thx. I assume its at the right location, by the length and shape, that is the only area which it "fits"


gonna get dress and head over to the shop, hr and 1/2 ride

nycgps

iTrader: (4)

ok, I took everything apart (this is like the 3rd time) and I looked thru the whole harness. nothing.

the plug was front from the donor car which does have this plug.

so I would have to assume the later series (this is a series 4 in Japanese term) does not have this anymore as the harness doesn't even have the plug for this.


acccording to FSM, it seems that this is really just for emission purposes. correct?
