Welded turbos gone bad

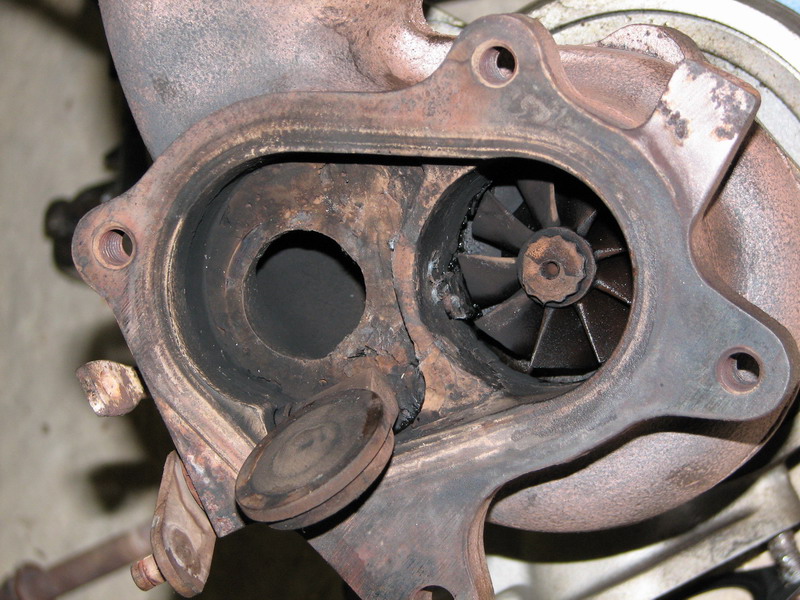

So I pull the turbos off that came with the car, and this is what I find.
It's hard to see, but not only did someone weld the casting where the turbine is, but also welded the area around the wastegate.
The weld around the turbine didn't really stick, and I suspect it has come out and shaved down the turbine. The clearence in this turbo looks a lot bigger then the clearence in the other turbo.
So I'm looking for ideas? Besides going to a single (don't have the money for that) Turbos have minimal shaft play and haven't been spraying oil into the intake track.
My plan at this point is take the turbo apart and gind out the welded area and reweld.
Thanks
It's hard to see, but not only did someone weld the casting where the turbine is, but also welded the area around the wastegate.
The weld around the turbine didn't really stick, and I suspect it has come out and shaved down the turbine. The clearence in this turbo looks a lot bigger then the clearence in the other turbo.
So I'm looking for ideas? Besides going to a single (don't have the money for that) Turbos have minimal shaft play and haven't been spraying oil into the intake track.
My plan at this point is take the turbo apart and gind out the welded area and reweld.
Thanks
#5
you know you want this
there is no good way to weld cast metal anyway. it would crack out again, and probally damage alot more than just the turbo. (changed grain structure within the metal from heating will weaken the whole part, and if an inclusion in the casting is heated to hot, it can literally explode)
Trending Topics
#9
Broken FD
Join Date: Sep 2005
Location: Philadelphia
Posts: 457
Likes: 0
Received 0 Likes
on
0 Posts
It's the same thing if you buy it off a forum. Either way your buying a product without seeing it. It's either you take the chance, or spend 3,000 on a set of new twins.
#11
What's your point ?
Join Date: Feb 2001
Location: Gainesville, Fla.
Posts: 3,573
Likes: 0
Received 0 Likes
on
0 Posts
That doesn't look like any kind of welding to me, the housing doesn't look deformed or anything from the heat of welding there's no cracks in the area just alot of carbon build up from running rich. Let me know if you want to get rid of them (I've got a set with cracks in the wastegate area nad you housing is in much better shape than mine.
#12
Lives on the Forum
Originally Posted by old_skool
there is no good way to weld cast metal anyway.
I'm no expert but I do know if you want to weld cast iron properly you have to preheat the work and then cool it slowly afterwards. Some guy in his garage just sticking a mig in there and making some beads over the cracks is worthless.
#14
TANSTAFL
iTrader: (13)
Originally Posted by TurboTagTeam
It's the same thing if you buy it off a forum. Either way your buying a product without seeing it. It's either you take the chance, or spend 3,000 on a set of new twins.
i have had MUCH better experiences buying from forum members than ebayers. obviously, you haven't quite had my shitty luck... but shitty luck is easy to come by when you buy something that spins at ~100k rpm used.
personally, i was looking for a used set, but decided there is no such thing as a used set you can bolt on with confidence. basically there are only these options: new (or like new), rebuildable core units, and finally: scrap iron.
the latter of these is what the original poster has
#15
Senior Member
iTrader: (1)
Join Date: Jul 2005
Location: Katy Tx
Posts: 376
Likes: 0
Received 0 Likes
on
0 Posts
not to jack your post but i'm selling my stock twins email me @ fd3s@houston.rr.com if you want pix. later.
Los
Los
#16
Full Member
Thread Starter
iTrader: (1)
Join Date: Sep 2004
Location: NY
Posts: 234
Likes: 0
Received 0 Likes
on
0 Posts
Thanks to everyone. Here's where I am now.
Talked to many rebuild shops about rebuilding the turbos, and all the rebuilt shops seem to be telling me the same thing - it's not a good idea to rebuilt these turbos. I've located another casting, and have a looked at a few turbo cartridges but nothing that I want to put in.
Yes, there are correct ways to weld cast iron. Usual steps are to drill holes at the ends of the cracks to relieve the stresses. Then to grind out the cracks. Then weld. DamonB is correct that many areas weld castings - the nuclear industry included. But you need to be able to get the correct amount of heat in (usually the normal MIG welders can't provide enough heat)
Talked to many rebuild shops about rebuilding the turbos, and all the rebuilt shops seem to be telling me the same thing - it's not a good idea to rebuilt these turbos. I've located another casting, and have a looked at a few turbo cartridges but nothing that I want to put in.
Yes, there are correct ways to weld cast iron. Usual steps are to drill holes at the ends of the cracks to relieve the stresses. Then to grind out the cracks. Then weld. DamonB is correct that many areas weld castings - the nuclear industry included. But you need to be able to get the correct amount of heat in (usually the normal MIG welders can't provide enough heat)
