Weld SHUT or 90% OPEN
#1
development
Thread Starter
Weld SHUT or 90% OPEN
I’m hearing two different stories so I believe there is two different ways to do this (I know there are at least two ways to operate in non-seq (without going single)…Weld precontrol door SHUT or 90% open???
http://www.scuderiaciriani.com/rx7/
“Open the pre-control gate approx 90% and have welded in this position (you want the gate to be opened and be even with the turbine chamber flow path..IE less exhaust drag).”
So I guess I want to hear from people who have done the FULL-NS conversion.
Thanks for the help, hopefully things will become more clear.
http://www.scuderiaciriani.com/rx7/
“Open the pre-control gate approx 90% and have welded in this position (you want the gate to be opened and be even with the turbine chamber flow path..IE less exhaust drag).”
So I guess I want to hear from people who have done the FULL-NS conversion.
Thanks for the help, hopefully things will become more clear.
#2
Eye In The Sky
iTrader: (2)
Join Date: Feb 2001
Location: In A Disfunctional World
Posts: 7,895
Likes: 0
Received 114 Likes
on
66 Posts
My full+ NS conversion has the precontrol gate lwelded 100% open. I do not think 90 or 100% makses any difference as far as affecting exhaust flow
which in this case is really pressure equalization.
which in this case is really pressure equalization.
#5
development
Thread Starter
Thanks guys,
So, I can weld it shut, weld it open, or remove the door?
Anyone care to enlighten me as to why it makes no difference what I do with the precontrol door???
So, I can weld it shut, weld it open, or remove the door?
Anyone care to enlighten me as to why it makes no difference what I do with the precontrol door???
#6
Lives on the Forum
Originally posted by dubulup
Anyone care to enlighten me as to why it makes no difference what I do with the precontrol door???
Anyone care to enlighten me as to why it makes no difference what I do with the precontrol door???
#7
Rotary Freak
Join Date: Aug 2001
Location: Boston, MA
Posts: 1,635
Likes: 0
Received 0 Likes
on
0 Posts
If you are look straight at is if it were installed on the motor, weld it "shut".
Put the door in the position in which it covers the hole up and you can't see inside. Don't make it go too far, or the plate won't fit.
I put the plate back on and shut the flapper door. As far as you can go against the plate covering it.
Then just weld it.
Or you can just remove the flapper door all together.
Put the door in the position in which it covers the hole up and you can't see inside. Don't make it go too far, or the plate won't fit.
I put the plate back on and shut the flapper door. As far as you can go against the plate covering it.
Then just weld it.
Or you can just remove the flapper door all together.
Trending Topics
#8
Super Snuggles

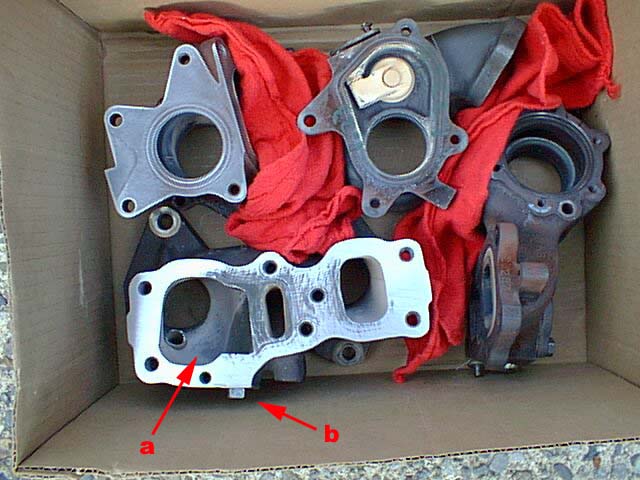

We removed the pre-control door on my car completely (a), ported the housing, and drilled and tapped the hole where the door pivot used to be and installed a cast iron pipe plug to close it off (b).
We also enlarged the wastegate orifice and ported the area immediately behind it in the exhaust manifold to unshroud the wastegate door and allow more flow.
We also enlarged the wastegate orifice and ported the area immediately behind it in the exhaust manifold to unshroud the wastegate door and allow more flow.
#9
development
Thread Starter
Thanks team that helps!
I believe I will be going with the SHUT version of this mod.
oh and that shield was a **** to get off, ended up braking a bolt and bending the F_out of it to get it off!!!
I believe I will be going with the SHUT version of this mod.
oh and that shield was a **** to get off, ended up braking a bolt and bending the F_out of it to get it off!!!
#10
Rotary Freak
Join Date: Aug 2001
Location: Boston, MA
Posts: 1,635
Likes: 0
Received 0 Likes
on
0 Posts
Originally posted by jimlab
We removed the pre-control door on my car completely (a), ported the housing, and drilled and tapped the hole where the door pivot used to be and installed a cast iron pipe plug to close it off (b).
We also enlarged the wastegate orifice and ported the area immediately behind it in the exhaust manifold to unshroud the wastegate door and allow more flow.
We removed the pre-control door on my car completely (a), ported the housing, and drilled and tapped the hole where the door pivot used to be and installed a cast iron pipe plug to close it off (b).
We also enlarged the wastegate orifice and ported the area immediately behind it in the exhaust manifold to unshroud the wastegate door and allow more flow.
#11
Rotary Freak
Join Date: Aug 2001
Location: Boston, MA
Posts: 1,635
Likes: 0
Received 0 Likes
on
0 Posts
Originally posted by dubulup
Thanks team that helps!
I believe I will be going with the SHUT version of this mod.
oh and that shield was a **** to get off, ended up braking a bolt and bending the F_out of it to get it off!!!
Thanks team that helps!
I believe I will be going with the SHUT version of this mod.
oh and that shield was a **** to get off, ended up braking a bolt and bending the F_out of it to get it off!!!
#12
no
Join Date: Apr 2001
Location: Dallas, TX / Tokyo, Japan currently
Posts: 2,295
Likes: 0
Received 0 Likes
on
0 Posts
if you leave it shut, you're only getting half the exhaust flow that you could.....i did it like the above picture when i ran non-sequential.
i dont understand why anyone would shut it....maybe that's why you are spooling up so slow
-Nic
i dont understand why anyone would shut it....maybe that's why you are spooling up so slow
-Nic
#13
development
Thread Starter
Originally posted by suganuma
if you leave it shut, you're only getting half the exhaust flow that you could.....i did it like the above picture when i ran non-sequential.
i dont understand why anyone would shut it....maybe that's why you are spooling up so slow
-Nic
if you leave it shut, you're only getting half the exhaust flow that you could.....i did it like the above picture when i ran non-sequential.
i dont understand why anyone would shut it....maybe that's why you are spooling up so slow
-Nic
#15
development
Thread Starter
I know it got confusing and I still don't know what I'm going to do.
Turbo Control ACT. was connected to the Exhaust Manifold, and that flapper door is definitely coming out, the precontrol door was connected to the turbo assembly, that door will either get welded SHUT or removed. When I first saw that door, I wondered why the write up said to weld open, when the other door was getting removed??? Seems that if you remove one why not remove both??? I make decisions like a woman, so I'll be changing my mind until I either weld it shut or remove it...
Turbo Control ACT. was connected to the Exhaust Manifold, and that flapper door is definitely coming out, the precontrol door was connected to the turbo assembly, that door will either get welded SHUT or removed. When I first saw that door, I wondered why the write up said to weld open, when the other door was getting removed??? Seems that if you remove one why not remove both??? I make decisions like a woman, so I'll be changing my mind until I either weld it shut or remove it...
