Welcome to a new round of "NAME THAT CONNECTOR"
Hi,ive rebuilt my car from scratch,and its 4,5 years since i picked it apart... and there is a few connectors i cant place....

In the areas where i have a few connectors i cant place, ive removed AC, powersteering and airpump, aftermarket IC and radiator...

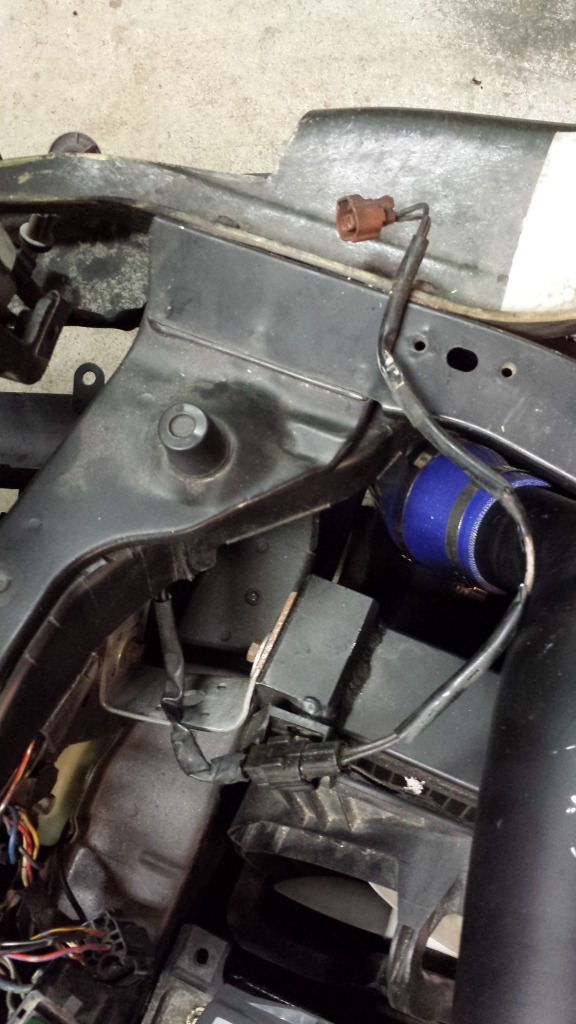

1. front, by the drivers side, beside the light(US car)

Name: 20130829_220205_zps6cb1dc86.jpg Views: 15 Size: 174.1 KB

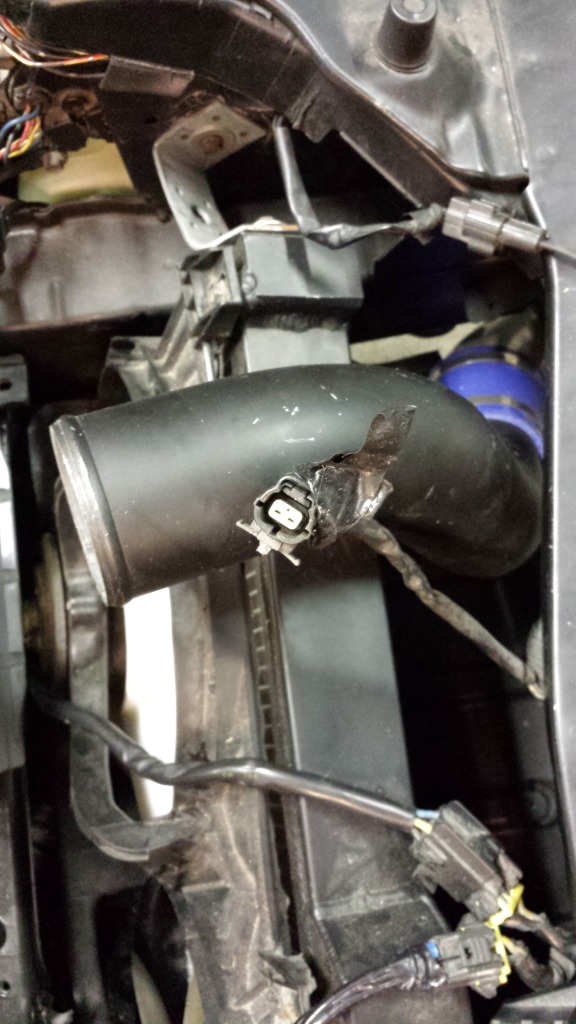

2. middle of front, by the radiator
Name: 20130829_220154_zps9b4a1fc5.jpg Views: 13 Size: 166.2 KB

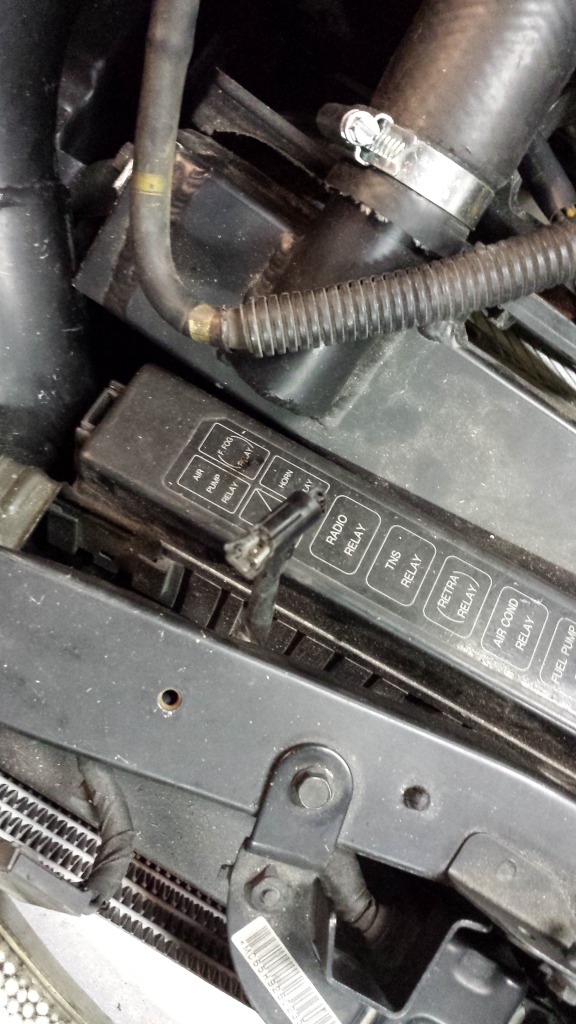

3.
middle of front, by the fusebox

Name: 20130829_220127_zps73952590.jpg Views: 17 Size: 197.7 KB

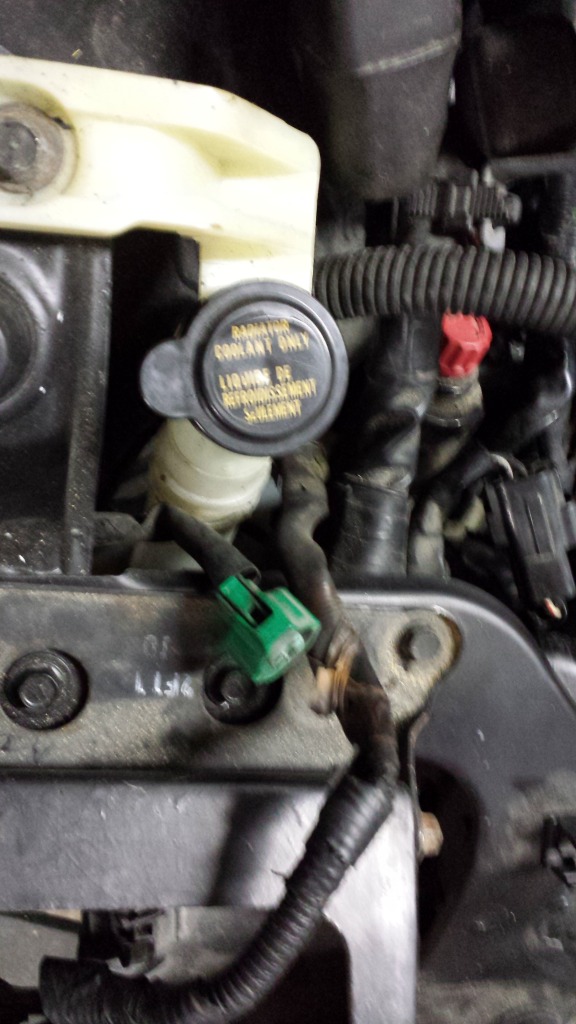

4. passenger side, front, by the coolant tank

Name: 20130829_220111_zpsc545dd44.jpg Views: 12 Size: 157.1 KB


thanks for help
Last edited by oyvindjs; 08-29-13 at 06:16 PM.
oyvindjs is offline
Reply Like
Old 08-29-13, 09:14 PM
  #2
Big Bird's Here!!!


iTrader: (26)

ondabirdhouse's Avatar

Join Date: Feb 2010
Location: Jacksonville, FL
Posts: 721
Received 2 Likes on 2 Posts
3rd one is your horn
ondabirdhouse is offline
Reply Like
Old 08-29-13, 10:49 PM
  #3
T3DoW

iTrader: (10)

TpCpLaYa's Avatar

Join Date: Nov 2001
Location: Chicago - NW Burbs
Posts: 3,755
Received 5 Likes on 3 Posts
1. I think is for A/C sensor
2. maybe fog lights
3. horn
4. bumper/sidemarker lighting?
TpCpLaYa is offline
Reply Like
Old 08-30-13, 07:18 AM
  #4
In Surgery

iTrader: (17)

Turk82's Avatar

Join Date: Apr 2010
Location: NEPA
Posts: 618
Received 6 Likes on 5 Posts
Here a list for the entire front harness https://www.rx7club.com/3rd-generati...ctures-892648/
Turk82 is offline
Reply Like
Old 08-30-13, 08:33 AM
  #5
RX-7 Bad Ass

iTrader: (55)

DaleClark's Avatar

Join Date: Jan 2002
Location: Pensacola, FL
Posts: 15,399
Received 2,438 Likes on 1,509 Posts
Originally Posted by TpCpLaYa
1. I think is for A/C sensor
2. maybe fog lights
3. horn
4. bumper/sidemarker lighting?
^Bingo.

Dale
