Water Temp Sensor Install....
#1
Foxhunting....
Thread Starter
iTrader: (9)
Join Date: Jan 2006
Location: FAIRFAX, VIRGINIA
Posts: 272
Likes: 0
Received 0 Likes
on
0 Posts
Water Temp Sensor Install....
I Have Read Many Threads Regarding This. I Am Installing My Defi Bf Water Temp And Am Debating Where To Put The Water Temp Sensor. I Found Pro's And Con's For Tapping The Thermostat Housing, But I Was Thinking Of Running A 1/8 "t" In The Upper Radiator Hose. Has Anyone Done This? Are The Readings Accurate?...
#3
Senior Member
iTrader: (4)
Join Date: Sep 2003
Location: Los Angeles, CA
Posts: 473
Likes: 0
Received 0 Likes
on
0 Posts
never mind it was a part for the rx8. http://racingbeat.com/FRmazda4.htm yeah when i checked out racing beats site and found out it was for an rx8. my gauge was drilled into the water housing itself. make sure though you run the wires through a place that will get the least heat from because my sender wire got fried from the heat.
#5
ArmitageFD3S
iTrader: (13)

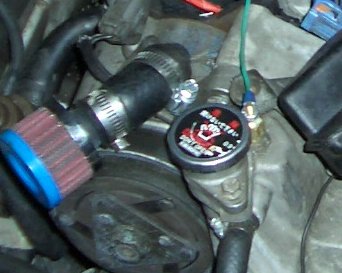

Instead of tapping the t-stat housing, I tapped the hex plug in the t-stat housing that's right behind the coolant fill cap. Two words of caution tho, that plug is made from the hardest metal known to man. I had a hell of a time drilling/tapping it even with a drill press. Also the probe comes really close to the fill cap. Not a problem if you cap doesn't have "wings". I think the install is relatively clean and can be undone simply by replacing the plug and not the housing but it was kind of a PITA.
#6
~17 MPG
iTrader: (2)
To the original poster: I agree with FORSAKEN, tap the thermostat side, so you'll see the actual temperature of the coolant coming out of the water pump. You will know the actual coolant temp while the car is still warming up, and if the thermostat sticks closed you'll see the correct temps.
In the following photos, you want to tap into the chamber that is visible in the second photo, not the filler neck side shown in the first photo:
ArmitageGVR4, unless your car has an FC filler neck (which it doesn't appear to), that photo shows your pressure-releif cap installed in the wrong place. The black & red cap that is labeled "0.9" is supposed to go on the AST, while the yellow cap labeled "fill cap" goes on the filler neck.
-s-
In the following photos, you want to tap into the chamber that is visible in the second photo, not the filler neck side shown in the first photo:
ArmitageGVR4, unless your car has an FC filler neck (which it doesn't appear to), that photo shows your pressure-releif cap installed in the wrong place. The black & red cap that is labeled "0.9" is supposed to go on the AST, while the yellow cap labeled "fill cap" goes on the filler neck.
-s-
Last edited by scotty305; 07-14-06 at 02:39 PM.
#7
Cheap Bastard
iTrader: (2)

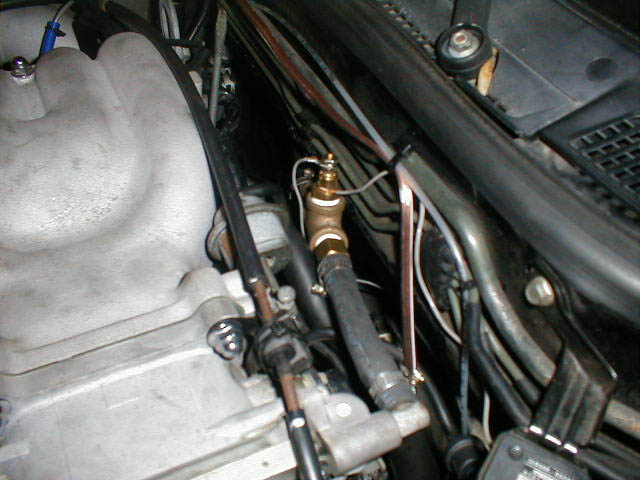

The throttle body coolant line is the best place to put a sender. No drilling or tapping. Easy access. Accurate temp readings all the time, not just after the t-stat opens. Here's a pic.
https://www.rx7club.com/forum/attach...chmentid=49238
https://www.rx7club.com/forum/attach...chmentid=49238
Trending Topics
#8
~17 MPG
iTrader: (2)
Originally Posted by adam c
The throttle body coolant line is the best place to put a sender. No drilling or tapping. Easy access. Accurate temp readings all the time, not just after the t-stat opens. Here's a pic.
https://www.rx7club.com/forum/attach...chmentid=49238
https://www.rx7club.com/forum/attach...chmentid=49238
Nice!!!
-s-
#9
ArmitageFD3S
iTrader: (13)
Originally Posted by scotty305
an FC filler neck (which it doesn't appear to), that photo shows your pressure-releif cap installed in the wrong place. The black & red cap that is labeled "0.9" is supposed to go on the AST, while the yellow cap labeled "fill cap" goes on the filler neck.
-s-
-s-
#10
Urban Combat Vet
iTrader: (16)
Originally Posted by adam c
The throttle body coolant line is the best place to put a sender. No drilling or tapping. Easy access. Accurate temp readings all the time, not just after the t-stat opens.
Really is a piece of cake and accurate. My fans come on right when the gauge say they should.
#11
RX-7 Bad Ass
iTrader: (55)
Use the TB coolant line. Any other method will be lots harder or will give you goofy readings.
Here's my post on the topic -
https://www.rx7club.com/showthread.p...e+body+coolant
Trust me, this is the best way to do it. Easy, quick, easily reversible, and gives accurate full-range readings.
Dale
Here's my post on the topic -
https://www.rx7club.com/showthread.p...e+body+coolant
Trust me, this is the best way to do it. Easy, quick, easily reversible, and gives accurate full-range readings.
Dale
#12
Just to bump this thread, I'm about to do this, I have the thermostat housing off the car at the minute but my concern is that surely if the TS fails to open then the engine could be overheating and my gauges would be reporting no problems at all?
So the general consensus is that the throttle body line is the best place?
So the general consensus is that the throttle body line is the best place?
