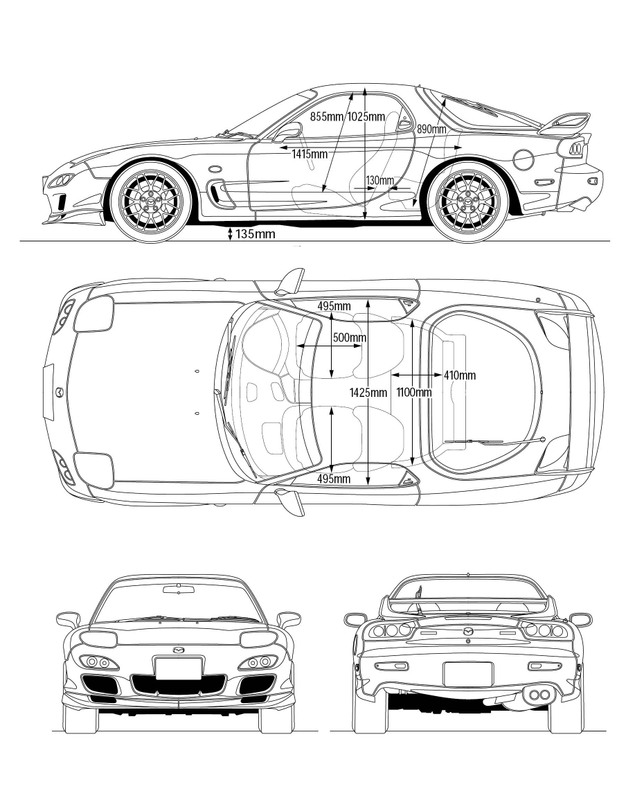

What happened to these diagrams? I thought there were numerous threads containing these diagrams. Is this a legal issue?

Thx,
Mike

SA3R

You want to sue someone for not putting vehicle dimension diagrams on the forum?

Mmmm.

BFGRX7

iTrader: (2)

LOL! Sue? No! LOL! I was thinking that the admins may have taken the diagrams down because they may have got a "cease and desist" order, or something like that.

BFGRX7

iTrader: (2)

Anyone?

adam c

iTrader: (2)

1994 Mazda RX-7 Base Coupe 1.3L Twin-turbo 5-speed Manual Features and Specs

BFGRX7

iTrader: (2)

Haha! Let me clarify. I would like to place my 3rd Gen on a frame jig/table but I cannot find the crash damage spec sheet so i can get it within spec. The 2nd Gen's out there but I haven't been able to find the FDs.

Rekarbenots

iTrader: (3)

http://www.wrex-racing.com/docs/fd/r...%20_repair.pdf

Scroll to page 4. It has dimensions for the front end and engine bay. Haven't found specs for the rest of the chassis

Mazderati

iTrader: (3)

BFG, I know the FC diagram you're talking about; looks like a blueprint of exterior dimensions. Never saw one for the FD.

BFGRX7

iTrader: (2)

Mike- Thank you a lot for that link. Although my computer wouldn't allow me to open the link, I was able to get to it in a round-about way. The "Bodyshop Manual" I ended getting was located here;

https://docs.google.com/file/d/0BwrH...VRaENhVU0/edit


Mazderati- if you have an FD, this link has everything you need for repairs. It also has all VIN locations on the body.

ppritchard

Maybe this one will help.

BFGRX7

iTrader: (2)

Thx, pprit! The one I really needed had exact measurements for when you get in a wreck and are trying to get the car back to factory specs. The link is in post #9 (just above yours). Check it out-good info for when you do have that run-in with a wall, curb, truck, guardrail, pack of rabbits, etc...
