Vacume simplification system question.
#1
I wanta be with the BUC!
Thread Starter
Join Date: Jan 2003
Location: Knoxville, TN
Posts: 2,305
Likes: 0
Received 0 Likes
on
0 Posts
Vacume simplification system question.
http://www.newwave.net/~flanham/wlan...urbosystem.jpg
In that diagram there is two "turbo control" silinoids.
And also I've found the perge control, and I/J in the diagram, I also believe I have found the one in the diagram that is labeled "turbo control" (not the E).
So were are the other three silinoides??? E, F, and H??? Are they in the vacume "rack"? Or what. Can anyone provide a pictures, or a part number on the silinoids. Or does it even matter? Are most of them the same?
Thanks, Cory
In that diagram there is two "turbo control" silinoids.
And also I've found the perge control, and I/J in the diagram, I also believe I have found the one in the diagram that is labeled "turbo control" (not the E).
So were are the other three silinoides??? E, F, and H??? Are they in the vacume "rack"? Or what. Can anyone provide a pictures, or a part number on the silinoids. Or does it even matter? Are most of them the same?
Thanks, Cory
#2

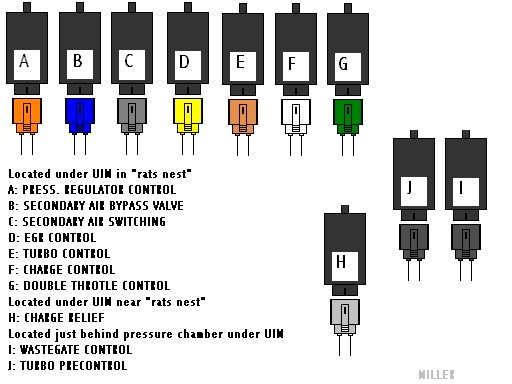

Yah that 2 turbo control thing confused me a bit but there are 2. One is located on the solenoid rack and the other was attached to the ACV. The one in the diagram that says solenoid valve (turbo control) was the one on the ACV and the other one was located on the rack. I think the charge control solenoid has a white sticker on it.
https://www.rx7club.com/attachment.p...chmentid=46814
https://www.rx7club.com/attachment.p...chmentid=46814
Last edited by HobbeZ; 01-04-05 at 03:53 PM.
