V - Mount Update Home Made

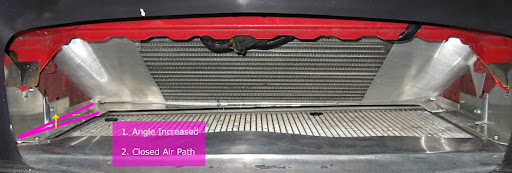

On my way to getting ready for track season

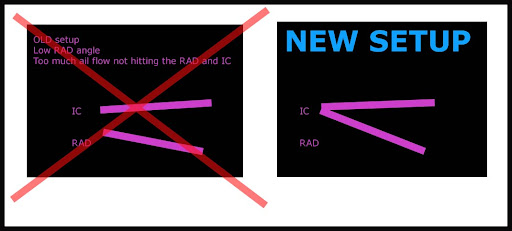

- I think the pictures are self explanatory.

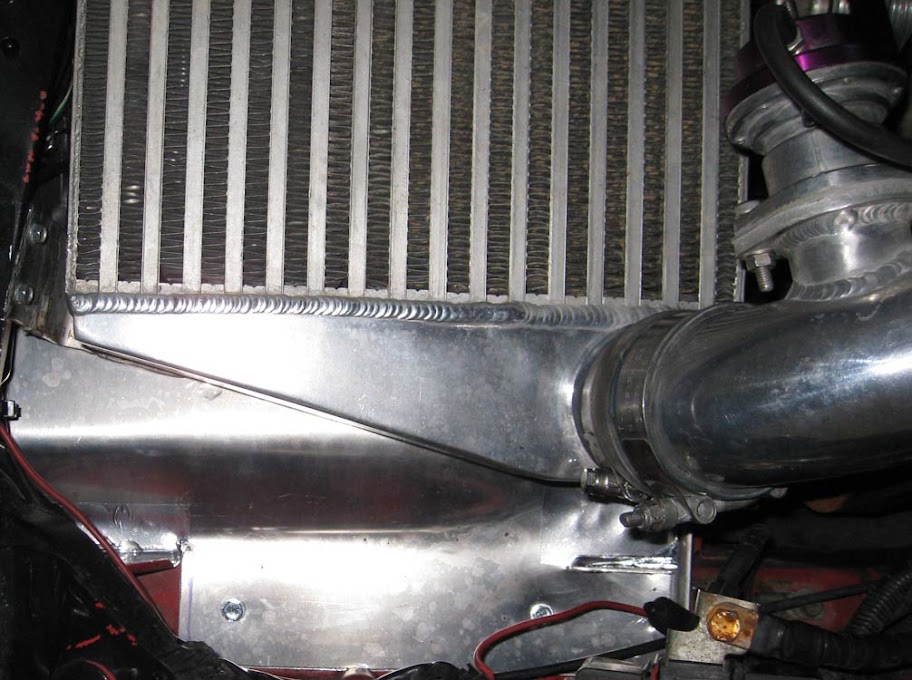

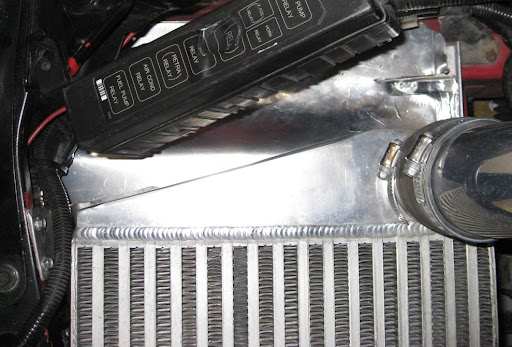

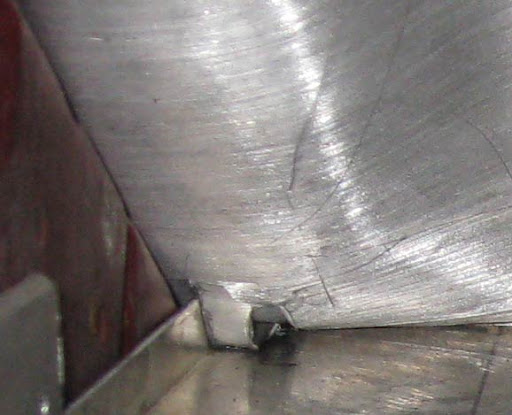

- This took an entire day to figure out and get done. This is home made with just a disk tool and some screws. My friend and I bent the aluminum by hand since its pretty thin its not a big problem when you have a few wooden blocks around.
- This setup works for me as temps are super stable under boost. Over 2hrs boosting around highways and no temp change. I'm also running Evans cooling in the system.
- I Have over 400 miles on this tested and no more change in temps under long periods of boost. Keep in mind I'm making over 560rwhp w/ alcohol so temps are a HOT issue.
