unknown connectors.

Thread Tools

Search this Thread

Old 07-03-08, 12:40 PM
  #1
Rotary Enthusiast

Thread Starter

Sideo's Avatar

Join Date: May 2006
Location: reno nevada
Posts: 763
Received 13 Likes on 11 Posts
unknown connectors.
my car still isnt running and im figure out were these connectors go.


by the ecu




by the radiator



by the headlights

Sideo is offline
Reply Like
Old 07-03-08, 05:26 PM
  #2
Full Member


zheka's Avatar

Join Date: May 2007
Location: North Port, Florida
Posts: 134
Received 0 Likes on 0 Posts
is yours automatic? if so do you find extra connector that looks just like same one as on starter solenoid. and this extra connector is by starter just hanging there.
zheka is offline
Reply Like
Old 07-03-08, 05:27 PM
  #3
Full Member


zheka's Avatar

Join Date: May 2007
Location: North Port, Florida
Posts: 134
Received 0 Likes on 0 Posts
Btw the one you got by ecu, mine is not connected to anything.

Nvm i thought you where talking about that small black connector.
zheka is offline
Reply Like
Old 07-03-08, 05:39 PM
  #4
Rotary Enthusiast

Thread Starter

Sideo's Avatar

Join Date: May 2006
Location: reno nevada
Posts: 763
Received 13 Likes on 11 Posts
yeah i was talking about the small black connector, ty for the help, anyone know about the last picture?
Sideo is offline
Reply Like
Old 07-03-08, 05:48 PM
  #5
Full Member


zheka's Avatar

Join Date: May 2007
Location: North Port, Florida
Posts: 134
Received 0 Likes on 0 Posts
the last picture is not to clear to see.

and the connector you where talking about by radiator. does it have 2 wires coming out from it?
zheka is offline
Reply Like
Old 07-03-08, 05:51 PM
  #6
Rotary Enthusiast

Thread Starter

Sideo's Avatar

Join Date: May 2006
Location: reno nevada
Posts: 763
Received 13 Likes on 11 Posts
the connector by the radiator does have 2 wires, i was thinking it was for fog lights if i had them but i wasnt sure.
Sideo is offline
Reply Like
Old 07-03-08, 05:59 PM
  #7
Rotary Enthusiast

Thread Starter

Sideo's Avatar

Join Date: May 2006
Location: reno nevada
Posts: 763
Received 13 Likes on 11 Posts

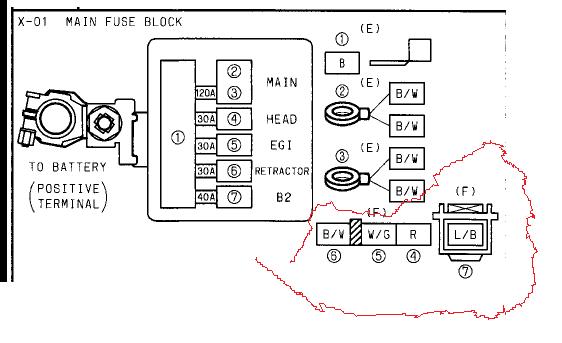

here are the last two connectors i found in a diagram, it just doesnt say were they go, mabye this will help.
Attached Thumbnails unknown connectors.-connector.jpg
Sideo is offline
Reply Like

Trending Topics

Old 07-03-08, 06:06 PM
  #8
Rotary Enthusiast

Thread Starter

Sideo's Avatar

Join Date: May 2006
Location: reno nevada
Posts: 763
Received 13 Likes on 11 Posts
wow im a dumbass, i just realized that picture shows me were it goes, i have it plugged in now, and headlights are working but its still not starting.
Sideo is offline
Reply Like
Old 07-03-08, 06:07 PM
  #9
Rotary Enthusiast

Thread Starter

Sideo's Avatar

Join Date: May 2006
Location: reno nevada
Posts: 763
Received 13 Likes on 11 Posts
starteer was unplugged, its cranking now, im goign to go put it back together and try and start it.
Sideo is offline
Reply Like
Old 07-03-08, 06:14 PM
  #10
Full Member


zheka's Avatar

Join Date: May 2007
Location: North Port, Florida
Posts: 134
Received 0 Likes on 0 Posts
hey man can you answer my question that i asked you before. about extra connector by the starter.
zheka is offline
Reply Like
Old 07-03-08, 06:18 PM
  #11
Rotary Enthusiast

Thread Starter

Sideo's Avatar

Join Date: May 2006
Location: reno nevada
Posts: 763
Received 13 Likes on 11 Posts
no mine is manual, but i know what you are talking about because i wondered about that wire too, on automatics the yellow/red wire plugs into the starter, on manuals the black/red wire plugs into the starter.
Sideo is offline
Reply Like
Old 07-03-08, 06:26 PM
  #12
Full Member


zheka's Avatar

Join Date: May 2007
Location: North Port, Florida
Posts: 134
Received 0 Likes on 0 Posts
yellow/red? No i got red/black and another one same connector only just red wire and it by starter also.
zheka is offline
Reply Like
Old 07-03-08, 06:30 PM
  #13
Rotary Enthusiast

Thread Starter

Sideo's Avatar

Join Date: May 2006
Location: reno nevada
Posts: 763
Received 13 Likes on 11 Posts
sorry, not yellow/red, the AT uses a redwith yellow stripe according to fsm
Sideo is offline
Reply Like
Old 07-03-08, 06:52 PM
  #14
Full Member


zheka's Avatar

Join Date: May 2007
Location: North Port, Florida
Posts: 134
Received 0 Likes on 0 Posts
hey can you post that page with the wiring to the starter. if you know where it is. cause i being looking for it for to long and cant find it.
zheka is offline
Reply Like
Old 07-03-08, 08:01 PM
  #15
Rotary Enthusiast

Thread Starter

Sideo's Avatar

Join Date: May 2006
Location: reno nevada
Posts: 763
Received 13 Likes on 11 Posts
sure
Sideo is offline
Reply Like
Old 07-03-08, 08:07 PM
  #16
Rotary Enthusiast

Thread Starter

Sideo's Avatar

Join Date: May 2006
Location: reno nevada
Posts: 763
Received 13 Likes on 11 Posts

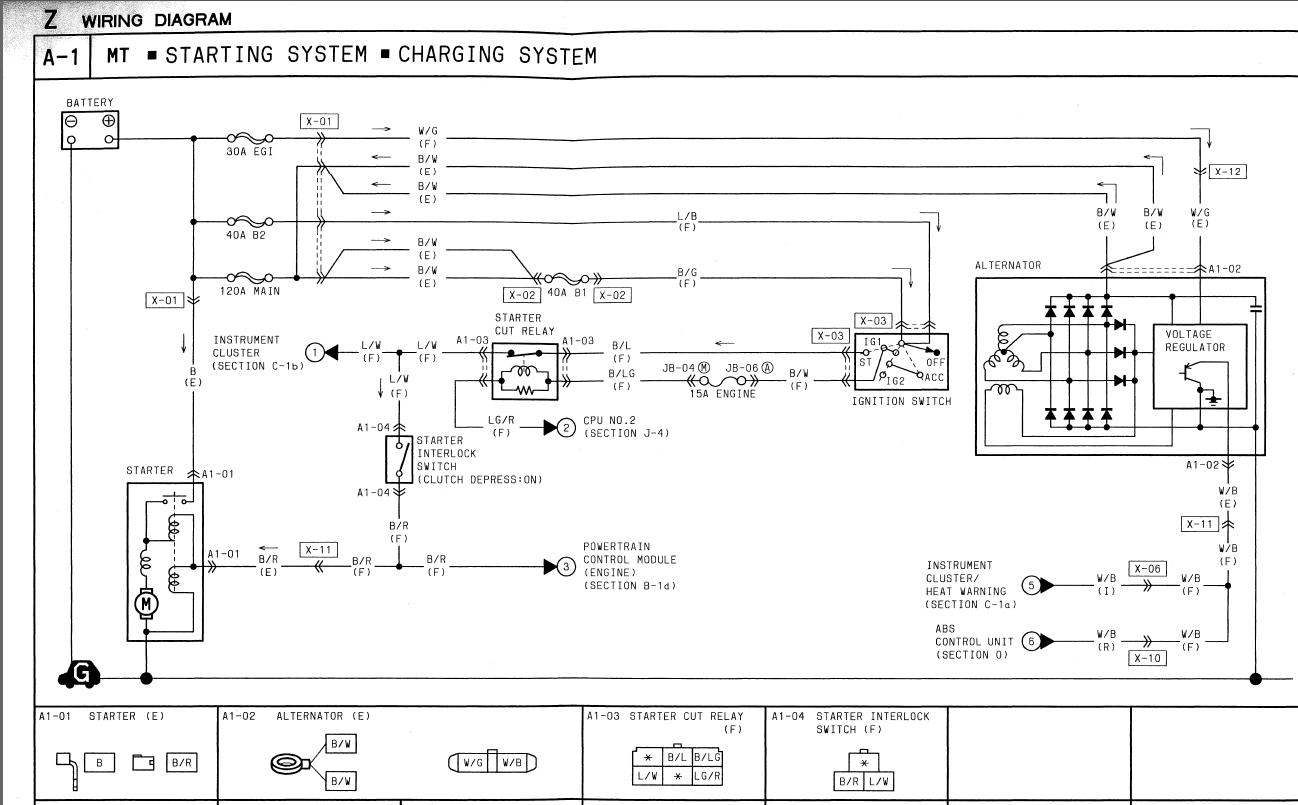

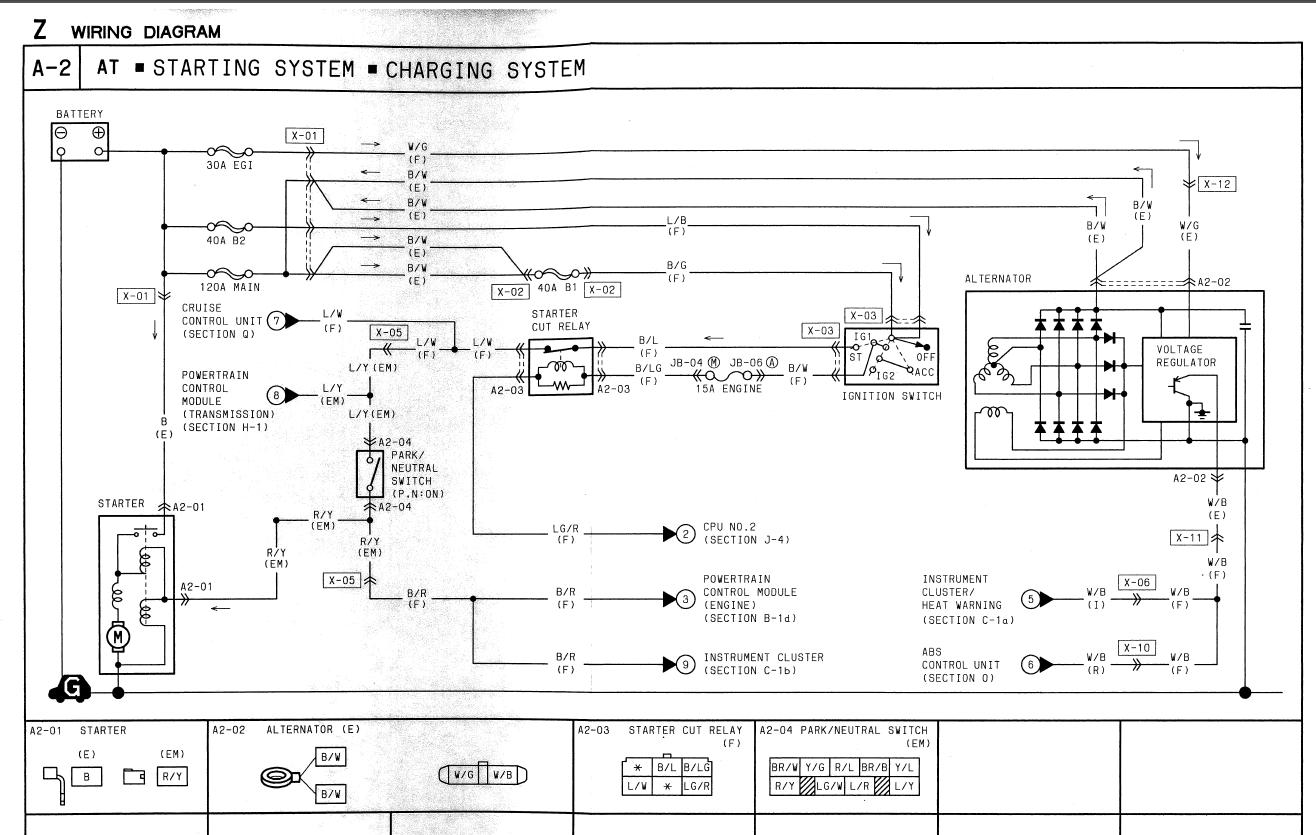

here you go
Attached Thumbnails unknown connectors.-starting.jpg   unknown connectors.-mt-starting.jpg
Sideo is offline
Reply Like
Old 07-03-08, 09:39 PM
  #17
Full Member


zheka's Avatar

Join Date: May 2007
Location: North Port, Florida
Posts: 134
Received 0 Likes on 0 Posts
tnx
zheka is offline
Reply Like
