I've been wondering about this device for a while. Originally i thought its for automatic transmission, but after seeing it in other japanese tuner cars and how the wired is hooked up to RPM and Speed signal + MT signal? it seems like its made for all types of transmission.

Do anyone know this or have experience with this product on their FD?

translated page:
http://translate.google.com/translat...hl=en&ie=UTF-8




wiring diagram from top:
- power
- RPM
- Speed
- Manual Transmission signal
- ground



Little Hardcore dont ya think? I think so. It even tells you what gear you are in. Looks like a waste of money to me. but hey, if ya like that kinda thing, all the power to ya!



why bother? the fd has a shift indicator built into it already, it buzzes at the redline

the only reason to use something like this is to maybe help identify if you are misshifting in a race, it might prevent a misshift. other than that, it's useless in these cars.



Amen brotha sista!



That looks pretty cool and definitely can be useful, I may have to get it.



That buzzing is to indicate overboost.

The Rx-8 has the RPM buzzer.



You really shouldn't need anything more than the car already has. Another waste of money to be added to the list:

1. Loud BOV's
2. Turbo timers
3. Shift Indicator
4. Headlight fluid

I'm sure there is more



Nope. There is no boost buzzer. Buzzer is for rpm.



What, nah man, the buzzing in the FD is for High RPM or just optimal shift time. Fuel cut is for over boost .

EDIT: damn you to hell Adam



It's ment for serious racers using sequential shifters. Very common on the street and race scene in Japan.

Shifters like this one
http://www.ikeya-f.co.jp/images/wmv/sousa2.wmv
http://www.ikeya-f.co.jp/en/product_...n_shifter.html
http://www.ikeya-f.co.jp/en/car_type/fd3s.html



Yea one of those shifters are in the FS section. Pretty insane!



haha, yes there are tons... Like

- a fully polished engine...
- Greddy hard pipes
- electronic boost controller
- Apexi REV/Speed meter
- Tire pressure monitor
- strobe lights
- disco ball
- .. too much to list

if you like the car to be in its purest form... then ofcourse gadgets are not for you

I personally don't like unecessary things in the car either, but this might help not to mis-shift before you engage your clutch?? IMO.. if it's clean/tastefully installed, this little device seems like it can be nice feature to add to the car.



Why not just buy a regular shift light? My buddy has a raptor the thing is the size of a pen and its tucked in the air vent so it cant be seen until its time to shift



This is more that just a shift light.

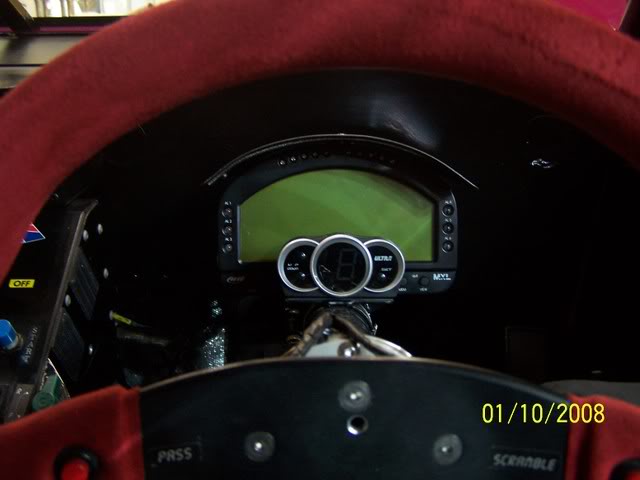

Crispeed is in the know! HAHA! Look at this. Rmagic uses one in their time attack FD.
(Thanks Miata_mx5 for the photos.)

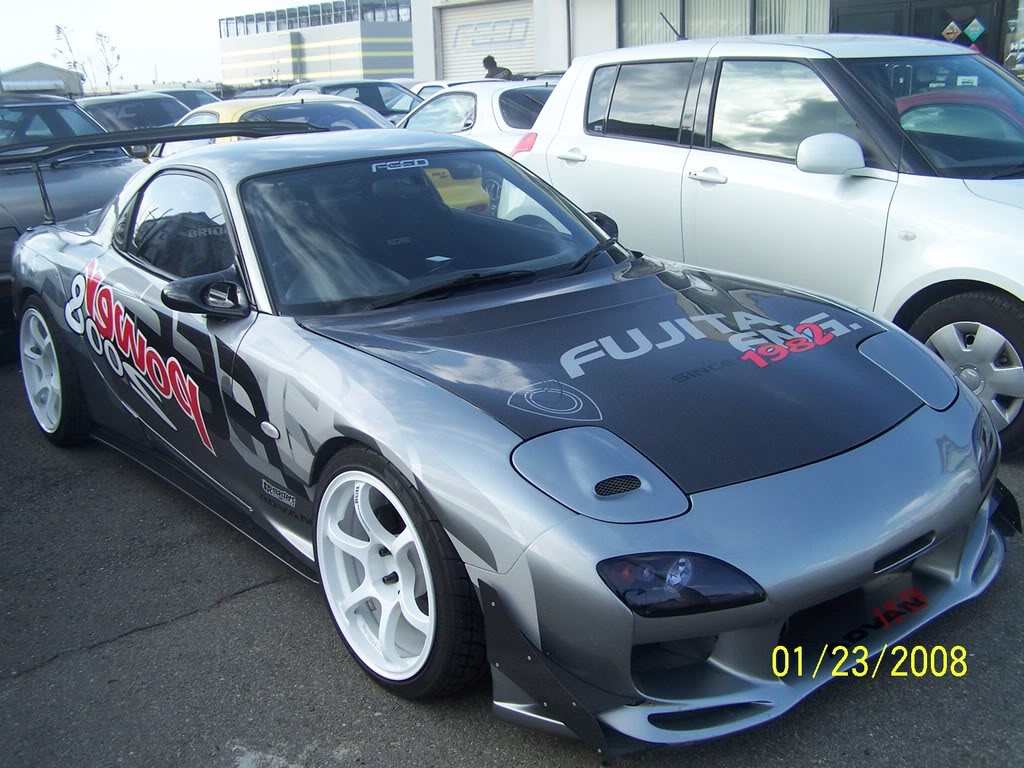

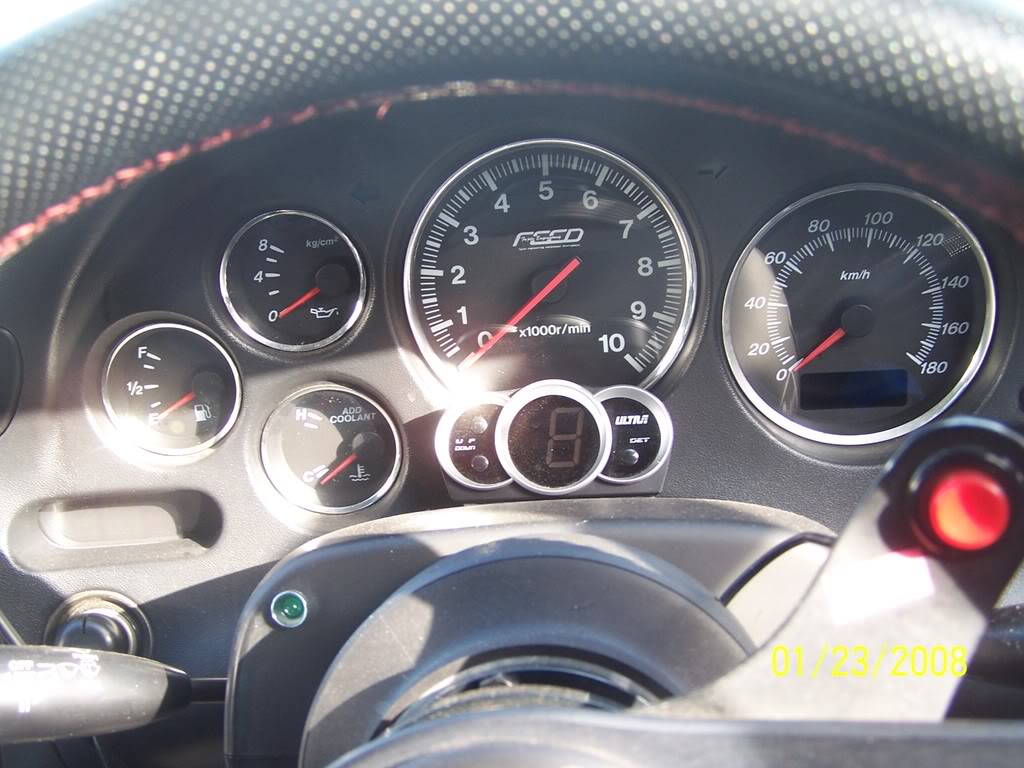

Feed Time Attack Car has one too!
