UIM temperature sensor pinout?

Thread Tools

Search this Thread

Old 03-10-23, 08:08 AM
  #1
Walking bowl of punch

Thread Starter
iTrader: (2)

MilesBFree's Avatar

Join Date: May 2001
Location: Chicago, IL, USA
Posts: 779
Received 53 Likes on 35 Posts
UIM temperature sensor pinout?
hi, when I pulled the UIM to do the sequential simplification, i managed to pull the pins out of the connector. Does anyone have a photo showing which wire goes to which position in the connector? TIA!
MilesBFree is offline
Reply Like
Old 03-10-23, 10:19 AM
  #2
よ*ろ*し*く*
RX7Club Vendor
iTrader: (4)

FDAUTO's Avatar

Join Date: Sep 2022
Location: Tampa
Posts: 770
Received 245 Likes on 180 Posts
They can go back in either way, it doesn't matter
FDAUTO is offline
Reply Like
Old 03-10-23, 03:27 PM
  #3
Walking bowl of punch

Thread Starter
iTrader: (2)

MilesBFree's Avatar

Join Date: May 2001
Location: Chicago, IL, USA
Posts: 779
Received 53 Likes on 35 Posts
great, thanks!
MilesBFree is offline
Reply Like
Old 03-10-23, 04:26 PM
  #4
Penis Healthy

iTrader: (5)

FührerTüner's Avatar

Join Date: Jul 2013
Location: █▬█ █▄█ █▬█ █▄██▬█ █▄█ █▬█ █▄█
Posts: 2,595
Received 794 Likes on 452 Posts
Originally Posted by MilesBFree
hi, when I pulled the UIM to do the sequential simplification, i managed to pull the pins out of the connector. Does anyone have a photo showing which wire goes to which position in the connector? TIA!
Someone can correct me if I'm wrong, but its a variable resistor so I think it shouldnt matter.

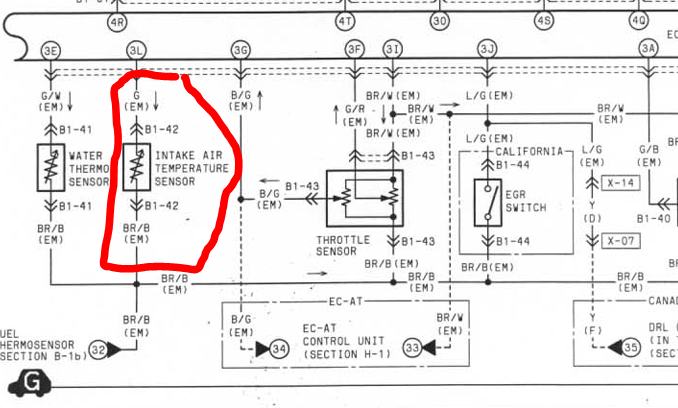

Heres this though.



And for some reason I didn't see the previous posts...
FührerTüner is offline
