Twin Power harness help!!
#1
Senior Member
Thread Starter
Join Date: Nov 2003
Location: WI.
Posts: 348
Likes: 0
Received 0 Likes
on
0 Posts
Twin Power harness help!!

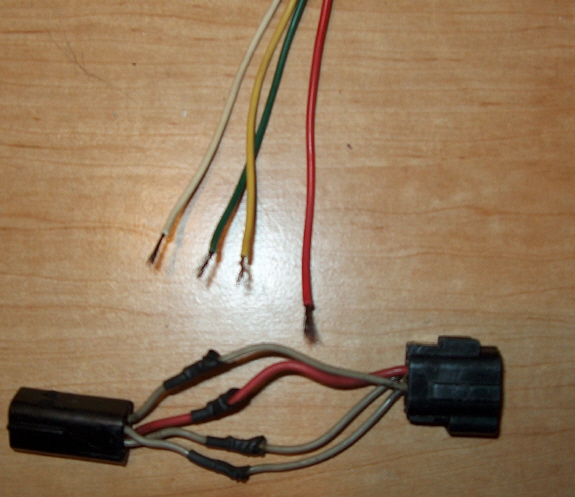

I purchased a used twin power off a guy on the forums with a harness. The wires have come unsoldered and I don't know which one goes where now. Does anybody have a pic of a harness that shows the wire colors and which one goes where??? Please help if you can. Thanks, Mike
#4
F'n Newbie...
iTrader: (6)
I was going to say the same thing as Busted7. Get the proper harness for it ($35 from rx7store.net if I remember correctly) and it makes installation simple as can be... (I spent more time trying to find a spot to mount the twin power itself than I did installing the wiring)
Search through my old posts, I asked a question along these lines about a month ago (I would link it, but I am *literally* walking out the door to work, on the verge of being late). I included pictures and details of what I did piece by piece to install it in my thread.
Cheers,
Levi
Search through my old posts, I asked a question along these lines about a month ago (I would link it, but I am *literally* walking out the door to work, on the verge of being late). I included pictures and details of what I did piece by piece to install it in my thread.
Cheers,
Levi
#5
Senior Member
Thread Starter
Join Date: Nov 2003
Location: WI.
Posts: 348
Likes: 0
Received 0 Likes
on
0 Posts
I searched the forums but I can't find what I need. The harness I have was the vehicle specific one originally but has come apart. I don't need to hardwire it in to the factory harness I need to repair the vehicle specific harness. I have to find out which wires go where in that harness. Somebody have a PNP harness laying around they can look at for me????
#7
Banzai Racing
Mike,
Looking at the back of the larger connector, the one with the lock tab on top, the wires go like this:
Red to Red bottom left corner
White to Grey top left corner
Green to Grey top right corner
Yellow to Grey bottom right corner
Chris
Looking at the back of the larger connector, the one with the lock tab on top, the wires go like this:
Red to Red bottom left corner
White to Grey top left corner
Green to Grey top right corner
Yellow to Grey bottom right corner
Chris
