Turbo removal pics

Thread Tools

Search this Thread

Old 09-24-05, 06:16 PM
  #1
Dont make me Laugh

Thread Starter
iTrader: (8)

4Fun's Avatar

Join Date: Feb 2002
Location: All Hope is Lost
Posts: 1,238
Likes: 0
Received 0 Likes on 0 Posts
Exclamation Turbo removal pics

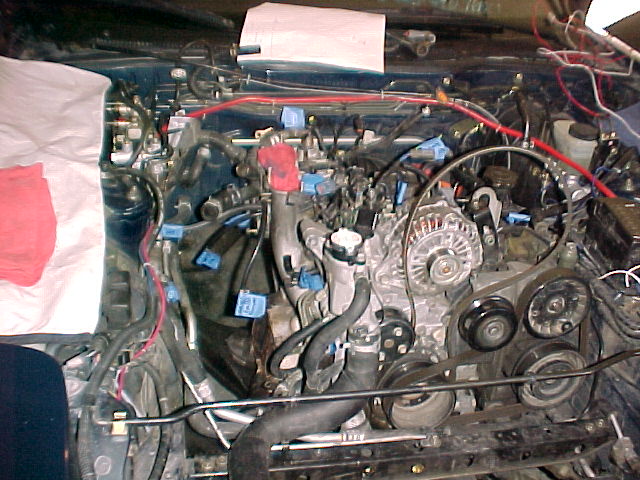

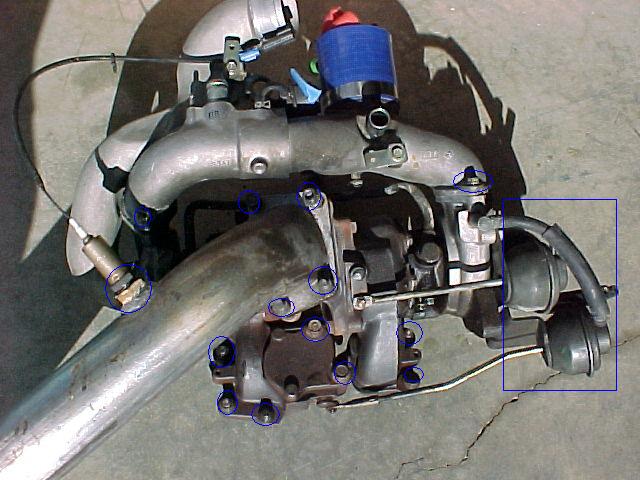

Just thought I would post a few pics of what need to be taken out for turbo removal. Everything in blue needs to be taken off. Also the 2 oil lines, and the two rubber coolant lines. Hope this helps others feel free to chime in if i left something out.
Attached Thumbnails Turbo removal pics-removal.jpg   Turbo removal pics-removal2.jpg   Turbo removal pics-mvc-004f.jpg
4Fun is offline
Reply Like
Old 09-24-05, 06:27 PM
  #2
Rotary Enthusiast


djantlive's Avatar

Join Date: Feb 2001
Posts: 1,213
Likes: 0
Received 0 Likes on 0 Posts
nice job. m2 dp is classic
djantlive is offline
Reply Like
Old 09-24-05, 09:51 PM
  #3
Dont make me Laugh

Thread Starter
iTrader: (8)

4Fun's Avatar

Join Date: Feb 2002
Location: All Hope is Lost
Posts: 1,238
Likes: 0
Received 0 Likes on 0 Posts
Thanks I didnt think that anyone would notice the DP. '

Here is what will save your hands.
Attached Thumbnails Turbo removal pics-mvc-005f.jpg
4Fun is offline
Reply Like
Old 09-24-05, 09:51 PM
  #4
Dont make me Laugh

Thread Starter
iTrader: (8)

4Fun's Avatar

Join Date: Feb 2002
Location: All Hope is Lost
Posts: 1,238
Likes: 0
Received 0 Likes on 0 Posts
Also Label label and label it makes install alot easier
4Fun is offline
Reply Like
Old 09-25-05, 07:47 AM
  #5
rx7philrx7


c.stenson1's Avatar

Join Date: Jun 2005
Location: derby england
Posts: 104
Likes: 0
Received 0 Likes on 0 Posts
hey there, can the twins be removed with the down pipe still attached or do you have to remove it for sure, cheers phil.
c.stenson1 is offline
Reply Like
Old 09-25-05, 08:27 AM
  #6
Moderator

iTrader: (7)

dgeesaman's Avatar

Join Date: May 2002
Location: Fort Kickass
Posts: 12,302
Received 16 Likes on 15 Posts
You can probably leave it on. The question is whether you can access all the studs on the turbos with it there.

Dave
dgeesaman is offline
Reply Like
Old 09-25-05, 09:56 AM
  #7
Dont make me Laugh

Thread Starter
iTrader: (8)

4Fun's Avatar

Join Date: Feb 2002
Location: All Hope is Lost
Posts: 1,238
Likes: 0
Received 0 Likes on 0 Posts
You can access the bolts for the turbos but its alot easier to remove the downpipe. I took a pic to show where everything bolts on.
