Three issues to diagnose - advice needed
I had my first track day at Donington Park (UK) this weekend and had a very enjoyable time learning how to drive the car. However, I experienced three issues that I would appreciate help with sorting out:
1. Secondary boost problems
My car is mapped for 0.85 bar (12.3 psi) and prior to the track day I would consistently see 0.85 bar on the street. However, my issues started only 3-4 laps into the day when boost dropped to between 0.55-0.7 bar (8-10 psi) after the transition and hold there until red line. The car boosts better during the 1-2 laps before everything starts to really heat up but it still won't achieve 0.85 bar anymore.
2. Excessive oil blowby even with car less than half full on dipstick
The other issue I experienced was excessive oil blowby that filled my catch can to the maximum and ended up coating my entire intake system with oil, causing oil to seep out of the lower intercooler hose and between the throttle body and stock elbow area. I had to empty my catch can 3 times in 4 runs.
3. Cannot turn wheel more than c.70 degrees when going left at speed
The car turns right just fine and I can turn the wheel left all the way to the locking position at speeds of less than 15 mph. There is no rubbing of the tires anywhere under the arch (we checked). If I keep turning the wheel at speed and yank it harder it will let me turn a bit more but I hear a grinding sound which sounds like the power steering pump or belt. The fluid is full so I'm not sure what the problem might be.
So, any advice on where to start will be of great help.
1. Secondary boost problems
My car is mapped for 0.85 bar (12.3 psi) and prior to the track day I would consistently see 0.85 bar on the street. However, my issues started only 3-4 laps into the day when boost dropped to between 0.55-0.7 bar (8-10 psi) after the transition and hold there until red line. The car boosts better during the 1-2 laps before everything starts to really heat up but it still won't achieve 0.85 bar anymore.
2. Excessive oil blowby even with car less than half full on dipstick
The other issue I experienced was excessive oil blowby that filled my catch can to the maximum and ended up coating my entire intake system with oil, causing oil to seep out of the lower intercooler hose and between the throttle body and stock elbow area. I had to empty my catch can 3 times in 4 runs.
3. Cannot turn wheel more than c.70 degrees when going left at speed
The car turns right just fine and I can turn the wheel left all the way to the locking position at speeds of less than 15 mph. There is no rubbing of the tires anywhere under the arch (we checked). If I keep turning the wheel at speed and yank it harder it will let me turn a bit more but I hear a grinding sound which sounds like the power steering pump or belt. The fluid is full so I'm not sure what the problem might be.
So, any advice on where to start will be of great help.
Last edited by cib24; 03-14-16 at 05:14 AM.
#2
half ass 2 or whole ass 1
iTrader: (114)
1. what kind of boost controller are you using? electric, manual, stock green solenoids?
2. how is your catch can plumbed?
3. no idea. can you go lock to lock sitting still? it wouldnt really make much sense to only have the problem at speed and not sitting still. i assume less than 15mph would also encompass sitting still but i figure i'd ask.
2. how is your catch can plumbed?
3. no idea. can you go lock to lock sitting still? it wouldnt really make much sense to only have the problem at speed and not sitting still. i assume less than 15mph would also encompass sitting still but i figure i'd ask.
#3
Senior Member
Thread Starter
1. what kind of boost controller are you using? electric, manual, stock green solenoids?
2. how is your catch can plumbed?
3. no idea. can you go lock to lock sitting still? it wouldnt really make much sense to only have the problem at speed and not sitting still. i assume less than 15mph would also encompass sitting still but i figure i'd ask.
2. how is your catch can plumbed?
3. no idea. can you go lock to lock sitting still? it wouldnt really make much sense to only have the problem at speed and not sitting still. i assume less than 15mph would also encompass sitting still but i figure i'd ask.
2. Oil filler neck to catch can to primary turbo inlet elbow.
3. Yes, sitting still can go lock to lock. At less than 15-20 mph can go lock to lock. At between 20-50 mph (haven't tested such an aggressive turn at higher speeds since it occurs in hairpins) I can't turn more than 60 degrees and get a grinding noise but no rubbing of tires and no noticeable suspension binding.
#4
Sponsor
iTrader: (41)
1. Sounds like a lazy/sticking solenoid or check valve. Definitely check the turbo precontrol and wastegate solenoids.
2. How is it plumbed? My oil neck would help as well IRP Stainless Steel Oil Filler Neck | IRPerformance
3. Sounds like an issue with the rack itself.
2. How is it plumbed? My oil neck would help as well IRP Stainless Steel Oil Filler Neck | IRPerformance
3. Sounds like an issue with the rack itself.
#5
Senior Member
Thread Starter
1. Sounds like a lazy/sticking solenoid or check valve. Definitely check the turbo precontrol and wastegate solenoids.
2. How is it plumbed? My oil neck would help as well IRP Stainless Steel Oil Filler Neck | IRPerformance
3. Sounds like an issue with the rack itself.
2. How is it plumbed? My oil neck would help as well IRP Stainless Steel Oil Filler Neck | IRPerformance
3. Sounds like an issue with the rack itself.
The precontrol and wastegate solenoids are covered in oil at the moment, at least from the outside but how do I test them to see if they are faulty?
2. Yes, I have been looking into something like that to help. Is there a Group Buy still going on?
3. This evening I had the car up in the air and undertray off and looked very closely at the front steering components and rack. I turned the wheel to the left little by little to see if anything was hitting, binding, etc. and couldn't find a thing.

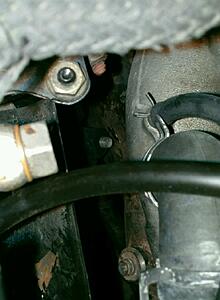

Below is a photo of the steering rack with the wheel turned to the left about 90 degrees from center and whilst it is very close to my downpipe it isn't hitting it and unless the rack somehow has play in it which I have never felt whilst driving, I can't see how it would hit the downpipe during movement.
#6
Sponsor
iTrader: (41)
Do you have pics of how the catch can is plumbed?
The factory service manual tells you how to test all the solenoids. You apply power to them and it should change which way the air blows through.
Yes I have about 5 of the oil necks left.
Check your steering rack bushings and motor mounts for excessive play. Put a pry bar underneath and see how much the components lift.
The factory service manual tells you how to test all the solenoids. You apply power to them and it should change which way the air blows through.
Yes I have about 5 of the oil necks left.
Check your steering rack bushings and motor mounts for excessive play. Put a pry bar underneath and see how much the components lift.
#7
Senior Member
Thread Starter

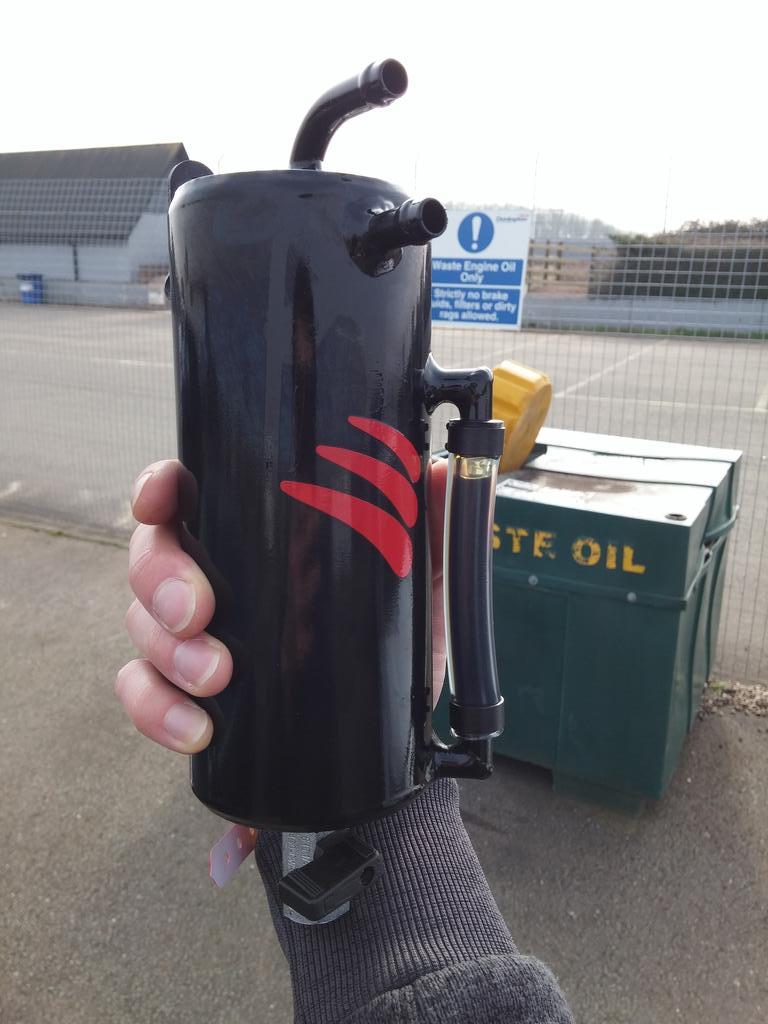

Catch Can Plumbing
The catch can is plumbed in line with how the stock system is set up for oil overflow from the filler neck to make its way into the primary turbo inlet elbow. I am using 3/8" hose since the barbs on my catch can are 3/8".

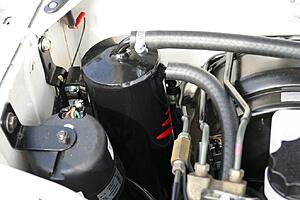

Filler neck to catch can:

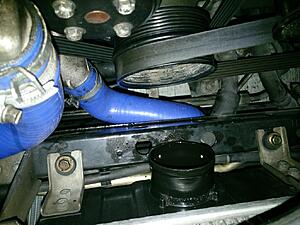

Close up of catch can hose

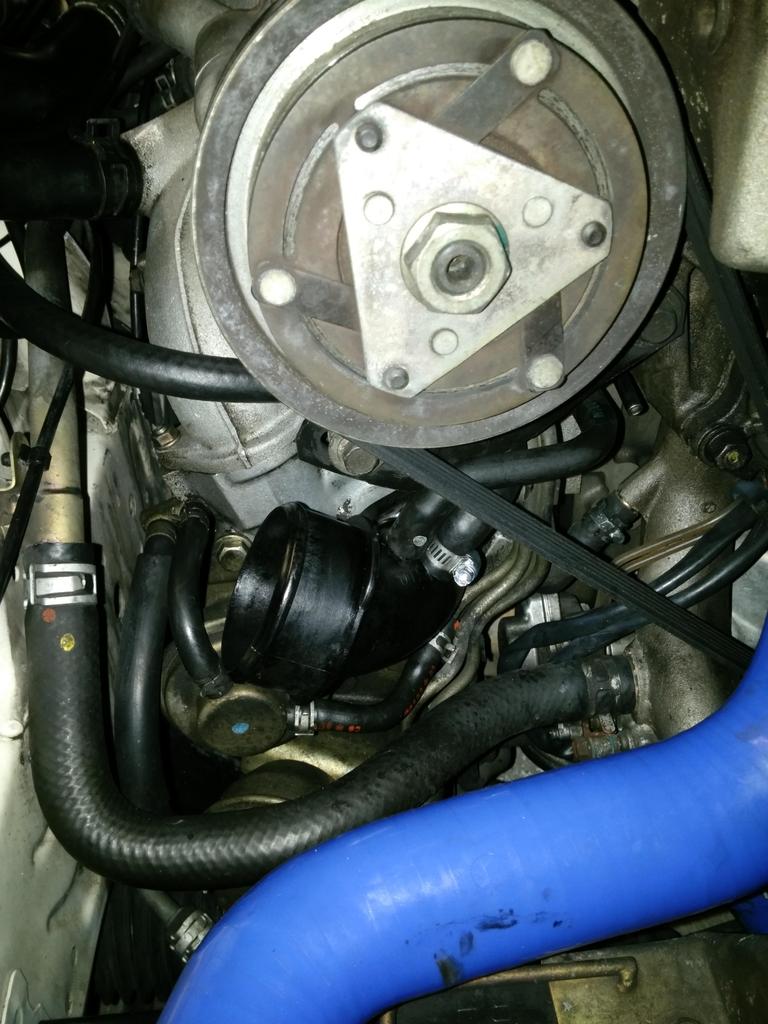

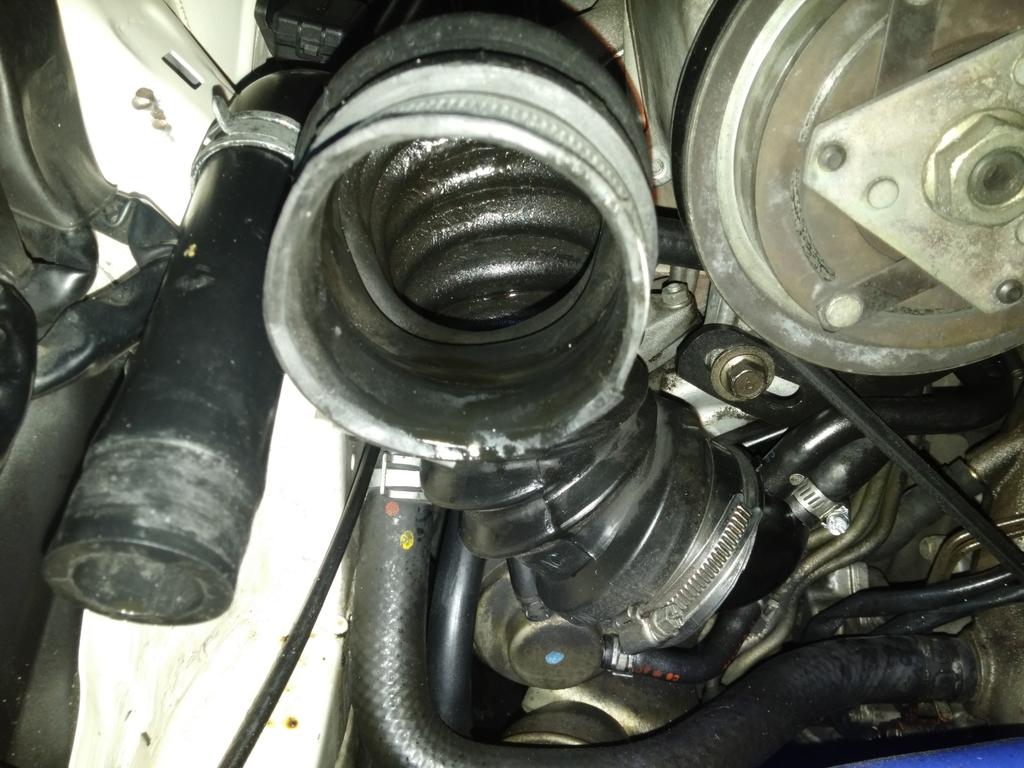

Catch can hose to inlet elbow (the one on the right with hose clamp)
I don't have a factory service manual but I'm sure there are plenty of how-to's online to test the solenoids. I hope I have the right equipment to be able to do so.
The dual AN6 filler neck would be good. I imagine I could plug one hole with an AN6 plug and fit an AN6 male to 3/8" hose barb to the other. I will send you a PM.
I don't have a pry bar but I can take my car to someone to test the rack and motor mounts although the bushings for each look pretty new from a visual perspective.
The catch can is plumbed in line with how the stock system is set up for oil overflow from the filler neck to make its way into the primary turbo inlet elbow. I am using 3/8" hose since the barbs on my catch can are 3/8".
Filler neck to catch can:
Close up of catch can hose
Catch can hose to inlet elbow (the one on the right with hose clamp)
I don't have a factory service manual but I'm sure there are plenty of how-to's online to test the solenoids. I hope I have the right equipment to be able to do so.
The dual AN6 filler neck would be good. I imagine I could plug one hole with an AN6 plug and fit an AN6 male to 3/8" hose barb to the other. I will send you a PM.
I don't have a pry bar but I can take my car to someone to test the rack and motor mounts although the bushings for each look pretty new from a visual perspective.
Trending Topics
#8
SEMI-PRO
iTrader: (2)
If you have the stock sway bar mounts they are known to damage easily. The bend under normal use and are garbage for track use with R compound tires.
If you bottom the car out or hit anything or go off track into a gravel trap you will have likely destroyed your stock sway bar mounts.
When they fail they can sometimes be pushed back and can tear up a steering rack boot or cause interference.
Read this
https://www.rx7club.com/3rd-generati...t-pics-228777/
If you bottom the car out or hit anything or go off track into a gravel trap you will have likely destroyed your stock sway bar mounts.
When they fail they can sometimes be pushed back and can tear up a steering rack boot or cause interference.
Read this
https://www.rx7club.com/3rd-generati...t-pics-228777/
#11
It Just Feels Right
iTrader: (11)
https://www.rx7club.com/3rd-generati...-stuff-802060/
Regarding the steering. One thing I don't do myself is tuning, either engine or suspension. Find a good suspension shop that preps track cars. You probably will need their services for other tweaks in the future and it's good to build a relationship.
Last edited by TomU; 03-15-16 at 07:28 AM.
#12
Senior Member
Thread Starter
Thanks for the link.
The SuperNow plate is actually 10mm thick! After some searching it does look like installing it would be a PITA because you need to remove both engine mounts and potentially the front crossmember...So, yeah I will try the filler neck first.
With respect to the steering, I was thinking it could be two things:
1. The steering shaft sits very close to my large Knight Sports downpipe. In left hand turns could the engine actually be flexing to the right side of the car (away from the apex of the left hand corner on the track) because of the rubber engine mounts and thus the downpipe is colliding with the steering shaft bushing bolt or the shaft itself? I have never felt any vibrations in the wheel though.
2. The power steering pump is cavitating from left hand turns. The pump is on the left side of the car nearest to the apex of a left hand corner and the fluid could be forced against the right side of the power steering reservoir and causing the pump to starve for fluid until I straighten out?
The SuperNow plate is actually 10mm thick! After some searching it does look like installing it would be a PITA because you need to remove both engine mounts and potentially the front crossmember...So, yeah I will try the filler neck first.
With respect to the steering, I was thinking it could be two things:
1. The steering shaft sits very close to my large Knight Sports downpipe. In left hand turns could the engine actually be flexing to the right side of the car (away from the apex of the left hand corner on the track) because of the rubber engine mounts and thus the downpipe is colliding with the steering shaft bushing bolt or the shaft itself? I have never felt any vibrations in the wheel though.
2. The power steering pump is cavitating from left hand turns. The pump is on the left side of the car nearest to the apex of a left hand corner and the fluid could be forced against the right side of the power steering reservoir and causing the pump to starve for fluid until I straighten out?
#13
It Just Feels Right
iTrader: (11)
Yeah RHD, that's gotta suck

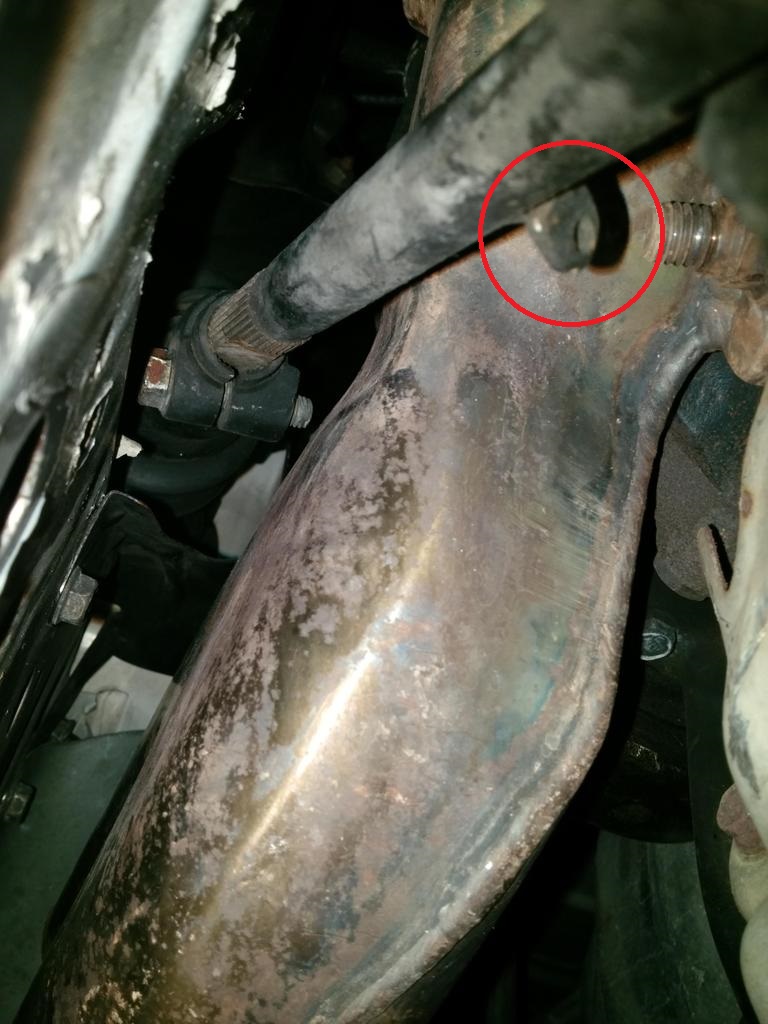

Could the tab circled in the attached be the culprit? I don't recall a tab being on the steering shaft tho. I doubt a little engine flex will bind your steering and if it does, think it would be very momentary.
Curious if any other RHD owners have experienced this problem
And I doubt PS fluid starvation is the problem. You are not going to have enough list that air would get into the system and if you were, it would just make the power uneven (i.e. it would have no bearing on left or right limits on your steering)
Could the tab circled in the attached be the culprit? I don't recall a tab being on the steering shaft tho. I doubt a little engine flex will bind your steering and if it does, think it would be very momentary.
Curious if any other RHD owners have experienced this problem
And I doubt PS fluid starvation is the problem. You are not going to have enough list that air would get into the system and if you were, it would just make the power uneven (i.e. it would have no bearing on left or right limits on your steering)
Last edited by TomU; 03-15-16 at 09:15 AM.
#14
Senior Member
Thread Starter
I will get under the car again tonight and look at that tab and see if it gets very close to the downpipe. Any other ideas from anyone else in the interim?
With respect to the oil blowby problem, what oil pressure should I be experiencing? I have Defi gauge similar to this:
At idle I experience 2.0-2.5 which steadily rises with RPM until it maxes out at about 8.0 above 3.5k RPM all the way to redline. I run 10W-40 Shell Helix semi-synthetic.
Is my oil pressure within spec or too high? I was just thinking some more and thought if I had excess oil pressure I would have more blowby.
With respect to the oil blowby problem, what oil pressure should I be experiencing? I have Defi gauge similar to this:
At idle I experience 2.0-2.5 which steadily rises with RPM until it maxes out at about 8.0 above 3.5k RPM all the way to redline. I run 10W-40 Shell Helix semi-synthetic.
Is my oil pressure within spec or too high? I was just thinking some more and thought if I had excess oil pressure I would have more blowby.
Last edited by cib24; 03-15-16 at 11:04 AM.
#15
It Just Feels Right
iTrader: (11)
8 seems a little high. From Racing Beat...
Rotary Tech Tips: Oil Cooling Tips
Does it come down when it warms up.
When your checking your steering, make sure your suspension is compressed, esp when checking the tie rods.
Rotary Tech Tips: Oil Cooling Tips
Does it come down when it warms up.
When your checking your steering, make sure your suspension is compressed, esp when checking the tie rods.
#16
SEMI-PRO
iTrader: (2)
Partly why IR Performance oil filler neck works so well with a catch can can be explained here.
https://www.rx7club.com/3rd-generati...ce-car-792344/
The orifice is -10AN for the catch can. Allows pressure to be relieved without taking a lot of oil with it.
Also don't vent it back into the manifold. Put a breather that will vent it and any extra oil can be sent back to the return line so it won't overflow.
Seems to be working as stated on the race car in the link above.
That's how I am setting up mine.
https://www.rx7club.com/3rd-generati...ce-car-792344/
The orifice is -10AN for the catch can. Allows pressure to be relieved without taking a lot of oil with it.
Also don't vent it back into the manifold. Put a breather that will vent it and any extra oil can be sent back to the return line so it won't overflow.
Seems to be working as stated on the race car in the link above.
That's how I am setting up mine.
#17
Senior Member
Thread Starter
8 seems a little high. From Racing Beat...
Rotary Tech Tips: Oil Cooling Tips
Does it come down when it warms up.
When your checking your steering, make sure your suspension is compressed, esp when checking the tie rods.
Rotary Tech Tips: Oil Cooling Tips
Does it come down when it warms up.
When your checking your steering, make sure your suspension is compressed, esp when checking the tie rods.
Checking with the suspension compressed is kind of tough since I can't get under the car with it in the ground.
Could it potentially be a valve going bad in the steering rack itself?
#18
Senior Member
Thread Starter
Partly why IR Performance oil filler neck works so well with a catch can can be explained here.
https://www.rx7club.com/3rd-generati...ce-car-792344/
The orifice is -10AN for the catch can. Allows pressure to be relieved without taking a lot of oil with it.
Also don't vent it back into the manifold. Put a breather that will vent it and any extra oil can be sent back to the return line so it won't overflow.
Seems to be working as stated on the race car in the link above.
That's how I am setting up mine.
https://www.rx7club.com/3rd-generati...ce-car-792344/
The orifice is -10AN for the catch can. Allows pressure to be relieved without taking a lot of oil with it.
Also don't vent it back into the manifold. Put a breather that will vent it and any extra oil can be sent back to the return line so it won't overflow.
Seems to be working as stated on the race car in the link above.
That's how I am setting up mine.
Or I can just get another can but I paid good money for mine...
#19
Senior Member
Thread Starter
Yeah RHD, that's gotta suck
Could the tab circled in the attached be the culprit? I don't recall a tab being on the steering shaft tho. I doubt a little engine flex will bind your steering and if it does, think it would be very momentary.
Curious if any other RHD owners have experienced this problem
And I doubt PS fluid starvation is the problem. You are not going to have enough list that air would get into the system and if you were, it would just make the power uneven (i.e. it would have no bearing on left or right limits on your steering)
Could the tab circled in the attached be the culprit? I don't recall a tab being on the steering shaft tho. I doubt a little engine flex will bind your steering and if it does, think it would be very momentary.
Curious if any other RHD owners have experienced this problem
And I doubt PS fluid starvation is the problem. You are not going to have enough list that air would get into the system and if you were, it would just make the power uneven (i.e. it would have no bearing on left or right limits on your steering)

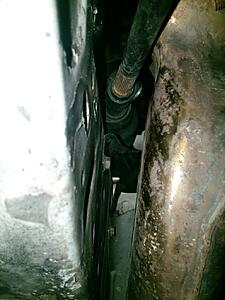

I took a video of the steering shaft moving when the wheel is moved from full lock to the right to full lock to the left. The upper bushing and screw come very close to the downpipe, particularly the threaded end of the screw. We are talking like maybe 1/4 of an inch of clearance at times from that bolt to the downpipe.
Do you think that's a close enough gap that under left hand turns the engine can lean to the right side enough where the downpipe comes in contact with the steering shaft? The bolt looks like it may have come in contact with the downpipe as well by looking at it but I'm not 100% sure.
#20
SEMI-PRO
iTrader: (2)
Good shout but my catch can has a 3/8” barb so I will need to reduce the AN10 fitting with an adapter down to 3/8”. Or perhaps I can run a 5/8” hose from the AN10 filler neck and then reduce closer to the catch can or would that not relieve enough pressure?
Or I can just get another can but I paid good money for mine...
Or I can just get another can but I paid good money for mine...
The filler neck IR Performance sells is -10AN. It is a proven method. I can appreciate money you have already spent. That being said... If it isn't a solution then...
If you are married to your catch can that's fine. I think you may be able to get away with it as long as you upgrade the filler neck to the IR Performance filler neck with the large -10AN outlet. It's where the oil Slosh will be and the pressure can still get by with that large orifice.
Even if you neck it down at the Catch can to your NPT fitting you have problem solved most of the issue at the filler neck itself. If it wasn't for the exact problem and solution provided I would say to try another method.
#22
Senior Member
Thread Starter
Yes, I think initially I am going to try the filler neck with the -10AN fitting and use the appropriate 5/8" hose with it and then just reduce it down to 3/8" right before the catch can. That way the oil slosh that makes its way up will have a longer way to travel at 5/8" until it makes it over to the catch can which will hopefully reduce the pressure a bit on the way.
If that doesn't work then I will need to either modify my inlet barb on the catch can to be -10AN or get a new catch can with the larger fittings.
By the way, I have discovered that the screw in the steering shaft bushing is not the OEM size as the screw should be flush with the bushing and not be poking out. I have also discovered that it is in fact hitting the downpipe sometimes as evidenced below:
I think I have found my steering issue.
If that doesn't work then I will need to either modify my inlet barb on the catch can to be -10AN or get a new catch can with the larger fittings.
By the way, I have discovered that the screw in the steering shaft bushing is not the OEM size as the screw should be flush with the bushing and not be poking out. I have also discovered that it is in fact hitting the downpipe sometimes as evidenced below:
I think I have found my steering issue.
#23
Senior Member
Thread Starter

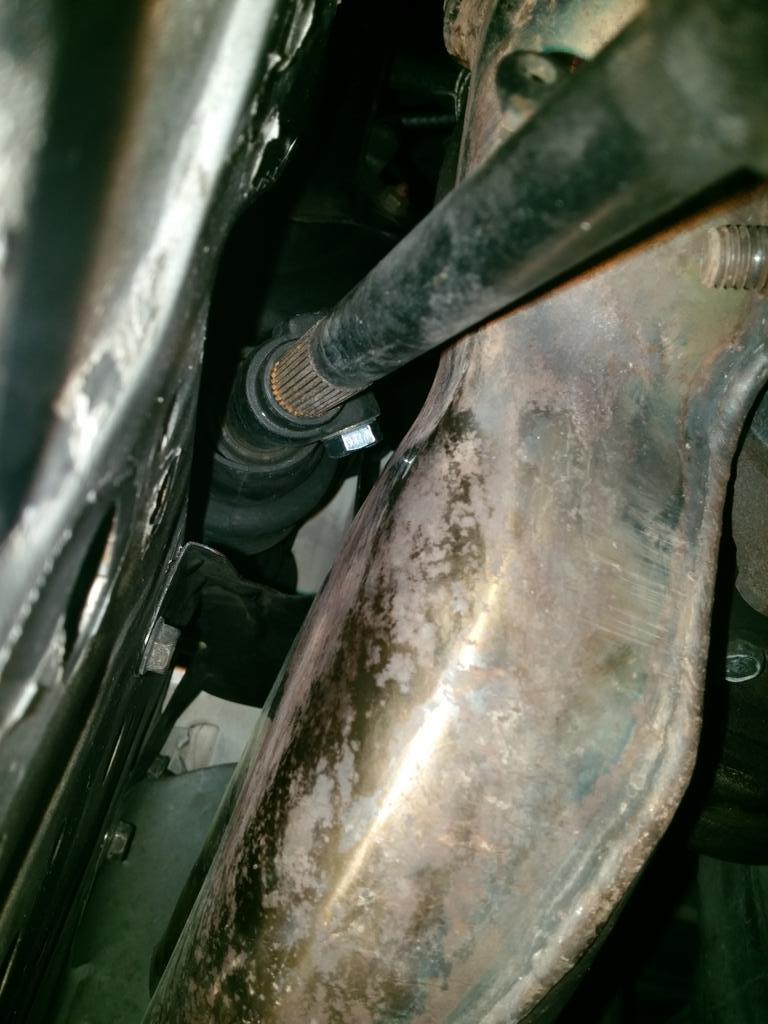

Alright, so I changed the bolt and also yanked on the engine to see how much it moved.

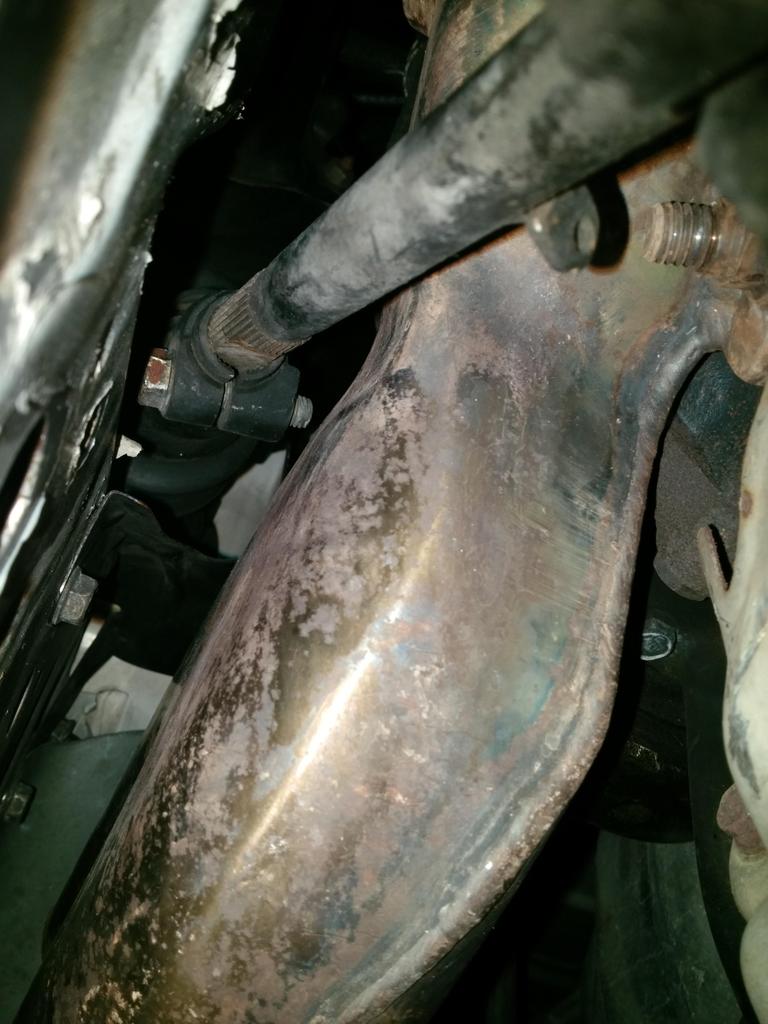

Old vs. New Bolt
Bolt is still really close
Unfortunately, I think I am going to still have the issue because the bolt head simply sits too close to the downpipe when the wheel is turned 90-100 degrees to the left from top dead center (about the same amount of anlge which was affecting me at Donington).
I also yanked on the engine and whilst I couldn't get the downpipe to touch the bolt I could get it pretty damn close to touching. I would guess that the engine probably moves a bit more during a high g corner than it does with me yanking on it so it will most likely still collide.
Therefore, I think I need to consider two things:
1. poly engine mounts from IR Performance or DM Motorsport (whichever are softer and will have little to no vibration); and/or
2. Remove the downpipe and purposefully dent the affected area a bit to create more clearance. This shouldn't really affect performance at all given the flow is already really good from the large downpipe and based on the evidence shown in this video:
In other news, I have taken off all of my intake hoses this evening including the intercooler (I had to remove the battery in order to get to a screw attaching it to the air duct...) and as shown in the photos below everything was nice and oily...Except for the crossover pipe which is spotless inside and that seems really odd to me. Oil had managed to seep out of the couplers and seemingly get everywhere on the front cover, alternator and everything below those and below the primary intake hose as well.
Old vs. New Bolt
Bolt is still really close
Unfortunately, I think I am going to still have the issue because the bolt head simply sits too close to the downpipe when the wheel is turned 90-100 degrees to the left from top dead center (about the same amount of anlge which was affecting me at Donington).
I also yanked on the engine and whilst I couldn't get the downpipe to touch the bolt I could get it pretty damn close to touching. I would guess that the engine probably moves a bit more during a high g corner than it does with me yanking on it so it will most likely still collide.
Therefore, I think I need to consider two things:
1. poly engine mounts from IR Performance or DM Motorsport (whichever are softer and will have little to no vibration); and/or
2. Remove the downpipe and purposefully dent the affected area a bit to create more clearance. This shouldn't really affect performance at all given the flow is already really good from the large downpipe and based on the evidence shown in this video:

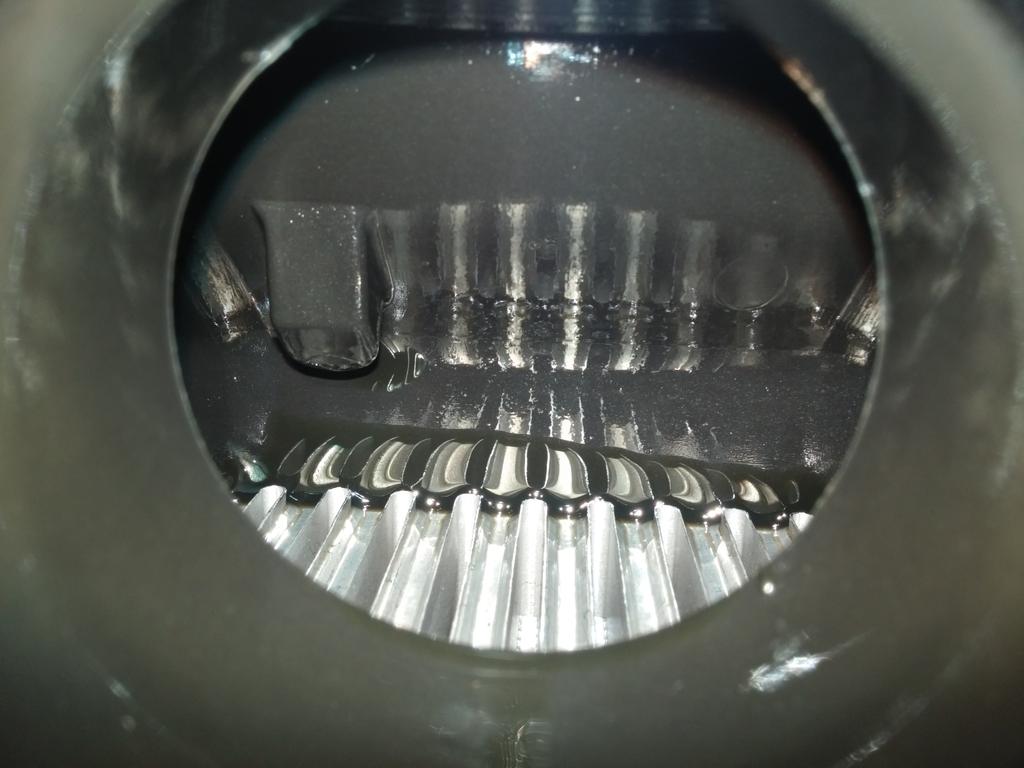

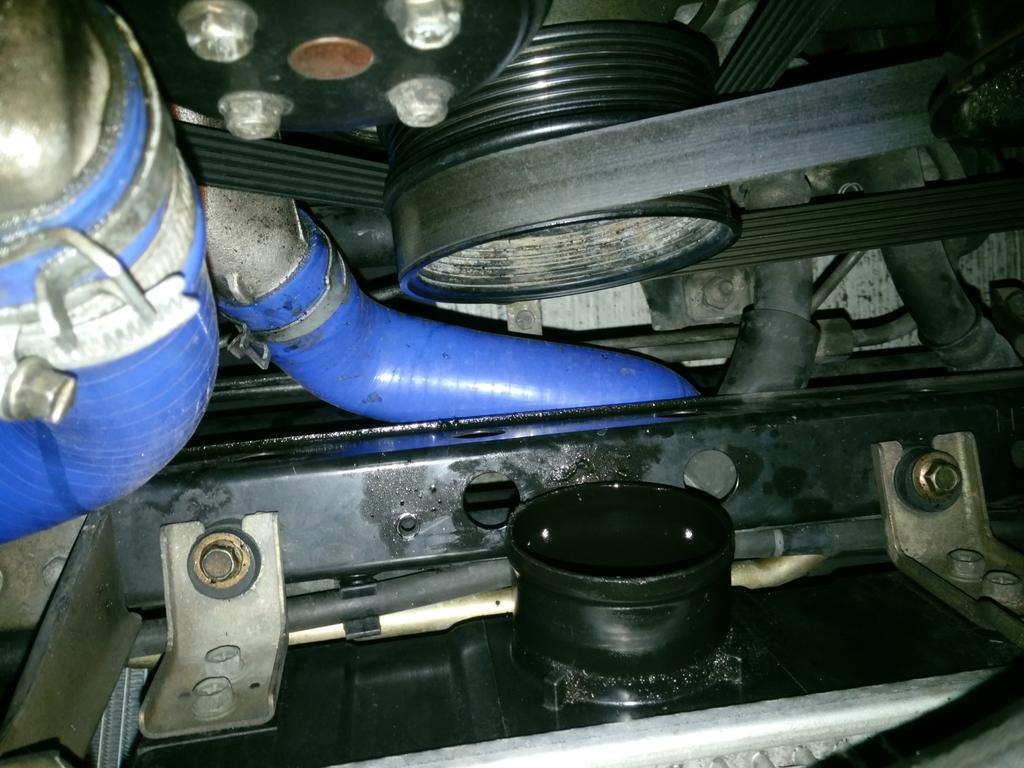

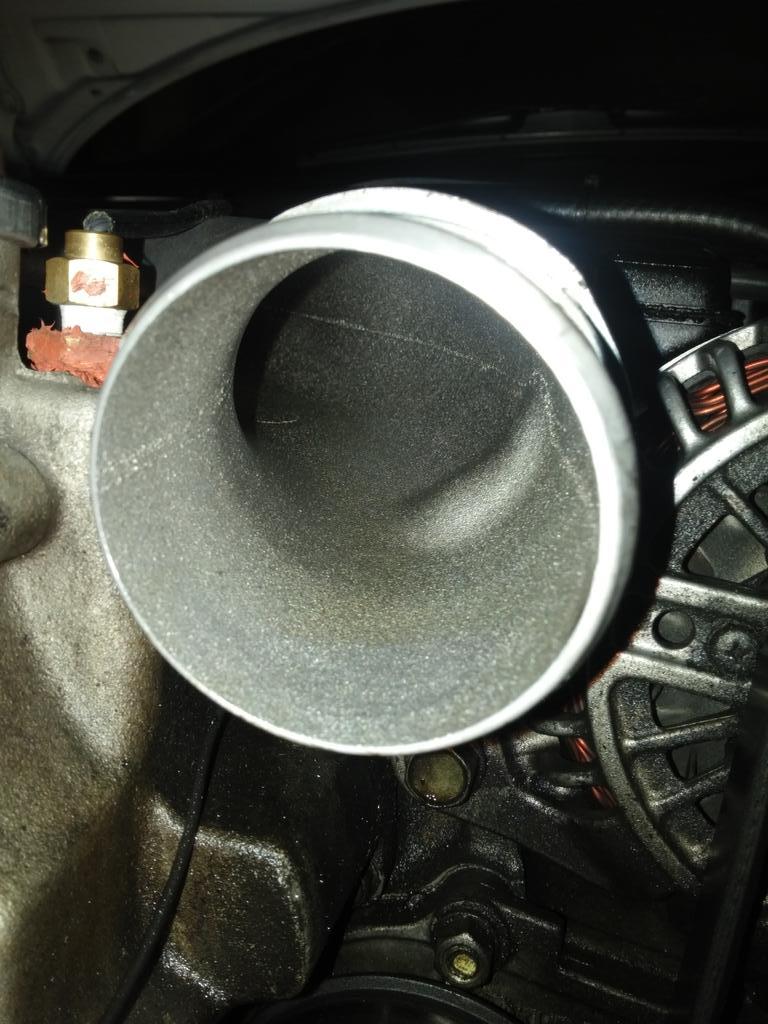

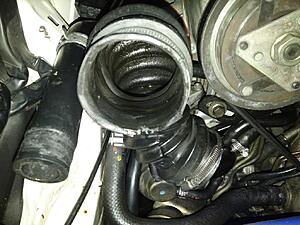

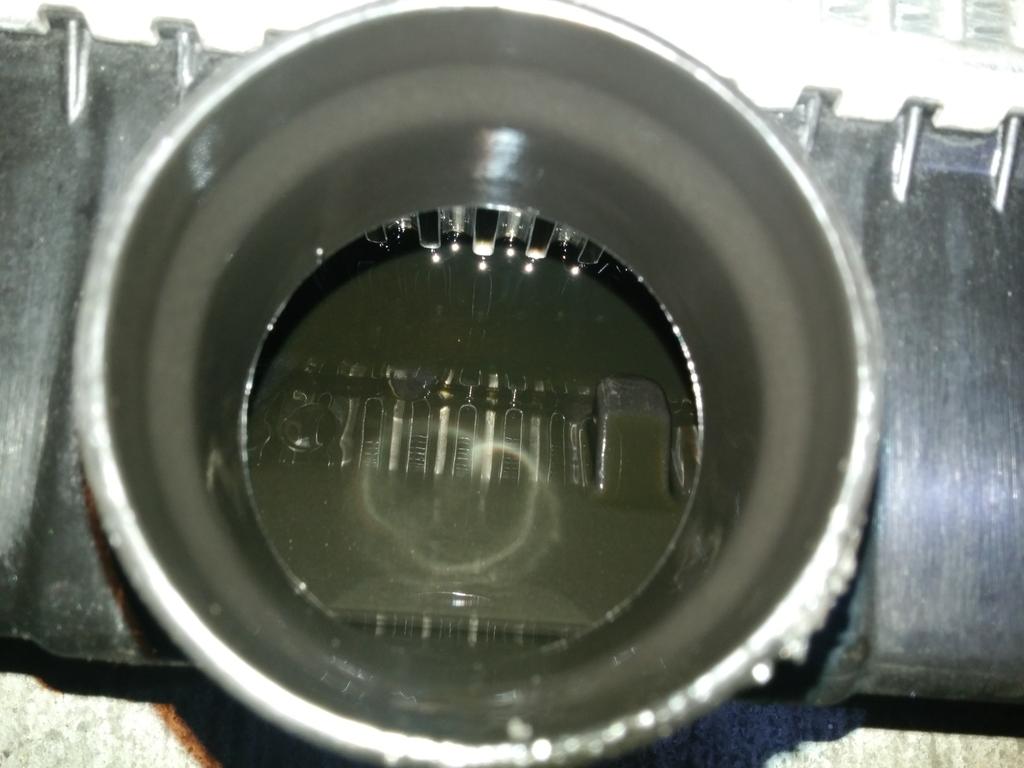

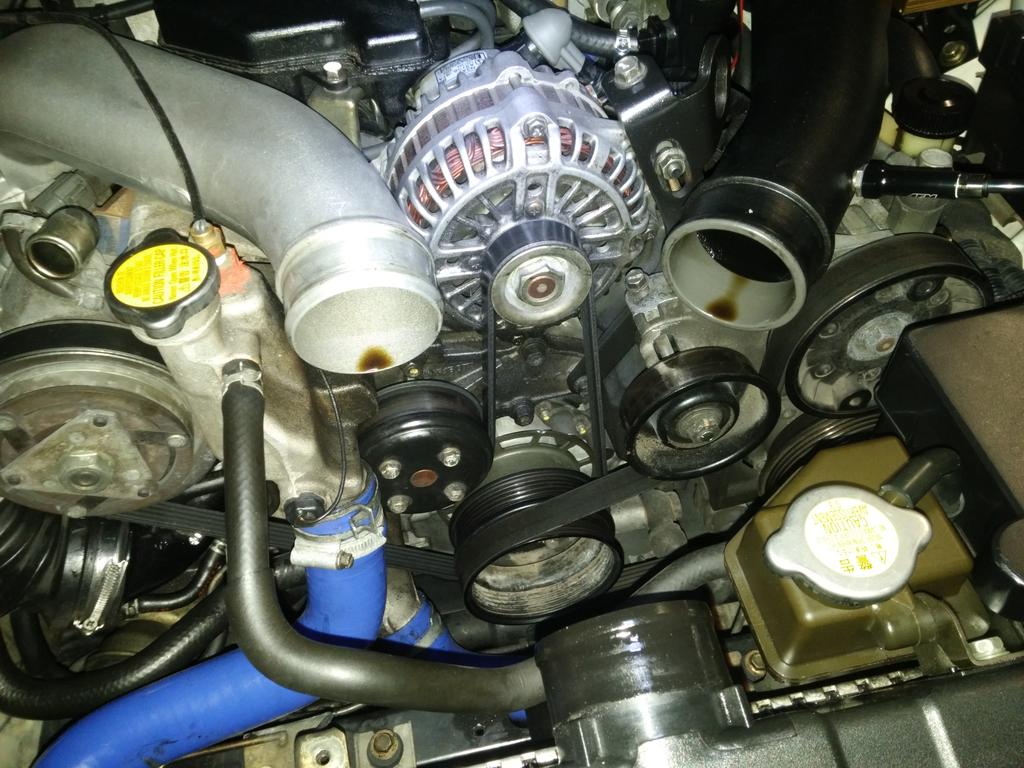

In other news, I have taken off all of my intake hoses this evening including the intercooler (I had to remove the battery in order to get to a screw attaching it to the air duct...) and as shown in the photos below everything was nice and oily...Except for the crossover pipe which is spotless inside and that seems really odd to me. Oil had managed to seep out of the couplers and seemingly get everywhere on the front cover, alternator and everything below those and below the primary intake hose as well.
#24
Senior Member
Thread Starter
#25
Senior Member
Thread Starter
So I was at Anglesey yesterday and I am happy to say that changing the bolt to the round button bolt has alleviated about 95% of my steering issue! Only occassionally did I feel a bit of resistance at the Rocket and Bus Stop corners. But due to the way the bolt is shaped the wheel would keep turning unlike with the older non-rounded bolt that would get caught on the downpipe.
To permanently alleviate the issue I have ordered some shore rating 60A poly motor mounts from IR Performance along with their baffled oil filler neck to help alleviate the oil surge issue.
To permanently alleviate the issue I have ordered some shore rating 60A poly motor mounts from IR Performance along with their baffled oil filler neck to help alleviate the oil surge issue.
