Think your engine is blown? Change your plugs!

For the last few weeks I was convinced that I had blown a seal on my engine. The engine and car would shake like a paint shaker, and the idle was barley enough to keep the car running. It would backfire randomly and sounded like one rotor wasn’t firing. I was exhibiting the signs of a blown seal and had made an appointment to take the car in for a compression test.

I was curious if it could be something else because all these symptoms started in my driveway after I backed the car out of spending the winter in the garage. I tested all fuel and spark possibilities I could think of, but nothing worked. I probably checked the Map sensor like 100 times. I didn’t think to pull the plugs because they were supposed to have been changed last fall when I took the FD in for a tune up – they were not.

The leading plugs were so full of carbon, they were struggling to fire. 20 min and 4 new plugs later, the car runs as good and as smooth as ever!
Old 05-28-07, 11:42 AM
  #2
TANSTAFL

iTrader: (13)

alexdimen's Avatar

Join Date: Oct 2003
Location: Richmond, Va.
Posts: 3,770
Received 123 Likes on 82 Posts
Cheapest engine rebuild ever.
Old 05-28-07, 11:58 AM
  #3
Time or Money, Pick one

iTrader: (36)

silverTRD's Avatar

Join Date: Oct 2005
Location: Torrance, ca.
Posts: 3,347
Received 154 Likes on 125 Posts
i need to change mine, but damn im lazy when not at work.
Old 05-28-07, 12:01 PM
  #4
What's your point ?


CantGoStraight's Avatar

Join Date: Feb 2001
Location: Gainesville, Fla.
Posts: 3,573
Likes: 0
Received 0 Likes on 0 Posts
Originally Posted by silverTRD
i need to change mine, but damn im lazy when not at work.
Stay at work LOL
Old 05-28-07, 12:30 PM
  #5
packin' heat

iTrader: (15)

rotarymandan's Avatar

Join Date: Nov 2005
Location: by some mountains
Posts: 663
Likes: 0
Received 0 Likes on 0 Posts

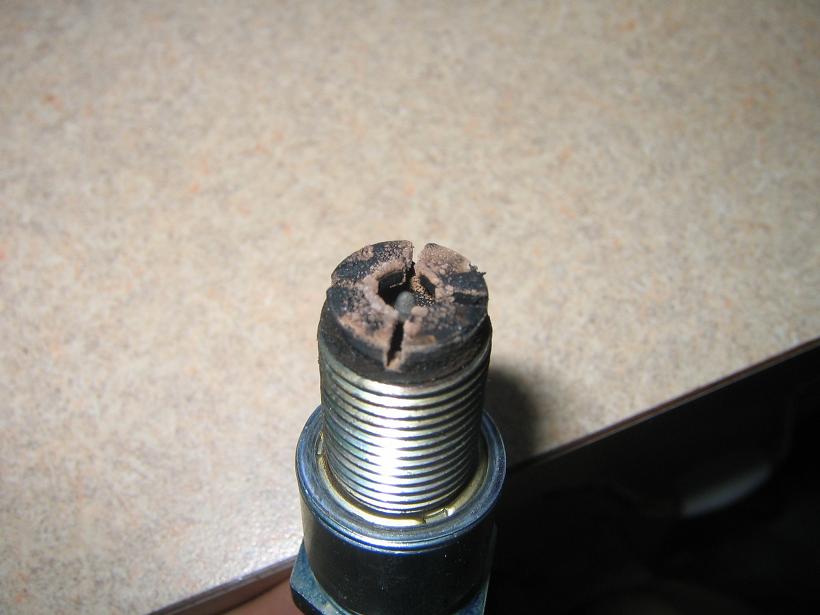

Just changed my plugs!

My car was running fine, but I hadn't changed the plugs since I got the car 6 months ago, and I had put on almost 5K miles, so I thought it was about time to change my plugs. Looks like it wasn't a bad idea...
Attached Thumbnails Think your engine is blown?  Change your plugs!-leadplugrz.jpg
Old 05-28-07, 12:34 PM
  #6
White chicks > *

iTrader: (33)

1QWIK7's Avatar

Join Date: Jul 2003
Location: Secaucus, New Jersey
Posts: 13,147
Likes: 0
Received 1 Like on 1 Post
Yeah, just changed mine last week. All 4 were carboned up. The whole tip was black lol

Car sorta feels the same except more smoothness up top but i feel better knowing i changed them since its been a year already.

PS: I think its better changing them from up top. I been changing my plugs from the bottom since the beginning and thought i try from the top. Well it was wayy easy doing it that way except for the front trailing plug which is sorta blocked by hoses, other than that, it was easy.
Old 05-28-07, 12:42 PM
  #7
packin' heat

iTrader: (15)

rotarymandan's Avatar

Join Date: Nov 2005
Location: by some mountains
Posts: 663
Likes: 0
Received 0 Likes on 0 Posts
Originally Posted by 1QWIK7
Yeah, just changed mine last week. All 4 were carboned up. The whole tip was black lol

Car sorta feels the same except more smoothness up top but i feel better knowing i changed them since its been a year already.

PS: I think its better changing them from up top. I been changing my plugs from the bottom since the beginning and thought i try from the top. Well it was wayy easy doing it that way except for the front trailing plug which is sorta blocked by hoses, other than that, it was easy.
Yea, I read a bunch of pepole saying to do it from the bottom, but I took off the intake elbow, and the rest was a breeze. 1QWIK7, did you take off the intake elbow too?
Old 05-28-07, 12:54 PM
  #8
Senior Member

Thread Starter

RE-Amemiya7's Avatar

Join Date: Dec 2005
Location: Wisconsin, Milwaukee
Posts: 453
Likes: 0
Received 0 Likes on 0 Posts

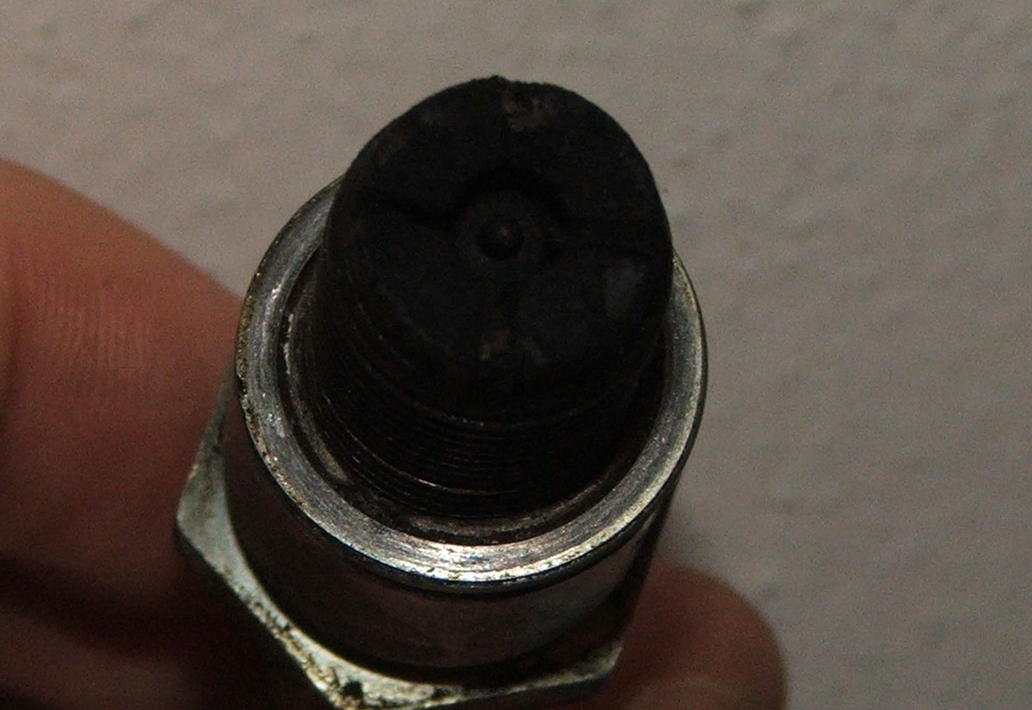

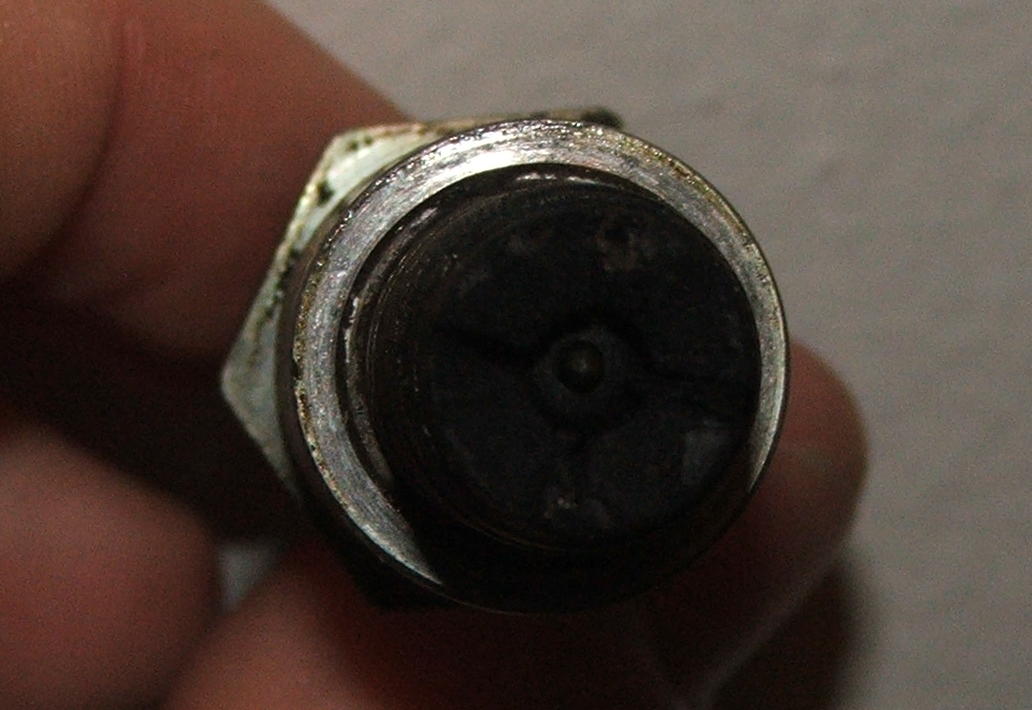

Oh, I forgot, Here are the pics of both leading plugs. Its no wonder why my engne had a hard time running with that much carbon on the plugs.
Attached Thumbnails Think your engine is blown?  Change your plugs!-dscf0723-2-.jpg   Think your engine is blown?  Change your plugs!-dscf0726-2-.jpg
Old 05-28-07, 02:18 PM
  #9
Big Snail


93FD3S's Avatar

Join Date: Dec 2001
Location: San Antonio
Posts: 1,230
Likes: 0
Received 3 Likes on 3 Posts
Wow...thats hella carbon build up! And the electrode is pretty much gone. Don't think it would of been good if a large chunk of that carbon broke off in the motor. I could imagine a night and day difference with the new plugs.


Originally Posted by RE-Amemiya7
Oh, I forgot, Here are the pics of both leading plugs. Its no wonder why my engne had a hard time running with that much carbon on the plugs.
Old 05-28-07, 08:51 PM
  #10
White chicks > *

iTrader: (33)

1QWIK7's Avatar

Join Date: Jul 2003
Location: Secaucus, New Jersey
Posts: 13,147
Likes: 0
Received 1 Like on 1 Post
Originally Posted by rotarymandan
Yea, I read a bunch of pepole saying to do it from the bottom, but I took off the intake elbow, and the rest was a breeze. 1QWIK7, did you take off the intake elbow too?

Yeah you def have to take off the intake elbow to have any hand/tool space to get to those plugs. Some people go crazy and take off other things but i didnt see it was necessary.

There is a hose or 2 that blocks the front rotor's plugs. I traced one hose and it goes to the PS resevoir? I may be wrong but i didnt want to force my ratchet too much cause thats the last thing i need, is a busted hose pertaining to something like that. So i just had to be careful.

All in all, doing it from top is def the best way IMHO.
Old 05-28-07, 09:35 PM
  #11
Senior Member

Thread Starter

RE-Amemiya7's Avatar

Join Date: Dec 2005
Location: Wisconsin, Milwaukee
Posts: 453
Likes: 0
Received 0 Likes on 0 Posts
i suppose coming from the top works but, it is so easy to get the plugs out from the botom. It takes longer to jack up the car than get the plugs out when coming from underneath.
Old 05-28-07, 09:57 PM
  #12
Hopeful Future


Tyblat's Avatar

Join Date: Oct 2005
Location: Orlando, FL
Posts: 791
Likes: 0
Received 0 Likes on 0 Posts
I don't get how you guys have to take stuff off to get at the plugs. 15 minutes and a plug socket+ratchet wrench and I've got em all done, no need to remove anything. Then again, maybe its just because im really flexible haha.
Old 05-28-07, 10:07 PM
  #13
White chicks > *

iTrader: (33)

1QWIK7's Avatar

Join Date: Jul 2003
Location: Secaucus, New Jersey
Posts: 13,147
Likes: 0
Received 1 Like on 1 Post
Originally Posted by RE-Amemiya7
i suppose coming from the top works but, it is so easy to get the plugs out from the botom. It takes longer to jack up the car than get the plugs out when coming from underneath.
Yeah true but different people do it different ways.

I find it easier now to do it from top. This way, im not in a uncomfortable position, i can take my time and not go crazy looking for stuff while im on my back and i can see better. Plus you have more leverage if a plug is a bit tight or if you're using a torque wrench (since torque wrenches are a bit longer than normal ratchets), you just have more room.

Idk, out of all the times i've done it lying on my back doing it from the bottom, doing it from the top makes me wish i always did it from the top.
Old 05-28-07, 10:40 PM
  #14
Form follows function

iTrader: (8)

Speed of light's Avatar

Join Date: Oct 2004
Location: Now in Arizona
Posts: 1,203
Received 33 Likes on 21 Posts
Originally Posted by RE-Amemiya7
Oh, I forgot, Here are the pics of both leading plugs. Its no wonder why my engne had a hard time running with that much carbon on the plugs.
Carbon is conductive, so if everything is heavily coated (as your plugs are) the carbon can shunt the current to ground without ever actually sparking. Hence the misfire.
Old 05-28-07, 10:47 PM
  #15
Full Member


joeydinc's Avatar

Join Date: Sep 2006
Location: San Luis Obispo Ca.
Posts: 136
Likes: 0
Received 0 Likes on 0 Posts
how often you any of you change your plugs..... I changed mine when i first for it and it's got about 4000 miles more on it..... and considering changing them, I have a weird idle thing going on... and I have a lot of oil that goes into the engine coming from the turbo
Old 05-28-07, 11:03 PM
  #16
My bitch and the ladies..


Red Racer's Avatar

Join Date: Mar 2006
Location: Chattanooga, Tn
Posts: 38
Likes: 0
Received 0 Likes on 0 Posts
I just changed mine. It was like a gift from God. My mileage is back up too.
Old 05-29-07, 12:16 AM
  #17
Full Member


joeydinc's Avatar

Join Date: Sep 2006
Location: San Luis Obispo Ca.
Posts: 136
Likes: 0
Received 0 Likes on 0 Posts
that didn't answer my question though.... lol

I mean how many miles
Old 05-29-07, 08:05 AM
  #18
Big Daddy!!!


crazyrx7's Avatar

Join Date: Jul 2002
Location: Edmonton, Alberta, Canada
Posts: 1,194
Likes: 0
Received 0 Likes on 0 Posts
I change mine at the begining of every season and every 5000km or 3000miles later. I run a gt35r single though. When I ran my twins I did it at the begining of every season and then 7500km. I usually only get around 5-7000km in a year dues to our long winters up here.

R.K.
Old 05-29-07, 08:52 AM
  #19
White chicks > *

iTrader: (33)

1QWIK7's Avatar

Join Date: Jul 2003
Location: Secaucus, New Jersey
Posts: 13,147
Likes: 0
Received 1 Like on 1 Post
Originally Posted by joeydinc
how often you any of you change your plugs..... I changed mine when i first for it and it's got about 4000 miles more on it..... and considering changing them, I have a weird idle thing going on... and I have a lot of oil that goes into the engine coming from the turbo
Depending on how you drive, what mods you have, what plugs you're using etc etc.

Most people using the stock 7/9s change them every 10-15k?? I know i heard some of them do. Or some of them change them once a year regardless of miles. There are even some hardcore people that change them every oil change. But then again they run big singles so.

I think once a year seems about normal. They are only couple of bucks each and takes 30 min to do the entire job.
Old 05-29-07, 12:47 PM
  #20
Senior Member

iTrader: (1)

Moejoe's Avatar

Join Date: Apr 2005
Location: Columbus
Posts: 411
Likes: 0
Received 0 Likes on 0 Posts
Some of these posts baffle me. I know there are many variables to peoples build that determine how often to change plugs. But, I would have to think that anyone running more fuel with any porting,even on stock twins, should be changing their plugs every 2000 miles with the oil. I understand it depends on the driving too. But, For the most part, it's a small price and short time for knowing you motor is at it's best in care.
