Stock manfold question?

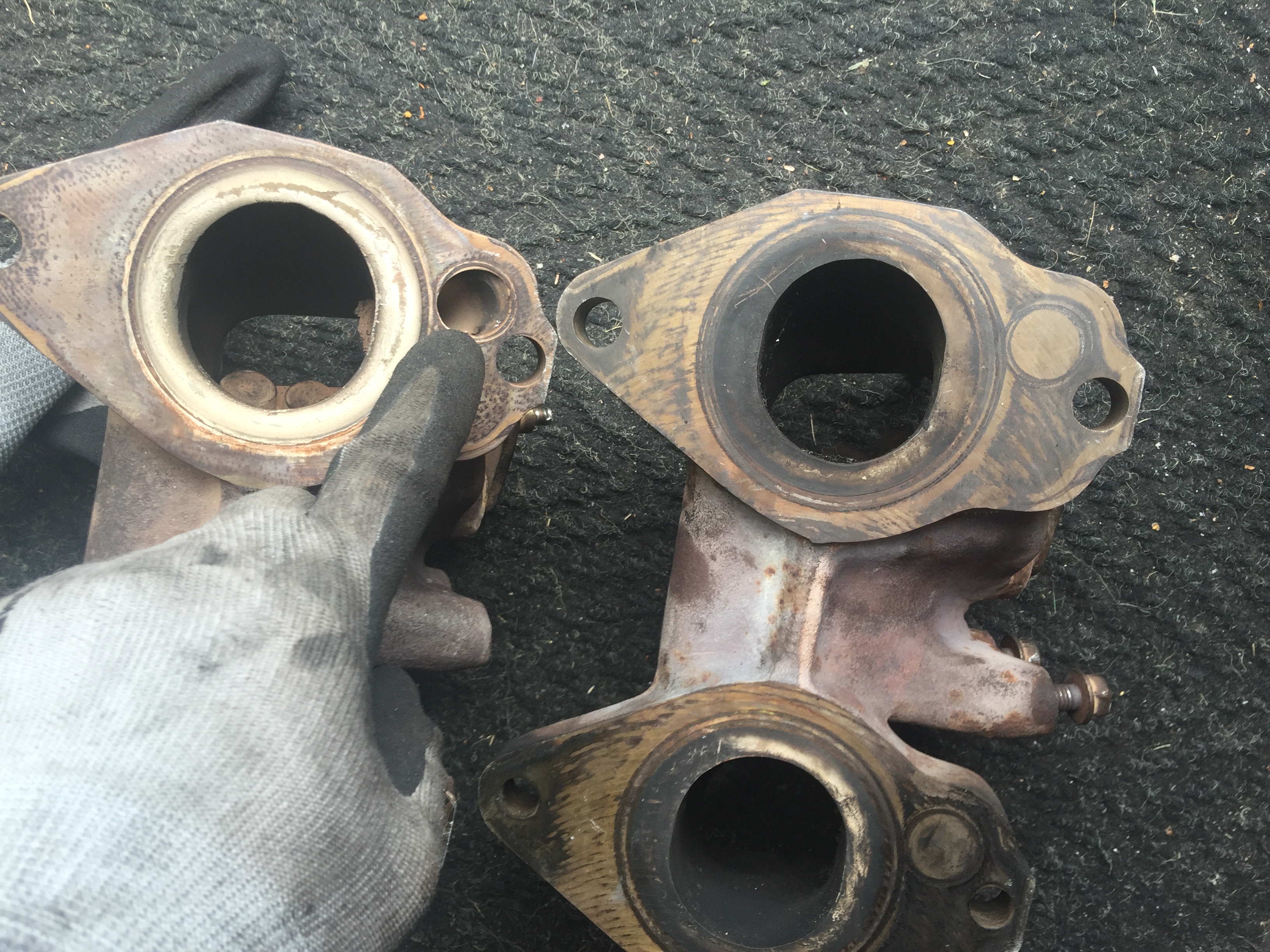

Stock manfold question?-img_1253.jpg

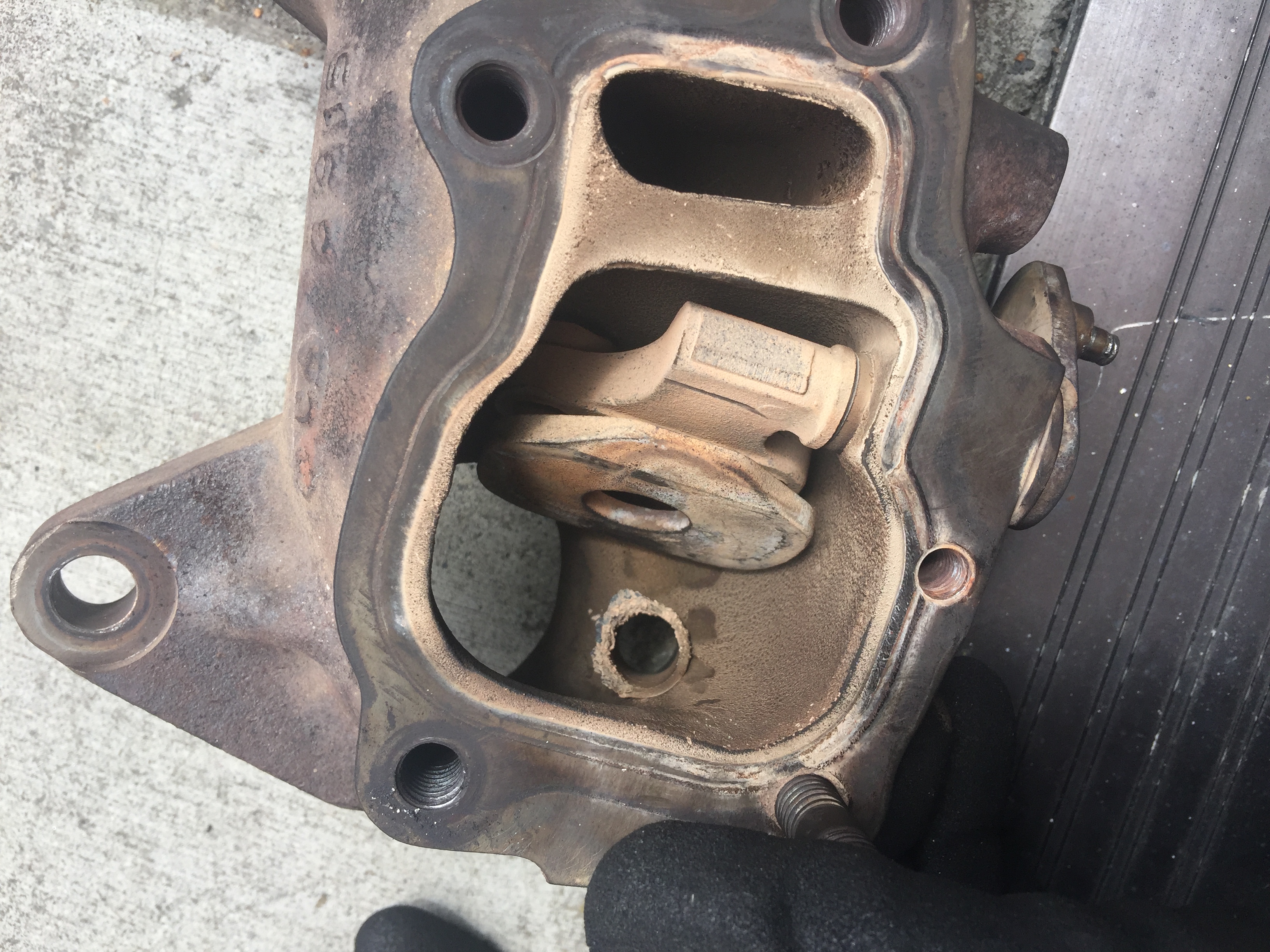

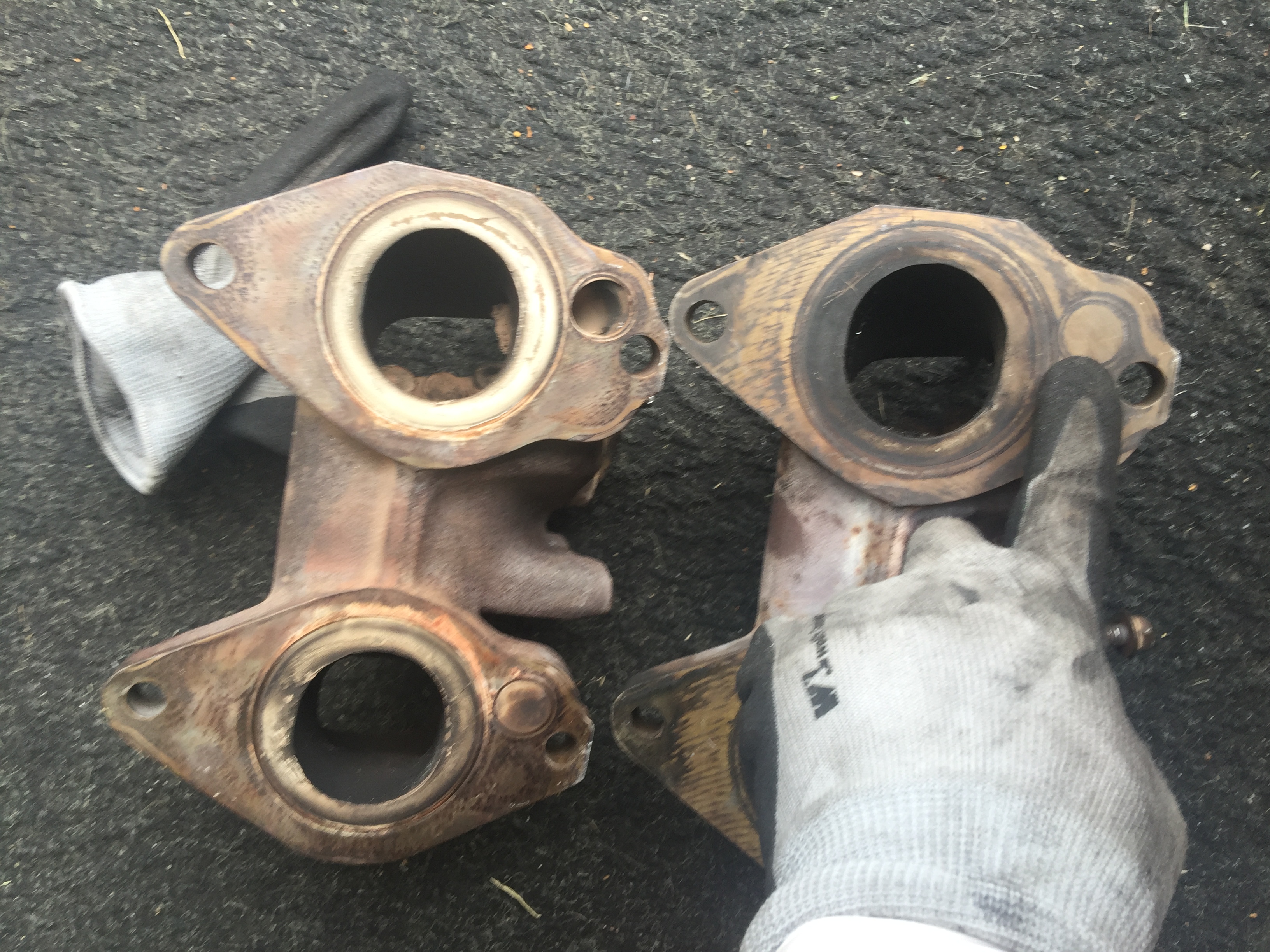

Hey guy i'm in the process of swapping parts from my old motor to the new one.thing is going good until I got to the manifold.Here what Stock manfold question?-img_1254.jpglooks like in side the flap door side of the manifold there is a hole in there. Now i got another spare one setting on the shelf. I was going to use the spare but here look at it spare one dose not have any hole in side like the one that was on the old motor.Can some on tell me why is that what is the different between the to manifolds ? My FD is 5 speed can it be That the spear on is from the automatic tran? Both of them looks the same out side the different is the hole in side.Now that make me think i should stick with old manifold instead of using the spear on.What do you guy thiStock manfold question?-img_1244.jpg

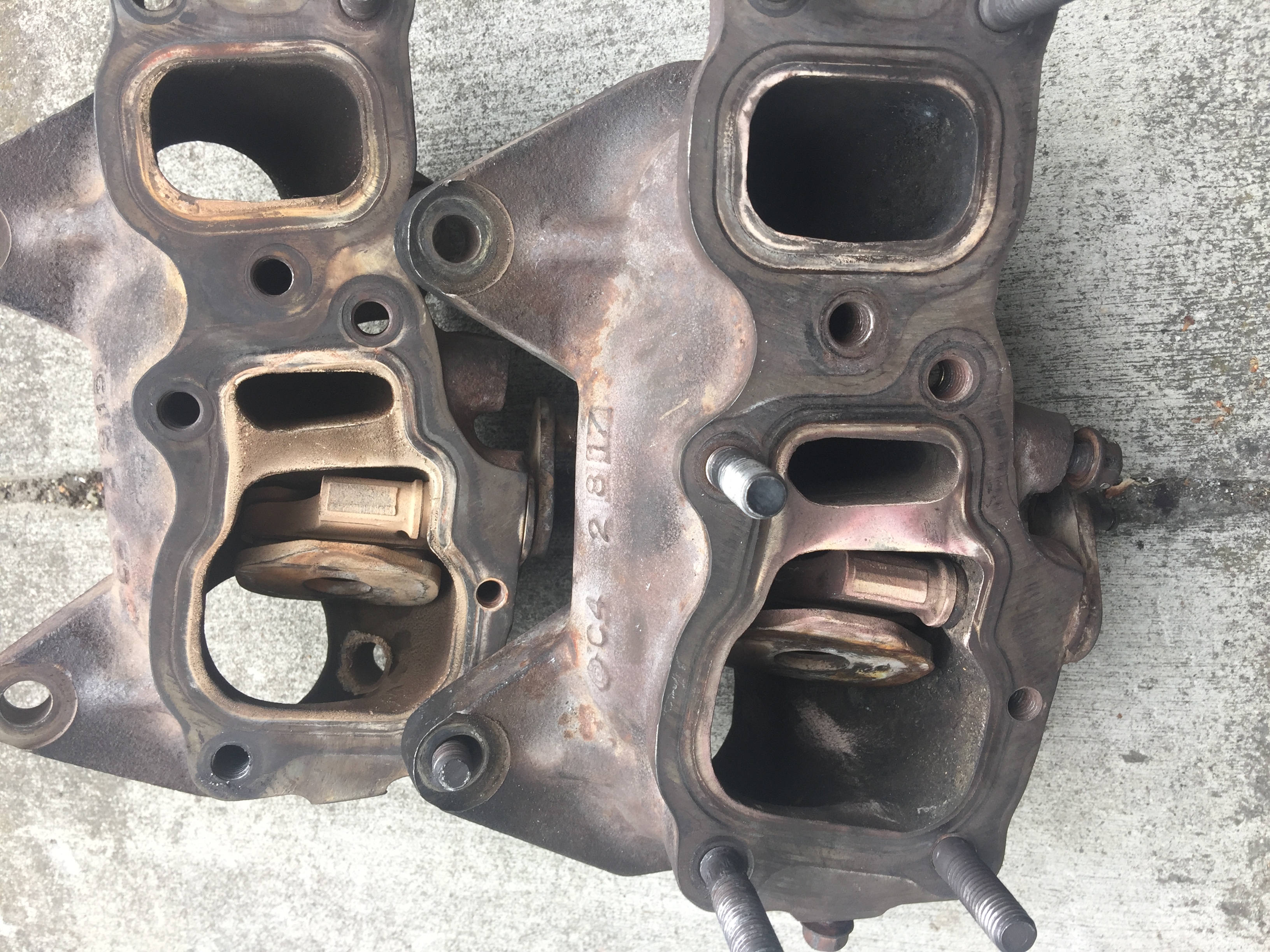

Stock manfold question?-img_1249.jpg

Click image for larger version

Name:	IMG_1253.JPG
Views:	109
Size:	2.83 MB
ID:	581747

Click image for larger version

Name:	IMG_1254.JPG
Views:	115
Size:	2.46 MB
ID:	581748
Old 07-10-16, 05:43 PM
  #2
Moderator

iTrader: (3)

j9fd3s's Avatar

Join Date: Mar 2001
Location: https://www2.mazda.com/en/100th/
Posts: 30,816
Received 2,586 Likes on 1,837 Posts
that extra tube is for the EGR, only the US/EU market 93-94 cars had EGR so everything else will not have the EGR tube
Old 07-10-16, 06:08 PM
  #3
Full Member

Thread Starter
iTrader: (8)

lexxs's Avatar

Join Date: Jan 2007
Location: Oregon
Posts: 228
Likes: 0
Received 6 Likes on 5 Posts
I'm going to delete my EGR anyway. So using my spear one would be ok ?
Old 07-11-16, 04:37 PM
  #4
Urban Combat Vet

iTrader: (16)

Sgtblue's Avatar

Join Date: Oct 2003
Location: Mid-west
Posts: 12,021
Received 866 Likes on 615 Posts
Yes. Either one would work if you're deleting emissions. That hole/tube is usually pretty eroded but easily dremeled smooth if you had to use the old one.
Old 07-11-16, 05:46 PM
  #5
Full Member

Thread Starter
iTrader: (8)

lexxs's Avatar

Join Date: Jan 2007
Location: Oregon
Posts: 228
Likes: 0
Received 6 Likes on 5 Posts
Cool thanks for all the reply.
