Speedhut Gauge Install: How to (DIY)

Old 03-24-18, 12:56 AM
  #51
Junior Member

Join Date: Nov 2017
Location: Alabaster, AL.
Posts: 36
Thanked 0 Times in 0 Posts
Just received my shipping notification for my set that’s been on order for a month now. Can’t wait to finally get started on this. Went with the black face gauges, GPS speedo, and a custom 4 1/2” tachometer with a red face and Rx7 logo. Not sure if I am going to keep the factory board or not yet. My OEM tach was temperamental and the tach never worked properly. Really nervous about how I am going to wire it. Hopefully it is easy as you say.
XxBoostinxX is offline
Old 03-24-18, 08:00 PM
  #52
Senior Member
iTrader: (1)

Red94fd's Avatar

Join Date: Dec 2016
Location: Florida
Posts: 375
Thanked 9 Times in 9 Posts
Mine order is comming on monday... looks like we are going to be messing with it at the same time.. i got only 3 for now, red tach with mazda logo, speedo with gps and fuel level. I have sokme plx for temp, presure and wide band.
Red94fd is offline
Old 03-25-18, 02:13 PM
  #53
Junior Member

Join Date: Nov 2017
Location: Alabaster, AL.
Posts: 36
Thanked 0 Times in 0 Posts
Originally Posted by Red94fd View Post
Mine order is comming on monday... looks like we are going to be messing with it at the same time.. i got only 3 for now, red tach with mazda logo, speedo with gps and fuel level. I have sokme plx for temp, presure and wide band.
Awesome can’t wait to see how yours turn out. I think the red tach will really look good once installed. Have you decided whether or not you are going to keep the OEM board yet?
XxBoostinxX is offline
Old 03-25-18, 03:29 PM
  #54
Senior Member
iTrader: (1)

Red94fd's Avatar

Join Date: Dec 2016
Location: Florida
Posts: 375
Thanked 9 Times in 9 Posts
I am going to try to keep back board.i cant wait to see the red tach...
Red94fd is offline
Old 03-26-18, 03:04 PM
  #55
Senior Member
iTrader: (1)

Red94fd's Avatar

Join Date: Dec 2016
Location: Florida
Posts: 375
Thanked 9 Times in 9 Posts
New gauges

Just got my gauges.. they are really nice..i just ordered the one i was missing to have the complete set.
Red94fd is offline
Old 03-26-18, 03:07 PM
  #56
Senior Member
iTrader: (1)

Red94fd's Avatar

Join Date: Dec 2016
Location: Florida
Posts: 375
Thanked 9 Times in 9 Posts
Tach pics

Pics
Attached Thumbnails Speedhut Gauge Install: How to (DIY)-20180326_144647.jpg   Speedhut Gauge Install: How to (DIY)-20180326_144652.jpg
Red94fd is offline
Old 03-27-18, 11:41 AM
  #57
Junior Member

Join Date: Nov 2017
Location: Alabaster, AL.
Posts: 36
Thanked 0 Times in 0 Posts
Originally Posted by Red94fd View Post
Pics
That turned out great!
XxBoostinxX is offline
Old 03-27-18, 02:32 PM
  #58
Senior Member
iTrader: (1)

Red94fd's Avatar

Join Date: Dec 2016
Location: Florida
Posts: 375
Thanked 9 Times in 9 Posts
Thanks,.. i like it. The only thing is if you got 4 in speed be really careful cutting the plastic cluster piece to fit the gauge or you will break it. It doesnt fit that easy. The actual black plactic speedo gauge hole is 3.8 in after cutting it open. I need to mess with it a little more..
Use realy sharp tools and slow, dont cut yourself.. lol
Esser, you did a great job , man.
Red94fd is offline
Old 03-27-18, 02:53 PM
  #59
Full Member
Thread Starter
iTrader: (1)

Esser's Avatar

Join Date: Nov 2016
Location: Evansville, IN
Posts: 92
Thanked 17 Times in 7 Posts
Originally Posted by Red94fd View Post
Thanks,.. i like it. The only thing is if you got 4 in speed be really careful cutting the plastic cluster piece to fit the gauge or you will break it. It doesnt fit that easy. The actual black plactic speedo gauge hole is 3.8 in after cutting it open. I need to mess with it a little more..
Use realy sharp tools and slow, dont cut yourself.. lol
Esser, you did a great job , man.
Glad I could help!

And yes it is a tight fit, but once you get it in there it holds it damn tight!
Esser is offline
Old 03-28-18, 03:42 PM
  #60
Junior Member

Join Date: Nov 2017
Location: Alabaster, AL.
Posts: 36
Thanked 0 Times in 0 Posts
Received mine today. Felt like a kid on Christmas morning. 😎


XxBoostinxX is offline
Old 03-28-18, 06:01 PM
  #61
Senior Member
iTrader: (1)

Red94fd's Avatar

Join Date: Dec 2016
Location: Florida
Posts: 375
Thanked 9 Times in 9 Posts
Those black with ted font look sick...! I almost went qith those, but i was afraid they were to dark for me to see them. I am blind.. lol
side note.. the gps speedo has the gps sensor plug on the back og the gauge. I had to drill a hole for the gauge to fit.
Red94fd is offline
Old 03-28-18, 10:35 PM
  #62
Full Member
iTrader: (2)

Join Date: Aug 2011
Location: Costa Mesa
Posts: 90
Thanks: 0
Thanked 0 Times in 0 Posts
can't wait to get mine! we need a detailed wiring DYI! lol
jaaf is offline
Old 03-28-18, 11:02 PM
  #63
Senior Member
iTrader: (1)

Red94fd's Avatar

Join Date: Dec 2016
Location: Florida
Posts: 375
Thanked 9 Times in 9 Posts
Believe it or not, the wiring is not that complicated. Read the instructions a couple of times and find the wires that you need from the stock harnes and connect them.
Red94fd is offline
Old 03-29-18, 05:56 PM
  #64
Junior Member

Join Date: Nov 2017
Location: Alabaster, AL.
Posts: 36
Thanked 0 Times in 0 Posts
Originally Posted by Red94fd View Post
Those black with ted font look sick...! I almost went qith those, but i was afraid they were to dark for me to see them. I am blind.. lol
side note.. the gps speedo has the gps sensor plug on the back og the gauge. I had to drill a hole for the gauge to fit.
Thanks! Really hoping the colors will offset and make the tach “pop”.

I am just now diving into everything. Not sure how I am going to get the speedhut facia’s to sit in the back of FD bezel without cutting some of the FD bezel backing.
XxBoostinxX is offline
Old 03-29-18, 07:02 PM
  #65
Senior Member
iTrader: (1)

Red94fd's Avatar

Join Date: Dec 2016
Location: Florida
Posts: 375
Thanked 9 Times in 9 Posts
If you follow what Esser did , you will figure it out. Dont cut anything. The only thing that i cut a little was the white rear plastic. Inside there, are small studs that you might have to trim/cut.
Red94fd is offline
Old 03-29-18, 07:09 PM
  #66
Senior Member
iTrader: (1)

Red94fd's Avatar

Join Date: Dec 2016
Location: Florida
Posts: 375
Thanked 9 Times in 9 Posts

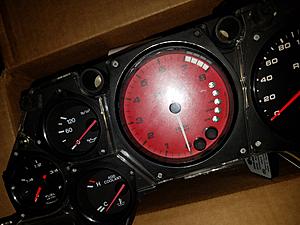

Here is mine

Ask if you have any question. I made one or two mistakes, but i worked around it. The bigest chalange i encounter was making the holes for the studs. Go easy , cause it will break.
Attached Thumbnails Speedhut Gauge Install: How to (DIY)-20180328_203951.jpg
Red94fd is offline
Old 03-29-18, 10:30 PM
  #67
Junior Member

Join Date: Nov 2017
Location: Alabaster, AL.
Posts: 36
Thanked 0 Times in 0 Posts
Originally Posted by Red94fd View Post
Ask if you have any question. I made one or two mistakes, but i worked around it. The bigest chalange i encounter was making the holes for the studs. Go easy , cause it will break.
I am trying to do it without using the OEM glass. Trying to get the front fascia of the speedhut gauges closer to the hood bezel.


XxBoostinxX is offline
Old 03-30-18, 01:28 AM
  #68
Senior Member
iTrader: (1)

Red94fd's Avatar

Join Date: Dec 2016
Location: Florida
Posts: 375
Thanked 9 Times in 9 Posts
I know what you are trying to do, i liked that idea too.. The speedhunt bezel in black looks good. In this case you know you would have to trim the front fascia where the speedhunt bezel would fit. I dont think i would do it though.
Red94fd is offline
Old 03-30-18, 08:38 AM
  #69
My girl
iTrader: (3)

Houstonderk's Avatar

Join Date: Apr 2004
Location: Andrews AFB, MD
Posts: 2,173
Thanks: 0
Thanked 1 Time in 1 Post
So how do you have the gauges secured? I had always thought that the front glass part was what was holding it with the new gauges.
Houstonderk is offline
Old 03-30-18, 09:36 AM
  #70
Junior Member

Join Date: Nov 2017
Location: Alabaster, AL.
Posts: 36
Thanked 0 Times in 0 Posts
Originally Posted by Red94fd View Post
I know what you are trying to do, i liked that idea too.. The speedhunt bezel in black looks good. In this case you know you would have to trim the front fascia where the speedhunt bezel would fit. I dont think i would do it though.
Already trimming and sanding away lol. My OEM bezel was already messed up in some areas. If I screw up I will just fill the holes and recut them to secure the gauges to its the face. I wouldn’t recommend anyone doing this to one in great shape. Looks like the holes get bigger on the face of the holes. I am hoping I can get it to work.


Originally Posted by Houstonderk View Post
So how do you have the gauges secured? I had always thought that the front glass part was what was holding it with the new gauges.
I have them secured by the backside of the gauge. I seated them far enough back where they are held by the backing screw included with the gauges.

A side note.... I ordered mine with the Revolution Black bezels. The legacy bezels are thinner and not as bulky. If I would of known this from the get go that is what I would of gone with. I am running into an issue in between the Tach and Speedo. The bezels are so bulky the OEM bezel is going to be a tight fit.

Last edited by XxBoostinxX; 03-30-18 at 09:41 AM.
XxBoostinxX is offline
Old 03-30-18, 10:00 AM
  #71
Junior Member

Join Date: Nov 2017
Location: Alabaster, AL.
Posts: 36
Thanked 0 Times in 0 Posts
This is what I am going for.
XxBoostinxX is offline
Old 03-30-18, 11:07 AM
  #72
Full Member
Thread Starter
iTrader: (1)

Esser's Avatar

Join Date: Nov 2016
Location: Evansville, IN
Posts: 92
Thanked 17 Times in 7 Posts
If you follow the tutorial then yours will look exactly like that....
Esser is offline
Old 03-30-18, 12:26 PM
  #73
Junior Member

Join Date: Nov 2017
Location: Alabaster, AL.
Posts: 36
Thanked 0 Times in 0 Posts
Originally Posted by Esser View Post
If you follow the tutorial then yours will look exactly like that....
My OEM glass is junk. The chrome is flaking and dull. Gonna mess with more when I get home and see which way I need to go.
XxBoostinxX is offline
Old 03-30-18, 07:34 PM
  #74
Junior Member

Join Date: Nov 2017
Location: Alabaster, AL.
Posts: 36
Thanked 0 Times in 0 Posts
Done! Took quite a bit of sanding and trimming but they fit like a glove. I don’t really recommend doing this. If I could of gotten away with doing it the original way in the thread I definitely would of.

XxBoostinxX is offline
Old 03-30-18, 08:04 PM
  #75
Senior Member
iTrader: (1)

Red94fd's Avatar

Join Date: Dec 2016
Location: Florida
Posts: 375
Thanked 9 Times in 9 Posts
Good deal. i had a 99 spec platic for the gauges.
now with the wiring, how are you going to hook up you tach signal?
Red94fd is offline
