Single connector 1 wire plug, where does it go?

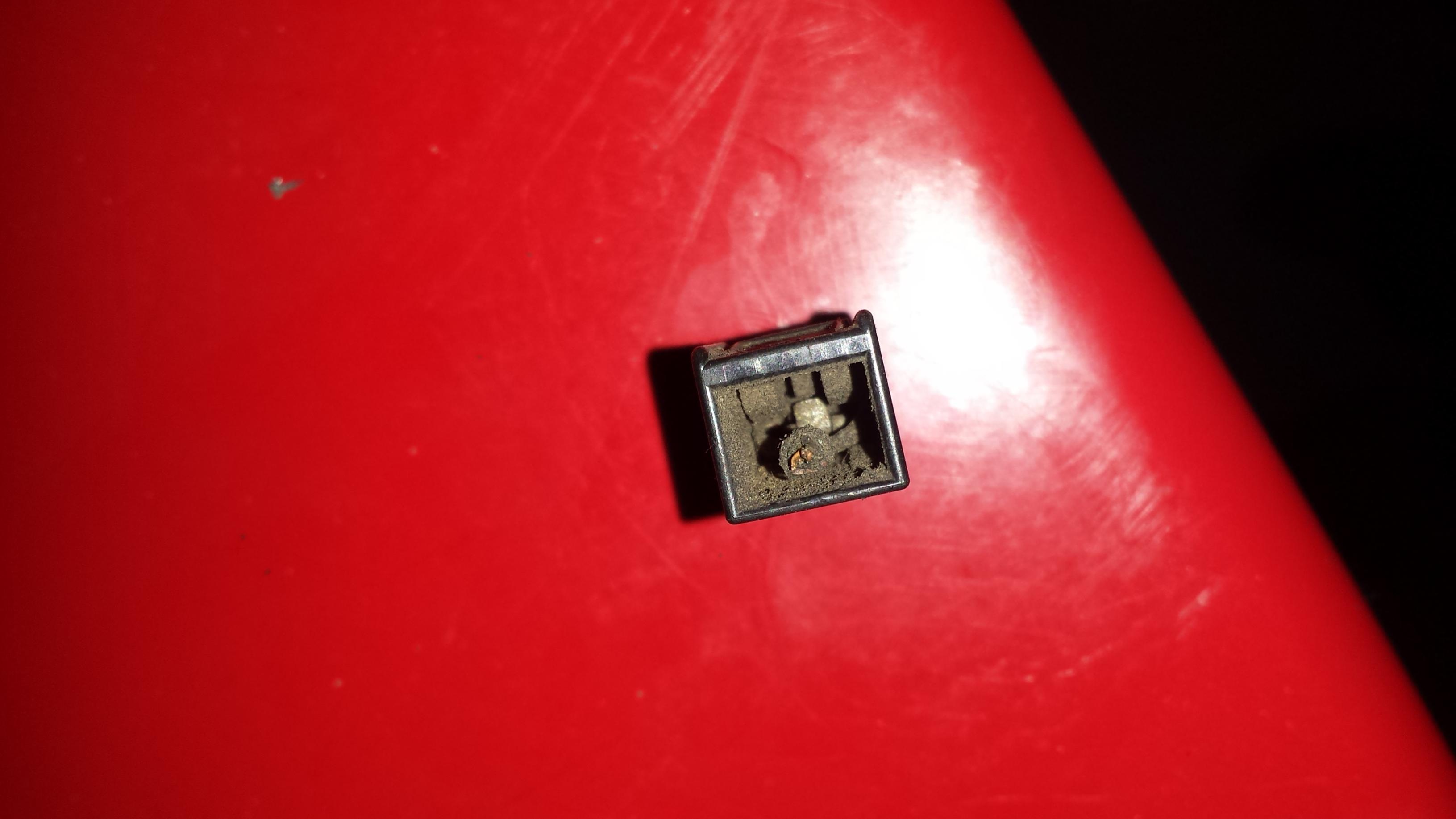

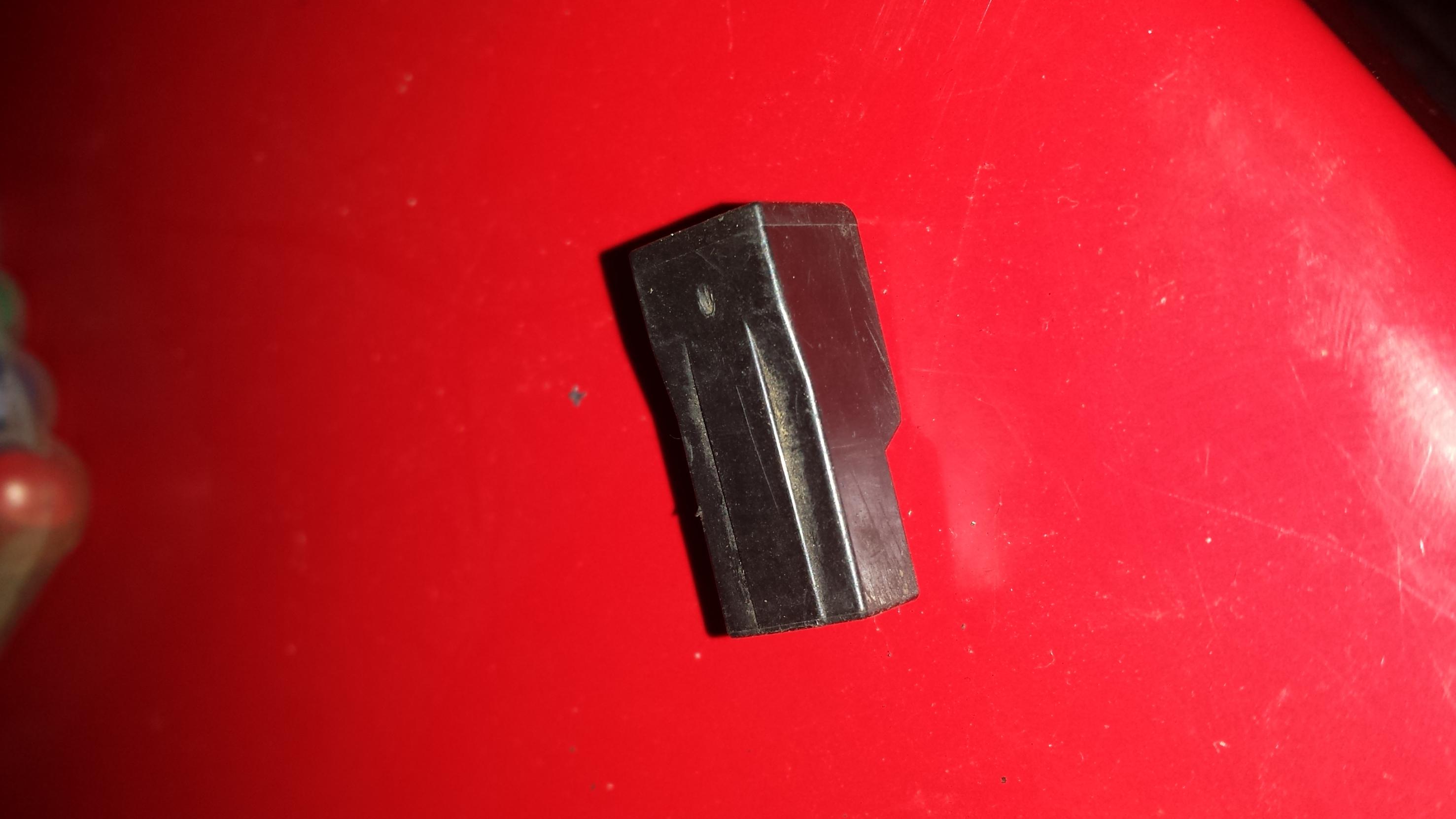

So today I was changing my spark plugs and wires and while I was under the car I noticed that there was a single connector 1 wire plug laying under my car. It looks like it could be the oil level sensor plug but I can't be sure as I cannot find the wire that it broke off of. Does anyone have any ideas what it could have broken/fallen off of?
#6
Junior Member
Join Date: May 2013
Location: Wellington NZ
Posts: 4
Likes: 0
Received 0 Likes
on
0 Posts
Be interested to know which is. Reinstalled the motor into my car on Friday, and I too found a plug like that under the car. Just can't find a bare wire to match it to!
#7
Junior Member
Thread Starter
iTrader: (4)
Join Date: Jun 2009
Location: Edmonton, AB
Posts: 27
Likes: 0
Received 0 Likes
on
0 Posts
Well it is definitely not the coolant temp sensor or oil pressure sensor off of the oil pressure sending unit as they are both still connected. I think that it is coming off of the starter S terminal which is what I think Turk82 was talking about in his post. Not sure if it was a grounding strap or the S terminal, and unfortunately the UIM is off right now so I can't even try to turn the engine over. Here are pics of the 2 suspect wires that I found near the frame under the spark plugs.

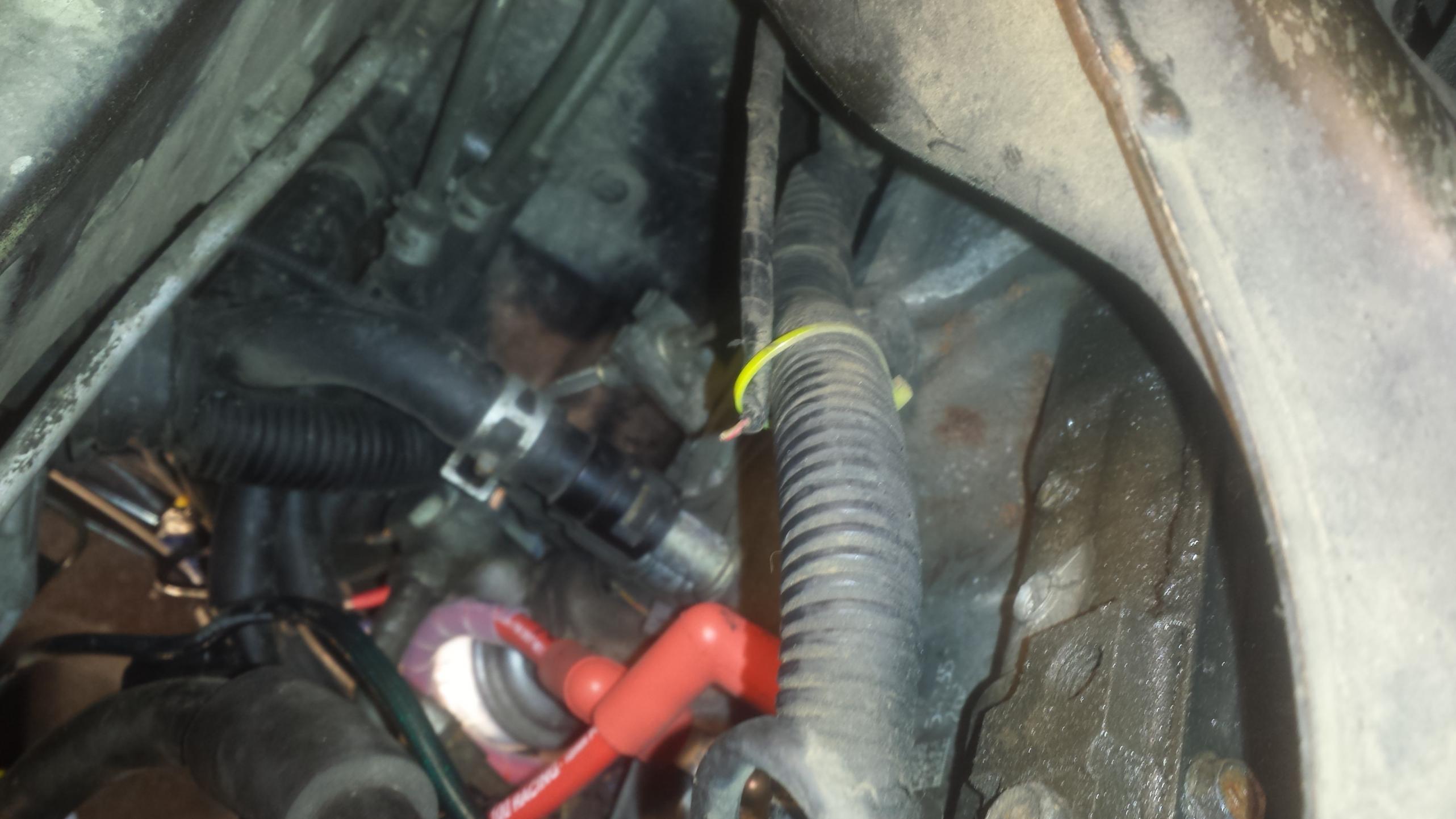

The one zap strapped to the harness(starter harness) in the first pic looks like the same wire that is connected to the S terminal on the starter, the end on the S terminal has the exact same connector as the one I found on the ground. If that is the S terminal wire, the starter should not work when the key is turned correct? I can't see what that wire(picture 1) is supposed to be connected to.
Not sure wtf is going on with the wires in the other pic, definitely looks like a ground strap of some sort but I can't remember what it was connected to.
The one zap strapped to the harness(starter harness) in the first pic looks like the same wire that is connected to the S terminal on the starter, the end on the S terminal has the exact same connector as the one I found on the ground. If that is the S terminal wire, the starter should not work when the key is turned correct? I can't see what that wire(picture 1) is supposed to be connected to.
Not sure wtf is going on with the wires in the other pic, definitely looks like a ground strap of some sort but I can't remember what it was connected to.
Trending Topics
#8
Junior Member
Thread Starter
iTrader: (4)
Join Date: Jun 2009
Location: Edmonton, AB
Posts: 27
Likes: 0
Received 0 Likes
on
0 Posts

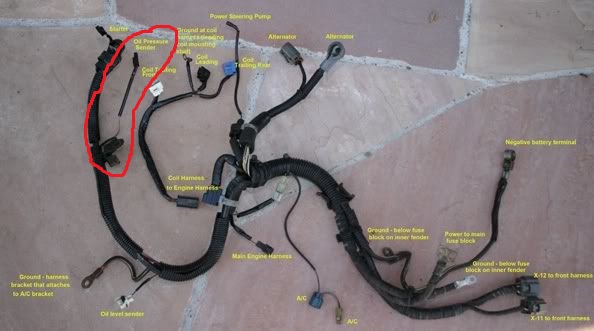

Now it looks like that connector may have just been attached to the wire in pic 1 of my previous post and that it was originally attached to my oil pressure sensor. I've circled the wire I think it is.
