Secondary Turbo Oil Leak?

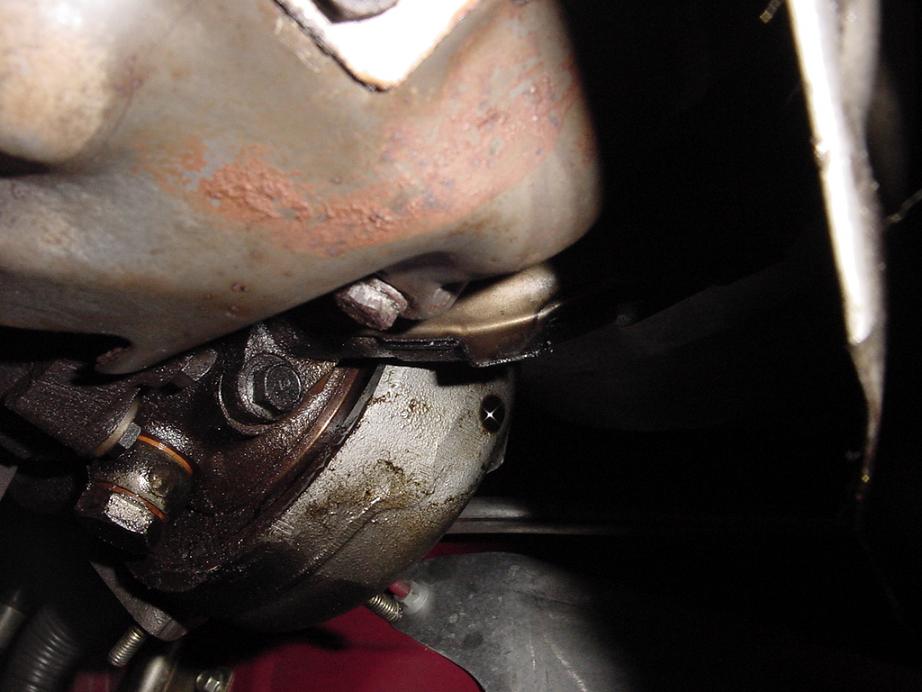

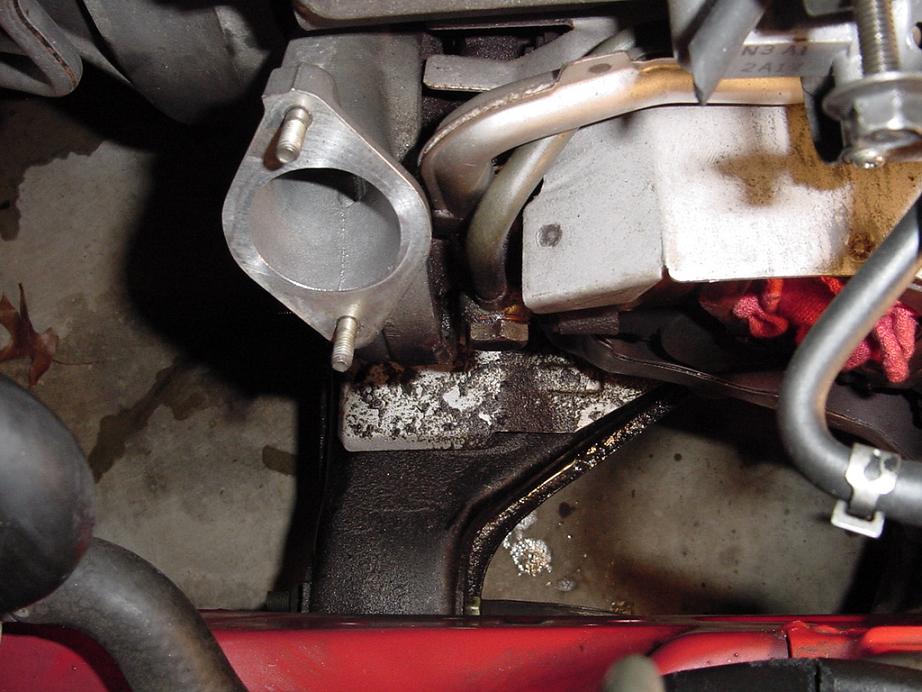

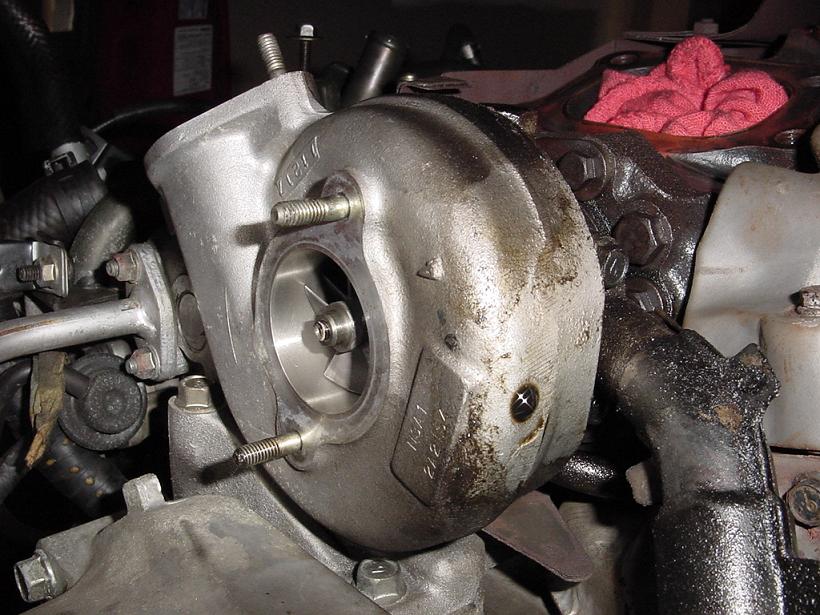

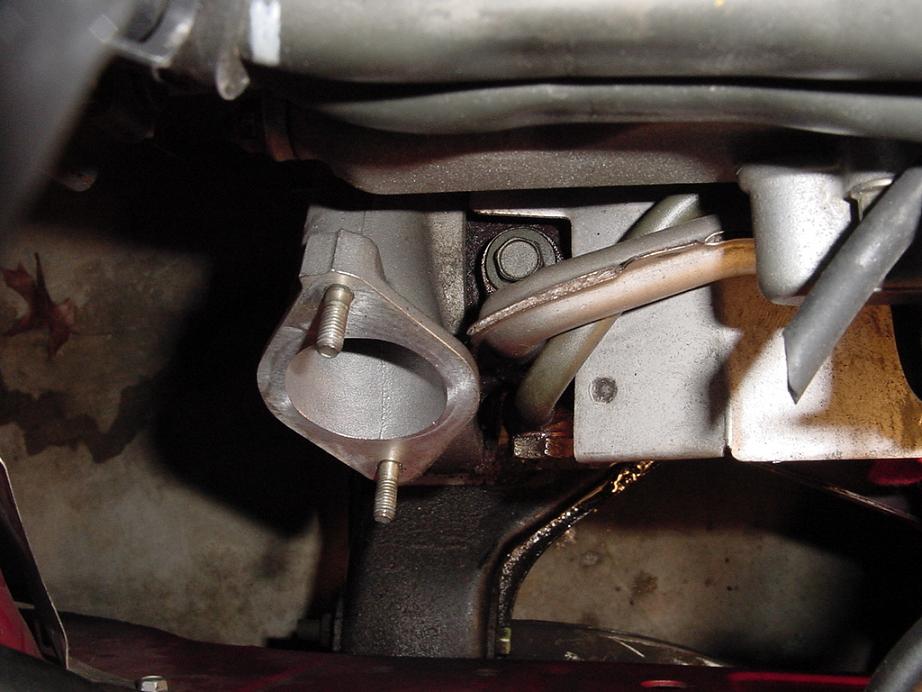

Attached are a few PICs of the oil leak. The car has 29k on the stock engine and turbos. I checked the primary and secondary oil return lines and the bolts are torqued correctly (the front turbo connection does not show any indication of a leak). I'm guessing that the crush washers for the oil return line on the rear turbo are the culprit, but would like to hear from those that have run into similar problems or can offer suggestions.
#2
I luv my carbon footprint
Join Date: Mar 2002
Location: Indianapolis
Posts: 452
Likes: 0
Received 0 Likes
on
0 Posts
I had the same problem a few years ago and it looks like you're leaking around the banjo bolt/crush washers to me. Get a new set, clean the mating surfaces, reassemble, and retorque.
#3
silver ghost
iTrader: (11)
Join Date: Sep 2003
Location: Home of the Rolex 24
Posts: 3,061
Likes: 0
Received 5 Likes
on
5 Posts
my rear is leaking too. See pondage on underside of secondary. smell a bit of it burning on housing when I come to stops. have not had time to dig in there yet.good luck...
#4
I think my secondary has an internal leak. Only 32k on original motor and turbos. I thought the turbos were supposed to last longer than that, especially with a stock setup..
Pics at this thread:
https://www.rx7club.com/3rd-generation-specific-1993-2002-16/oil-leak-help-392045/
I'm not sure if what you have is the same thing or not. I think if theres a lot of oil in your air pipes (check the crossover), then that's a sign of an internal leak. Which, as far as i know, means rebuild--correct me if I'm wrong here anybody, I'm still not sure what to do with mine.
Pics at this thread:
https://www.rx7club.com/3rd-generation-specific-1993-2002-16/oil-leak-help-392045/
I'm not sure if what you have is the same thing or not. I think if theres a lot of oil in your air pipes (check the crossover), then that's a sign of an internal leak. Which, as far as i know, means rebuild--correct me if I'm wrong here anybody, I'm still not sure what to do with mine.
#5
Full Member
Thread Starter
Join Date: Jan 2005
Location: Central Maryland
Posts: 62
Likes: 0
Received 0 Likes
on
0 Posts
In my case, the air pipes are clean to and from the turbo. I looked at your thread and did not have oil blowing onto the outside of the rear turbo intake pipe. To add, I also drained the coolant (in the process of installing a Koyo radiator) and did not find oil leaking into the coolant system.
