Searching for a picture of an FD water pump....
Like it says i'd like to see a picture of the water pump(outside of the car) and the housing too if possible. Preferably with the pulley on.
1987RX7guy is offline
Reply Like
Old 04-09-05, 10:19 PM
  #2
Eat Rice Don't Drive it.

Thread Starter
iTrader: (3)

1987RX7guy's Avatar

Join Date: Nov 2002
Location: Laredo, Tx
Posts: 12,752
Likes: 0
Received 1 Like on 1 Post
No one has a picture?
1987RX7guy is offline
Reply Like
Old 04-09-05, 10:30 PM
  #3
I luv my carbon footprint


mgoddard1's Avatar

Join Date: Mar 2002
Location: Indianapolis
Posts: 452
Likes: 0
Received 0 Likes on 0 Posts
How's this?

http://www.rotorsportsracing.com/ima...thermocov2.jpg
mgoddard1 is offline
Reply Like
Old 04-09-05, 10:31 PM
  #4
I luv my carbon footprint


mgoddard1's Avatar

Join Date: Mar 2002
Location: Indianapolis
Posts: 452
Likes: 0
Received 0 Likes on 0 Posts
dupe
Last edited by mgoddard1; 04-09-05 at 10:34 PM.
mgoddard1 is offline
Reply Like
Old 04-09-05, 11:09 PM
  #5
Eat Rice Don't Drive it.

Thread Starter
iTrader: (3)

1987RX7guy's Avatar

Join Date: Nov 2002
Location: Laredo, Tx
Posts: 12,752
Likes: 0
Received 1 Like on 1 Post
Thats pretty good. Do they have any other pics of that? I'd like to see the pump aswell and the housing flipped so its facing forward.


Thanks for the help though, most of the pics i found here were on the car and behind a bunch of junk!
1987RX7guy is offline
Reply Like
Old 04-09-05, 11:11 PM
  #6
Eat Rice Don't Drive it.

Thread Starter
iTrader: (3)

1987RX7guy's Avatar

Join Date: Nov 2002
Location: Laredo, Tx
Posts: 12,752
Likes: 0
Received 1 Like on 1 Post
Never mind I found another

http://www.rotorsportsracing.com/ima...ythermocov.jpg

and another

http://www.rotorsportsracing.com/ima...erpumpbody.jpg
1987RX7guy is offline
Reply Like
Old 04-09-05, 11:44 PM
  #7
Eat Rice Don't Drive it.

Thread Starter
iTrader: (3)

1987RX7guy's Avatar

Join Date: Nov 2002
Location: Laredo, Tx
Posts: 12,752
Likes: 0
Received 1 Like on 1 Post
If anyone has some shots of the wp up close or the whole assembly without obstructions infront of them i would really be helped out, thanks!
1987RX7guy is offline
Reply Like

Trending Topics

Old 04-10-05, 12:32 AM
  #8
Rotary Enthusiast


TT_Rex_7's Avatar

Join Date: Jun 2004
Location: Gallatin, TN
Posts: 1,457
Likes: 0
Received 0 Likes on 0 Posts
Originally Posted by 1987RX7guy
If anyone has some shots of the wp up close or the whole assembly without obstructions infront of them i would really be helped out, thanks!
I can take a picture of it installed on the car. I have everything that would normally be in front of it off the car at the moment. Would that be good enough, or no!? BTW, can I ask why you need a picture of it!?

-Alex
TT_Rex_7 is offline
Reply Like
Old 04-10-05, 02:44 AM
  #9
Eat Rice Don't Drive it.

Thread Starter
iTrader: (3)

1987RX7guy's Avatar

Join Date: Nov 2002
Location: Laredo, Tx
Posts: 12,752
Likes: 0
Received 1 Like on 1 Post
Sure all pictures will help me.

I am doing a conversion on an FC to serpentine belts and i need to see what kind of space requirements i will need to have and what kind of hoses I will need.
1987RX7guy is offline
Reply Like
Old 04-10-05, 03:00 PM
  #10
Eat Rice Don't Drive it.

Thread Starter
iTrader: (3)

1987RX7guy's Avatar

Join Date: Nov 2002
Location: Laredo, Tx
Posts: 12,752
Likes: 0
Received 1 Like on 1 Post
TT_Rex_7, if you could get a picture of the bolts that hold on the t-stat housing that would rock. I'm trying to see if the bolt parterns match the FC front cover/iron.
1987RX7guy is offline
Reply Like
Old 04-11-05, 12:28 AM
  #11
Living the dream...

iTrader: (7)

93silverbullet's Avatar

Join Date: Oct 2003
Location: Eugene, Oregon
Posts: 1,342
Likes: 0
Received 1 Like on 1 Post

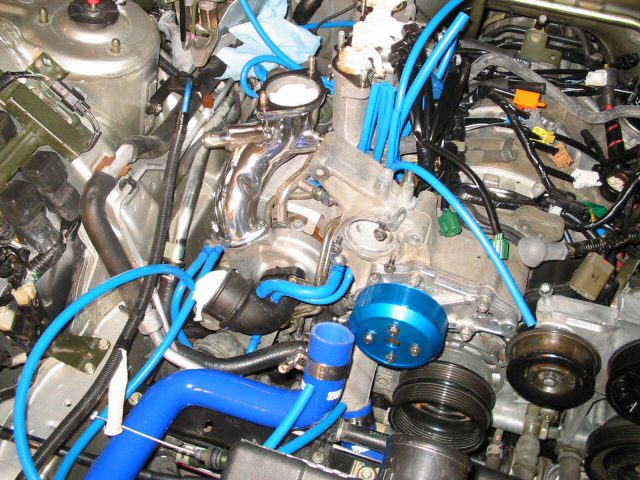

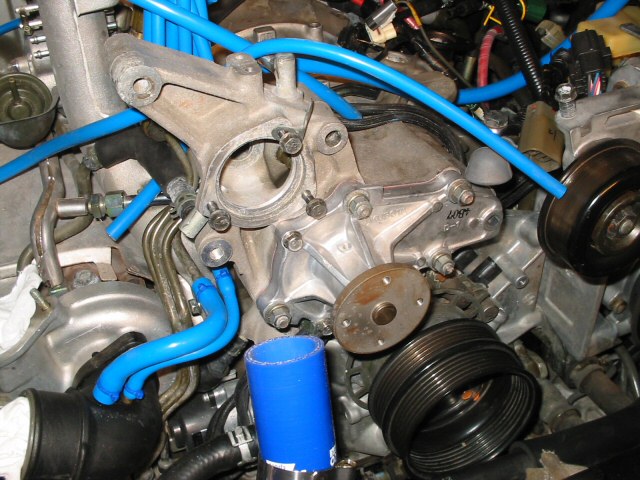

Here's a couple of pics for you! Hope that helps you out.
Attached Thumbnails Searching for a picture of an FD water pump....-109_0994640x480.jpg   Searching for a picture of an FD water pump....-109_0986640x480.jpg
93silverbullet is offline
Reply Like
Old 04-11-05, 12:41 AM
  #12
Eat Rice Don't Drive it.

Thread Starter
iTrader: (3)

1987RX7guy's Avatar

Join Date: Nov 2002
Location: Laredo, Tx
Posts: 12,752
Likes: 0
Received 1 Like on 1 Post
93,

That's awesome!

Those are good, definately helps me out. I have some questions about some bolt/stud holes i'll ask in a few minutes after I mark the pics.
1987RX7guy is offline
Reply Like
Old 04-11-05, 01:06 AM
  #13
Eat Rice Don't Drive it.

Thread Starter
iTrader: (3)

1987RX7guy's Avatar

Join Date: Nov 2002
Location: Laredo, Tx
Posts: 12,752
Likes: 0
Received 1 Like on 1 Post

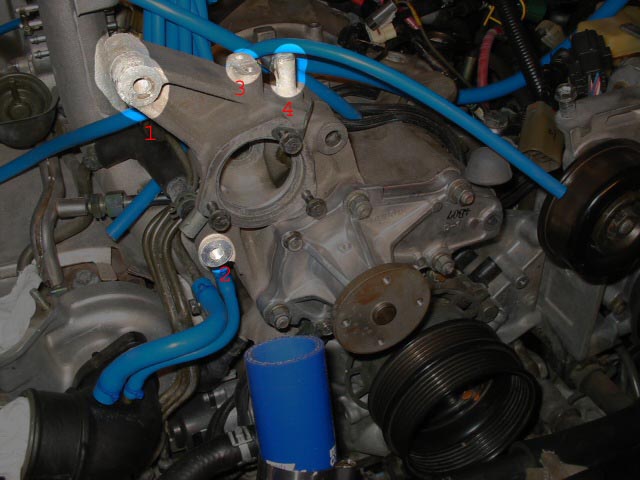

Hey the numbered spots i need to find out what they are for.


Attached Thumbnails Searching for a picture of an FD water pump....-wphousinghighlights.jpg
1987RX7guy is offline
Reply Like
Old 04-11-05, 01:53 AM
  #14
Rotary Enthusiast


TT_Rex_7's Avatar

Join Date: Jun 2004
Location: Gallatin, TN
Posts: 1,457
Likes: 0
Received 0 Likes on 0 Posts
Holes 1 and 2 bolt on the air pump. The 2 holes you have marked as 3 helps bolt on the crossover pipe. Hole 4, I don't remember.

-Alex
TT_Rex_7 is offline
Reply Like
Old 04-11-05, 03:24 AM
  #15
Eat Rice Don't Drive it.

Thread Starter
iTrader: (3)

1987RX7guy's Avatar

Join Date: Nov 2002
Location: Laredo, Tx
Posts: 12,752
Likes: 0
Received 1 Like on 1 Post
Cool if anyone knows what #4 is for i'd appreciate it.
1987RX7guy is offline
Reply Like
Old 04-11-05, 08:19 AM
  #16
5yr member, joined 2001


JONSKI's Avatar

Join Date: Dec 2001
Location: Marco Island, FL
Posts: 908
Likes: 0
Received 1 Like on 1 Post
#4 isn't a bolt hole. It's a nipple for the rat's nest coolant return line.
JONSKI is offline
Reply Like
Old 04-11-05, 10:07 AM
  #17
apex seal BBQ


broken93's Avatar

Join Date: Sep 2002
Location: AL
Posts: 867
Likes: 0
Received 0 Likes on 0 Posts
Maybe this will help as well?
broken93 is offline
Reply Like
Old 04-11-05, 10:34 AM
  #18
Eat Rice Don't Drive it.

Thread Starter
iTrader: (3)

1987RX7guy's Avatar

Join Date: Nov 2002
Location: Laredo, Tx
Posts: 12,752
Likes: 0
Received 1 Like on 1 Post
Yes! definately helping!

I can see the nipple better from this angel...
1987RX7guy is offline
Reply Like
Old 04-11-05, 01:34 PM
  #19
Living the dream...

iTrader: (7)

93silverbullet's Avatar

Join Date: Oct 2003
Location: Eugene, Oregon
Posts: 1,342
Likes: 0
Received 1 Like on 1 Post
Originally Posted by JONSKI
#4 isn't a bolt hole. It's a nipple for the rat's nest coolant return line.
Yep! That's the one!
93silverbullet is offline
Reply Like
Old 04-11-05, 01:39 PM
  #20
Living the dream...

iTrader: (7)

93silverbullet's Avatar

Join Date: Oct 2003
Location: Eugene, Oregon
Posts: 1,342
Likes: 0
Received 1 Like on 1 Post
Originally Posted by 93silverbullet
Yep! That's the one!

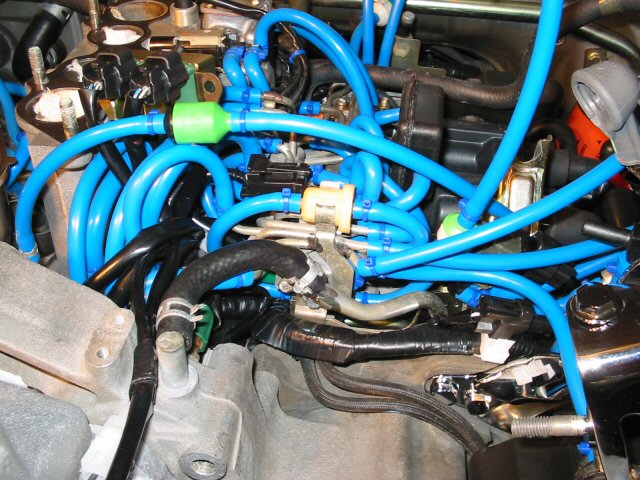

Damn! Forgot to add the pic! Here it is... hope this helps!
Attached Thumbnails Searching for a picture of an FD water pump....-110_1011-640x480.jpg
93silverbullet is offline
Reply Like
Old 04-11-05, 01:51 PM
  #21
Eat Rice Don't Drive it.

Thread Starter
iTrader: (3)

1987RX7guy's Avatar

Join Date: Nov 2002
Location: Laredo, Tx
Posts: 12,752
Likes: 0
Received 1 Like on 1 Post
93,

Does that line lead to the nipple on the rear of the block?
1987RX7guy is offline
Reply Like
Old 04-11-05, 02:41 PM
  #22
Living the dream...

iTrader: (7)

93silverbullet's Avatar

Join Date: Oct 2003
Location: Eugene, Oregon
Posts: 1,342
Likes: 0
Received 1 Like on 1 Post
Originally Posted by 1987RX7guy
93,

Does that line lead to the nipple on the rear of the block?
Good question, let me check. I can't remember off the top of my head.
93silverbullet is offline
Reply Like
Old 04-11-05, 02:58 PM
  #23
Living the dream...

iTrader: (7)

93silverbullet's Avatar

Join Date: Oct 2003
Location: Eugene, Oregon
Posts: 1,342
Likes: 0
Received 1 Like on 1 Post

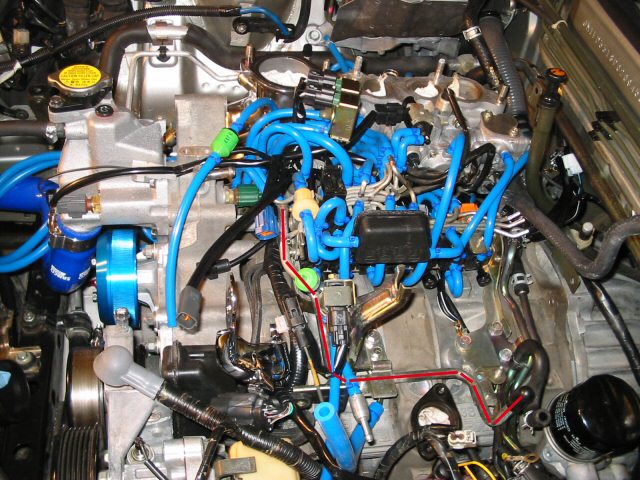

Here's another pic that shows where the line ends up (in red). I don't recall if it goes to the bottom of the TB or not. The FSM should show exactly where it goes .
Attached Thumbnails Searching for a picture of an FD water pump....-109_1000-640x480.jpg
93silverbullet is offline
Reply Like
Old 04-11-05, 05:45 PM
  #24
HDP
A Fistfull of Dollars!

iTrader: (2)

HDP's Avatar

Join Date: Nov 2002
Location: HuntsVEGAS, AL
Posts: 5,321
Received 3 Likes on 3 Posts
Originally Posted by 93silverbullet
Here's another pic that shows where the line ends up (in red). I don't recall if it goes to the bottom of the TB or not. The FSM should show exactly where it goes .
Yep, that's the TB coolant line...
