rx8 shift knob installation???
03-30-05, 11:02 AM
#1
fart on a friends head!!!
Thread Starter
rx8 shift **** installation???
i cant seem to find a REAL how-to on installing the rx8 5speed shift **** that i got through herblenny. can anybody who has this give me a heads up? i heard its easy, but im sick and cant really think straight at the moment.
paul
paul
03-30-05, 11:20 AM
#4
fart on a friends head!!!
Thread Starter
im talking about the lights. . . there are wires that need to be connected and i want them to work.
7rocket, i traded a bunch of stuff for it. dunno
7rocket, i traded a bunch of stuff for it. dunno
03-30-05, 03:12 PM
#5
Senior Member
Join Date: Mar 2003
Location: US
Posts: 505
Likes: 0
Received 0 Likes
on
0 Posts
im sure i wrote up what i did when i was the first to do it, i just spliced it into the light for the ashtray.
You obviously need to cut off the plugs and separate the wires.
You obviously need to cut off the plugs and separate the wires.
03-30-05, 03:53 PM
#6
fart on a friends head!!!
Thread Starter
i did that and it blew the fuse. . . now its worthless cause i just sheared the freaking wires off the ****!!!! oh man am i pissed!!!!!!
paul
paul
03-30-05, 04:01 PM
#7
Banned. I got OWNED!!!
Join Date: Mar 2001
Location: Vienna, VA
Posts: 44
Likes: 0
Received 0 Likes
on
0 Posts
Im not familiar with the RX8 shift ****, however I cant imagine (what sounds like) such a small insignicant light blowing that fuse. I'd look into a pre-existing problem or an error in your wiring of it, particularly since others have done it the same and had no problems.
Trending Topics
03-30-05, 04:41 PM
#8
Originally Posted by BustedRX
Im not familiar with the RX8 shift ****, however I cant imagine (what sounds like) such a small insignicant light blowing that fuse. I'd look into a pre-existing problem or an error in your wiring of it, particularly since others have done it the same and had no problems.
03-30-05, 05:38 PM
#9
Paul, I'll post some pics.. I had a rough day at work yesterday and today.. I'm running on very little sleep right now..
anyhow, hope these pics help.

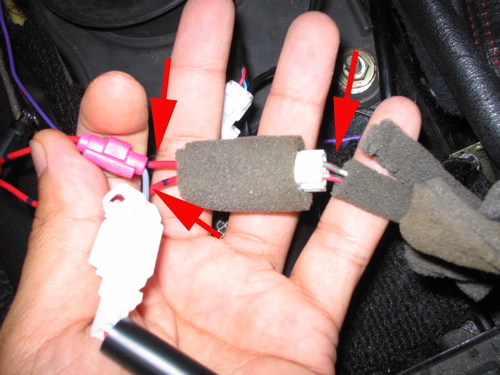

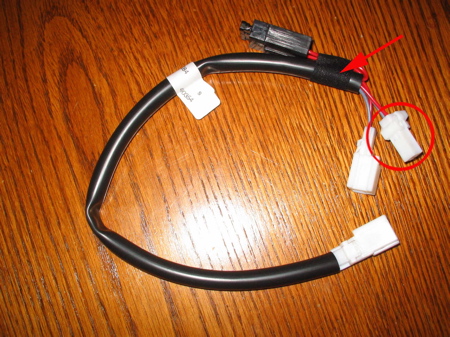

First, you would need to un-wrapped the lines off of the pointed part. And cut the lines. Make sure the clip has pretty of wires.

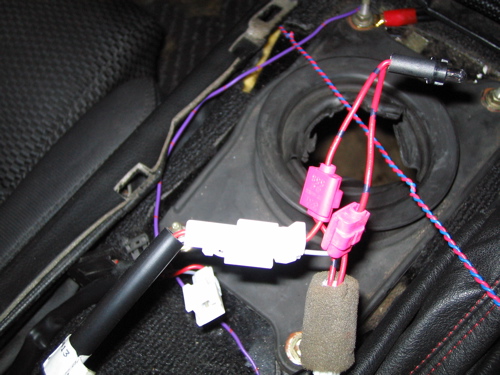

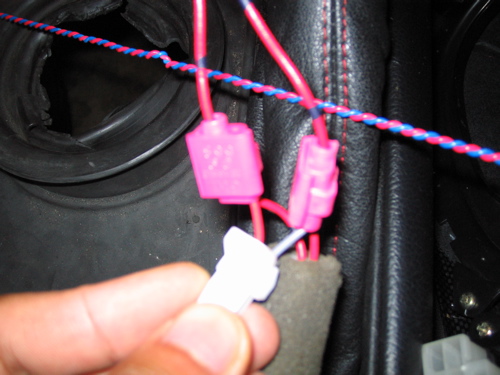

Once you have enough length, tape off the exposed wires on the main harness and using provided clips, connect it to the ash tray light sourse.. Like the pics below.
Word of advice.. Make sure you securely tie the wires the the shifter. over time, line will disconnect.
Hope this helps..
anyhow, hope these pics help.
First, you would need to un-wrapped the lines off of the pointed part. And cut the lines. Make sure the clip has pretty of wires.
Once you have enough length, tape off the exposed wires on the main harness and using provided clips, connect it to the ash tray light sourse.. Like the pics below.
Word of advice.. Make sure you securely tie the wires the the shifter. over time, line will disconnect.
Hope this helps..
Last edited by Herblenny; 03-30-05 at 05:40 PM.
03-30-05, 05:43 PM
#10
Originally Posted by 7_rocket
^ How much did you pick it up for?
I've sold my last one to a rotary shop in FL..
Let me know if you are interested.. to canada might be slightly more..
PHIL
