rx7 FD Progress--aspec 500r turbo kit
#78
Senior Member
Thread Starter
iTrader: (2)
Join Date: Jan 2007
Location: TX
Posts: 250
Likes: 0
Received 0 Likes
on
0 Posts
tighten the v-band clamps first then the two bolt exhaust flanges to fix your exhaust leak...I assume its from the turbo if it sounds that bad
Congrats on getting it running, I know the feeling! looks great.
Add oil coolers to you list you can eliminate that AST since your radiator is verticle and you have a plug right there on top to let the air out. Should give some room to mount a intake just get creative with the sheilding and ducting for fresh air.
Congrats on getting it running, I know the feeling! looks great.
Add oil coolers to you list you can eliminate that AST since your radiator is verticle and you have a plug right there on top to let the air out. Should give some room to mount a intake just get creative with the sheilding and ducting for fresh air.
meh. this set up fking pisses me off so much. and im going to be even more pissed once all the clamps are on and my midpipe doesnt line up cause i just got the damn thing cut and welded so the bolts would line up with the downpipe.
oil coolers on list
#80
development
hang the DP loosely from the turbo v-band clamp, detattched from the MP and WG. Align the DP and WG (loosely) then adjust WG position if needed...fit outlet, tighten the turbo clamp first, then the WG inlet, then outlet.
With so many v-bands and one way to fit its not always straight forward. Your MP needs to be the last thing to fit; might have to reweld??
With so many v-bands and one way to fit its not always straight forward. Your MP needs to be the last thing to fit; might have to reweld??
#82
Senior Member
Thread Starter
iTrader: (2)
Join Date: Jan 2007
Location: TX
Posts: 250
Likes: 0
Received 0 Likes
on
0 Posts
hang the DP loosely from the turbo v-band clamp, detattched from the MP and WG. Align the DP and WG (loosely) then adjust WG position if needed...fit outlet, tighten the turbo clamp first, then the WG inlet, then outlet.
With so many v-bands and one way to fit its not always straight forward. Your MP needs to be the last thing to fit; might have to reweld??
With so many v-bands and one way to fit its not always straight forward. Your MP needs to be the last thing to fit; might have to reweld??
--but i drove it for the first time last night just to get it out of the shop to get inspection. its so hard to stay in low rpms, but from the bits i heard that turbo spools nicely
#86
Senior Member
Thread Starter
iTrader: (2)
Join Date: Jan 2007
Location: TX
Posts: 250
Likes: 0
Received 0 Likes
on
0 Posts

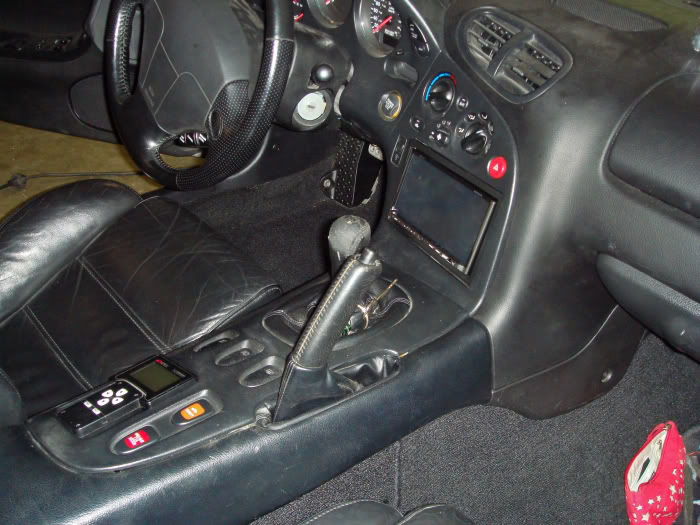

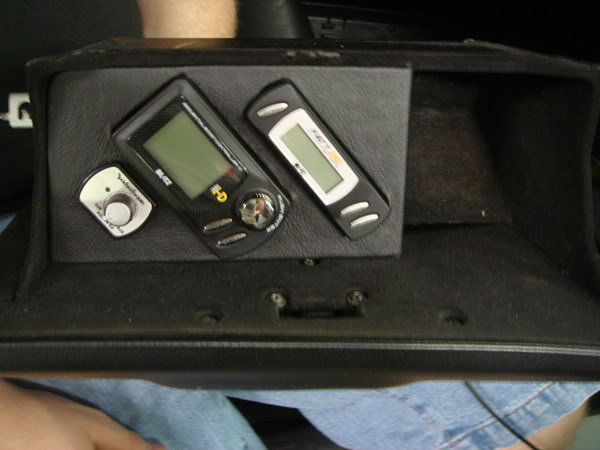

brother did the glove box for me and lazy eyes.

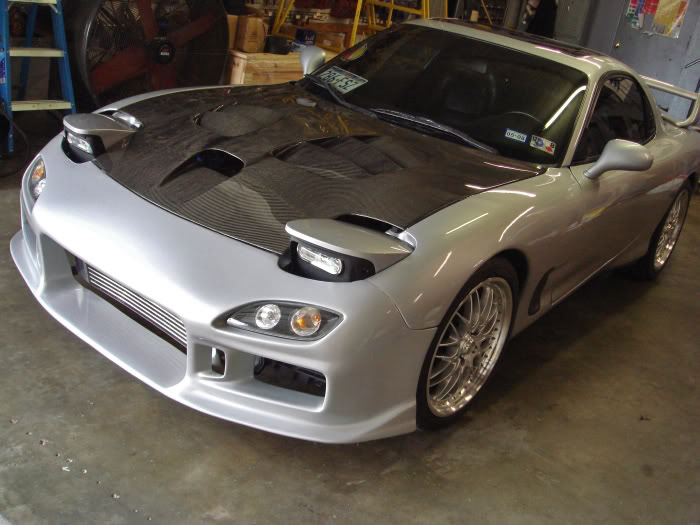

im sure many of yall hate on the lazy eyes, but they look good at night, not so much during the day.

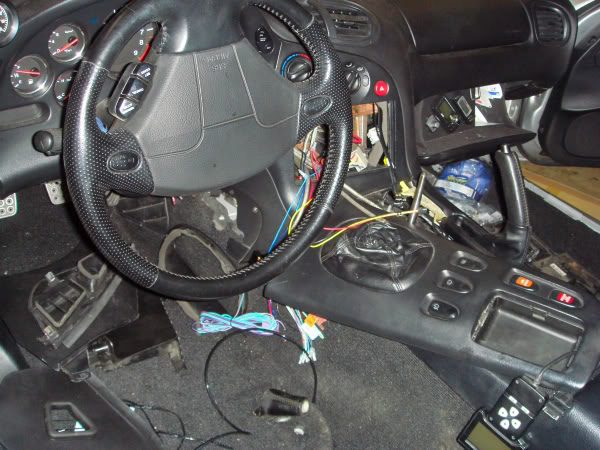

rat nest.

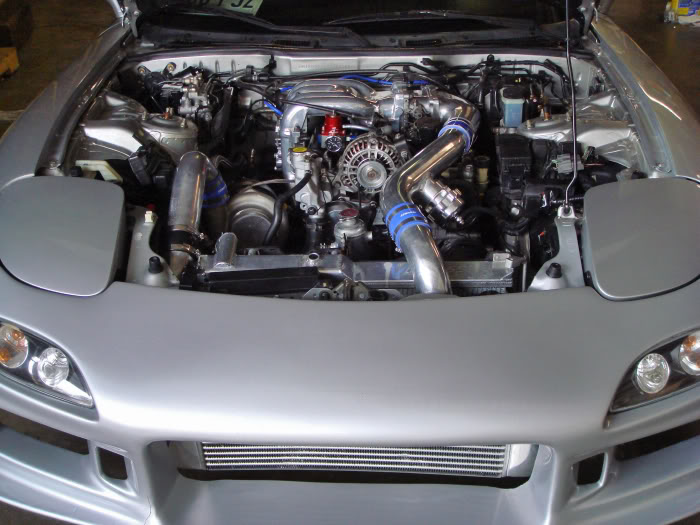

and the best part.
only thing that blows is i still have an exhaust leak, i think its to the block, and i talked to alex at gotham and he said he ran into the same thing and the problem was that the manifold warped.
hopefully thats not my case.
ill have a photoshoot of the fd soon though
#87
Senior Member
Thread Starter
iTrader: (2)
Join Date: Jan 2007
Location: TX
Posts: 250
Likes: 0
Received 0 Likes
on
0 Posts
http://www.youtube.com/watch?v=Cz7lxPNrfDs
after 11 months of not driving the fd with a 3stage clutch, i was completely use to my worn out fc clutch and stalled out the first drive out. haha. and almost ran over my dad cause i couldnt see or hear him haha classic.
after 11 months of not driving the fd with a 3stage clutch, i was completely use to my worn out fc clutch and stalled out the first drive out. haha. and almost ran over my dad cause i couldnt see or hear him haha classic.
#92
Original Gangster/Rotary!
iTrader: (213)
My 500R had an exhaust leak on the turbine housing to manifold flange, which was warped.
I had to remove the turbo from the manifold, remove the turbine housing from the CHRA, take the turbine housing to a machine shopped to be planed flat, then reassemble the turbo (this took many hours with the 1.0 hot side a/r). It was like putting a jigsaw puzzle together, with one hand, blind and drunk. Not fun.
I had to remove the turbo from the manifold, remove the turbine housing from the CHRA, take the turbine housing to a machine shopped to be planed flat, then reassemble the turbo (this took many hours with the 1.0 hot side a/r). It was like putting a jigsaw puzzle together, with one hand, blind and drunk. Not fun.
#93
Senior Member
Thread Starter
iTrader: (2)
Join Date: Jan 2007
Location: TX
Posts: 250
Likes: 0
Received 0 Likes
on
0 Posts
My 500R had an exhaust leak on the turbine housing to manifold flange, which was warped.
I had to remove the turbo from the manifold, remove the turbine housing from the CHRA, take the turbine housing to a machine shopped to be planed flat, then reassemble the turbo (this took many hours with the 1.0 hot side a/r). It was like putting a jigsaw puzzle together, with one hand, blind and drunk. Not fun.
I had to remove the turbo from the manifold, remove the turbine housing from the CHRA, take the turbine housing to a machine shopped to be planed flat, then reassemble the turbo (this took many hours with the 1.0 hot side a/r). It was like putting a jigsaw puzzle together, with one hand, blind and drunk. Not fun.
#96
I think hes referring to your age and how much disposable cash you seem to have lying around... The 2 don't mesh. Don't yell at me though i didn't say it
I'm hopen to upgrade sometime soon myself. I don't think I'd go with the 500R like you did though; although it is very tempting. Call me a puss but I only want 350-400 hp and other, cheaper kits, will get me that.
Nice FD
I'm hopen to upgrade sometime soon myself. I don't think I'd go with the 500R like you did though; although it is very tempting. Call me a puss but I only want 350-400 hp and other, cheaper kits, will get me that.
Nice FD
#97
Is the hotside of the 500r the same as with the 35r (turbine wheel size)? If so, 1.0a/r for the housing seems undersized for that compressor's boost potential.
Rich,
Do you have any logged data on your setup? I would be fairly interested to see how that turbo performs/compares in that setup. I have SIGNIFICANTLY less compressor than the 500r and a much bigger exhaust side. I would be very interested to see how something like mine compares to that larger turbo (compressor).
Pure_Rotary,
In Texas you are going to NEED to add some additional ducting to that cooling setup to maintain adequate oil/coolant temps. Especially with keeping the a/c. I have a totally custom setup, but when I added the top panel to my radiator, my coolant temp dropped about 6 degrees C...just with the top panel! Having a front mount and a/c I would duct that radiator sot that it is completely sealed.
FWIW...A-Spec's first attempt at my manifold didn't fit right either, but they remedied the problem (I have since went to a Turblown manifold and setup). Custom setups take a TON of time and patience. If the FD has taught me anything it is patience and restraint.
Best of luck moving forward!
Rich,
Do you have any logged data on your setup? I would be fairly interested to see how that turbo performs/compares in that setup. I have SIGNIFICANTLY less compressor than the 500r and a much bigger exhaust side. I would be very interested to see how something like mine compares to that larger turbo (compressor).
Pure_Rotary,
In Texas you are going to NEED to add some additional ducting to that cooling setup to maintain adequate oil/coolant temps. Especially with keeping the a/c. I have a totally custom setup, but when I added the top panel to my radiator, my coolant temp dropped about 6 degrees C...just with the top panel! Having a front mount and a/c I would duct that radiator sot that it is completely sealed.
FWIW...A-Spec's first attempt at my manifold didn't fit right either, but they remedied the problem (I have since went to a Turblown manifold and setup). Custom setups take a TON of time and patience. If the FD has taught me anything it is patience and restraint.
Best of luck moving forward!
Last edited by cozmo kraemer; 12-04-07 at 11:07 PM.
#99
Senior Member
Thread Starter
iTrader: (2)
Join Date: Jan 2007
Location: TX
Posts: 250
Likes: 0
Received 0 Likes
on
0 Posts
I think hes referring to your age and how much disposable cash you seem to have lying around... The 2 don't mesh. Don't yell at me though i didn't say it
I'm hopen to upgrade sometime soon myself. I don't think I'd go with the 500R like you did though; although it is very tempting. Call me a puss but I only want 350-400 hp and other, cheaper kits, will get me that.
Nice FD
I'm hopen to upgrade sometime soon myself. I don't think I'd go with the 500R like you did though; although it is very tempting. Call me a puss but I only want 350-400 hp and other, cheaper kits, will get me that.
Nice FD
thanks best of luck with yours
#100
Senior Member
Thread Starter
iTrader: (2)
Join Date: Jan 2007
Location: TX
Posts: 250
Likes: 0
Received 0 Likes
on
0 Posts
yes, the bolts to the midpipe wouldnt line up with the downpipe. i talked to sean about it cause i had other problems, and he send me another dp but it still didnt fix the problem of it lining up.
