Rotary-Works V-mount Install

Installed the Rotary-Works vmount over the weekend. The kit looks very nice. Everything is polished, IC core and radiator are really thick. The IC core is so thick it makes me worry a bit about pressure drop, but we'll see...

This kit is really cheap, er, I mean inexpensive. It was packed well, but was woefully lacking any form of installation instructions. In fact, their is only one picture I could find of the kit installed, and it was from above not showing how anything was mounted.

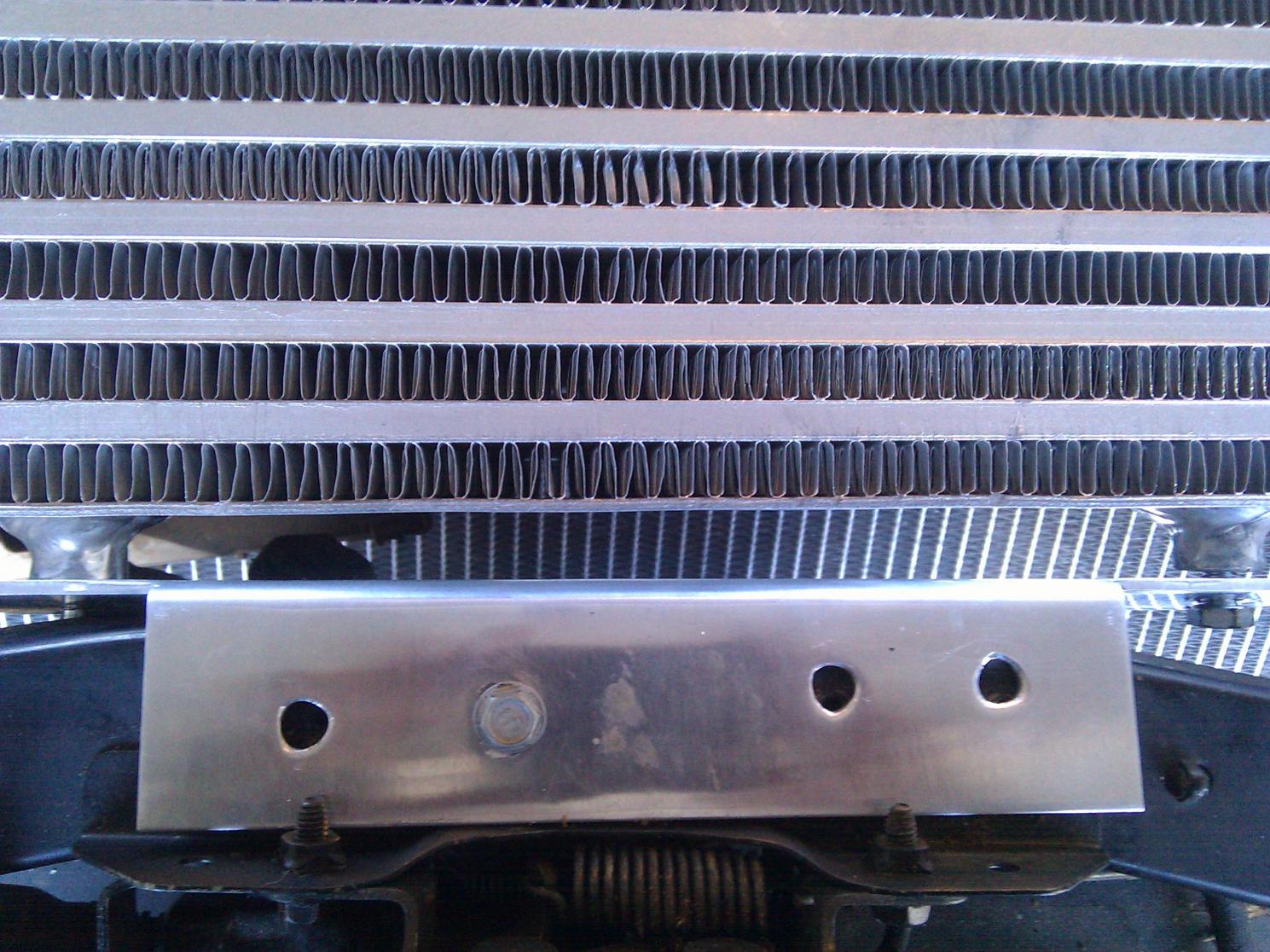

When I did start trying to figure out where things went I noticed that none of the brackets that were sent would work without a little grinding. So be prepared to do a little modification if you plan on using this kit.

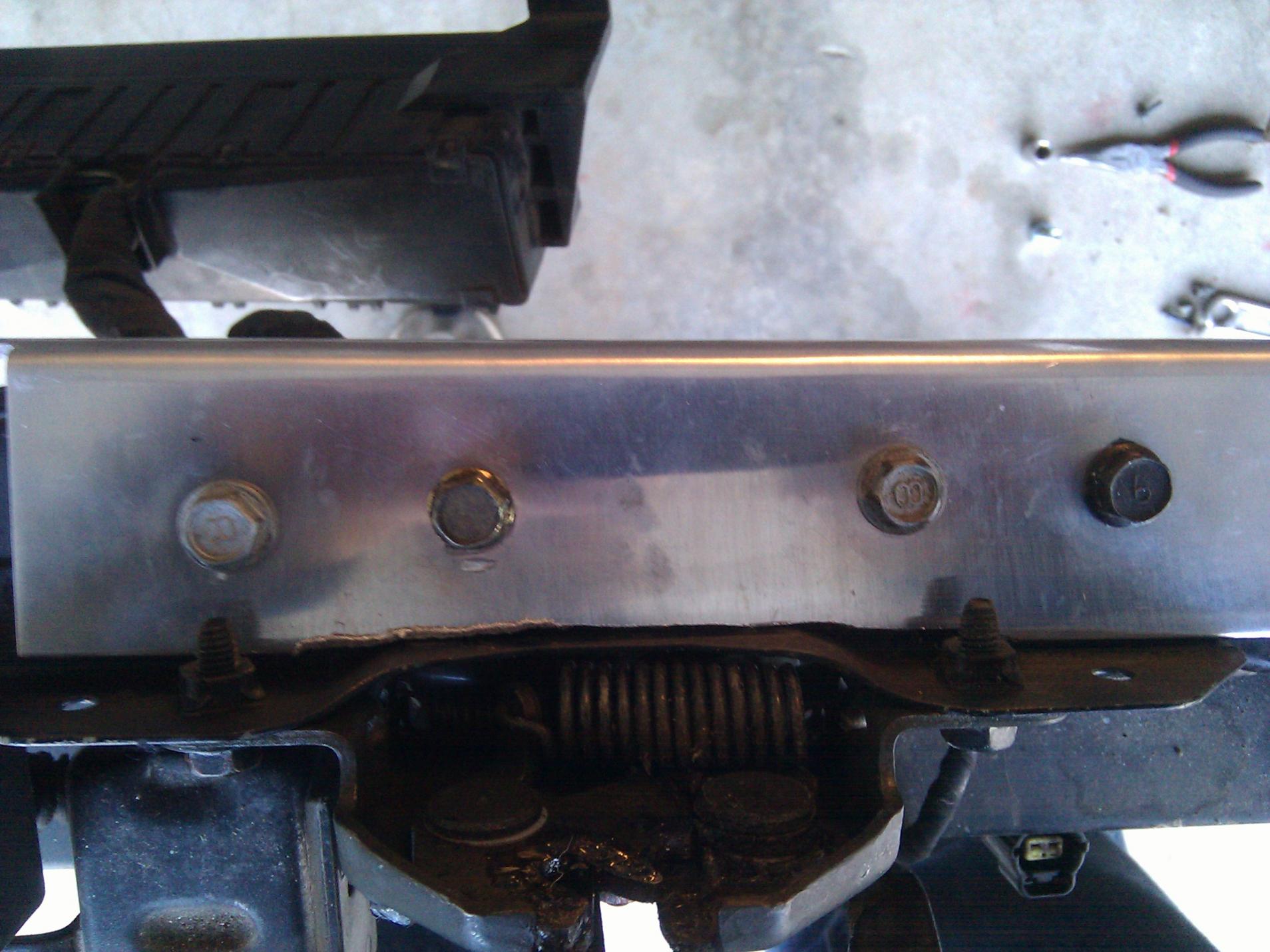

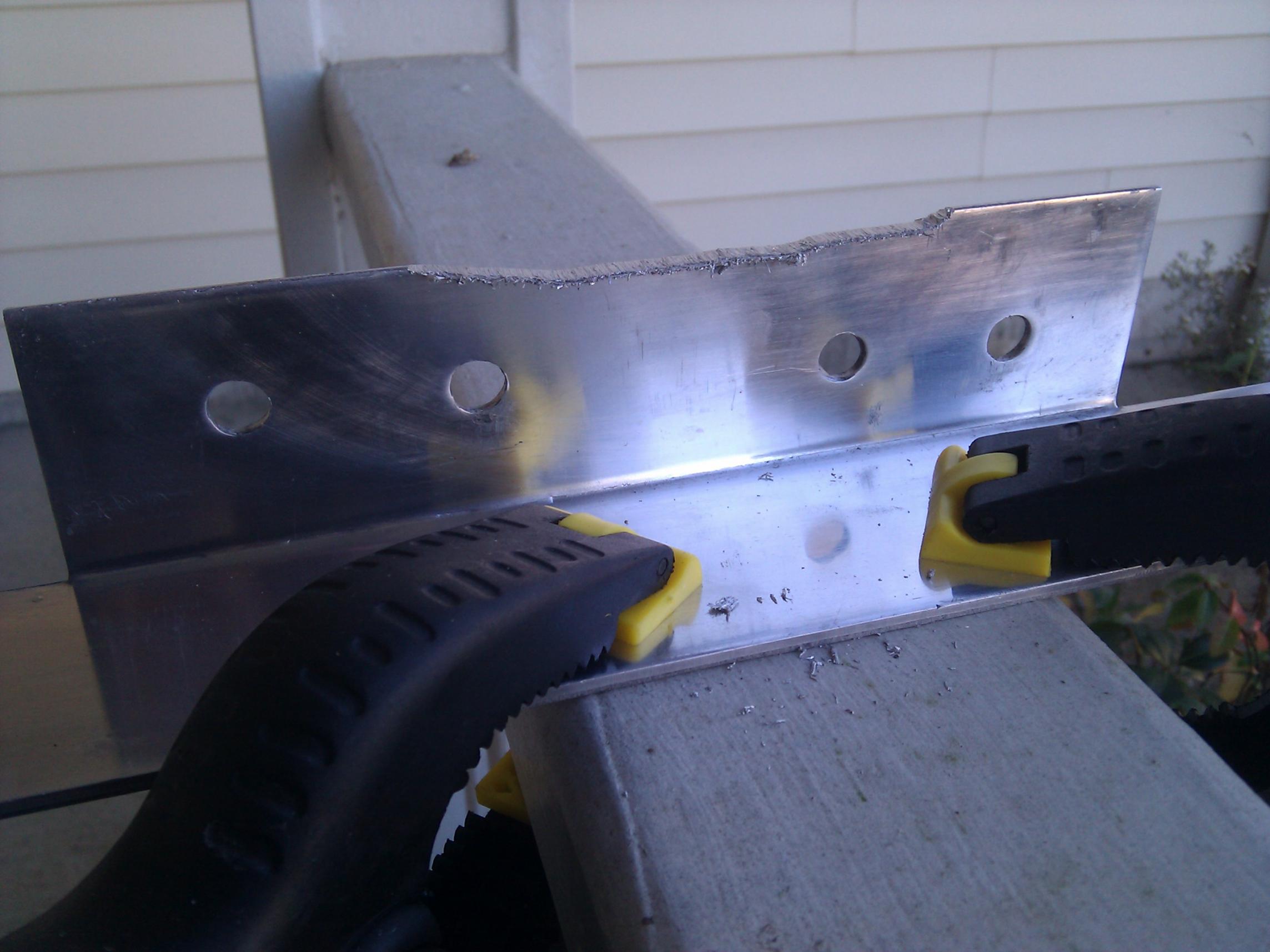

My pain, however, will be your gain if you choose to buy the kit. I took pictures of how it's mounted so no one else has to suffer the way my friends who helped me install it and I did... :-p
Attached Thumbnails Rotary-Works V-mount Install-beforegrinding.jpg   Rotary-Works V-mount Install-needsmodification.jpg   Rotary-Works V-mount Install-grounddown.jpg   Rotary-Works V-mount Install-aftergrinding.jpg   Rotary-Works V-mount Install-modifiedbracket.jpg

Ehron is offline
Old 12-02-10, 02:36 PM
  #2
Rotary Freak
iTrader: (24)

AzEKnightz's Avatar

Join Date: Apr 2005
Location: California, SF
Posts: 2,484
Likes: 0
Liked 1 Time in 1 Post
ahh, finally someone bite the dust and got it! Anyways, I rather pay a little more for a better quality well put together kit. I guess you pay for what you get. Thanks for the post and update.

-AzEKnightz
AzEKnightz is offline
Old 12-02-10, 02:43 PM
  #3
Committee Member #2
iTrader: (29)

NoPis10's Avatar

Join Date: Jan 2005
Location: Committe Chambers
Posts: 4,280
Likes: 0
Liked 2 Times in 1 Post
How about final pics?
After all the fine tuning you did, how did it come out ?

L8R
NoPis10 is offline
Old 12-02-10, 02:49 PM
  #4
Senior Member
10 Year Member
Thread Starter
iTrader: (1)

Ehron's Avatar

Join Date: Oct 2003
Location: Atlanta, GA
Posts: 413
Likes: 0
Liked 0 Times in 0 Posts
I didn't take pictures at every step, but here are the general instructions:

Steps:
1. Have your AC system evaporated before you start as you have to remove the condensor.
2. Remove your bumper.
3. Remove the snaking, S- shaped metal power steering tube/pipe. A lot of PS fluid will come out so you should get something to catch it before disconnecting the rubber hose from the metal line.
4. Remove the AC condensor, and radiator. I am pretty sure I removed the AC condensor first, but I don't remember. It's pretty straightforward.
6. Remove the cross bar that connects the frame rails.

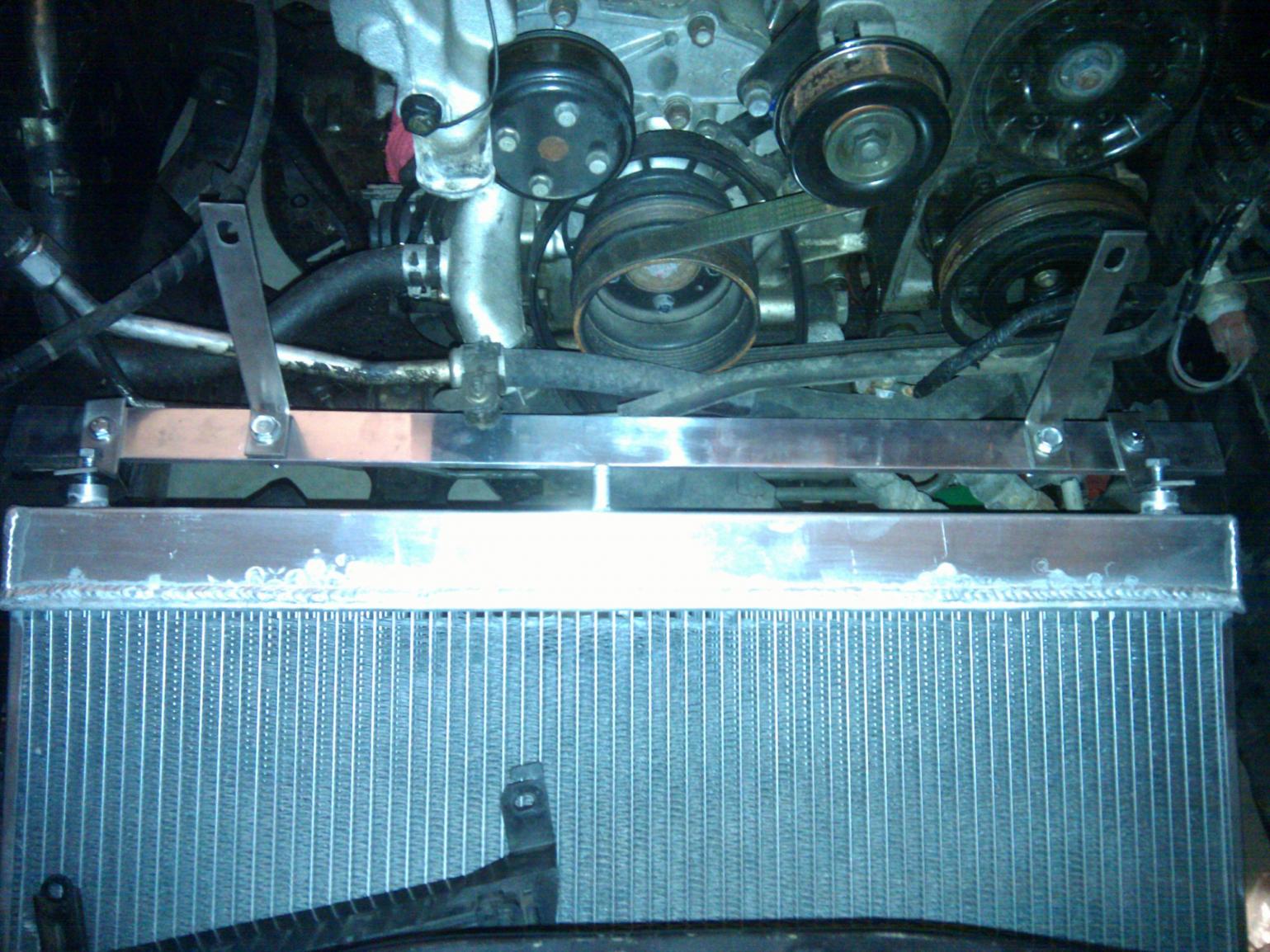

7. Replace it with the shiny metal piece they provide. Refer to the pictures to see the correct orientation.

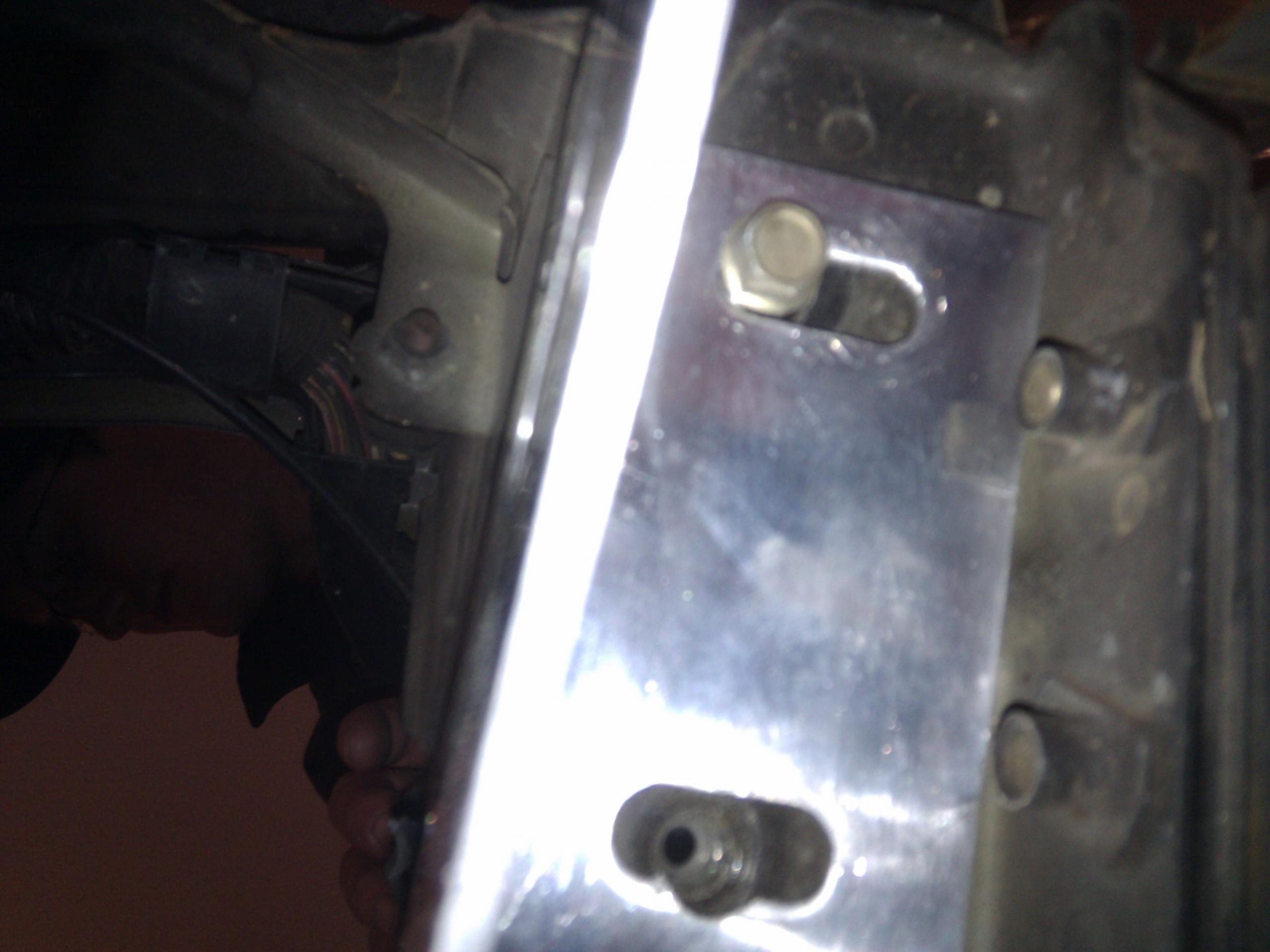

8. Mount the brackets as shown in the pictures. She short brackets hold the top of the radiator, the long brackets hold the base of the intercooler. The large L-bracket with 4 holes across the top mounts next to the hood latch. All brackets required some modification so test fit first to see if you need to remove any material.
9. Mount the L-brackets on the bottom of the frame rails. IMPORTANT: They do not ship the correct size screws. You will need 2 m10X1.25 screws for the passenger side, and 2 m8X1.25 or M6X1.00 (can't remember) for the driver's side. You'll also need large washers to hold the bracket.
10. The radiator outlets point down at the ground.
11. I bought a hand full of

I need to move the relay box as well as their is no longer room for it. Next will be finding radiator hoses, getting new hose and reconnecting the power steering lines, and figuring out how on earth I'm going to mount the AC condenser to this new radiator.

I'd also like to find some rubber grommets to isolate vibration. I am not sure if I mentioned it previously but they don't ship the correct screws. I had to take a trip to Home Depot to find the correct ones. You will likely have to do the same as I lost the receipt that had the screw sizes on it, and my car lives an hour south of where I do.
Attached Thumbnails Rotary-Works V-mount Install-mountingbar.jpg   Rotary-Works V-mount Install-mountingbardrivers.jpg   Rotary-Works V-mount Install-goodluckducting.jpg   Rotary-Works V-mount Install-between.jpg   Rotary-Works V-mount Install-ic_mounted.jpg

Ehron is offline
Old 12-02-10, 02:53 PM
  #5
Senior Member
10 Year Member
Thread Starter
iTrader: (1)

Ehron's Avatar

Join Date: Oct 2003
Location: Atlanta, GA
Posts: 413
Likes: 0
Liked 0 Times in 0 Posts
Originally Posted by lwnslw View Post
How about final pics?
After all the fine tuning you did, how did it come out ?

L8R

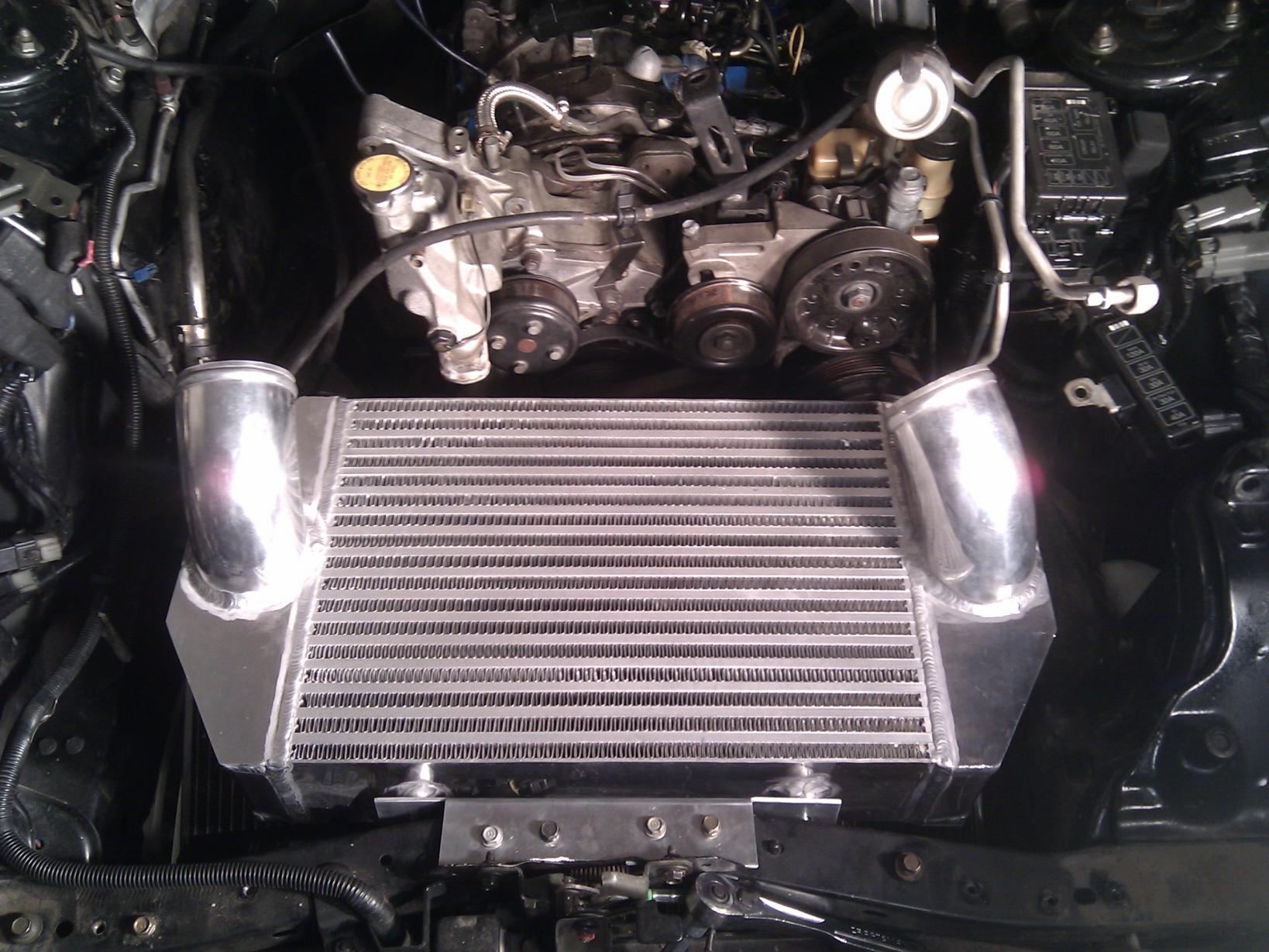

It fits. My car is still months from running so I won't know how it performs for a while.
Attached Thumbnails Rotary-Works V-mount Install-vmount_mounted.jpg
Ehron is offline
Old 12-02-10, 07:25 PM
  #6
NizzleMania Productions
5 Year Member
iTrader: (5)

MrNizzles's Avatar

Join Date: Jun 2007
Location: California
Posts: 685
Likes: 0
Liked 0 Times in 0 Posts
that looks like a pretty good kit for $900

what turbo & setup are you planning to run with this? any AI planned?
MrNizzles is offline
Old 12-02-10, 08:26 PM
  #7
Retired Moderator, RIP
iTrader: (142)

misterstyx69's Avatar

Join Date: Sep 2005
Location: Smiths Falls.(near Ottawa!.Mapquest IT!)
Posts: 25,758
Likes: 0
Liked 96 Times in 83 Posts
QUOTE: "It was packed well, but was woefully lacking any form of installation instructions"
They do Seems to think that you should be able to Put stuff on the car through Telepathy.
I got a Pulley kit that had absolutely ZERO instructions..The fitment Is Crap and the belt Was too Small..
I was able to Get it on after buying another Belt($55 CDN).No Thanks to them,at all.
I'm glad you could install your parts.
It's Kind of Sad that they have good stuff but they won't take the time to make instructions.
misterstyx69 is offline
Old 12-03-10, 12:27 AM
  #8
dvo
Modern Mix
5 Year Member
iTrader: (22)

dvo's Avatar

Join Date: Apr 2009
Location: Los Angeles
Posts: 715
Likes: 0
Liked 0 Times in 0 Posts
this is some good info, this was something I was thinking of getting
dvo is offline
Old 12-03-10, 12:40 PM
  #9
Senior Member
iTrader: (20)

tek_88's Avatar

Join Date: Jan 2007
Location: oroville
Posts: 409
Likes: 0
Liked 0 Times in 0 Posts
Can you keep the a/c with this setup? Jw because im thinking on buying the radiator to fit with my vmount...
tek_88 is offline
Old 12-03-10, 06:16 PM
  #10
In the Garage
5 Year Member
iTrader: (2)

oo7arkman's Avatar

Join Date: Mar 2006
Location: Central FL
Posts: 1,406
Likes: 0
Liked 0 Times in 0 Posts
Word of advice... Air will rush through the path of least resistance. You need to block that massive gap in between the IC and radiator or your cooling will be severely hindered... You want to make it so that air has no choice but to go through the IC and radiator. So block off the middle, sides and top. One exception is if you can feed your air intake to a place to receive fresh air.
oo7arkman is offline
Old 12-03-10, 06:51 PM
  #11
Junior Member
5 Year Member

Join Date: Sep 2006
Location: illinois
Posts: 6
Likes: 0
Liked 0 Times in 0 Posts
looks awsome
mazdagirl76 is offline
Old 12-04-10, 09:37 PM
  #12
Full Member
iTrader: (1)

MrsJoff's Avatar

Join Date: Oct 2008
Location: Mesa, AZ
Posts: 67
Likes: 0
Liked 0 Times in 0 Posts
Here's my setup:

I'm shifting the intercooler over toward the driver side to give me gobs of room for a ram/cold air intake for the turbo (my manifold sits the turbo pretty far forward). Pretty easy to do this tweak with this kit if you have some aluminum from Ace Hardware, a vice to bend some new brackets, and a drill.

Name:  IMG_1497.jpg
Views: 1504
Size:  159.9 KB

Name:  IMG_1496.jpg
Views: 1495
Size:  100.5 KB

Name:  IMG_1498.jpg
Views: 1502
Size:  150.0 KB

I'm planning on a fiberglass project to clean up the air gaps and to also make a air splitter.

--Joff

Last edited by MrsJoff; 12-04-10 at 09:38 PM. Reason: accidentally posted with my wife's login
MrsJoff is offline
Old 12-20-10, 11:43 AM
  #13
Planning my come back
10 Year Member
iTrader: (7)

MR_Rick's Avatar

Join Date: Feb 2003
Location: El Centro, Ca.
Posts: 3,393
Likes: 0
Liked 0 Times in 0 Posts
I'm assuming that this kit will take the stock radiators fans, right?
MR_Rick is offline
Old 12-20-10, 02:48 PM
  #14
Bubblicious DEF.
5 Year Member
iTrader: (35)

muibubbles's Avatar

Join Date: May 2008
Location: 732
Posts: 4,252
Likes: 0
Liked 0 Times in 0 Posts
Originally Posted by MrsJoff View Post







--Joff
sick, im gonna try doing my own vmount soon and had the same idea, shift the ic to the side for a duct for the intake filter
muibubbles is offline
Old 12-20-10, 04:34 PM
  #15
The Dirty Mexican
10 Year Member
iTrader: (1)

cesarx7's Avatar

Join Date: Mar 2005
Location: Californian refugee taking shelter in Texas
Posts: 231
Likes: 0
Liked 0 Times in 0 Posts
I too was waiting for others to bite the bullet before jumping in. The only thing missing now is some performance reviews.

Thanks for the tips, Ehron!
cesarx7 is offline
Old 01-06-11, 10:15 AM
  #16
8AN5H33
10 Year Member
iTrader: (14)

SWAT81's Avatar

Join Date: May 2002
Location: New Port, NJ
Posts: 1,977
Likes: 0
Liked 0 Times in 0 Posts
This is a very helpful thread, much appreciated Ehron

I'm surprised Rotary Works themselves have not commented on this thread when it is the 1st.

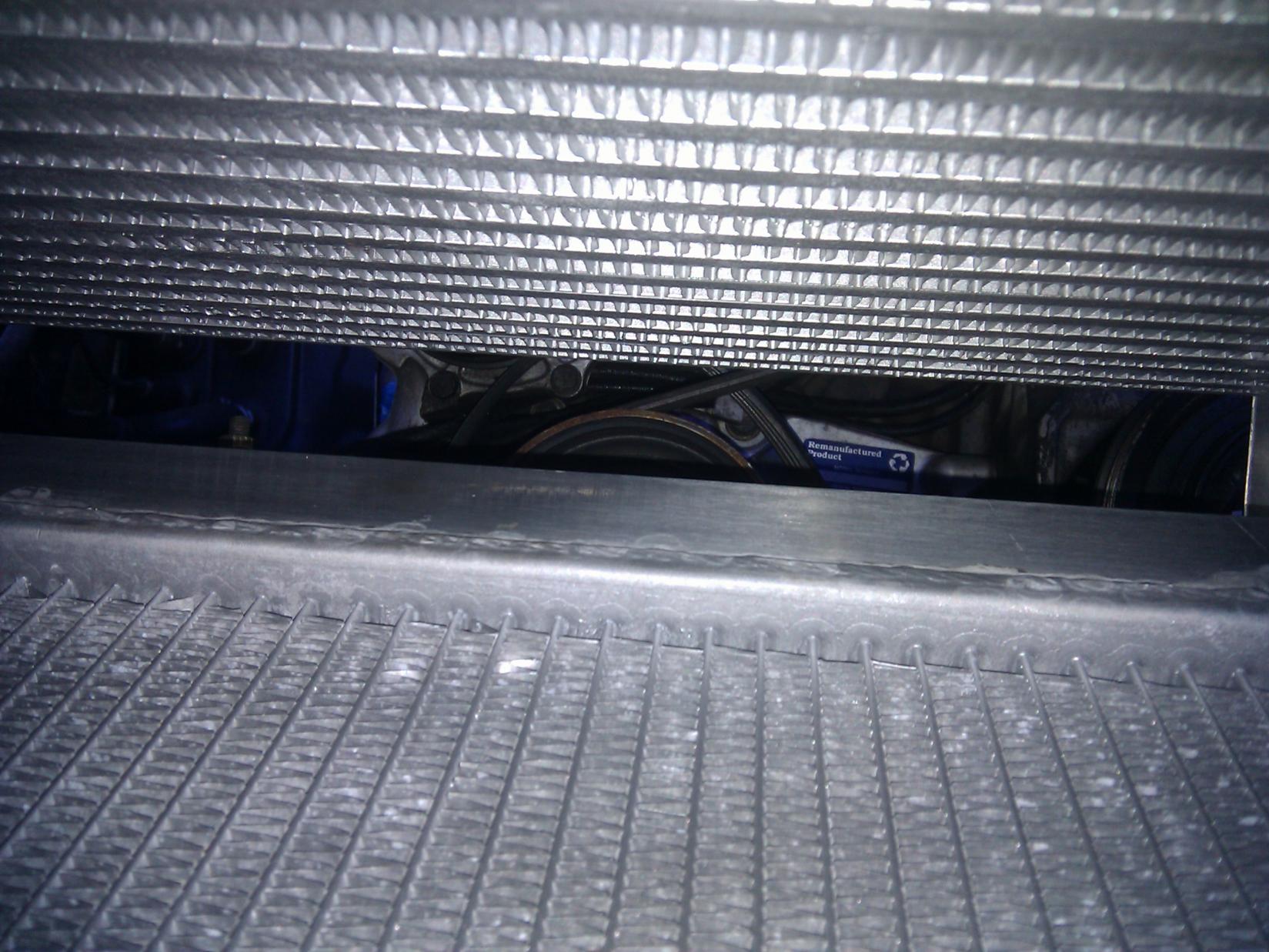

What I would do to close that gap between the rad and the intercooler is to drill an additional hole on each of the brackets I have marked on the photo. If you drill them higher you can raise the rad higher which will close the gap between the two. Just my opinion

Attached Thumbnails Rotary-Works V-mount Install-mountingbar.jpg
SWAT81 is offline
Old 01-06-11, 10:05 PM
  #17
Registered User
iTrader: (6)

Join Date: Sep 2009
Location: Union City, CA
Posts: 1,105
Likes: 0
Liked 0 Times in 0 Posts
900!!!

This is a very good kit for 900. It really helps when you can weld your own parts to help save the customers money. Both their FC and FD vmounts are priced very fairly for what you get.

Props to Ehron for the thread and Rotary Works for offering affordable vmounts.
Rotary Extreme Sales 1 is offline
Old 01-07-11, 01:01 AM
  #18
Fast + Reliable = $$$$$
iTrader: (18)

PandazRx-7's Avatar

Join Date: Nov 2003
Location: SoCal
Posts: 1,221
Likes: 0
Liked 0 Times in 0 Posts
Originally Posted by muibubbles View Post
sick, im gonna try doing my own vmount soon and had the same idea, shift the ic to the side for a duct for the intake filter

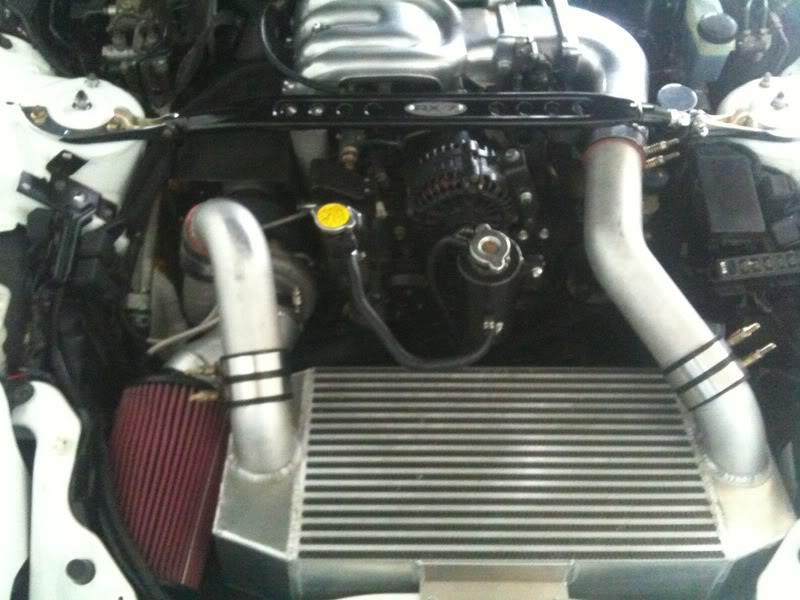

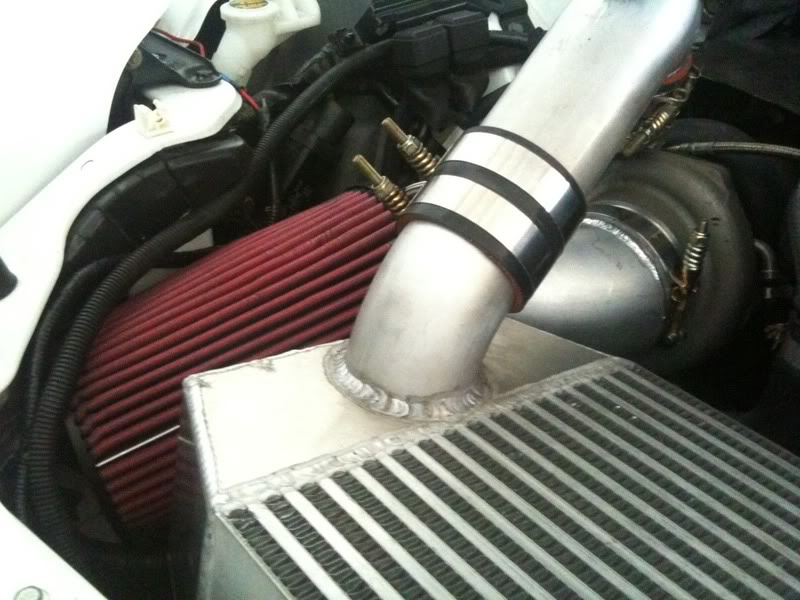

I did the same...who says you can't use a 9" filter with a long runner exhaust manifold and a monster V-Mount (Rotary Extreme)?

Name:  1ee3bf51.jpg
Views: 1504
Size:  76.4 KB
Name:  96379f2d.jpg
Views: 1476
Size:  83.1 KB
PandazRx-7 is offline
Old 01-07-11, 01:40 PM
  #19
Bang Bang!
iTrader: (1)

revhardallday's Avatar

Join Date: Mar 2007
Location: Boston
Posts: 612
Likes: 0
Liked 0 Times in 0 Posts
looks awsome. would this be a better setup than a fmic? i have a fmic now and it works fine with my setup.
revhardallday is offline
Old 01-07-11, 08:56 PM
  #20
Registered User
iTrader: (6)

Join Date: Sep 2009
Location: Union City, CA
Posts: 1,105
Likes: 0
Liked 0 Times in 0 Posts
Originally Posted by PandazRx-7 View Post
I did the same...who says you can't use a 9" filter with a long runner exhaust manifold and a monster V-Mount (Rotary Extreme)?


wow, how cool, nice mod.

too bad I can not compete with the RW FD or FC vmount price.

I still give props to RW for what you get for the price.
Rotary Extreme Sales 1 is offline
Old 01-07-11, 10:06 PM
  #21
Put it in the microwave!
iTrader: (20)

kensin's Avatar

Join Date: Jul 2009
Location: CA
Posts: 1,408
Liked 20 Times in 19 Posts
Cut the cost 600$ off and I'll buy a set from ya /\
kensin is offline
Old 01-08-11, 07:23 AM
  #22
Registered User
iTrader: (6)

Join Date: Sep 2009
Location: Union City, CA
Posts: 1,105
Likes: 0
Liked 0 Times in 0 Posts
Originally Posted by kensin View Post
Cut the cost 600$ off and I'll buy a set from ya /\
LOL hahha, man my cost is already over 2k.

Besides, have you even seen my new kits in person to see what comes with it.

Well this thread belongs to the install of the rotary works FD vmount install.

I really should not be discussing my product in here.

If anyone else has questions just hit me up.
Rotary Extreme Sales 1 is offline
Old 01-10-11, 11:38 AM
  #23
needs more track time
iTrader: (14)

gracer7-rx7's Avatar

Join Date: Mar 2006
Location: Bay Area CA
Posts: 7,819
Liked 12 Times in 11 Posts
^From what I understand, the Rotary Extreme kit fits and installs w/o requiring any fabrication which can get expensive. I have seen the Rotary Extreme kits many times in person and they fit very well and perform well also. Plus they keep the A/C and power steering.
gracer7-rx7 is offline
Old 01-10-11, 09:22 PM
  #24
Registered User
iTrader: (6)

Join Date: Sep 2009
Location: Union City, CA
Posts: 1,105
Likes: 0
Liked 0 Times in 0 Posts
Originally Posted by gracer7-rx7 View Post
^From what I understand, the Rotary Extreme kit fits and installs w/o requiring any fabrication which can get expensive. I have seen the Rotary Extreme kits many times in person and they fit very well and perform well also. Plus they keep the A/C and power steering.

Thanks for your comments, I appriciate it.

RW's kit lets you keep ac and ps also, but like you said you have to put some work into it.

I like the RW FD vmount because for 900 bucks it can not be beat. I believe my I/C alone: core, piping, t-bolt clamps, silicone hoses and fabrication cost I pay for is like 900...lol

Thanks again for the install instructions on the RW vmount.
Rotary Extreme Sales 1 is offline
Old 01-10-11, 10:55 PM
  #25
Just Boosting
iTrader: (6)

existanzrx7's Avatar

Join Date: Mar 2004
Location: Chy-Town
Posts: 1,085
Liked 2 Times in 2 Posts
This kit is a deal!
existanzrx7 is offline
