Hello
I would really love to get my hands on a FD3S wiring diagram for the JDM chassis. Japanese would be acceptable but I'd really love to get a copy of the diagram translated into engine that would have been written for our brothers in the UK/AUS.
Late models up to 2002 would be fine. What I'm mainly interested in is diagrams of features we didn't get in the US like the automatic climate control.
If anyone out there has a pdf I can download I'd love a link. You'd have my eternal thanks
Lane
I would really love to get my hands on a FD3S wiring diagram for the JDM chassis. Japanese would be acceptable but I'd really love to get a copy of the diagram translated into engine that would have been written for our brothers in the UK/AUS.
Late models up to 2002 would be fine. What I'm mainly interested in is diagrams of features we didn't get in the US like the automatic climate control.
If anyone out there has a pdf I can download I'd love a link. You'd have my eternal thanks
Lane
#3
SAE Junkie
iTrader: (2)
Hello
I would really love to get my hands on a FD3S wiring diagram for the JDM chassis. Japanese would be acceptable but I'd really love to get a copy of the diagram translated into engine that would have been written for our brothers in the UK/AUS.
Late models up to 2002 would be fine. What I'm mainly interested in is diagrams of features we didn't get in the US like the automatic climate control.
If anyone out there has a pdf I can download I'd love a link. You'd have my eternal thanks
Lane
I would really love to get my hands on a FD3S wiring diagram for the JDM chassis. Japanese would be acceptable but I'd really love to get a copy of the diagram translated into engine that would have been written for our brothers in the UK/AUS.
Late models up to 2002 would be fine. What I'm mainly interested in is diagrams of features we didn't get in the US like the automatic climate control.
If anyone out there has a pdf I can download I'd love a link. You'd have my eternal thanks
Lane
#4

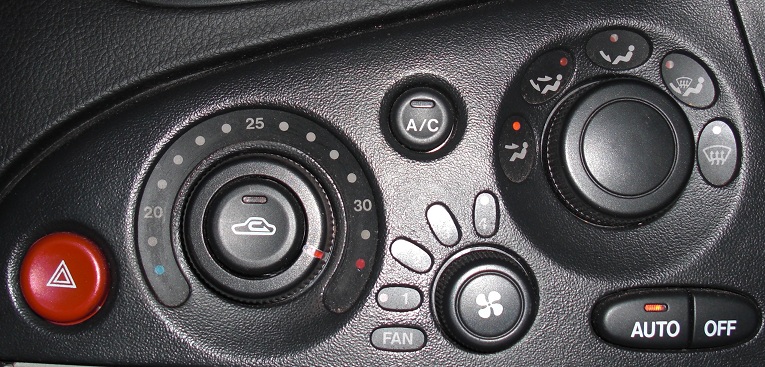

Good to know! I got confused with the "Auto" button as shown below:
Does anyone know what it does? Since its where the airflow input selector switch is on the USDM panel, I'm guessing it could possibly override the selection on the temperature **** above?
Its questions like that, that make me really want to take a peek at the late model JDM wiring diagrams. I am still VERY interested in getting a copy if someone has one I can reference. It's not only the HVAC panel. I'm interested in things like the upgraded ABS wiring, etc, etc.
Lane
Does anyone know what it does? Since its where the airflow input selector switch is on the USDM panel, I'm guessing it could possibly override the selection on the temperature **** above?
Its questions like that, that make me really want to take a peek at the late model JDM wiring diagrams. I am still VERY interested in getting a copy if someone has one I can reference. It's not only the HVAC panel. I'm interested in things like the upgraded ABS wiring, etc, etc.
Lane
Trending Topics
#8
Yeeees I know. I only have diagrams for 1, which is the early 3 channel on that came on my 93 FD3. I'd like to have the diagrams for the other 2 systems as well
Lane
#9
Rotary Freak
One of the German guys was ordering a version VI workshop wiring CD out of Japan, he was trying to get a group buy together on Fdrx7 because of cost - without much success, so you could undoubtedly get one for a touring X....or trawl the auctions for a print copy, I don't like your chances otherwise. The early electrical manuals for Au delivery are/were still available for purchase a while back.
There's actually 6 variants of ABS in RHDs, some larger changes than others.
There's actually 6 variants of ABS in RHDs, some larger changes than others.
#10
One of the German guys was ordering a version VI workshop wiring CD out of Japan, he was trying to get a group buy together on Fdrx7 because of cost - without much success, so you could undoubtedly get one for a touring X....or trawl the auctions for a print copy, I don't like your chances otherwise. The early electrical manuals for Au delivery are/were still available for purchase a while back.
There's actually 6 variants of ABS in RHDs, some larger changes than others.
There's actually 6 variants of ABS in RHDs, some larger changes than others.
Lane
#11
Senior Member
When you put climate control in auto mode, the only user input that is read is the temperature you choose.
