removing engine wiring harness (searched)
okay so im taking my engine out of the car for a rebuild and i watched the Rotary Aviation video and i cant seem to figure out what wires he wants to remove. He takes off the passenger kick panel exposing the ecu and tells you to take a bunch of stuff out that i dont know cause theres so many wires. can someone tell me exactly what wires to disconnect so i can get on with this rebuild. thanks
#2
Lives on the Forum
The main wiring harness at the ECU is what you want to unplug. Unplug it and then pop the large rubber plug out of the firewall where the harness passes through. Sit the harness on top of the motor and pull the motor.
#3
Senior Member
Thread Starter
iTrader: (4)
Join Date: Sep 2003
Location: Los Angeles, CA
Posts: 473
Likes: 0
Received 0 Likes
on
0 Posts

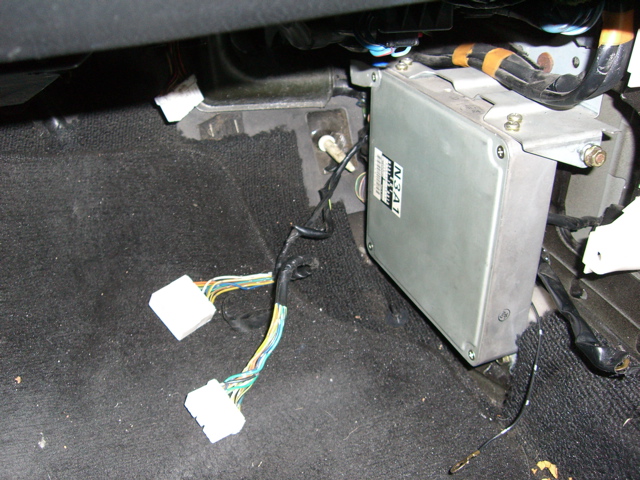

i'm not to clear on what your saying but check out this picture so if i unpluged both those plugs and the ground cables on the ecu am i okay to pull or are there other things attached??
#5
Rotary Freak
Join Date: Jan 2002
Location: Overland Park, KS
Posts: 2,360
Likes: 0
Received 0 Likes
on
0 Posts
On my 93 harness there are 2 yellow plugs, 1 blue, 1 white, and 1 ground that screwed in somewhere. I think the 2 yellow ones that you need from the ECU are the bottom 2 but its been a long time since I've seen the stock ECU mounted and wired up.
