3rd Generation Specific (1993-2002) 1993-2002 Discussion including performance modifications and Technical Support Sections.

RE-Medy upgraded water pump - better flow, and HP

Old 03-08-08, 06:34 PM
  #51
Rotary Enthusiast
iTrader: (21)

AHarada's Avatar

Join Date: Sep 2006
Location: CA
Posts: 1,145
Likes: 0
Liked 0 Times in 0 Posts
^^

Are you scrapping your electric water pump project?
AHarada is offline
Old 03-08-08, 10:20 PM
  #52
In the burnout box...
10 Year Member
iTrader: (32)

mono4lamar's Avatar

Join Date: Oct 2003
Location: New York
Posts: 4,453
Likes: 0
Liked 0 Times in 0 Posts
I'll be patiently awaiting results. My reman pump from Ray only has 2700 miles on it anyway...
mono4lamar is offline
Old 03-10-08, 09:24 AM
  #53
roti
15 Year Member
iTrader: (3)

Join Date: May 2001
Location: Upstate NY for the moment
Posts: 105
Likes: 0
Liked 0 Times in 0 Posts
Underdrive pulley

Seems to be some debate whether this new water pump will make much of a difference to street driven 7's. Like Howard, I'm all for thermal efficiency, even if its a minor gain.

My question is will having an underdrive pulley affect this pump or its efficiency in any way?

Thanks
galognu is offline
Old 03-10-08, 10:16 AM
  #54
Racecar - Formula 2000

DaveW's Avatar

Join Date: Sep 2002
Location: Bath, OH
Posts: 3,295
Liked 24 Times in 22 Posts
IMO, increased WP flow will have the greatest effect on increasing the cooling efficiency of increased-capacity radiators, like the KOYO or Fluidyne, since that is where the water flow is slowest, and parts of the radiator are running at much lower temps, causing a reduction in cooling capacity. In the engine itself, also IMO, the coolant flow rates are probably sufficient with the stock pump.

Dave
DaveW is offline
Old 03-10-08, 12:10 PM
  #55
Moderator
iTrader: (7)

dgeesaman's Avatar

Join Date: May 2002
Location: Fort Kickass
Posts: 12,298
Likes: 0
Liked 4 Times in 4 Posts
In every convective heat transfer calc that I can remember, increasing the fluid velocity offered an improvement. As a result, the coolant will be cooler in the engine block, and hotter in the radiator.

Not sure if the bigger rads will benefit more. Heat exchanger calcs are multivariable and quite hard to predict with intuition.

Dave
dgeesaman is offline
Old 03-10-08, 12:29 PM
  #56
Racecar - Formula 2000

DaveW's Avatar

Join Date: Sep 2002
Location: Bath, OH
Posts: 3,295
Liked 24 Times in 22 Posts
Dave,

Certainly, you are correct. Higher flow rates always (barring cavitation caused by the higher flow) always result in better cooling. Of course, the engine thermal gradient will be smaller with increased flow. I did not say that NO benefit would occur with the stock rad, I just said that the greatest benefit would be for the larger rads.

My reasoning goes along with people having more trouble cooling with KOYO's or Fluidynes in normal driving (lower coolant flow rates due to lower RPM's, plus the lower air velocities thru the rad due to lower MPH). That, IMO, goes directly to having the larger radiator winding up with a larger thermal gradient due to reduced flow rates.

Dave

Last edited by DaveW; 03-10-08 at 12:43 PM.
DaveW is offline
Old 03-10-08, 05:11 PM
  #57
Moderator
iTrader: (7)

dgeesaman's Avatar

Join Date: May 2002
Location: Fort Kickass
Posts: 12,298
Likes: 0
Liked 4 Times in 4 Posts
Pics of FD pump

I got mine today.

I'd be willing to test the performance against my stock water pump. Unfortunately the only "equipment" I have for that right now is a basic Autometer water temp gauge.

So unless there is a clean way to put a flowmeter in the path of the pump output or some other 100% common path in the cooling system, or someone offers me free dyno time, I'll just have to rely on rough water temp comparisons. By rough I mean rough - the gauge isn't delineated much above 220F.
Attached Thumbnails RE-Medy upgraded water pump - better flow, and HP-mazmart_wp_impeller.jpg   RE-Medy upgraded water pump - better flow, and HP-mazmart_wp_top.jpg
dgeesaman is offline
Old 03-11-08, 09:59 AM
  #58
roti
15 Year Member
iTrader: (3)

Join Date: May 2001
Location: Upstate NY for the moment
Posts: 105
Likes: 0
Liked 0 Times in 0 Posts
Asking again.

Anyone with opinion/fact about using underdrive pulley with this pump, and its effect.

Thanks
galognu is offline
Old 03-11-08, 10:24 AM
  #59
needs more track time
iTrader: (14)

gracer7-rx7's Avatar

Join Date: Mar 2006
Location: Bay Area CA
Posts: 7,819
Liked 12 Times in 11 Posts
Mazmart says not to.
gracer7-rx7 is offline
Old 03-11-08, 01:38 PM
  #60
roti
15 Year Member
iTrader: (3)

Join Date: May 2001
Location: Upstate NY for the moment
Posts: 105
Likes: 0
Liked 0 Times in 0 Posts
Originally Posted by gracer7-rx7 View Post
Mazmart says not to.
Well, I just spoke to one of their engineers (Paul?), exceedingly nice, and very cordial.

The underdrive pulley will basically decrease the efficiency of the pump while gaining very little horsepower. The pump will work best for extended periods of engine revving past 4K, as cavitation is less, and flow is more. Tolerances are much tighter, and anyone with 20B should consider this a must.

That was basically it. So looks like when I rebuild my motor, I'll be going back to the OEM pulley.
galognu is offline
Old 03-12-08, 08:01 PM
  #61
needs more track time
iTrader: (14)

gracer7-rx7's Avatar

Join Date: Mar 2006
Location: Bay Area CA
Posts: 7,819
Liked 12 Times in 11 Posts
Does anyone have torque specs on the various water pump bolts handy?

I'm having a rough time reading the tiny *** text in the FSM and making sure its pointing to the right bolts.
gracer7-rx7 is offline
Old 03-12-08, 08:29 PM
  #62
Racing Rotary Since 1983
iTrader: (6)

Join Date: Oct 2001
Location: Wisconsin
Posts: 5,326
Liked 39 Times in 27 Posts
14-19 ft pounds
Howard Coleman CPR is offline
Old 03-12-08, 08:45 PM
  #63
www.GorillaRE.com
10 Year Member
iTrader: (1)

Gorilla RE's Avatar

Join Date: Feb 2003
Location: New Orleans
Posts: 2,045
Liked 0 Times in 0 Posts
Originally Posted by howard coleman View Post
14-19 ft pounds
I think that's only for the 12mm nuts/one bolt and not the 10mm ones from pump to housing.... Not sure.

-J
Gorilla RE is offline
Old 03-12-08, 09:39 PM
  #64
needs more track time
iTrader: (14)

gracer7-rx7's Avatar

Join Date: Mar 2006
Location: Bay Area CA
Posts: 7,819
Liked 12 Times in 11 Posts
I knew I read the FSM wrong.... I definitely overtorqued the one at the alternator bracket.
gracer7-rx7 is offline
Old 03-12-08, 10:14 PM
  #65
Original Gangster/Rotary!

iTrader: (205)

GoodfellaFD3S's Avatar

Join Date: Mar 2001
Location: FL-->NJ/NYC again!
Posts: 29,988
Liked 123 Times in 102 Posts
In this case I never use a torque wrench, I just go by feel. I can't imagine the pump to aluminum housing 10mm head bolts are 19 foot lbs......
GoodfellaFD3S is offline
Old 03-13-08, 01:27 AM
  #66
www.GorillaRE.com
10 Year Member
iTrader: (1)

Gorilla RE's Avatar

Join Date: Feb 2003
Location: New Orleans
Posts: 2,045
Liked 0 Times in 0 Posts
Originally Posted by GoodfellaFD3S View Post
In this case I never use a torque wrench, I just go by feel. I can't imagine the pump to aluminum housing 10mm head bolts are 19 foot lbs......
Yeah that's my point....seems high. And I'm the same way, all the short block engine assy. I use a torque wrench + a few other things but most the time it's done by my trusty "elbow torque wrench"

-J
Gorilla RE is offline
Old 03-13-08, 01:33 AM
  #67
watashi no shichi
iTrader: (4)

hwnd's Avatar

Join Date: May 2005
Location: USA
Posts: 1,763
Liked 1 Time in 1 Post
Originally Posted by galognu View Post
...anyone with 20B should consider this a must.
I'd like to have Carlos Lopez of CLR Motorsports chime in on this. He's got a lot of this r&d (water pump specifically) under his belt.
hwnd is offline
Old 03-13-08, 07:26 AM
  #68
Racing Rotary Since 1983
iTrader: (6)

Join Date: Oct 2001
Location: Wisconsin
Posts: 5,326
Liked 39 Times in 27 Posts
page C-80 shows a clear pic of the water pump to front housing and does use 14-19 as suggested torque... (1994 FSM)

while there are certain bolts where i always use a torque wrench, the water pump housing isn't one of them.

hc
Howard Coleman CPR is offline
Old 03-13-08, 07:50 AM
  #69
Racecar - Formula 2000

DaveW's Avatar

Join Date: Sep 2002
Location: Bath, OH
Posts: 3,295
Liked 24 Times in 22 Posts
Originally Posted by howard coleman View Post
page C-80 shows a clear pic of the water pump to front housing and does use 14-19 as suggested torque... (1994 FSM)

while there are certain bolts where i always use a torque wrench, the water pump housing isn't one of them.

hc
Howard, you are usually very precise on everything you say, but are you sure this is correct? Could it be 14-19 N-meters or some other units?

This torque sounds too high to me for the smaller bolts, also.

Dave
DaveW is offline
Old 03-13-08, 09:55 AM
  #70
needs more track time
iTrader: (14)

gracer7-rx7's Avatar

Join Date: Mar 2006
Location: Bay Area CA
Posts: 7,819
Liked 12 Times in 11 Posts

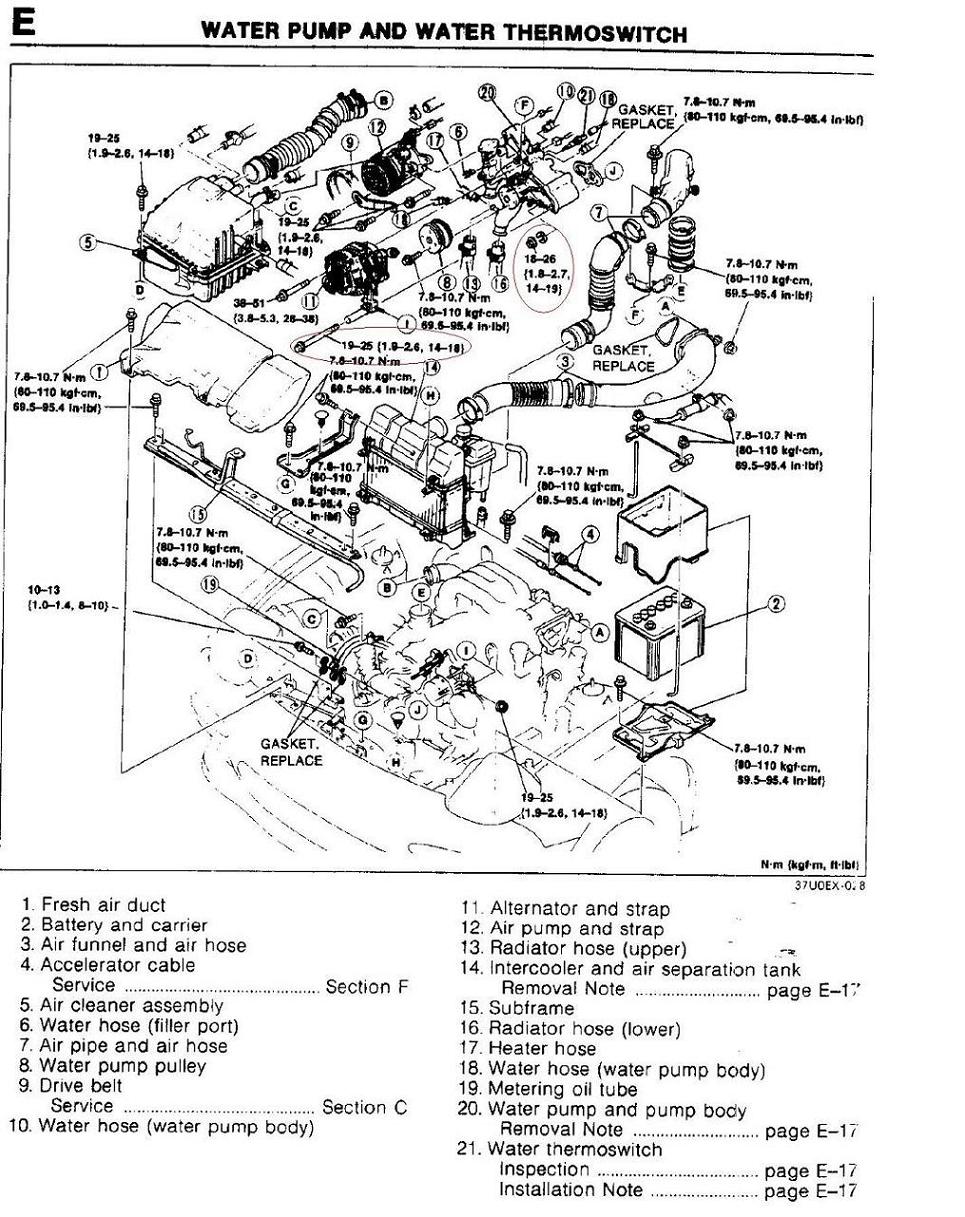

Page E16 of the 93 FSM shows the 12mm nut and washer and a torque rating. It looks to be 14-19 but it looks like "in-fts".

It does not show a torque rating for the 10mm bolts unless I missed it.

Furthermore, it shows another different torque rating for the long bolt on the far right that goes through the alternator bracket and water pump. If I read it correctly, it starts at 69.

I know now that I read it wrong as none of the values look to be in traditional lb/ft settings. I probably should have used the first value which appears to be in Newton Meters (NM). I only recently started using a torque wrench so I could do things "right". Looks like the right tool in the wrong hands.
gracer7-rx7 is offline
Old 03-13-08, 10:09 AM
  #71
Lets Go Hokies!
15 Year Member
iTrader: (5)

afterburn27's Avatar

Join Date: Aug 2001
Location: Greenville, SC
Posts: 1,728
Likes: 0
Liked 2 Times in 1 Post
Originally Posted by gracer7-rx7 View Post
Page E16 of the 93 FSM shows the 12mm nut and washer and a torque rating. It looks to be 14-19 but it looks like "in-fts".

It does not show a torque rating for the 10mm bolts unless I missed it.

Furthermore, it shows another different torque rating for the long bolt on the far right that goes through the alternator bracket and water pump. If I read it correctly, it starts at 69.

I know now that I read it wrong as none of the values look to be in traditional lb/ft settings. I probably should have used the first value which appears to be in Newton Meters (NM). I only recently started using a torque wrench so I could do things "right". Looks like the right tool in the wrong hands.
Look on page C-79 in the '93 FSM. This is the diagram that Howard is referring to. I does indeed show 14-19 ft-lbf. However, this seems a bit high to me as well and I think it might be a misprint. If you look at the next step on page C-79 it shows a torque value of 69-95 in-lbf for one water pump bolt...
afterburn27 is offline
Old 03-13-08, 10:16 AM
  #72
www.GorillaRE.com
10 Year Member
iTrader: (1)

Gorilla RE's Avatar

Join Date: Feb 2003
Location: New Orleans
Posts: 2,045
Liked 0 Times in 0 Posts

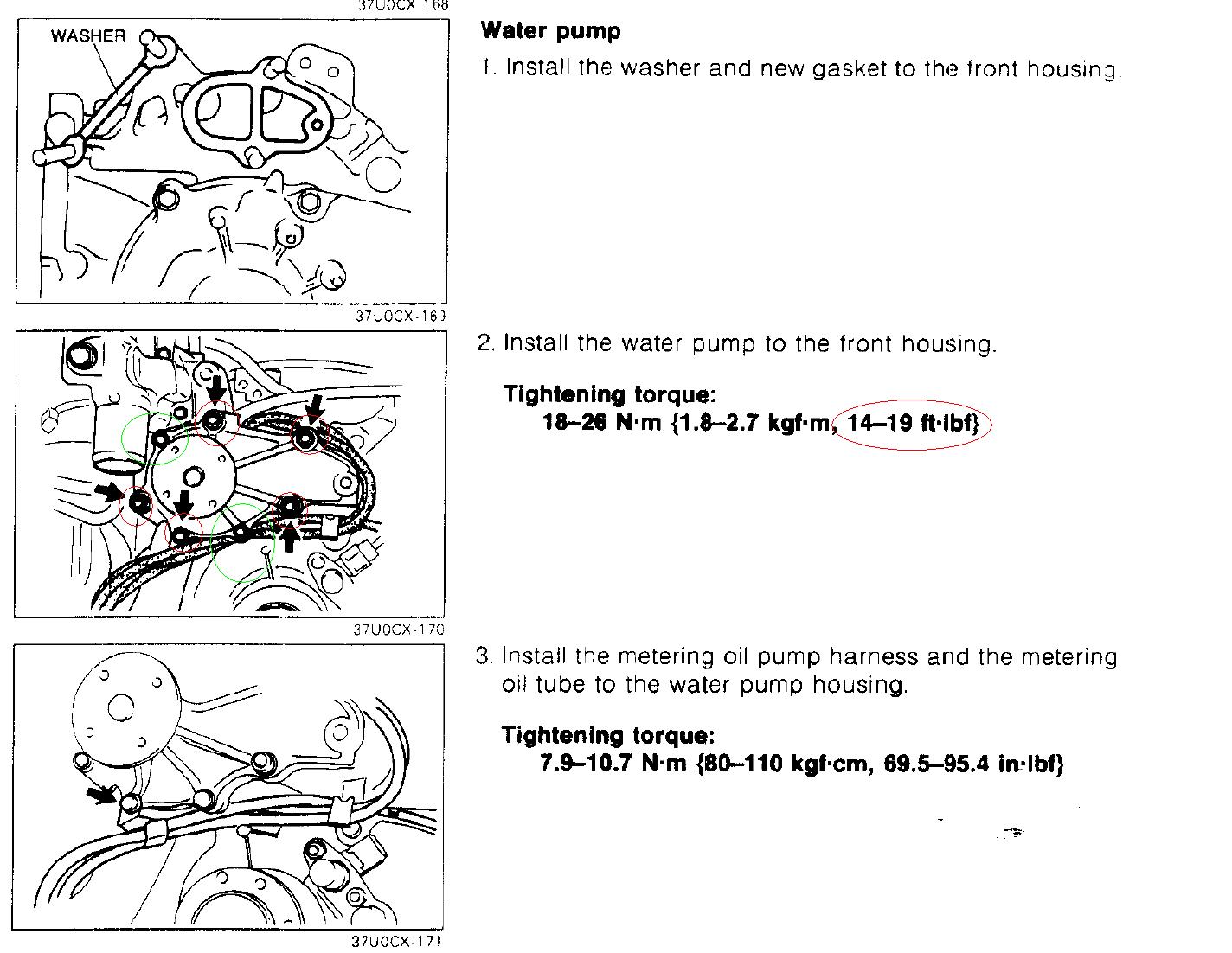

I wasn't doubting Howards post, just wanted to know if the torque was for the 12mm nut(s), 12mm bolt, and 10mm bolt(s).....I found my answer and FYI Howards torque quote was right on for the 12mm but the 10mm ones say 69.5-95.4 in. lbs. (5.79-7.95 ft. lbs.) found in FSM C-79.

-J
Attached Thumbnails RE-Medy upgraded water pump - better flow, and HP-water2.jpg   RE-Medy upgraded water pump - better flow, and HP-water3.jpg
Gorilla RE is offline
Old 03-13-08, 12:26 PM
  #73
Racecar - Formula 2000

DaveW's Avatar

Join Date: Sep 2002
Location: Bath, OH
Posts: 3,295
Liked 24 Times in 22 Posts
Originally Posted by internal comsucktion engi View Post
I wasn't doubting Howards post, just wanted to know if the torque was for the 12mm nut(s), 12mm bolt, and 10mm bolt(s).....I found my answer and FYI Howards torque quote was right on for the 12mm but the 10mm ones say 69.5-95.4 in. lbs. (5.79-7.95 ft. lbs.) found in FSM C-79.

-J
Thanks for the look-up. I was afraid someone would break/strip one of the 10-mm bolts trying to get to 19 lb-ft.

Dave
DaveW is offline
Old 03-13-08, 01:46 PM
  #74
www.GorillaRE.com
10 Year Member
iTrader: (1)

Gorilla RE's Avatar

Join Date: Feb 2003
Location: New Orleans
Posts: 2,045
Liked 0 Times in 0 Posts
Thats what I was getting at...
Gorilla RE is offline
Old 03-13-08, 02:45 PM
  #75
Lives on the Forum
iTrader: (8)

thewird's Avatar

Join Date: Oct 2006
Location: Toronto, Canada
Posts: 6,584
Likes: 0
Liked 0 Times in 0 Posts
I read the whole thread and I still couldn't figure out if this is better for daily street driving or for track. I have a Koyo radiator.

thewird
thewird is offline
