RE-Medy upgraded water pump - better flow, and HP

3rd Generation Specific (1993-2002) 1993-2002 Discussion including performance modifications and Technical Support Sections.

RE-Medy upgraded water pump - better flow, and HP

Old 03-04-08, 09:32 PM
  #1
RX-7 Bad Ass
Thread Starter
iTrader: (52)

DaleClark's Avatar

Join Date: Jan 2002
Location: Pensacola, FL
Posts: 11,016
Thanked 231 Times in 200 Posts
RE-Medy upgraded water pump - better flow, and HP

Hey guys -

Dunno if this has been discussed here or not, did a quick search and didn't find anything.

Mazmart is now making an upgraded water pump for the RX-8 and FD. Basically it's the same externally as the stock water pump, so it bolts right up like stock. But, the impeller blade is CNC machined to be FAR more effective at moving water.

Benefits are it moves more coolant, will supposedly cool the engine better, will definitely not cavitate at high RPM, and requires less power to do so, freeing up some wheel horsepower.

I've been digging through the WAAAAY too long thread on the RX-8 forum about the pump, and I think I've got it figured out.

Pump is $235, which is pretty damn reasonable, IMHO.

To order, they don't have it on their website yet. Call 800-221-5156 to order one. Also comes with a new water pump gasket, which is good. And, no, I have no relation to them, I'm just passing on new parts goodness .

OK, the horsepower increase. One dude guinea-pigged it for them. Dynoed at 202 wheel horsepower, drove to the shop, changed JUST the water pump (didn't disconnect the battery or anything), drove back to the dyno, put down 208 hp. Looking at the dyno graph, it's power across the board as well.

This makes sense, considering the FD and RX-8 water pumps use similar flat blade impellers. This offers a lot of resistance, and that robs power.

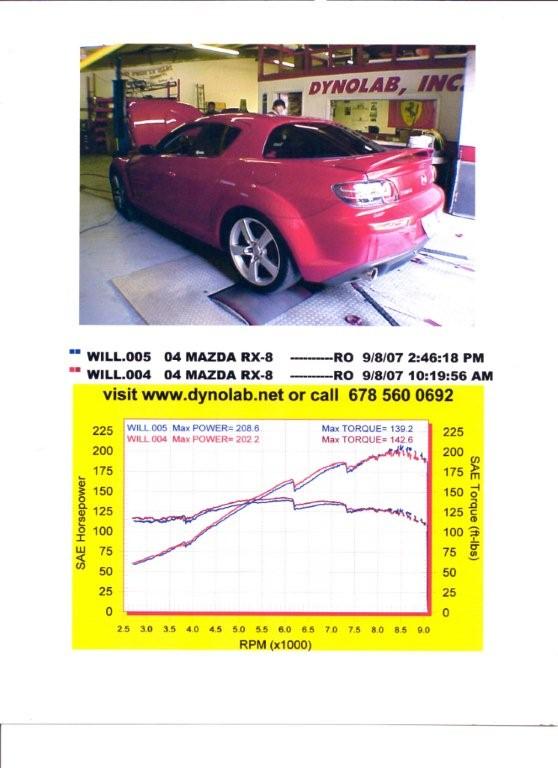

Attached are pics of the dyno chart and the new water pump impeller.

I might have to pick one of these dudes up .

Also, the *22* page RX-8 club thread. LOTS of noise and garbage in there to sort through .

http://www.rx8club.com/showthread.php?t=116423

Dale
Attached Thumbnails RE-Medy upgraded water pump - better flow, and HP-dynowaterpump.jpg   RE-Medy upgraded water pump - better flow, and HP-pict0352.jpg
DaleClark is offline
Old 03-04-08, 09:38 PM
  #2
In the burnout box...
10 Year Member
iTrader: (32)

mono4lamar's Avatar

Join Date: Oct 2003
Location: New York
Posts: 4,453
Thanks: 0
Thanked 0 Times in 0 Posts
Pretty cool Dale!
mono4lamar is offline
Old 03-04-08, 10:14 PM
  #3
RX-7 Bad Ass
Thread Starter
iTrader: (52)

DaleClark's Avatar

Join Date: Jan 2002
Location: Pensacola, FL
Posts: 11,016
Thanked 231 Times in 200 Posts
Another pic - comparison of stock RX-8 water pump to Mazmart's water pump.

Dale
Attached Thumbnails RE-Medy upgraded water pump - better flow, and HP-09212007005s.jpg
DaleClark is offline
Old 03-04-08, 10:29 PM
  #4
2/4 wheel cornering fiend
10 Year Member

Kento's Avatar

Join Date: Nov 2002
Location: Pasadena, CA
Posts: 3,091
Thanks: 0
Thanked 0 Times in 0 Posts
The product looks nice, and I don't doubt the dyno graph. However, did you ever see any testing data as to actual flow rates in the overly-long thread?
Kento is offline
Old 03-04-08, 10:33 PM
  #5
Learns the hard way.....
iTrader: (2)

13brenova's Avatar

Join Date: Jan 2008
Location: Ft Worth, Tx
Posts: 437
Thanks: 0
Thanked 0 Times in 0 Posts
Will this water pump work on a TII?
13brenova is offline
Old 03-04-08, 10:33 PM
  #6
RX7FD3S
iTrader: (3)

Join Date: Jun 2005
Location: South Bay, North Cali.
Posts: 1,482
Thanked 6 Times in 4 Posts
thanks Dale! that's great news

would having higher flow rate put more pressure on the coolant seals??
RX7LINK is offline
Old 03-04-08, 10:39 PM
  #7
Talk to me....
5 Year Member
iTrader: (1)

Uncle Hungry's Avatar

Join Date: Sep 2007
Location: 600' up
Posts: 850
Thanks: 0
Thanked 0 Times in 0 Posts
I wouldn't think so if you still had the same pressure cap.
Uncle Hungry is offline
Old 03-04-08, 11:53 PM
  #8
Original Gangster/Rotary!

iTrader: (205)

GoodfellaFD3S's Avatar

Join Date: Mar 2001
Location: FL-->NJ/NYC again!
Posts: 29,981
Thanked 110 Times in 97 Posts
Well, I'll be damned. And I thought I was running out of parts to bolt on
GoodfellaFD3S is offline
Old 03-04-08, 11:56 PM
  #9
T O R Q U E!
10 Year Member
iTrader: (24)

mdpalmer's Avatar

Join Date: Jan 2004
Location: far far away
Posts: 2,034
Thanks: 0
Thanked 0 Times in 0 Posts
I'd like to see some proof of the non-cavitation, please That reminds me, how can you tell that you're experiencing cavitation (and not a host of other cooling problems) when all the bubbles are in your coolant system and not visible to the eye
mdpalmer is offline
Old 03-05-08, 12:05 AM
  #10
SINFUL7
10 Year Member
iTrader: (37)

KaiFD3S's Avatar

Join Date: Apr 2004
Location: Alaska
Posts: 6,573
Thanks: 0
Thanked 1 Time in 1 Post
I Remember this pump and thought that it never went through, damn it and I still have my stuff off, I might just pick one up and test it out
KaiFD3S is offline
Old 03-05-08, 12:11 AM
  #11
bow leggin'
iTrader: (25)

Scrub's Avatar

Join Date: Jul 2002
Location: Delaware
Posts: 6,058
Thanked 1 Time in 1 Post
That is pretty damn cool, I might have to consider picking one of these up in the next few months.
Scrub is offline
Old 03-05-08, 12:21 AM
  #12
Just Boosting
iTrader: (6)

existanzrx7's Avatar

Join Date: Mar 2004
Location: Chy-Town
Posts: 1,075
Thanked 1 Time in 1 Post
Thanks for the good news Dale!
existanzrx7 is offline
Old 03-05-08, 01:54 AM
  #13
SideWayZ The Only Way
iTrader: (11)

FD3S2005's Avatar

Join Date: Jun 2005
Location: Davie, Florida
Posts: 4,841
Thanks: 0
Thanked 0 Times in 0 Posts
ok whos going to be the test subject?
FD3S2005 is offline
Old 03-05-08, 02:12 AM
  #14
Eats, Sleeps, Dreams Rotary
10 Year Member
iTrader: (11)

Join Date: Jul 2003
Location: Bay Area, CA
Posts: 4,451
Thanks: 0
Thanked 0 Times in 0 Posts
Originally Posted by GoodfellaFD3S View Post
Well, I'll be damned. And I thought I was running out of parts to bolt on
Yes - another day and you discover that the existence of yet another 'upgraded' part that you didn't realize was essential.

I'm having a hard time believing the 6 whp claim, though. Have people that switched to electric water pumps reported anything like this number?
moconnor is offline
Old 03-05-08, 02:49 AM
  #15
Probably in over my head
5 Year Member

n rider89's Avatar

Join Date: Feb 2006
Location: salinas,ca
Posts: 255
Thanks: 0
Thanked 0 Times in 0 Posts
im gonna buy one of these is the future. they do good business
n rider89 is offline
Old 03-05-08, 03:21 AM
  #16
Rotary Freak
iTrader: (3)

Jay7 Nyc's Avatar

Join Date: Feb 2004
Location: NYC - SFL
Posts: 1,696
Thanks: 0
Thanked 0 Times in 0 Posts
Looks pretty nice, I wonder if it causes bubbles at high RPM...
Jay7 Nyc is offline
Old 03-05-08, 03:33 AM
  #17
FB=OS Giken LSD
10 Year Member
iTrader: (20)

mikeric's Avatar

Join Date: Apr 2001
Location: Wilmington, DE
Posts: 2,279
Thanks: 0
Thanked 0 Times in 0 Posts
It does look good, but I would like to see some flow tests/documentation.
mikeric is offline
Old 03-05-08, 05:51 AM
  #18
Moderator
iTrader: (7)

dgeesaman's Avatar

Join Date: May 2002
Location: Fort Kickass
Posts: 12,298
Thanks: 0
Thanked 4 Times in 4 Posts
Originally Posted by mdpalmer View Post
I'd like to see some proof of the non-cavitation, please That reminds me, how can you tell that you're experiencing cavitation (and not a host of other cooling problems) when all the bubbles are in your coolant system and not visible to the eye
Cavitation is not air bubbles. Cavitation is tiny water vapor bubbles. They collapse back to liquid almost immediately.

I'm not sure how you can determine for sure whether cavitation is present or not.

Dave
dgeesaman is offline
Old 03-05-08, 10:49 AM
  #19
www.GorillaRE.com
10 Year Member
iTrader: (1)

Gorilla RE's Avatar

Join Date: Feb 2003
Location: New Orleans
Posts: 2,045
Thanked 0 Times in 0 Posts
The OEM 13B REW water pump impeller is one of the worst in the automotive world. They have square ends, square blades, open center etc. You can modify the blades somewhat to help but it still isn't anything great.

The 13B RE and T2 have an amazing water pump impeller that REALLY flows without cavitation.... Only problem is they aren't interchangeable with the rew because they flow in the opposite direction.

I'm very very glad to see a company after 16 years finally make a REAL water pump for the REW!! The pump looks really nice, congrats to them and thank you Dale for sharing this info with us!

-J
Gorilla RE is offline
Old 03-05-08, 11:06 AM
  #20
2/4 wheel cornering fiend
10 Year Member

Kento's Avatar

Join Date: Nov 2002
Location: Pasadena, CA
Posts: 3,091
Thanks: 0
Thanked 0 Times in 0 Posts
Originally Posted by dgeesaman View Post
Cavitation is not air bubbles. Cavitation is tiny water vapor bubbles. They collapse back to liquid almost immediately.

I'm not sure how you can determine for sure whether cavitation is present or not.

Dave
If the flow rate progression slows considerably and even drops after extended high rpm, the pump is probably cavitating. Cavitation drastically reduces the impeller's ability to move the coolant through the system.

I'd still like to see some flow rate comparison test results on this before plunking down hard-earned cash. No disrespect meant to Dale or the makers of this product, but there's a lot more that goes into water pump design than just nice looks and a dyno graph.
Kento is offline
Old 03-05-08, 11:21 AM
  #21
www.GorillaRE.com
10 Year Member
iTrader: (1)

Gorilla RE's Avatar

Join Date: Feb 2003
Location: New Orleans
Posts: 2,045
Thanked 0 Times in 0 Posts
Originally Posted by Kento View Post
If the flow rate progression slows considerably and even drops after extended high rpm, the pump is probably cavitating. Cavitation drastically reduces the impeller's ability to move the coolant through the system.

I'd still like to see some flow rate comparison test results on this before plunking down hard-earned cash. No disrespect meant to Dale or the makers of this product, but there's a lot more that goes into water pump design than just nice looks and a dyno graph.
True true Well said Kento
Gorilla RE is offline
Old 03-05-08, 12:18 PM
  #22
Racecar - Formula 2000

DaveW's Avatar

Join Date: Sep 2002
Location: Bath, OH
Posts: 3,277
Thanked 16 Times in 16 Posts
Originally Posted by DaleClark View Post
Hey guys -

Dunno if this has been discussed here or not, did a quick search and didn't find anything.

Mazmart is now making an upgraded water pump for the RX-8 and FD. Basically it's the same externally as the stock water pump, so it bolts right up like stock. But, the impeller blade is CNC machined to be FAR more effective at moving water.

Benefits are it moves more coolant, will supposedly cool the engine better, will definitely not cavitate at high RPM, and requires less power to do so, freeing up some wheel horsepower.

I've been digging through the WAAAAY too long thread on the RX-8 forum about the pump, and I think I've got it figured out.

Pump is $235, which is pretty damn reasonable, IMHO.

To order, they don't have it on their website yet. Call 800-221-5156 to order one. Also comes with a new water pump gasket, which is good. And, no, I have no relation to them, I'm just passing on new parts goodness .

OK, the horsepower increase. One dude guinea-pigged it for them. Dynoed at 202 wheel horsepower, drove to the shop, changed JUST the water pump (didn't disconnect the battery or anything), drove back to the dyno, put down 208 hp. Looking at the dyno graph, it's power across the board as well.

This makes sense, considering the FD and RX-8 water pumps use similar flat blade impellers. This offers a lot of resistance, and that robs power.

Dale
If I look at the dyno graph carefully, the two curves cross over, and the blue (later) curve is higher only at the top (peak HP) and lower every where else. Assuming that the MazMart pump is the blue curve, that says to me that the MazMart pump is costing HP until it cavitates (less pumping, so less HP used) at the top end.

Am I missing something here?
DaveW is offline
Old 03-05-08, 12:54 PM
  #23
Racecar - Formula 2000

DaveW's Avatar

Join Date: Sep 2002
Location: Bath, OH
Posts: 3,277
Thanked 16 Times in 16 Posts
Originally Posted by DaveW View Post
If I look at the dyno graph carefully, the two curves cross over, and the blue (later) curve is higher only at the top (peak HP) and lower every where else. Assuming that the MazMart pump is the blue curve, that says to me that the MazMart pump is costing HP until it cavitates (less pumping, so less HP used) at the top end.

Am I missing something here?
BTW, in general, more flow uses more HP to pump that additional flow, so this makes sense to me. The only way you can get less HP consumed by a centrifugal pump is to pump less volume.

For reference, when you use a vacuum cleaner, the motor/blower speed increases when you block the air flow. Same principle.

Dave
DaveW is offline
Old 03-05-08, 01:49 PM
  #24
Lets Go Hokies!
15 Year Member
iTrader: (5)

afterburn27's Avatar

Join Date: Aug 2001
Location: Greenville, SC
Posts: 1,728
Thanks: 0
Thanked 2 Times in 1 Post
I would also like to see flow data for this new pump vs. the stocker.

Just for fun, here is another water pump prototype from another company that hasn't been produced yet (maybe it never will be):

https://www.rx7club.com/showthread.p...ghlight=fluids

It is interesting how different the designs are.
afterburn27 is offline
Old 03-05-08, 01:58 PM
  #25
SINFUL7
10 Year Member
iTrader: (37)

KaiFD3S's Avatar

Join Date: Apr 2004
Location: Alaska
Posts: 6,573
Thanks: 0
Thanked 1 Time in 1 Post
^^^That's the one that I remember, guess it was from a different person...
KaiFD3S is offline
