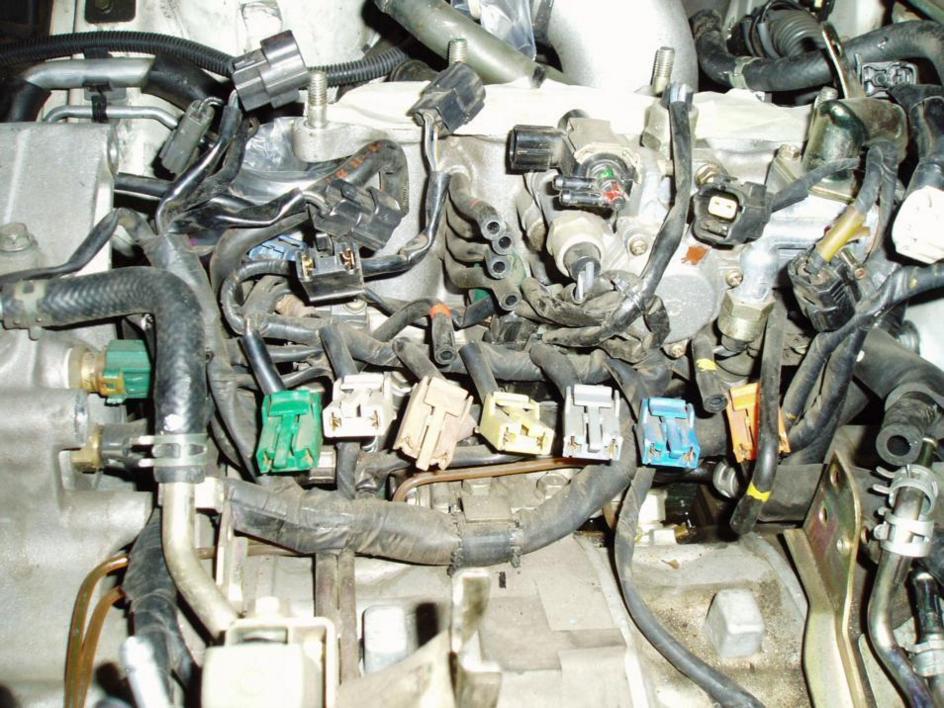

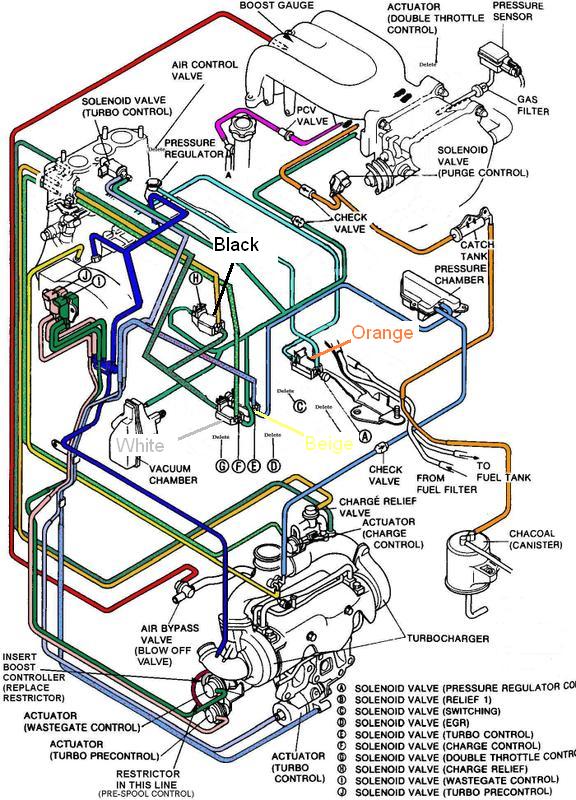

Ok guys I went and did the simplified sequential (ChrisVersion). Just to make sure I did this right what plugs clip to what solenoid? I belive they went in this order starting from front of the car the first one is a Black, Green, White, Beige or Tan, Yellow, Blue, Gray and a Orange clip. But which one goes to which solenoid? The pic below shows how I did it, and what clip I plugged to which solenoid. Please let me know if I did this right? All vacuum diagrams show how to hook all the vacuum lines but they don’t show which plug clips to what solenoid. I tried searching but no luck thanks.



Bump

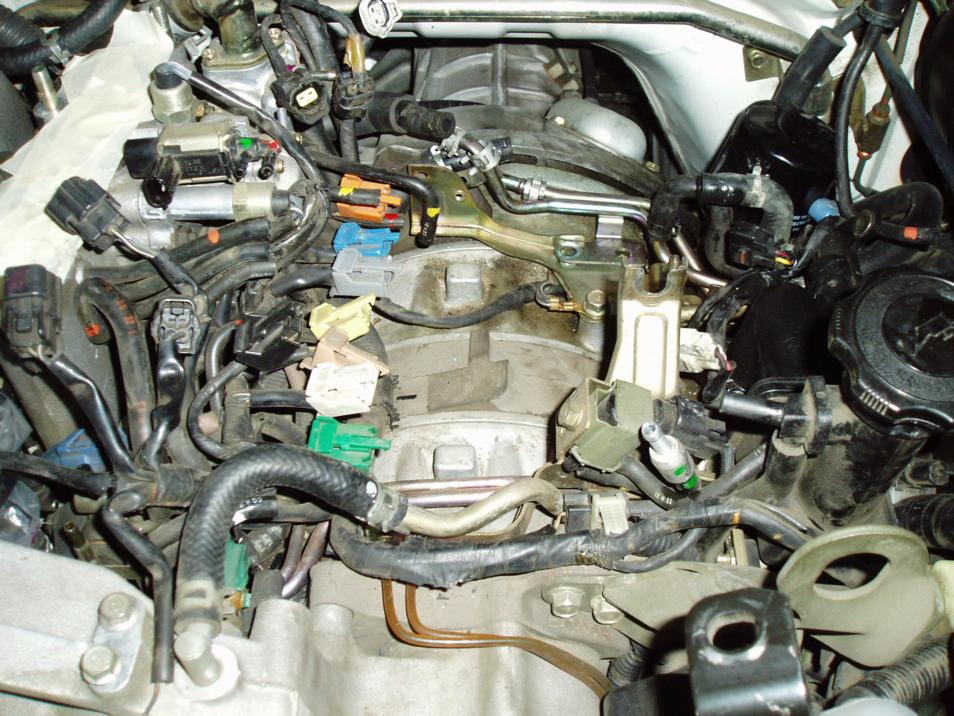

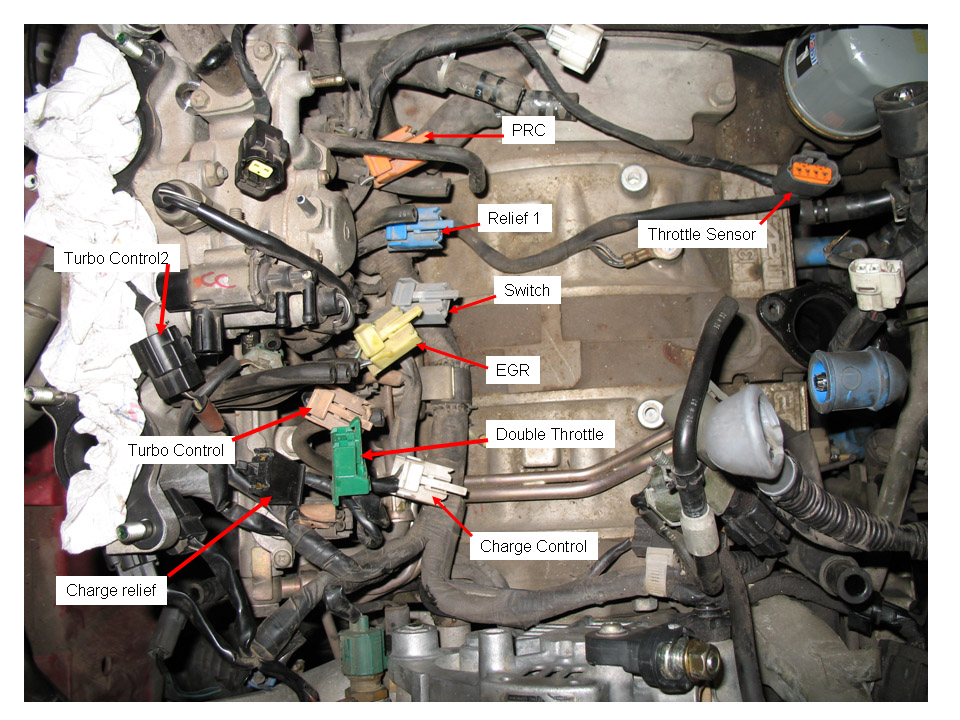

Do these pics help at all? (This is a stock setup. The breakout from the harness pretty much tells the order of connectors.)



https://www.rx7club.com/showpost.php...03&postcount=3



Dem you guys are the best these pics will help so many other members.



So by looking at these pics I guess I did this right. Dem I feel good
