1) Can the stock air box be used with it?
2) Stock piping from the elbow and cross over pipe meet with it? Or do I need to purchase the Greddy pipe kit?
2) Stock piping from the elbow and cross over pipe meet with it? Or do I need to purchase the Greddy pipe kit?
#2
17 second FD
iTrader: (11)
Join Date: May 2006
Location: Poughkeepsie, New York
Posts: 2,436
Likes: 0
Received 1 Like
on
1 Post
1) Yes
2) It comes with a 90* pipe to mate the I/C to the crossover, but the other side is a different story. Your best bet would be to buy a 45* coupler so you can cut it if it needs any adjustment. When I had mine, I had to cut the pipe that had worked fine on my stocker, but I've seen others where they fit just fine with no modification.
2) It comes with a 90* pipe to mate the I/C to the crossover, but the other side is a different story. Your best bet would be to buy a 45* coupler so you can cut it if it needs any adjustment. When I had mine, I had to cut the pipe that had worked fine on my stocker, but I've seen others where they fit just fine with no modification.
#7
Junior Member
Join Date: Oct 2006
Location: Yorkshire, U.K.
Posts: 32
Likes: 0
Received 0 Likes
on
0 Posts
It will fit with the stock airbox, that's what it was designed for, it's a tight fit but definitely fits and you can also keep a stock battery in there.
I've just spent the past week installing mine, using the instructions that come with the SMIC.
I also took the opportunity to carry out the Cheap intake mod and have also modified the stock ducting that feeds the airbox and IC and retained it's functionality.
I'll post up some pics tomorrow, It's now 1 am here otherwise would have got some pics right now.
I've just spent the past week installing mine, using the instructions that come with the SMIC.
I also took the opportunity to carry out the Cheap intake mod and have also modified the stock ducting that feeds the airbox and IC and retained it's functionality.
I'll post up some pics tomorrow, It's now 1 am here otherwise would have got some pics right now.
Trending Topics
#9
Senior Member
Thread Starter
Join Date: Apr 2004
Location: Sydney Australia
Posts: 558
Likes: 0
Received 0 Likes
on
0 Posts
It will fit with the stock airbox, that's what it was designed for, it's a tight fit but definitely fits and you can also keep a stock battery in there.
I've just spent the past week installing mine, using the instructions that come with the SMIC.
I also took the opportunity to carry out the Cheap intake mod and have also modified the stock ducting that feeds the airbox and IC and retained it's functionality.
I'll post up some pics tomorrow, It's now 1 am here otherwise would have got some pics right now.
I've just spent the past week installing mine, using the instructions that come with the SMIC.
I also took the opportunity to carry out the Cheap intake mod and have also modified the stock ducting that feeds the airbox and IC and retained it's functionality.
I'll post up some pics tomorrow, It's now 1 am here otherwise would have got some pics right now.
You reckon I could grab a copy of the instructions? I bought a used ones so it didnt come with any.
Did you have to buy the Greddy piping kit or still using the stock piping to the IC?
#10
Junior Member
Join Date: Oct 2006
Location: Yorkshire, U.K.
Posts: 32
Likes: 0
Received 0 Likes
on
0 Posts
The IC should come with 2 metal pipes, 1 90 deg bend and 1 45 deg bend plus 4 silicone couplers. Mating it all up should't be an issue with the stock piping, the difficulty is simply in getting it all in there due to space and maneouverability (is that the correct spelling).
Feel free to ask further questions, as it's still fresh in my mind I should hopefully be able to answer any queries you have.
Feel free to ask further questions, as it's still fresh in my mind I should hopefully be able to answer any queries you have.
#11
Junior Member
Join Date: Oct 2006
Location: Yorkshire, U.K.
Posts: 32
Likes: 0
Received 0 Likes
on
0 Posts
I also bought mine used but it came with the 2 metal pipes as standard, I got the instructions off here.
Go to post #7 in the following thread which will open the instructions in PDF format
https://www.rx7club.com/showthread.p...y+instructions
Go to post #7 in the following thread which will open the instructions in PDF format
https://www.rx7club.com/showthread.p...y+instructions
#12
Senior Member
Thread Starter
Join Date: Apr 2004
Location: Sydney Australia
Posts: 558
Likes: 0
Received 0 Likes
on
0 Posts
Ok all makes sense now. I thought it didnt come with the 90 degree bend or the 45 degree one but checking the photos its already there with a coupler holding it.
Ducting wise are you using the stock one with just some weather strips along the edges?
Ducting wise are you using the stock one with just some weather strips along the edges?
#15
Junior Member
Join Date: Oct 2006
Location: Yorkshire, U.K.
Posts: 32
Likes: 0
Received 0 Likes
on
0 Posts
That's right, you have to cut off the mouinting tab thats on the right, i.e. the one next to the intercooler.
I didn't use the ducting panel that comes with the ic, I used some aluminium sheet to make my own.
I'll post up some pics later showing the ducting, I created a panel that goes at the bottom of the ic, 2 panels at the sides and one at the top specially designed to integrate with the stock Mazda air feed.
My ic is now 100% sealed but as I've only just boght this car and not really used it as stock I can't say if it has affected performance or intake temps although it's safe to say it will definitely be an improvement on the stock ic.
I'll try and get you some pics also of the crdbord templetes I made in order to design the ducting, it's not pretty but it will provide you with a starting point if you want a 'proper' install and actually benefit from the biger ic.
The best way to tackle this job is to not try and do it quickly, but take your time doing a couple of hours a day. I spent a week doing mine and am very pleased with the fit and finish and it still lokks almost stock.
Sorry for the long post.
I didn't use the ducting panel that comes with the ic, I used some aluminium sheet to make my own.
I'll post up some pics later showing the ducting, I created a panel that goes at the bottom of the ic, 2 panels at the sides and one at the top specially designed to integrate with the stock Mazda air feed.
My ic is now 100% sealed but as I've only just boght this car and not really used it as stock I can't say if it has affected performance or intake temps although it's safe to say it will definitely be an improvement on the stock ic.
I'll try and get you some pics also of the crdbord templetes I made in order to design the ducting, it's not pretty but it will provide you with a starting point if you want a 'proper' install and actually benefit from the biger ic.
The best way to tackle this job is to not try and do it quickly, but take your time doing a couple of hours a day. I spent a week doing mine and am very pleased with the fit and finish and it still lokks almost stock.
Sorry for the long post.
#16
Junior Member
Join Date: Oct 2006
Location: Yorkshire, U.K.
Posts: 32
Likes: 0
Received 0 Likes
on
0 Posts

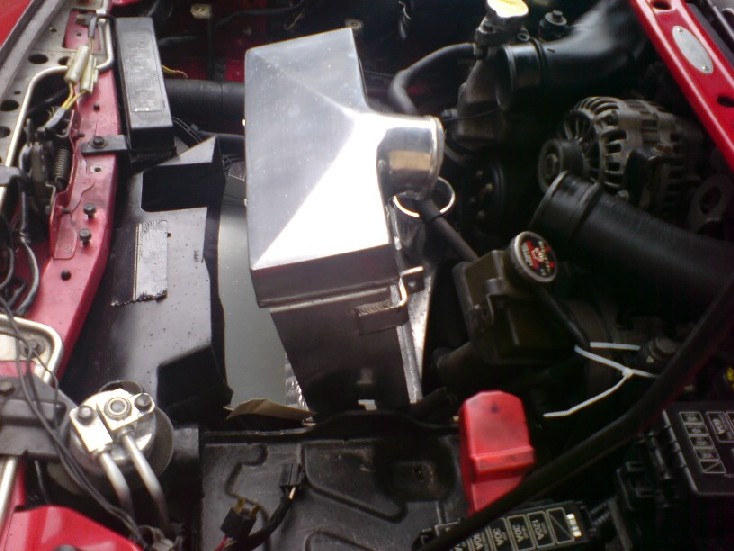

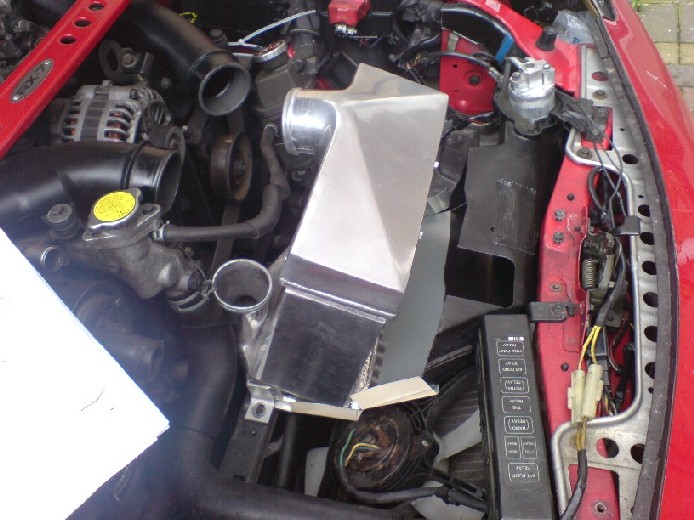

As promised, here's some pics I took during my SMIC install.

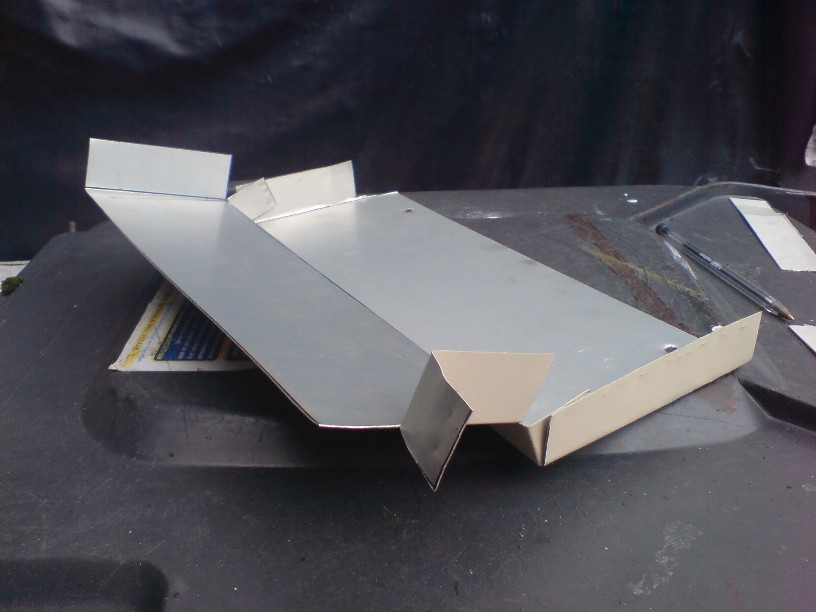

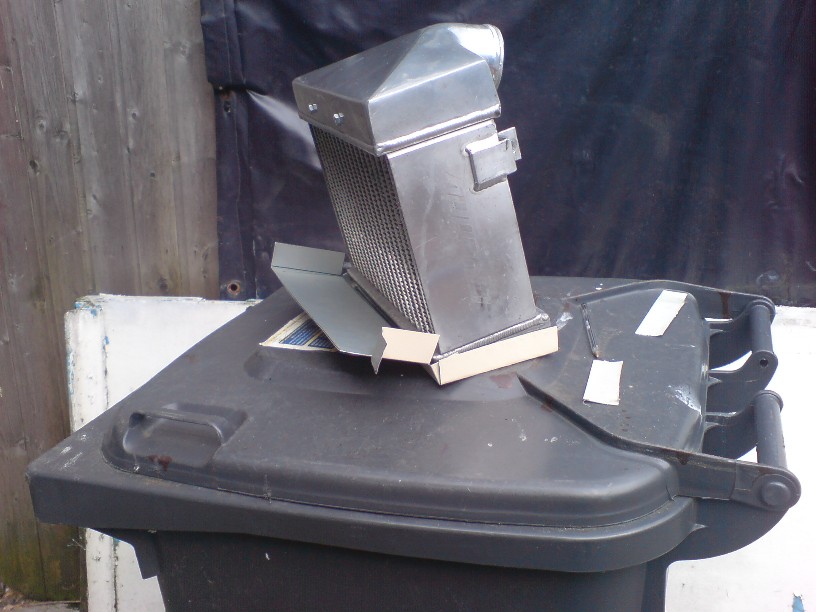

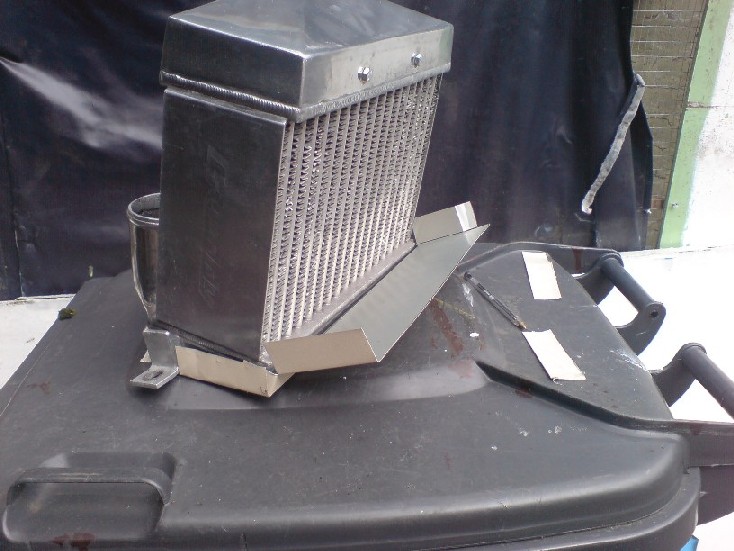

The panel I created for the bottom of the IC has a step in it which is to provide extra clearance for the radiator fans and conveniently is the same height as the end tank of the IC.
Using the pictures you should be able to calculate the diminsions of the panel I made.
You will also notice that I cut part of the stock air feed, I prposely cut off more than I needed to in order to create a smoother path for the entering air otherwise the upper part of the IC might not have had air hitting it directly.
I don't have any pics of the top panel as I was too keen to get the job finished but I spent quite a while creating aperfectly sealed funnel that connects between the lower air feed and the upper panel that covers it all up.
The panel I created for the bottom of the IC has a step in it which is to provide extra clearance for the radiator fans and conveniently is the same height as the end tank of the IC.
Using the pictures you should be able to calculate the diminsions of the panel I made.
You will also notice that I cut part of the stock air feed, I prposely cut off more than I needed to in order to create a smoother path for the entering air otherwise the upper part of the IC might not have had air hitting it directly.
I don't have any pics of the top panel as I was too keen to get the job finished but I spent quite a while creating aperfectly sealed funnel that connects between the lower air feed and the upper panel that covers it all up.
