Questions before undertaking Turbo rebuild...

3rd Generation Specific (1993-2002) 1993-2002 Discussion including performance modifications and Technical Support Sections.

Questions before undertaking Turbo rebuild...

Reply




Old 02-17-04, 09:25 AM
  #1
il Cosa Nostra e vivo!!
10 Year Member
Thread Starter
iTrader: (1)

areXseven's Avatar

Join Date: May 2003
Location: Dove le cose sono fatte il vecchio moda il senso
Posts: 2,097
Thanks: 0
Thanked 0 Times in 0 Posts
Questions before undertaking Turbo rebuild...

I'll be installing a Turbo Rebuild Kit on my Primary Turbo this week-end. Are there any tips you guys can offer on taking Turbo(S) off the engine and taking Turbo apart so that the rebuild goes smooth. It's the first time I undertake such a task. All comments and advise is much appreciated. Thanks. -Jimmy
areXseven is offline
Reply With Quote
Old 02-17-04, 06:21 PM
  #2
Full Member
5 Year Member

kaching's Avatar

Join Date: Jul 2003
Location: troy, oh
Posts: 56
Thanks: 0
Thanked 0 Times in 0 Posts
I think the most important thing is to mark everything to be sure that it goes back in properly. It's easy to get the housings and snails out of rotation. I learned this the hard way.

Also, mark the compressor wheel so that it will remain balanced when you put them back together.

Be careful with the carbon seals when installing. They are pretty easy to crack.

Gook Luck!
kaching is offline
Reply With Quote
Old 02-17-04, 06:23 PM
  #3
Full Member
5 Year Member

kaching's Avatar

Join Date: Jul 2003
Location: troy, oh
Posts: 56
Thanks: 0
Thanked 0 Times in 0 Posts
Also,

Just curious why you are doing one turbo. After going through all of the work to get them off and clean them up, it would probably be a good idea to just do both.
kaching is offline
Reply With Quote
Old 02-17-04, 10:17 PM
  #4
il Cosa Nostra e vivo!!
10 Year Member
Thread Starter
iTrader: (1)

areXseven's Avatar

Join Date: May 2003
Location: Dove le cose sono fatte il vecchio moda il senso
Posts: 2,097
Thanks: 0
Thanked 0 Times in 0 Posts
Originally posted by kaching
Also,

Just curious why you are doing one turbo. After going through all of the work to get them off and clean them up, it would probably be a good idea to just do both.
I just want to make sure I can do it, and do it right. If I don't run into any major problems with the Primary rebuild, I'll more than likely order another kit for the Secondary Turbo. But, as I mentioned previously, the secondary turbo is a boosting *****!! Thanks for your reply and help. -Jimmy
areXseven is offline
Reply With Quote
Old 02-17-04, 10:47 PM
  #5
The Power of 1.3
10 Year Member

911GT2's Avatar

Join Date: Aug 2001
Location: Shrewsbury, Massachusetts
Posts: 2,837
Thanks: 0
Thanked 0 Times in 0 Posts
Take pics and do a nice write up for the rest of us newbs who've never done turbo rebuilds
911GT2 is offline
Reply With Quote
Old 02-18-04, 07:13 AM
  #6
il Cosa Nostra e vivo!!
10 Year Member
Thread Starter
iTrader: (1)

areXseven's Avatar

Join Date: May 2003
Location: Dove le cose sono fatte il vecchio moda il senso
Posts: 2,097
Thanks: 0
Thanked 0 Times in 0 Posts
Originally posted by 911GT2
Take pics and do a nice write up for the rest of us newbs who've never done turbo rebuilds
Will do!. Thanks.
areXseven is offline
Reply With Quote
Old 02-18-04, 07:39 AM
  #7
BOYCOTT EXXON MOBIL!!!
5 Year Member

RX7UP's Avatar

Join Date: Dec 2003
Location: Westchester County, New York. USA
Posts: 2,048
Thanks: 0
Thanked 0 Times in 0 Posts
Don't forget to prime the turbos just before you put them back, (oiling them./put oil in lines,etc.). Also do a search, some here have already successfully and unsuccessfully completed this meticulous task.....

PS. Good luck.... You're gonna need it....

Last edited by RX7UP; 02-18-04 at 07:41 AM.
RX7UP is offline
Reply With Quote
Old 02-23-04, 09:23 AM
  #8
il Cosa Nostra e vivo!!
10 Year Member
Thread Starter
iTrader: (1)

areXseven's Avatar

Join Date: May 2003
Location: Dove le cose sono fatte il vecchio moda il senso
Posts: 2,097
Thanks: 0
Thanked 0 Times in 0 Posts
Just got my Turbo Rebuild Kit delivered. I'll post a few photos of the components in the next hour..
areXseven is offline
Reply With Quote
Old 02-23-04, 10:01 AM
  #9
il Cosa Nostra e vivo!!
10 Year Member
Thread Starter
iTrader: (1)

areXseven's Avatar

Join Date: May 2003
Location: Dove le cose sono fatte il vecchio moda il senso
Posts: 2,097
Thanks: 0
Thanked 0 Times in 0 Posts

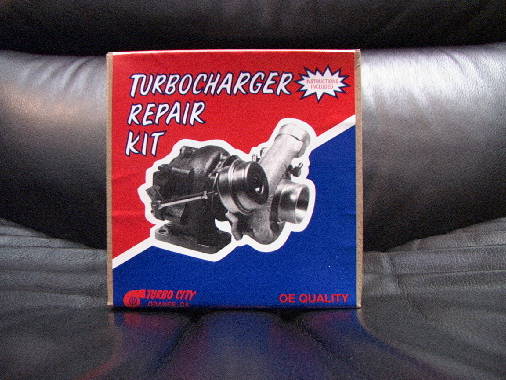

Photo of the front of the box........


Last edited by dgeesaman; 06-18-07 at 11:16 AM.
areXseven is offline
Reply With Quote
Old 02-23-04, 10:03 AM
  #10
il Cosa Nostra e vivo!!
10 Year Member
Thread Starter
iTrader: (1)

areXseven's Avatar

Join Date: May 2003
Location: Dove le cose sono fatte il vecchio moda il senso
Posts: 2,097
Thanks: 0
Thanked 0 Times in 0 Posts
Photo of the back of the box....


Last edited by dgeesaman; 06-18-07 at 11:17 AM.
areXseven is offline
Reply With Quote
Old 02-23-04, 10:05 AM
  #11
il Cosa Nostra e vivo!!
10 Year Member
Thread Starter
iTrader: (1)

areXseven's Avatar

Join Date: May 2003
Location: Dove le cose sono fatte il vecchio moda il senso
Posts: 2,097
Thanks: 0
Thanked 0 Times in 0 Posts
Photo of the sheet of Instructions provided with the Kit....


Last edited by dgeesaman; 06-18-07 at 11:17 AM.
areXseven is offline
Reply With Quote
Old 02-23-04, 10:07 AM
  #12
il Cosa Nostra e vivo!!
10 Year Member
Thread Starter
iTrader: (1)

areXseven's Avatar

Join Date: May 2003
Location: Dove le cose sono fatte il vecchio moda il senso
Posts: 2,097
Thanks: 0
Thanked 0 Times in 0 Posts
Photo of the components as they were shipped/packaged...


Last edited by dgeesaman; 06-18-07 at 11:18 AM.
areXseven is offline
Reply With Quote
Old 02-23-04, 10:10 AM
  #13
il Cosa Nostra e vivo!!
10 Year Member
Thread Starter
iTrader: (1)

areXseven's Avatar

Join Date: May 2003
Location: Dove le cose sono fatte il vecchio moda il senso
Posts: 2,097
Thanks: 0
Thanked 0 Times in 0 Posts
And finally, a photo illustrating the individual components...


Last edited by dgeesaman; 06-18-07 at 11:18 AM.
areXseven is offline
Reply With Quote
Old 02-23-04, 10:13 AM
  #14
il Cosa Nostra e vivo!!
10 Year Member
Thread Starter
iTrader: (1)

areXseven's Avatar

Join Date: May 2003
Location: Dove le cose sono fatte il vecchio moda il senso
Posts: 2,097
Thanks: 0
Thanked 0 Times in 0 Posts
...Hopefully, photos of me kicking the **** out of the Turbo because of my inability to perform the rebuild, will not surface on the Forum. Wish me luck.
areXseven is offline
Reply With Quote
Old 02-23-04, 10:26 AM
  #15
I am so smrt.
5 Year Member

Enconsiderate's Avatar

Join Date: Aug 2003
Location: Torrance, CA
Posts: 886
Thanks: 0
Thanked 0 Times in 0 Posts
GOOD LUCK!!!!!!!

I will be doing the sam in about a week. Please do a nice write up along w/ plenty of pics. I appreciate your help.

Also are you using a glass beed blaster?
Enconsiderate is offline
Reply With Quote
Old 02-23-04, 10:32 AM
  #16
il Cosa Nostra e vivo!!
10 Year Member
Thread Starter
iTrader: (1)

areXseven's Avatar

Join Date: May 2003
Location: Dove le cose sono fatte il vecchio moda il senso
Posts: 2,097
Thanks: 0
Thanked 0 Times in 0 Posts
Originally posted by Enconsiderate
GOOD LUCK!!!!!!!

I will be doing the sam in about a week. Please do a nice write up along w/ plenty of pics. I appreciate your help.

Also are you using a glass beed blaster?
No bead blaster. I'll have to see how bad the internal housing is. If I can't get it cleaned with over-the-counter cleaning chemicals and a little elbow grease, I'll take it to a shop and have it blasted. Good luck to you as well. Check for PMs in case I need to compare the rebuild process with you. Thanks. -Jimmy
areXseven is offline
Reply With Quote
Old 02-23-04, 10:53 AM
  #17
0-rotor-0-turbo-0-fd

TwinTurbo93's Avatar

Join Date: Sep 2002
Location: NYC
Posts: 1,640
Thanks: 0
Thanked 0 Times in 0 Posts
What I learned whem I rebuilded my turbos was that the stock Thrust Bearing (the big C shapped brass one) has 2 holes (bigger) and the Turbo City's has 3 smaller diametter holes, which is much more likely to clogg up compare to stock ones.

I took my turbo out twice after the rebuilt, and ened up using the stock ones for that reason.
The thrust bearing has no efect realy on the performance of the turbo exept for alowing oil through for lube purposes, and I think the stock one is just perfect, most importantly the Thrust Bearing can never go bad anyway b/c there is no physical contact with the shaft and cannot be worn out.

Also do both of them at the same time, is just a pita, nothing to worry, make sure you mark stuff up precisely and you'll be OK and make sure to clean and keep things extra clean.

Good luck.
TwinTurbo93 is offline
Reply With Quote
Old 02-23-04, 11:05 AM
  #18
il Cosa Nostra e vivo!!
10 Year Member
Thread Starter
iTrader: (1)

areXseven's Avatar

Join Date: May 2003
Location: Dove le cose sono fatte il vecchio moda il senso
Posts: 2,097
Thanks: 0
Thanked 0 Times in 0 Posts
Originally posted by TwinTurbo93
What I learned whem I rebuilded my turbos was that the stock Thrust Bearing (the big C shapped brass one) has 2 holes (bigger) and the Turbo City's has 3 smaller diametter holes, which is much more likely to clogg up compare to stock ones.

...The thrust bearing has no efect realy on the performance of the turbo exept for alowing oil through for lube purposes, and I think the stock one is just perfect, most importantly the Thrust Bearing can never go bad anyway b/c there is no physical contact with the shaft and cannot be worn out.


Good luck.
Thanks for the heads-up. I'll take it into consideration.
areXseven is offline
Reply With Quote
Old 02-23-04, 11:12 AM
  #19
BOOOYAHHHH!
5 Year Member

Join Date: Feb 2004
Location: Virginia Beach
Posts: 1,578
Thanks: 0
Thanked 0 Times in 0 Posts
Originally posted by 911GT2
Take pics and do a nice write up for the rest of us newbs who've never done turbo rebuilds

AGREED!!!
RX7Wishing is offline
Reply With Quote
Old 02-23-04, 11:19 AM
  #20
il Cosa Nostra e vivo!!
10 Year Member
Thread Starter
iTrader: (1)

areXseven's Avatar

Join Date: May 2003
Location: Dove le cose sono fatte il vecchio moda il senso
Posts: 2,097
Thanks: 0
Thanked 0 Times in 0 Posts
Oh believe me!.,.. I'm gonna document the S#!t out of this rebuild (with video). So posting digital photos won't be a problem. Thanks.
areXseven is offline
Reply With Quote
Old 02-23-04, 12:56 PM
  #21
Rotor Nut
iTrader: (4)

jfxp's Avatar

Join Date: Aug 2003
Location: philly pa
Posts: 522
Thanked 0 Times in 0 Posts
Originally posted by areXseven
Oh believe me!.,.. I'm gonna document the S#!t out of this rebuild (with video). So posting digital photos won't be a problem. Thanks.
woohoo!, i've been looking for pics of a rebuild, thanks arexseven
jfxp is offline
Reply With Quote
Old 02-23-04, 01:55 PM
  #22
I am so smrt.
5 Year Member

Enconsiderate's Avatar

Join Date: Aug 2003
Location: Torrance, CA
Posts: 886
Thanks: 0
Thanked 0 Times in 0 Posts
Originally posted by areXseven
Oh believe me!.,.. I'm gonna document the S#!t out of this rebuild (with video). So posting digital photos won't be a problem. Thanks.
I sure wouldn't mind a copy of that video! Perhaps you can zip it and send it via AIM????
Enconsiderate is offline
Reply With Quote
Old 02-23-04, 01:55 PM
  #23
Rotary Freak
10 Year Member

Join Date: Jan 2004
Location: Belgium
Posts: 1,883
Thanks: 0
Thanked 0 Times in 0 Posts
Well..w here do I know those parts from???

Just a question, i also did a turbo rebuild with such a kit and it's fairly easy onces the turbo is open.
Just one thing... You'll need to have the turbo balanced before putting it back. due to the wear of the propellor shaft there may be some intolerance with the new bearings, still causing oil to leak and so on...

Be sure to do that. it'll cost you more than the rebuld kit, that's for sure
Speedworks is offline
Reply With Quote
Old 02-23-04, 02:36 PM
  #24
Slower Traffic Keep Right
10 Year Member
iTrader: (5)

poss's Avatar

Join Date: Apr 2002
Location: Albuquerque, NM
Posts: 2,192
Thanks: 0
Thanked 0 Times in 0 Posts
Originally posted by TwinTurbo93
What I learned whem I rebuilded my turbos was that the stock Thrust Bearing (the big C shapped brass one) has 2 holes (bigger) and the Turbo City's has 3 smaller diametter holes, which is much more likely to clogg up compare to stock ones.

I took my turbo out twice after the rebuilt, and ened up using the stock ones for that reason.
The thrust bearing has no efect realy on the performance of the turbo exept for alowing oil through for lube purposes, and I think the stock one is just perfect, most importantly the Thrust Bearing can never go bad anyway b/c there is no physical contact with the shaft and cannot be worn out.

Also do both of them at the same time, is just a pita, nothing to worry, make sure you mark stuff up precisely and you'll be OK and make sure to clean and keep things extra clean.

Good luck.
While the thrust bearing doesn't contact the shaft, it does keep the turbine shaft located axially. That's what a thrust bearing/plate does. There should be no reason for those holes to plug just because they are smaller either.
poss is offline
Reply With Quote
Old 02-23-04, 02:54 PM
  #25
0-rotor-0-turbo-0-fd

TwinTurbo93's Avatar

Join Date: Sep 2002
Location: NYC
Posts: 1,640
Thanks: 0
Thanked 0 Times in 0 Posts
Originally posted by ISUposs
While the thrust bearing doesn't contact the shaft, it does keep the turbine shaft located axially. That's what a thrust bearing/plate does. There should be no reason for those holes to plug just because they are smaller either.
There is a small crome ring (I can't remeber the name) that is placed into the thrust bearing and that ring actualy has contact with the shaft which is replacet with new one on turbo city reb. kit.

I just think is a common sense that such little holes are way easyer to clogg up than the biger ones, don't you think?

It happen to me twice and I just don't wish to anyone have the same problem as I did, if is possible to avoid!
TwinTurbo93 is offline
Reply With Quote

Thread Tools
Search this Thread
Quick Reply: Questions before undertaking Turbo rebuild...


Contact Us Archive Advertising Cookie Policy Privacy Statement Terms of Service

We are a participant in the Amazon Services LLC Associates Program, an affiliate advertising program designed to provide a means for us to earn fees by linking to Amazon.com and affiliated sites.
