Power Steering Rack Rebuild/Refresh-Pics w/part numbers

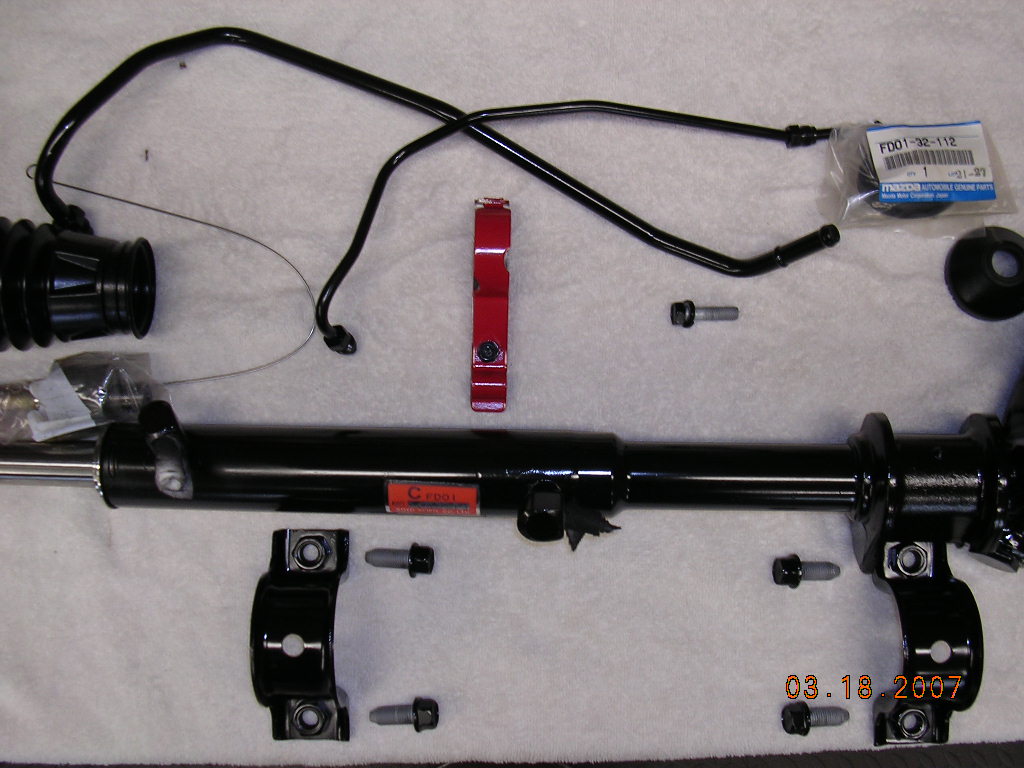

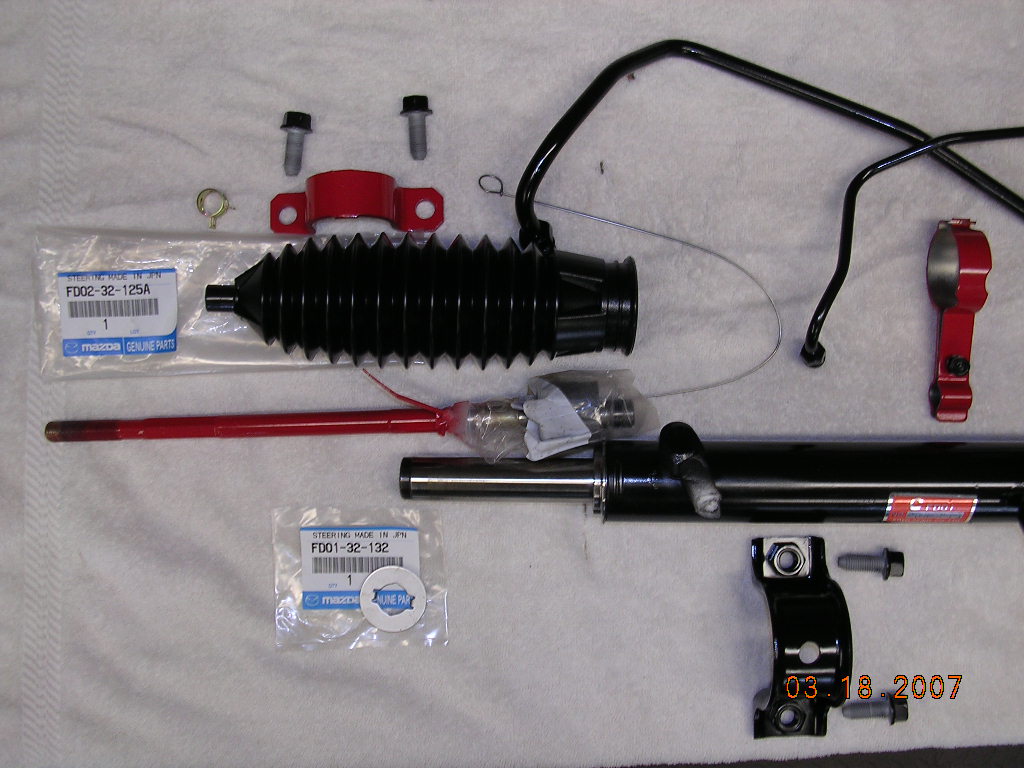

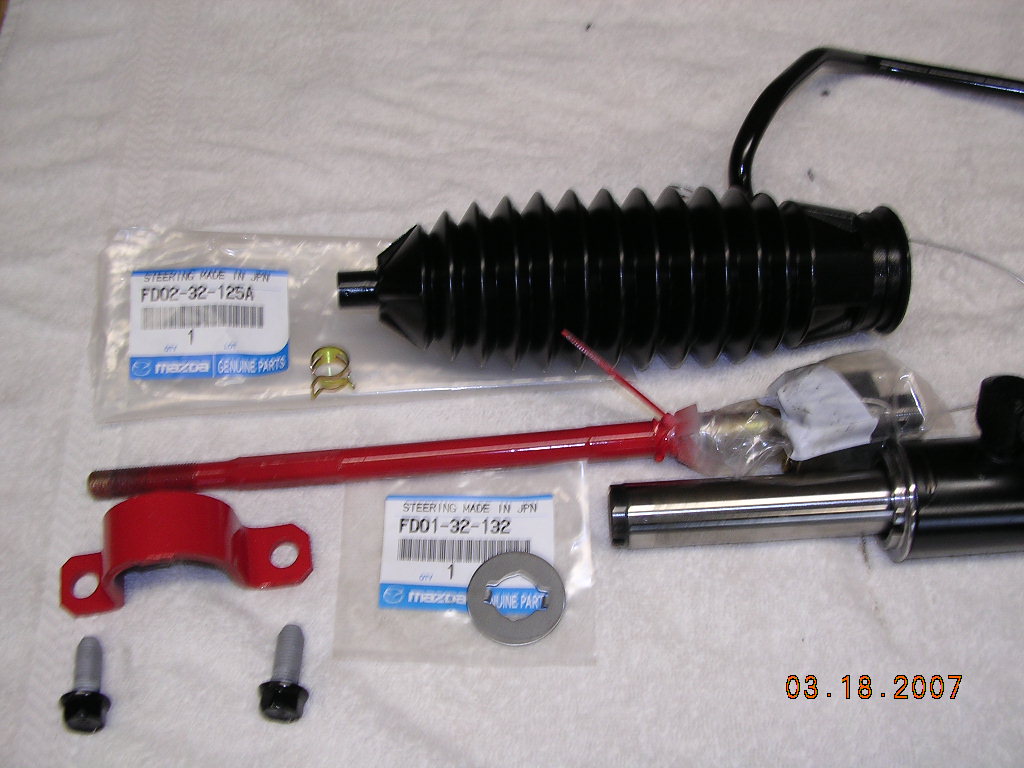

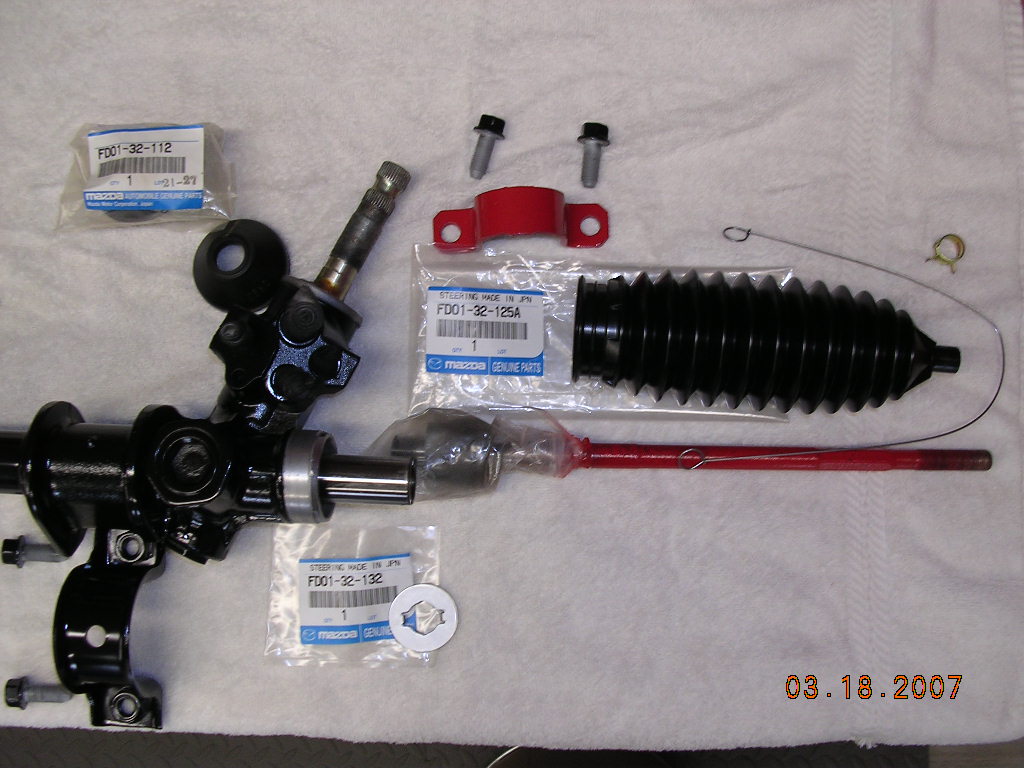

Thought I would share a recent project I completed for those of you who want or need to freshen up your power steering rack.

I bought a car from a forum member who claims to have lost control of it and curbed it. In the process, they damaged many of the suspension components including rupturing the seals on the inside of the rack itself. Instead of rebuilding the entire rack, I bought a used one off of Fritz Flynn. When I received it, it was filthy and parts a little rusty, so I decided to freshen it up a bit before putting it in the car. I did not want to run the risk of putting it in and having problems.

I can post pics of the assembled unit if anyone wants to see it.

Hope other forum members find this useful.

Richard
Attached Thumbnails Power Steering Rack Rebuild/Refresh-Pics w/part numbers-dscn4516.jpg   Power Steering Rack Rebuild/Refresh-Pics w/part numbers-dscn4518.jpg   Power Steering Rack Rebuild/Refresh-Pics w/part numbers-dscn4519.jpg   Power Steering Rack Rebuild/Refresh-Pics w/part numbers-dscn4520.jpg   Power Steering Rack Rebuild/Refresh-Pics w/part numbers-dscn4521.jpg

technomentor is offline
Reply With Quote
Old 03-25-07, 10:06 AM
  #2
Boost Addict
iTrader: (3)

nashman69g's Avatar

Join Date: Nov 2001
Location: Metairie, LA near new orleans
Posts: 1,857
Thanked 2 Times in 2 Posts
if you could post pics of assembly. Also what was the rough cost?
nashman69g is offline
Reply With Quote
Old 03-25-07, 11:26 AM
  #3
Brings Order to Chaos
Thread Starter
iTrader: (18)

technomentor's Avatar

Join Date: Jan 2004
Location: TX
Posts: 892
Thanks: 0
Thanked 0 Times in 0 Posts
Photos of Completed Rack w/Parts Prices

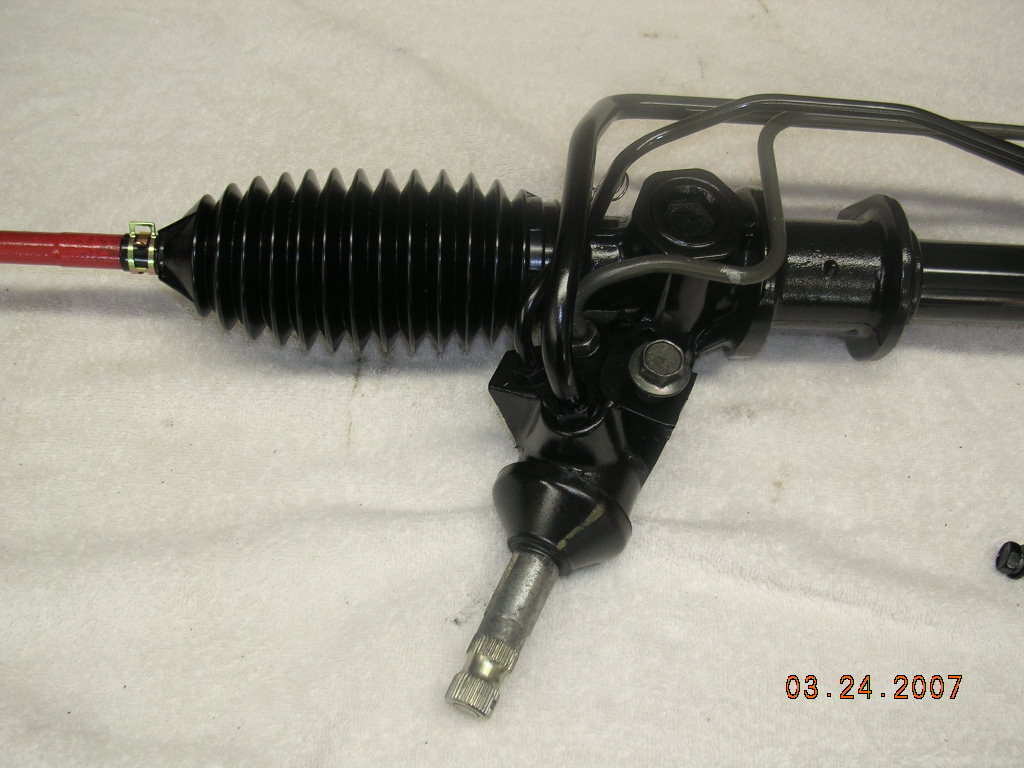

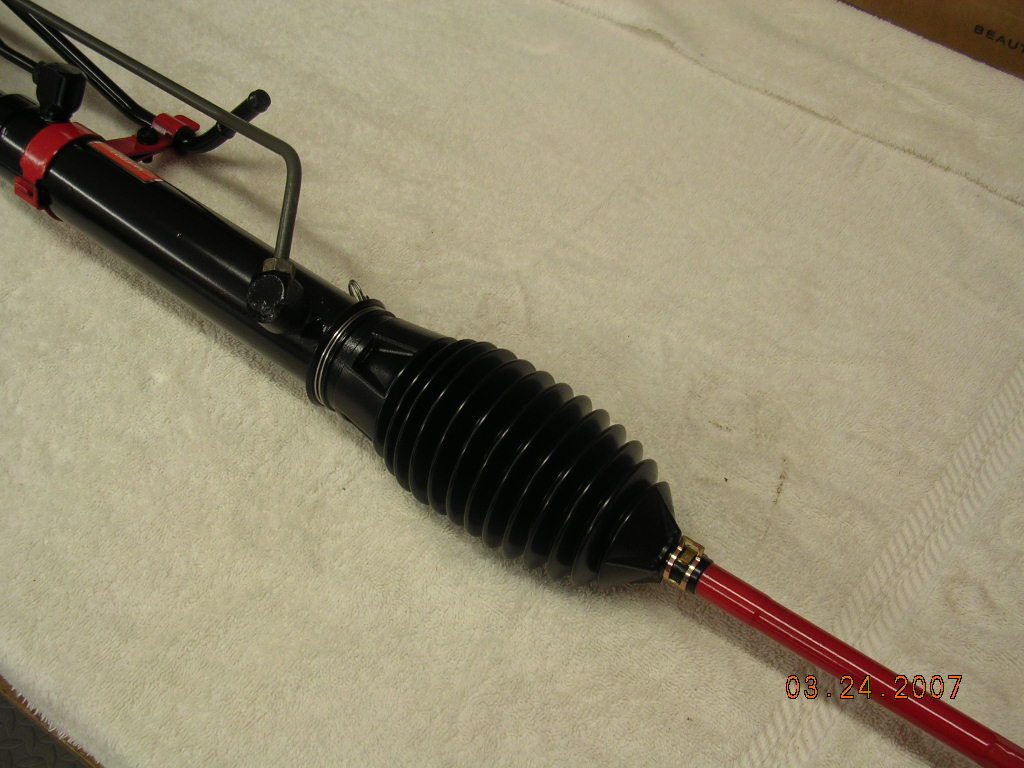

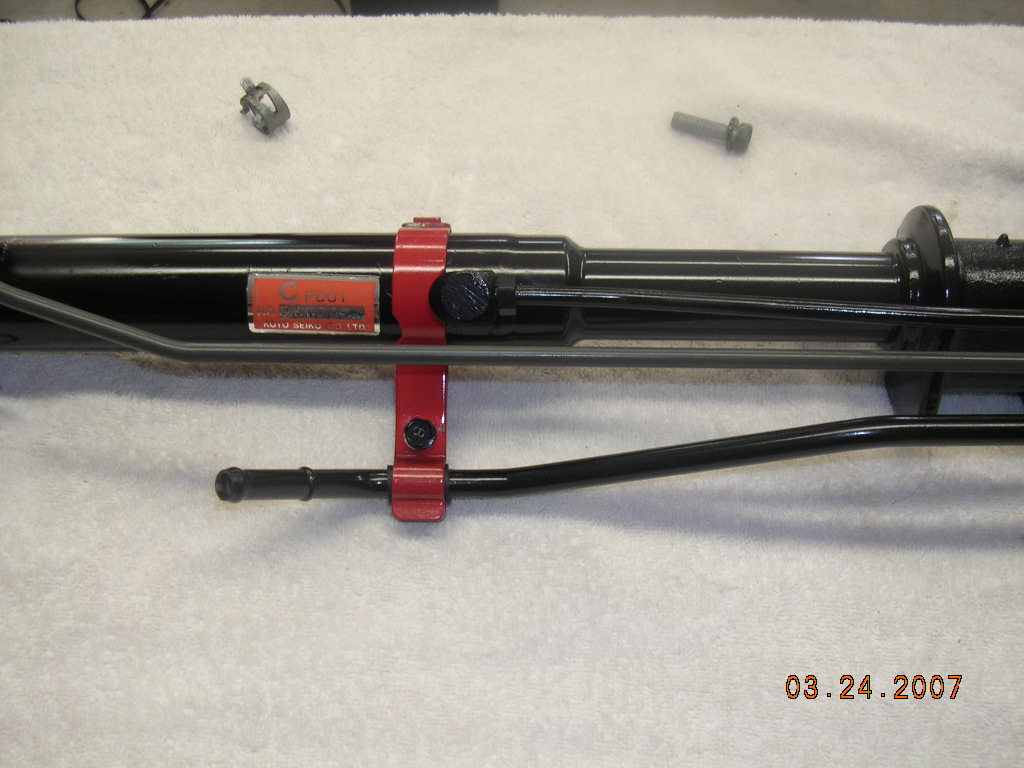

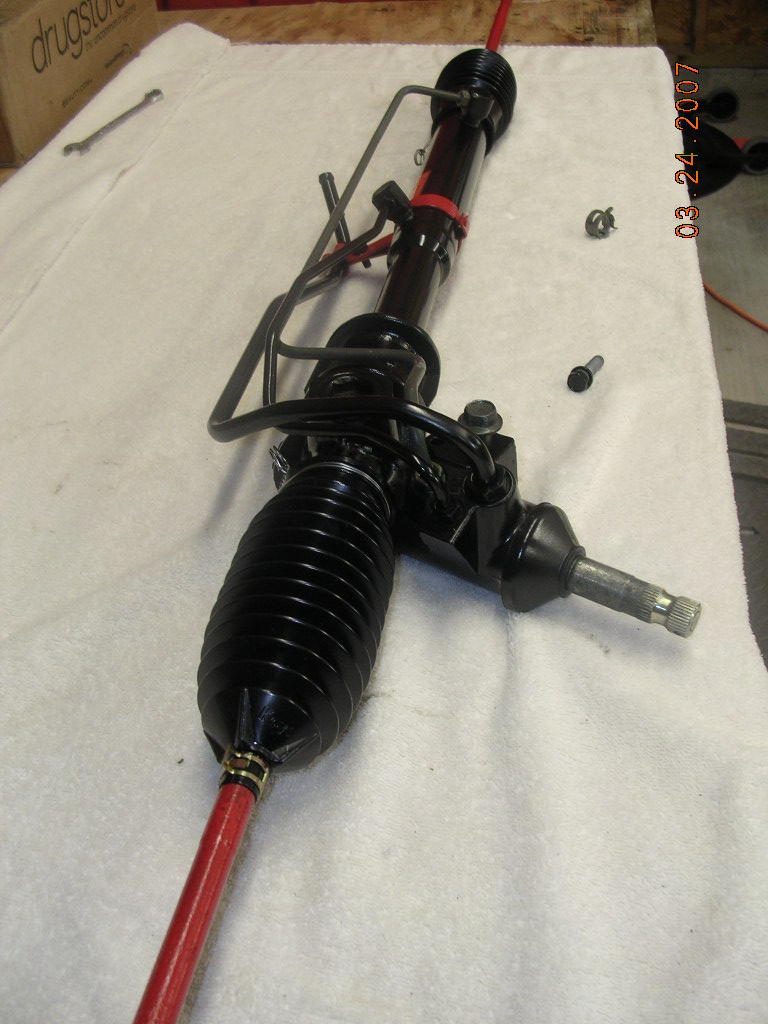

Here are pics of the completed rack.

Parts List:

Mazda Parts - note these are club prices from Ray Crowe at Malloy Mazda
(2) PS rack washers P/N FD01-32-132 Cost: $4.31 ea.
(1) PS rack inner tie rod boot P/N FD01-32-125A Cost: $31.63 <-- driver side
(1) PS rack inner tie rod boot P/N FD02-32-125A Cost: $31.63 <-- passenger side
(1) PS rack dust cover P/N FD01-32-112 Cost: $4.88
(2) Outer tie rod dust boot P/N B455-32-279 Cost: $6.44 ea (not shown in pics)

Walmart Parts
(1) Can high gloss black paint Cost: $1.97

Total Cost: $91.61

So for less than $100 not including your time, you can make you PS rack look like new.
Attached Thumbnails Power Steering Rack Rebuild/Refresh-Pics w/part numbers-dscn4523.jpg   Power Steering Rack Rebuild/Refresh-Pics w/part numbers-dscn4524.jpg   Power Steering Rack Rebuild/Refresh-Pics w/part numbers-dscn4525.jpg   Power Steering Rack Rebuild/Refresh-Pics w/part numbers-dscn4526.jpg
technomentor is offline
Reply With Quote
Old 10-20-11, 04:45 PM
  #4
Money pit

Join Date: Oct 2008
Location: Beaumont, TX
Posts: 44
Thanks: 0
Thanked 0 Times in 0 Posts
Originally Posted by technomentor View Post
Here are pics of the completed rack.

Parts List:

Mazda Parts - note these are club prices from Ray Crowe at Malloy Mazda
(2) PS rack washers P/N FD01-32-132 Cost: $4.31 ea.
(1) PS rack inner tie rod boot P/N FD01-32-125A Cost: $31.63 <-- driver side
(1) PS rack inner tie rod boot P/N FD02-32-125A Cost: $31.63 <-- passenger side
(1) PS rack dust cover P/N FD01-32-112 Cost: $4.88
(2) Outer tie rod dust boot P/N B455-32-279 Cost: $6.44 ea (not shown in pics)

Walmart Parts
(1) Can high gloss black paint Cost: $1.97

Total Cost: $91.61

So for less than $100 not including your time, you can make you PS rack look like new.
Four years later, just talked to Ray in wholesale, and price total was just at $100.00. Not bad for how long ago those prices were. Retail you're looking at 200ish.
TheRealEquinox is offline
Reply With Quote
Old 07-20-14, 03:53 PM
  #5
Senior Member
iTrader: (4)

Join Date: Jan 2014
Location: United States
Posts: 276
Thanks: 0
Thanked 0 Times in 0 Posts
I figured I would resurrect this thread, as I recently started collecting the parts to do this. Here is my parts list i generated. Prices are as of July 2014.
Power Steering Rebuild:

Full remanufactured from NAPA (P/N NRP 262006) ~$300.00 w/ core

INTERNAL PARTS NEEDED

Auto Zone Duralast rebuild kit (P/N 9097) ~$64.00

EXTERNAL PARTS NEEDED

Mazda Parts
(2) PS rack washers P/N FD01-32-132, $7.90
(1) PS rack inner tie rod boot P/N FD01-32-125A, $50.03
(1) PS rack inner tie rod boot P/N FD02-32-125A, $50.03
(1) PS rack dust cover P/N FD01-32-112, $5.74
(2) Outer tie rod dust boot P/N B455-32-279, $8.23
(2) Tie Rod End P/N XXX, $66.10

Equivalent NAPA parts

(2) PS rack washers P/N
(1) PS rack inner tie rod boot P/N NCP 2691574 (RHS), $19.99
(1) PS rack inner tie rod boot P/N NCP 2691555 (LHS), $27.49
(1) PS rack dust cover P/N
(2) Outer tie rod dust boot P/N
(2) Tie Rod End P/N NCP 2692924, $52.99

Equivalent Auto Zone parts

2) PS rack washers P/N
(1) PS rack inner tie rod boot P/N FA8046 (RHS), $10.99
(1) PS rack inner tie rod boot P/N FA8022 (LHS), $26.99
(1) PS rack dust cover P/N
(2) Outer tie rod dust boot P/N
(2) Tie Rod End P/N ES3251, $10.99

The places where a part number is blank is where only the Mazda part is available. As I will be dropping my car about 2", I plan on buying a bump steer tie rod end kit in lieu of the standard ends. I ordered the boots and seal kit from Auto Zone. They decided to ship ALL 3 items separately. Still, the prices were good. Hope this helps anyone. Just trying to contribute.
